2-52Instruments and controls
GUID-EC46BDB9-5A5F-4FC9-A9F0-5555C039C450
POWER WINDOWSGUID-B5DC4A3B-BDA9-404F-9E56-B523D30545FC
WARNING
.Make sure that all passengers have their
hands, etc. inside the vehicle while it is
in motion and before closing the win-
dows. Use the window lock switch to
prevent unexpected use of the power
windows.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls and be-
come trapped in the window. Unat-
tended children could become involved
in serious accidents.
The power windows operate when the
ignition switch is in the ON position or for
about 45 seconds after the ignition switch
is pushed to the OFF position. If the
driver’s or front passenger’s door is
opened during this period of about 45
seconds, power to the windows is can-
celed.
SIC3279
Sedan
SIC3286A
Coupe 1. Driver side window
2. Front passenger side window
3.
Rear left passenger side window
(Sedan only)
4. Rear right passenger side window
(Sedan only)
5. Window lock button
Main power window switch (driver’s
side)
GUID-30535306-1466-4E47-9742-71642DD2CE80To open or close the window, push down
*Aor pull up*Bthe switch and hold it.
The main switch (driver side switches) will
open or close all the windows.
Locking passengers’ windowsGUID-AF236370-F01C-4CB7-B27B-2400A5A7941FWhen the lock button*Cis pushed in, only
the driver side window can be opened or
closed. Push it in again to cancel.
WINDOWS

Black plate (131,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SIC3241
Passenger side power window
switch
GUID-074E0937-F90F-4461-9B0E-2784EFE2207BThe passenger side switch will open or
close only the corresponding window. To
open or close the window, push down or
pull up the switch and hold it.
SIC3289
Sedan—Type A
SIC3285
Sedan —Type B
SIC3288
Coupe
Automatic operation (for front door
windows or all door windows)
GUID-9BF62CC8-4855-4483-8A55-EA5AB10E4305To fully open or close the window, com-
pletely push down or pull up the switch
and release it; it need not be held. The
window will automatically open or close all
the way. To stop the window, just push or
lift the switch in the opposite direction.
A light push or pull on the switch will cause
the window to open or close until the
switch is released.
Instruments and controls2-53

Black plate (132,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-54Instruments and controls
Auto reverse functionGUID-A9F7D9E8-291F-4771-BC07-683BFB01C2A0
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the window.
If the control unit detects something
caught in the window as it is closing, the
window will be immediately lowered.
The auto reverse function can be activated
when the window is closed by automatic
operation when the ignition switch is in the
ON position or for 45 seconds after the
ignition switch is pushed to the OFF
position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Automatic adjusting function
(Coupe)
GUID-D2D30762-25BF-4EE0-B27E-BB7D8BB3ADD2
CAUTION
When the battery cable is removed from the
battery terminal, do not close either of the
front doors. The automatic window adjust-
ing function will not work and the side roof
panel may be damaged.
The power window has an automatic
adjusting function. When the door is being
opened, the window is automatically low-
ered slightly to avoid contact between the
window and the side roof panel. When the
door is closed, the window is automatically
raised slightly.
While the automatic adjusting function
does not work, the window will be con-
trolled as follows:
.When the door is opened, the window
lowers for approximately 2 seconds.
. While the door is open, the window
cannot be raised.
If the windows do not close auto-
matically
GUID-AF6C72A6-6B0C-4A7D-ACDE-4A4B5C42D7AEIf the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initi-
alize the power window system.
1. Push the ignition switch to the ON position.
2. Close the door.
3. Open the window completely by oper- ating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold
the switch more than 3 seconds after
the window is closed completely.
5. Release the power window switch.
Operate the window by the automatic
function to confirm the initialization is
complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function
does not operate properly after performing
the procedure above, have your vehicle
checked by an INFINITI retailer.

Black plate (133,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-EFB5DCAF-F1EF-42A7-BCC9-44CE2BC515B8
WARNING
.In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child re-
straints.
. Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
.Remove water drops, snow, ice or sand
from the moonroof before opening.
. Do not place any heavy object on the
moonroof or surrounding area.
AUTOMATIC MOONROOFGUID-E40F3D30-93F7-48AD-9873-F04B6977F71BThe moonroof only operates when the
ignition switch is in the ON position.
The automatic moonroof is operational for
about 45 seconds, even if the ignition
switch is pushed to the OFF position. If the
driver’s door or the passenger’s door is
opened during this period of about 45
seconds, power to the moonroof is can-
celed.
SIC3243
SunshadeGUID-CCF4E2B3-EA7A-402A-90AA-2F546B19823DThe sunshade will open automatically
when the moonroof is opened. However,
it must be closed manually.
Tilting the moonroofGUID-F59B3BC6-1B6D-4957-99F3-E147F486CF5DTo tilt up, first close the moonroof, then
push the UP
*1side of the moonroof
switch and release it; it need not be held.
To tilt down the moonroof, push the DOWN
*2side.
Sliding the moonroofGUID-A3EE336A-96B8-48A3-A291-DA88029A9E74To fully open or close the moonroof, push
the CLOSE
*1or OPEN*2side of
Instruments and controls2-55
MOONROOF (if so equipped)

Black plate (134,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-56Instruments and controls
the moonroof switch and release it; it need
not be held. The roof will automatically
open or close all the way. To stop the roof,
push the switch once more while it is
opening or closing.
Auto reverse functionGUID-1665A219-159C-4E8B-97CC-F44A3889C13D
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the moonroof.
If the control unit detects something
caught in the moonroof when it is closing,
the moonroof will be immediately opened.
The auto reverse function can be activated
when the moonroof is closed by automatic
operation when the ignition switch is in the
ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof cannot be closed auto-
matically when the auto reverse function
activates due to a malfunction, push and
hold the CLOSE
*1side of themoonroof switch.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
If the moonroof does not operateGUID-235A4682-A88E-47F9-9907-4A08FACA91CEIf the moonroof does not operate properly,
perform the following procedure to initi-
alize the moonroof operation system.
1. If the moonroof is open, close it fully by
repeatedly pushing the CLOSE
*1
side of the moonroof switch to tilt the
moonroof up.
2. Push and hold the CLOSE
*1side
of the moonroof switch.
3. Release the moonroof switch after the moonroof moves slightly up and down.
4. Push and hold the OPEN
*2side of
the moonroof switch to fully tilt the
moonroof down.
5. Check if the moonroof switch operates normally.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked by an INFINITI retailer.
GUID-086B1CC9-F92B-4357-8461-A4FAC03B72E8
SIC3249
MAP LIGHTSGUID-1AFD655C-C54F-4694-ACBA-625EF6501A09Push the button as illustrated to turn the
light on or off.
INTERIOR LIGHTS

Black plate (135,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SIC3250
PERSONAL LIGHTS (Sedan)GUID-8A80AFCB-87B7-47AE-B03E-E39C7E1A6A4A
RearGUID-CB368416-2E25-494C-922F-2408158FB064Push the button as illustrated to turn the
light on or off.
SIC3251
INTERIOR LIGHT CONTROL SWITCHGUID-C2DB58AC-6BD5-4108-8834-2A62D1E0B377The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-798EF023-2D8A-44E2-8CE2-F22177A6EBE9When the switch is in the ON position*1
the map lights and rear personal lights will
illuminate.
DOOR positionGUID-CA87C080-730F-4193-BE23-19559113F670When the switch is in the DOOR position
*2, the map lights and rear personal lights
will illuminate under the following condi-
tions: .
ignition switch is switched to the LOCK
position
— remain on for about 15 seconds.
. doors are unlocked by pushing the
UNLOCK button on the Intelligent Key
or door handle request switch with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed
with the ignition switch in the LOCK
position
— remain on for about 15 seconds.
. any door is opened with the ignition
switch in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights
go off.
The lights will also turn off after 15
minutes when the lights remain illumi-
nated after the ignition switch has been
pushed to the OFF or LOCK position to
prevent the battery from becoming dis-
charged.
When the auto interior illumination is set
to the OFF position (see “Vehicle informa-
tion and settings” (P.4-9)), the lights will
illuminate under the following condition:
Instruments and controls2-57

Black plate (136,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-58Instruments and controls
.any door is opened with the ignition
switch in any position
— remain on while the door is opened.
When the door is closed, the lights
go off.
OFF positionGUID-544F2395-1EF1-447D-9281-F30C0F022BEEWhen the switch is in the OFF position*3,
the lights will not illuminate, regardless of
the condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a
discharged battery.
GUID-4767303A-3063-498C-B5AA-4C1CC218222A
SIC2064
Type A
SIC3869
Type B The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after 15
minutes when the lights remain illumi-
nated to prevent the battery from becom-
ing discharged.
VANITY MIRROR LIGHTS

Black plate (137,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-3B0103FD-8C82-48ED-ABBE-0FF7FE9A8F16The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.
The light will also turn off after 15 minutes
when the light remains illuminated after
the ignition switch has been pushed to the
OFF or LOCK position to prevent the
battery from becoming discharged.GUID-0BF67760-C562-4D9A-8217-C1A104712017HomeLink®Universal Transceiver provides
a convenient way to consolidate the func-
tions of up to three individual hand-held
transmitters into one built-in device.
HomeLink
®Universal Transceiver:
. Will operate most Radio Frequency (RF)
devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.
. Is powered by your vehicle’s battery. No
separate batteries are required. If the
vehicle’s battery is discharged or is
disconnected, HomeLink
®will retain all
programming.
Once HomeLink
®Universal Transceiver is
programmed, retain the original transmit-
ter for future programming procedures
(Example: new vehicle purchases). Upon
sale of the vehicle, the programmed
HomeLink
®Universal Transceiver buttons
should be erased for security purposes.
For additional information, see “Program-
ming HomeLink
®” (P.2-60).
WARNING
. Do not use HomeLink®Universal Trans-
ceiver with any garage door opener that
lacks safety stop and reverse features as required by federal safety standards.
(These standards became effective for
opener models manufactured after April
1, 1982.) A garage door opener which
cannot detect an object in the path of a
closing garage door and then automati-
cally stop and reverse, does not meet
current federal safety standards. Using a
garage door opener without these fea-
tures increases the risk of serious injury
or death.
. During programming procedure, your
garage door or security gate may open
or close. Make sure that people and
objects are clear of the garage door,
gate, etc. that you are programming.
. Your vehicle’s engine should be turned
off while programming HomeLink
®Uni-
versal Transceiver.
Instruments and controls2-59
TRUNK LIGHT HomeLink®UNIVERSAL TRANSCEIVER (if so
equipped)

Black plate (138,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-60Instruments and controls
PROGRAMMING HomeLink®GUID-C1A6C78C-5674-4502-BB48-800218FBC19ETo program your HomeLink®Transceiver to
operate a garage door, gate, or entry door
opener, home or office lighting, you need
to be at the same location as the device.
Note: Garage door openers (manufactured
after 1996) have “rolling code protection”.
To program a garage door opener equipped
with “rolling code protection”; you will
need to use a ladder to get up to the
garage door opener motor to be able to
access the “smart or learn” program
button.
SIC3612
1. To begin, push and hold the 2 outer HomeLink®buttons (to clear the mem-
ory) until the indicator light
*Ablinks
(after 20 seconds). Release both but-
tons.
2. Position the end of the hand-held
transmitter 1-3 inches away from the
HomeLink
®surface.
SIC3613
3. Using both hands, simultaneously push
and hold both the HomeLink®button
you want to program and the hand-held
transmitter button.
DO NOT release the buttons until step 4
has been completed.
4. Hold down both buttons until the
indicator light on HomeLink
®flashes,
changing from a “slow blink”to a
“rapid blink”. This could take up to 90
seconds. When the indicator light
blinks rapidly, both buttons may be
released. The rapidly flashing light
indicates successful programming. To
activate the garage door or other

Black plate (139,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

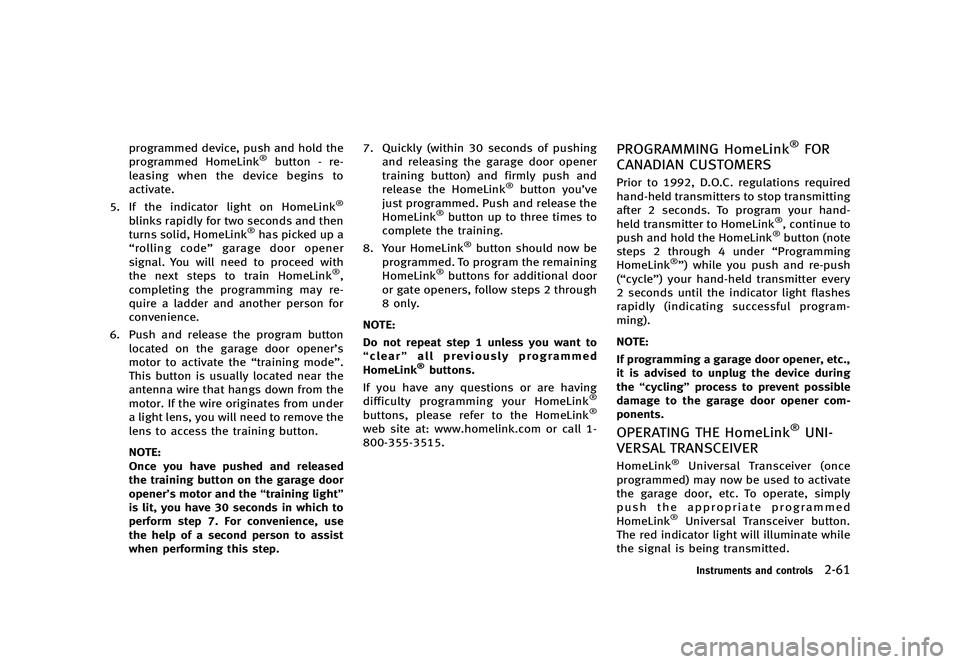

programmed device, push and hold the
programmed HomeLink®button - re-
leasing when the device begins to
activate.
5. If the indicator light on HomeLink
®
blinks rapidly for two seconds and then
turns solid, HomeLink®has picked up a
“rolling code” garage door opener
signal. You will need to proceed with
the next steps to train HomeLink
®,
completing the programming may re-
quire a ladder and another person for
convenience.
6. Push and release the program button located on the garage door opener’s
motor to activate the “training mode”.
This button is usually located near the
antenna wire that hangs down from the
motor. If the wire originates from under
a light lens, you will need to remove the
lens to access the training button.
NOTE:
Once you have pushed and released
the training button on the garage door
opener’s motor and the “training light”
is lit, you have 30 seconds in which to
perform step 7. For convenience, use
the help of a second person to assist
when performing this step. 7. Quickly (within 30 seconds of pushing
and releasing the garage door opener
training button) and firmly push and
release the HomeLink
®button you’ve
just programmed. Push and release the
HomeLink
®button up to three times to
complete the training.
8. Your HomeLink
®button should now be
programmed. To program the remaining
HomeLink
®buttons for additional door
or gate openers, follow steps 2 through
8 only.
NOTE:
Do not repeat step 1 unless you want to
“clear” all previously programmed
HomeLink
®buttons.
If you have any questions or are having
difficulty programming your HomeLink
®
buttons, please refer to the HomeLink®
web site at: www.homelink.com or call 1-
800-355-3515.
PROGRAMMING HomeLink®FOR
CANADIAN CUSTOMERS
GUID-FA6ED7D7-5805-4878-A033-2D4A6CF0EB88Prior to 1992, D.O.C. regulations required
hand-held transmitters to stop transmitting
after 2 seconds. To program your hand-
held transmitter to HomeLink
®, continue to
push and hold the HomeLink®button (note
steps 2 through 4 under “Programming
HomeLink
®”) while you push and re-push
(“cycle”) your hand-held transmitter every
2 seconds until the indicator light flashes
rapidly (indicating successful program-
ming).
NOTE:
If programming a garage door opener, etc.,
it is advised to unplug the device during
the “cycling” process to prevent possible
damage to the garage door opener com-
ponents.
OPERATING THE HomeLink®UNI-
VERSAL TRANSCEIVER
GUID-6973D290-7F33-4E52-A191-FAE191D2E93AHomeLink®Universal Transceiver (once
programmed) may now be used to activate
the garage door, etc. To operate, simply
push the appropriate programmed
HomeLink
®Universal Transceiver button.
The red indicator light will illuminate while
the signal is being transmitted.
Instruments and controls2-61
