INFINITI G 2012 Owners Manual

Black plate (120,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-42Instruments and controls
GUID-D6E40EC7-7E3A-4BCB-BCDD-525F5F5A56AE
JVS0022X
The vehicle should be driven with the
Vehicle Dynamic Control (VDC) system on
for most driving conditions.
If the vehicle is stuck in mud or snow, the
VDC system reduces the engine output to
reduce wheel spin. The engine speed will
be reduced even if the accelerator is
depressed to the floor. If maximum engine
power is needed to free a stuck vehicle,
turn the VDC system off.
To turn off the VDC system, push the VDC
OFF switch. The
indicator will illumi-
nate.
Push the VDC OFF switch again or restart
the engine to turn on the system. (See “Vehicle Dynamic Control (VDC) system”
(P.5-55).)
GUID-DC9CAC82-B97F-47EC-AD18-AF6DB1F26506
SIC3325
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
ADJUSTING THE TIMEGUID-9687E000-FB4A-4A09-9D4E-BA64FB9580221.
To set the clock forward, push the
button
*1.
2. To set the clock backward, push the button
*2.
3. To move forward or backward faster, push and hold the button more than 5
seconds.
For details about display clock adjustment
(if so equipped), see “How to use SETTING
button” (P.4-14).
VEHICLE DYNAMIC CONTROL (VDC) OFF
SWITCH CLOCK

Black plate (121,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-B26334D9-D8B8-436D-BBEA-461C2F9C02D3
JVI0329X
Automatic transmission models
SIC4684
Manual transmission models
SIC4316
Automatic transmission models
The power outlet is located in the center
console and storage box (if so equipped).
CAUTION
. The outlet and plug may be hot during or
immediately after use.
. Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
. Use power outlet with the engine run-
ning to avoid discharging the vehicle
battery. .
Avoid using power outlet when the air
conditioner, headlights or rear window
defroster is on.
. This power outlet is not designed for use
with a cigarette lighter unit.
. Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may blow.
. Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.
. When not in use, be sure to close the
cap. Do not allow water to contact the
outlet.
Instruments and controls2-43
POWER OUTLET

Black plate (122,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-44Instruments and controls
GUID-DE8DDBA2-893D-409D-9154-63B79271B874
SIC3219

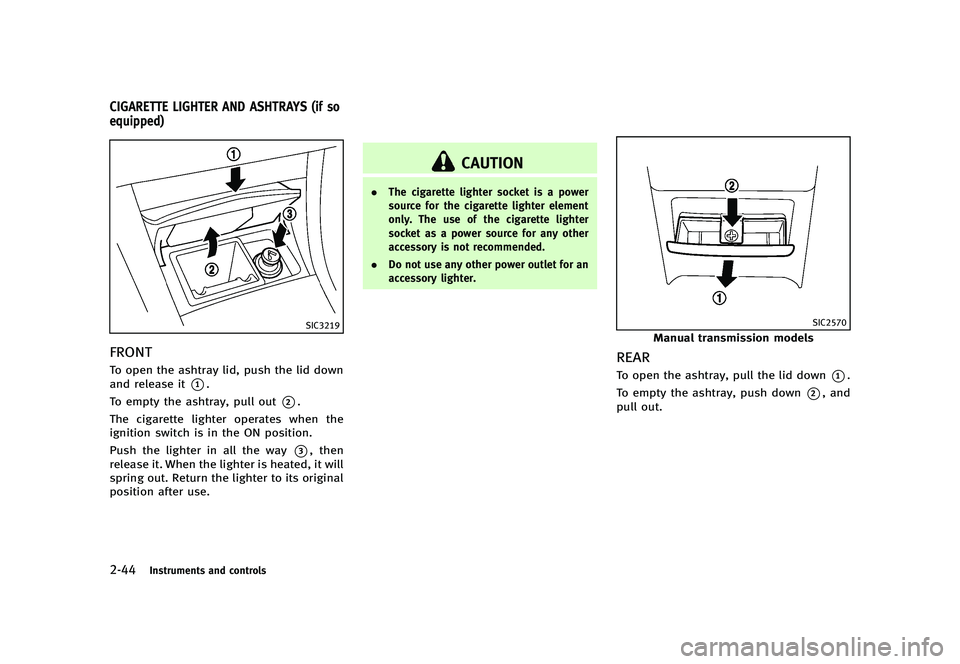

FRONTGUID-1791CA11-E504-4F56-A33F-1E5AD0535DB5To open the ashtray lid, push the lid down
and release it
*1.
To empty the ashtray, pull out
*2.
The cigarette lighter operates when the
ignition switch is in the ON position.
Push the lighter in all the way
*3, then
release it. When the lighter is heated, it will
spring out. Return the lighter to its original
position after use.
CAUTION
. The cigarette lighter socket is a power
source for the cigarette lighter element
only. The use of the cigarette lighter
socket as a power source for any other
accessory is not recommended.
. Do not use any other power outlet for an
accessory lighter.
SIC2570
Manual transmission models
REARGUID-74AD3966-EF58-4E69-95A0-EB5B5A1AE1EDTo open the ashtray, pull the lid down*1.
To empty the ashtray, push down
*2, and
pull out.
CIGARETTE LIGHTER AND ASHTRAYS (if so
equipped)

Black plate (123,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-D3A055E8-39DD-4A9C-8322-53CDE4821634

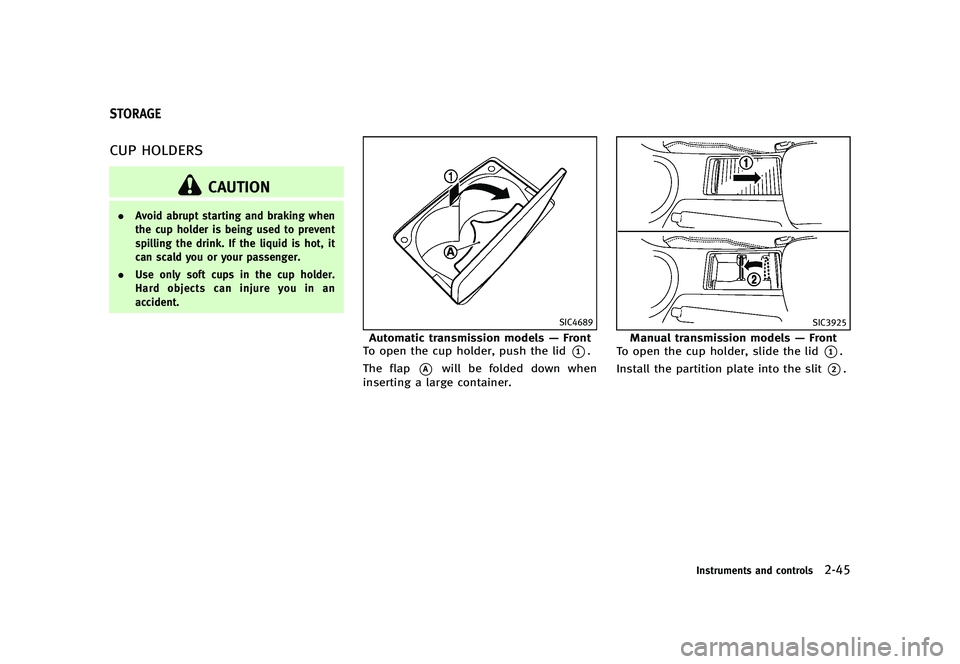

CUP HOLDERSGUID-0D703E70-0865-4B52-8725-50A2449FFCB4
CAUTION
.Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4689
Automatic transmission models —Front
To open the cup holder, push the lid
*1.
The flap
*Awill be folded down when
inserting a large container.
SIC3925
Manual transmission models —Front
To open the cup holder, slide the lid
*1.
Install the partition plate into the slit
*2.
Instruments and controls2-45
STORAGE

Black plate (124,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-46Instruments and controls

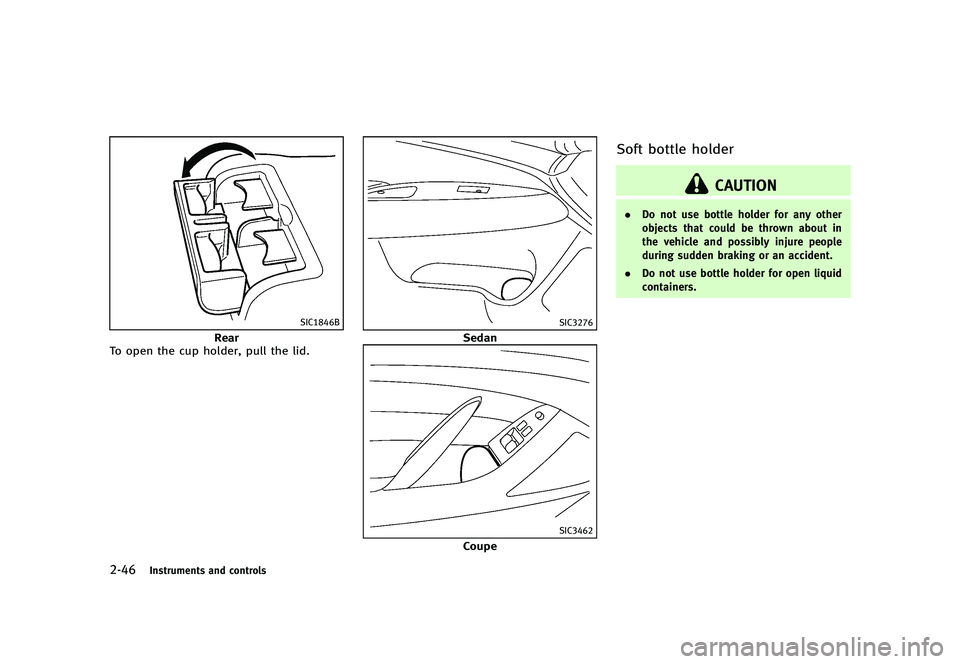

SIC1846B
Rear
To open the cup holder, pull the lid.
SIC3276
Sedan
SIC3462
Coupe
Soft bottle holderGUID-7748E667-E344-4739-8AAF-90CF7B16AD06
CAUTION
. Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
. Do not use bottle holder for open liquid
containers.

Black plate (125,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SIC3246

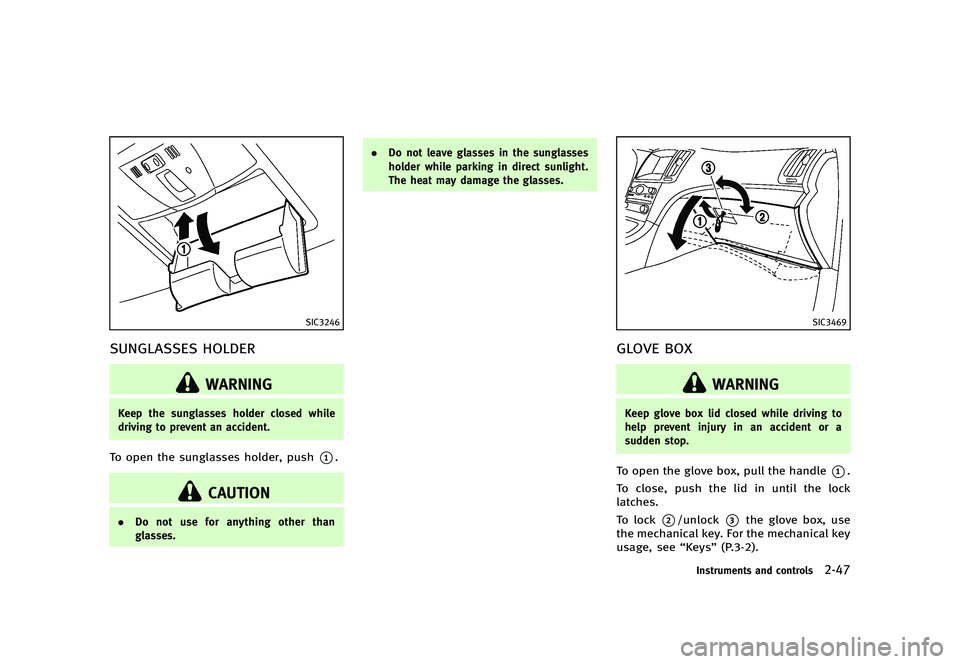

SUNGLASSES HOLDERGUID-0DE963FA-CB20-4597-A160-D7A44C1C2021
WARNING
Keep the sunglasses holder closed while
driving to prevent an accident.
To open the sunglasses holder, push*1.
CAUTION
.Do not use for anything other than
glasses. .
Do not leave glasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the glasses.
SIC3469
GLOVE BOXGUID-B206543D-B260-4DF3-8E5F-F80BDAA8D4C5
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle*1.
To close, push the lid in until the lock
latches.
To lock
*2/unlock*3the glove box, use
the mechanical key. For the mechanical key
usage, see “Keys”(P.3-2).
Instruments and controls2-47

Black plate (126,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-48Instruments and controls
SIC4363
Automatic transmission models
SIC4307
Manual transmission models

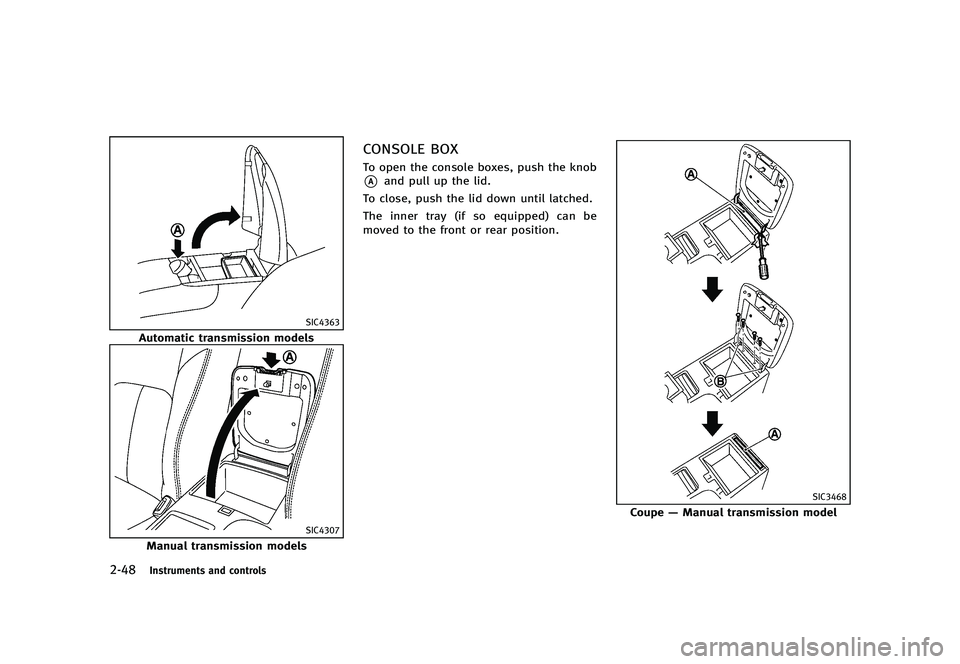

CONSOLE BOXGUID-548444ED-53A8-42C7-B1A2-DCFD5796C052To open the console boxes, push the knob
*Aand pull up the lid.
To close, push the lid down until latched.
The inner tray (if so equipped) can be
moved to the front or rear position.
SIC3468
Coupe —Manual transmission model

Black plate (127,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

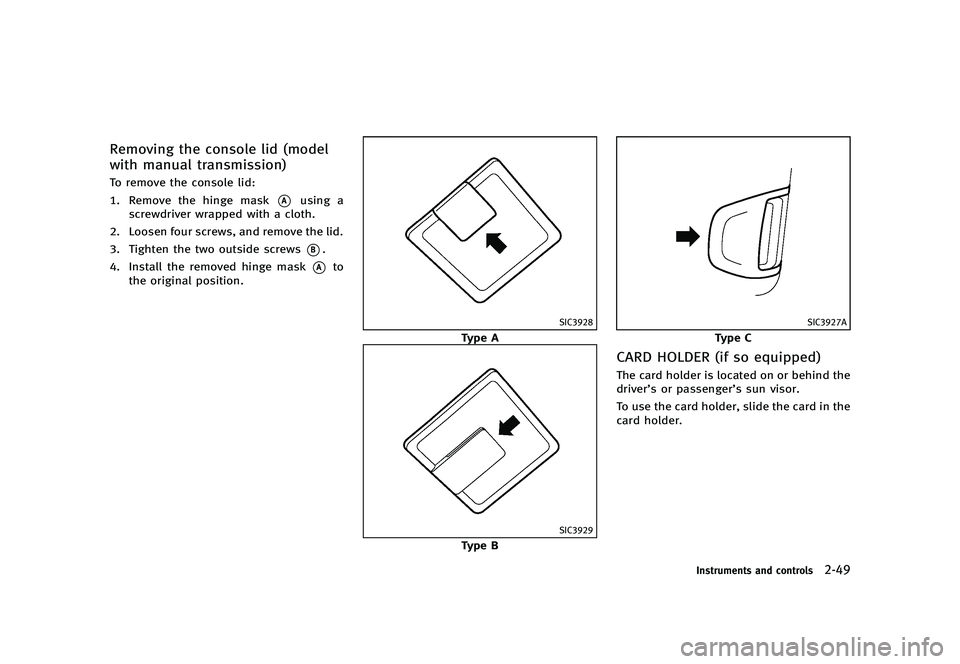

Removing the console lid (model
with manual transmission)
GUID-652C3CF3-C626-4CA3-8042-4FEFAEB55A70To remove the console lid:
1. Remove the hinge mask
*Ausing a
screwdriver wrapped with a cloth.
2. Loosen four screws, and remove the lid.
3. Tighten the two outside screws
*B.
4. Install the removed hinge mask
*Ato
the original position.
SIC3928
Type A
SIC3929
Type B
SIC3927A
Type C
CARD HOLDER (if so equipped)GUID-BD188607-6401-42E8-8C8D-1F1240A1FB9DThe card holder is located on or behind the
driver’s or passenger’s sun visor.
To use the card holder, slide the card in the
card holder.
Instruments and controls2-49

Black plate (128,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
2-50Instruments and controls
SIC4308

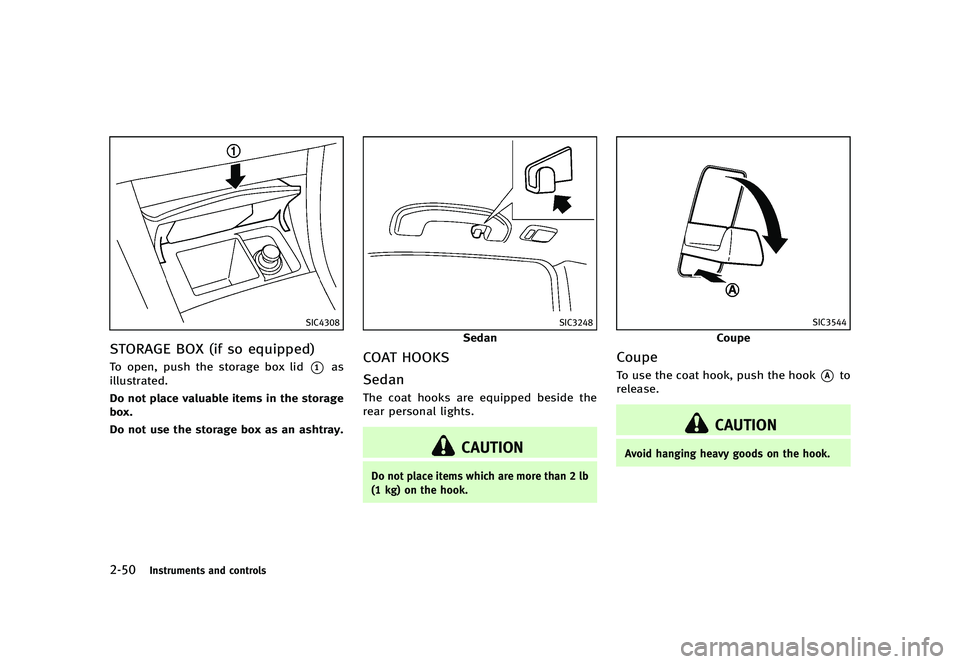

STORAGE BOX (if so equipped)GUID-CFA98C55-37DD-4612-A252-9BB5CFC5B9F1To open, push the storage box lid*1as
illustrated.
Do not place valuable items in the storage
box.
Do not use the storage box as an ashtray.
SIC3248
Sedan
COAT HOOKSGUID-B805A19F-9712-424B-857B-8FED14115CE3
SedanGUID-96817661-72E6-4213-9894-244280FDE3C2The coat hooks are equipped beside the
rear personal lights.
CAUTION
Do not place items which are more than 2 lb
(1 kg) on the hook.
SIC3544
Coupe
CoupeGUID-CDE6DCDD-9D25-4089-9D89-9ACDDE762882To use the coat hook, push the hook*Ato
release.
CAUTION
Avoid hanging heavy goods on the hook.

Black plate (129,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SIC3467

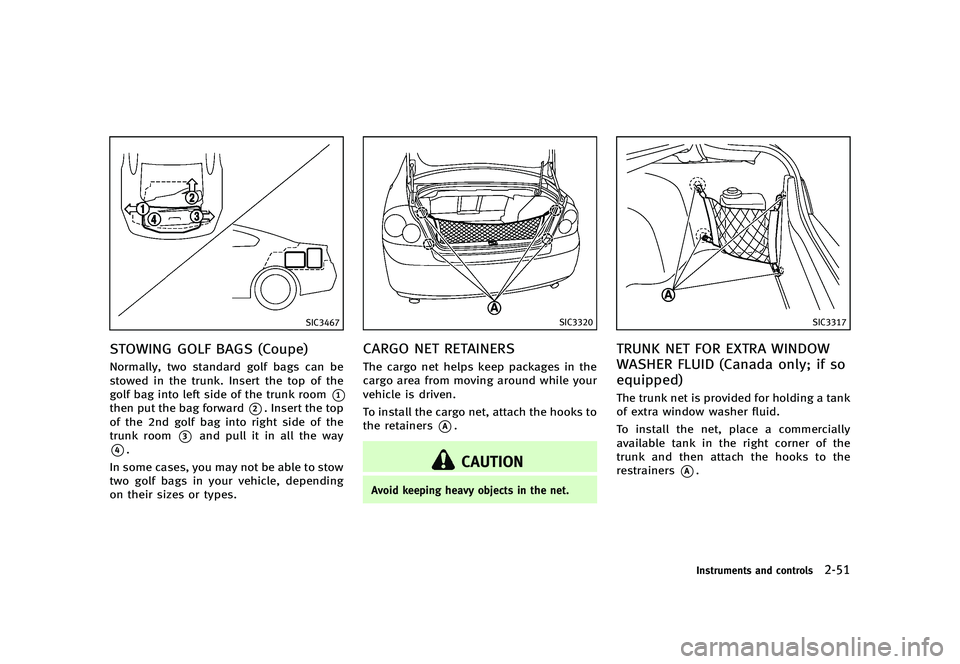

STOWING GOLF BAGS (Coupe)GUID-1973D1FC-69DF-4CB2-942C-8D443AB5F9F4Normally, two standard golf bags can be
stowed in the trunk. Insert the top of the
golf bag into left side of the trunk room
*1
then put the bag forward*2. Insert the top
of the 2nd golf bag into right side of the
trunk room
*3and pull it in all the way
*4.
In some cases, you may not be able to stow
two golf bags in your vehicle, depending
on their sizes or types.
SIC3320
CARGO NET RETAINERSGUID-C4F2D5B7-7C2D-4883-A7C4-90C8BA661692The cargo net helps keep packages in the
cargo area from moving around while your
vehicle is driven.
To install the cargo net, attach the hooks to
the retainers
*A.
CAUTION
Avoid keeping heavy objects in the net.
SIC3317
TRUNK NET FOR EXTRA WINDOW
WASHER FLUID (Canada only; if so
equipped)
GUID-C4EA0611-9808-405C-81D9-C1507293FB46The trunk net is provided for holding a tank
of extra window washer fluid.
To install the net, place a commercially
available tank in the right corner of the
trunk and then attach the hooks to the
restrainers
*A.
Instruments and controls2-51
