Voice commands...
........................................... 4-91
Control buttons ...
............................................. 4-92
Connecting procedure ...
.................................... 4-92
Phone selection ...
............................................. 4-93
Vehicle phonebook ...
........................................ 4-93
Making a call ...
................................................ 4-95
Receiving a call ...
............................................. 4-96
During a call ...
................................................. 4-97
Phone setting ...
................................................ 4-98
Troubleshooting guide ...
................................... 4-99
Bluetooth
®Hands-Free Phone System
(models without navigation system)
(if so equipped) ...
............................................... 4-100
Regulatory information ...
................................ 4-101
Control buttons ...
........................................... 4-102
Voice Recognition System ...
............................ 4-102 Pairing procedure
...
...................................... 4-107
Phonebook registration ...
.............................. 4-108
Making a call ...
............................................. 4-109
Receiving a call ...
.......................................... 4-109
During a call ...
.............................................. 4-109
Phone settings ...
........................................... 4-110
Voice adaptation mode ...
.............................. 4-113
INFINITI Voice Recognition system
(models with navigation system) ...
..................... 4-114
INFINITI Voice Recognition
STANDARD mode ...
........................................ 4-115
Using the system ...
....................................... 4-118
INFINITI Voice Recognition alternate
command mode ...
......................................... 4-127
Using the system ...
....................................... 4-136
Troubleshooting guide ...
............................... 4-142

Black plate (181,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
. In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-7F90DABA-37C8-4571-9C5A-2974CEC5AA7A
SAA1523
Models with navigation system
1. “STATUS” status display button
(P.4-9)
2, 6, 7, 10, 11. For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.)
3. INFINITI controller (P.4-5)
4. “PHONE” Bluetooth
®Hands-Free
Phone System button (P.4-90)
5. “
OFF” brightness control and
display ON/OFF button (P.4-9)
8. “AM·FM·SAT” band selector button
(P.4-41) 9.
“DISC·AUX” selector button (P.4-41)
12. “INFO” vehicle and navigation infor-
mation button (P.4-9)
13. “SETTING” button (P.4-14)
Monitor, climate, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL

Black plate (182,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-4Monitor, climate, audio, phone and voice recognition systems
SAA1524
Models without navigation system
1. “AUX” button (P.4-41)
2. “RADIO AM·FM” band selector button
(P.4-41)
3. INFINITI controller (P.4-5)
4. “
OFF” brightness control and
display ON/OFF button (P.4-9)
5. “INFO” vehicle information button
(P.4-9)
6. “DISC” selector button (P.4-41)
7. “STATUS” status display button
(P.4-9)
8. “SETTING” button (P.4-14)
When you use this system, make sure the
engine is running. If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will use up all the battery power,
and the engine will not start.
SAA1541
Models with navigation system
SAA1508
Models without navigation system

Black plate (183,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
HOW TO USE INFINITI CONTROLLERGUID-7A498997-935F-4751-B393-57B01CF46DDFChoose an item on the display using the
main directional buttons
*2(or additional
directional buttons
*6with navigation
system) or center dial
*3, and push the
ENTER button
*1for operation.
If you push the BACKbutton
*4before the
setup is completed, the setup will be
canceled and/or the display will return to
the previous screen. This button can also
be used to delete characters that have
been input.
After the setup is completed, push the
BACK button
*4and return to the previous
screen.
For the VOICEbutton
*5functions, refer to
the separate Navigation System Owner’s
Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-6611C03E-CDBF-4D30-B540-4F9F66BCB2C5
CAUTION
. The glass screen on the liquid crystal
display may break if it is hit with a hard
or sharp object. Do not touch the glass if
it breaks. Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is necessary,
use a small amount of neutral detergent
with a soft cloth. Never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
To ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not
available while driving will be “grayed
out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that could distract you. If distracted, you could lose
control of your vehicle and cause an
accident.
Touch screen operationGUID-9E906F90-D180-4427-8288-7815C56B83FBWith this system, the same operations as
those for the INFINITI controller are possi-
ble using the touch screen operation.
Monitor, climate, audio, phone and voice recognition systems4-5

Black plate (184,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-6Monitor, climate, audio, phone and voice recognition systems

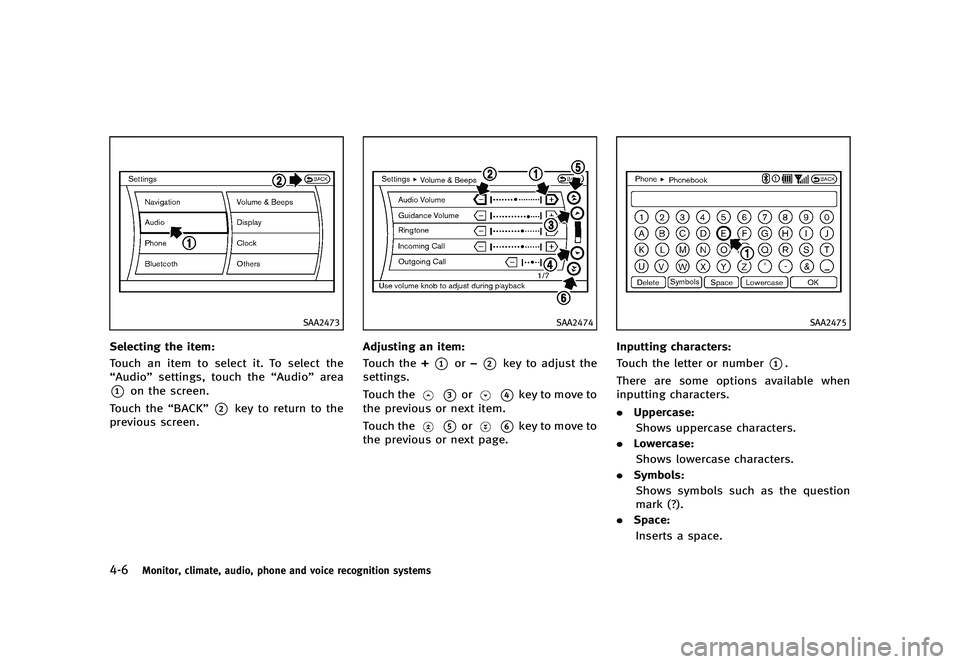

SAA2473
Selecting the item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the
“Audio”settings, touch the “Audio”area
*1on the screen.
Touch the “BACK”
*2key to return to the
previous screen.
SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the +*1or−*2key to adjust the
settings.
Touch the
*3or*4key to move to
the previous or next item.
Touch the
*5or*6key to move to
the previous or next page.
SAA2475
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter or number*1.
There are some options available when
inputting characters.
. Uppercase:
Shows uppercase characters.
. Lowercase:
Shows lowercase characters.
. Symbols:
Shows symbols such as the question
mark (?).
. Space:
Inserts a space.

Black plate (185,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
.Delete:
Deletes the last character that has been
input with one touch. Push and hold to
delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenanceGUID-E3D8C2B3-B87F-4DBB-8AF4-655EF548D2BCIf you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral
detergent with a soft cloth. Never spray
the screen with water or detergent. Dam-
pen the cloth first, and then wipe the
screen.
SAA1525
MENU OPTIONS (models with navi-
gation system)
GUID-4E5C1330-69EB-4862-A681-1F1045FB93F1The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is displayed, push and hold the menu
control switch until the “Menu Options”
screen appears.
2. Highlight the preferred item by tilting the menu control switch up or down,
and then push the menu control switch
to select it.
SAA2476
Available itemsGUID-924ADD2F-5CCF-4D9C-BA75-D6B9E03DFA00
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system.
See the separate Navigation System Own-
er’s Manual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the
same screen that appears when you push
the INFO button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
Monitor, climate, audio, phone and voice recognition systems4-7

Black plate (186,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-8Monitor, climate, audio, phone and voice recognition systems
SAA2477
Models with navigation system
SAA1510
Models without navigation system
HOW TO SELECT MENUS ON THE
SCREEN
GUID-7F980AEB-984A-4A26-A3B2-C2F82F17CC7CVehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the
INFINITI controller and push the ENTER
button.
Whenever a menu selection is made or
menu item is highlighted, different areas
on the screen provide you with important
information. See the following for details.
1. Header:Shows the path used to get to the
current screen.
2. Menu Selections: Shows the options to choose within
that menu screen.
3. UP/DOWN Movement indicator: Shows that the INFINITI controller may
be used to move UP/DOWN on the
screen and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu.
5. Footer/Information Line: Provides more information (if available) about the menu selection currently
highlighted.

Black plate (187,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-BEF49459-6CAA-4DAB-9297-DC8ACB8D8EA3
HOW TO USE STATUS BUTTONGUID-64A6F917-0639-4B80-BF56-87E9EAC3685DTo display the status of the audio, climate
control system, fuel consumption and
navigation system (if so equipped), push
the STATUS button. The following informa-
tion will appear when the STATUS button is
pushed repeatedly.
Audio and Climate control system?Audio
and fuel economy ?Audio and Navigation
system (if so equipped)
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-2136B18E-AA9F-4F73-9A81-A7FF560CFDA3Push the “OFF”button to switch the
display brightness to the daytime mode or
the nighttime mode, and to adjust the
display brightness using the INFINITI con-
troller while the indicator is displayed at
the bottom of the screen.
The display brightness can also be ad-
justed using the brightness UP button (+)
or brightness DOWN button (−)(if so
equipped).
Push and hold the “
OFF”button for
more than 2 seconds to turn the display
off. Push the button again to turn the
display on.
HOW TO USE INFO BUTTONGUID-2D1D4301-035F-45BA-BBD9-7472A6872E65The display screen shows vehicle and
navigation (if so equipped) information
for your convenience.
The information shown on the screen
should be a guide to determine the
condition of the vehicle. See the following
for details.
SAA2478
Models with navigation system
SAA1511
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-9
VEHICLE INFORMATION AND SETTINGS

Black plate (188,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-10Monitor, climate, audio, phone and voice recognition systems
Vehicle information displayGUID-72118AA1-81A8-4497-B910-2B74F0FB33B11. Push the INFO button on the controlpanel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the informa- tion on the following screens, push the
BACK button to return to the INFO
menu.
See the separate Navigation System Own-
er’s Manual for the following items:
. Where am I?
. Traffic Info
. Weather Info
. Map Update
. Navigation Version
SAA2479
SAA2480
Models with navigation system
JVH0056M
JVH0057M
Models without navigation system

Black plate (189,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
Fuel Economy informationGUID-189D7485-90CC-4656-8551-1D08F50ECB7DThe approximate distance to empty, aver-
age fuel economy and current fuel econo-
my will be displayed for reference.
To reset the average fuel economy (Avg
Fuel Econ), select the“Reset Fuel Eco”or
“Reset” key.
If the “Fuel Eco History” or“View” key is
selected, the average fuel consumption
history will be displayed in graph form
along with the average for the previous
Reset-to-Reset period.
The unit can be converted between “US”
and “Metric”. (See “How to use SETTING
button” (P.4-14).)
The fuel economy information may differ
from the information displayed on the
vehicle information display. This is due to
the timing difference in updating the
information and does not indicate a mal-
function.
SAA2481
SAA2482
Models with navigation system
SAA2830
SAA2722
Models without navigation system
Monitor, climate, audio, phone and voice recognition systems4-11
