Page 195 of 490
![INFINITI G 2012 Owners Manual Black plate (194,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-16Monitor, climate, audio, phone and voice recognition systems
Guidance Volume:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance INFINITI G 2012 Owners Manual Black plate (194,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-16Monitor, climate, audio, phone and voice recognition systems
Guidance Volume:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance](/img/42/41068/w960_41068-194.png)
Black plate (194,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-16Monitor, climate, audio, phone and voice recognition systems
Guidance Volume:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance voice volume select
the“Guidance Volume” and adjust it with
the INFINITI controller.
You can also adjust the guidance voice
volume by turning the VOLUME control
knob while voice guidance is being an-
nounced.
Ringtone/Incoming Call/Outgoing Call:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of these items, see “Blue-
tooth®Hands-Free Phone System (models
with navigation system)” (P.4-90).
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will
hear a beep sound when you use a button.
Guidance Voice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will
hear voice guidance in the navigation
operation or in other operations.
NOTE:
When the voice guidance is being an-
nounced during audio playback, turning
the volume knob does not adjust the
music level; it adjusts the guidance
volume level. If voice guidance is not
being heard, please check the Guidance
Volume level.
JVH0176M
Switch Beeps settings (models
without navigation system)
GUID-30A93832-9708-46BA-BCA4-DE520CD32369The “Switch Beeps” screen will appear
when pushing the SETTINGbutton, select-
ing the “Switch Beeps” key with the
INFINITI controller and pushing the ENTER
button.
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will
hear a beep sound when you use a button.
SAA2486
Display settings (models with na-
vigation system)
GUID-7F2FE76E-2EC3-4BEE-A8D4-537CDE0931E2The display as illustrated will appear when
pushing the SETTING button and selecting
the “Display” key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the
“Display Adjustment” key. The following
settings are available.
. Display
To turn off the screen, push the ENTER
button and turn the “Display”indicator off.
The other method is to push and hold the
“
OFF” button for more than 2 seconds.
Page 196 of 490
![INFINITI G 2012 Owners Manual Black plate (195,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds INFINITI G 2012 Owners Manual Black plate (195,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds](/img/42/41068/w960_41068-195.png)
Black plate (195,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished.
To turn on the screen, set this item to the
ON position, or push and hold the“
OFF”button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of
the screen, select the “Brightness”or
“Contrast” key.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
For information on the “Background Color”
key, refer to the separate Navigation
System Owner’s Manual.
Color Theme:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the theme color of the menu screen
from “Black”, “Brown” or“Silver”.
SAA2115
Display settings (models without
navigation system)
GUID-C75B97D4-D5F7-4B17-A5C5-8C3FBEEC66A2The “Display” screen will appear when
pushing the SETTINGbutton, selecting
“Display” key with the INFINITI controller
and pushing the ENTERbutton.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the screen, push the ENTER
button and turn the “ON”indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished. To turn on the screen, set this item to the
“ON”
position or push the “
OFF”
button.
Brightness/Contrast/Background Color:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the brightness, contrast and
background color of the screen, select the
appropriate “Brightness”, “Contrast”or
“Background Color” key and push the
ENTER button.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
Switch the background color to the day-
time mode or the nighttime mode by
pushing the ENTERbutton.
Monitor, climate, audio, phone and voice recognition systems4-17
Page 198 of 490
![INFINITI G 2012 Owners Manual Black plate (197,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2488
Models with navigation system
SAA3150
Models without navigation system
Comfort settingsGUID-E6BF814A-EA39-4468-827A-98326ACDC872Models wi INFINITI G 2012 Owners Manual Black plate (197,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2488
Models with navigation system
SAA3150
Models without navigation system
Comfort settingsGUID-E6BF814A-EA39-4468-827A-98326ACDC872Models wi](/img/42/41068/w960_41068-197.png)
Black plate (197,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2488
Models with navigation system
SAA3150
Models without navigation system
Comfort settingsGUID-E6BF814A-EA39-4468-827A-98326ACDC872Models with navigation system:
The display as illustrated will appear when
pushing the SETTING button, selecting the
“Others”key and then selecting the
“Comfort” key. This key does not appear
on the display until the ignition switch is
pushed to the ON position.
Models without navigation system:
The display as illustrated will appear when
pushing the SETTING button and selecting
the “Comfort” key. This key does not
appear on the display until the ignition
switch is pushed to the ON position.
Auto Interior Illumination:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the interior
lights will illuminate if any door is un-
locked.
Light Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity of the automatic
headlights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the
steering wheel moves upward for easy exit
if the ignition switch is in the LOCK
position and the driver’s door is opened. After getting into the vehicle and pushing
the ignition switch to the ACC position, the
steering wheel moves to the previous
position.
Slide Driver Seat Back on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the driver’s
seat moves backward for easy exit if the
ignition switch is in the OFF position and
the driver’s door is opened. After getting
into the vehicle and pushing the ignition
switch to the ACC position, the driver’s seat
moves to the previous position.
Light Off Delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the duration of the automatic
headlight off timer from 0, 30, 45, 60, 90,
120, 150 and 180 second periods.
Speed Sensing Wiper Interval (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the wiper
interval is adjusted automatically accord-
ing to the vehicle speed.
Selective Door Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, only the
driver’s door is unlocked first after the door
unlock operation. When the door handle
request switch on the driver’s or front
Monitor, climate, audio, phone and voice recognition systems4-19
Page 199 of 490
![INFINITI G 2012 Owners Manual Black plate (198,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-20Monitor, climate, audio, phone and voice recognition systems
passenger’s side door is pushed to be
unlocked, only the corresponding door is INFINITI G 2012 Owners Manual Black plate (198,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-20Monitor, climate, audio, phone and voice recognition systems
passenger’s side door is pushed to be
unlocked, only the corresponding door is](/img/42/41068/w960_41068-198.png)
Black plate (198,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-20Monitor, climate, audio, phone and voice recognition systems
passenger’s side door is pushed to be
unlocked, only the corresponding door is
unlocked first. All the doors can be
unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the
doors will be unlocked after the door
unlock operation is performed once.
Intelligent Key Lock/Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, door lock/
unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select this item and then select“YES”to
return all settings to the default.
SAA2490
Models with navigation system
SAA1092
Models without navigation system
Language & Units settingsGUID-2D1FB194-339E-4AB6-A28E-3E1121BEF0F9The Language & Units settings display will
appear when pushing the SETTING button,
selecting the “Language & Units” key with
the INFINITI controller and pushing the
ENTER button.
For models with the navigation system,
select the “Others”key to show the
“Language & Units” key.
Select Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Language” key. Choose
“English”, “Français” or“Español” for your
favorite display appearance.
If you select the “Français”key, the French
language will be displayed, so please use
the French Owner’s Manual. To obtain a
French Owner’s Manual, see “Owner’s
Manual/Service Manual order information”
(P.9-28).
Select Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Units” key. Choose“US”
(Mile, 8F, MPG) or “Metric”(km,8C, L/100
km) for your favorite display appearance.
Voice Recognition settings (models
with navigation system)
GUID-CA02A577-3092-4FA9-B79C-9BA33C2AE64FFor details about the “Voice Recognition”
settings, see “INFINITI Voice Recognition
Page 200 of 490
![INFINITI G 2012 Owners Manual Black plate (199,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
system (models with navigation system)”
(P.4-114).
Camera settings (if so equipped)GUID-80B11575-71A9-4388-9AFE-30F59A573C6DThe“CAMERA” scr INFINITI G 2012 Owners Manual Black plate (199,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
system (models with navigation system)”
(P.4-114).
Camera settings (if so equipped)GUID-80B11575-71A9-4388-9AFE-30F59A573C6DThe“CAMERA” scr](/img/42/41068/w960_41068-199.png)
Black plate (199,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
system (models with navigation system)”
(P.4-114).
Camera settings (if so equipped)GUID-80B11575-71A9-4388-9AFE-30F59A573C6DThe“CAMERA” screen will appear when
selecting the “Camera”key with the
INFINITI controller and pushing the ENTER
button.
For the details about the camera system
operation, see “RearView monitor” (P.4-
23).
JVH0141M
Models with navigation system
JVH0142M
Models without navigation system
Sonar settings (if so equipped)GUID-99894C51-99A7-40BC-AF20-0BFD30B2C365The “Sonar” screen will appear when
selecting the “Sonar”key with the INFINITI
controller and pushing the ENTERbutton.
For the details of the sonar system opera-
tion, see “Sonar system” (P.5-48).
Sonar Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned ON, the corner/
center sonar indicator will appear when the
sonar detect rear obstacles near the
bumper.
Corner Sonar Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity level of the corner
sonar higher (right) or lower (left).
Center Sonar Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity level of the center
sonar higher (right) or lower (left).
Monitor, climate, audio, phone and voice recognition systems4-21
Page 208 of 490
![INFINITI G 2012 Owners Manual Black plate (207,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2404
Models with navigation system
SAA2606
Models without navigation system
PREDICTIVE COURSE LINE SETTINGSGUID-E2F40034-05E0-401F-9E99-A34483 INFINITI G 2012 Owners Manual Black plate (207,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2404
Models with navigation system
SAA2606
Models without navigation system
PREDICTIVE COURSE LINE SETTINGSGUID-E2F40034-05E0-401F-9E99-A34483](/img/42/41068/w960_41068-207.png)
Black plate (207,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2404
Models with navigation system
SAA2606
Models without navigation system
PREDICTIVE COURSE LINE SETTINGSGUID-E2F40034-05E0-401F-9E99-A34483BA8B36To turn ON or OFF the predictive course line
display, push the SETTING button, select
the“Camera” key and push the ENTER
button.
. Predictive Course Lines
When this item is turned to ON, the
predicted course lines will be displayed
on the monitor when the selector/shift
lever is in the “R”(Reverse) position.
HOW TO ADJUST SCREENGUID-8EC63937-DDFF-48F5-9E13-CE42D28EBED6To adjust the Display ON/OFF, Brightness,
Tint, Color, Contrast and Black Level of the
rearview monitor, push the SETTINGbutton
with the rearview monitor on, select the
“Display” key on the screen and select the
item key and adjust the level using the
INFINITI controller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the rearview
monitor while the vehicle is moving. Make
sure the parking brake is firmly applied
and the engine is not running.
OPERATING TIPSGUID-C7806C41-88DD-4A7A-BEE4-AA3328E302E3. When the selector/shift lever is shifted
to the “R”(Reverse) position, the
monitor screen automatically changes
to the rearview monitor mode. How-
ever, the radio can be heard.
. It may take some time until the rearview
monitor is displayed after the selector/
shift lever has been shifted to “R”from
another position or to another position
from “R”. Objects may be distorted
momentarily until the rearview monitor
screen is displayed completely.
. When the temperature is extremely high
or low, the screen may not clearly
display objects. This is not a malfunc-
tion.
. When strong light directly enters the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on
the screen. This is due to strong
reflected light from the bumper. This
is not a malfunction.
. The screen may flicker under fluores-
cent light. This is not a malfunction.
. The colors of objects on the rearview
monitor may differ somewhat from
those of the actual object.
Monitor, climate, audio, phone and voice recognition systems4-29
Page 210 of 490
![INFINITI G 2012 Owners Manual Black plate (209,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-75B26382-3BA8-4480-A2A3-F834A9B75BC4
WARNING
.The air conditioner cooling function
operates only when the engine is run-
ning.
. Do not leav INFINITI G 2012 Owners Manual Black plate (209,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-75B26382-3BA8-4480-A2A3-F834A9B75BC4
WARNING
.The air conditioner cooling function
operates only when the engine is run-
ning.
. Do not leav](/img/42/41068/w960_41068-209.png)

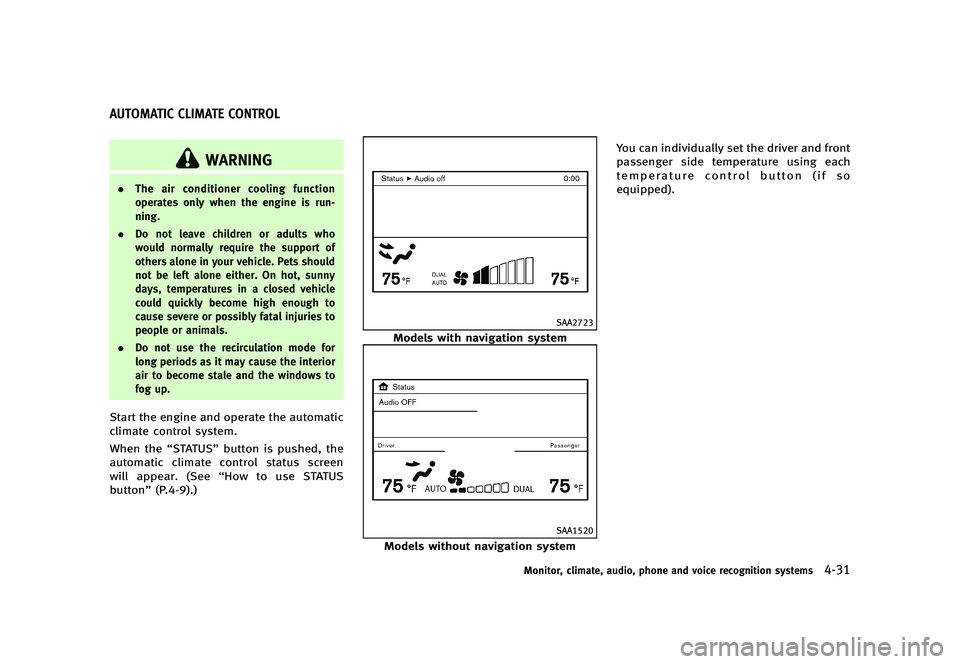

Black plate (209,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
GUID-75B26382-3BA8-4480-A2A3-F834A9B75BC4
WARNING
.The air conditioner cooling function
operates only when the engine is run-
ning.
. Do not leave children or adults who
would normally require the support of
others alone in your vehicle. Pets should
not be left alone either. On hot, sunny
days, temperatures in a closed vehicle
could quickly become high enough to
cause severe or possibly fatal injuries to
people or animals.
. Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.
Start the engine and operate the automatic
climate control system.
When the “STATUS”button is pushed, the
automatic climate control status screen
will appear. (See “How to use STATUS
button” (P.4-9).)
SAA2723
Models with navigation system
SAA1520
Models without navigation system You can individually set the driver and front
passenger side temperature using each
temperature control button (if so
equipped).
Monitor, climate, audio, phone and voice recognition systems4-31
AUTOMATIC CLIMATE CONTROL
Page 223 of 490
![INFINITI G 2012 Owners Manual Black plate (222,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-44Monitor, climate, audio, phone and voice recognition systems
LHA0484
DVD (Digital Versatile Disc) player
(models with navigation system)
GUID INFINITI G 2012 Owners Manual Black plate (222,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-44Monitor, climate, audio, phone and voice recognition systems
LHA0484
DVD (Digital Versatile Disc) player
(models with navigation system)
GUID](/img/42/41068/w960_41068-222.png)
Black plate (222,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-44Monitor, climate, audio, phone and voice recognition systems
LHA0484
DVD (Digital Versatile Disc) player
(models with navigation system)
GUID-386CC94D-AB29-40A6-BF6F-3AE614E7BB8C.Do not force a compact disc into the
CD/DVD insert slot. This could damage
the CD/DVD player.
. During cold weather or rainy days, the
player may malfunction due to humid- ity. If this occurs, remove the CD/DVD
and dehumidify or ventilate the player
completely.
. The player may skip while driving on
rough roads.
. The CD/DVD player sometimes cannot
function when the passenger compart-
ment temperature is extremely high.
Decrease the temperature before use.
. Only use high quality 4.7 in (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” or“DVD Video”
logo on the disc or packaging.
. Do not expose the CD/DVD to direct
sunlight.
. CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or
that have pinholes may not work
properly.
. The following CD/DVDs are not guaran-
teed to play:
— Copy control compact discs (CCCD)
— Recordable compact discs (CD-R)
— Rewritable compact discs (CD-RW)
— Recordable DVDs (DVD±R, DVD±R
DL)
— Rewritable DVDs (DVD±RW, DVD±RW
DL) .
Do not use the following CD/DVDs as
they may cause the CD/DVD player to
malfunction.
— 3.1 in (8 cm) discs
— CD/DVDs that are not round
— CD/DVDs with a paper label
— CD/DVDs that are warped, scratched
or have abnormal edges
— This audio system can only play
prerecorded CD/DVDs. It has no
capabilities to record or burn CD/
DVDs.
. If the CD/DVD cannot be played, one of
the following messages will be dis-
played.
Disc Read Error:
— Confirm that the CD/DVD is inserted
correctly (the label side is facing up,
etc.).
— Confirm that the CD/DVD is not bent
or warped and it is free of scratches.
Please Eject Disc:
— This may be an error due to the
temperature inside the player being
too high. Remove the CD/DVD by
pushing the EJECT button, and after
a short time reinsert the CD/DVD.
The CD/DVD can be played when the
Page 227 of 490
![INFINITI G 2012 Owners Manual Black plate (226,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-48Monitor, climate, audio, phone and voice recognition systems
Specification chart (Type A):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Supported INFINITI G 2012 Owners Manual Black plate (226,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-48Monitor, climate, audio, phone and voice recognition systems
Specification chart (Type A):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Supported](/img/42/41068/w960_41068-226.png)

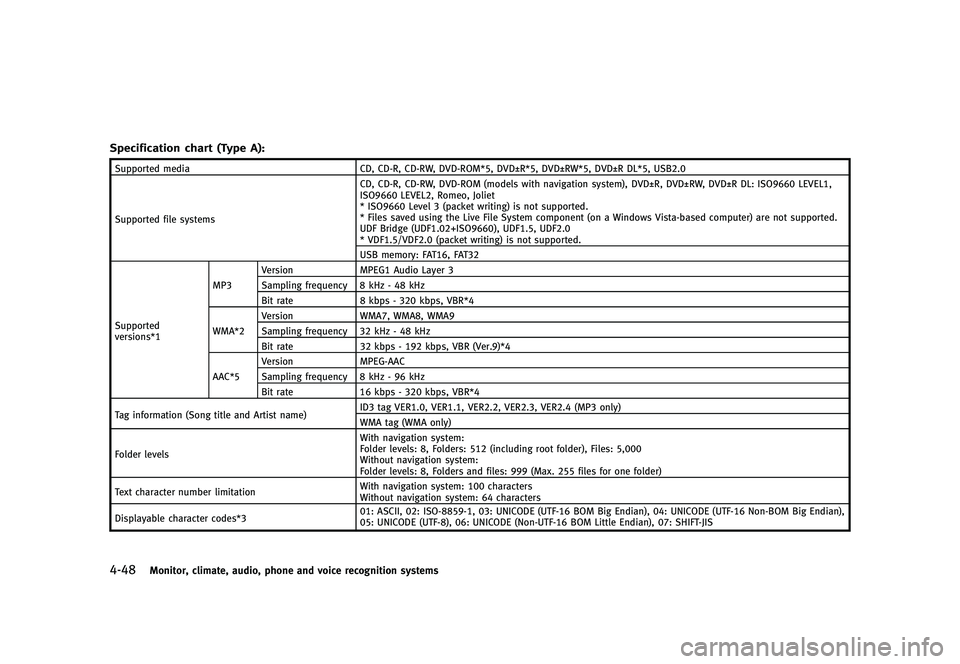

Black plate (226,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-48Monitor, climate, audio, phone and voice recognition systems
Specification chart (Type A):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Supported mediaCD, CD-R, CD-RW, DVD-ROM*5, DVD±R*5, DVD±RW*5, DVD±R DL*5, USB2.0
Supported file systems CD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL: ISO9660 LEVEL1,
ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not supported.
UDF Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0
* VDF1.5/VDF2.0 (packet writing) is not supported.
USB memory: FAT16, FAT32
Supported
versions*1 MP3
Version
MPEG1 Audio Layer 3
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version
WMA7, WMA8, WMA9
Sampling frequency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR (Ver.9)*4
AAC*5 Version
MPEG-AAC
Sampling frequency 8 kHz - 96 kHz
Bit rate 16 kbps - 320 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
Folder levels With navigation system:
Folder levels: 8, Folders: 512 (including root folder), Files: 5,000
Without navigation system:
Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
Text character number limitation With navigation system: 100 characters
Without navigation system: 64 characters
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big Endian),
05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS
Page 228 of 490
![INFINITI G 2012 Owners Manual Black plate (227,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be pl INFINITI G 2012 Owners Manual Black plate (227,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be pl](/img/42/41068/w960_41068-227.png)

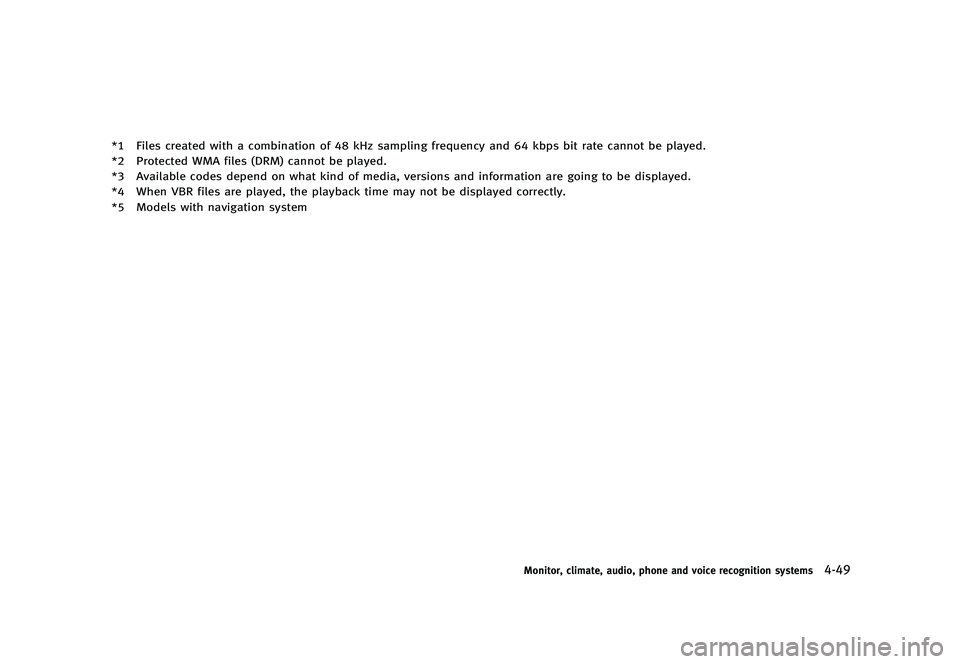

Black plate (227,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
*5 Models with navigation system
Monitor, climate, audio, phone and voice recognition systems4-49
