INFINITI G 2012 Owners Manual

Black plate (300,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

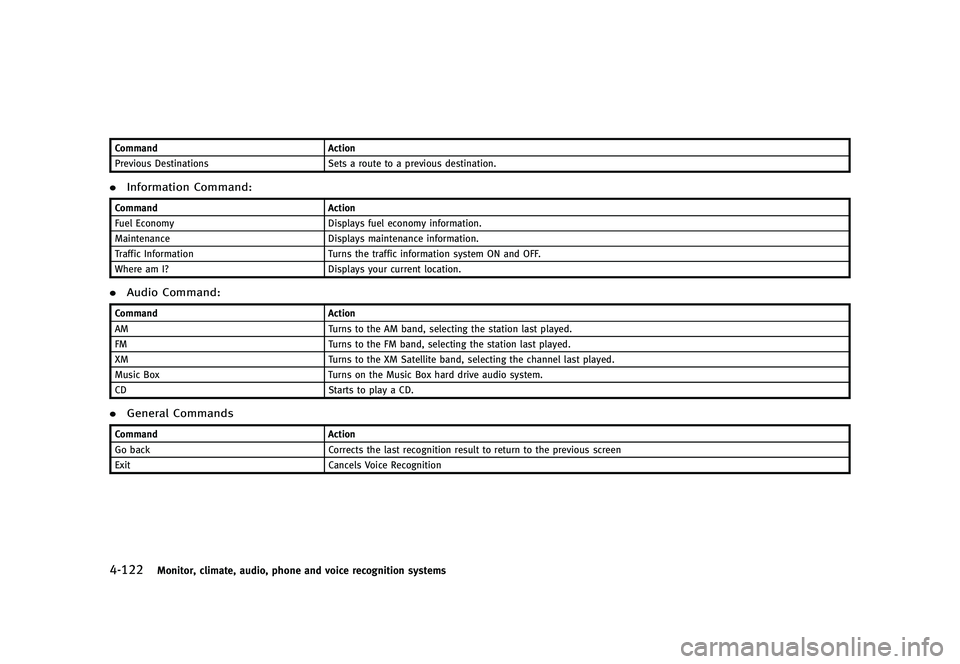

4-122Monitor, climate, audio, phone and voice recognition systems
CommandAction
Previous Destinations Sets a route to a previous destination.
.Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
.Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the Music Box hard drive audio system.
CD Starts to play a CD.
.General Commands
Command Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition

Black plate (301,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
Voice command examplesGUID-48A21CD0-17FB-4862-A52D-F2DF477DDCBCTo use the INFINITI Voice Recognition
function, speaking one command is some-
times sufficient, but at other times it is
necessary to speak two or more com-
mands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner’s Man-
ual.
SAA1588
Example 1 - Placing a call to the phone
number 800-662-6200:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on
the steering wheel.
SAA2535
2. The system announces, “Would you like
to access Phone, Navigation, Informa-
tion, Audio or Help?”
3. Speak “Phone”.
Monitor, climate, audio, phone and voice recognition systems4-123

Black plate (302,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-124Monitor, climate, audio, phone and voice recognition systems
SAA2536
4. Speak“Dial Number”.
SAA2537
5. Speak“8 0 0”.
Selecting the “Manual Controls” key
switches the screen to the keypad to
input the phone number manually.
SAA2538
6. The system announces, “Please say the
next three digits or dial, or say change
number.”
7. Speak “6 6 2”.

Black plate (303,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2539
8. The system announces,“Please say the
last four digits” or say change number.
9. Speak “6 2 0 0”.
SAA2540
10. The system announces, “Dial or Change
Number?”
11. Speak “Dial”.
12. The system makes a call to 800-662- 6200.
NOTE:
. You can also speak “800-662-6200”
(10 continuous digits) or “662-6200”
(7 continuous digits), if the area code
is not necessary. However, the 3-3-4
digit grouping is recommended for
improved recognition. (See “Giving
voice commands” (P.4-118).) .
You can only say a phone number using
the 3-3-4 grouping, 7 digits, and 10
digits using this command. Please use
the “International Call” command for
all other formats.
. If you say “Change Number” during
phone number entry, the system will
automatically request that you repeat
the number using the 3-3-4 format. In
this case please say the area code first
and then follow the prompts.
. Do not add a “1”in front of the area
code when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the
command using a natural voice. Speak-
ing too slow or too loudly may further
decrease recognition performance.
Monitor, climate, audio, phone and voice recognition systems4-125

Black plate (304,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-126Monitor, climate, audio, phone and voice recognition systems
SAA1588
Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the TALKswitch located on
the steering wheel.
SAA2535
2. The system announces, “Would you like
to access Phone, Navigation, Informa-
tion, Audio or Help?”
3. Speak “Phone”.
SAA2536
4. Speak“International Call ”.

Black plate (305,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]

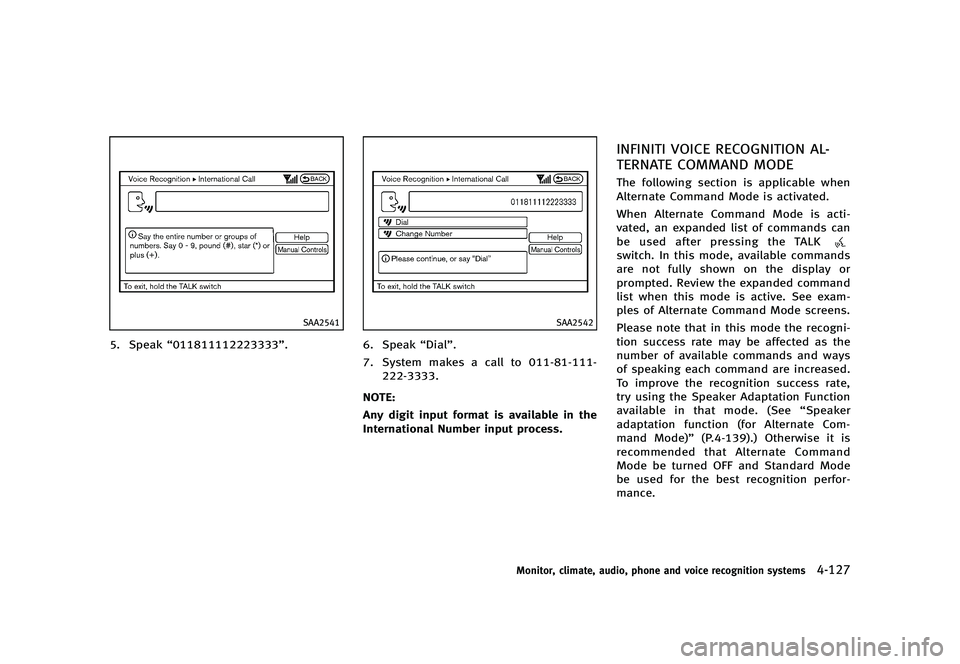

SAA2541
5. Speak“011811112223333”.
SAA2542
6. Speak“Dial”.
7. System makes a call to 011-81-111- 222-3333.
NOTE:
Any digit input format is available in the
International Number input process.
INFINITI VOICE RECOGNITION AL-
TERNATE COMMAND MODE
GUID-6AA72FEC-22C9-4689-8514-2DE327ADAEEFThe following section is applicable when
Alternate Command Mode is activated.
When Alternate Command Mode is acti-
vated, an expanded list of commands can
be used after pressing the TALK
switch. In this mode, available commands
are not fully shown on the display or
prompted. Review the expanded command
list when this mode is active. See exam-
ples of Alternate Command Mode screens.
Please note that in this mode the recogni-
tion success rate may be affected as the
number of available commands and ways
of speaking each command are increased.
To improve the recognition success rate,
try using the Speaker Adaptation Function
available in that mode. (See “Speaker
adaptation function (for Alternate Com-
mand Mode)” (P.4-139).) Otherwise it is
recommended that Alternate Command
Mode be turned OFF and Standard Mode
be used for the best recognition perfor-
mance.
Monitor, climate, audio, phone and voice recognition systems4-127

Black plate (306,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-128Monitor, climate, audio, phone and voice recognition systems
SAA2529
Activating Alternate Command
Mode
GUID-BEC4249C-3F47-4FF8-B847-7BA98519F11BWhen the Standard Mode is active, perform
the following steps to switch to the
Alternate Command Mode.
1. Push the SETTING button on the instru-ment panel.
2. Highlight the “Others”key.
3. Highlight the “Voice Recognition” key.
SAA2543
4.Highlight the “Alternate Command
Mode” key.
5. The confirmation message is displayed on the screen. Push the “OK”key to
activate the Alternate Command Mode.
Displaying command listGUID-54F769E1-D020-4161-BBC0-F5091E4775C7If you are controlling the system by voice
commands for the first time or do not know
the appropriate voice command, perform
the following procedure for displaying the
voice command list (available only in
Alternate Command Mode).
SAA2544
1. Push the INFO button on the instrument
panel.
2. Select the “Others”key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.

Black plate (307,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
SAA2545
5. Select a category from the list.
SAA2546
6. Select an item.
7. If necessary, scroll the screen using theINFINITI controller to view the entire list.
8. Press the BACK button to return to the previous screen.
Monitor, climate, audio, phone and voice recognition systems4-129

Black plate (308,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
4-130Monitor, climate, audio, phone and voice recognition systems
Commands ListGUID-0425FF25-9663-451F-8368-1CFFF1385119
Phone Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call Makes a call to a contact that is stored in either Vehicle Phonebook or Handset Phonebook. Please say “Call”followed by
a stored name.
Change Number Corrects the recognized phone number (available during phone number entry).

Black plate (309,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]
Navigation Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Previous Start Point Sets a route to a previous starting point.
Delete Destination Deletes a destination.
Monitor, climate, audio, phone and voice recognition systems4-131
