checking oil INFINITI G-CONVERTIBLE 2010 Owners Manual

Anti-lock Braking System (ABS) warn-
ing lightIntelligent Key warning lightFront passenger air bag status light
Low tire pressure warning lightHigh beam indicator light
Automatic transmission check warn-
ing lightMaster warning lightMalfunction Indicator Light (MIL)
Brake warning lightPreview Function warning light (or-
ange)*Security indicator light
Seat belt warning lightSlip indicator light
Charge warning lightSupplemental air bag warning lightLow beam indicator light
Engine oil pressure warning lightAutomatic transmission position indi-
cator light*Turn signal/hazard indicator lights
Intelligent Cruise Control (ICC) sys-
tem warning light (orange)*Front fog light indicator lightVehicle Dynamic Control (VDC) off
indicator light
*: if so equipped
CHECKING BULBS
With all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,
,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system checked by an
INFINITI retailer. Some indicators and warnings are also dis-
played on the dot matrix crystal display be-
tween the speedometer and tachometer. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” later in
this section.)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-8Instruments and controls
—
—
10/22/09—tbrooks


8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VQ37VHR engine ............................... 8-6
Engine cooling system ............................. 8-7
Checking engine coolant level ................... 8-7
Changing engine coolant ........................ 8-8
Engine oil ........................................ 8-8
Checking engine oil level ....................... 8-8
Changing engine oil and filter ................... 8-9
Automatic transmission fluid .......................8-11
Power steering fluid ............................... 8-11
Brake and clutch fluid ............................. 8-11
Brake fluid ................................... 8-12
Clutch fluid (if so equipped) ....................8-12
Window washer fluid ............................. 8-12
Battery .......................................... 8-13
Jump starting ................................. 8-15Variable voltage control system
...................8-15
Drive belt ........................................ 8-15
Spark plugs ..................................... 8-16
Replacing spark plugs ......................... 8-16
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-17
Cleaning ...................................... 8-17
Replacing ..................................... 8-18
Brakes .......................................... 8-19
Self-adjusting brakes .......................... 8-19
Brake pad wear warning ....................... 8-19
Fuses ........................................... 8-19
Engine compartment ........................... 8-19
Passenger compartment ....................... 8-21
Intelligent Key battery replacement ................8-21
Lights ........................................... 8-23
Headlights .................................... 8-24
Exterior

and interior lights ..................... 8-24
Wheels and tires ................................. 8-26
Tire pressure .................................. 8-26
Tire labeling .................................. 8-29
Types of tires ................................. 8-31
Tire chains ................................... 8-32
Changing wheels and tires..................... 8-32
—
—
04/28/10—diane

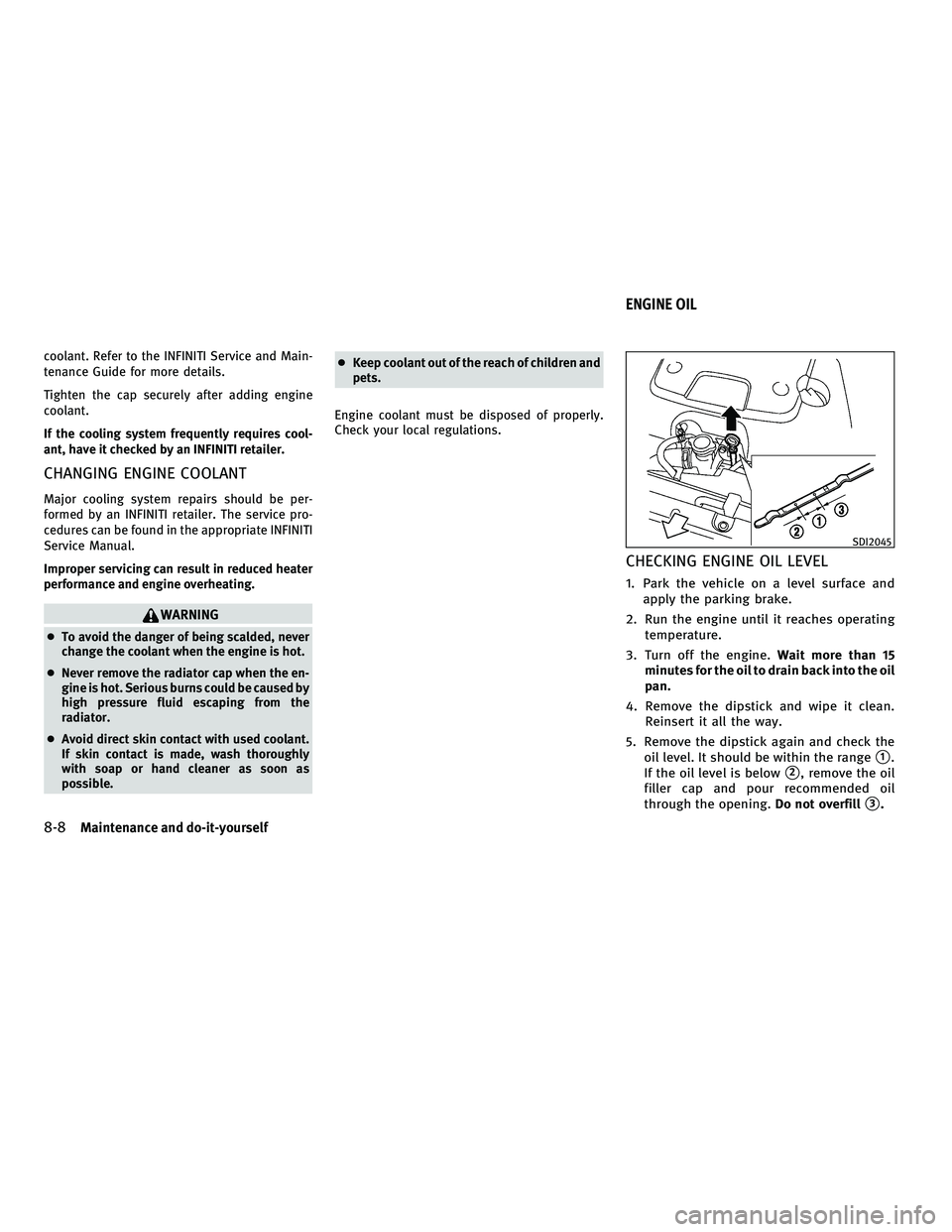

coolant. Refer to the INFINITI Service and Main-
tenance Guide for more details.
Tighten the cap securely after adding engine
coolant.
If the cooling system frequently requires cool-
ant, have it checked by an INFINITI retailer.
CHANGING ENGINE COOLANT
Major cooling system repairs should be per-
formed by an INFINITI retailer. The service pro-
cedures can be found in the appropriate INFINITI
Service Manual.
Improper servicing can result in reduced heater
performance and engine overheating.
WARNING
●To avoid the danger of being scalded, never
change the coolant when the engine is hot.
● Never remove the radiator cap when the en-
gine is hot. Serious burns could be caused by
high pressure fluid escaping from the
radiator.
● Avoid direct skin contact with used coolant.
If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as
possible. ●
Keep coolant out of the reach of children and
pets.
Engine coolant must be disposed of properly.
Check your local regulations.
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
1.
If the oil level is below
2, remove the oil
filler cap and pour recommended oil
through the opening. Do not overfill
3.
SDI2045
ENGINE OIL
8-8Maintenance and do-it-yourself
—
—
05/12/10—tbrooks


Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel......4-2
Child restraints ................ .1-18
Child restraints Booster seats ............... .1-29
Installation using LATCH
Lower Anchors ............... 1-21
Installation using the seat belts .....1-23
Precautions on child restraints ......1-18
Child safety .................. .1-13
Chimes, Audible reminders ..........2-15
Cigarette lighter and ashtrays ........2-39
Circuit breaker, Fusible link ..........8-20
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic
climate control ................ .4-28
Clock ..................... .2-38
Closing the retractable hard top .......3-23
Clutch fluid .................. .8-11
Cockpit ..................... .2-2
Cold weather driving ............. .5-51
Command (See Bluetooth Hands-Free
Phone System) .............4-80 , 4-94
Compact Disc (CD) player
(See audio system) .............. .4-52
Compact spare tire .............. .8-35
Console box ................. .2-42
Controller, Center multi-function control
panel ...................... .4-4
Controls Control panel button (display) .......4-2
Heater and air conditioner controls
(See automatic climate control) .....4-28
Coolant
Capacities and recommended
fuel/ lubricants .............. .9-2Changing engine coolant
.........8-8
Checking engine coolant level .......8-7
Corrosion protection ..............7-6
Cruise control ................. .5-18
Cruise control Fixed speed cruise control (on ICC
system) .................. .5-37
Intelligent cruise control (ICC) system . . 5-20
Cruise indicator ................ .2-19
Cup holders .................. .2-40
Current

fuel consumption ...........2-23
D
Daytime running light system .........2-32
Defroster switch, Rear window and outside
mirror defroster switch ............2-29
Dimensions ................... .9-9
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance to empty .............. .2-23
Door/trunk open warning ...........2-19
Dot matrix liquid crystal display .......2-15
Drive belt ................... .8-15
Drive positioner ............... .3-39
Driving Cold weather driving ............5-51
Driving with automatic transmission . . . 5-11
Driving with manual transmission ....5-15
Precautions when starting and driving . . 5-2
DS (Drive Sport) mode .............5-13 E
Economy, Fuel ................. .5-41
Elapsed time ................. .2-23
Elapsed time and trip odometer . ......2-23
Emergency tire puncture repair kit ......6-3
Emission control information label ......9-11
Emission control system warranty . .....9-19
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-41
Capacities and recommended fuel/
lubricants ..................9-2
Changing engine coolant . . . . . . . . . 8-8
Changing engine oil and filter .......8-9
Checking engine coolant level .......8-7
Checking engine oil level . . . . . . . . . 8-8
Engine block heater ............5-53
Engine compartment check locations . . . 8-6
Engine cooling system ...........8-7
Engine oil ..................8-8
Engine oil and oil filter
recommendation ..............9-5
Engine oil replacement indicator .....2-21
Engine oil viscosity .............9-5
Engine serial number ...........9-10
Engine specifications ............9-7
Engine start operation indicator
(Automatic Transmission models) ....2-18
Engine start operation indicator
(Manual
Transmission models) ......2-19
If your vehicle overheats .........6-19
Starting the engine ............5-10
10-2
—
—
04/30/10—diane


M
Malfunction indicator light (MIL) .......2-13
Map lights .................. .2-47
Master warning light ............. .2-12
Mechanical key (Intelligent Key system) . . .3-3
Memory storage, Automatic drive
positioner ................... .3-40
Meter Trip computer ............... .2-22
Meters and gauges .............. .2-4
Meters and gauges, Instrument brightness
control ..................... .2-33
Mirror Inside mirror ............... .3-36
Outside mirrors .............. 3-37
Monitor, Rearview monitor ..........4-22
N
New vehicle break-in ............. .5-41
No key warning ................ .2-18
O
Odometer .................... .2-5
Off-road recovery ............... .5-5
Oil Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter .......8-9
Checking engine oil level .........8-8
Engine oil ..................8-8 Engine oil viscosity
.............9-5
Oil filter replacement indicator ......2-21
Opening the retractable hard top ......3-22
Operating the retractable hard top ......3-18
Operation, Indicators for operation (dot
matrix) ..................... .2-18
Outside air temperature ............2-24
Outside mirrors ................ .3-37
Owner’s Manual/Service Manual order
information .................. .9-21
P
Panic alarm .................. .3-15
Parking Parking brake operation ..........5-17
Parking brake release warning ......2-19
Parking on hills .............. 5-42
Parking brake break-in ............5-46
Phone, Car phone or CB radio ........4-77
Pop-up roll bar system ............1-48
Power Power

door lock .............. .3-4
Power outlet ................ 2-38
Power steering fluid ............8-11
Power steering system ..........5-45
Power windows .............. 2-44
Power front seat adjustment ..........1-3
Pre-crash seat belts ............. .1-14
Precautions Audio operation ............. .4-36
Braking precautions ............5-45
Child restraints ............... 1-18
Cruise control ............... 5-18
Maintenance .................8-5 Seat belt usage
............... 1-11
Supplemental restraint system ......1-34
When starting and driving . . .......5-2
Preview function ............... .5-46
Preview function (for Intelligent cruise
control system) ................ .5-40
Preview Function warning light ........2-12
Push starting ................. .6-19
Push-button ignition switch ..........5-7
R
Radio ..................... .4-36
Radio Car phone or CB radio ...........4-77
FM-AM-SAT radio with Compact Disc
(CD) player ................. 4-49
Rain-sensing auto wiper system .......2-29
Rapid air pressure loss .............5-6
Readiness for inspection/maintenance (I/M)
test ...................... .9-20
Rear window and outside mirror defroster
switch ..................... .2-29
Rearview monitor ............... .4-22
Recorders, Event data .............9-21
Registering your vehicle in another
country ..................... .9-9
Remote keyless entry system .........3-14
Repairing flat tire (with emergency tire
puncture repair kit) .............. .6-3
Reporting safety defects (US only) ......9-19
Retractable
hard top............. .3-18
Roadside assistance program .........6-2
Rollover ..................... .5-5
10-5
—
—
04/30/10—diane
