8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (SeeFUEL-FILLER DOORin the
3. Pre-driving checks and adjustments sec-
tion.)
15. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres- sure shown on the Tire and Loading Information
label. (See
Low tire pressure warning light
earlier in this section and TIRE PRESSURE
WARNING SYSTEM (TPMS) in the5. Starting
and driving section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
Instruments and controls2-19
—
—
04/28/10—pattie

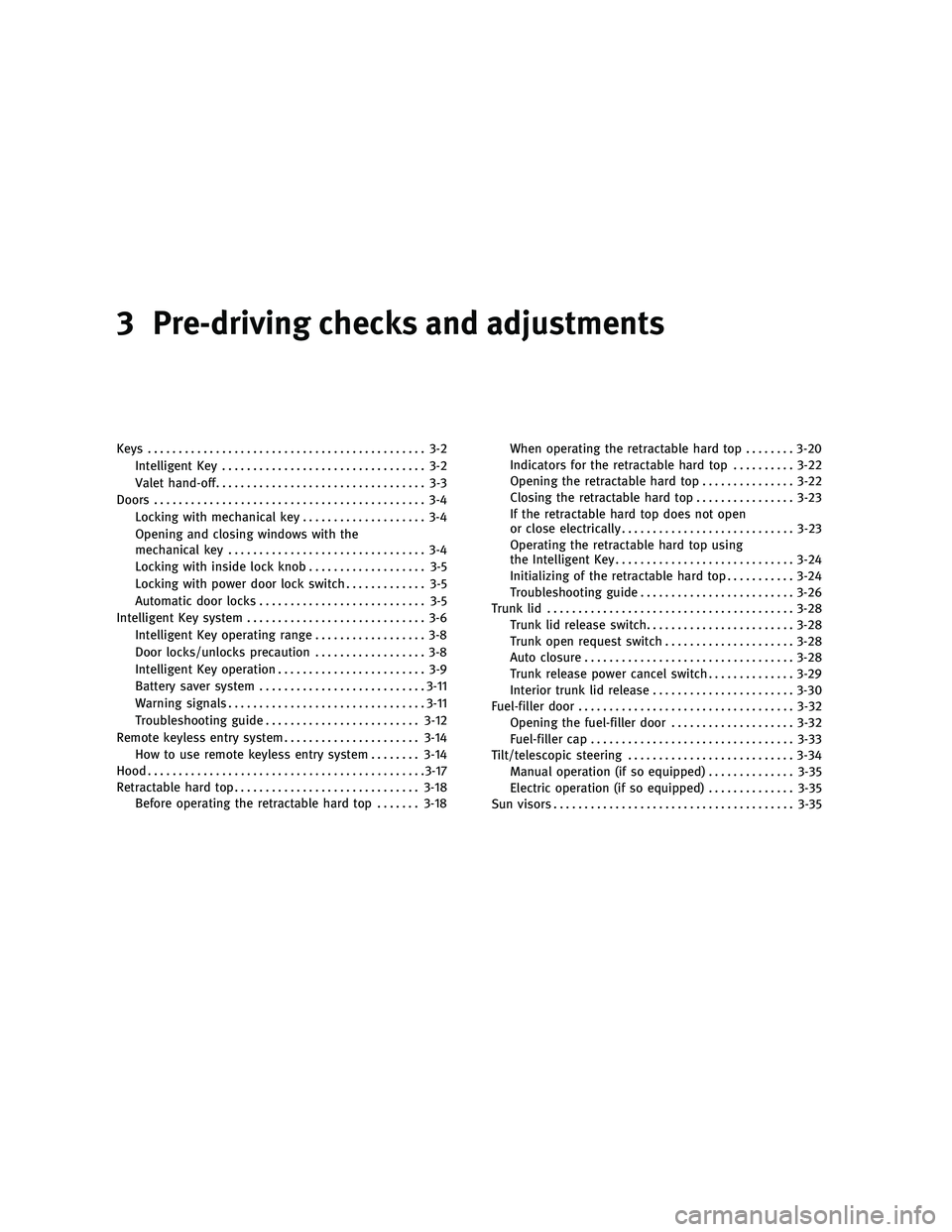

3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-8
Intelligent Key operation ........................ 3-9
Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-14
How to use remote keyless entry system ........3-14
Hood ............................................. 3-17
Retractable hard top .............................. 3-18
Before operating the retractable hard top .......3-18 When operating the retractable hard top
........3-20
Indicators for the retractable hard top ..........3-22
Opening the retractable hard top ...............3-22
Closing the retractable hard top ................3-23
If the retractable hard top does not open
or close electrically ............................ 3-23
Operating the retractable hard top using
the Intelligent Key ............................. 3-24
Initializing of the retractable hard top ...........3-24
Troubleshooting guide ......................... 3-26
Trunk lid ........................................ 3-28
Trunk lid release switch ........................ 3-28
Trunk open request switch .....................3-28
Auto closure .................................. 3-28
Trunk release power cancel switch ..............3-29
Interior trunk lid release ....................... 3-30
Fuel-filler door ................................... 3-32
Opening the fuel-filler door ....................3-32
Fuel-filler cap ................................. 3-33
Tilt/telescopic
steering........................... 3-34
Manual operation (if so equipped) ..............3-35
Electric operation (if so equipped) ..............3-35
Sun visors ....................................... 3-35
—
—
04/28/10—diane

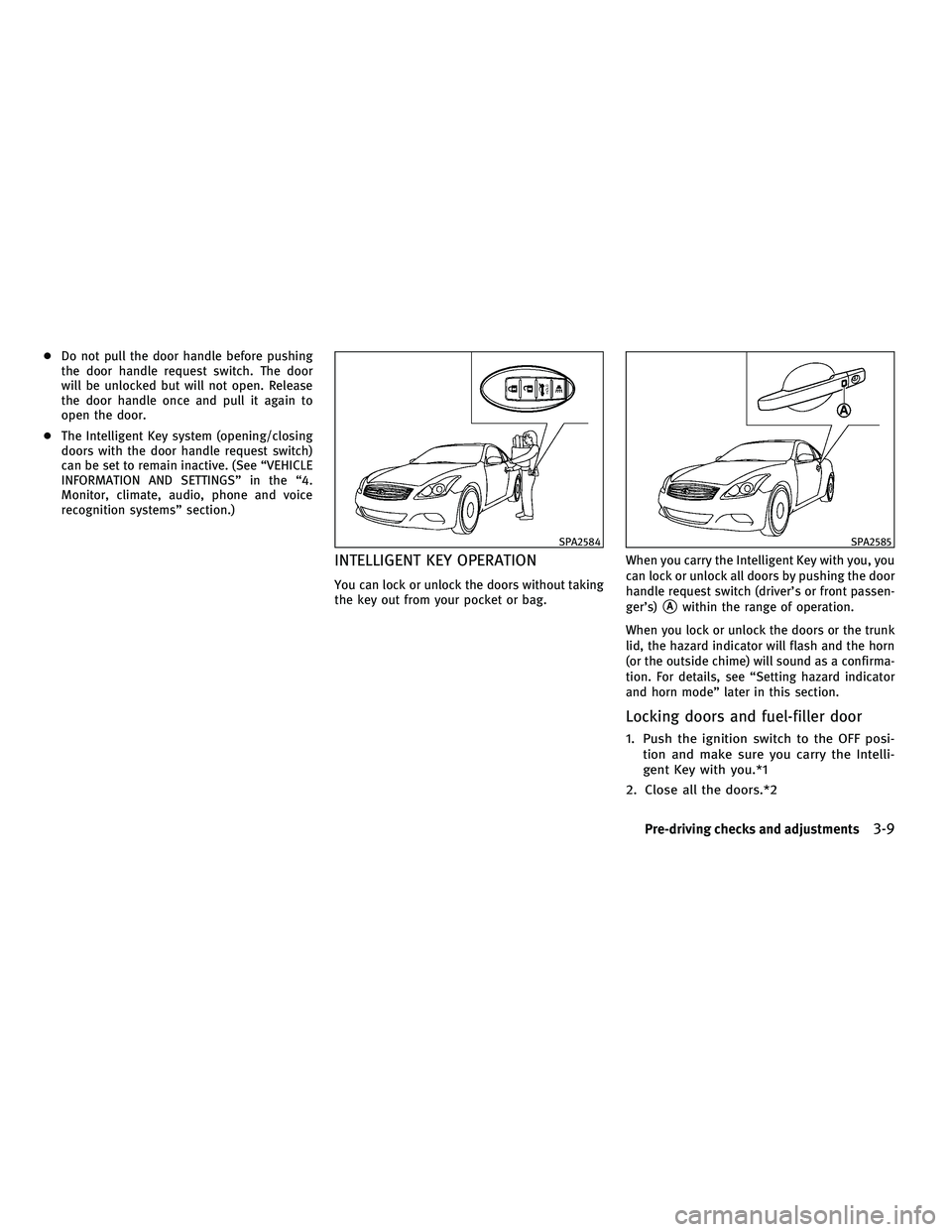

●Do not pull the door handle before pushing
the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.
● The Intelligent Key system (opening/closing
doors with the door handle request switch)
can be set to remain inactive. (See “VEHICLE
INFORMATION AND SETTINGS” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.)
INTELLIGENT KEY OPERATION
You can lock or unlock the doors without taking
the key out from your pocket or bag. When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch (driver’s or front passen-
ger’s)
Awithin the range of operation.
When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section.
Locking doors and fuel-filler door
1. Push the ignition switch to the OFF posi- tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
SPA2584SPA2585
Pre-driving checks and adjustments3-9
—
—
10/14/09—tbrooks


Locking doors and fuel-filler door
1. Push the ignition switch to the OFF posi-tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
3. Push the LOCK
button1on the
Intelligent Key.
4. All the doors and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key while any door is open. Operate the door
handles to confirm that the doors have been
securely locked.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driver’s door and fuel-filler door will un-
lock.
3. Push the UNLOCK
button on the
Intelligent Key again within 5 seconds. 4. The hazard indicator flashes once again.
All the doors will unlock.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the UNLOCK but-
ton on the Intelligent Key while the doors are
locked. If during this 1-minute time period, the
UNLOCK button on the Intelligent Key is
pushed, all doors will be locked automatically
after another 1 minute.
●Opening any door
● Pushing the ignition switch
● Inserting the Intelligent Key into the Intelli-
gent Key port. During this 1 minute time
period, if the UNLOCK
button on the
Intelligent key is pushed, all doors will be
locked automatically after another 1 minute.
Opening windows
The UNLOCKbutton operation also al-
lows you to open the window that is equipped
with the automatic open function. This function
will not operate while the window timer is
activated or the windows need to be initialized.
(See “POWER WINDOWS” in the “2. Instruments
and controls” section.) To open the window, push the UNLOCK
button2on the Intelligent Key for
about 3
seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped on the
way while pushing the UNLOCK
button,
release and push the UNLOCK
button
again until the window opens completely.
Window cannot be closed using the Intelligent
Key.
The door window can also be operated by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Opening trunk lid
1. Push the TRUNK3button on the
Intelligent key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANICbutton4on the
key for more than 1 second.
Pre-driving checks and adjustments3-15
—
—
10/14/09—tbrooks


Engine coolant temperature gauge......2-6
Event Data Recorders (EDR) ..........9-21
Exhaust gas (carbon monoxide) ........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-11
Filter Air cleaner housing filter .........8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-34
Flat tire ..................... .6-2
Flat tire Changing flat tire (with spare tire) . . . .6-12
Repairing flat tire (with emergency tire
puncture repair kit) .............6-3
Flat towing .................. .9-17
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ...........8-11
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............8-11
Window washer fluid ...........8-12
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-49
Fog light switch ............... .2-34
Front passenger air bag and status light . . .1-41
Front power seat adjustment ..........1-3
Front seat, Front seat adjustment .......1-3Front-seat active head restraints
.......1-10
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ 5-41
Fuel economy information (display) ....4-9
Fuel octane rating .............9-3
Fuel recommendation ...........9-3
Fuel-filler cap ............... 3-32
Fuel-filler door ............... 3-32
Gauge ....................2-7
Fuses ..................... .8-19
Fusible links ................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-49
Gascap .................... .3-32
Gauge ...................... .2-4
Gauge Engine

coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-22
General maintenance ..............8-2
Glove box ................... .2-42
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-78Hands-free phone system, Bluetooth
(without navigation system)
.........4-89
Hard top If the top does not open or close . . . .3-23
Indicators for retractable hard top (dot
matrix) ................... 3-22
Initializing ................. 3-24
Operating using the Intelligent Key . . . 3-24
Retractable hard top operation ......3-18
Hazard warning flasher switch . . . . . . . .2-34
Head restraints ................. .1-7
Headlights Bulb replacement .............8-24
Headlight switch .............. 2-30
Xenon headlights ............. 2-30
Heated seats ................. .2-35
Heater Automatic climate control .........4-28
Engine block heater ............5-53
HomeLink Universal Transceiver ......2-49
Hood release ................. .3-17
Horn ...................... .2-35
Ignition switch Automatic transmission models ......5-11
Manual transmission models .......5-15
I
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-26
In-cabin microfilter .............. .4-35
Indicator lights ................ .2-13
Indicator,
Dot matrix display .........2-15
INFINITI Vehicle Immobilizer System .....2-26
10-3
—
—
04/30/10—diane
