Page 14 of 444

1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-36)
5. Clock (P. 2-38)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-78)
— Audio system (P. 4-36) 7. Center display (P. 4-2)/Navigation
system* (if so equipped)
8. Hazard warning flasher switch (P. 2-34)
9. Front passenger supplemental air bag (P. 1-34)
10. Fuse box cover (P. 8-19)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-17)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-39) or Storage box
(if so equipped) (P. 2-43)
— Power outlet (if so equipped) (P. 2-38)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-17)
16. Heated seat switch (if so equipped) (P. 2-35) or Climate controlled seat
switch (if so equipped) (P. 2-36)
17. Retractable hard top operating switch (P. 3-18)
18. Rear window and outside mirror defogger switch (P. 2-29)
19. Glove box lid release handle (P. 2-42)
SSI0673
INSTRUMENT PANEL
Illustrated table of contents0-7
—
—
04/28/10—pattie
Page 70 of 444

1. Side ventilator (P. 4-27)
2. Meters and gauges (P. 2-4)
3. Center ventilator (P. 4-27)
4. Audio system (P. 4-36)
5. Clock (P. 2-38)6. Center multi-function control panel
— Navigation system* (if so equipped)
— Vehicle information and setting buttons
(P. 4-7)
— Bluetooth Hands-Free Phone System
(P. 4-78)
— Audio system (P. 4-36) 7. Center display (P. 4-2)/
Navigation system* (if so equipped)
8. Hazard warning flasher switch (P. 2-34)
9. Front passenger supplemental air bag (P. 1-34)
10. Fuse box cover (P. 8-19)
11. Parking brake (for Automatic Transmission models)
— Parking (P. 5-17)
12. Push-button ignition switch (P. 5-7)
13. Automatic climate control system (P. 4-28)
14. Cigarette lighter and ashtray (if so equipped) (P. 2-39) or Storage box
(if so equipped) (P. 2-43)
— Power outlet (if so equipped) (P. 2-38)
15. Parking brake (for Manual Transmission models)
— Parking (P. 5-17)
16. Heated seat switch (if so equipped) (P. 2-35) or Climate controlled seat
switch (if so equipped) (P. 2-36)
17. Retractable hard top operating switch (P. 3-18)
18. Rear window and outside mirror (if so equipped) defogger switch
(P. 2-29)
SSI0673
INSTRUMENT PANEL
Instruments and controls2-3
—
—
10/16/09—tbrooks
Page 394 of 444

If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not return
to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warn-
ing sound is heard.Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.
For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide”.
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF.
SDI1479A
BRAKES FUSES
Maintenance and do-it-yourself8-19
—
—
10/15/09—tbrooks
Page 395 of 444

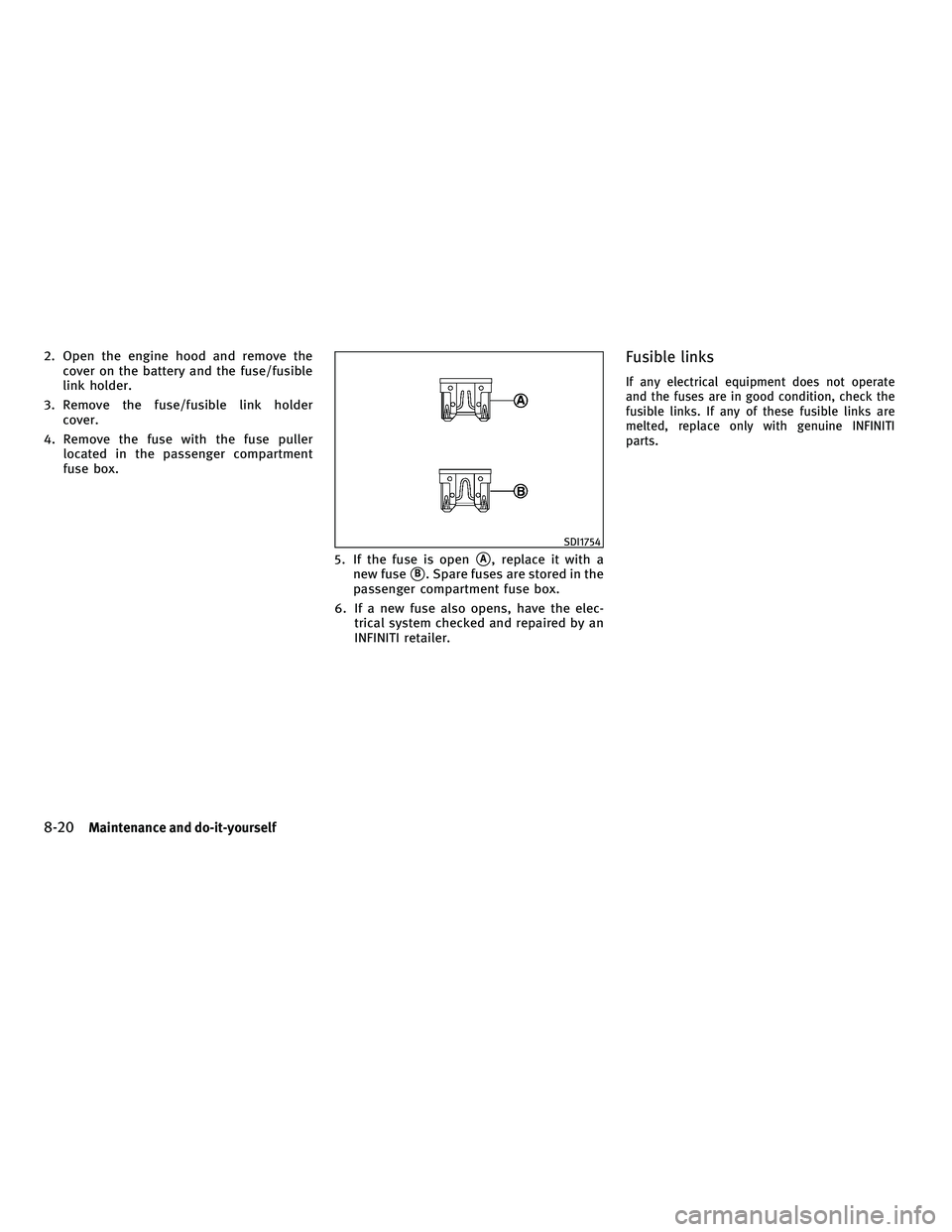

2. Open the engine hood and remove thecover on the battery and the fuse/fusible
link holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment
fuse box.
5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If any electrical equipment does not operate
and the fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.
SDI1754
8-20Maintenance and do-it-yourself
—
—
10/15/09—tbrooks
Page 396 of 444

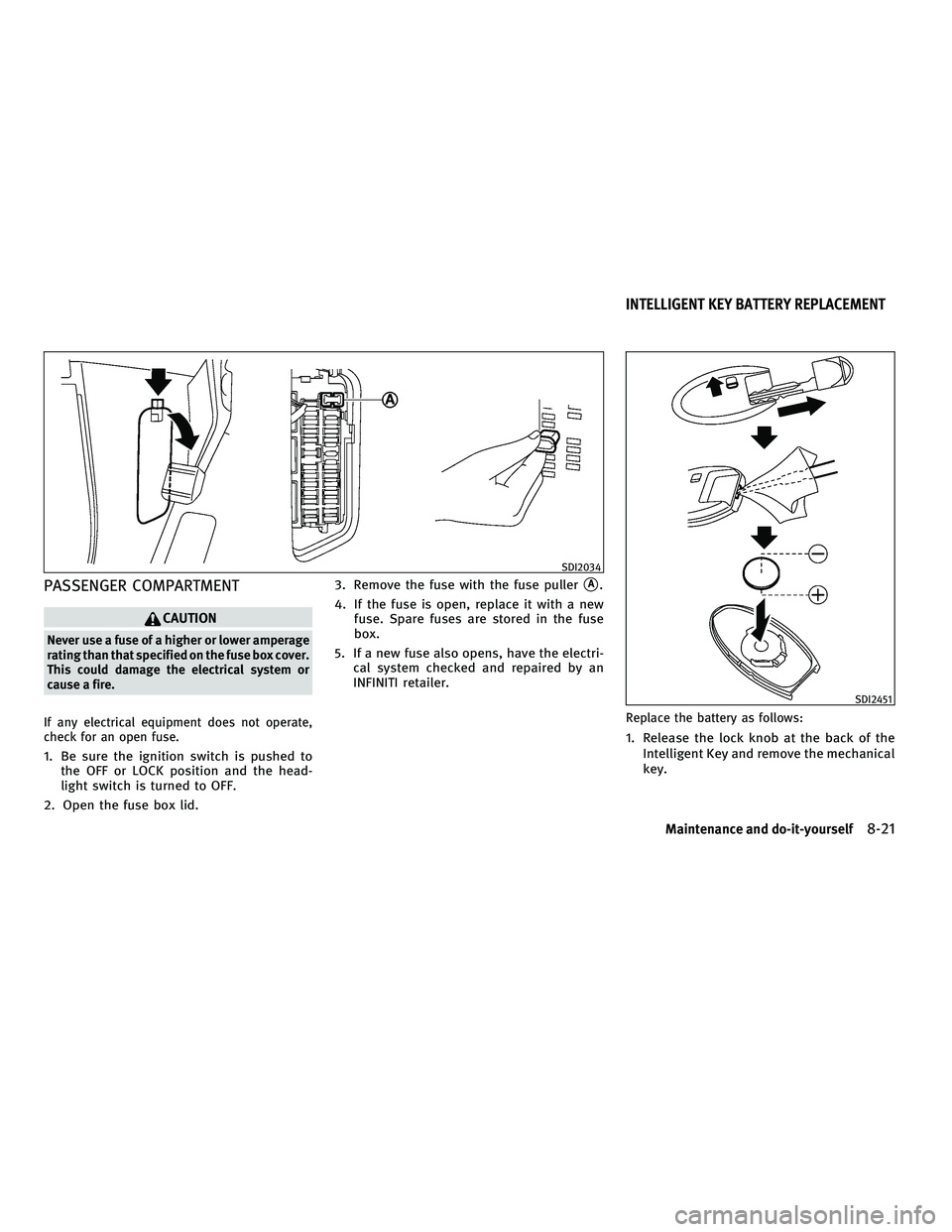

PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the fuse box lid. 3. Remove the fuse with the fuse puller
A.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse
box.
5. If a new fuse also opens, have the electri- cal system checked and repaired by an
INFINITI retailer.
Replace the battery as follows:
1. Release the lock knob at the back of the
Intelligent Key and remove the mechanical
key.
SDI2034
SDI2451
INTELLIGENT KEY BATTERY REPLACEMENT
Maintenance and do-it-yourself8-21
—
—
10/15/09—tbrooks
Page 436 of 444

Engine coolant temperature gauge......2-6
Event Data Recorders (EDR) ..........9-21
Exhaust gas (carbon monoxide) ........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-11
Filter Air cleaner housing filter .........8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-34
Flat tire ..................... .6-2
Flat tire Changing flat tire (with spare tire) . . . .6-12
Repairing flat tire (with emergency tire
puncture repair kit) .............6-3
Flat towing .................. .9-17
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ...........8-11
Capacities and recommended
fuel/lubricants ...............9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............8-11
Window washer fluid ...........8-12
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-49
Fog light switch ............... .2-34
Front passenger air bag and status light . . .1-41
Front power seat adjustment ..........1-3
Front seat, Front seat adjustment .......1-3Front-seat active head restraints
.......1-10
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ................ 5-41
Fuel economy information (display) ....4-9
Fuel octane rating .............9-3
Fuel recommendation ...........9-3
Fuel-filler cap ............... 3-32
Fuel-filler door ............... 3-32
Gauge ....................2-7
Fuses ..................... .8-19
Fusible links ................. .8-20
G
Garage door opener, HomeLink Universal
Transceiver .................. .2-49
Gascap .................... .3-32
Gauge ...................... .2-4
Gauge Engine
coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-22
General maintenance ..............8-2
Glove box ................... .2-42
H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-78Hands-free phone system, Bluetooth
(without navigation system)
.........4-89
Hard top If the top does not open or close . . . .3-23
Indicators for retractable hard top (dot
matrix) ................... 3-22
Initializing ................. 3-24
Operating using the Intelligent Key . . . 3-24
Retractable hard top operation ......3-18
Hazard warning flasher switch . . . . . . . .2-34
Head restraints ................. .1-7
Headlights Bulb replacement .............8-24
Headlight switch .............. 2-30
Xenon headlights ............. 2-30
Heated seats ................. .2-35
Heater Automatic climate control .........4-28
Engine block heater ............5-53
HomeLink Universal Transceiver ......2-49
Hood release ................. .3-17
Horn ...................... .2-35
Ignition switch Automatic transmission models ......5-11
Manual transmission models .......5-15
I
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-26
In-cabin microfilter .............. .4-35
Indicator lights ................ .2-13
Indicator,
Dot matrix display .........2-15
INFINITI Vehicle Immobilizer System .....2-26
10-3
—
—
04/30/10—diane
