INFINITI G-CONVERTIBLE 2011 Owners Manual

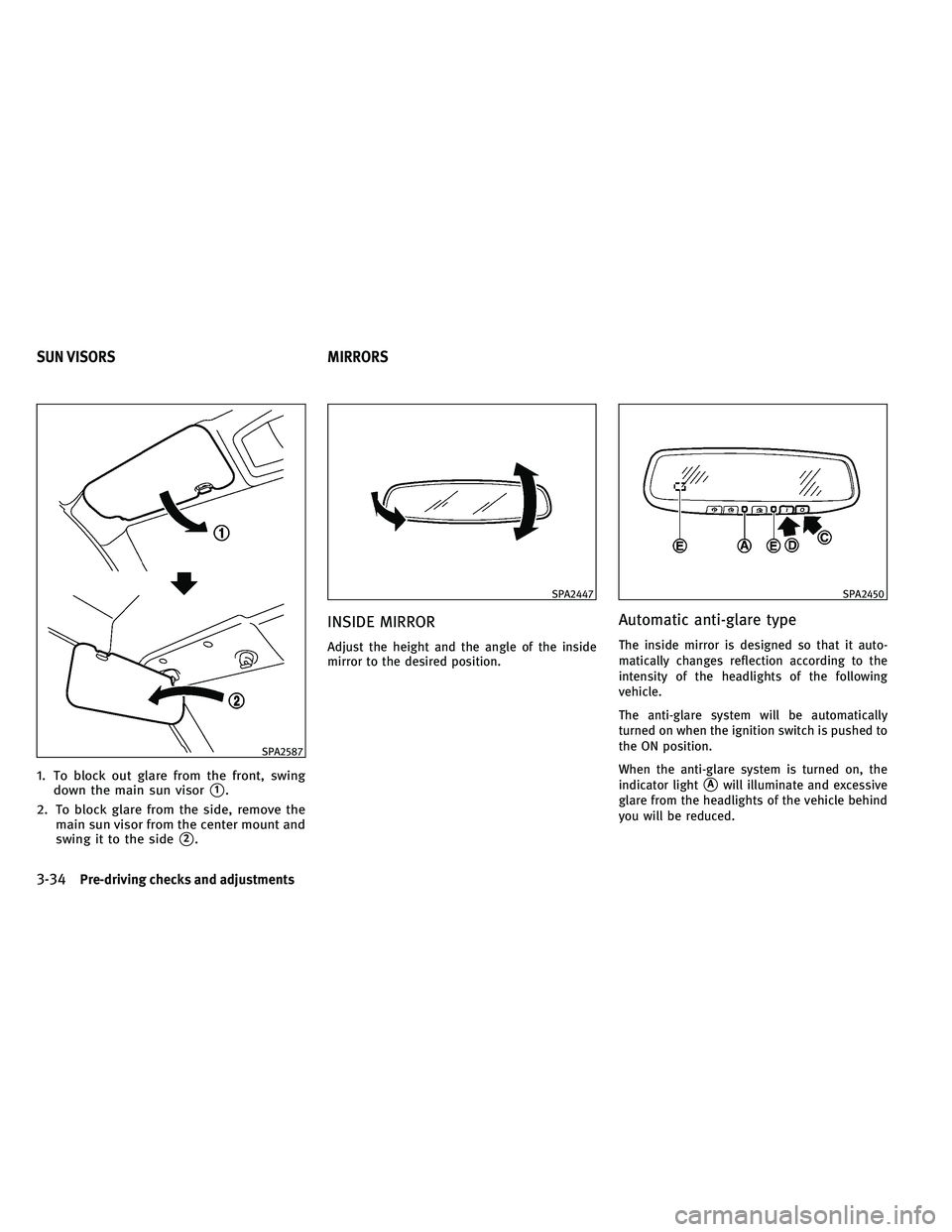

1. To block out glare from the front, swingdown the main sun visor
1.
2. To block glare from the side, remove the main sun visor from the center mount and
swing it to the side
2.
INSIDE MIRROR
Adjust the height and the angle of the inside
mirror to the desired position.
Automatic anti-glare type
The inside mirror is designed so that it auto-
matically changes reflection according to the
intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed to
the ON position.
When the anti-glare system is turned on, the
indicator light
Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
SPA2587
SPA2447SPA2450
SUN VISORS MIRRORS
3-34Pre-driving checks and adjustments

Push the “” switchCto make the inside
rearview mirror operate normally. The indicator
light will turn off. Push the “I” switch
Dto turn
the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation.
For the HomeLink Universal Transceiver (if so
equipped) operation, see “HomeLink UNIVER-
SAL TRANSCEIVER” in the “2. Instruments and
controls” section.
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.
Adjusting outside mirrors
The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
1, then adjust using the con-
trol switch
2.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated.SPA2309
Pre-driving checks and adjustments3-35

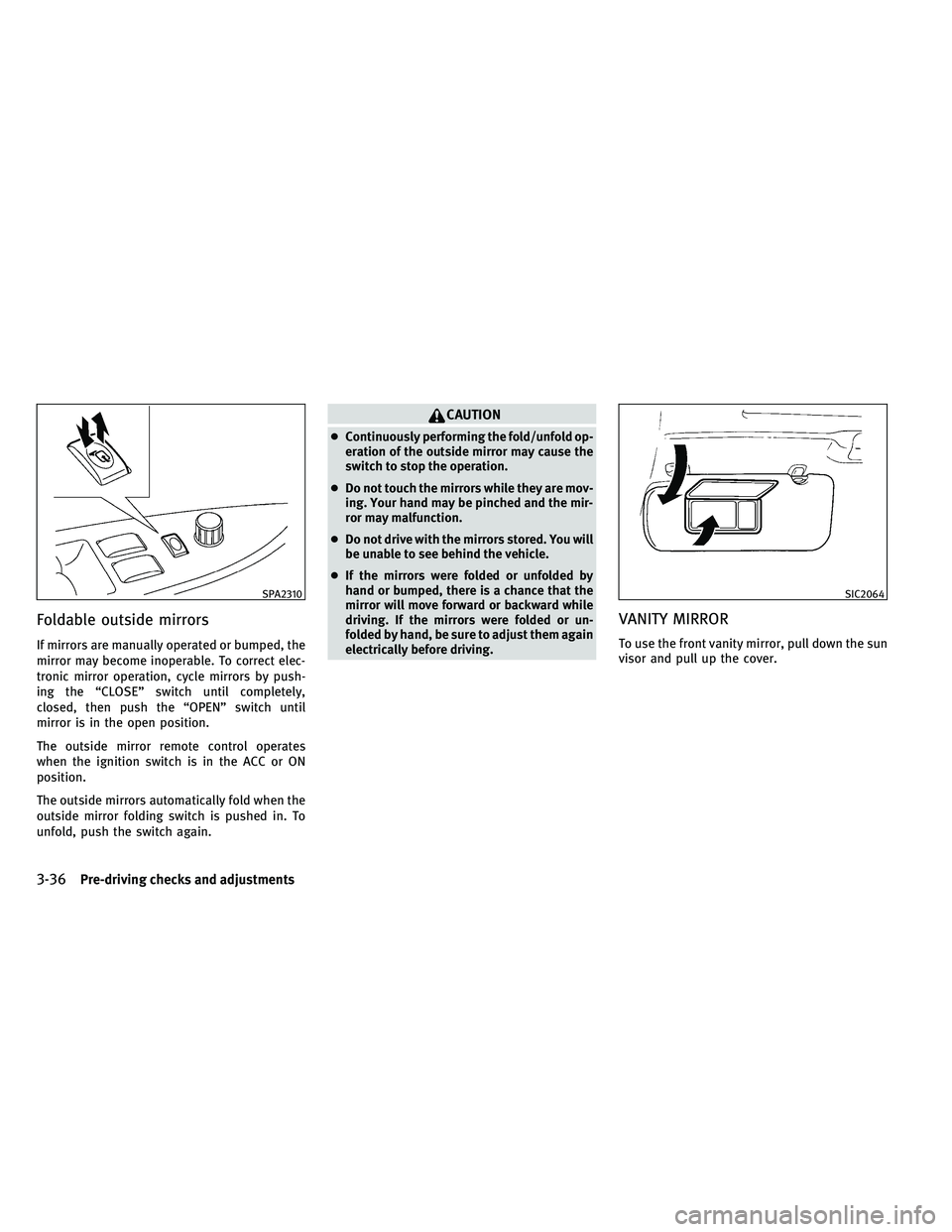

Foldable outside mirrors
If mirrors are manually operated or bumped, the
mirror may become inoperable. To correct elec-
tronic mirror operation, cycle mirrors by push-
ing the “CLOSE” switch until completely,
closed, then push the “OPEN” switch until
mirror is in the open position.
The outside mirror remote control operates
when the ignition switch is in the ACC or ON
position.
The outside mirrors automatically fold when the
outside mirror folding switch is pushed in. To
unfold, push the switch again.
CAUTION
●Continuously performing the fold/unfold op-
eration of the outside mirror may cause the
switch to stop the operation.
● Do not touch the mirrors while they are mov-
ing. Your hand may be pinched and the mir-
ror may malfunction.
● Do not drive with the mirrors stored. You will
be unable to see behind the vehicle.
● If the mirrors were folded or unfolded by
hand or bumped, there is a chance that the
mirror will move forward or backward while
driving. If the mirrors were folded or un-
folded by hand, be sure to adjust them again
electrically before driving.
VANITY MIRROR
To use the front vanity mirror, pull down the sun
visor and pull up the cover.
SPA2310SIC2064
3-36Pre-driving checks and adjustments

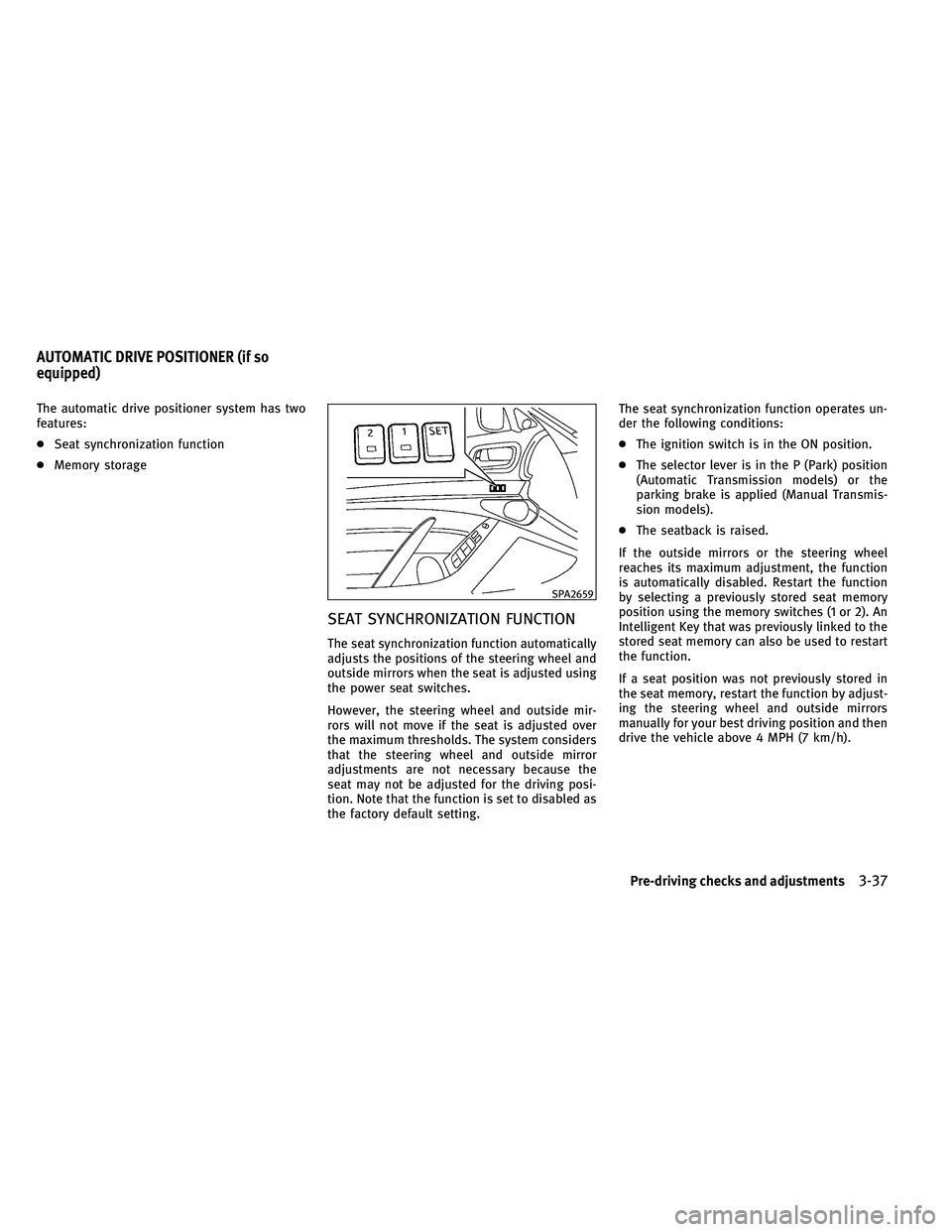

The automatic drive positioner system has two
features:
●Seat synchronization function
● Memory storage
SEAT SYNCHRONIZATION FUNCTION
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mir-
rors will not move if the seat is adjusted over
the maximum thresholds. The system considers
that the steering wheel and outside mirror
adjustments are not necessary because the
seat may not be adjusted for the driving posi-
tion. Note that the function is set to disabled as
the factory default setting. The seat synchronization function operates un-
der the following conditions:
●
The ignition switch is in the ON position.
● The selector lever is in the P (Park) position
(Automatic Transmission models) or the
parking brake is applied (Manual Transmis-
sion models).
● The seatback is raised.
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function
is automatically disabled. Restart the function
by selecting a previously stored seat memory
position using the memory switches (1 or 2). An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in
the seat memory, restart the function by adjust-
ing the steering wheel and outside mirrors
manually for your best driving position and then
drive the vehicle above 4 MPH (7 km/h).
SPA2659
AUTOMATIC DRIVE POSITIONER (if so
equipped)
Pre-driving checks and adjustments3-37

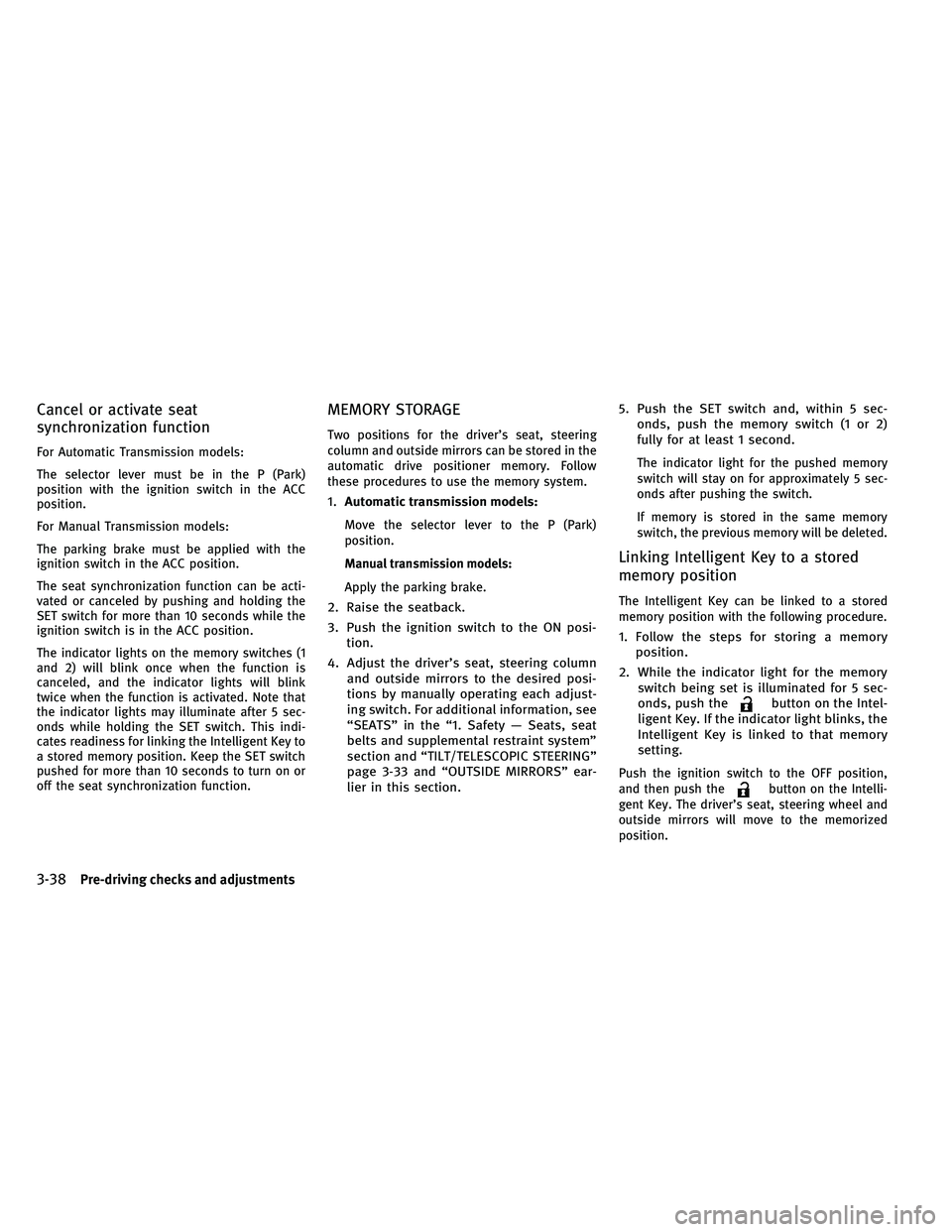

Cancel or activate seat
synchronization function
For Automatic Transmission models:
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
For Manual Transmission models:
The parking brake must be applied with the
ignition switch in the ACC position.
The seat synchronization function can be acti-
vated or canceled by pushing and holding the
SET switch for more than 10 seconds while the
ignition switch is in the ACC position.
The indicator lights on the memory switches (1
and 2) will blink once when the function is
canceled, and the indicator lights will blink
twice when the function is activated. Note that
the indicator lights may illuminate after 5 sec-
onds while holding the SET switch. This indi-
cates readiness for linking the Intelligent Key to
a stored memory position. Keep the SET switch
pushed for more than 10 seconds to turn on or
off the seat synchronization function.
MEMORY STORAGE
Two positions for the driver’s seat, steering
column and outside mirrors can be stored in the
automatic drive positioner memory. Follow
these procedures to use the memory system.
1.Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Push the ignition switch to the ON posi-
tion.
4. Adjust the driver’s seat, steering column and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information, see
“SEATS” in the “1. Safety — Seats, seat
belts and supplemental restraint system”
section and “TILT/TELESCOPIC STEERING”
page 3-33 and “OUTSIDE MIRRORS” ear-
lier in this section. 5. Push the SET switch and, within 5 sec-
onds, push the memory switch (1 or 2)
fully for at least 1 second.
The indicator light for the pushed memory
switch will stay on for approximately 5 sec-
onds after pushing the switch.
If memory is stored in the same memory
switch, the previous memory will be deleted.
Linking Intelligent Key to a stored
memory position
The Intelligent Key can be linked to a stored
memory position with the following procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, push the
button on the Intel-
ligent Key. If the indicator light blinks, the
Intelligent Key is linked to that memory
setting.
Push the ignition switch to the OFF position,
and then push thebutton on the Intelli-
gent Key. The driver’s seat, steering wheel and
outside mirrors will move to the memorized
position.
3-38Pre-driving checks and adjustments

Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON position
and push the memory switch (1 or 2) fully for
at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) fully
for at least 1 second.
The driver’s seat, steering column and out-
side mirrors will move to the memorized
position with the indicator light flashing,
and then the light will stay on for approxi-
mately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
Pre-driving checks and adjustments3-39

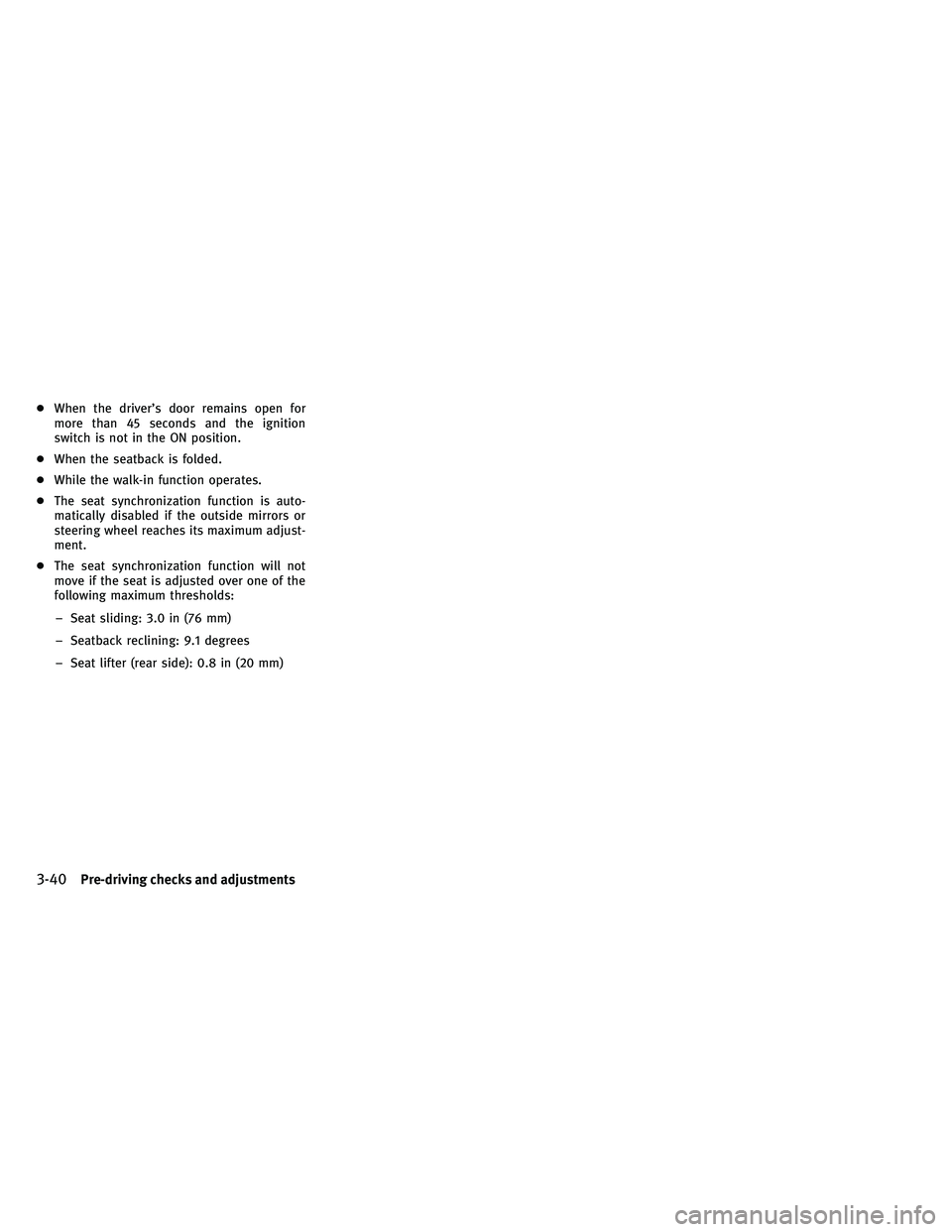

●When the driver’s door remains open for
more than 45 seconds and the ignition
switch is not in the ON position.
● When the seatback is folded.
● While the walk-in function operates.
● The seat synchronization function is auto-
matically disabled if the outside mirrors or
steering wheel reaches its maximum adjust-
ment.
● The seat synchronization function will not
move if the seat is adjusted over one of the
following maximum thresholds:
– Seat sliding: 3.0 in (76 mm)
– Seatback reclining: 9.1 degrees
– Seat lifter (rear side): 0.8 in (20 mm)
3-40Pre-driving checks and adjustments

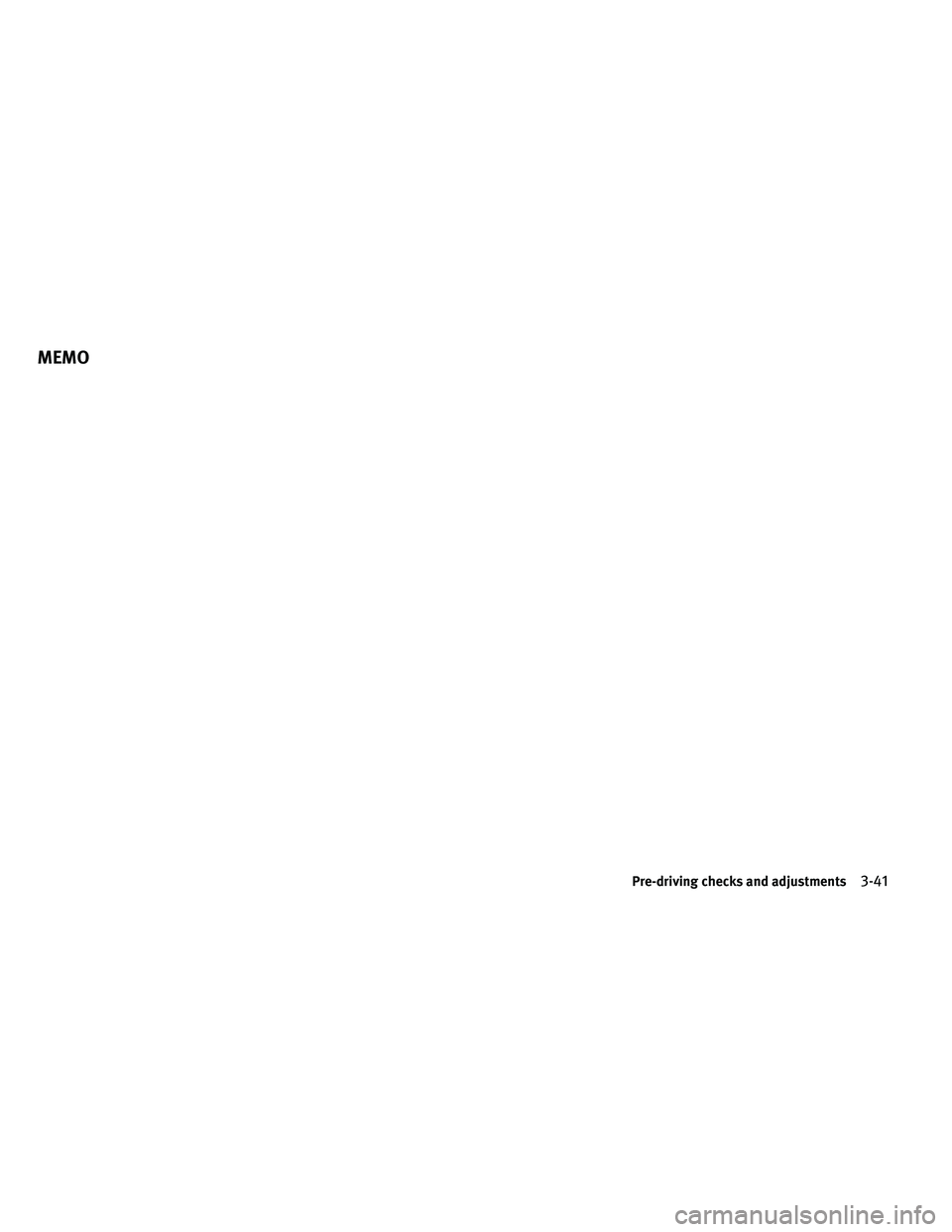

MEMO
Pre-driving checks and adjustments3-41

4 Monitor, climate, audio, phone and voice
recognition systems
Safety note....................................... 4-2
Center multi-function control panel ................. 4-2
How to use INFINITI controller ................... 4-4
How to use touch screen
(models with navigation system) ................. 4-4
Menu options
(models with navigation system) ................. 4-6
How to select menus on the screen .............. 4-7
Vehicle information and settings .................... 4-7
How to use STATUS button ...................... 4-7
How to use brightness control and display
ON/OFF button ................................. 4-7
How to use INFO button ........................ 4-8
How to use SETTING button ....................4-12
Rearview monitor ................................. 4-22
How to read displayed lines ....................4-23
How to park with predicted course lines .........4-23
Difference between predicted and actual
distances ..................................... 4-25
How to adjust screen .......................... 4-27
Operating tips ................................ 4-27
Ventilators ....................................... 4-28
Automatic climate control ......................... 4-29
Automatic climate control (Type A) ..............4-30 Automatic climate control (Type B)
..............4-33
Operating tips ................................ 4-36
In-cabin microfilter ............................ 4-36
Servicing climate control ....................... 4-36
Audio system .................................... 4-37
Audio operation precautions ...................4-37
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-53
DVD (Digital Versatile Disc) player
operation (models with navigation system) ......4-58
Usb input operation ........................... 4-62
Bluetooth streaming audio
(models with navigation system) ................4-66
iPod player operation ......................... 4-71
Music box (if so equipped) .................... 4-73
Cd/dvd/usb memory care and cleaning .........4-81
Steering-wheel-mounted

controls for audio ......4-82
Antenna ...................................... 4-84
Car phone or CB radio ............................ 4-85
Bluetooth Hands-Free Phone System
(models with navigation system) ...................4-85
Regulatory information ......................... 4-87
Voice commands .............................. 4-87
Control buttons ............................... 4-87
Connecting procedure ......................... 4-88

Phone selection............................... 4-88
Vehicle phonebook ............................ 4-88
Making a call ................................. 4-91
Receiving a call ............................... 4-92
During a call .................................. 4-93
Phone setting ................................. 4-93
Troubleshooting guide ......................... 4-95
Bluetooth Hands-Free Phone System
(models without navigation system) ................4-96
Regulatory information ......................... 4-97
Control buttons ............................... 4-98
Voice recognition system ......................4-98
Pairing procedure ............................ 4-102
Phonebook registration ....................... 4-103Making a call
................................ 4-103
Receiving a call .............................. 4-104
During a call ................................. 4-104
Phone settings ............................... 4-105
Voice adaptation mode ....................... 4-108
INFINITI Voice Recognition system
(models with navigation system) ..................4-109
INFINITI Voice Recognition standard mode ......4-109
Using the system .............................. 4-112
INFINITI Voice Recognition alternate
command mode .............................. 4-122
Using the system ............................. 4-128
Troubleshooting guide ........................ 4-134
