INFINITI G-CONVERTIBLE 2011 Owners Manual

HOW TO USE SETTING BUTTON
The display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner’s Manual.
Models with navigation system
SAA2484
Models without navigation system
SAA2604
Models with navigation system
SAA2975
Models without navigation system
SAA2740
4-12Monitor, climate, audio, phone and voice recognition systems

Audio settings
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Audio” key.
Bass/Treble/Balance/Fade :
To adjust the speaker tone quality and sound
balance, select the “Bass”, “Treble”, “Balance”
or “Fade” key and adjust it with the INFINITI
controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Precision Phased Audio (if so equipped) :
When this item is turned to ON, super high pitch
sound and super low pitch sound are empha-
sized and midrange sound is played naturally.
Speed Sensitive Vol. (if so equipped) :
The audio system’s volume is increased with
the vehicle speed. Select the “Speed Sensitive
Vol.” and adjust the effect level with the INFINITI
controller. The Speed Sensitive Volume function
is turned off when the level is set to OFF.
Increasing the value will cause the volume to
increase faster with vehicle speed.BOSE
AudioPilot (if so equipped) :
When this item is turned to ON, AudioPilot
monitors noise in the passenger compartment
with a microphone and compensates for any
unpleasant noise.
Surround Vol. (if so equipped) :
To adjust the surround sound volume, select
“Surround Vol.” and adjust it with the INFINITI
controller.
DivX Registration Code (models with naviga-
tion system) :
The registration code for a device that is used to
download DivX files will be displayed on the
screen. If a disc is loaded or a USB memory is
connected to the audio system, this function
will not be activated.
Display Album Cover Art (models with naviga-
tion system) :
When this item is turned to ON, the album cover
image is displayed when playing iPod or MP3
music files through a CD, DVD or USB memory.
When the image is not properly embedded in
the file or device, the image will not be dis-
played.
Phone settings (models with
navigation system)
For details of the “Phone” settings, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Bluetooth settings (for models with
navigation system)
For details of the “Bluetooth” settings, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Monitor, climate, audio, phone and voice recognition systems4-13

Volume and Beeps settings (models
with navigation system)
The display as illustrated will appear when
pushing the SETTING button, selecting the “Vol-
ume & Beeps” key.
Audio Volume :
To increase or decrease the audio volume,
select the “Audio Volume” and adjust it with the
INFINITI controller. You can also adjust the
audio volume by turning the VOLUME control
knob.Guidance Volume :
To adjust the guidance voice volume select the
“Guidance Volume” and adjust it with the
INFINITI controller.
You can also adjust the guidance voice volume
by turning the VOLUME control knob while voice
guidance is being announced.
Ringtone/Incoming Call/Outgoing Call :
For the details of these items, see
“BLUETOOTH
HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Switch Beeps :
When this item is turned to ON, you will hear a
beep sound when you use a button.
Guidance Voice :
When this item is turned to ON, you will hear
voice guidance in the navigation operation or in
other operations.
NOTE:
When the voice guidance is being announced dur-
ing audio playback, turning the volume knob does
not adjust the music level; it adjusts the guidance
volume level. If voice guidance is not being heard,
please check the Guidance Volume level.
Button beeps settings (models
without navigation system)
The “Button Beeps” screen will appear when
pushing the SETTINGbutton, selecting the “But-
ton Beeps” key with the INFINITI controller and
pushing the ENTERbutton.
Button Beeps :
When this item is turned to ON, you will hear a
beep sound when you use a button.
SAA2554SAA2605
4-14Monitor, climate, audio, phone and voice recognition systems

Display settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment :
To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings
are available.
●Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds. When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
● Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness and the
contrast using the INFINITI controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
Operating tips :
Depending on the driver’s seat positions or the
weather conditions, the display could be hard
to read. Adjust the brightness and contrast of
the display on the setting screen.
Color Theme :
Choose the theme color of the menu screen
from “Black”, “Brown” or “Silver”.
DISPLAY settings (models without
navigation system)
The “Display” screen will appear when pushing
the SETTING button, selecting “Display” key
with the INFINITI controller and pushing the
ENTER button.
Display :
To turn off the screen, push the ENTERbutton
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
SAA2486SAA2115
Monitor, climate, audio, phone and voice recognition systems4-15

To turn on the screen, set this item to the “ON”
position or push the “” button.
Brightness/Contrast/Background Colour :
To adjust the brightness, contrast and back-
ground colour of the screen, select the appro-
priate “Brightness”, “Contrast” or “Background
Colour” key and push the ENTERbutton.
Then, you can adjust the brightness to “Darker”
or “Brighter”, and the contrast to “Lower” or
“Higher” using the INFINITI controller. Switch
the background colour to the daytime mode or
the nighttime mode by pushing the ENTER
button.Clock settings
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Clock” key.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
On-screen Clock :
When this item is turned to ON, a clock is
always displayed in the upper right corner of
the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS sys-
tem (models with navigation system).
Clock Format (24h) :
When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min) (models with navigation
system)/Clock Adjust (models without naviga-
tion system) :
Adjust the time by increasing or decreasing per
hour or per minute.
Models with navigation system
SAA2487
Models without navigation system
SAA3562
4-16Monitor, climate, audio, phone and voice recognition systems

Daylight Saving Time :
Turn this item to ON for daylight saving time
application.
Time Zone :
Choose the time zone from the following.
Models with navigation system:
●Pacific
● Mountain
● Central
● Eastern
● Atlantic
● Newfoundland
● Hawaii
● Alaska
Models without navigation system:
● Eniwetok, Kwajalein
● Midway Island, Samoa
● Hawaii
● Alaska
● Pacific
Others settings (models with
navigation system)
The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
●Comfort
● Language & Units
● Voice Recognition
● Camera
● Sonar
● Image Viewer
SAA3019
Models with navigation system
SAA2488
Models without navigation system
SAA2739
Monitor, climate, audio, phone and voice recognition systems4-17

Comfort settings
Models with navigation system
The display illustrated will appear when push-
ing the SETTING button, selecting the “Others”
key and then selecting the “Comfort” key. This
key does not appear on the display until the
ignition switch is pushed to the ON position.
Models without navigation system
The display illustrated will appear when push-
ing the SETTING button and selecting the “Com-
fort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.Speed Sensing Wiper Interval :
When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “Eng-
lish”, “Français” or “Español” for your favorite
display appearance.
SAA2490
4-18Monitor, climate, audio, phone and voice recognition systems

If you select the “Français” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “OWNER’S
MANUAL/SERVICE MANUAL ORDER INFORMA-
TION” in the “9. Technical and consumer infor-
mation” section.
Select Units :
Select the “Select Units” key. Choose “US”
(Mile, °F, MPG) or “Metric” (km, °C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models
with navigation system)
For details about the “Voice Recognition” set-
tings, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section.
CAMERA settings
The “CAMERA” screen will appear when select-
ing the “Camera” key.
For the details about the camera system opera-
tion, see “REARVIEW MONITOR” later in this
section.
Predictive Course Lines :
When this item is turned to ON, the predicted
course lines will be displayed on the monitor
when the selector/shift lever is in the R (Re-
verse) position.
Models with navigation system
SAA2404
Models without navigation system
SAA2606
Monitor, climate, audio, phone and voice recognition systems4-19

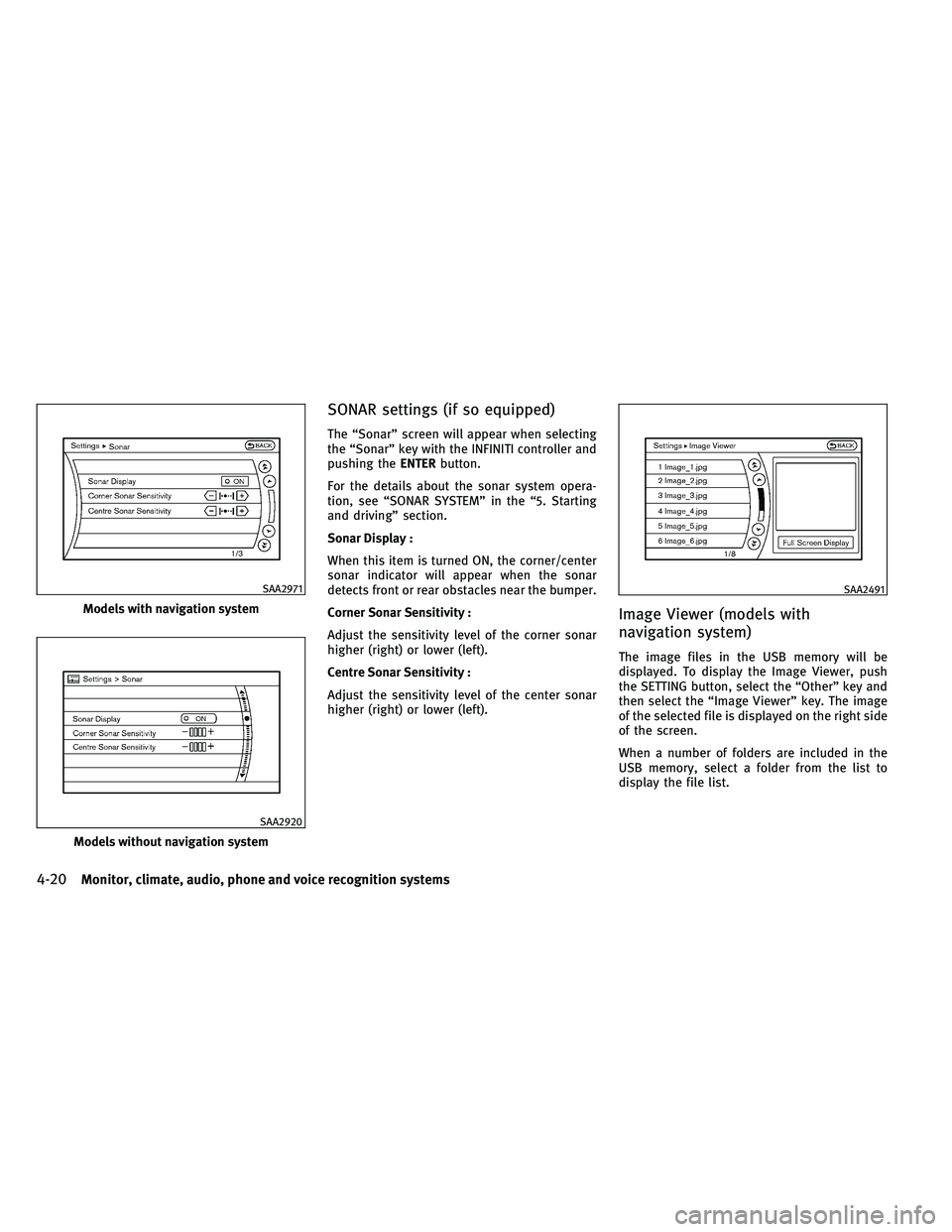

SONAR settings (if so equipped)
The “Sonar” screen will appear when selecting
the “Sonar” key with the INFINITI controller and
pushing theENTERbutton.
For the details about the sonar system opera-
tion, see “SONAR SYSTEM” in the “5. Starting
and driving” section.
Sonar Display :
When this item is turned ON, the corner/center
sonar indicator will appear when the sonar
detects front or rear obstacles near the bumper.
Corner Sonar Sensitivity :
Adjust the sensitivity level of the corner sonar
higher (right) or lower (left).
Centre Sonar Sensitivity :
Adjust the sensitivity level of the center sonar
higher (right) or lower (left).
Image Viewer (models with
navigation system)
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Models with navigation system
SAA2971
Models without navigation system
SAA2920
SAA2491
4-20Monitor, climate, audio, phone and voice recognition systems

Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking
brake.Full Screen Display :
The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the
INFINITI controller.
●
(Start)
Select the “
” key to start playing the
slideshow.
●
(Stop)
Select the “
” key to stop the slide-
show. ●
(Next)
Select the “
” key to display the next
file.
●
(Previous)
Select the “
” key to display the previ-
ous file.
Setting the Image Viewer :
The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are avail-
able for the full screen display.
● Slideshow Speed
Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.
● Slideshow Order
Select the “Slideshow Order” key. From the
following display, select “Random” or “Or-
der List”. For “Order List”, the image order is
the order of the files as stored on the USB
memory.
SAA2492
Monitor, climate, audio, phone and voice recognition systems4-21
