sensor INFINITI G-CONVERTIBLE 2011 User Guide

The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light.
If the ignition switch is pushed to the OFF
position and one of the doors is opened and
this condition is continued, the headlights re-
main on for 5 minutes.
Automatic headlights off delay :
You can keep the headlights on for up to 180
seconds after you push the ignition switch to
OFF and open any door then close all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF) to 180
seconds. The factory default setting is 45 sec-
onds.
For automatic headlights off delay setting, see
“Light Off Delay” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section.Be sure not to put anything on top of the photo
sensor
Alocated on the top of the instrument
panel. The photo sensor controls the autolight;
if it is covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.Headlight beam select
1To select the low beam, put the lever in
the neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
position. Pull it back to select the low
beam.
3Pulling the lever toward you will flash the headlight high beam even when the
headlight switch is in the OFF position.
SIC4192SIC3269
Instruments and controls2-33

Push the “” switchCto make the inside
rearview mirror operate normally. The indicator
light will turn off. Push the “I” switch
Dto turn
the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation.
For the HomeLink Universal Transceiver (if so
equipped) operation, see “HomeLink UNIVER-
SAL TRANSCEIVER” in the “2. Instruments and
controls” section.
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.
Adjusting outside mirrors
The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
1, then adjust using the con-
trol switch
2.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated.SPA2309
Pre-driving checks and adjustments3-35

Automatic intake air control :
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the intake air control button.
To return to the automatic control mode, push
the intake air control button until the indicator
light on the “
” side illuminates. The
advanced climate control system turns on and
the intake air will be controlled automatically.
To turn system off
Push the OFF button.
Advanced climate control system
The advanced climate control system keeps the
air inside of the vehicle clean, using the ion
control and the automatic air intake control with
outside odor and exhaust gas detecting sensor. Ion control :
This unit generates highly concentrated Plas-
macluster ions into the air blown from the
ventilators and reduces odor absorbed into the
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster ions automati-
cally.
The amount of Plasmacluster ions increases
according to the amount of air flow. When the
air flow is high, “
” is displayed on the
screen and when the air flow is low, the indica-
tion in the screen changes to “
”.
Outside odor and exhaust gas detection sensor :
This vehicle is equipped with an outside odor
and exhaust gas detection sensor. When the
automatic intake air control is ON, the sensor
detects odors and exhaust gas, and then the
system automatically changes from the outside
air circulation mode to the recirculation mode.
When the intake air control button is pushed
under the following conditions, the indicator
light on the “
” side will illuminate and the
outside odor and exhaust gas detection sensor
will turn on.
Models with navigation system
SAA2734
Models without navigation system
SAA2735
Monitor, climate, audio, phone and voice recognition systems4-35

●The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defogger button is turned off).
● The outside temperature is about 32°F (0°C)
or more.
● The outside odor and exhaust gas detection
sensor detects industrial odors such as pulp
or chemicals and exhaust gas such as gaso-
line or diesel.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with Plasmacluster ion that are
emitted from the ventilator.
After 5 minutes, the sensor detects outside
odors and exhaust gas and automatically alter-
nates between the recirculation mode and out-
side air circulation mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate for a maximum
of 150 seconds. This is not a malfunction. After
the coolant temperature warms up, air will flow
normally from the foot outlets. The sunload sensor
Aon the instrument panel
helps maintain a constant temperature. Do not
put anything on or around this sensor.
IN-CABIN MICROFILTER
Type A:
The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner
heats, defogs, and ventilates efficiently, replace
the filter in accordance with the maintenance
schedule in the INFINITI Service and Mainte-
nance Guide. To replace the filter, contact an
INFINITI retailer. The filter should be replaced if air flow is ex-
tremely decreased or when windows fog up eas-
ily when operating heater or air conditioning
system.
Type B:
The climate control system is equipped with a
natural grape seed polyphenol filter which col-
lects and neutralizes dirt, pollen, dust, etc. To
make sure that the air conditioner heats, defogs
and ventilates efficiently, replace the filter in
accordance with the maintenance schedule in
the INFINITI Service and Maintenance Guide. To
replace the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow de-
creases significantly or if windows fog up easily
when operating the heater or air conditioner.SERVICING CLIMATE CONTROL
The climate control system in your INFINITI is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not
harm the earth’s ozone layer. However, special
charging equipment and lubricant are required
when servicing your INFINITI air conditioner.
Using improper refrigerants or lubricants will
cause severe damage to your climate control
system. (See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
SIC2768
4-36Monitor, climate, audio, phone and voice recognition systems

Additional information
●The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
● The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
●
The CHECK TIRE PRESSURE warning appears
on the dot matrix liquid crystal display when
the low tire pressure warning light is illumi-
nated and low tire pressure is detected. The
CHECK TIRE PRESSURE warning turns off when
the low tire pressure warning light turns off.
The CHECK TIRE PRESSURE warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
●Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature of the air inside the
tire which can cause a lower tire inflation
pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light
illuminates in low ambient temperature, check
the tire pressure for all four tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” in the “6. In case of
emergency” section.
WARNING
●
If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible. (See “FLAT TIRE” in the “6. In case
of emergency” section for changing a flat
tire.)
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors (for
models not equipped with the emergency
tire puncture repair kit).
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire (for models equipped with the emer-
gency tire puncture repair kit).
5-4Starting and driving

●INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure (for models
equipped with the emergency tire puncture
repair kit).
CAUTION
● The TPMS may not function properly when
the wheels are equipped with tire chains or
the wheels are buried in snow.
● Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals from
the tire pressure sensors, and the TPMS will
not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
– Facilities or electric devices using similar radio frequencies are near the vehicle.
– If a transmitter set to similar frequencies is being used in or near the vehicle. – If a computer (or similar equipment) or a
DC/AC converter is being used in or near the
vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harm-
ful interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Note: Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
For Canada:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
AVOIDING COLLISION AND ROLLOVER
WARNING
Failure to operate this vehicle in a safe and
prudent manner may result in loss of control or
an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering maneu-
vers, because these driving practices could cause
you to lose control of your vehicle. As with any
vehicle, a loss of control could result in a collision
with other vehicles or objects, or cause the vehicle
to rollover, particularly if the loss of control
causes the vehicle to slide sideways. Be attentive
at all times, and avoid driving when tired. Never
drive when under the influence of alcohol or
drugs (including prescription or over-the-counter
drugs which may cause drowsiness). Always wear
your seat belt as outlined in the “SEAT BELTS” in
the “1. Safety — Seats, seat belts and supplemen-
tal restraint system” section of this manual, and
also instruct your passengers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is signifi-
cantly more likely to be injured or killed than a
person properly wearing a seat belt.
Starting and driving5-5

PRECAUTIONS ON VEHICLE-TO-
VEHICLE DISTANCE CONTROL MODE
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the distance sensor
Adetects a slower
moving vehicle ahead, the system will reduce
the vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to 25% of vehicle
braking power) if necessary.
The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
WARNING
● This system is only an aid to assist the driver
and is not a collision warning or avoidance
device. It is the driver’s responsibility to stay
alert, drive safely and be in control of the
vehicle at all times.
● The system is primarily intended for use on
straight, dry, open roads with light traffic. It
is not advisable to use the system in city
traffic or congested areas. ●
This system will not adapt automatically to
road conditions. This system should be used
in evenly flowing traffic. Do not use the sys-
tem on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
The distance sensor will not detect under most
conditions:
● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
●
Motorcycles traveling offset in the travel lane
This system will not automatically brake the ve-
hicle to a stop.
WARNING
● As there is a performance limit to the dis-
tance control function, never rely solely on
the Intelligent Cruise Control system. This
system does not correct careless, inatten-
tive or absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by de-
pressing the brake pedal, depending on the
distance to the vehicle ahead and the sur-
rounding circumstances in order to maintain
a safe distance between vehicles.
Type A
SSD0662
Type B
SSD1169
Starting and driving5-23

●Although the brake operation is controlled
by the system, the system does not auto-
matically stop the vehicle. If the vehicle
speed falls below approximately 20 MPH (32
km/h), the Intelligent Cruise Control system
is automatically canceled and a warning
chime sounds. (The brake control is also
canceled.)
● The system may not detect the vehicle in
front of you in certain road or weather condi-
tions. To avoid accidents, never use the In-
telligent Cruise Control system under the
following conditions:
– On roads where the traffic is heavy or there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.) When the windshield wiper is operated at
the low speed (LO) or high speed (HI) po-
sition, the Intelligent Cruise Control sys-
tem is automatically canceled.
– When strong light (for example, at sun- rise or sunset) is directly shining on the
front of the vehicle
– When rain, snow or dirt adhere to the sys- tem sensor – On steep downhill roads (the vehicle may
go beyond the set vehicle speed and fre-
quent braking may result in overheating
the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it difficult to keep a proper distance between vehicles
because of frequent acceleration or
deceleration
● In some road or traffic conditions, a vehicle
or object can unexpectedly come into the
sensor detection zone and cause automatic
braking. You may need to control the dis-
tance from other vehicles using the accelera-
tor pedal. Always stay alert and avoid using
the ICC system when it is not recommended
in this section.
Type A
SSD0662
Type B
SSD1169
5-24Starting and driving

VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE OPERATION
Always pay attention to the operation of the
vehicle and be ready to manually control the
proper following distance. The vehicle-to-
vehicle distance control mode of the Intelligent
Cruise Control (ICC) system may not be able to
maintain the selected distance between ve-
hicles (following distance) or selected vehicle
speed under some circumstances.
The vehicle-to-vehicle distance control mode
uses a sensor
Alocated on the front of the
vehicle to detect vehicles traveling ahead. The
sensor generally detects the signals returned
from the reflectors on a vehicle ahead. There-
fore, if the sensor cannot detect the reflector on
the vehicle ahead, the ICC system may not
maintain the selected distance.
The following are some conditions in which the
sensor cannot detect the signals:
● When the reflector of the vehicle ahead is
positioned high on the vehicle (trailer, etc.)
● When the reflector on the vehicle ahead is
missing, damaged or covered
● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray ●
When the snow or road spray from traveling
vehicles reduces the sensor’s visibility
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
visibility
● When excessively heavy baggage is loaded
in the rear seat or the trunk of your vehicle
The ICC system is designed to automatically
check the sensor’s operation within the limita-
tions of the system. When the sensor is covered
with dirt or obstructs, the system will automati-
cally be canceled. If the sensor is covered with
ice, a transparent or translucent vinyl bag, etc.,
the ICC system may not detect them. In these
instances, the vehicle-to-vehicle distance con-
trol mode may not cancel and may not be able
to maintain the selected following distance
from the vehicle ahead. Be sure to check and
clean the sensor regularly.
The vehicle-to-vehicle distance control mode is
designed to maintain a selected distance and
reduce the speed to match the slower vehicle
ahead; the system will decelerate the vehicle as
necessary. However, the ICC system can only
apply up to 25% of the vehicles total braking
power. This system should only be used when
traffic conditions allow vehicle speeds to re-
main fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and blink the
system display to notify the driver to take
necessary action.
The system will cancel and a warning chime will
sound if the speed falls below approximately 20
MPH (32 km/h). The system will also disengage
below the 20 MPH (32 km/h) cut-off speed or
over the maximum set speed.
See “Approach warning” later in this section.
The following items are controlled in the
vehicle-to-vehicle distance control mode:
●
When there are no vehicles traveling ahead,
the vehicle-to-vehicle distance control mode
maintains the speed set by the driver. The
set speed range is between approximately
25 and 90 MPH (40 and 144 km/h).
● When there is a vehicle traveling ahead, the
vehicle-to-vehicle distance control mode ad-
justs the speed to maintain the distance,
selected by driver, from the vehicle ahead.
The adjusting speed range is between ap-
proximately 20 MPH (32 km/h) and up to the
set speed.
Starting and driving5-25

●When the vehicle traveling ahead has moved
out from its lane of travel, the vehicle-to-
vehicle distance control mode accelerates
and maintains vehicle speed up to the set
speed.
The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll
gates or traffic congestion.

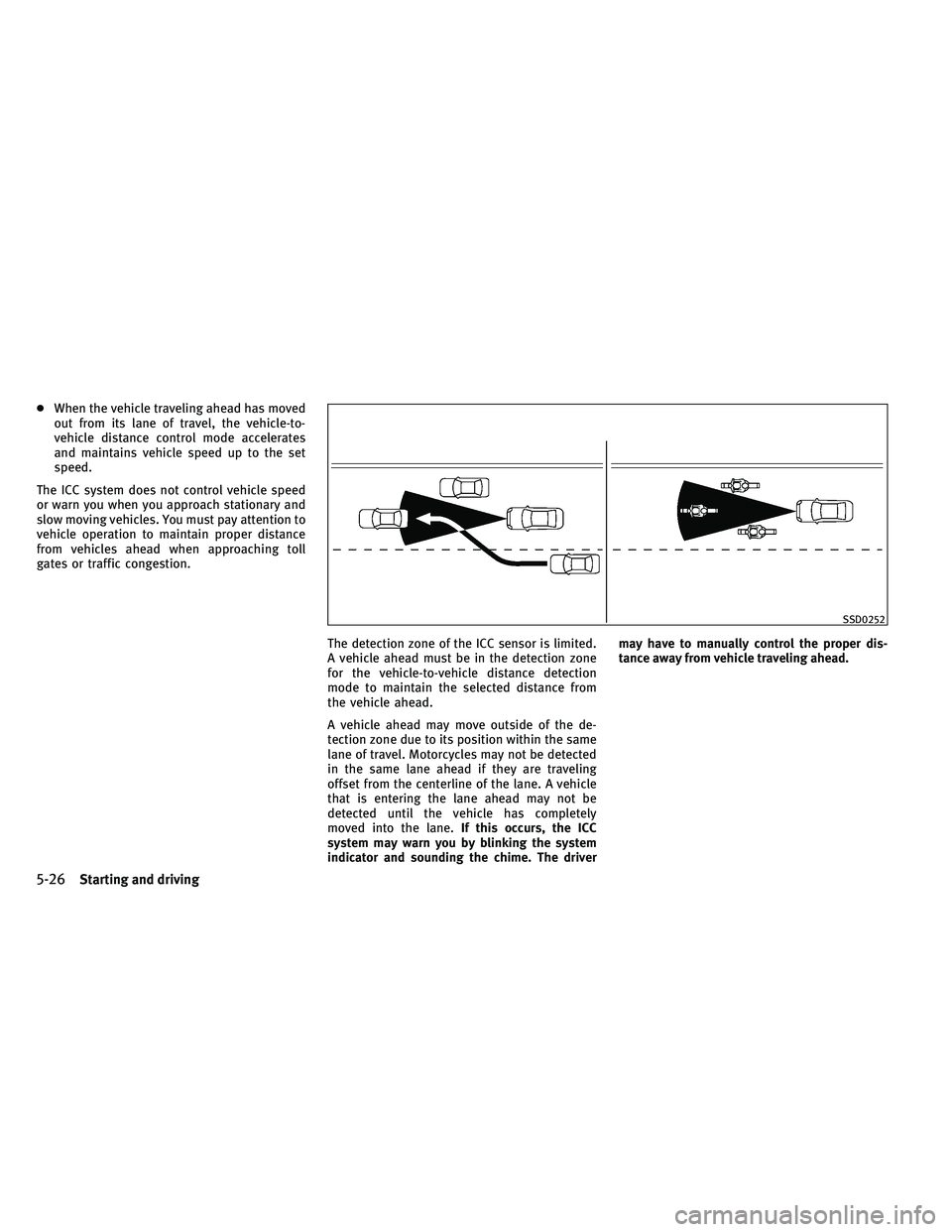

The detection zone of the ICC sensor is limited.
A vehicle ahead must be in the detection zone
for the vehicle-to-vehicle distance detection
mode to maintain the selected distance from
the vehicle ahead.
A vehicle ahead may move outside of the de-
tection zone due to its position within the same
lane of travel. Motorcycles may not be detected
in the same lane ahead if they are traveling
offset from the centerline of the lane. A vehicle
that is entering the lane ahead may not be
detected until the vehicle has completely
moved into the lane.If this occurs, the ICC
system may warn you by blinking the system
indicator and sounding the chime. The driver may have to manually control the proper dis-
tance away from vehicle traveling ahead.
SSD0252
5-26Starting and driving
