SymptomBeepPossible cause Possible solution
The retractable hard top stops halfway
during operation. Sounds twice
Objects are trapped in the moving structure of
the retractable hard top. Check that an object is not trapped inside the
rear parcel shelf, side flap and retractable hard
top. After the check, turn the ignition switch to
the OFF position, start the engine again and
then operate the retractable hard top.
Does not sound The battery voltage is low. Start the engine again and operate the retract-
able hard top.
Only the rear parcel shelf operates
when the OPEN side of the retractable
hard top operating switch is pushed. Sounds twice
every 10 sec- onds for 15 minutes. The retractable hard top control does not rec-
ognize the rear parcel shelf position because
of battery replacement or the contentious op-
eration of the retractable hard top. Perform the initialization of the retractable hard
top and operate the retractable hard top again.
For the initialization details, please refer to
“INITIALIZING OF THE RETRACTABLE HARD TOP”
in the “3. Pre-driving checks and adjustments”
section.
When the vehicle is being driven, the
beep sounds. Sounds con-
tinuously The retractable hard top is partially opened. Immediately park the vehicle in a safe location
and fully open or fully close the retractable
hard top.
When the engine is stopped, the beep
sounds. Sounds twice The retractable hard top is partially opened. Fully open or fully close the retractable hard
top.
Pre-driving checks and adjustments3-27

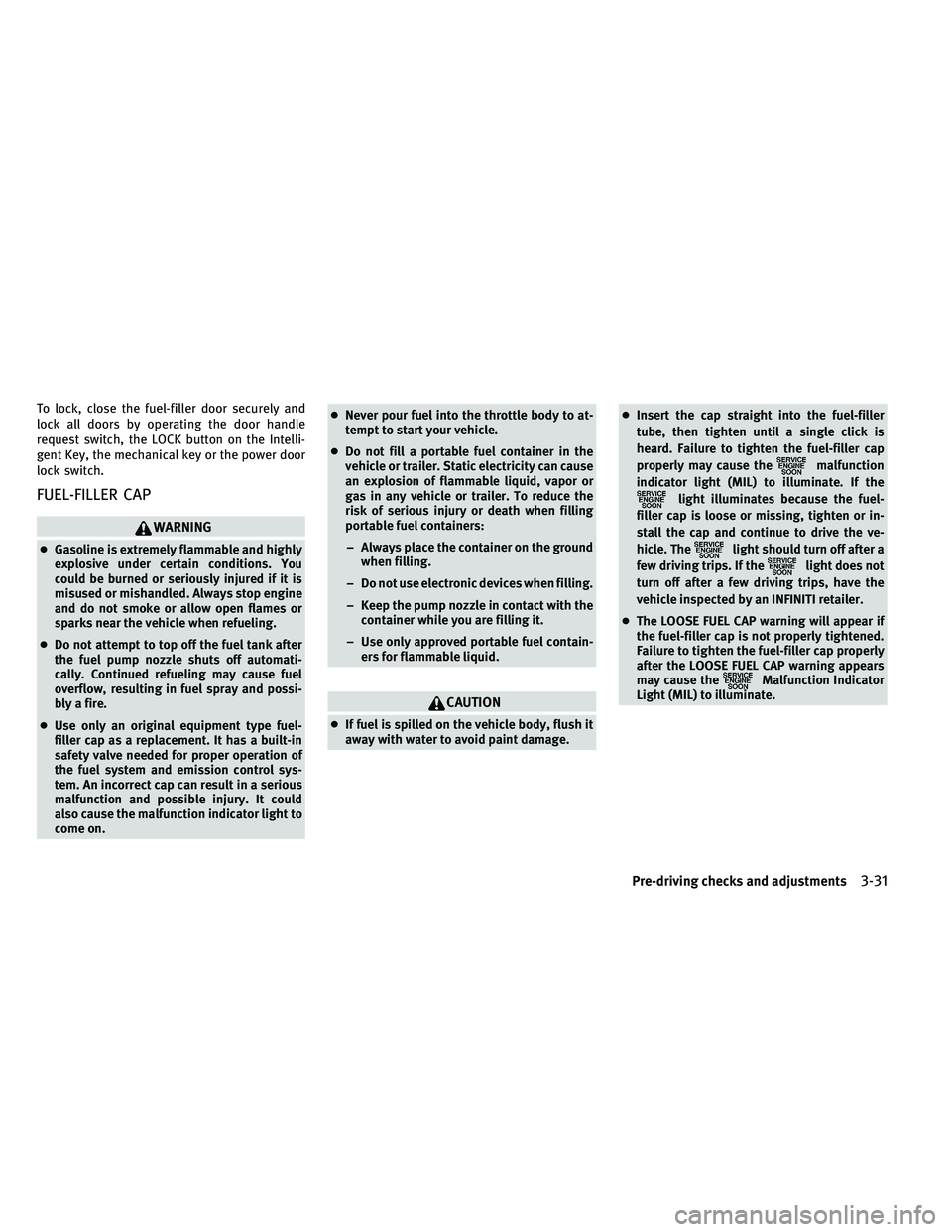

To lock, close the fuel-filler door securely and
lock all doors by operating the door handle
request switch, the LOCK button on the Intelli-
gent Key, the mechanical key or the power door
lock switch.
FUEL-FILLER CAP
WARNING
●Gasoline is extremely flammable and highly
explosive under certain conditions. You
could be burned or seriously injured if it is
misused or mishandled. Always stop engine
and do not smoke or allow open flames or
sparks near the vehicle when refueling.
● Do not attempt to top off the fuel tank after
the fuel pump nozzle shuts off automati-
cally. Continued refueling may cause fuel
overflow, resulting in fuel spray and possi-
bly a fire.
● Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the malfunction indicator light to
come on. ●
Never pour fuel into the throttle body to at-
tempt to start your vehicle.
● Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can cause
an explosion of flammable liquid, vapor or
gas in any vehicle or trailer. To reduce the
risk of serious injury or death when filling
portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel contain- ers for flammable liquid.
CAUTION
●If fuel is spilled on the vehicle body, flush it
away with water to avoid paint damage. ●
Insert the cap straight into the fuel-filler
tube, then tighten until a single click is
heard. Failure to tighten the fuel-filler cap
properly may cause the
malfunction
indicator light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten or in-
stall the cap and continue to drive the ve-
hicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by an INFINITI retailer.
● The LOOSE FUEL CAP warning will appear if
the fuel-filler cap is not properly tightened.
Failure to tighten the fuel-filler cap properly
after the LOOSE FUEL CAP warning appears
may cause the
Malfunction Indicator
Light (MIL) to illuminate.
Pre-driving checks and adjustments3-31

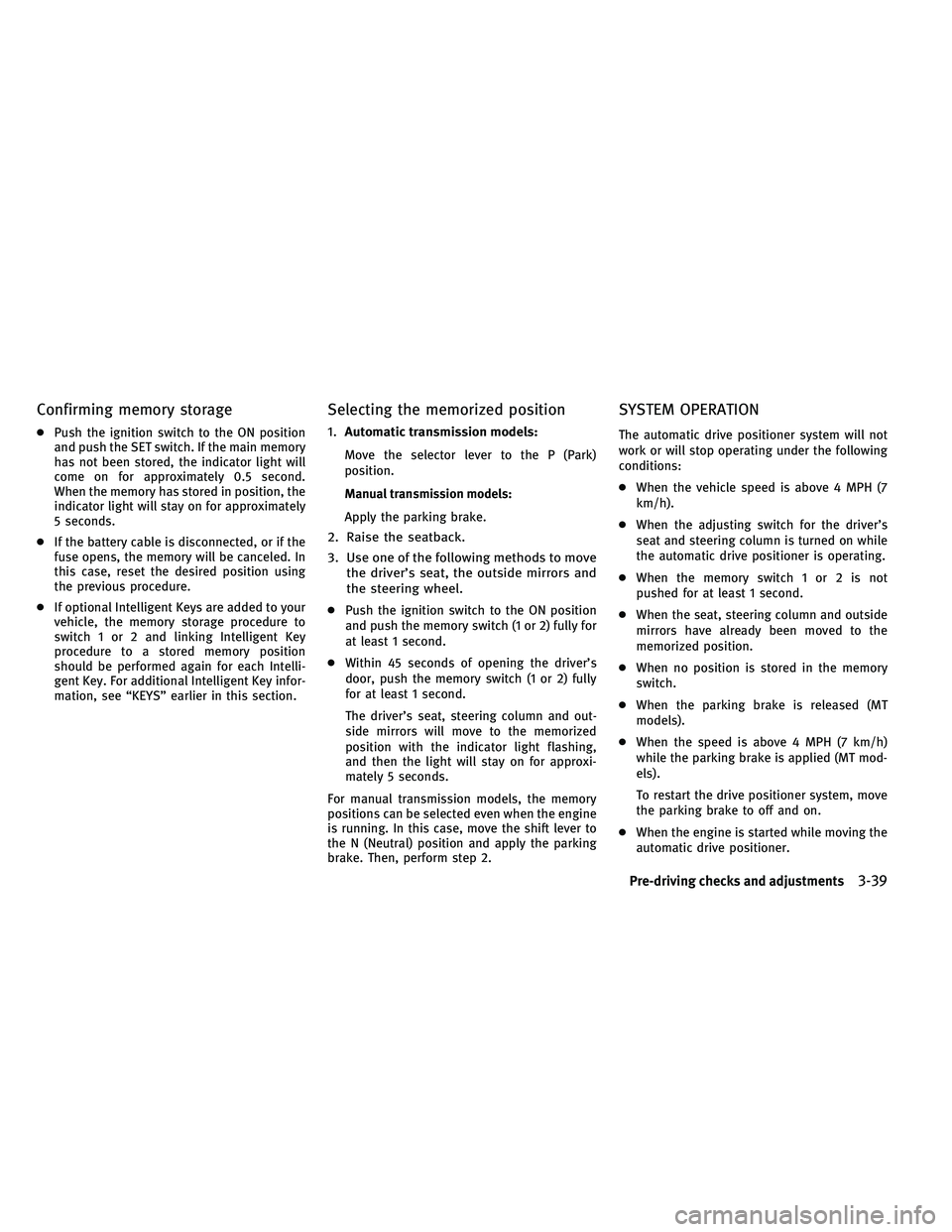

Confirming memory storage
●Push the ignition switch to the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 second.
When the memory has stored in position, the
indicator light will stay on for approximately
5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory will be canceled. In
this case, reset the desired position using
the previous procedure.
● If optional Intelligent Keys are added to your
vehicle, the memory storage procedure to
switch 1 or 2 and linking Intelligent Key
procedure to a stored memory position
should be performed again for each Intelli-
gent Key. For additional Intelligent Key infor-
mation, see “KEYS” earlier in this section.
Selecting the memorized position
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Use one of the following methods to move
the driver’s seat, the outside mirrors and
the steering wheel.
●Push the ignition switch to the ON position
and push the memory switch (1 or 2) fully for
at least 1 second.
● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) fully
for at least 1 second.
The driver’s seat, steering column and out-
side mirrors will move to the memorized
position with the indicator light flashing,
and then the light will stay on for approxi-
mately 5 seconds.
For manual transmission models, the memory
positions can be selected even when the engine
is running. In this case, move the shift lever to
the N (Neutral) position and apply the parking
brake. Then, perform step 2.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:
● When the vehicle speed is above 4 MPH (7
km/h).
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the memory switch 1 or 2 is not
pushed for at least 1 second.
● When the seat, steering column and outside
mirrors have already been moved to the
memorized position.
● When no position is stored in the memory
switch.
● When the parking brake is released (MT
models).
● When the speed is above 4 MPH (7 km/h)
while the parking brake is applied (MT mod-
els).
To restart the drive positioner system, move
the parking brake to off and on.
● When the engine is started while moving the
automatic drive positioner.
Pre-driving checks and adjustments3-39

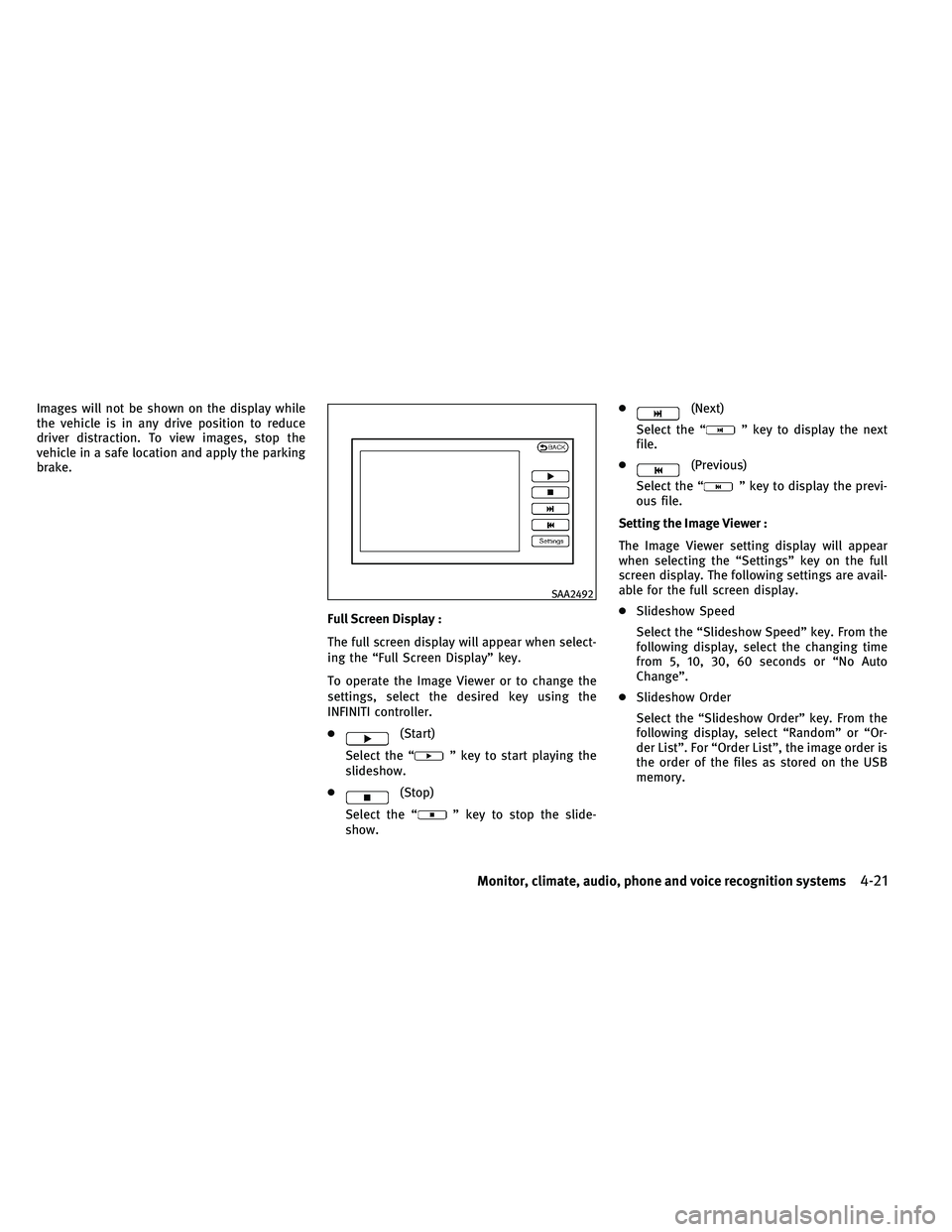

Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking
brake.Full Screen Display :
The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the
INFINITI controller.
●
(Start)
Select the “
” key to start playing the
slideshow.
●
(Stop)
Select the “
” key to stop the slide-
show. ●
(Next)
Select the “
” key to display the next
file.
●
(Previous)
Select the “
” key to display the previ-
ous file.
Setting the Image Viewer :
The Image Viewer setting display will appear
when selecting the “Settings” key on the full
screen display. The following settings are avail-
able for the full screen display.
● Slideshow Speed
Select the “Slideshow Speed” key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or “No Auto
Change”.
● Slideshow Order
Select the “Slideshow Order” key. From the
following display, select “Random” or “Or-
der List”. For “Order List”, the image order is
the order of the files as stored on the USB
memory.
SAA2492
Monitor, climate, audio, phone and voice recognition systems4-21

DVD (Digital Versatile Disc) PLAYER
OPERATION (models with navigation
system)
Precautions
Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the selector lever to the P (Park) position
(Automatic Transmission models) or apply the
parking brake (Manual Transmission models).
WARNING
●The driver must not attempt to operate the
DVD system or wear the headphones while
the vehicle is in motion so that full attention
may be given to vehicle operation.
● Do not attempt to modify the system to dis-
play a movie on the front screen while the
vehicle is being driven. Doing so may dis-
tract the driver and may cause a collision and
serious personal injury or death.
CAUTION
● Only operate the DVD while the vehicle en-
gine is running. Operating the DVD for ex-
tended periods of time with the engine OFF
can discharge the vehicle battery.
● Do not allow the system to get wet. Exces-
sive moisture such as spilled liquids may
cause the system to malfunction.
● While playing VIDEO-CD media, this DVD
player does not guarantee complete func-
tionality of all VIDEO-CD formats.
Display settings
To adjust the front display mode, push the
SETTING button while the DVD is being played,
select the “Others” key and then select the
“Display” key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the “Display Adjust-
ment” key and then select each key.
Then you can adjust each item using the
INFINITI controller. After changes have been
made push the BACK button to save the setting.
4-58Monitor, climate, audio, phone and voice recognition systems

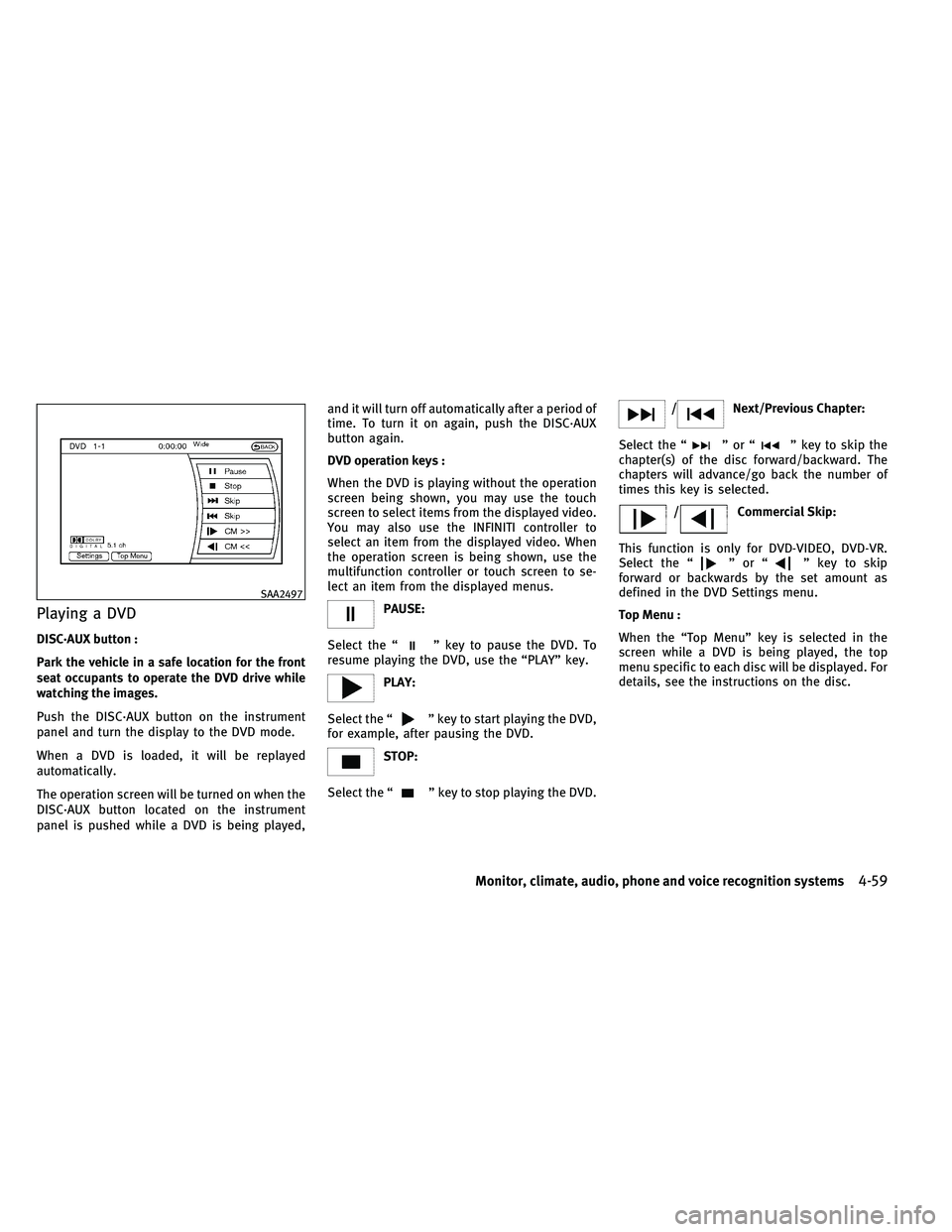

Playing a DVD
DISC·AUX button :
Park the vehicle in a safe location for the front
seat occupants to operate the DVD drive while
watching the images.
Push the DISC·AUX button on the instrument
panel and turn the display to the DVD mode.
When a DVD is loaded, it will be replayed
automatically.
The operation screen will be turned on when the
DISC·AUX button located on the instrument
panel is pushed while a DVD is being played,and it will turn off automatically after a period of
time. To turn it on again, push the DISC·AUX
button again.
DVD operation keys :
When the DVD is playing without the operation
screen being shown, you may use the touch
screen to select items from the displayed video.
You may also use the INFINITI controller to
select an item from the displayed video. When
the operation screen is being shown, use the
multifunction controller or touch screen to se-
lect an item from the displayed menus.
PAUSE:
Select the “
” key to pause the DVD. To
resume playing the DVD, use the “PLAY” key.
PLAY:
Select the “
” key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the “
” key to stop playing the DVD.
/Next/Previous Chapter:
Select the “
”or“” key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip:
This function is only for DVD-VIDEO, DVD-VR.
Select the “
”or“” key to skip
forward or backwards by the set amount as
defined in the DVD Settings menu.
Top Menu :
When the “Top Menu” key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
SAA2497
Monitor, climate, audio, phone and voice recognition systems4-59

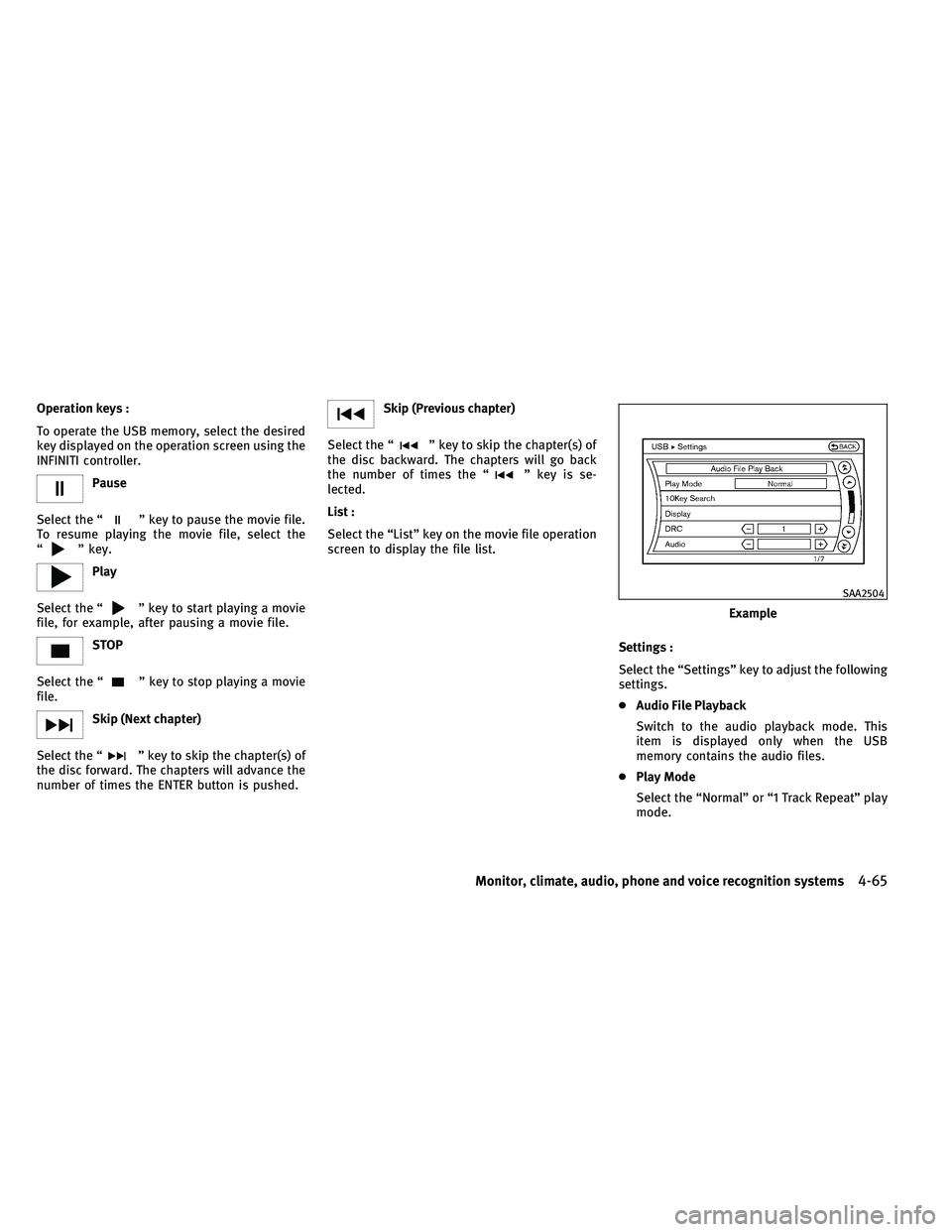

Operation keys :
To operate the USB memory, select the desired
key displayed on the operation screen using the
INFINITI controller.
Pause
Select the “
” key to pause the movie file.
To resume playing the movie file, select the
“
” key.
Play
Select the “
” key to start playing a movie
file, for example, after pausing a movie file.
STOP
Select the “
” key to stop playing a movie
file.
Skip (Next chapter)
Select the “
” key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “
” key is se-
lected.
List :
Select the “List” key on the movie file operation
screen to display the file list.
Settings :
Select the “Settings” key to adjust the following
settings.
●Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
● Play Mode
Select the “Normal” or “1 Track Repeat” play
mode.
Example
SAA2504
Monitor, climate, audio, phone and voice recognition systems4-65

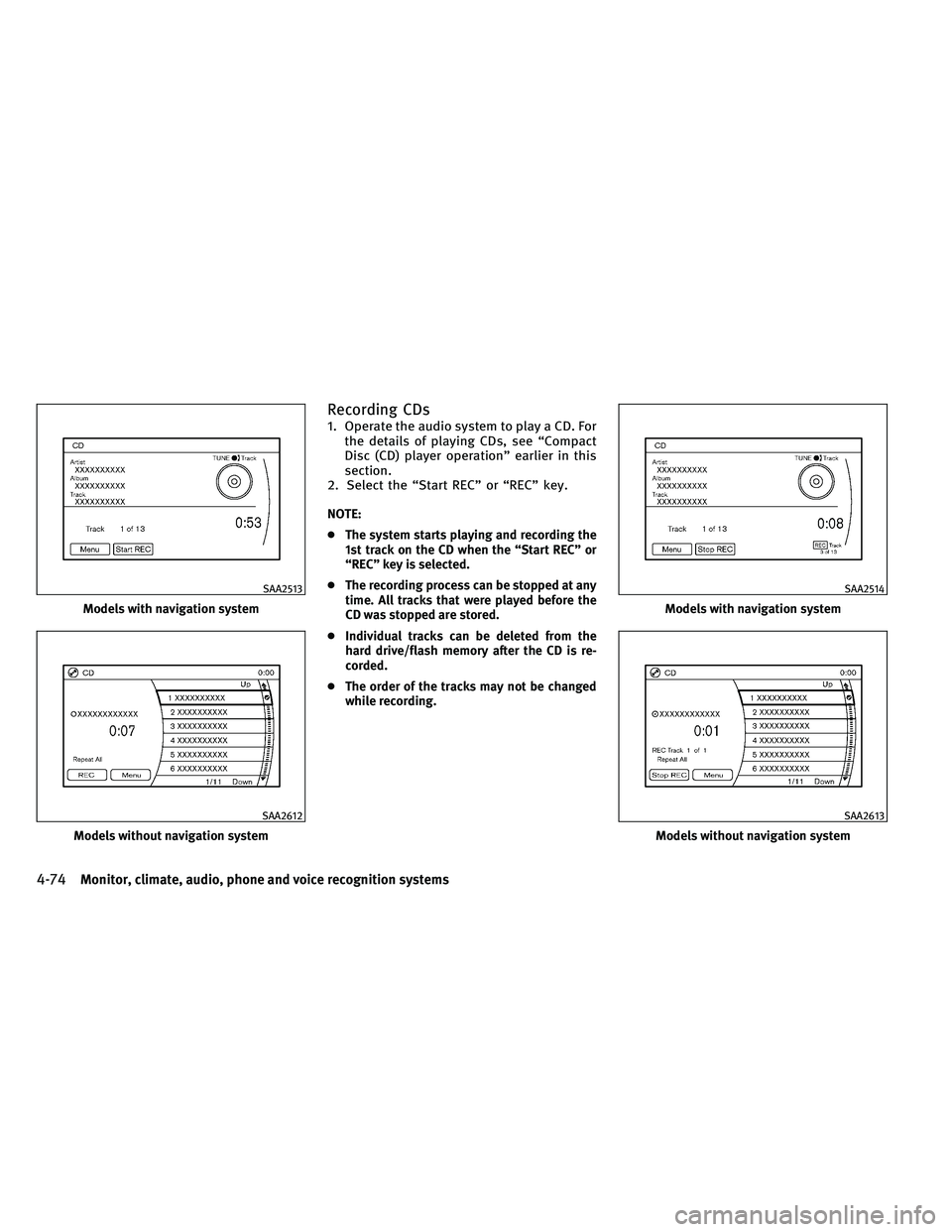

Recording CDs
1. Operate the audio system to play a CD. Forthe details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” or “REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” or
“REC” key is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
● Individual tracks can be deleted from the
hard drive/flash memory after the CD is re-
corded.
● The order of the tracks may not be changed
while recording.
Models with navigation system
SAA2513
Models without navigation system
SAA2612
Models with navigation system
SAA2514
Models without navigation system
SAA2613
4-74Monitor, climate, audio, phone and voice recognition systems

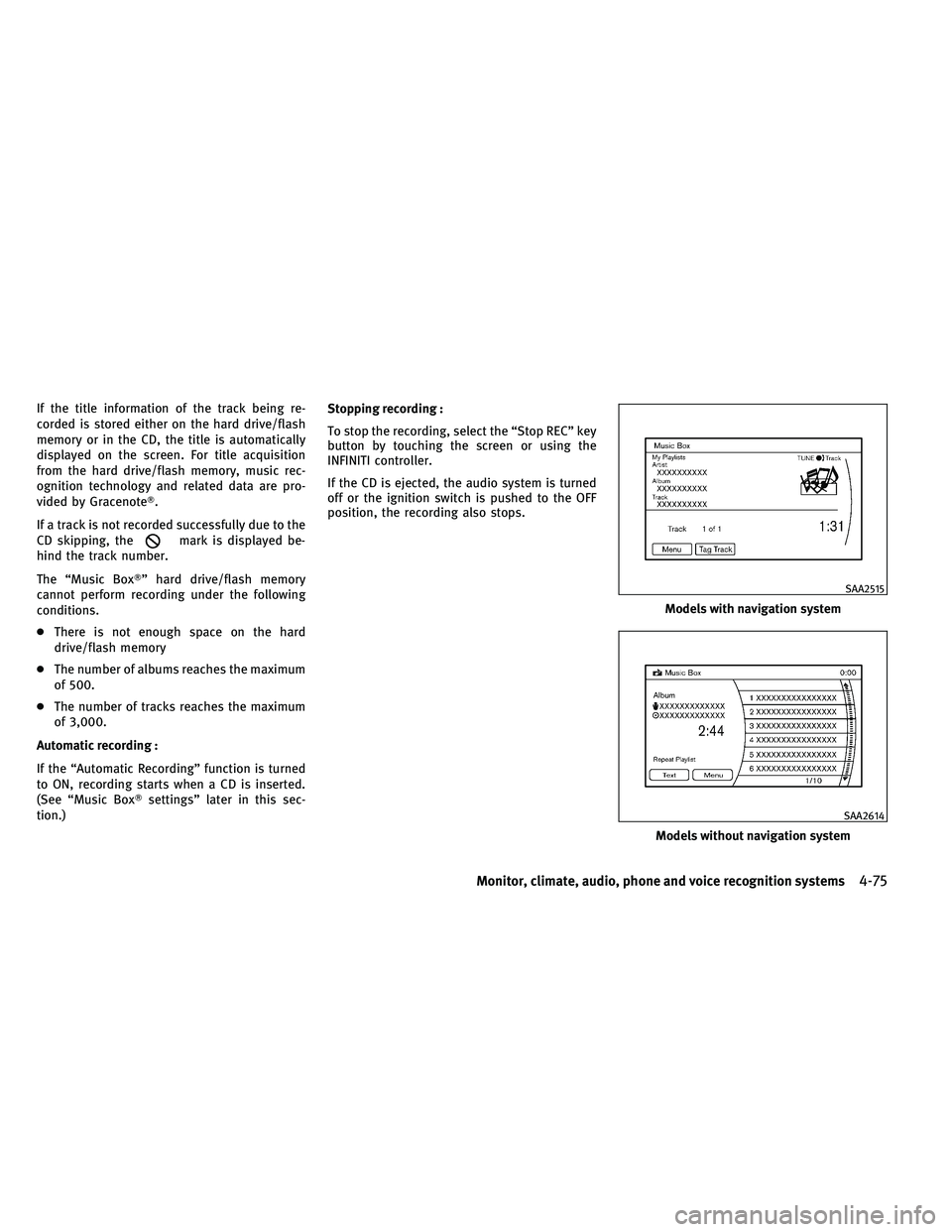

If the title information of the track being re-
corded is stored either on the hard drive/flash
memory or in the CD, the title is automatically
displayed on the screen. For title acquisition
from the hard drive/flash memory, music rec-
ognition technology and related data are pro-
vided by Gracenote.
If a track is not recorded successfully due to the
CD skipping, the
mark is displayed be-
hind the track number.
The “Music Box” hard drive/flash memory
cannot perform recording under the following
conditions.
● There is not enough space on the hard
drive/flash memory
● The number of albums reaches the maximum
of 500.
● The number of tracks reaches the maximum
of 3,000.
Automatic recording :
If the “Automatic Recording” function is turned
to ON, recording starts when a CD is inserted.
(See “Music Box settings” later in this sec-
tion.) Stopping recording :
To stop the recording, select the “Stop REC” key
button by touching the screen or using the
INFINITI controller.
If the CD is ejected, the audio system is turned
off or the ignition switch is pushed to the OFF
position, the recording also stops.
Models with navigation system
SAA2515
Models without navigation system
SAA2614
Monitor, climate, audio, phone and voice recognition systems4-75

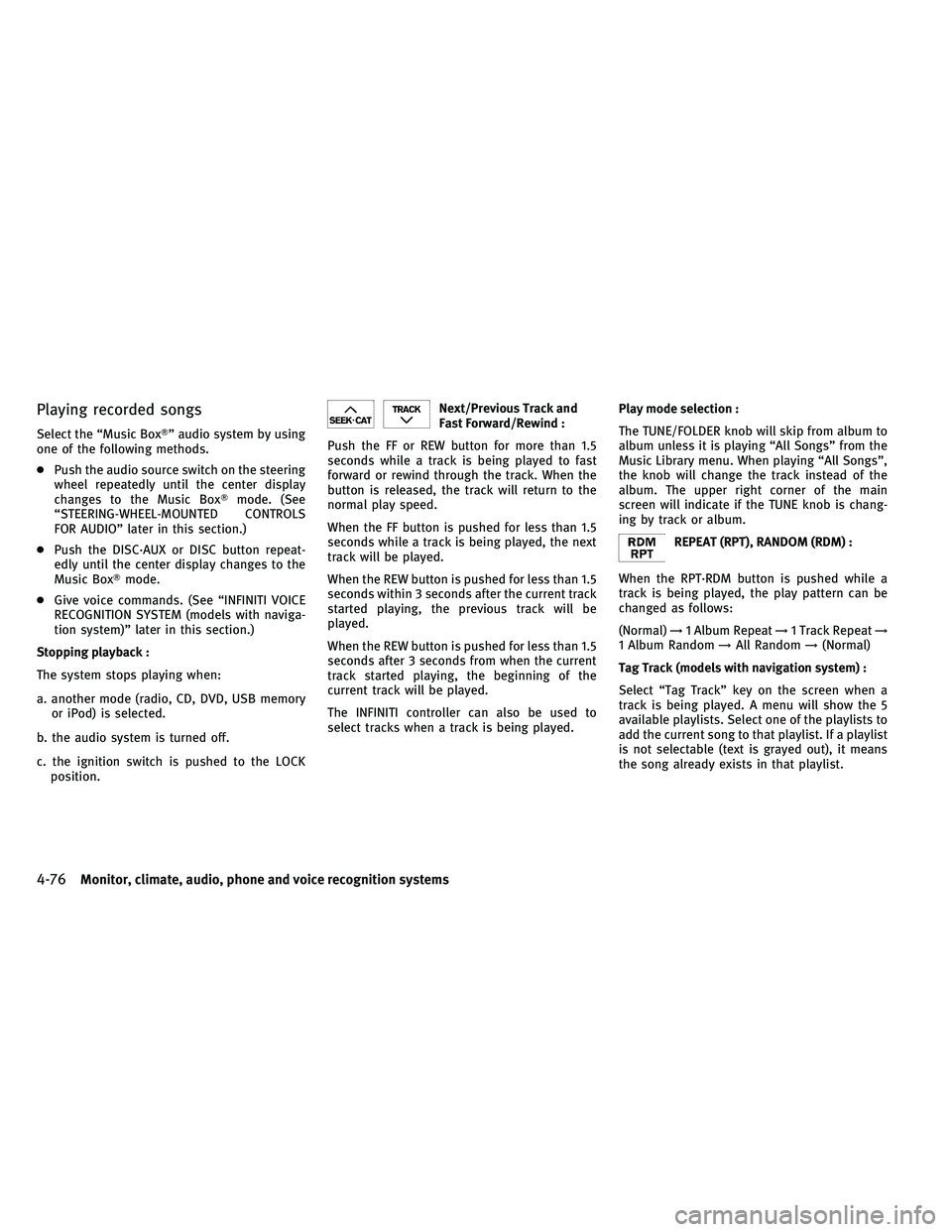

Playing recorded songs
Select the “Music Box” audio system by using
one of the following methods.
●Push the audio source switch on the steering
wheel repeatedly until the center display
changes to the Music Box mode. (See
“STEERING-WHEEL-MOUNTED CONTROLS
FOR AUDIO” later in this section.)
● Push the DISC·AUX or DISC button repeat-
edly until the center display changes to the
Music Box mode.
● Give voice commands. (See “INFINITI VOICE
RECOGNITION SYSTEM (models with naviga-
tion system)” later in this section.)
Stopping playback :
The system stops playing when:
a. another mode (radio, CD, DVD, USB memory or iPod) is selected.
b. the audio system is turned off.
c. the ignition switch is pushed to the LOCK position.
Next/Previous Track and
Fast Forward/Rewind :
Push the FF or REW button for more than 1.5
seconds while a track is being played to fast
forward or rewind through the track. When the
button is released, the track will return to the
normal play speed.
When the FF button is pushed for less than 1.5
seconds while a track is being played, the next
track will be played.
When the REW button is pushed for less than 1.5
seconds within 3 seconds after the current track
started playing, the previous track will be
played.
When the REW button is pushed for less than 1.5
seconds after 3 seconds from when the current
track started playing, the beginning of the
current track will be played.
The INFINITI controller can also be used to
select tracks when a track is being played. Play mode selection :
The TUNE/FOLDER knob will skip from album to
album unless it is playing “All Songs” from the
Music Library menu. When playing “All Songs”,
the knob will change the track instead of the
album. The upper right corner of the main
screen will indicate if the TUNE knob is chang-
ing by track or album.
REPEAT (RPT), RANDOM (RDM) :
When the RPT·RDM button is pushed while a
track is being played, the play pattern can be
changed as follows:
(Normal) →1 Album Repeat →1 Track Repeat →
1 Album Random →All Random →(Normal)
Tag Track (models with navigation system) :
Select “Tag Track” key on the screen when a
track is being played. A menu will show the 5
available playlists. Select one of the playlists to
add the current song to that playlist. If a playlist
is not selectable (text is grayed out), it means
the song already exists in that playlist.
4-76Monitor, climate, audio, phone and voice recognition systems
