stop start INFINITI G-CONVERTIBLE 2011 Owner's Manual

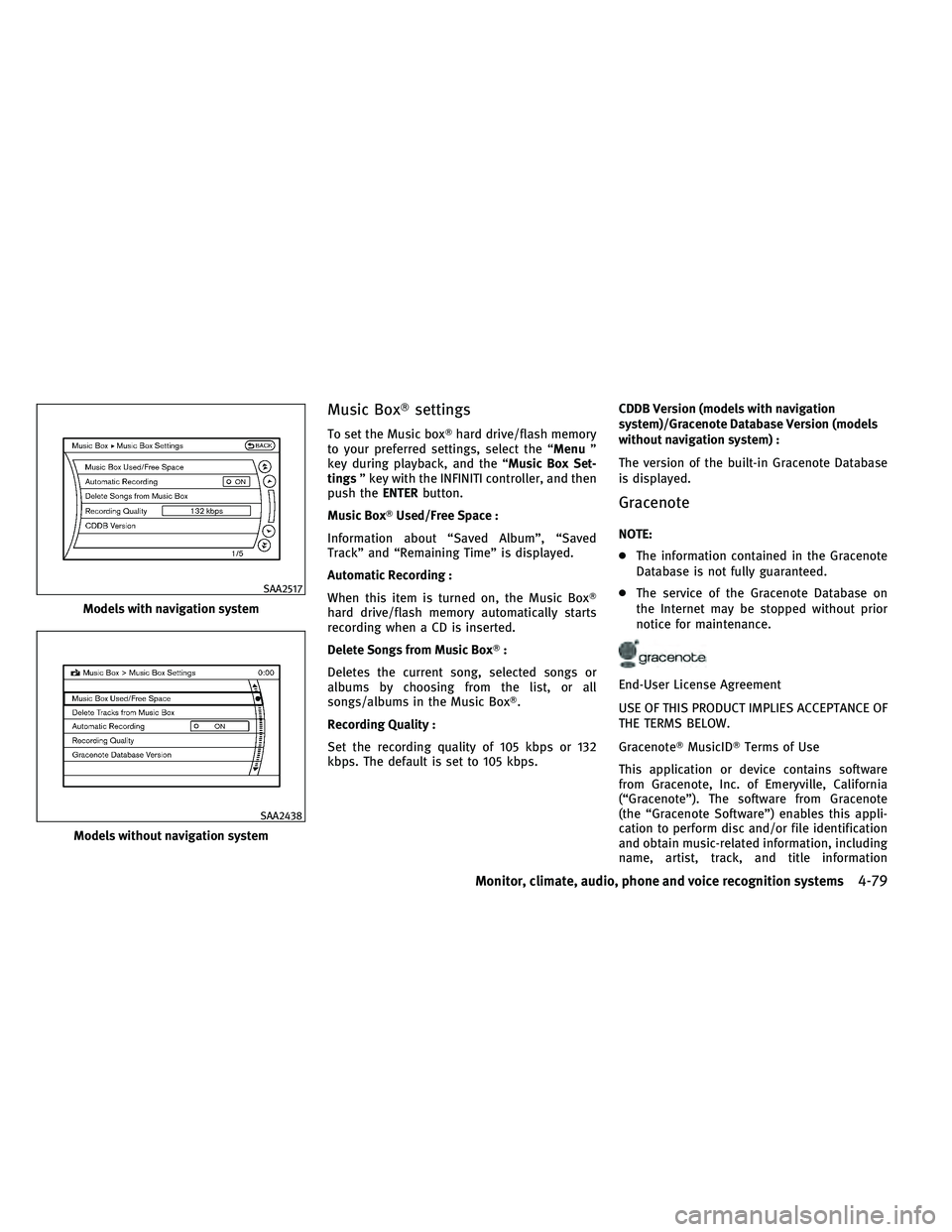

Music Boxsettings
To set the Music box hard drive/flash memory
to your preferred settings, select the “Menu ”
key during playback, and the “Music Box Set-
tings ” key with the INFINITI controller, and then
push the ENTERbutton.
Music Box Used/Free Space :
Information about “Saved Album”, “Saved
Track” and “Remaining Time” is displayed.
Automatic Recording :
When this item is turned on, the Music Box
hard drive/flash memory automatically starts
recording when a CD is inserted.
Delete Songs from Music Box :
Deletes the current song, selected songs or
albums by choosing from the list, or all
songs/albums in the Music Box.
Recording Quality :
Set the recording quality of 105 kbps or 132
kbps. The default is set to 105 kbps. CDDB Version (models with navigation
system)/Gracenote Database Version (models
without navigation system) :
The version of the built-in Gracenote Database
is displayed.
Gracenote
NOTE:
●
The information contained in the Gracenote
Database is not fully guaranteed.
● The service of the Gracenote Database on
the Internet may be stopped without prior
notice for maintenance.
End-User License Agreement
USE OF THIS PRODUCT IMPLIES ACCEPTANCE OF
THE TERMS BELOW.
Gracenote MusicIDTerms of Use
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote
(the “Gracenote Software”) enables this appli-
cation to perform disc and/or file identification
and obtain music-related information, including
name, artist, track, and title information
Models with navigation system
SAA2517
Models without navigation system
SAA2438
Monitor, climate, audio, phone and voice recognition systems4-79

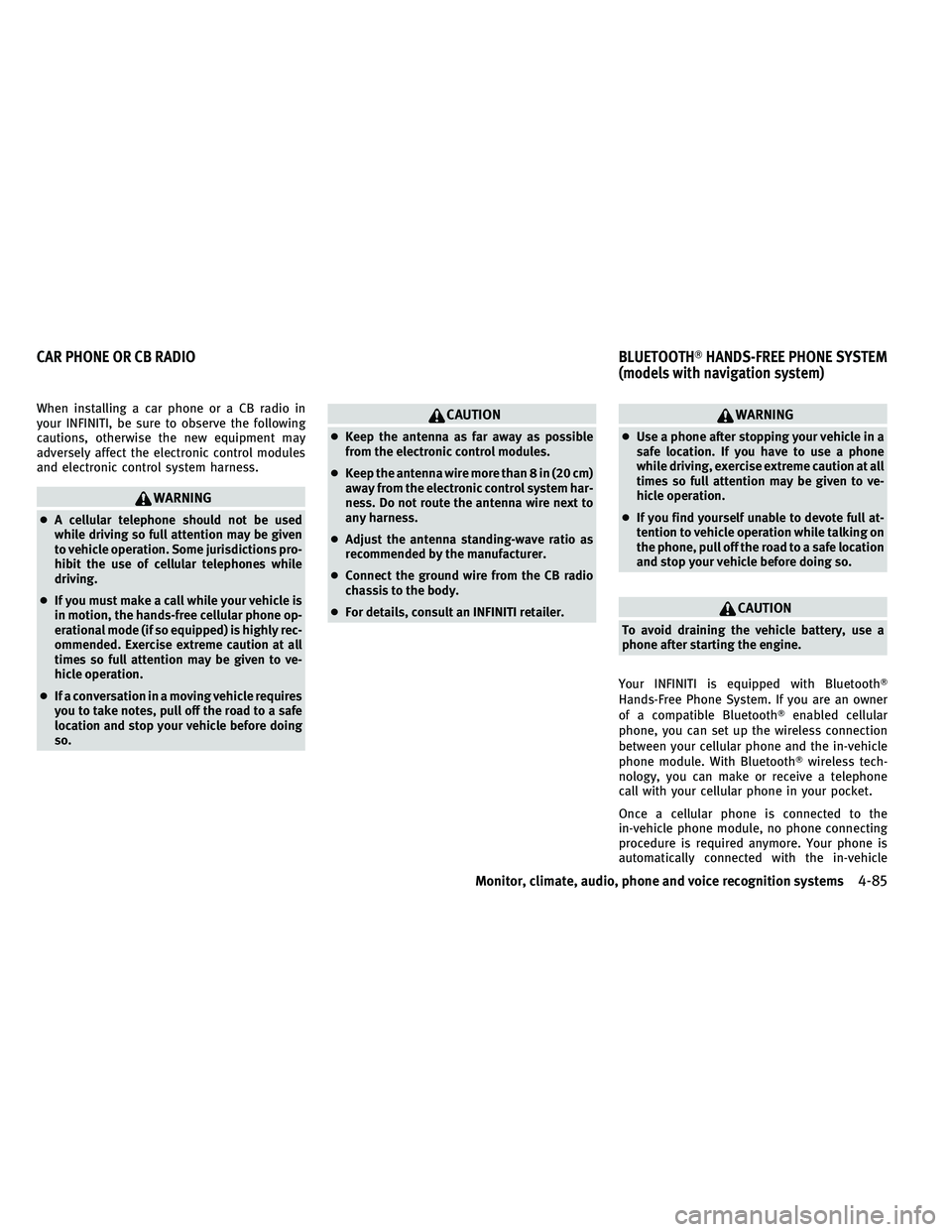

When installing a car phone or a CB radio in
your INFINITI, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
●A cellular telephone should not be used
while driving so full attention may be given
to vehicle operation. Some jurisdictions pro-
hibit the use of cellular telephones while
driving.
● If you must make a call while your vehicle is
in motion, the hands-free cellular phone op-
erational mode (if so equipped) is highly rec-
ommended. Exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If a conversation in a moving vehicle requires
you to take notes, pull off the road to a safe
location and stop your vehicle before doing
so.
CAUTION
● Keep the antenna as far away as possible
from the electronic control modules.
● Keep the antenna wire more than 8 in (20 cm)
away from the electronic control system har-
ness. Do not route the antenna wire next to
any harness.
● Adjust the antenna standing-wave ratio as
recommended by the manufacturer.
● Connect the ground wire from the CB radio
chassis to the body.
● For details, consult an INFINITI retailer.
WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a compatible Bluetooth enabled cellular
phone, you can set up the wireless connection
between your cellular phone and the in-vehicle
phone module. With Bluetooth wireless tech-
nology, you can make or receive a telephone
call with your cellular phone in your pocket.
Once a cellular phone is connected to the
in-vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
CAR PHONE OR CB RADIO BLUETOOTHHANDS-FREE PHONE SYSTEM
(models with navigation system)
Monitor, climate, audio, phone and voice recognition systems4-85

WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth Hands-
Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models without navigation system)
4-96Monitor, climate, audio, phone and voice recognition systems

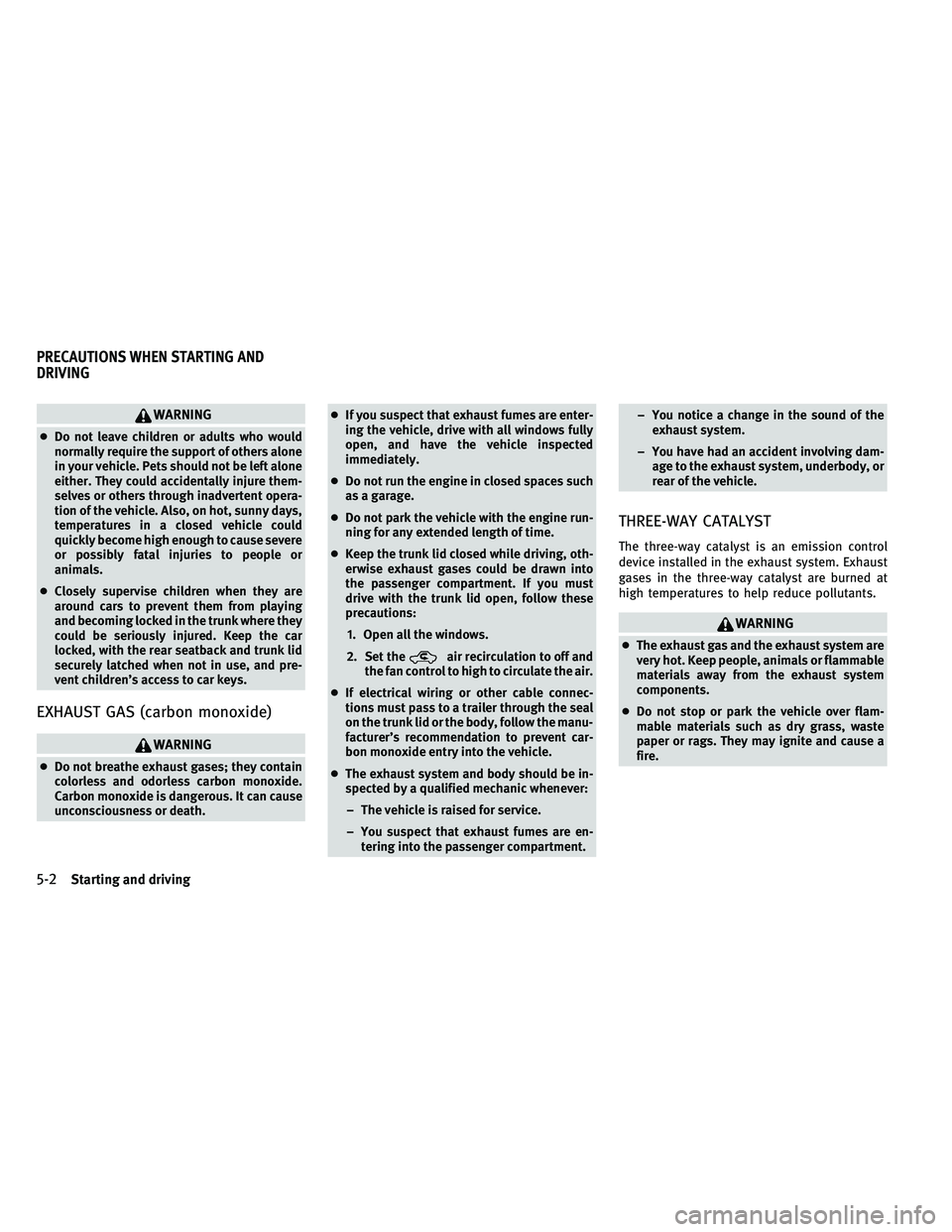

WARNING
●Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. They could accidentally injure them-
selves or others through inadvertent opera-
tion of the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause severe
or possibly fatal injuries to people or
animals.
● Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where they
could be seriously injured. Keep the car
locked, with the rear seatback and trunk lid
securely latched when not in use, and pre-
vent children’s access to car keys.
EXHAUST GAS (carbon monoxide)
WARNING
● Do not breathe exhaust gases; they contain
colorless and odorless carbon monoxide.
Carbon monoxide is dangerous. It can cause
unconsciousness or death. ●
If you suspect that exhaust fumes are enter-
ing the vehicle, drive with all windows fully
open, and have the vehicle inspected
immediately.
● Do not run the engine in closed spaces such
as a garage.
● Do not park the vehicle with the engine run-
ning for any extended length of time.
● Keep the trunk lid closed while driving, oth-
erwise exhaust gases could be drawn into
the passenger compartment. If you must
drive with the trunk lid open, follow these
precautions:
1. Open all the windows.
2. Set the
air recirculation to off and
the fan control to high to circulate the air.
● If electrical wiring or other cable connec-
tions must pass to a trailer through the seal
on the trunk lid or the body, follow the manu-
facturer’s recommendation to prevent car-
bon monoxide entry into the vehicle.
● The exhaust system and body should be in-
spected by a qualified mechanic whenever:
– The vehicle is raised for service.
– You suspect that exhaust fumes are en- tering into the passenger compartment. – You notice a change in the sound of the
exhaust system.
– You have had an accident involving dam- age to the exhaust system, underbody, or
rear of the vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
WARNING
●The exhaust gas and the exhaust system are
very hot. Keep people, animals or flammable
materials away from the exhaust system
components.
● Do not stop or park the vehicle over flam-
mable materials such as dry grass, waste
paper or rags. They may ignite and cause a
fire.
PRECAUTIONS WHEN STARTING AND
DRIVING
5-2Starting and driving

CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check all 4 tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability. Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Starting and driving5-3

Additional information
●The TPMS does not monitor the tire pressure
of the spare tire.
● The TPMS will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden
drop in tire pressure (for example a flat tire
while driving).
● The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
●
The CHECK TIRE PRESSURE warning appears
on the dot matrix liquid crystal display when
the low tire pressure warning light is illumi-
nated and low tire pressure is detected. The
CHECK TIRE PRESSURE warning turns off when
the low tire pressure warning light turns off.
The CHECK TIRE PRESSURE warning does not
appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
●Tire pressure rises and falls depending on the
heat caused by the vehicle’s operation and the
outside temperature. Low outside temperature can lower the temperature of the air inside the
tire which can cause a lower tire inflation
pressure. This may cause the low tire pressure
warning light to illuminate. If the warning light
illuminates in low ambient temperature, check
the tire pressure for all four tires.
For additional information, see “Low tire pres-
sure warning light” in the “2. Instruments and
controls” section and “TIRE PRESSURE MONI-
TORING SYSTEM (TPMS)” in the “6. In case of
emergency” section.
WARNING
●
If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible. (See “FLAT TIRE” in the “6. In case
of emergency” section for changing a flat
tire.)
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors (for
models not equipped with the emergency
tire puncture repair kit).
● If you used the Emergency Tire Sealant to
repair a minor tire puncture, your INFINITI
retailer will also need to replace the TPMS
sensor in addition to repairing or replacing
the tire (for models equipped with the emer-
gency tire puncture repair kit).
5-4Starting and driving

OFF-ROAD RECOVERY
If the right side or left side wheels unintention-
ally leave the road surface, maintain control of
the vehicle by following the procedure below.
Please note that this procedure is only a gen-
eral guide. The vehicle must be driven as ap-
propriate based on the conditions of the ve-
hicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering wheelwith both hands and try to hold a straight
course.
4. When appropriate, slowly release the ac- celerator pedal to gradually slow the ve-
hicle.
5. If there is nothing in the way, steer the vehicle to follow the road while the ve-
hicle speed is reduced. Do not attempt to
drive the vehicle back onto the road sur-
face until vehicle speed is reduced. 6. When it is safe to do so, gradually turn
the steering wheel until both tires return
to the road surface. When all tires are on
the road surface, steer the vehicle to stay
in the appropriate driving lane.
●If you decide that it is not safe to return
the vehicle to the road surface based on
vehicle, road or traffic conditions, gradu-
ally slow the vehicle to a stop in a safe
place off the road.
RAPID AIR PRESSURE LOSS
Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at high-
way speeds.
Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage. See
“WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section of this manual. If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
WARNING
The following actions can increase the chance
of losing control of the vehicle if there is a
sudden loss of tire air pressure. Losing control
of the vehicle may cause a collision and result
in personal injury.
●
The vehicle generally moves or pulls in the
direction of the flat tire.
● Do not rapidly apply the brakes.
● Do not rapidly release the accelerator pedal.
● Do not rapidly turn the steering wheel.
1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel
with both hands and try to hold a straight
course.
3. When appropriate, slowly release the ac- celerator pedal to gradually slow the ve-
hicle.
5-6Starting and driving

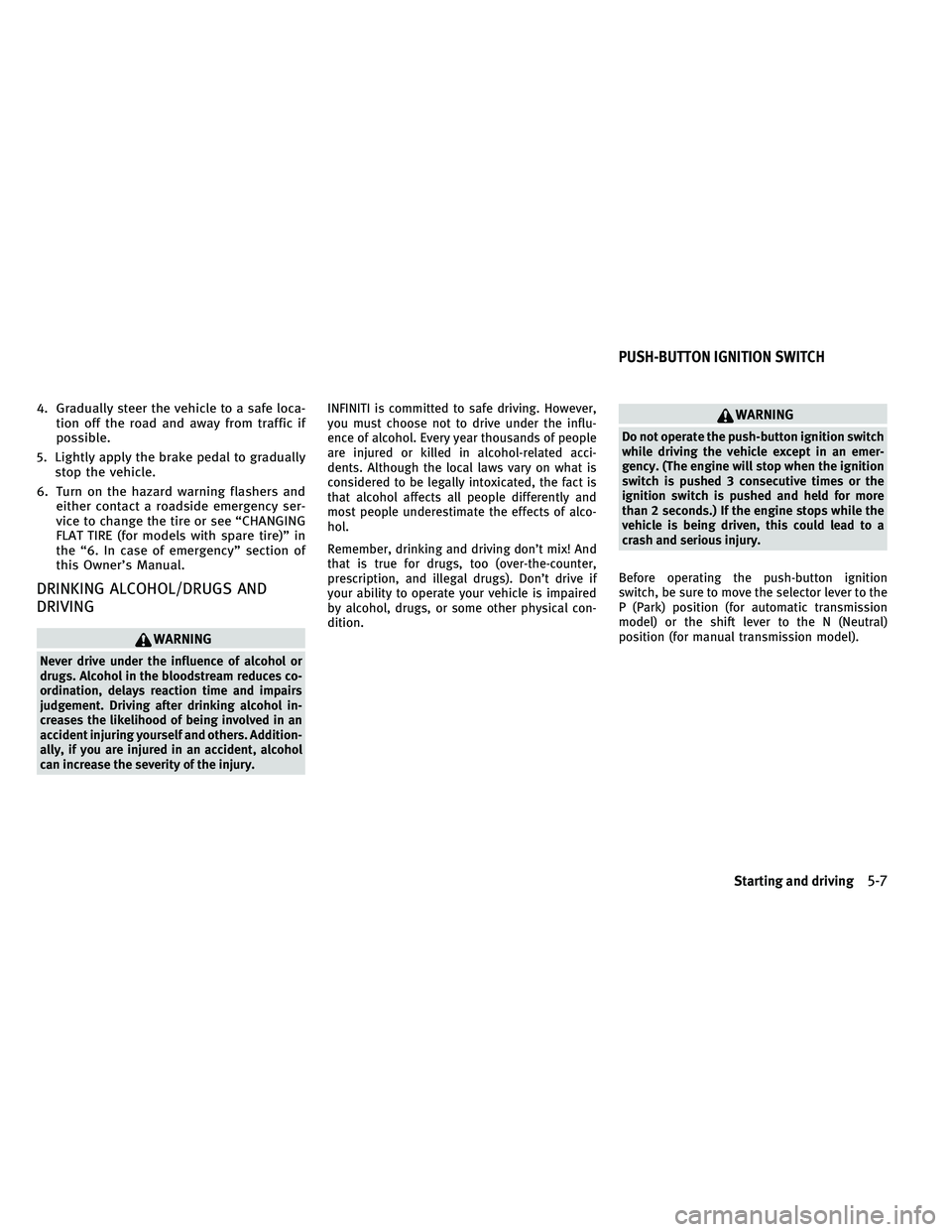

4. Gradually steer the vehicle to a safe loca-tion off the road and away from traffic if
possible.
5. Lightly apply the brake pedal to gradually stop the vehicle.
6. Turn on the hazard warning flashers and either contact a roadside emergency ser-
vice to change the tire or see “CHANGING
FLAT TIRE (for models with spare tire)” in
the “6. In case of emergency” section of
this Owner’s Manual.
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alcohol or
drugs. Alcohol in the bloodstream reduces co-
ordination, delays reaction time and impairs
judgement. Driving after drinking alcohol in-
creases the likelihood of being involved in an
accident injuring yourself and others. Addition-
ally, if you are injured in an accident, alcohol
can increase the severity of the injury. INFINITI is committed to safe driving. However,
you must choose not to drive under the influ-
ence of alcohol. Every year thousands of people
are injured or killed in alcohol-related acci-
dents. Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of alco-
hol.
Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired
by alcohol, drugs, or some other physical con-
dition.
WARNING
Do not operate the push-button ignition switch
while driving the vehicle except in an emer-
gency. (The engine will stop when the ignition
switch is pushed 3 consecutive times or the
ignition switch is pushed and held for more
than 2 seconds.) If the engine stops while the
vehicle is being driven, this could lead to a
crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the selector lever to the
P (Park) position (for automatic transmission
model) or the shift lever to the N (Neutral)
position (for manual transmission model).
PUSH-BUTTON IGNITION SWITCH
Starting and driving5-7

●Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral) posi-
tion. Depress the clutch pedal fully to the
floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried when op-
erating the ignition switch.
3. Push the ignition switch to the ON posi-
tion. Depress the brake pedal (AT model)
or the clutch pedal (MT model) and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or the clutch pedal (MT
model) with the ignition switch in any posi-
tion. ●
If the engine is very hard to start in
extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5
or 6 seconds, stop cranking by pushing
the ignition switch to OFF. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the brake
pedal and the clutch pedal (MT model)
and pushing the push-button ignition
switch to start the engine. If the engine
starts, but fails to run, repeat the above
procedure.CAUTION
Do not operate the starter for more than 15
seconds at a time. If the engine does not start,
push the ignition switch to OFF and wait 10
seconds before cranking again, otherwise the
starter could be damaged.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-11

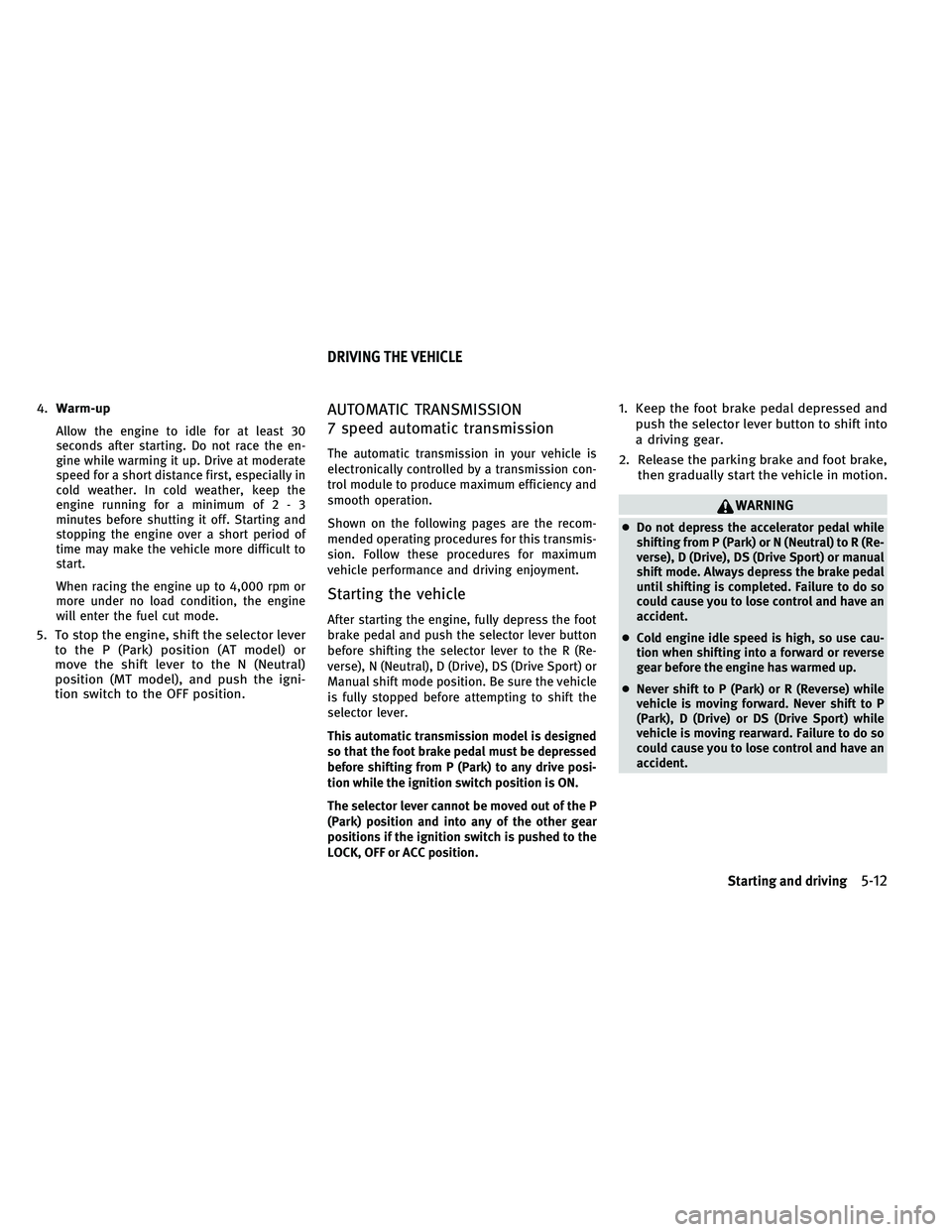

4.Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather. In cold weather, keep the
engine running for a minimum of2-3
minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.
When racing the engine up to 4,000 rpm or
more under no load condition, the engine
will enter the fuel cut mode.
5. To stop the engine, shift the selector lever
to the P (Park) position (AT model) or
move the shift lever to the N (Neutral)
position (MT model), and push the igni-
tion switch to the OFF position.
AUTOMATIC TRANSMISSION
7 speed automatic transmission
The automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum efficiency and
smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum
vehicle performance and driving enjoyment.
Starting the vehicle
After starting the engine, fully depress the foot
brake pedal and push the selector lever button
before shifting the selector lever to the R (Re-
verse), N (Neutral), D (Drive), DS (Drive Sport) or
Manual shift mode position. Be sure the vehicle
is fully stopped before attempting to shift the
selector lever.
This automatic transmission model is designed
so that the foot brake pedal must be depressed
before shifting from P (Park) to any drive posi-
tion while the ignition switch position is ON.
The selector lever cannot be moved out of the P
(Park) position and into any of the other gear
positions if the ignition switch is pushed to the
LOCK, OFF or ACC position.
1. Keep the foot brake pedal depressed and
push the selector lever button to shift into
a driving gear.
2. Release the parking brake and foot brake, then gradually start the vehicle in motion.
WARNING
●Do not depress the accelerator pedal while
shifting from P (Park) or N (Neutral) to R (Re-
verse), D (Drive), DS (Drive Sport) or manual
shift mode. Always depress the brake pedal
until shifting is completed. Failure to do so
could cause you to lose control and have an
accident.
● Cold engine idle speed is high, so use cau-
tion when shifting into a forward or reverse
gear before the engine has warmed up.
● Never shift to P (Park) or R (Reverse) while
vehicle is moving forward. Never shift to P
(Park), D (Drive) or DS (Drive Sport) while
vehicle is moving rearward. Failure to do so
could cause you to lose control and have an
accident.
DRIVING THE VEHICLE
Starting and driving5-12
