buttons INFINITI G-CONVERTIBLE 2011 Owner's Manual

CONTROL BUTTONS
1. PHONE SENDbutton
Push the button to initiate a VR session or
answer an incoming call. You can also use
the button to skip through system feed-
back and to enter commands during a call.
2. PHONE END
button
Push the button to cancel a VR session or
end a call.
VOICE RECOGNITION SYSTEM
You can also use the Bluetooth hands-free
phone system with Voice Recognition System.
INFO
● The available voice commands are only ap-
plicable to the relevant language set in the
LANGUAGE setting screen. (See “HOW TO
USE SETTING BUTTON” earlier in this sec-
tion.)
● If the vehicle is in motion, some commands
may not be available so full attention may be
given to vehicle operation.
Manual command selection
Commands can be selected manually. While the
commands are displayed on the screen, select a
command by operating the Tune switch, and
then push the
button. Once a command
is manually selected, the voice command func-
tion is cancelled. To return to voice command
mode, push the
button to cancel the
current operation, and then perform the first
procedure of voice command.
Using system
Initialization :
When the ignition switch is pushed to the ON
position, Voice Recognition System is initialized,
which may take up to one minute. When com-
pleted, the system is ready to accept voice com-
mands. If the
switch on the steering wheel
is pushed before the initialization completes, the
system will not accept any command.
Before starting :
To get the best performance out of the Voice
Recognition System, observe the following:
● Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● Wait until a tone sounds before speaking a
command.
●
Speak a voice command within 5 seconds after
the beep sound. If no voice command is given,
the system will ask you for a number. If no
further command is given, the session ends.
● Speak in a natural voice without pausing
between words.
SAA1582
4-98Monitor, climate, audio, phone and voice recognition systems

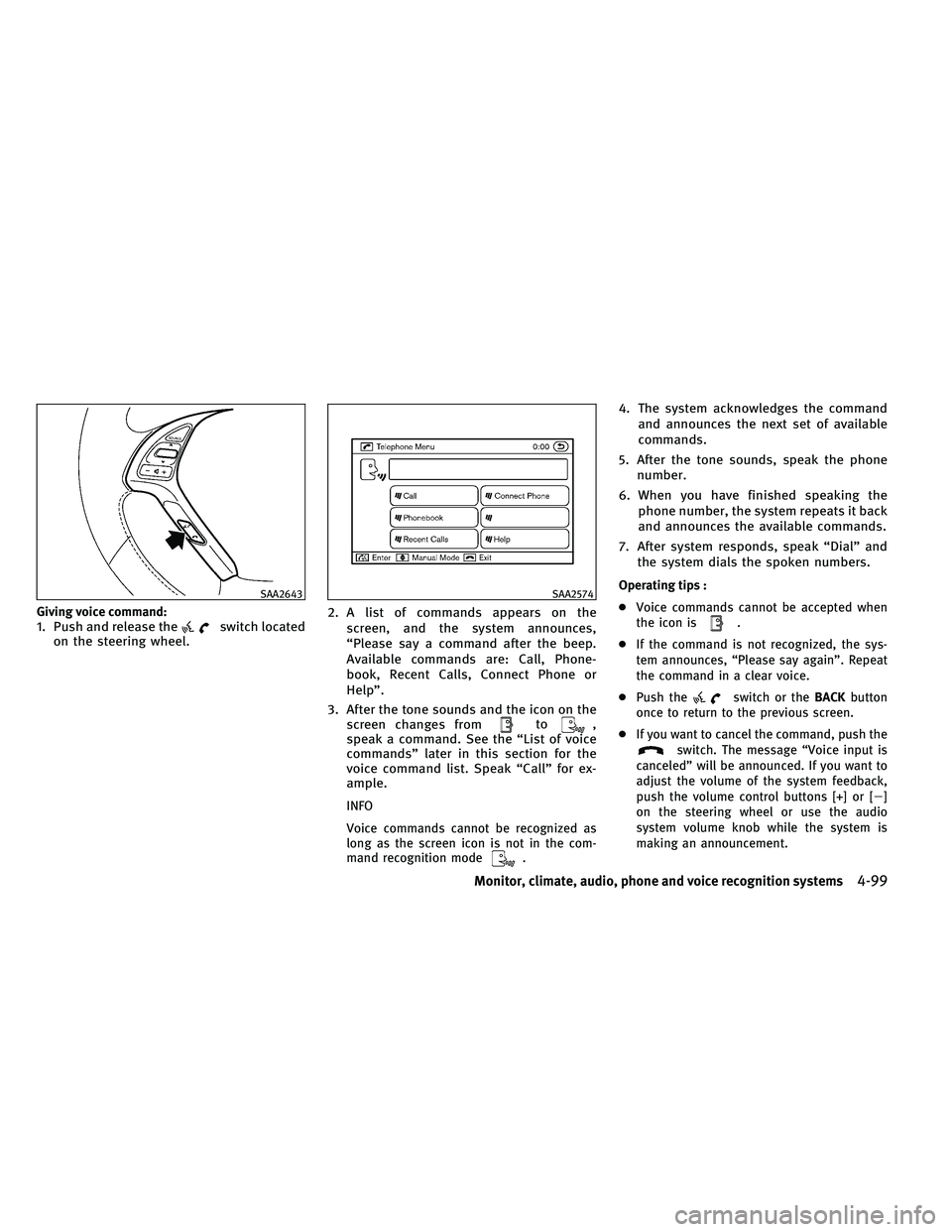

Giving voice command:1. Push and release theswitch located
on the steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Please say a command after the beep.
Available commands are: Call, Phone-
book, Recent Calls, Connect Phone or
Help”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command. See the “List of voice
commands” later in this section for the
voice command list. Speak “Call” for ex-
ample.
INFO
Voice commands cannot be recognized as
long as the screen icon is not in the com-
mand recognition mode
.
4. The system acknowledges the command
and announces the next set of available
commands.
5. After the tone sounds, speak the phone number.
6. When you have finished speaking the phone number, the system repeats it back
and announces the available commands.
7. After system responds, speak “Dial” and the system dials the spoken numbers.
Operating tips :
● Voice commands cannot be accepted when
the icon is
.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
● Push the
switch or the BACKbutton
once to return to the previous screen.
● If you want to cancel the command, push the
switch. The message “Voice input is
canceled” will be announced. If you want to
adjust the volume of the system feedback,
push the volume control buttons [+] or []
on the steering wheel or use the audio
system volume knob while the system is
making an announcement.
SAA2643SAA2574
Monitor, climate, audio, phone and voice recognition systems4-99

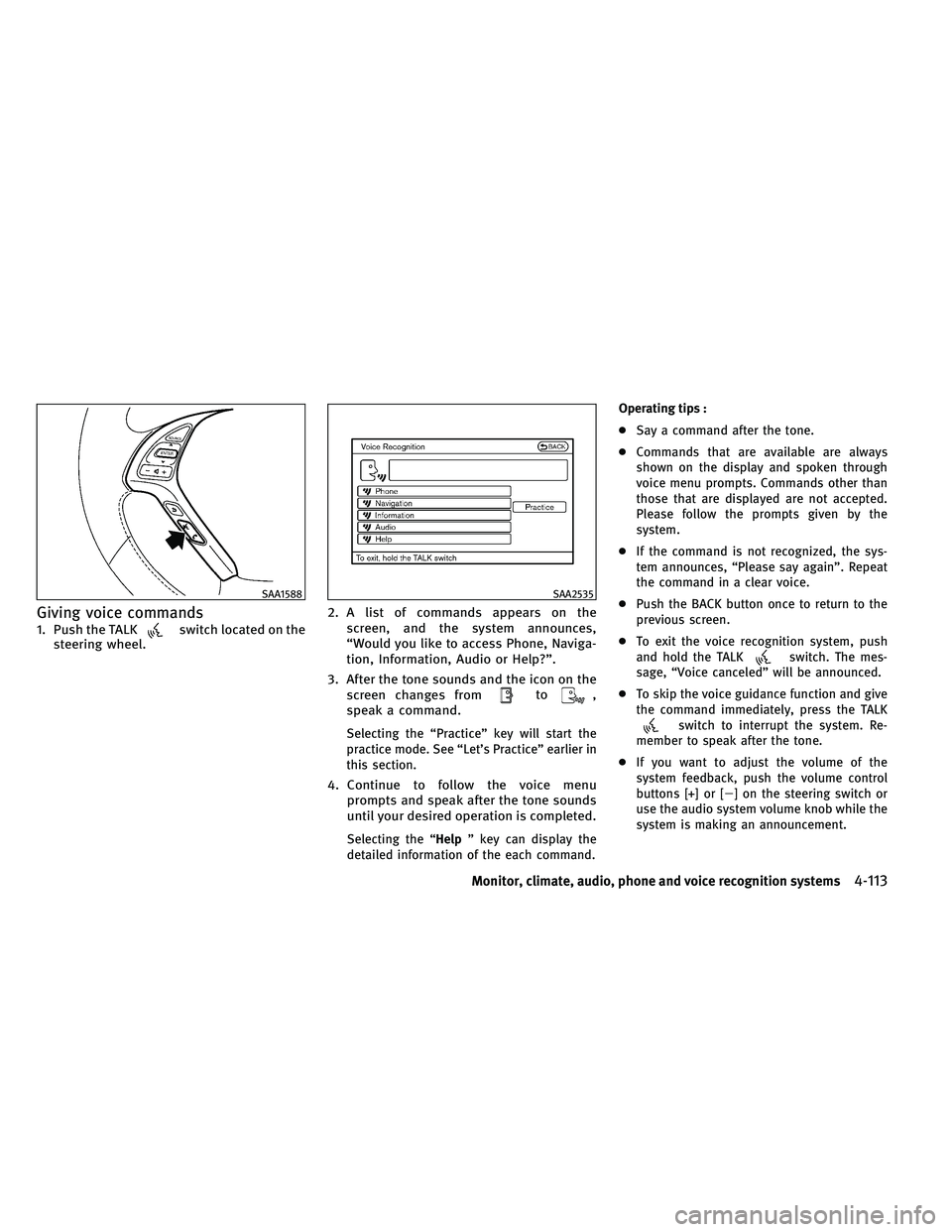

Giving voice commands
1. Push the TALKswitch located on the
steering wheel. 2. A list of commands appears on the
screen, and the system announces,
“Would you like to access Phone, Naviga-
tion, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from
to,
speak a command.
Selecting the “Practice” key will start the
practice mode. See “Let’s Practice” earlier in
this section.
4. Continue to follow the voice menu prompts and speak after the tone sounds
until your desired operation is completed.
Selecting the “Help ” key can display the
detailed information of the each command. Operating tips :
●
Say a command after the tone.
● Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
● If the command is not recognized, the sys-
tem announces, “Please say again”. Repeat
the command in a clear voice.
● Push the BACK button once to return to the
previous screen.
● To exit the voice recognition system, push
and hold the TALK
switch. The mes-
sage, “Voice canceled” will be announced.
● To skip the voice guidance function and give
the command immediately, press the TALK
switch to interrupt the system. Re-
member to speak after the tone.
● If you want to adjust the volume of the
system feedback, push the volume control
buttons [+] or [] on the steering switch or
use the audio system volume knob while the
system is making an announcement.
SAA1588SAA2535
Monitor, climate, audio, phone and voice recognition systems4-113

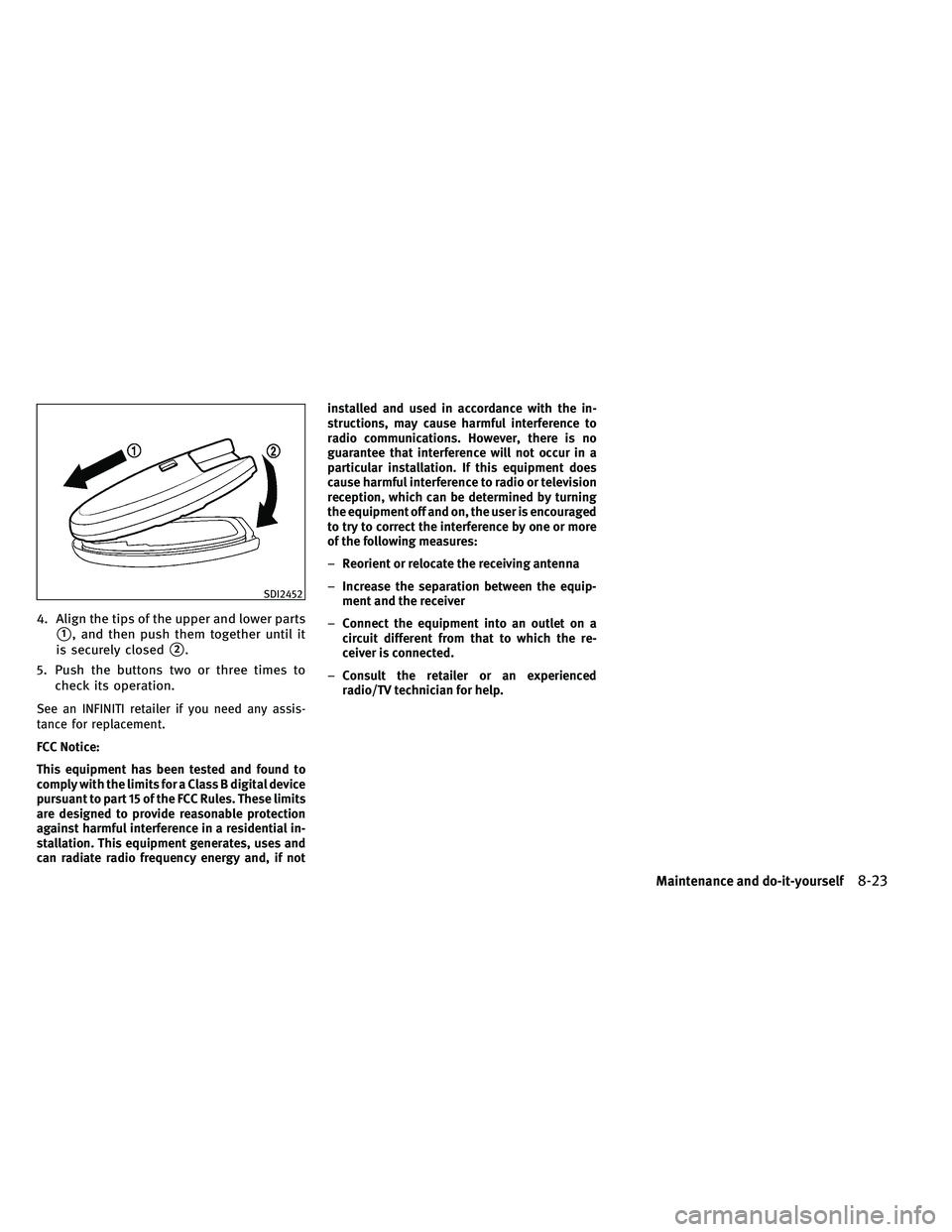

4. Align the tips of the upper and lower parts
1, and then push them together until it
is securely closed
2.
5. Push the buttons two or three times to check its operation.
See an INFINITI retailer if you need any assis-
tance for replacement.
FCC Notice:
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential in-
stallation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the in-
structions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
–
Reorient or relocate the receiving antenna
– Increase the separation between the equip-
ment and the receiver
– Connect the equipment into an outlet on a
circuit different from that to which the re-
ceiver is connected.
– Consult the retailer or an experienced
radio/TV technician for help.
SDI2452
Maintenance and do-it-yourself8-23
