air conditioning INFINITI G-CONVERTIBLE 2011 Owners Manual

●The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defogger button is turned off).
● The outside temperature is about 32°F (0°C)
or more.
● The outside odor and exhaust gas detection
sensor detects industrial odors such as pulp
or chemicals and exhaust gas such as gaso-
line or diesel.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with Plasmacluster ion that are
emitted from the ventilator.
After 5 minutes, the sensor detects outside
odors and exhaust gas and automatically alter-
nates between the recirculation mode and out-
side air circulation mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate for a maximum
of 150 seconds. This is not a malfunction. After
the coolant temperature warms up, air will flow
normally from the foot outlets. The sunload sensor
Aon the instrument panel
helps maintain a constant temperature. Do not
put anything on or around this sensor.
IN-CABIN MICROFILTER
Type A:
The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner
heats, defogs, and ventilates efficiently, replace
the filter in accordance with the maintenance
schedule in the INFINITI Service and Mainte-
nance Guide. To replace the filter, contact an
INFINITI retailer. The filter should be replaced if air flow is ex-
tremely decreased or when windows fog up eas-
ily when operating heater or air conditioning
system.
Type B:
The climate control system is equipped with a
natural grape seed polyphenol filter which col-
lects and neutralizes dirt, pollen, dust, etc. To
make sure that the air conditioner heats, defogs
and ventilates efficiently, replace the filter in
accordance with the maintenance schedule in
the INFINITI Service and Maintenance Guide. To
replace the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow de-
creases significantly or if windows fog up easily
when operating the heater or air conditioner.SERVICING CLIMATE CONTROL
The climate control system in your INFINITI is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not
harm the earth’s ozone layer. However, special
charging equipment and lubricant are required
when servicing your INFINITI air conditioner.
Using improper refrigerants or lubricants will
cause severe damage to your climate control
system. (See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
SIC2768
4-36Monitor, climate, audio, phone and voice recognition systems

9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-3
Engine oil and oil filter recommendation ......... 9-5
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-6
Specifications ..................................... 9-7
Engine ........................................ 9-7
Wheels and tires ............................... 9-8
Dimensions .................................... 9-9
When traveling or registering your vehicle in
another country ................................... 9-9
Vehicle identification ............................. 9-10
Vehicle Identification Number (VIN) plate ........9-10
Vehicle identification number
(chassis number) .............................. 9-10
Engine serial number .......................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ..........9-11
Emission control information label ...............9-11
Tire and loading information label ...............9-11
Air conditioner specification label ...............9-12
Installing front license plate .......................9-12Except for Aerodynamic Package models
........9-13
For Aerodynamic Package models ................9-15
Vehicle loading information .......................9-16
Terms ........................................ 9-16
Vehicle load capacity .......................... 9-17
Loading tips .................................. 9-18
Measurement of weights ....................... 9-18
Towing a trailer .................................. 9-19
Flat towing ................................... 9-19
Uniform tire quality grading .......................9-19
Treadwear .................................... 9-19
Traction AA, A, B and C ........................ 9-19
Temperature A, B and C ....................... 9-20
Emission control system warranty .................9-20
Reporting safety defects .......................... 9-21
Readiness for Inspection/Maintenance (I/M) test ....9-22
Event Data Recorders (EDR) .......................9-22
Owner’s Manual/Service Manual order
information ...................................... 9-23
In

the event of a collision ...................... 9-23

The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure instructed in the “8.
Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 20 gal16-5/8 gal 76 See “FUEL RECOMMENDATION” later in this section.
Engine oil*1
Drain and refill With oil filter change 5-1/8 qt4-3/8 qt4.9 •Engine oil with API Certification Mark*2, *3
•Viscosity SAE 5W-30
Without oil filter change 4-7/8 qt4 qt4.6
Cooling system Automatic transmission model With reservoir 9 qt7-1/2 qt 8.5 Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Reservoir 7/8 qt3/4 qt0.8
Manual transmission model With reservoir 9-1/8 qt7-5/8 qt8.6
Reservoir 7/8 qt3/4 qt0.8
Automatic transmission fluid ——— Genuine NISSAN Matic S ATF*4
Manual transmission gear oil ——— Genuine NISSAN Manual Transmission Fluid (MTF)
HQ Multi 75W-85 or API GL-4, Viscosity SAE 75W-85
Differential gear oil ——— For M/T models: Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API
GL-5 Viscosity SAE 80W-90*5All other models: API GL-5 Synthetic Gear Oil, Viscos-
ity SAE 75W-90*6
Power steering fluid (PSF) Refill to the proper oil level according to the instructions in
the “8. Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent*7
Brake and clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
Multi-purpose grease Without limited slip differential ———
NLGI No. 2 (Lithium soap base)
With limited slip differential ———
Air conditioning system refrigerant ——— HFC-134a (R-134a)*9
Air conditioning system lubricants ——— NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid ——— Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1: For additional information, see “ENGINE OIL” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*2: For additional information, see “ENGINE OIL AND OIL FILTER RECOMMENDATION” later in this section.
*3: INFINITI recommends Genuine NISSAN Ester Engine Oil available at your INFINITI retailer.
*4: Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic transmission, which is not
covered by the INFINITI new vehicle limited warranty.
*5: For hot climates, viscosity SAE90 is suitable for ambient temperatures above 32°F (0°C).
*6: See an INFINITI retailer for service for synthetic oil.
*7: DEXRON
TMVI type ATF may also be used.
*8: Available in mainland US through an INFINITI retailer.
*9: For additional information, see “VEHICLE IDENTIFICATION” later in this section for air conditioner specification label.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information

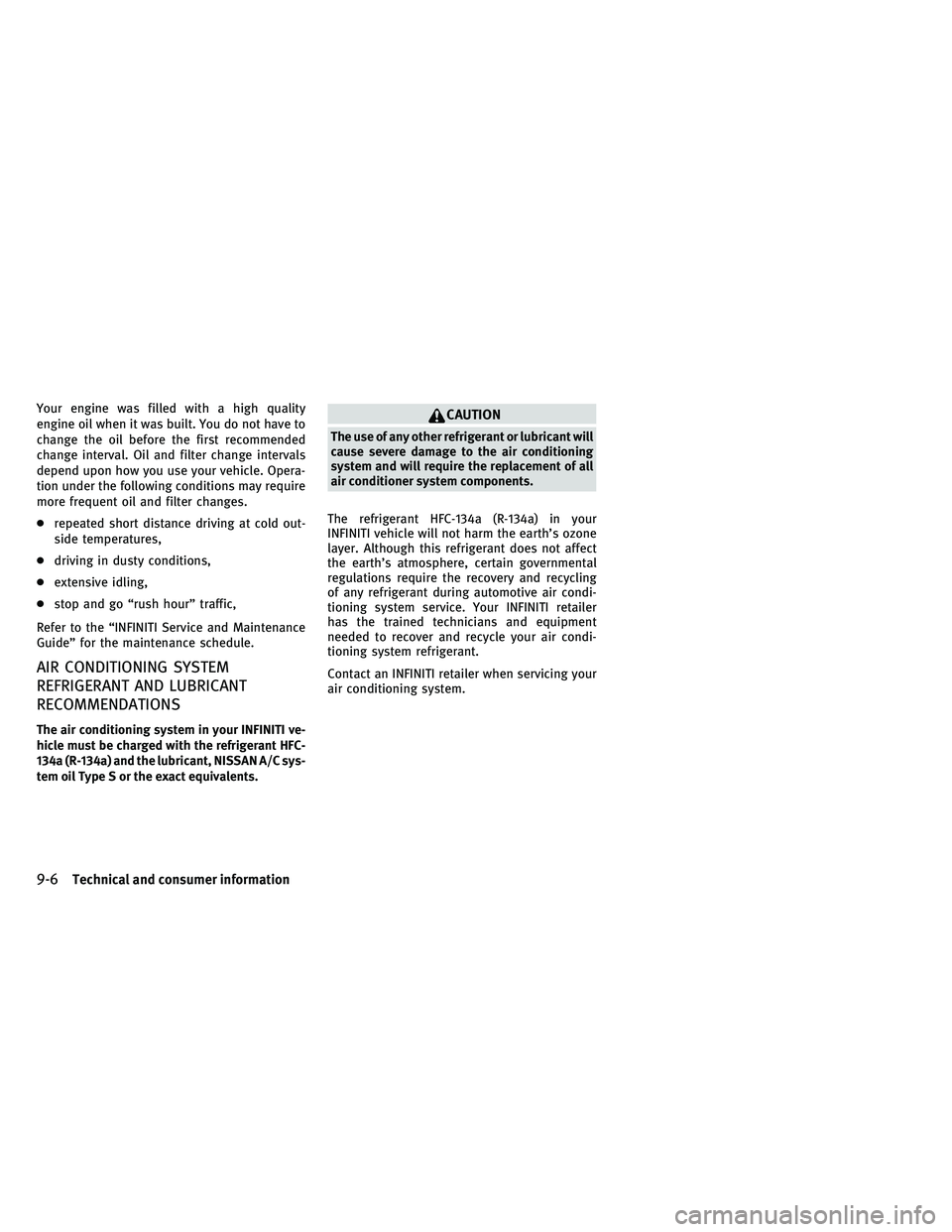

Your engine was filled with a high quality
engine oil when it was built. You do not have to
change the oil before the first recommended
change interval. Oil and filter change intervals
depend upon how you use your vehicle. Opera-
tion under the following conditions may require
more frequent oil and filter changes.
●repeated short distance driving at cold out-
side temperatures,
● driving in dusty conditions,
● extensive idling,
● stop and go “rush hour” traffic,
Refer to the “INFINITI Service and Maintenance
Guide” for the maintenance schedule.
AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your INFINITI ve-
hicle must be charged with the refrigerant HFC-
134a (R-134a) and the lubricant, NISSAN A/C sys-
tem oil Type S or the exact equivalents.
CAUTION
The use of any other refrigerant or lubricant will
cause severe damage to the air conditioning
system and will require the replacement of all
air conditioner system components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling
of any refrigerant during automotive air condi-
tioning system service. Your INFINITI retailer
has the trained technicians and equipment
needed to recover and recycle your air condi-
tioning system refrigerant.
Contact an INFINITI retailer when servicing your
air conditioning system.
9-6Technical and consumer information

10 Index
A
ABS (Anti-lock Braking System) ........5-51
Advanced air bag system ............1-41
Air bag system Advanced air bag system ..........1-41
Door-mounted curtain side-impact
supplemental air bag system .......1-45
Front passenger air bag and status
light ..................... .1-42
Front-seat mounted side-impact
supplemental air bag system .......1-45
Air bag warning labels .............1-48
Air bag warning light ...........1-48, 2-12
Air cleaner housing filter ............8-17
Air conditioner Air conditioner service ...........4-36
Air conditioner specification label .....9-12
Air conditioning system refrigerant
and lubricant recommendations . . .4-36, 9-6
Automatic climate control .........4-29
In-cabin microfilter .............4-36
Alarm, How to stop alarm (see vehicle
security system) ................ .2-27
Alcohol, drugs and driving ...........5-7
Antenna .................... .4-84
Anti-lock Braking System (ABS) ........5-51
Anti-lock braking system (ABS) warning
light ....................... .2-9
Appearance care Exterior appearance care ..........7-2
Interior appearance care ...........7-4 Ashtrays (See cigarette lighter and
ashtrays)
.................... .2-42
Audible reminders ............... .2-15
Audio operation precautions ..........4-37
Audio system ................. .4-37
Steering wheel audio controls .......4-82
Auto closure .................. .3-28
Autolight system ............... .2-32
Automatic Automatic adjusting function (front
windows) ................. .2-48
Automatic climate control ......4-30, 4-33
Automatic transmission fluid (ATF) . . . .8-11
Climate control .............. .4-29
Door locks .................. .3-5
Drive

positioner .............. .3-37
Driving with automatic transmission . . .5-12
Seat positioner .............. .3-37
Average fuel consumption and speed . . . .2-24
Avoiding collision and rollover .........5-5
B
Battery ..................... .8-13
Battery saver system ............2-34
Intelligent Key ............... .8-22
Variable voltage control system ......8-15
Before starting the engine ...........5-11
Bluetooth hands-free phone system
(models with navigation system) .......4-85
Bluetooth hands-free phone system
(models without navigation system) .....4-96Bluetooth
streaming audio ..........4-66
Booster seats ................. .1-31
Brake Anti-lock Braking System (ABS) ......5-51
Brake and clutch fluid ...........8-12
Brake fluid ................. .8-12
Brake system ............... .5-48
Parking brake operation ..........5-18
Warning light ................ .2-9
Break-in schedule ............... .5-42
Brightness control Display ON/OFF button ...........4-7
Instrument panel ............. .2-35
Bulb check/instrument panel ..........2-8
Bulb replacement ............... .8-24
C
Cabin air filter ................. .4-36
Capacities and recommended fuel/
lubricants .................... .9-2
Car phone or CB radio .............4-85
Catalytic converter, Three way catalyst . . . .5-2
CD/CF/USB memory care and cleaning . . . .4-81
Center multi-function control panel ......4-2
Child restraints ................ .1-19
Booster

seats ............... .1-31
Installation using LATCH Lower Anchors .1-23
Installation using the seat belts ......1-25
Precautions on child restraints .......1-19
Child safety .................. .1-13
Chimes, Audible reminders ...........2-15
