1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
Illustrated table of contents0-9

VQ37VHR ENGINE
1. Fuse/fusible link holder (P. 8-20)
2. Battery (P. 8-13)
3. Engine oil filler cap (P. 8-8)
4. Brake fluid reservoir (P. 8-12)5. Clutch fluid reservoir
(Manual Transmission models) (P. 8-12)
6. Window washer fluid reservoir (P. 8-13)
7. Power steering fluid reservoir (P. 8-11)
8. Air cleaner (P. 8-17)
9. Radiator filler cap (P. 8-7) 10. Drive belts location (P. 8-16)
11. Engine Coolant reservoir (P. 8-7)
12. Engine oil dipstick (P. 8-8)
SSI0345
ENGINE COMPARTMENT
0-10Illustrated table of contents

2 Instruments and controls
Cockpit........................................... 2-2
Instrument panel .................................. 2-3
Meters and gauges ................................ 2-4
Speedometer and odometer ..................... 2-5
Tachometer .................................... 2-6
Engine coolant temperature gauge ............... 2-6
Fuel gauge ..................................... 2-7
Warning/indicator lights and audible reminders ...... 2-8
Checking bulbs ................................ 2-8
Warning lights ................................. 2-9
Indicator lights ................................ 2-13
Audible reminders .............................. 2-15
Dot matrix liquid crystal display ...................2-16
Indicators for operation ........................ 2-18
Indicators for retractable hard top ..............2-21
Indicators for maintenance .....................2-22
Trip computer ................................. 2-23
Security systems ................................. 2-26
Vehicle security system ........................ 2-26
INFINITI Vehicle Immobilizer System ............2-27
Windshield wiper and washer switch ...............2-28
Rain-sensing auto wiper system (if so
equipped) .................................... 2-30
Rear window and outside mirror defroster switch . . . 2-31 Headlight and turn signal switch
..................2-31
Xenon headlights ............................. 2-31
Headlight switch .............................. 2-32
Turn signal switch ............................. 2-35
Fog light switch ............................... 2-36
Hazard warning flasher switch .....................2-36
Horn ............................................ 2-37
Heated seats (if so equipped) .....................2-37
Climate controlled seats (if so equipped) ...........2-38
Vehicle Dynamic Control (VDC) OFF switch ..........2-39
Clock ............................................ 2-40
Adjusting the time ............................. 2-40
Power outlets .................................... 2-41
Cigarette lighter and ashtrays
(if so equipped) .................................. 2-42
Front ......................................... 2-42
Rear ......................................... 2-42
Storage ......................................... 2-43
Cup

holders .................................. 2-43
Glove box .................................... 2-44
Console box .................................. 2-45
Storage box (if so equipped) ...................2-46
Windows ........................................ 2-46
Power windows ............................... 2-46

20. Trunk release power cancel switch(P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
2-4Instruments and controls

The needle indicators in the speedometer, ta-
chometer, engine coolant temperature gauge
and fuel gauge may move slightly after the igni-
tion switch is pushed to the LOCK position. This
is not a malfunction.
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h).
Odometer/twin trip odometer
The odometer1and twin trip odometer2are
displayed on the dot matrix crystal display
when the ignition switch is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Speedometer
SIC4289
Odometer/twin trip odometer
SIC3259
Instruments and controls2-5

Changing the display :
Pushing the TRIP A/B RESET switch
3at the
bottom left of the combination meter panel
changes the display as follows:
TRIP A →TRIP B →TRIP A
Resetting the trip odometer :
Pushing the TRIP A/B RESET switch
3for more
than 1 second resets the trip odometer to zero.
Average fuel economy and distance to empty
information is also available. (See “DOT MATRIX
LIQUID CRYSTAL DISPLAY” later in this section
and “HOW TO USE STATUS BUTTON” in the “4.
Monitor, climate, audio, phone and voice rec-
ognition systems” section.)
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (RPM). Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red zone,
shift to a higher gear or reduce engine speed.
Operating the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tem-
perature.
The engine coolant temperature is within the
normal range when the gauge needle points
within the zone
1shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
SIC4290SIC4291
2-6Instruments and controls

CAUTION
If the gauge indicates engine coolant tempera-
ture near the hot (H) end of the normal range,
reduce vehicle speed to decrease temperature.
If gauge is over the normal range, stop the
vehicle as soon as safely possible. If the engine
is overheated, continued operation of the ve-
hicle may seriously damage the engine. See “IF
YOUR VEHICLE OVERHEATS” in the “6. In case of
emergency” section for immediate action
required.
FUEL GAUGE
The gauge indicates theapproximatefuel level
in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
The gauge needle returns to E (Empty) after the
ignition switch is pushed to the OFF position.
Refill the fuel tank before the gauge registers
“E” (Empty).
The low fuel warning
appears on the dot
matrix liquid crystal display when the fuel tank
is getting low. Refuel as soon as it is conve-
nient, preferably before the gauge reaches “E”. There will be a small reserve of fuel in the tank
when the fuel gauge needle reaches “E”.
The
indicates that the fuel-filler door is
located on the front passenger’s side of the
vehicle.
CAUTION
● If the vehicle runs out of fuel, themalfunction indicator light (MIL) may come
on. Refuel as soon as possible. After a few
driving trips, the
light should turn off.
If the light remains on after a few driving
trips, have the vehicle inspected by an
INFINITI retailer.
● For additional information, see “Malfunction
Indicator Light (MIL)” later in this section.
SIC4292
Instruments and controls2-7

●The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defogger button is turned off).
● The outside temperature is about 32°F (0°C)
or more.
● The outside odor and exhaust gas detection
sensor detects industrial odors such as pulp
or chemicals and exhaust gas such as gaso-
line or diesel.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with Plasmacluster ion that are
emitted from the ventilator.
After 5 minutes, the sensor detects outside
odors and exhaust gas and automatically alter-
nates between the recirculation mode and out-
side air circulation mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate for a maximum
of 150 seconds. This is not a malfunction. After
the coolant temperature warms up, air will flow
normally from the foot outlets. The sunload sensor
Aon the instrument panel
helps maintain a constant temperature. Do not
put anything on or around this sensor.
IN-CABIN MICROFILTER
Type A:
The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner
heats, defogs, and ventilates efficiently, replace
the filter in accordance with the maintenance
schedule in the INFINITI Service and Mainte-
nance Guide. To replace the filter, contact an
INFINITI retailer. The filter should be replaced if air flow is ex-
tremely decreased or when windows fog up eas-
ily when operating heater or air conditioning
system.
Type B:
The climate control system is equipped with a
natural grape seed polyphenol filter which col-
lects and neutralizes dirt, pollen, dust, etc. To
make sure that the air conditioner heats, defogs
and ventilates efficiently, replace the filter in
accordance with the maintenance schedule in
the INFINITI Service and Maintenance Guide. To
replace the filter, contact an INFINITI retailer.
The filter should be replaced if the air flow de-
creases significantly or if windows fog up easily
when operating the heater or air conditioner.SERVICING CLIMATE CONTROL
The climate control system in your INFINITI is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not
harm the earth’s ozone layer. However, special
charging equipment and lubricant are required
when servicing your INFINITI air conditioner.
Using improper refrigerants or lubricants will
cause severe damage to your climate control
system. (See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical and
SIC2768
4-36Monitor, climate, audio, phone and voice recognition systems

Parking brake break-in......................... 5-48
Brake assist ..................................... 5-49
Brake assist .................................. 5-49
Preview function (Intelligent Cruise Control
system equipped models) ......................5-49
Anti-lock Braking System (ABS) ..................5-51
Vehicle Dynamic Control (VDC) system .............5-52
Cold weather driving ............................. 5-54Freeing a frozen door lock
.....................5-54
Antifreeze .................................... 5-54
Battery ....................................... 5-54
Draining of coolant water ......................5-54
Tire equipment ................................ 5-54
Special winter equipment ......................5-54
Driving on snow or ice ......................... 5-54
Engine block heater (if so equipped) ............5-55

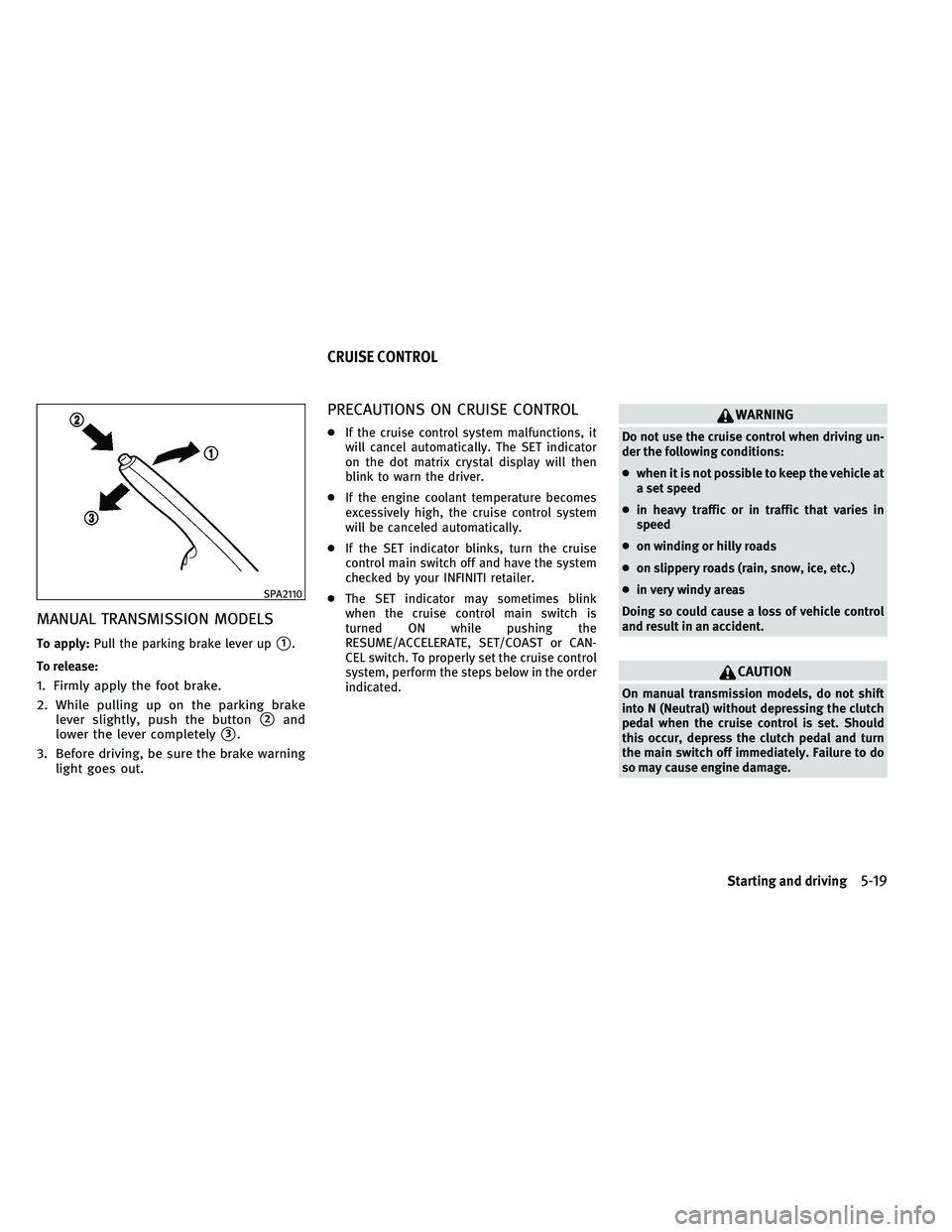

MANUAL TRANSMISSION MODELS
To apply:Pull the parking brake lever up1.
To release:
1. Firmly apply the foot brake.
2. While pulling up on the parking brake lever slightly, push the button
2and
lower the lever completely
3.
3. Before driving, be sure the brake warning light goes out.
PRECAUTIONS ON CRUISE CONTROL
●If the cruise control system malfunctions, it
will cancel automatically. The SET indicator
on the dot matrix crystal display will then
blink to warn the driver.
● If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
● If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
● The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the
RESUME/ACCELERATE, SET/COAST or CAN-
CEL switch. To properly set the cruise control
system, perform the steps below in the order
indicated.
WARNING
Do not use the cruise control when driving un-
der the following conditions:
● when it is not possible to keep the vehicle at
a set speed
● in heavy traffic or in traffic that varies in
speed
● on winding or hilly roads
● on slippery roads (rain, snow, ice, etc.)
● in very windy areas
Doing so could cause a loss of vehicle control
and result in an accident.
CAUTION
On manual transmission models, do not shift
into N (Neutral) without depressing the clutch
pedal when the cruise control is set. Should
this occur, depress the clutch pedal and turn
the main switch off immediately. Failure to do
so may cause engine damage.
SPA2110
CRUISE CONTROL
Starting and driving5-19
