rear view mirror INFINITI G-CONVERTIBLE 2011 Owners Manual

1. Power window switch (P. 2-46)
2. Outside mirror remote control switch(P. 3-35)
3. Automatic drive positioner switch (if so equipped) (P. 3-36)
4. Sun visors (P. 3-34) 5. Map light (P. 2-49)
6. Inside rearview mirror
— Operation (P. 3-34)
— HomeLink universal transceiver
(if so equipped) (P. 2-51) 7. Console box (P. 2-45)
— Power outlet (P. 2-41)
— iPod player operation (P. 4-71)
— USB input operation (P. 4-62)
8. Front cup holders (P. 2-43)
SSI0818
PASSENGER COMPARTMENT
0-6Illustrated table of contents

Push the “” switchCto make the inside
rearview mirror operate normally. The indicator
light will turn off. Push the “I” switch
Dto turn
the system on.
Do not allow any object to cover the sensors
E
or apply glass cleaner on them. Doing so will
reduce the sensitivity of the sensor, resulting in
improper operation.
For the HomeLink Universal Transceiver (if so
equipped) operation, see “HomeLink UNIVER-
SAL TRANSCEIVER” in the “2. Instruments and
controls” section.
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear. Be
careful when moving to the right. Using only
this mirror could cause an accident. Use the
inside mirror or glance over your shoulder to
properly judge distances to other objects.
Adjusting outside mirrors
The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
1, then adjust using the con-
trol switch
2.
Defrosting outside mirrors
The outside mirrors will be heated when the
rear window defroster switch is operated.SPA2309
Pre-driving checks and adjustments3-35

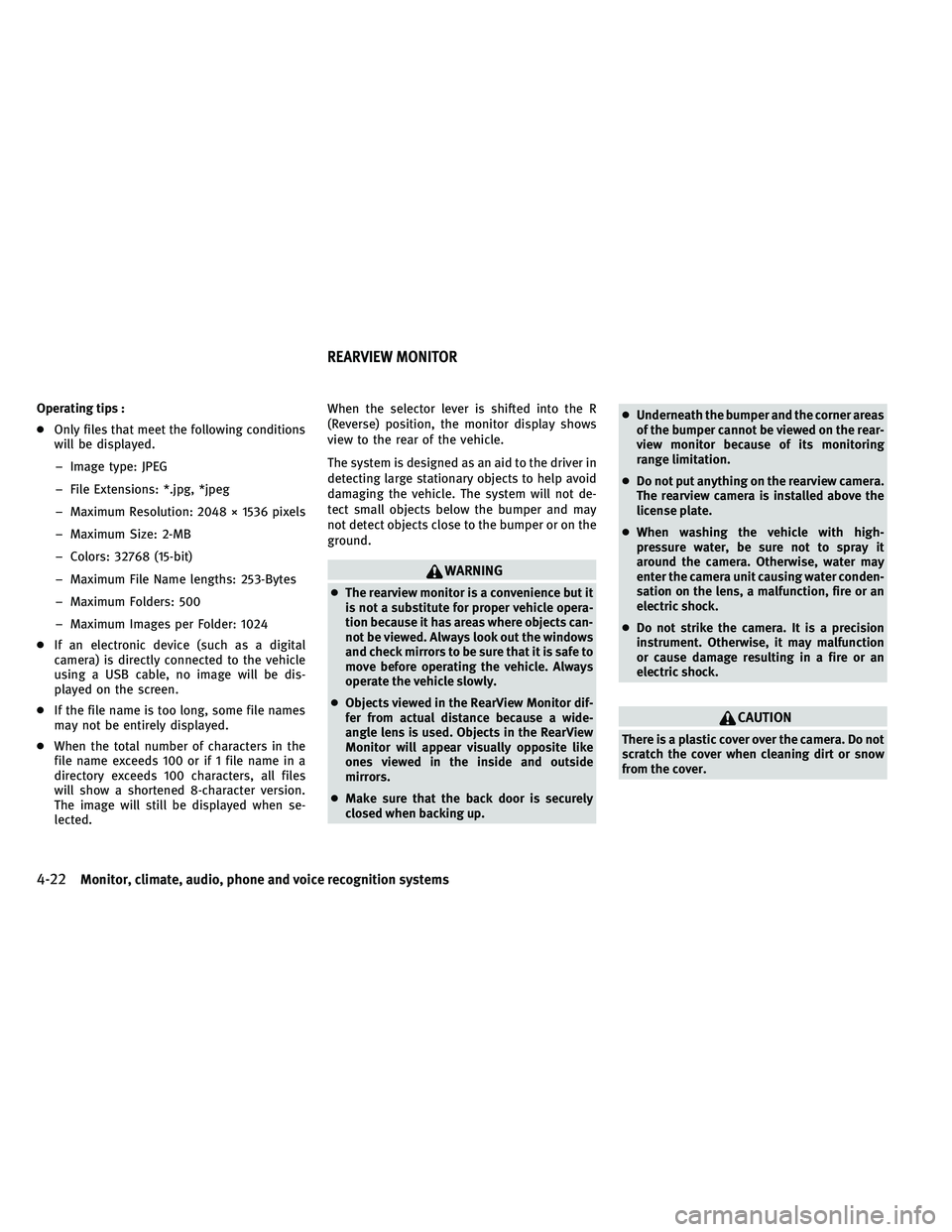

Operating tips :
●Only files that meet the following conditions
will be displayed.
– Image type: JPEG
– File Extensions: *.jpg, *jpeg
– Maximum Resolution: 2048 × 1536 pixels
– Maximum Size: 2-MB
– Colors: 32768 (15-bit)
– Maximum File Name lengths: 253-Bytes
– Maximum Folders: 500
– Maximum Images per Folder: 1024
● If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be dis-
played on the screen.
● If the file name is too long, some file names
may not be entirely displayed.
● When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when se-
lected. When the selector lever is shifted into the R
(Reverse) position, the monitor display shows
view to the rear of the vehicle.
The system is designed as an aid to the driver in
detecting large stationary objects to help avoid
damaging the vehicle. The system will not de-
tect small objects below the bumper and may
not detect objects close to the bumper or on the
ground.
WARNING
●
The rearview monitor is a convenience but it
is not a substitute for proper vehicle opera-
tion because it has areas where objects can-
not be viewed. Always look out the windows
and check mirrors to be sure that it is safe to
move before operating the vehicle. Always
operate the vehicle slowly.
● Objects viewed in the RearView Monitor dif-
fer from actual distance because a wide-
angle lens is used. Objects in the RearView
Monitor will appear visually opposite like
ones viewed in the inside and outside
mirrors.
● Make sure that the back door is securely
closed when backing up. ●
Underneath the bumper and the corner areas
of the bumper cannot be viewed on the rear-
view monitor because of its monitoring
range limitation.
● Do not put anything on the rearview camera.
The rearview camera is installed above the
license plate.
● When washing the vehicle with high-
pressure water, be sure not to spray it
around the camera. Otherwise, water may
enter the camera unit causing water conden-
sation on the lens, a malfunction, fire or an
electric shock.
● Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunction
or cause damage resulting in a fire or an
electric shock.
CAUTION
There is a plastic cover over the camera. Do not
scratch the cover when cleaning dirt or snow
from the cover.
REARVIEW MONITOR
4-22Monitor, climate, audio, phone and voice recognition systems

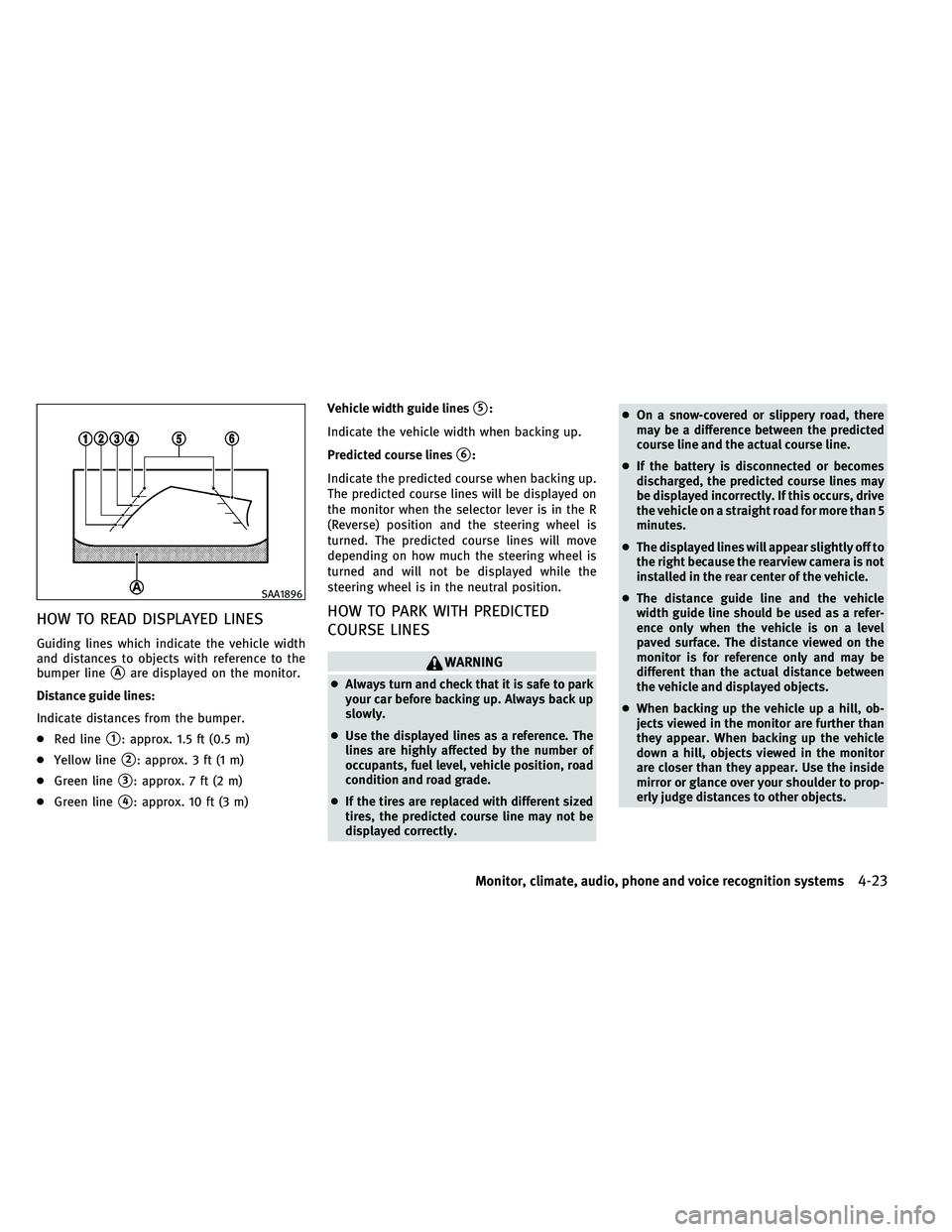

HOW TO READ DISPLAYED LINES
Guiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
● Red line
1: approx. 1.5 ft (0.5 m)
● Yellow line
2: approx. 3 ft (1 m)
● Green line
3: approx. 7 ft (2 m)
● Green line
4: approx. 10 ft (3 m) Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
Predicted course lines
6:
Indicate the predicted course when backing up.
The predicted course lines will be displayed on
the monitor when the selector lever is in the R
(Reverse) position and the steering wheel is
turned. The predicted course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
● Always turn and check that it is safe to park
your car before backing up. Always back up
slowly.
● Use the displayed lines as a reference. The
lines are highly affected by the number of
occupants, fuel level, vehicle position, road
condition and road grade.
● If the tires are replaced with different sized
tires, the predicted course line may not be
displayed correctly. ●
On a snow-covered or slippery road, there
may be a difference between the predicted
course line and the actual course line.
● If the battery is disconnected or becomes
discharged, the predicted course lines may
be displayed incorrectly. If this occurs, drive
the vehicle on a straight road for more than 5
minutes.
● The displayed lines will appear slightly off to
the right because the rearview camera is not
installed in the rear center of the vehicle.
● The distance guide line and the vehicle
width guide line should be used as a refer-
ence only when the vehicle is on a level
paved surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance between
the vehicle and displayed objects.
● When backing up the vehicle up a hill, ob-
jects viewed in the monitor are further than
they appear. When backing up the vehicle
down a hill, objects viewed in the monitor
are closer than they appear. Use the inside
mirror or glance over your shoulder to prop-
erly judge distances to other objects.
SAA1896
Monitor, climate, audio, phone and voice recognition systems4-23

WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth Hands-
Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models without navigation system)
4-96Monitor, climate, audio, phone and voice recognition systems

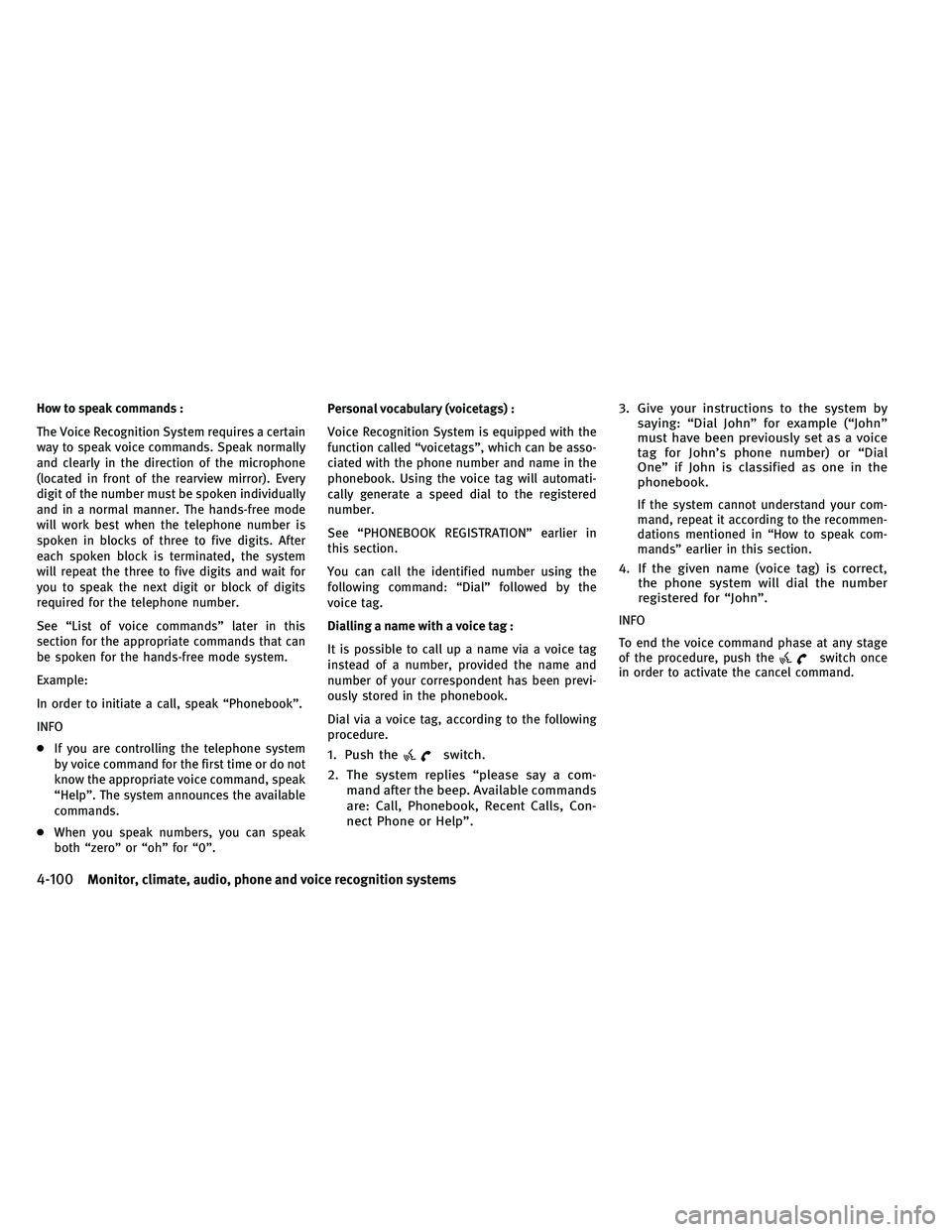

How to speak commands :
The Voice Recognition System requires a certain
way to speak voice commands. Speak normally
and clearly in the direction of the microphone
(located in front of the rearview mirror). Every
digit of the number must be spoken individually
and in a normal manner. The hands-free mode
will work best when the telephone number is
spoken in blocks of three to five digits. After
each spoken block is terminated, the system
will repeat the three to five digits and wait for
you to speak the next digit or block of digits
required for the telephone number.
See “List of voice commands” later in this
section for the appropriate commands that can
be spoken for the hands-free mode system.
Example:
In order to initiate a call, speak “Phonebook”.
INFO
●If you are controlling the telephone system
by voice command for the first time or do not
know the appropriate voice command, speak
“Help”. The system announces the available
commands.
● When you speak numbers, you can speak
both “zero” or “oh” for “0”. Personal vocabulary (voicetags) :
Voice Recognition System is equipped with the
function called “voicetags”, which can be asso-
ciated with the phone number and name in the
phonebook. Using the voice tag will automati-
cally generate a speed dial to the registered
number.
See “PHONEBOOK REGISTRATION” earlier in
this section.
You can call the identified number using the
following command: “Dial” followed by the
voice tag.
Dialling a name with a voice tag :
It is possible to call up a name via a voice tag
instead of a number, provided the name and
number of your correspondent has been previ-
ously stored in the phonebook.
Dial via a voice tag, according to the following
procedure.
1. Push theswitch.
2. The system replies “please say a com- mand after the beep. Available commands
are: Call, Phonebook, Recent Calls, Con-
nect Phone or Help”. 3. Give your instructions to the system by
saying: “Dial John” for example (“John”
must have been previously set as a voice
tag for John’s phone number) or “Dial
One” if John is classified as one in the
phonebook.
If the system cannot understand your com-
mand, repeat it according to the recommen-
dations mentioned in “How to speak com-
mands” earlier in this section.
4. If the given name (voice tag) is correct, the phone system will dial the number
registered for “John”.
INFO
To end the voice command phase at any stage
of the procedure, push the
switch once
in order to activate the cancel command.
4-100Monitor, climate, audio, phone and voice recognition systems

Interior light control switch...........2-50
Interior light replacement ............8-25
Interior lights .................. .2-49
Interior trunk lid release ............3-30
iPod player operation ............. .4-71
ISOFIX child restraint .............. .1-21
J
Jump starting .................. .6-14
K
Keyless entry (See remote keyless entry
system) ..................... .3-14
Keys ........................ .3-2
For Intelligent Key system ..........3-6
L
Labels Air bag warning labels ............1-48
Air conditioner specification label .....9-12
Emission control information label .....9-11
Engine serial number ............9-10
F.M.V.S.S./C.M.V.S.S. certification
label ..................... .9-11
Tire and Loading information label .8-28, 9-11
Vehicle identification number (VIN) . . . .9-10
LATCH Lower Anchors ..............1-21
License plate, Installing front license plate . .9-12
Light Air bag warning light ............1-48
Bulb replacement ............. .8-24Fog light switch
.............. .2-36
Headlight switch .............. .2-32
Headlights bulb replacement ........8-25
Indicator lights ............... .2-13
Interior light control switch .........2-50
Interior lights ................ .2-49
Map lights ................. .2-49
Replacement ................ .8-24
Trunk light .................. .2-51
Vanity mirror lights ............. .2-51
Warning/indicator lights and audible
reminders .................. .2-9
Xenon headlights .............. .2-31
Lights, Exterior and interior light
replacement .................. .8-25
Loading
information (See vehicle loading
information) ................... .9-16
Lock Automatic door locks .............3-5
Door locks .................. .3-4
Power door lock ............... .3-4
Trunk lid .................. .3-28
Locking with mechanical key ...........3-4
Low fuel warning ................ .2-19
Low tire pressure warning light .........2-10
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ......5-3
Low washer fluid warning ............2-19
M
Maintenance Battery .................... .8-13
General maintenance .............8-2
Indicators for maintenance .........2-22Inside the vehicle
.............. .8-3
Maintenance precautions ...........8-5
Maintenance requirements . . . .......8-2
Outside the vehicle ............. .8-2
Seat belt maintenance ............1-18
Malfunction indicator light (MIL) ........2-14
Map lights ................... .2-49
Master warning light .............. .2-12
Mechanical key (Intelligent Key system) . . . .3-3
Memory storage, Automatic drive
positioner .................... .3-38
Meter Trip computer ............... .2-23
Meters and gauges ............... .2-4
Instrument brightness control .......2-35
Mirror Inside mirror ................ .3-34
Outside mirrors ............... .3-35
Vanity mirror ................ .3-36
Monitor, Rearview monitor ...........4-22
N
New vehicle break-in ..............5-42
No

key warning ................. .2-18
O
Odometer ..................... .2-5
Off-road recovery ................ .5-6
Oil Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine oil and filter ........8-9
Checking engine oil level ...........8-8
10-4

Engine oil.................. .8-8
Engine oil viscosity ............. .9-5
Oil filter replacement indicator .......2-22
Opening the retractable hard top . . . .3-23, 3-25
Operating the retractable hard top .......3-18
Operation, Indicators for operation .......2-18
Outside air temperature .............2-24
Outside mirrors ................. .3-35
Overheat, If your vehicle overheats ......6-16
Owner’s Manual/Service Manual order
information ................... .9-23
P
Panic alarm ................... .3-15
Parking Brake break-in ............... .5-48
Parking brake operation ...........5-18
Parking brake release warning .......2-19
Parking on hills .............. .5-44
Phone Bluetooth hands-free phone system
(models with navigation system) ......4-85
Bluetooth hands-free phone system
(models without navigation system) . . . .4-96
Car phone or CB radio ............4-85
Pop-up roll bar system .............1-49
Power Front seat adjustment .............1-3
Power door lock ............... .3-4
Power outlet ................ .2-41
Power steering fluid .............8-11
Power steering system ...........5-47
Power windows .............. .2-46
Pre-crash seat belts .............. .1-15Precautions
Audio operation .............. .4-37
Braking precautions .............5-48
Child restraints ............... .1-19
Cruise control ................ .5-19
Maintenance ................. .8-5
Seat

belt usage ............... .1-11
Supplemental restraint system .......1-35
When starting and driving ..........5-2
Preview function ................ .5-49
Preview function (for Intelligent cruise
control system) ................. .5-42
Preview Function warning light .........2-12
Push starting .................. .6-16
Push warning (Automatic Transmission
models) ..................... .2-19
Push-button ignition switch .........5-7, 5-8
R
Radio ...................... .4-37
Car phone or CB radio ............4-85
FM-AM-SAT radio with Compact Disc (CD)
player .................... .4-53
Rain-sensing auto wiper system ........2-30
Rapid air pressure loss ..............5-6
Readiness for inspection/maintenance (I/M)
test ....................... .9-22
Rear window and outside mirror defroster
switch ...................... .2-31
Rearview monitor ............... .4-22
Recorders, Event data ............. .9-22
Registering your vehicle in another country . .9-9
Remote keyless entry system ..........3-14Repairing flat tire (with emergency tire
puncture repair kit)
............... .6-3
Reporting safety defects .............9-21
Retractable hard top .............. .3-18
Roadside assistance program . . . .......6-2
Rollover ...................... .5-5
Roof, Retractable hard top ...........3-18
S
Safety, Child seat belts .............1-13
Satellite radio operation ............4-54
Seat adjustment Front power seat adjustment .........1-3
Front seats .................. .1-3
Seat belt(s) Child safety ................. .1-13
Infants .................... .1-14
Injured persons ............... .1-14
Larger

children ............... .1-14
Pre-crash seat belts .............1-15
Precautions on seat belt usage . . . . . . .1-11
Pregnant women .............. .1-14
Seat belt cleaning .............. .7-5
Seat belt extenders ............. .1-18
Seat belt guide ............... .1-17
Seat belt maintenance ............1-18
Seat belt warning light ...........2-12
Seat belts .................. .1-11
Seat belts with pretensioners ........1-47
Small children ................ .1-14
Three-point type............... .1-15
Seat synchronization function . . . . . . . . .3-37
Seat(s) Climate controlled seats ..........2-38
10-5
