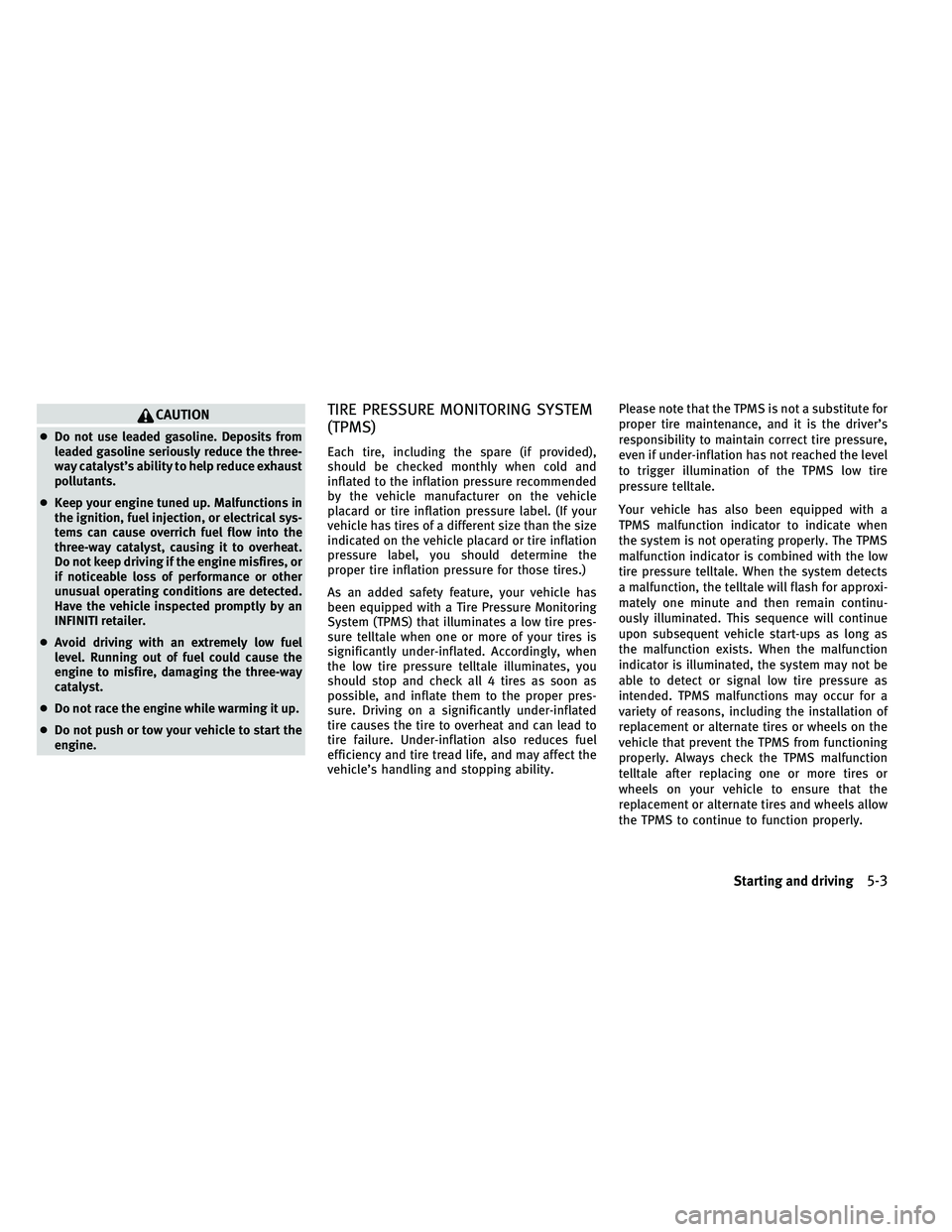

CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check all 4 tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability. Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Starting and driving5-3

●Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head restraints.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section.)1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral) posi-
tion. Depress the clutch pedal fully to the
floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried when op-
erating the ignition switch.
3. Push the ignition switch to the ON posi-
tion. Depress the brake pedal (AT model)
or the clutch pedal (MT model) and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or the clutch pedal (MT
model) with the ignition switch in any posi-
tion. ●
If the engine is very hard to start in
extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5
or 6 seconds, stop cranking by pushing
the ignition switch to OFF. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the brake
pedal and the clutch pedal (MT model)
and pushing the push-button ignition
switch to start the engine. If the engine
starts, but fails to run, repeat the above
procedure.CAUTION
Do not operate the starter for more than 15
seconds at a time. If the engine does not start,
push the ignition switch to OFF and wait 10
seconds before cranking again, otherwise the
starter could be damaged.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-11

Getting emergency tire puncture
repair kit
Take out the emergency tire puncture repair kit
located under the cargo room or in the trunk.
The repair kit consists of the following items:
1Tire sealant bottle
2Air compressor
3Speed restriction sticker
NOTE:
For models with the emergency tire puncture
repair kit, a spare tire, jack and rod are not
equipped as standard. These parts are dealer
options. Contact an INFINITI retailer about ob-
taining these parts. See “CHANGING FLAT TIRE
(for models with spare tire)” earlier in this sec-
tion for usage of jacking tools and tire replace-
ment.
Before using emergency tire puncture
repair kit
●If any foreign object (for example, a screw or
nail) is embedded in the tire, do not remove
it.
● Check the expiration date of the sealant
(shown on the label attached to the bottle).
Never use a sealant whose expiration date
has passed.
Repairing tire
WARNING
Observe the following precautions when using
the tire repair compound.
● Swallowing the compound is dangerous. Im-
mediately drink as much water as possible
and seek prompt medical assistance.
● Rinse well with lots of water if the compound
comes into contact with skin or eyes. If irri-
tation persists, seek prompt medical
attention.
● Keep the repair compound out of the reach of
children.
● The emergency repair compound may cause
a malfunction of the tire pressure sensors
and cause the low tire pressure warning light
to illuminate. Have the tire pressure sensor
replaced as soon as possible.
NOTE:
Do not remove any nails or screws that have
penetrated the tire when performing repairs.
SCE0887
In case of emergency6-5

7.When the tire pressure is at the specified
amount, turn the air compressor off. If the
pressure cannot be inflated to the specified
amount, the air compressor can be turned
off at the minimum of 26 psi (180 kPa).
Remove the power plug from the power
outlet and quickly remove the hose from
the tire valve. Attach the protective cap and
valve cap. Properly stow the emergency tire
puncture repair kit in the trunk.
CAUTION
To avoid serious personal injury when stowing
the emergency tire puncture repair kit:
– Keep the sealant bottle screwed into thecompressor. Failure to do so can cause
the sealant to spray into the air and get
into your eyes or on the skin.
8. Immediately drive the vehicle for 10 min-
utes or 2 miles (3 km) at a speed of 50
MPH (80 km/h) or less. 9. After driving, make sure that the air
compressor switch is in the OFF posi-
tion, then screw the hose securely onto
the tire valve. Check the tire pressure
with the pressure gauge. The temporary
repair is completed if the tire pressure
does not drop.
Make sure the pressure is adjusted to the
pressure that is specified on the tire and
loading information label before driving.
10. If the tire pressure drops, repeat the steps from 5 to 9. If the pressure drops
again or under 19 psi (130 kPa), the tire
cannot be repaired with this tire repair
kit. Contact an INFINITI retailer.
The sealant bottle and hose can not be
reused to repair another punctured tire.
Contact an INFINITI retailer to purchase
replacements.
After repairing tire
See an INFINITI retailer for tire
repair/replacement as soon as possible.
WARNING
●After using Emergency Tire Sealant to repair a
minor tire puncture, do not drive the vehicle at
speeds faster than 50 MPH (80 km/h).
● Immediately after using Emergency Tire
Sealant to repair a minor tire puncture, take
your vehicle to an INFINITI retailer to inspect,
and repair or replace the tire. The Emergency
Tire Sealant cannot permanently seal a
punctured tire. Continuing operation of the
vehicle without a permanent tire repair can
lead to a crash.
● If you used Emergency Tire Sealant to repair
a minor tire puncture, your INFINITI retailer
will also need to replace the TPMS sensor in
addition to repairing or replacing the tire.
● INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure.
CHANGING FLAT TIRE (for models with
spare tire)
If you have a flat tire, follow the instructions
below.
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
6-8In case of emergency

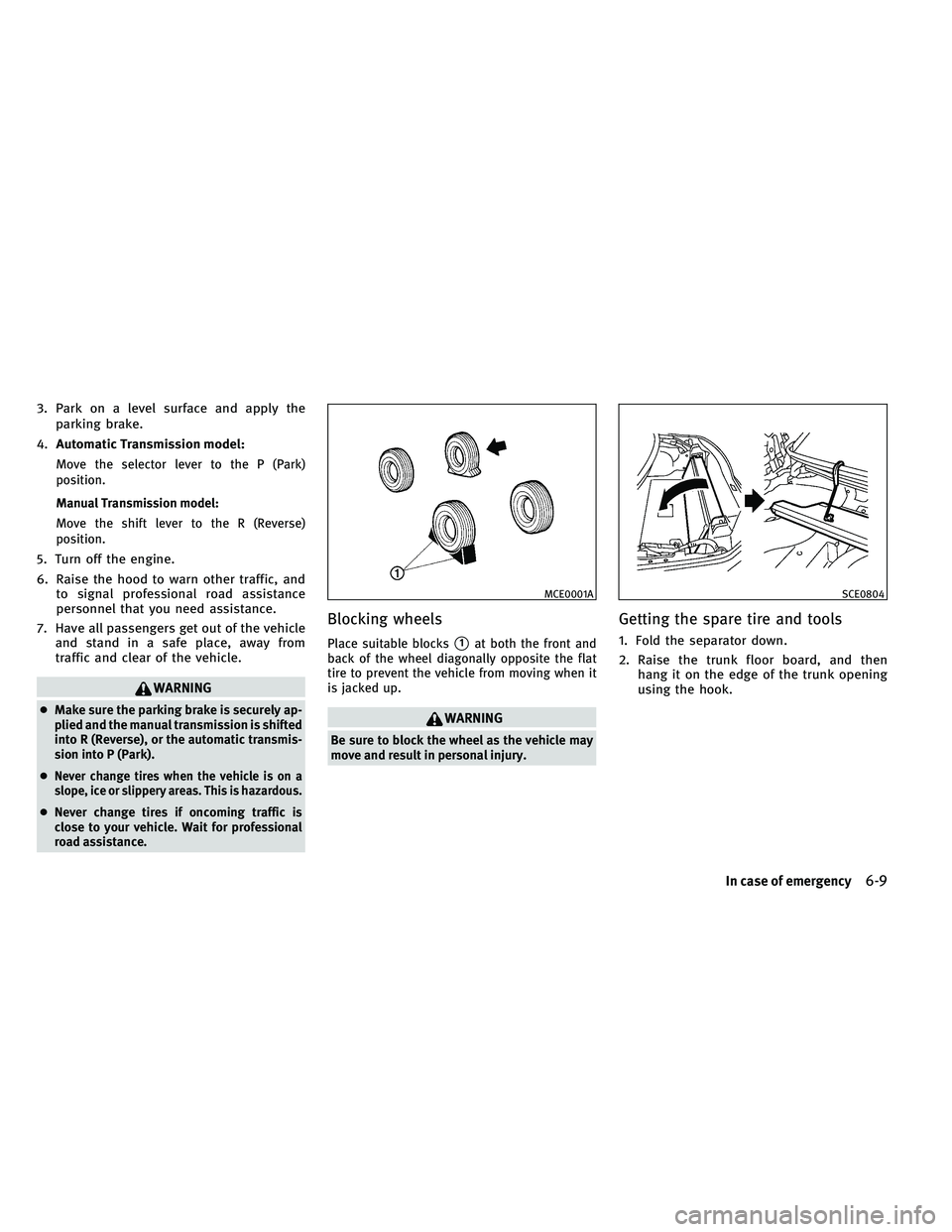

3. Park on a level surface and apply theparking brake.
4. Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the R (Reverse)
position.
5. Turn off the engine.
6. Raise the hood to warn other traffic, and
to signal professional road assistance
personnel that you need assistance.
7. Have all passengers get out of the vehicle and stand in a safe place, away from
traffic and clear of the vehicle.
WARNING
●Make sure the parking brake is securely ap-
plied and the manual transmission is shifted
into R (Reverse), or the automatic transmis-
sion into P (Park).
●
Never change tires when the vehicle is on a
slope, ice or slippery areas. This is hazardous.
● Never change tires if oncoming traffic is
close to your vehicle. Wait for professional
road assistance.
Blocking wheels
Place suitable blocks1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it
is jacked up.
WARNING
Be sure to block the wheel as the vehicle may
move and result in personal injury.
Getting the spare tire and tools
1. Fold the separator down.
2. Raise the trunk floor board, and then hang it on the edge of the trunk opening
using the hook.
MCE0001ASCE0804
In case of emergency6-9

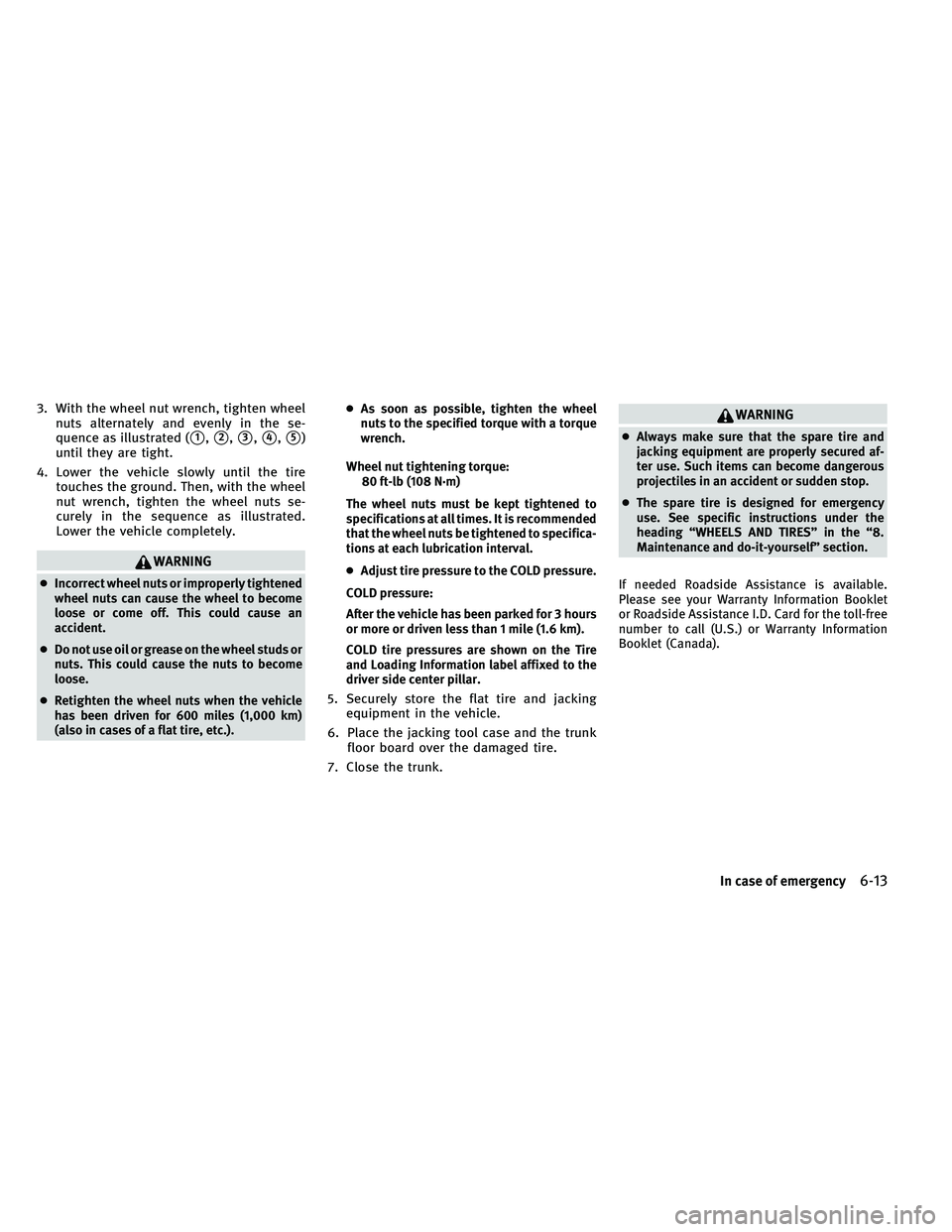

3. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the se-
quence as illustrated (
1,2,3,4,5)
until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence as illustrated.
Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose or come off. This could cause an
accident.
● Do not use oil or grease on the wheel studs or
nuts. This could cause the nuts to become
loose.
● Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.). ●
As soon as possible, tighten the wheel
nuts to the specified torque with a torque
wrench.
Wheel nut tightening torque: 80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to
specifications at all times. It is recommended
that the wheel nuts be tightened to specifica-
tions at each lubrication interval.
● Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for 3 hours
or more or driven less than 1 mile (1.6 km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to the
driver side center pillar.
5. Securely store the flat tire and jacking equipment in the vehicle.
6. Place the jacking tool case and the trunk floor board over the damaged tire.
7. Close the trunk.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
● The spare tire is designed for emergency
use. See specific instructions under the
heading “WHEELS AND TIRES” in the “8.
Maintenance and do-it-yourself” section.
If needed Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
In case of emergency6-13

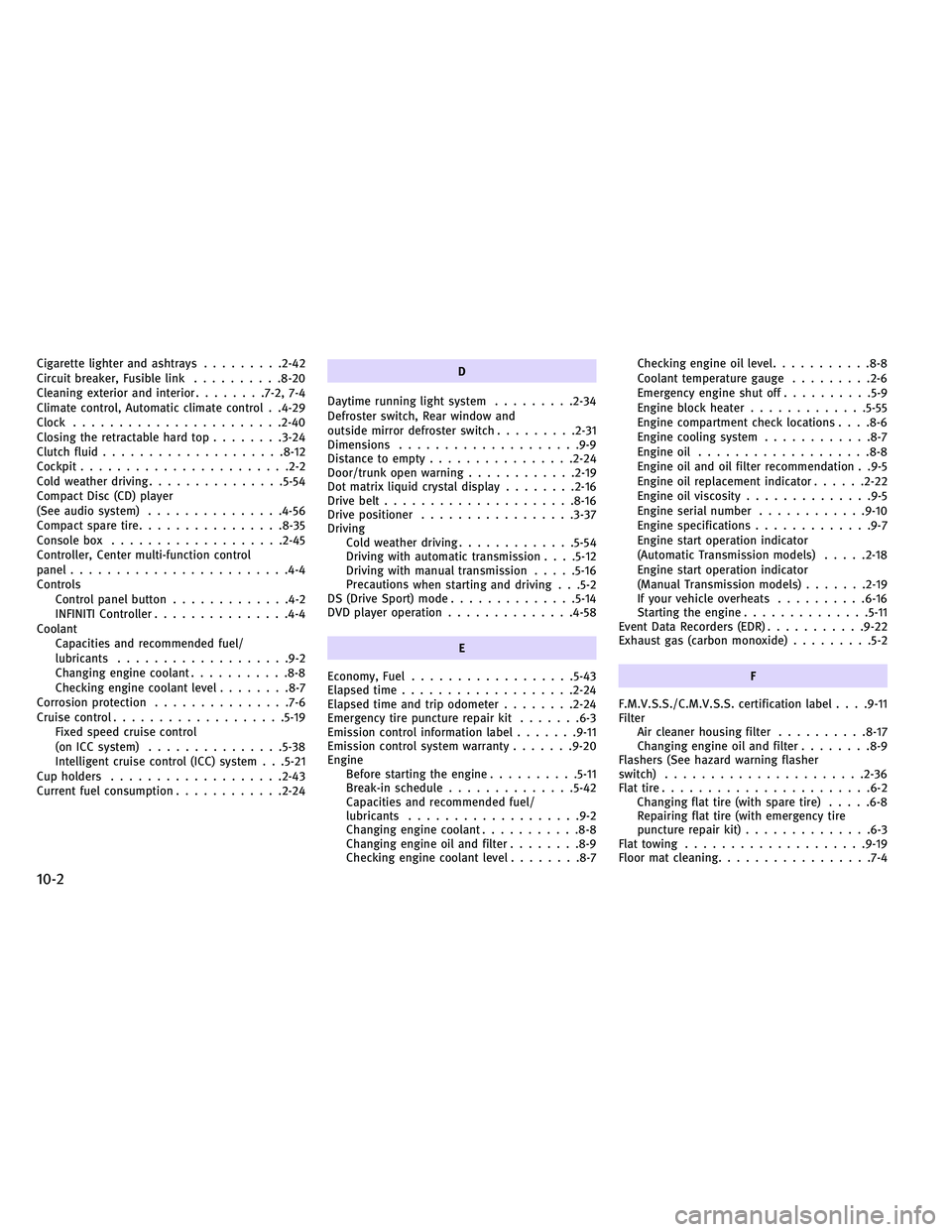

Cigarette lighter and ashtrays.........2-42
Circuit breaker, Fusible link ..........8-20
Cleaning exterior and interior ........7-2, 7-4
Climate control, Automatic climate control . .4-29
Clock ...................... .2-40
Closing the retractable hard top ........3-24
Clutch fluid ................... .8-12
Cockpit ...................... .2-2
Cold weather driving .............. .5-54
Compact Disc (CD) player
(See audio system) .............. .4-56
Compact spare tire ............... .8-35
Console box .................. .2-45
Controller, Center multi-function control
panel ....................... .4-4
Controls Control panel button .............4-2
INFINITI Controller .............. .4-4
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-7
Corrosion protection .............. .7-6
Cruise control .................. .5-19
Fixed speed cruise control
(on ICC system) .............. .5-38
Intelligent cruise control (ICC) system . . .5-21
Cup holders .................. .2-43
Current fuel consumption ............2-24 D
Daytime running light system .........2-34
Defroster switch, Rear window and
outside mirror defroster switch .........2-31
Dimensions ................... .9-9
Distance to empty ............... .2-24
Door/trunk open warning ............2-19
Dot matrix liquid crystal display ........2-16
Drive belt .................... .8-16
Drive positioner ................ .3-37
Driving Cold weather driving .............5-54
Driving with automatic transmission . . . .5-12
Driving with manual transmission .....5-16
Precautions

when starting and driving . . .5-2
DS (Drive Sport) mode ..............5-14
DVD player operation ............. .4-58
E
Economy, Fuel ................. .5-43
Elapsed time .................. .2-24
Elapsed time and trip odometer ........2-24
Emergency tire puncture repair kit .......6-3
Emission control information label .......9-11
Emission control system warranty .......9-20
Engine Before starting the engine ..........5-11
Break-in schedule ............. .5-42
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant ...........8-8
Changing engine oil and filter ........8-9
Checking engine coolant level ........8-7Checking engine oil level
...........8-8
Coolant temperature gauge .........2-6
Emergency engine shut off . . . .......5-9
Engine block heater .............5-55
Engine compartment check locations . . . .8-6
Engine cooling system ............8-7
Engine oil .................. .8-8
Engine oil and oil filter recommendation . .9-5
Engine oil replacement indicator ......2-22
Engine oil viscosity ............. .9-5
Engine serial number ............9-10
Engine specifications .............9-7
Engine start operation indicator
(Automatic Transmission models) .....2-18
Engine start operation indicator
(Manual Transmission models) . . . . . . .2-19
If your vehicle overheats ..........6-16
Starting the engine ............. .5-11
Event Data Recorders (EDR) ...........9-22
Exhaust gas (carbon monoxide) .........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . . .9-11
Filter Air cleaner housing filter ..........8-17
Changing engine oil and filter ........8-9
Flashers
(See hazard warning flasher
switch) ..................... .2-36
Flat tire ...................... .6-2
Changing flat tire (with spare tire) .....6-8
Repairing flat tire (with emergency tire
puncture repair kit) ............. .6-3
Flat towing ................... .9-19
Floor mat cleaning ................ .7-4
10-2
