1. Vehicle Dynamic Control (VDC) OFF switch(P. 5-52)
2. Trunk lid release switch (P. 3-28)
3. Sonar system OFF switch (if so equipped) (P. 5-47) 4. Instrument brightness control switch
(P. 2-35)
5. TRIP/RESET switch for twin trip odometer (P. 2-5)
6. Headlight, fog light and turn signal switch (P. 2-31) 7. Paddle shifter (if so equipped) (P. 5-14)
8. Steering-wheel-mounted controls
(Left side)
— ENTER or tuning switch (P. 4-82)
— BACK switch (P. 4-82)
— TALK switch (P. 4-109)/Phone switch
(P. 4-85)
— Volume control switches (P. 4-82)
— Source select switch (P. 4-82)
9. Trip computer switch (P. 2-23)
10. Windshield wiper and washer switch (P. 2-28)
11. Steering-wheel-mounted controls (Right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-21)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-33)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-33)
16. Steering wheel — Horn (P. 2-37)
— Driver supplemental air bag (P. 1-35)
SSI0819
COCKPIT
Illustrated table of contents0-7

18. Rear window and outside mirrordefogger switch (P. 2-31)
19. Glove box lid release handle (P. 2-44)
20. Trunk release power cancel switch (P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
Illustrated table of contents0-9

1. Vehicle Dynamic Control (VDC) OFF switch(P. 5-52)
2. Trunk lid release switch (P. 3-28)
3. Sonar system OFF switch (if so equipped) (P. 5-47) 4. Instrument brightness control switch
(P. 2-35)
5. TRIP/RESET switch for twin trip odometer (P. 2-5)
6. Headlight, fog light and turn signal switch (P. 2-31) 7. Paddle shifter (if so equipped) (P. 5-14)
8. Steering-wheel-mounted controls
(Left side)
— ENTER or tuning switch (P. 4-82)
— BACK switch (P. 4-82)
— TALK switch (P. 4-109)/Phone switch
(P. 4-85)
— Volume control switches (P. 4-82)
— Source select switch (P. 4-82)
9. Trip computer switch (P. 2-23)
10. Windshield wiper and washer switch (P. 2-28)
11. Steering-wheel-mounted controls (Right side)
— Cruise control switches (P. 5-19)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-21)
12. Hood release handle (P. 3-17)
13. Intelligent Key port (P. 5-10)
14. Electric tilting/telescopic steering wheel lever (if so equipped) (P. 3-33)
15. Manual tilting/telescopic steering wheel lever (if so equipped) (P. 3-33)
16. Steering wheel — Horn (P. 2-37)
— Driver supplemental air bag (P. 1-35)
SSI0819
COCKPIT
2-2Instruments and controls

20. Trunk release power cancel switch(P. 3-29)
*: Refer to the separate Navigation SystemOwner’s Manual.
1. Tachometer (P. 2-6)
2. Warning/Indicator lights (P. 2-8)
3. Speedometer (P. 2-5)
4. Engine coolant temperature gauge
(P. 2-6) 5. Dot matrix liquid crystal display/
Odometer/twin trip odometer (P. 2-16)
6. Fuel gauge (P. 2-7)
SIC4288
METERS AND GAUGES
2-4Instruments and controls

CAUTION
●The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning
● Loose fuel cap warning
● Check tire pressure warning
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in
the Brake Assist (with Preview Function) sys-
tem.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Seat belt warning light
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver’s seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver’s seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied.
For approximately 5 seconds after the ignition switch is in the ON position, the system does
not activate the warning light for the front
passenger.
See “SEAT BELTS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section for precautions on seat belt usage.
Supplemental air bag
warning light
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7 seconds
if the supplemental front air bag and supple-
mental side air bag, curtain side-impact air bag
systems and/or pretensioner seat belt are op-
erational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag and
pretensioner systems needs servicing and your
vehicle must be taken to your nearest INFINITI
retailer.
●
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
2-12Instruments and controls

7. “PUSH” warning (Automatic
Transmission models)
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:SHIFT “P” warning →(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER CAP” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates and
low tire pressure is detected. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
Instruments and controls2-19

5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle secu-
rity system automatically shifts into the
armed phase. The security light begins to
flash once every approximately 3 sec-
onds. If, during this 30-second pre-arm
time period, the door is unlocked, or the
ignition switch is pushed to ACC or ON,
the system will not arm.
Even when the driver and/or passengers are in
the vehicle, the system will activate with all
doors, hood, and trunk lid locked with the igni-
tion switch in the LOCK position. When pushing
the ignition switch to the ACC or ON position, the
system will be released.
Vehicle security system activation
The vehicle security system will give the follow-
ing alarm:
● The headlights blink and the horn sounds
intermittently.
● The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
●
Unlocking the door or opening the trunk lid
without using the button on the Intelligent
Key, the door handle request switch or the
mechanical key. (Even if the door is opened
by releasing the door inside lock knob, the
alarm will activate.)
● Opening the hood.
How to stop an activated alarm
The alarm will stop by unlocking a door by
pushing the unlock button on the Intelligent
Key, the door handle request switch or using
the mechanical key, or when the ignition switch
is pushed to the ACC or ON position.
If the system does not operate as described
above, have it checked by an INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Statement related to section 15 of FCC rules for
INFINITI Vehicle Immobilizer System (CONT
ASSY - CARD SLOT)
This device complies with part 15 of the FCC
Rules and RSS-210 of Industry Canada. Opera-
tion is subject to the following two conditions;
(1) This device may not cause harmful interfer-
ence, and (2) this device must accept any inter-
ference received, including interference that
may cause undesired operation of the device.
CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER’S AUTHOR-
ITY TO OPERATE THE EQUIPMENT.
Instruments and controls2-27

3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-4
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-5
Intelligent Key system ............................. 3-6
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-8
Intelligent Key operation ........................ 3-9
Battery saver system ........................... 3-11
Warning signals ................................ 3-11
Troubleshooting guide ......................... 3-12
Remote keyless entry system ......................3-14
How to use remote keyless entry system ........3-14
Hood ............................................. 3-17
Retractable hard top .............................. 3-18
Before operating the retractable hard top .......3-18
When operating the retractable hard top ........3-20
Indicators for the retractable hard top ..........3-22 Opening the retractable hard top
...............3-23
Closing the retractable hard top ................3-24
If the retractable hard top does not open
or close electrically ............................ 3-24
Operating the retractable hard top using
the Intelligent Key ............................. 3-25
Initializing of the retractable hard top ...........3-25
Troubleshooting guide ......................... 3-26
Trunk lid ........................................ 3-28
Trunk lid release switch ........................ 3-28
Trunk open request switch .....................3-28
Auto closure .................................. 3-28
Trunk release power cancel switch ..............3-29
Interior trunk lid release ....................... 3-30
Fuel-filler door ................................... 3-30
Opening the fuel-filler door ....................3-30
Fuel-filler cap ................................. 3-31
Tilt/telescopic
steering........................... 3-33
Manual operation (if so equipped) ..............3-33
Electric operation (if so equipped) ..............3-33
Sun visors ....................................... 3-34
Mirrors .......................................... 3-34
Inside mirror .................................. 3-34
Outside mirrors ............................... 3-35

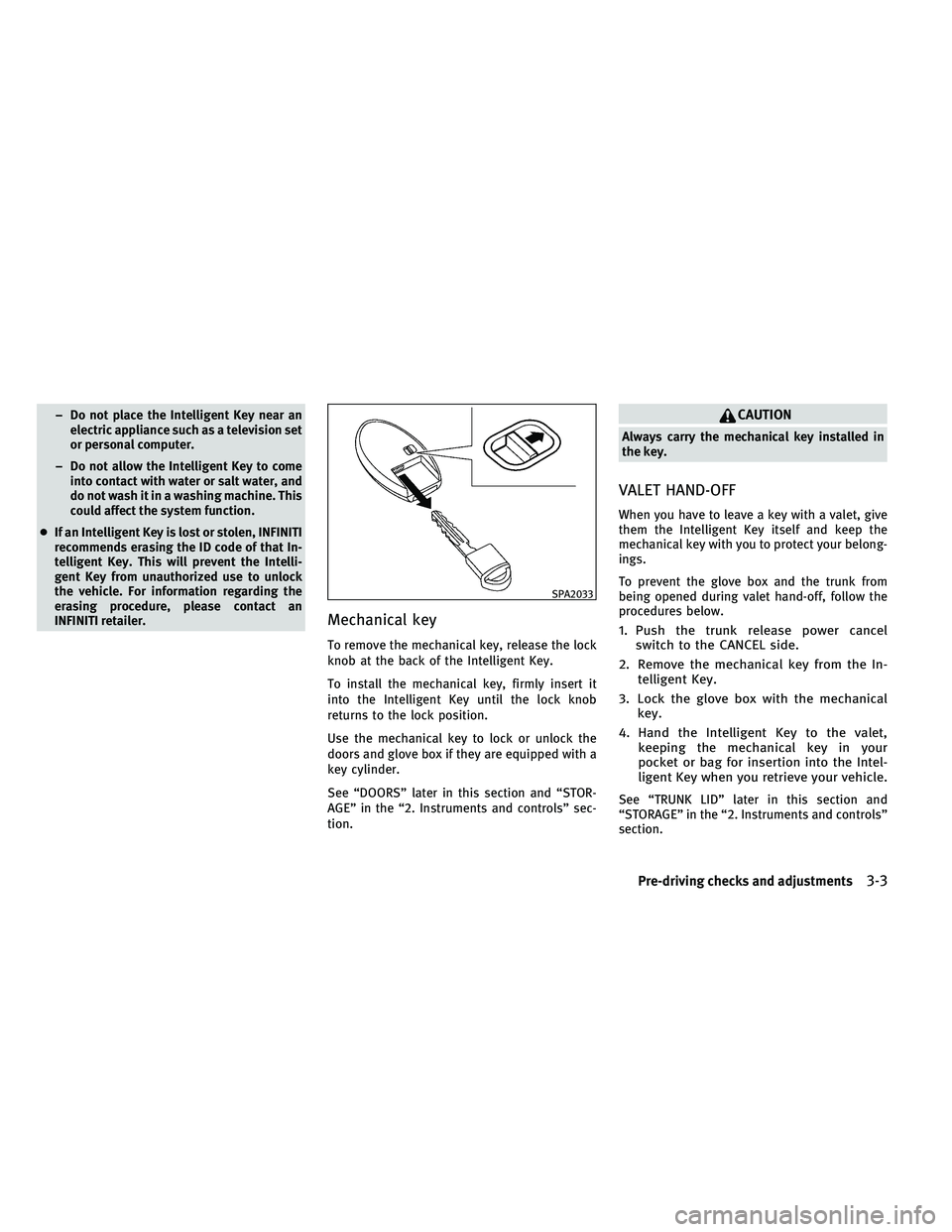

– Do not place the Intelligent Key near anelectric appliance such as a television set
or personal computer.
– Do not allow the Intelligent Key to come into contact with water or salt water, and
do not wash it in a washing machine. This
could affect the system function.
● If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key. This will prevent the Intelli-
gent Key from unauthorized use to unlock
the vehicle. For information regarding the
erasing procedure, please contact an
INFINITI retailer.
Mechanical key
To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
doors and glove box if they are equipped with a
key cylinder.
See “DOORS” later in this section and “STOR-
AGE” in the “2. Instruments and controls” sec-
tion.
CAUTION
Always carry the mechanical key installed in
the key.
VALET HAND-OFF
When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your belong-
ings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow the
procedures below.
1. Push the trunk release power cancel switch to the CANCEL side.
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your
pocket or bag for insertion into the Intel-
ligent Key when you retrieve your vehicle.
See “TRUNK LID” later in this section and
“STORAGE” in the “2. Instruments and controls”
section.
SPA2033
Pre-driving checks and adjustments3-3

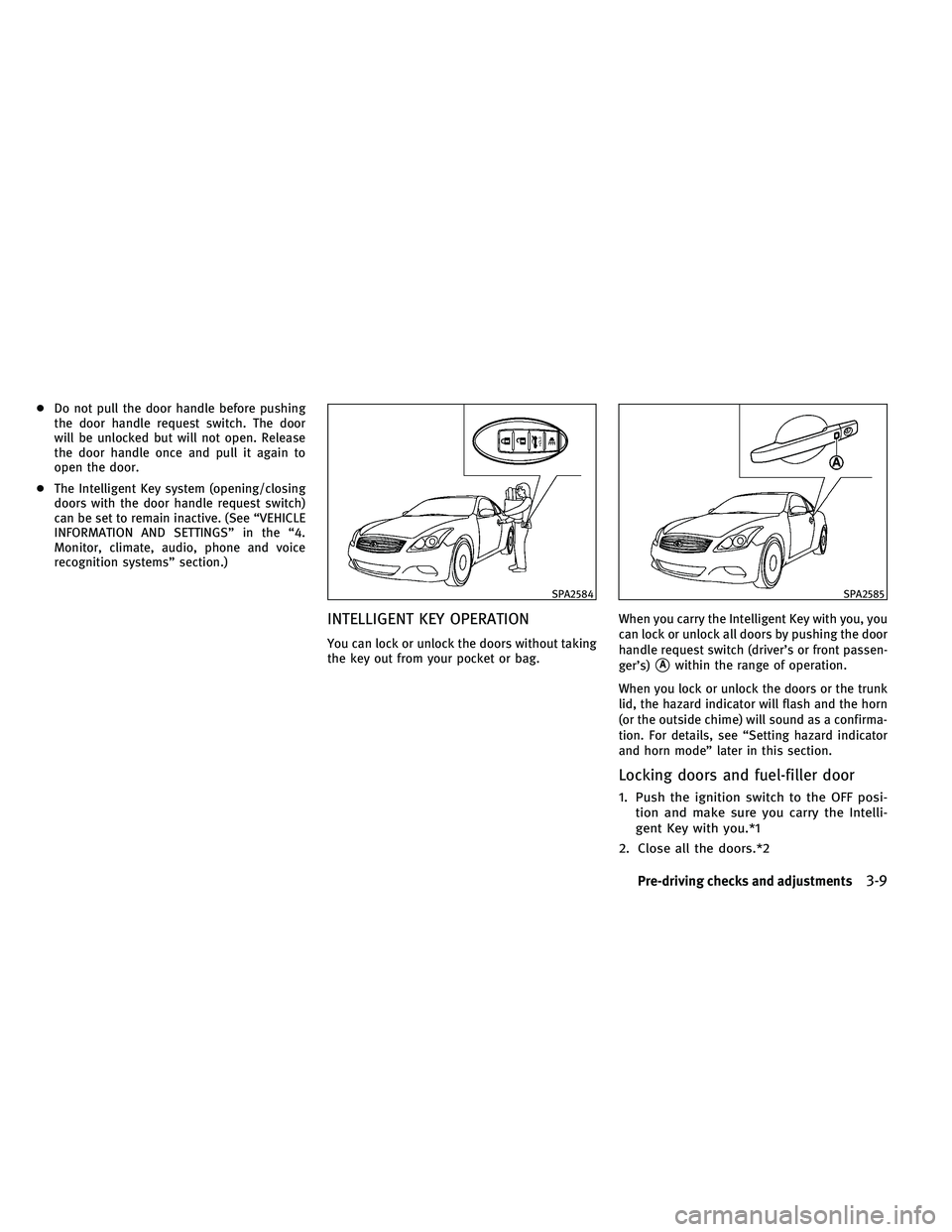

●Do not pull the door handle before pushing
the door handle request switch. The door
will be unlocked but will not open. Release
the door handle once and pull it again to
open the door.
● The Intelligent Key system (opening/closing
doors with the door handle request switch)
can be set to remain inactive. (See “VEHICLE
INFORMATION AND SETTINGS” in the “4.
Monitor, climate, audio, phone and voice
recognition systems” section.)
INTELLIGENT KEY OPERATION
You can lock or unlock the doors without taking
the key out from your pocket or bag. When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch (driver’s or front passen-
ger’s)
Awithin the range of operation.
When you lock or unlock the doors or the trunk
lid, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For details, see “Setting hazard indicator
and horn mode” later in this section.
Locking doors and fuel-filler door
1. Push the ignition switch to the OFF posi- tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
SPA2584SPA2585
Pre-driving checks and adjustments3-9
