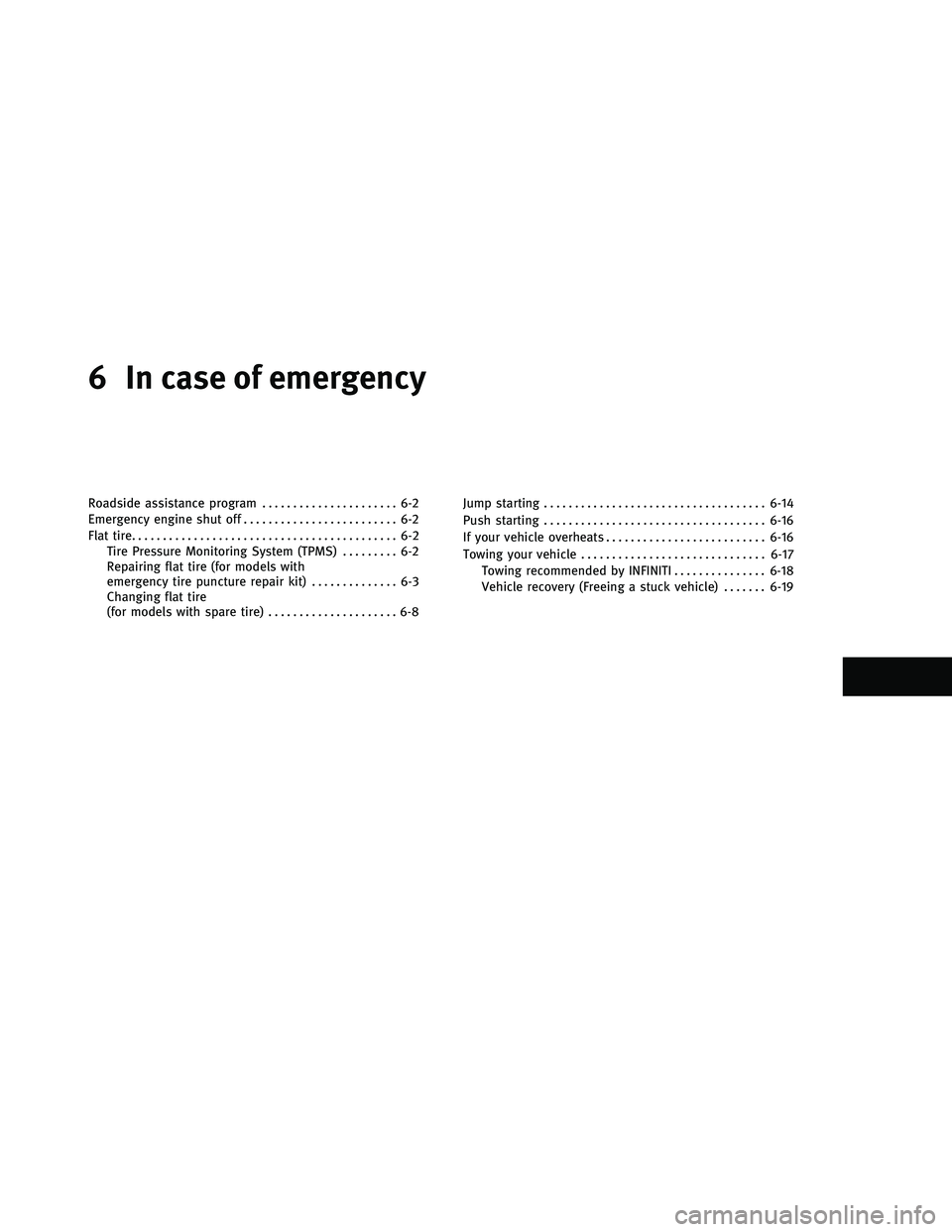

6 In case of emergency
Roadside assistance program...................... 6-2
Emergency engine shut off ......................... 6-2
Flat tire ........................................... 6-2
Tire Pressure Monitoring System (TPMS) ......... 6-2
Repairing flat tire (for models with
emergency tire puncture repair kit) .............. 6-3
Changing flat tire
(for models with spare tire) ..................... 6-8 Jump starting
.................................... 6-14
Push starting .................................... 6-16
If your vehicle overheats .......................... 6-16
Towing your vehicle .............................. 6-17
Towing recommended by INFINITI ...............6-18
Vehicle recovery (Freeing a stuck vehicle) .......6-19

7.When the tire pressure is at the specified
amount, turn the air compressor off. If the
pressure cannot be inflated to the specified
amount, the air compressor can be turned
off at the minimum of 26 psi (180 kPa).
Remove the power plug from the power
outlet and quickly remove the hose from
the tire valve. Attach the protective cap and
valve cap. Properly stow the emergency tire
puncture repair kit in the trunk.
CAUTION
To avoid serious personal injury when stowing
the emergency tire puncture repair kit:
– Keep the sealant bottle screwed into thecompressor. Failure to do so can cause
the sealant to spray into the air and get
into your eyes or on the skin.
8. Immediately drive the vehicle for 10 min-
utes or 2 miles (3 km) at a speed of 50
MPH (80 km/h) or less. 9. After driving, make sure that the air
compressor switch is in the OFF posi-
tion, then screw the hose securely onto
the tire valve. Check the tire pressure
with the pressure gauge. The temporary
repair is completed if the tire pressure
does not drop.
Make sure the pressure is adjusted to the
pressure that is specified on the tire and
loading information label before driving.
10. If the tire pressure drops, repeat the steps from 5 to 9. If the pressure drops
again or under 19 psi (130 kPa), the tire
cannot be repaired with this tire repair
kit. Contact an INFINITI retailer.
The sealant bottle and hose can not be
reused to repair another punctured tire.
Contact an INFINITI retailer to purchase
replacements.
After repairing tire
See an INFINITI retailer for tire
repair/replacement as soon as possible.
WARNING
●After using Emergency Tire Sealant to repair a
minor tire puncture, do not drive the vehicle at
speeds faster than 50 MPH (80 km/h).
● Immediately after using Emergency Tire
Sealant to repair a minor tire puncture, take
your vehicle to an INFINITI retailer to inspect,
and repair or replace the tire. The Emergency
Tire Sealant cannot permanently seal a
punctured tire. Continuing operation of the
vehicle without a permanent tire repair can
lead to a crash.
● If you used Emergency Tire Sealant to repair
a minor tire puncture, your INFINITI retailer
will also need to replace the TPMS sensor in
addition to repairing or replacing the tire.
● INFINITI recommends using only INFINITI
Genuine Emergency Tire Sealant provided
with your vehicle. Other tire sealants may
damage the valve stem seal which can cause
the tire to lose air pressure.
CHANGING FLAT TIRE (for models with
spare tire)
If you have a flat tire, follow the instructions
below.
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
6-8In case of emergency

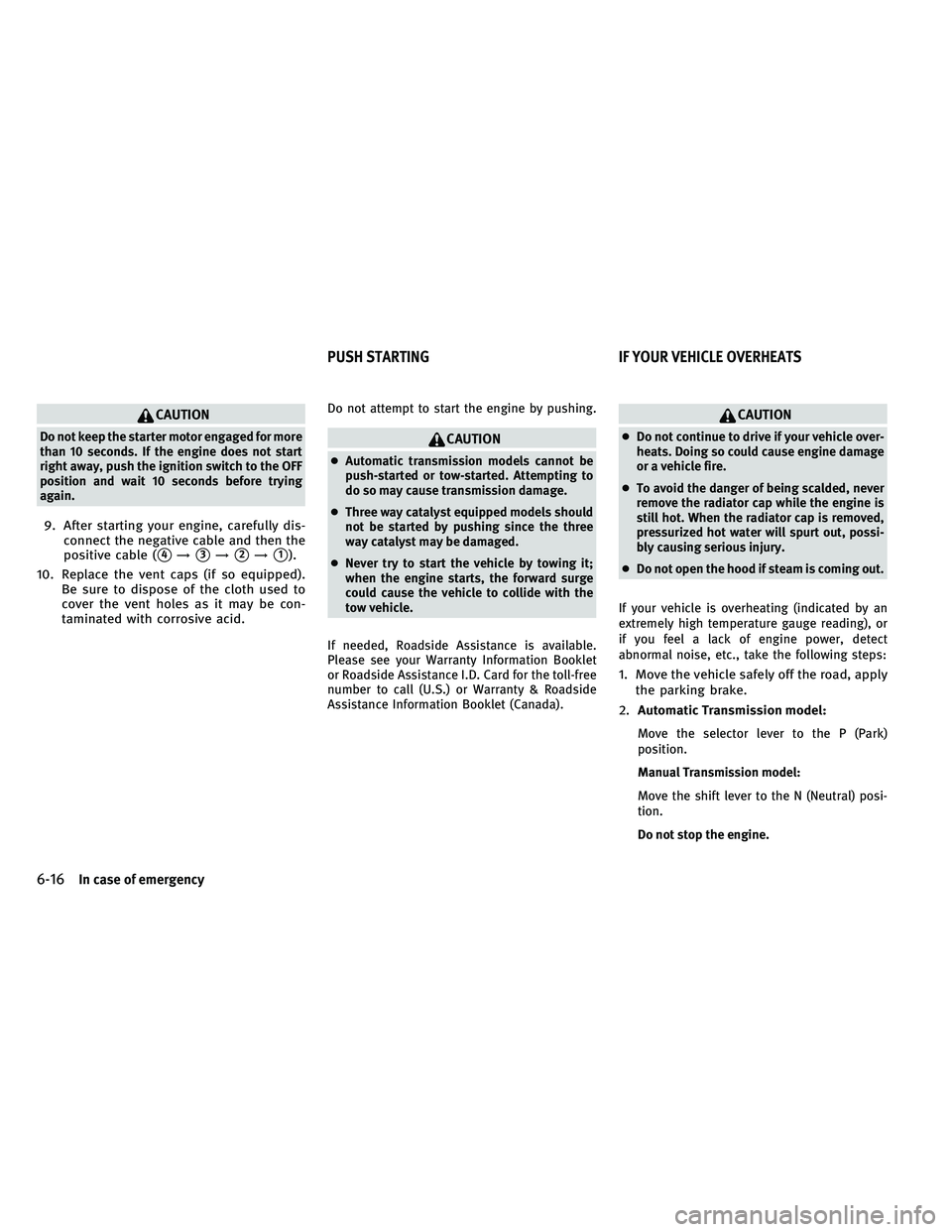

CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
9. After starting your engine, carefully dis-connect the negative cable and then the
positive cable (
4→3→2→1).
10. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to
cover the vent holes as it may be con-
taminated with corrosive acid.
Do not attempt to start the engine by pushing.
CAUTION
●Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
CAUTION
● Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake.
2. Automatic Transmission model:
Move the selector lever to the P (Park)
position.
Manual Transmission model:
Move the shift lever to the N (Neutral) posi-
tion.
Do not stop the engine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
6-16In case of emergency

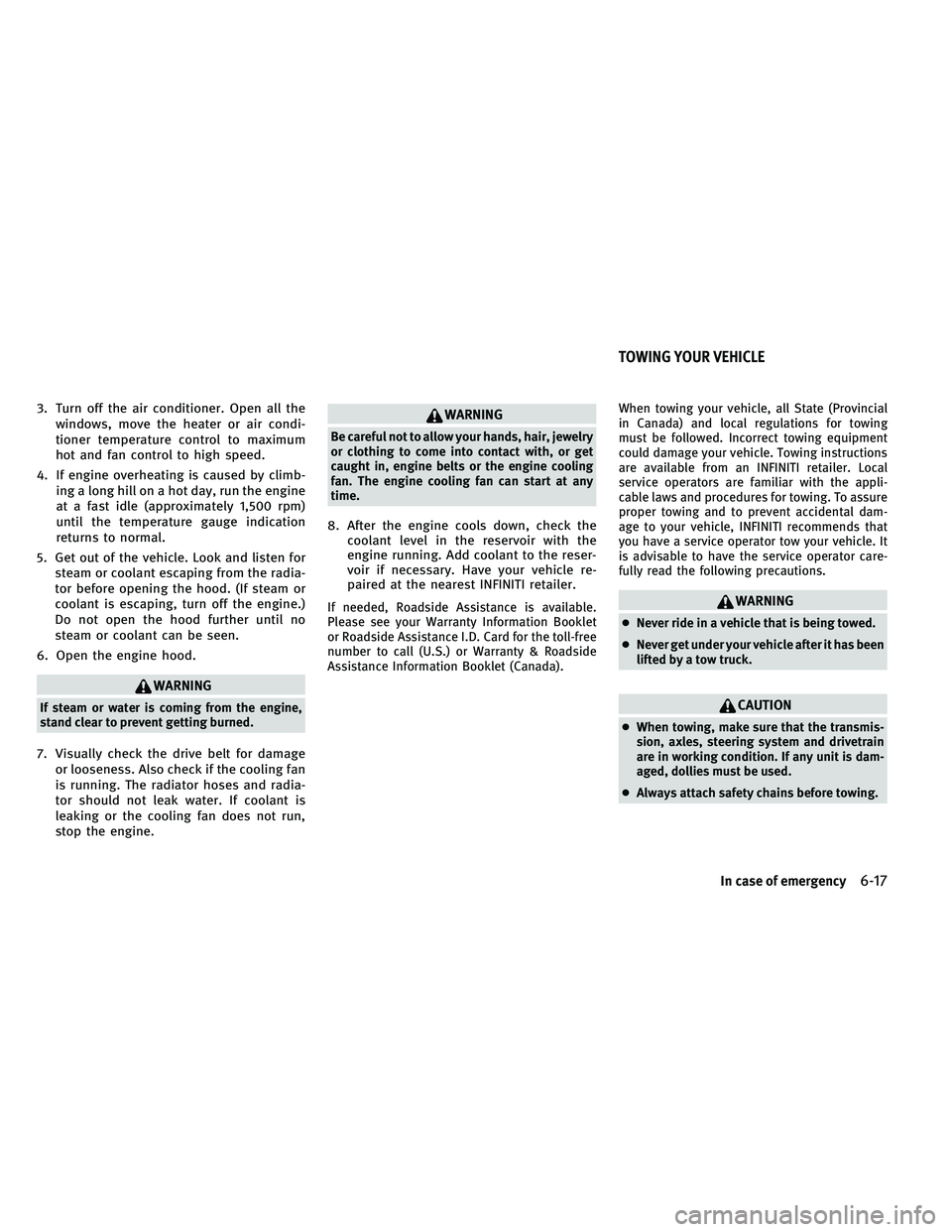

3. Turn off the air conditioner. Open all thewindows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.
4. If engine overheating is caused by climb- ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
5. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
6. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
7. Visually check the drive belt for damage or looseness. Also check if the cooling fan
is running. The radiator hoses and radia-
tor should not leak water. If coolant is
leaking or the cooling fan does not run,
stop the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
8. After the engine cools down, check the coolant level in the reservoir with the
engine running. Add coolant to the reser-
voir if necessary. Have your vehicle re-
paired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada). When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.WARNING
●
Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and drivetrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing.
TOWING YOUR VEHICLE
In case of emergency6-17

For information about towing your vehicle be-
hind a recreational vehicle (RV), see “FLAT
TOWING” in the “9. Technical and consumer
information” section of this manual.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).

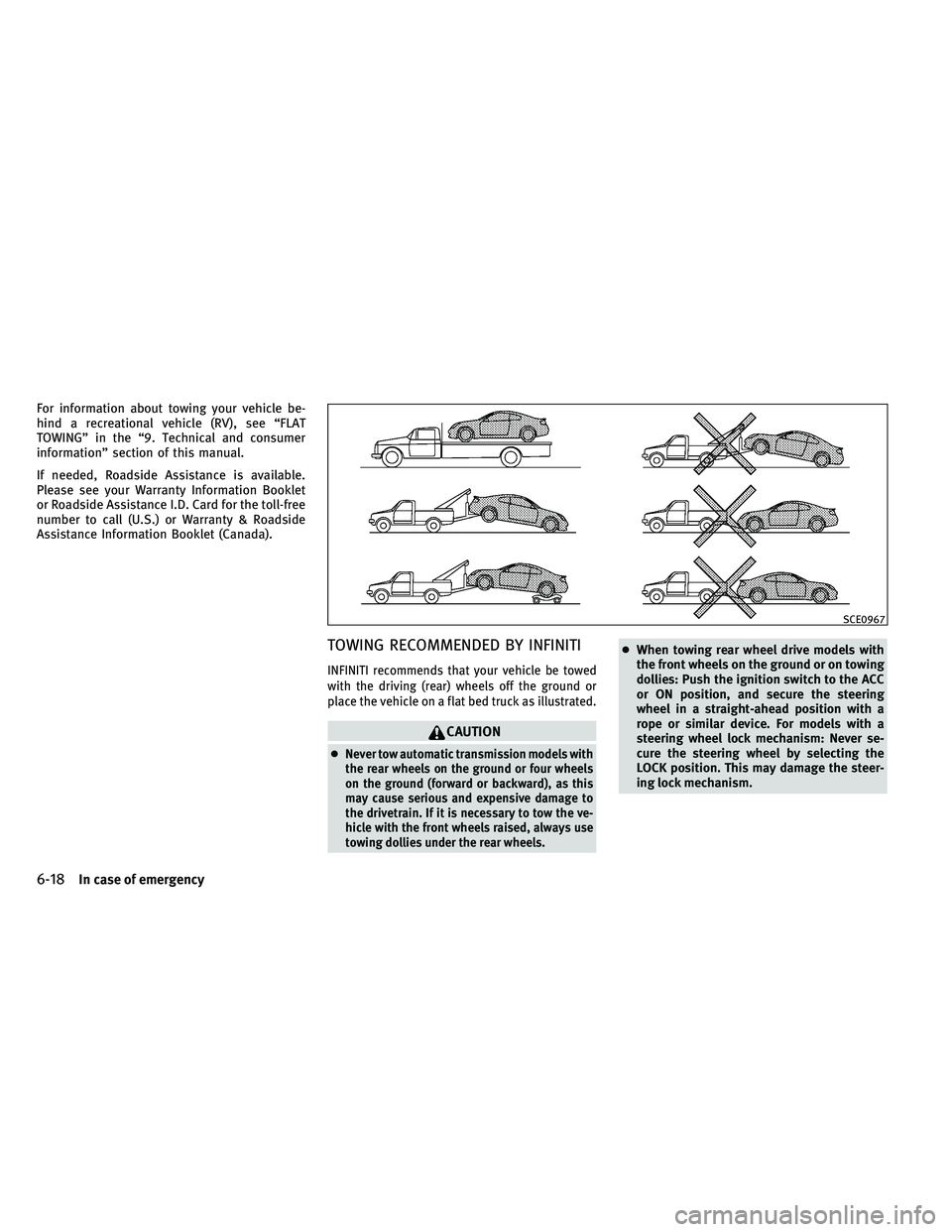

TOWING RECOMMENDED BY INFINITI
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illustrated.
CAUTION
●Never tow automatic transmission models with
the rear wheels on the ground or four wheels
on the ground (forward or backward), as this
may cause serious and expensive damage to
the drivetrain. If it is necessary to tow the ve-
hicle with the front wheels raised, always use
towing dollies under the rear wheels.
● When towing rear wheel drive models with
the front wheels on the ground or on towing
dollies: Push the ignition switch to the ACC
or ON position, and secure the steering
wheel in a straight-ahead position with a
rope or similar device. For models with a
steering wheel lock mechanism: Never se-
cure the steering wheel by selecting the
LOCK position. This may damage the steer-
ing lock mechanism.
SCE0967
6-18In case of emergency

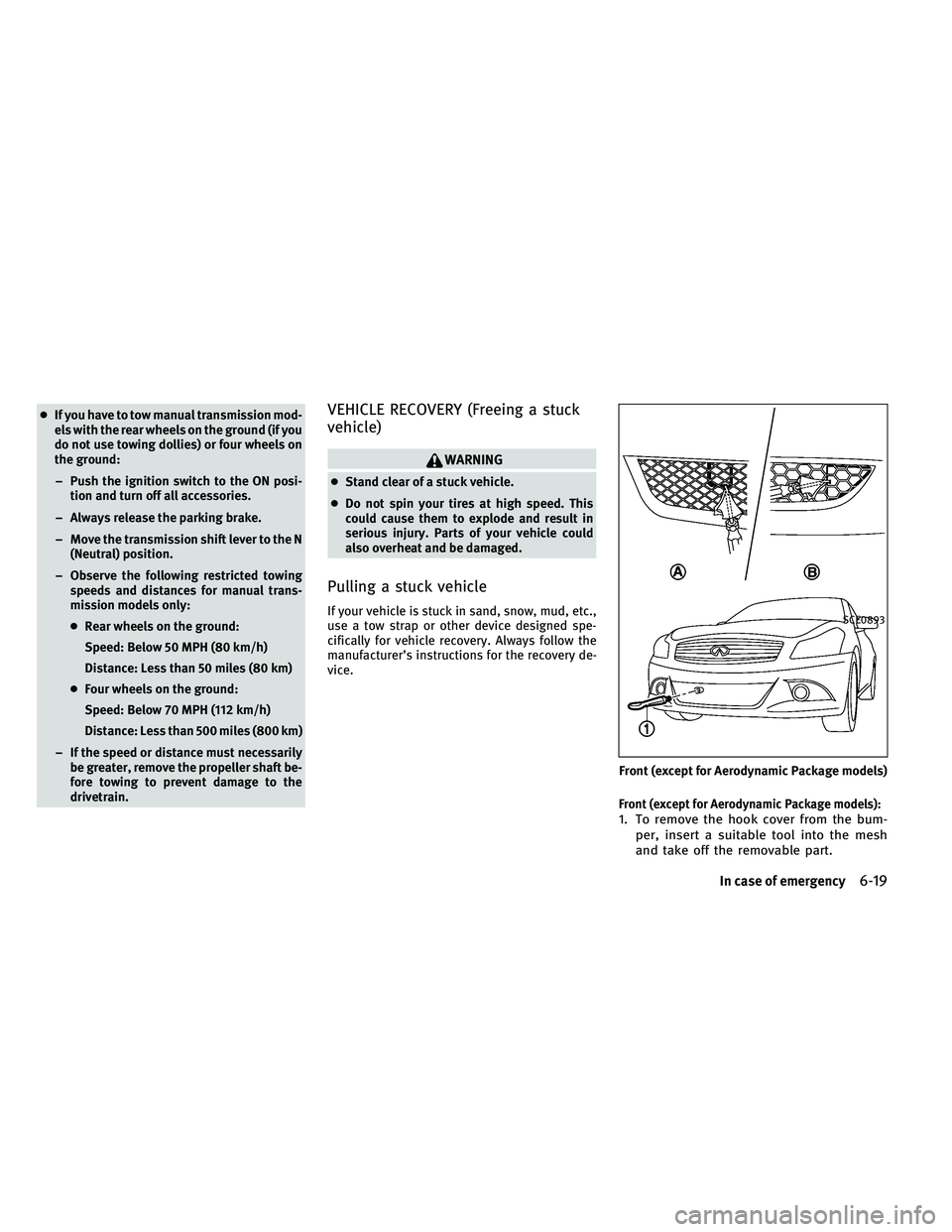

●If you have to tow manual transmission mod-
els with the rear wheels on the ground (if you
do not use towing dollies) or four wheels on
the ground:
– Push the ignition switch to the ON posi- tion and turn off all accessories.
– Always release the parking brake.
– Move the transmission shift lever to the N (Neutral) position.
– Observe the following restricted towing speeds and distances for manual trans-
mission models only:
●Rear wheels on the ground:
Speed: Below 50 MPH (80 km/h)
Distance: Less than 50 miles (80 km)
● Four wheels on the ground:
Speed: Below 70 MPH (112 km/h)
Distance: Less than 500 miles (800 km)
– If the speed or distance must necessarily be greater, remove the propeller shaft be-
fore towing to prevent damage to the
drivetrain.VEHICLE RECOVERY (Freeing a stuck
vehicle)
WARNING
●Stand clear of a stuck vehicle.
● Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
Front (except for Aerodynamic Package models):1. To remove the hook cover from the bum-
per, insert a suitable tool into the mesh
and take off the removable part.
Front (except for Aerodynamic Package models)
SCE0893
In case of emergency6-19

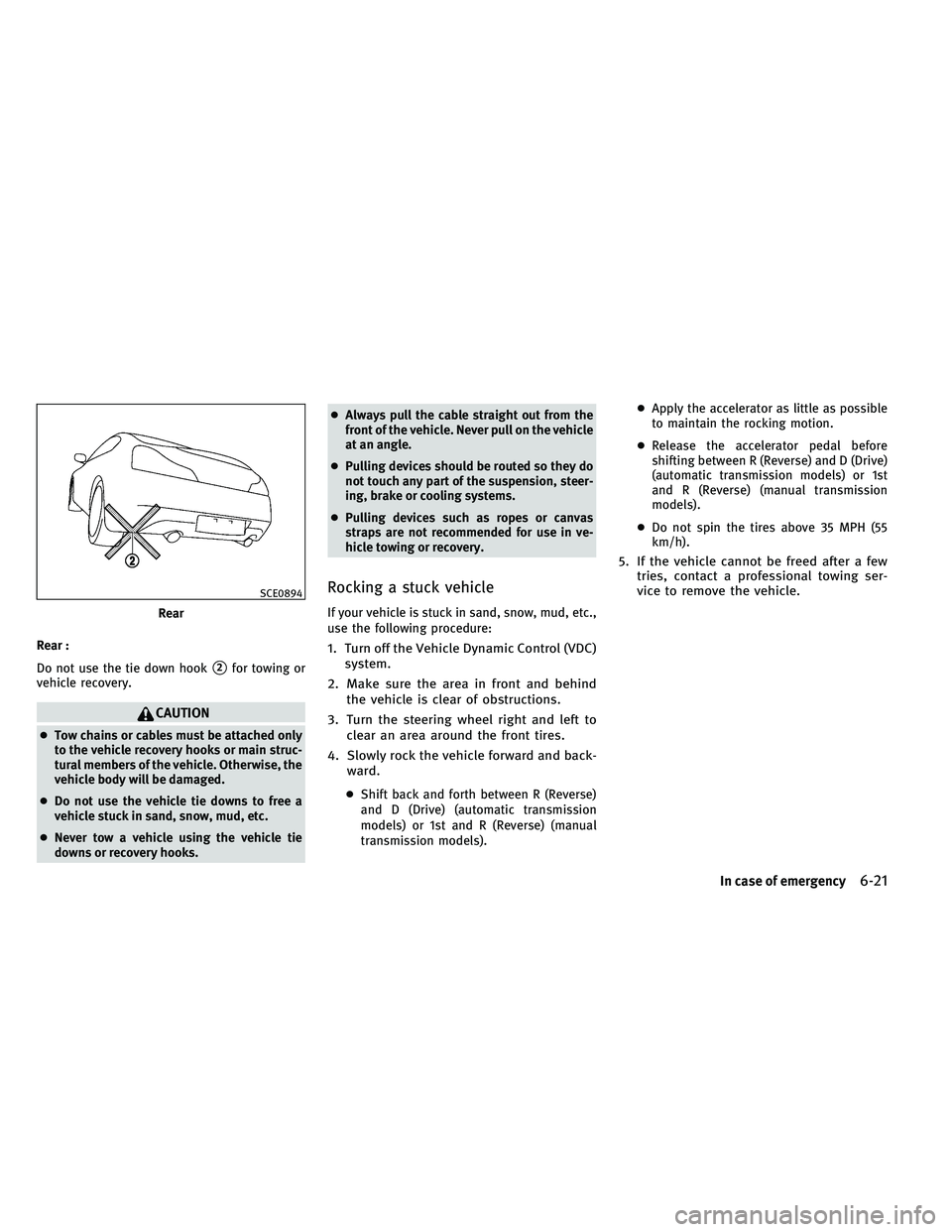

Rear :
Do not use the tie down hook
2for towing or
vehicle recovery.
CAUTION
● Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
● Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc.
● Never tow a vehicle using the vehicle tie
downs or recovery hooks. ●
Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.
● Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.
● Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.
Rocking a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
●Shift back and forth between R (Reverse)
and D (Drive) (automatic transmission
models) or 1st and R (Reverse) (manual
transmission models). ●
Apply the accelerator as little as possible
to maintain the rocking motion.
● Release the accelerator pedal before
shifting between R (Reverse) and D (Drive)
(automatic transmission models) or 1st
and R (Reverse) (manual transmission
models).
● Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing ser-
vice to remove the vehicle.
Rear
SCE0894
In case of emergency6-21

9 Technical and consumer information
Capacities and recommended fuel/lubricants........ 9-2
Fuel recommendation ........................... 9-3
Engine oil and oil filter recommendation ......... 9-5
Air conditioning system refrigerant and
lubricant recommendations ..................... 9-6
Specifications ..................................... 9-7
Engine ........................................ 9-7
Wheels and tires ............................... 9-8
Dimensions .................................... 9-9
When traveling or registering your vehicle in
another country ................................... 9-9
Vehicle identification ............................. 9-10
Vehicle Identification Number (VIN) plate ........9-10
Vehicle identification number
(chassis number) .............................. 9-10
Engine serial number .......................... 9-10
F.M.V.S.S./C.M.V.S.S. certification label ..........9-11
Emission control information label ...............9-11
Tire and loading information label ...............9-11
Air conditioner specification label ...............9-12
Installing front license plate .......................9-12Except for Aerodynamic Package models
........9-13
For Aerodynamic Package models ................9-15
Vehicle loading information .......................9-16
Terms ........................................ 9-16
Vehicle load capacity .......................... 9-17
Loading tips .................................. 9-18
Measurement of weights ....................... 9-18
Towing a trailer .................................. 9-19
Flat towing ................................... 9-19
Uniform tire quality grading .......................9-19
Treadwear .................................... 9-19
Traction AA, A, B and C ........................ 9-19
Temperature A, B and C ....................... 9-20
Emission control system warranty .................9-20
Reporting safety defects .......................... 9-21
Readiness for Inspection/Maintenance (I/M) test ....9-22
Event Data Recorders (EDR) .......................9-22
Owner’s Manual/Service Manual order
information ...................................... 9-23
In

the event of a collision ...................... 9-23

4.The resulting figure equals the avail-
able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 750 (5 x 150) = 650
lbs or 640 340 (5 x 70) = 300 kg.)
5.Determine the combined weight of lug-
gage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.
6.If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this re-
duces the available cargo and lug-
gage load capacity of your vehicle.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(See “MEASUREMENT OF WEIGHTS” later
in this section.) Also check tires for proper inflation pres-
sures. See the Tire and Loading Informa-
tion label.
LOADING TIPS
●The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
●Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
●Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
●Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts of your
vehicle can break, tire damage could oc-
cur, or it can change the way your ve-
hicle handles. This could result in loss
of control and cause personal injury.
●Overloading could not only shorten the
life of your vehicle and the tires, but
also could lead to hazardous vehicle
handling and long braking distance.
This may cause a premature tire mal-
function, which could result in a serious
accident and personal injury. Failures
caused by overloading are not covered
by the vehicle’s warranty.
MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is loaded,
drive to a scale and weigh the front and
the rear wheels separately to determine
axle loads. Individual axle loads should
not exceed either of the gross axle
weight ratings (GAWR). The total of the
axle loads should not exceed the gross
vehicle weight rating (GVWR). These rat-
ings are given on the vehicle certifica-
tion label. If weight ratings are ex-
ceeded, move or remove items to bring
all weights below the ratings.
9-18
Technical and consumer information

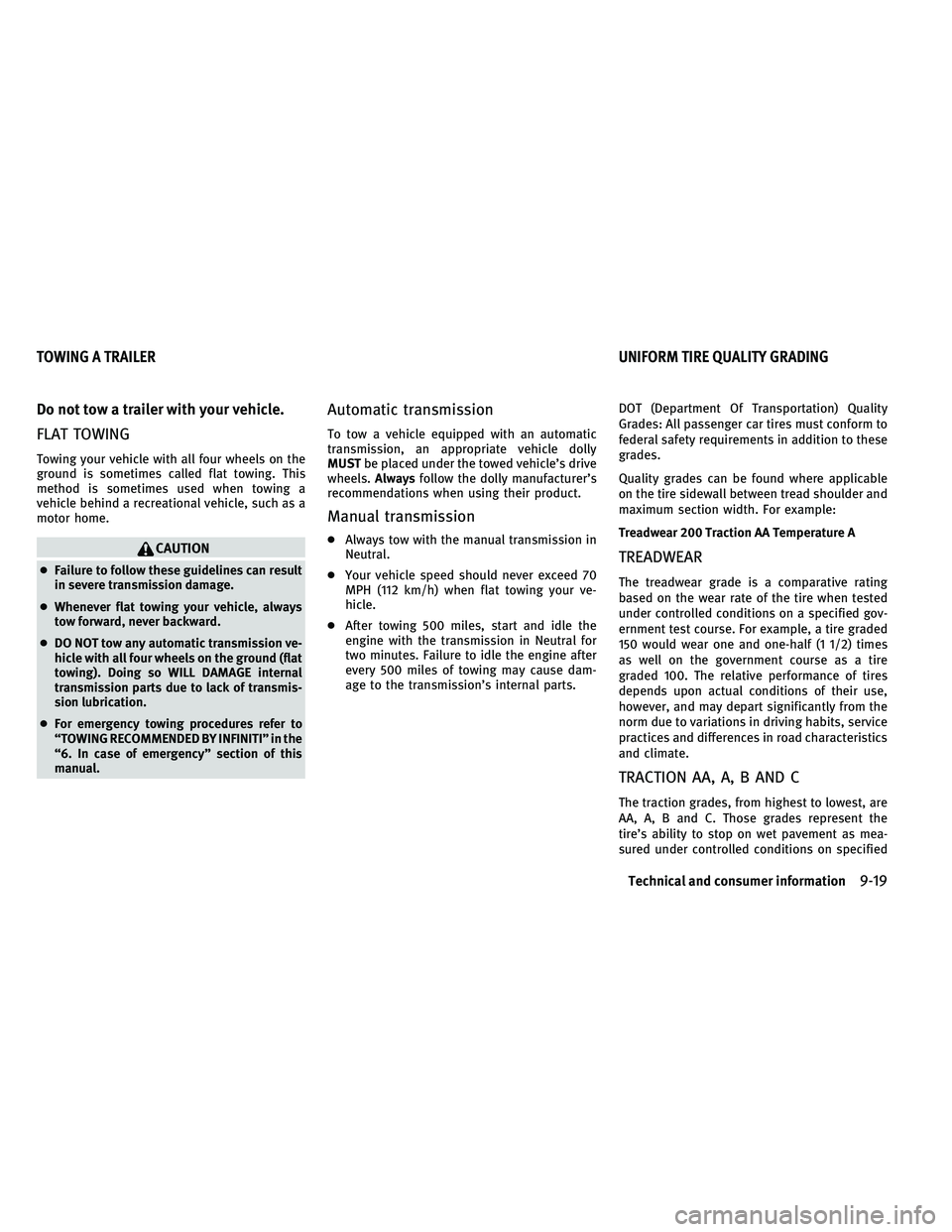

Do not tow a trailer with your vehicle.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
●Failure to follow these guidelines can result
in severe transmission damage.
● Whenever flat towing your vehicle, always
tow forward, never backward.
● DO NOT tow any automatic transmission ve-
hicle with all four wheels on the ground (flat
towing). Doing so WILL DAMAGE internal
transmission parts due to lack of transmis-
sion lubrication.
● For emergency towing procedures refer to
“TOWING RECOMMENDED BY INFINITI” in the
“6. In case of emergency” section of this
manual.
Automatic transmission
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly
MUST be placed under the towed vehicle’s drive
wheels. Alwaysfollow the dolly manufacturer’s
recommendations when using their product.
Manual transmission
● Always tow with the manual transmission in
Neutral.
● Your vehicle speed should never exceed 70
MPH (112 km/h) when flat towing your ve-
hicle.
● After towing 500 miles, start and idle the
engine with the transmission in Neutral for
two minutes. Failure to idle the engine after
every 500 miles of towing may cause dam-
age to the transmission’s internal parts. DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire
graded 100. The relative performance of tires
depends upon actual conditions of their use,
however, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characteristics
and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as mea-
sured under controlled conditions on specified
TOWING A TRAILER
UNIFORM TIRE QUALITY GRADING
Technical and consumer information9-19
