Page 26 of 474
.When the selector lever is not in the P
(Park) position (Automatic Transmis-
sion model’s driver’s seat) or the
parking brake is not applied (Manual
Transmission model’s driver’s seat).
. When the door is closed.
. While the automatic drive positioner
operates (if so equipped).
. When the automatic drive positioner
switches are pushed (if so equipped).
. When the seatback switch
*2is
pushed.
. When the seat position is adjusted.
Note that the seat must be moved to the
front-most position by operating the walk-
in function or the seat adjusting switches
after the battery is disconnected. Other-
wise, the seat will not move backward
during the walk-in function.
HEAD RESTRAINTSGUID-F668742C-7157-4FDF-89FF-379FEF676D0B
WARNING
Head restraints supplement the other vehi-
cle safety systems. They may provide addi-
tional protection against injury in certain
rear end collisions. Adjust the head re-
straints properly, as specified in this sec- tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint stalks or remove the
head restraint. Do not use the seat if the
head restraint has been removed. If the
head restraint was removed, reinstall and
properly adjust the head restraint before an
occupant uses the seating position. Failure
to follow these instructions can reduce the
effectiveness of the head restraints. This
may increase the risk of serious injury or
death in a collision.
SSS0991
The illustration shows the seating posi-
tions equipped with head restraints. The
head restraints are adjustable.
Indicates the seating position is
equipped with a head restraint.
Safety —Seats, seat belts and supplemental restraint system1-7
Page 134 of 474
GUID-D1700013-773E-4812-BA0D-7B828402E838
WARNING
.Always have the doors locked while
driving. Along with the use of seat belts,
this provides greater safety in the event
of an accident by helping to prevent
persons from being thrown from the
vehicle. This also helps keep children
and others from unintentionally opening
the doors, and will help keep out
intruders.
. Before opening any door, always look for
and avoid oncoming traffic.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.
SPA2626
LOCKING WITH MECHANICAL KEYGUID-0664C43A-E4B3-44F4-8486-FA160F98A5F6The power door lock system allows you to
lock or unlock all doors simultaneously
using the mechanical key.
.Turning the driver’s door key cylinder to
the rear of the vehicle
*1will lock all
doors.
. Turning the driver’s door key cylinder
once to the front of the vehicle
*2will
unlock the driver’s door. After returning
the key to the neutral position
*3,
turning it to the front again within 5
seconds will unlock all doors. .
You can switch the lock system to the
mode that allows you to open all the
doors when the key is turned once.
(See “How to use SETTING button” (P.4-
13).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
GUID-611D6011-59D5-49AF-8BBF-7973BCE9D47FThe driver’s door key operation also allows
you to open and close the window that is
equipped with the automatic open/close
function. (See “Power windows” (P.2-48).)
To open the window, turn the driver’s door
key cylinder to the rear of the vehicle for
longer than 1 second. The door is unlocked
and the window keeps opening while
turning the key.
This function can also be performed by
pushing and holding the UNLOCK button
on the Intelligent Key. (See “Remote key-
less entry system” (P.3-14).)
To close the windows, turn the driver’s
door key cylinder to the front of the vehicle
for longer than 1 second. The door is
locked and the window keeps closing while
turning the key.
Pre-driving checks and adjustments3-5
DOORS
Page 163 of 474
3-34Pre-driving checks and adjustments
GUID-D74D92D8-C9A4-480A-8FA0-9DF260AEBCDE
WARNING
.Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
. Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and comfort.
The driver’s air bag inflates with great
force. If you are unrestrained, leaning
forward, sitting sideways or out of
position in any way, you are at greater
risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the air bag if you are up against it
when it inflates. Always sit back against
the seatback and as far away as practical
from the steering wheel. Always use the
seat belts.
SPA2328
MANUAL OPERATION (if so
equipped)
GUID-0BB1C5DD-DBC9-4899-9880-CB9E3EA04D15
Tilt or telescopic operationGUID-2D33B99D-6D59-4F5B-A2F5-EEE166241F74Pull the lock lever*1down and adjust the
steering wheel up, down, forward or rear-
ward to the desired position.
Push the lock lever up securely to lock the
steering wheel in place.
SPA2312
ELECTRIC OPERATION (if so
equipped)
GUID-DDE06E44-8882-46DB-A8EA-EC2DAA0D802C
Tilt or telescopic operationGUID-8EE95B85-786C-4BFF-9E75-864BF7BD090FMove the lever to adjust the steering wheel
up or down, forward or rearward to the
desired position.
For more information, see “Automatic drive
positioner” (P.3-38).
TILT/TELESCOPIC STEERING
Page 168 of 474

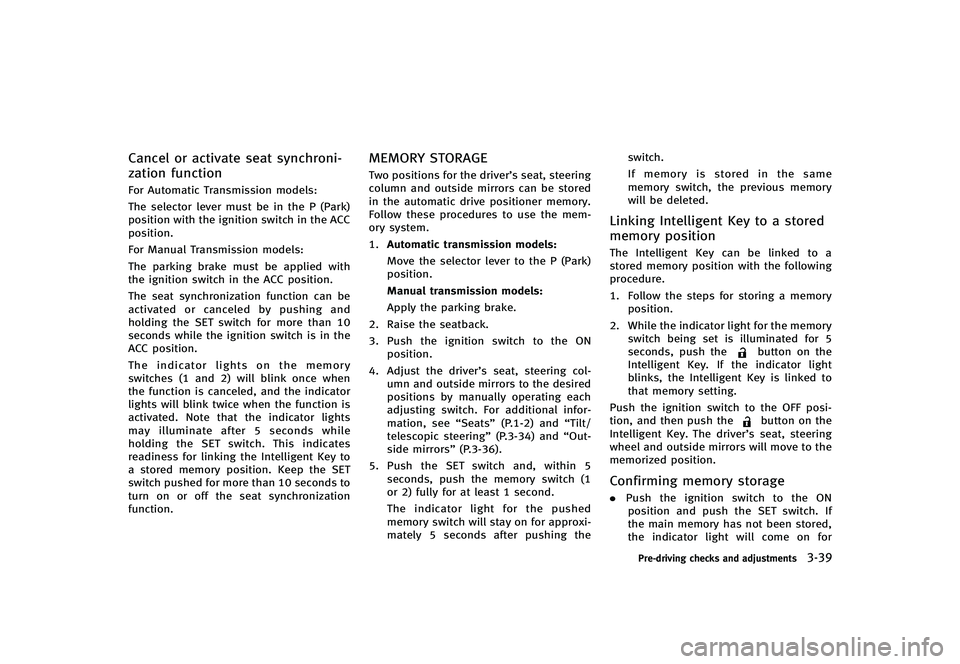

Cancel or activate seat synchroni-
zation function
GUID-8DECD39E-AC7D-4729-ACFB-A937B6048CF2For Automatic Transmission models:
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
For Manual Transmission models:
The parking brake must be applied with
the ignition switch in the ACC position.
The seat synchronization function can be
activated or canceled by pushing and
holding the SET switch for more than 10
seconds while the ignition switch is in the
ACC position.
The indicator lights on the memory
switches (1 and 2) will blink once when
the function is canceled, and the indicator
lights will blink twice when the function is
activated. Note that the indicator lights
may illuminate after 5 seconds while
holding the SET switch. This indicates
readiness for linking the Intelligent Key to
a stored memory position. Keep the SET
switch pushed for more than 10 seconds to
turn on or off the seat synchronization
function.
MEMORY STORAGEGUID-476C2856-A4A1-4174-8516-4637D097B016Two positions for the driver’s seat, steering
column and outside mirrors can be stored
in the automatic drive positioner memory.
Follow these procedures to use the mem-
ory system.
1.Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Push the ignition switch to the ON position.
4. Adjust the driver’s seat, steering col- umn and outside mirrors to the desired
positions by manually operating each
adjusting switch. For additional infor-
mation, see “Seats”(P.1-2) and “Tilt/
telescopic steering” (P.3-34) and“Out-
side mirrors” (P.3-36).
5. Push the SET switch and, within 5
seconds, push the memory switch (1
or 2) fully for at least 1 second.
The indicator light for the pushed
memory switch will stay on for approxi-
mately 5 seconds after pushing the switch.
If memory is stored in the same
memory switch, the previous memory
will be deleted.
Linking Intelligent Key to a stored
memory position
GUID-B42750B2-32B8-4F63-911A-31754F14E4C8The Intelligent Key can be linked to a
stored memory position with the following
procedure.
1. Follow the steps for storing a memory
position.
2. While the indicator light for the memory switch being set is illuminated for 5
seconds, push the
button on the
Intelligent Key. If the indicator light
blinks, the Intelligent Key is linked to
that memory setting.
Push the ignition switch to the OFF posi-
tion, and then push the
button on the
Intelligent Key. The driver’s seat, steering
wheel and outside mirrors will move to the
memorized position.
Confirming memory storageGUID-6E1221EC-C865-4145-BB90-6DE497A8E201. Push the ignition switch to the ON
position and push the SET switch. If
the main memory has not been stored,
the indicator light will come on for
Pre-driving checks and adjustments3-39
Page 169 of 474
3-40Pre-driving checks and adjustments
approximately 0.5 second. When the
memory has stored in position, the
indicator light will stay on for approxi-
mately 5 seconds.
. If the battery cable is disconnected, or if
the fuse opens, the memory will be
canceled. In this case, reset the desired
position using the previous procedure.
. If optional Intelligent Keys are added to
your vehicle, the memory storage pro-
cedure to switch 1 or 2 and linking
Intelligent Key procedure to a stored
memory position should be performed
again for each Intelligent Key. For
additional Intelligent Key information,
see “Keys” (P.3-3).
Selecting the memorized positionGUID-B4225C04-5594-4362-9498-D7E86BCA5C7E1.Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback.
3. Use one of the following methods to move the driver’s seat, the outside
mirrors and the steering wheel.
.Push the ignition switch to the ONposition and push the memory
switch (1 or 2) fully for at least 1
second.
.Within 45 seconds of opening the
driver’s door, push the memory
switch (1 or 2) fully for at least 1
second.
The driver’s seat, steering column
and outside mirrors will move to the
memorized position with the indica-
tor light flashing, and then the light
will stay on for approximately 5
seconds.
For manual transmission models, the
memory positions can be selected even
when the engine is running. In this case,
move the shift lever to the N (Neutral)
position and apply the parking brake.
Then, perform step 2.
SYSTEM OPERATIONGUID-3F1DB0D1-D958-41C0-A873-328B8F9FBECBThe automatic drive positioner system will
not work or will stop operating under the
following conditions:
. When the vehicle speed is above 4 MPH
(7 km/h).
. When the adjusting switch for the
driver’s seat and steering column is
turned on while the automatic drive positioner is operating.
. When the memory switch 1 or 2 is not
pushed for at least 1 second.
. When the seat, steering column and
outside mirrors have already been
moved to the memorized position.
. When no position is stored in the
memory switch.
. When the parking brake is released (MT
models).
. When the speed is above 4 MPH (7
km/h) while the parking brake is
applied (MT models).
. To restart the drive positioner system,
move the parking brake to off and on.
. When the engine is started while
moving the automatic drive positioner.
. When the driver’s door remains open
for more than 45 seconds and the
ignition switch is not in the ON posi-
tion.
. When the seatback is folded.
. While the walk-in function operates.
. The seat synchronization function is
automatically disabled if the outside
mirrors or steering wheel reaches its
maximum adjustment.
Page 187 of 474
4-16Monitor, climate, audio, phone and voice recognition systems

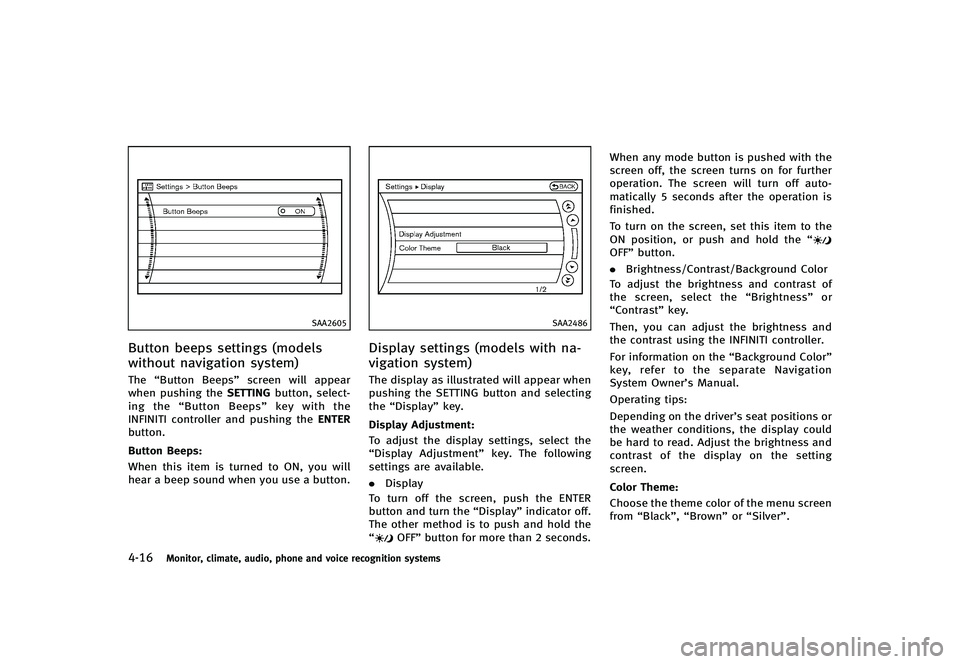

SAA2605
Button beeps settings (models
without navigation system)
GUID-A803EAFD-720F-4B97-BB9E-657548A922BDThe“Button Beeps” screen will appear
when pushing the SETTINGbutton, select-
ing the “Button Beeps” key with the
INFINITI controller and pushing the ENTER
button.
Button Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will
hear a beep sound when you use a button.
SAA2486
Display settings (models with na-
vigation system)
GUID-7BD4869A-A8CF-4C03-8764-77E943485D54The display as illustrated will appear when
pushing the SETTING button and selecting
the “Display” key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the
“Display Adjustment” key. The following
settings are available.
. Display
To turn off the screen, push the ENTER
button and turn the “Display”indicator off.
The other method is to push and hold the
“
OFF” button for more than 2 seconds. When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished.
To turn on the screen, set this item to the
ON position, or push and hold the
“
OFF”button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of
the screen, select the “Brightness”or
“Contrast” key.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
For information on the “Background Color”
key, refer to the separate Navigation
System Owner’s Manual.
Operating tips:
Depending on the driver’s seat positions or
the weather conditions, the display could
be hard to read. Adjust the brightness and
contrast of the display on the setting
screen.
Color Theme:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the theme color of the menu screen
from “Black”, “Brown” or“Silver”.
Page 469 of 474
10-6
S
SafetyChild seat belts ...
........................................... 1-17
Satellite radio operation ...
................................... 4-54
Seat adjustment
Front power seat adjustment ...
.......................... 1-3
Front seats ...
..................................................... 1-3
Seat belt(s)
Child safety ...
................................................. 1-17
Infants ...
......................................................... 1-18
Injured persons ...
........................................... 1-13
Larger children ...
............................................. 1-18
Precautions on seat belt usage ...
.................... 1-11
Pre-crash seat belts ...
..................................... 1-13
Pregnant women ...
.......................................... 1-13
Seat belt cleaning ...
.......................................... 7-6
Seat belt extenders ...
...................................... 1-16
Seat belt guide ...
............................................ 1-16
Seat belt maintenance ...
................................. 1-17
Seat belt warning light ...
................................ 2-14
Seat belts ...
.................................................... 1-11
Seat belts with pretensioners ...
...................... 1-47
Small children ...
............................................. 1-18
Three-point type ...
.......................................... 1-13
Seat synchronization function ...
........................... 3-38
Seat(s) Climate controlled seats ...
.............................. 2-40
Driver-side memory ...
...................................... 3-38
Heated seats ...
............................................... 2-39
Seats ...
............................................................. 1-2 Security system (INFINITI Vehicle Immobilizer
System), Engine start
...
........................................ 2-29
Security system, Vehicle security system ...
.......... 2-27
Selector lever
Shift lock release ...
......................................... 5-17
Separator, Retractable hard top ...
........................ 3-21
Servicing climate control ...
................................... 4-39
SETTING button ...
................................................. 4-13
Shift lock release, Transmission ...
........................ 5-17
Shift “P”warning (Automatic
Transmission models) ...
....................................... 2-19
Shifting Automatic transmission ...
............................... 5-13
Manual transmission ...
................................... 5-18
Sliding front passenger’s seat ...
............................. 1-5
Sonar system ...
.................................................... 5-47
Sonar system off switch ...
.................................... 5-49
Spare tire ...
........................................................... 9-9
Spark plugs ...
...................................................... 8-18
Speedometer ...
...................................................... 2-7
Starting Before starting the engine ...
........................... 5-12
Jump starting ...
............................................... 6-13
Precautions when starting and driving ...
........... 5-3
Push starting ...
............................................... 6-15
Starting the engine ...
...................................... 5-12
STATUS button ...
.................................................... 4-9
Status light, Front passenger air bag ...
................ 1-42
Steering Power steering fluid ...
..................................... 8-13
Power steering system ...
................................. 5-49 Steering-wheel-mounted controls
for audio
...
...................................................... 4-81
Tilt/telescopic steering ...
................................. 3-34
Storage ...
............................................................. 2-44
Storage box ...
...................................................... 2-47
Sun visors ...
........................................................ 3-35
Supplemental air bag warning labels ...
................ 1-48
Supplemental air bag warning light ...
......... 1-48, 2-14
Supplemental restraint system ...
.......................... 1-35
Precautions on supplemental
restraint system ...
........................................... 1-35
Switch Autolight switch ...
........................................... 2-34
Fog light switch ...
........................................... 2-37
Hazard warning flasher switch ...
..................... 2-38
Headlight switch ...
.......................................... 2-34
Ignition switch ...
............................................. 5-13
Ignition switch manual
transmission models ...
.................................... 5-18
Power door lock switch ...
.................................. 3-6
Rear window and outside mirror
defroster switch ...
........................................... 2-33
Retractable hard top switch ...
................ 3-24, 3-26
Turn signal switch ...
........................................ 2-37
Vehicle dynamic control (VDC) off switch ...
...... 2-41
T
Tachometer ...
......................................................... 2-8
Temperature gauge, Engine coolant
temperature gauge ...
.............................................. 2-8
