INFINITI G-COUPE 2010 Owners Manual

FRONT
To open the ashtray lid, push the lid down and
release it
1.
To empty the ashtray, pull out
2.
The cigarette lighter operates when the ignition
switch is in the ON position.
Push the lighter in all the way
3, then release
it. When the lighter is heated, it will spring out.
Return the lighter to its original position after
use.
CAUTION
● The cigarette lighter socket is a power
source for the cigarette lighter element only.
The use of the cigarette lighter socket as a
power source for any other accessory is not
recommended.
● Do not use any other power outlet for an
accessory lighter.
REAR
To open the ashtray lid, pull1.
To empty the ashtray, push down
2, and pull
out.
SIC3219SIC2570
CIGARETTE LIGHTER AND ASHTRAYS (if so
equipped)
2-42Instruments and controls
—
—
10/12/09—tbrooks


CUP HOLDERS
CAUTION
●Avoid abrupt starting and braking when the
cup holder is being used to prevent spilling
the drink. If the liquid is hot, it can scald you
or your passenger.
● Use only soft cups in the cup holder. Hard
objects can injure you in an accident.
To open the cup holder, push the lid
1.
The flap
Awill be folded down when inserting
a large container. To open the cup holder, slide the lid
1.
Install the partition plate into the slit
2.
Automatic transmission models — Front
SIC4304
Manual transmission models — Front
SIC3925
STORAGE
Instruments and controls2-43
—
—
10/12/09—tbrooks


To open the cup holder, pull the lid.
Soft bottle holder
CAUTION
●Do not use bottle holder for any other ob-
jects that could be thrown about in the ve-
hicle and possibly injure people during sud-
den braking or an accident.
● Do not use bottle holder for open liquid
containers.
Rear
SIC1846B
Sedan
SIC3276
Coupe
SIC3462
2-44Instruments and controls
—
—
10/12/09—tbrooks


SUNGLASSES HOLDER
WARNING
Keep the sunglasses holder closed while driv-
ing to prevent an accident.
To open the sunglasses holder, push
1.
CAUTION
● Do not use for anything other than glasses.
● Do not leave glasses in the sunglasses
holder while parking in direct sunlight. The
heat may damage the glasses.
GLOVE BOX
WARNING
Keep glove box lid closed while driving to help
prevent injury in an accident or a sudden stop.
To open the glove box, pull the handle
1.
To close, push the lid in until the lock latches.
To lock
2/unlock3the glove box, use the
mechanical key. For the mechanical key usage,
see “KEYS” in the “3. Pre-driving checks and
adjustments” section.
CONSOLE BOX
To open the console boxes, push the knobA
and pull up the lid.
To close, push the lid down until latched.
The inner tray (if so equipped) can be moved to
the front or rear position.
SIC3246SIC3469
Automatic transmission models
SIC4363
Instruments and controls2-45
—
—
11/25/09—tbrooks


Removing the console lid (Coupe
model with manual transmission)
To remove the console lid:
1. Remove the hinge maskAusing a screw-
driver wrapped with a cloth.
2. Loosen four screws, and remove the lid.
3. Tighten the two outside screws
B.
4. Install the removed hinge mask
Ato the
original position.
Manual transmission models
SIC4307
Coupe — Manual transmission model
SIC3468
2-46Instruments and controls
—
—
10/12/09—tbrooks


CARD HOLDER (if so equipped)
The card holder is located on or behind the
driver’s or passenger’s sun visor.
To use the card holder, slide the card in the card
holder.
STORAGE BOX (if so equipped)
To open, push the storage box lid1as illus-
trated.
Do not place valuable items in the storage box.
Do not use the storage box as an ashtray.
Type A
SIC3928
Type B
SIC3929
Type C
SIC3927ASIC4308
Instruments and controls2-47
—
—
10/12/09—tbrooks


COAT HOOKS
Sedan
The coat hooks are equipped beside the rear
personal lights.
CAUTION
Do not place items which are more than 2 lb (1
kg) on the hook.
Coupe
To use the coat hook, push the hookAto
release.
CAUTION
Avoid hanging heavy goods on the hook.
STOWING GOLF BAGS (Coupe)
Normally, two standard golf bags can be stowed
in the trunk. Insert the top of the golf bag into
left side of the trunk room
1then put the bag
forward
2. Insert the top of the 2nd golf bag
into right side of the trunk room
3and pull it
in all the way
4.
In some cases, you may not be able to stow two
golf bags in your vehicle, depending on their
sizes or types.
Sedan
SIC3248
Coupe
SIC3544SIC3467
2-48Instruments and controls
—
—
10/12/09—tbrooks

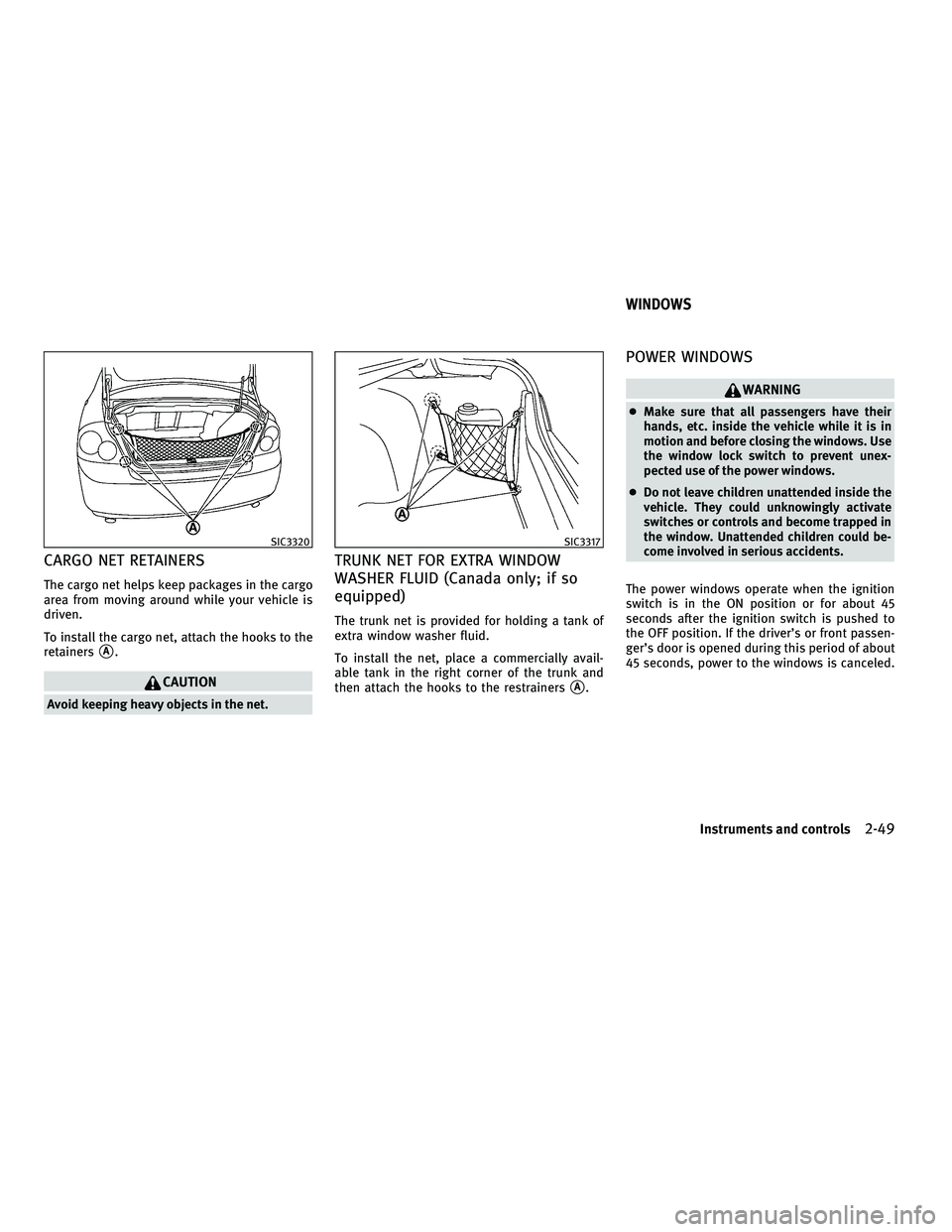

CARGO NET RETAINERS
The cargo net helps keep packages in the cargo
area from moving around while your vehicle is
driven.
To install the cargo net, attach the hooks to the
retainers
A.
CAUTION
Avoid keeping heavy objects in the net.
TRUNK NET FOR EXTRA WINDOW
WASHER FLUID (Canada only; if so
equipped)
The trunk net is provided for holding a tank of
extra window washer fluid.
To install the net, place a commercially avail-
able tank in the right corner of the trunk and
then attach the hooks to the restrainers
A.
POWER WINDOWS
WARNING
●Make sure that all passengers have their
hands, etc. inside the vehicle while it is in
motion and before closing the windows. Use
the window lock switch to prevent unex-
pected use of the power windows.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls and become trapped in
the window. Unattended children could be-
come involved in serious accidents.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the OFF position. If the driver’s or front passen-
ger’s door is opened during this period of about
45 seconds, power to the windows is canceled.
SIC3320SIC3317
WINDOWS
Instruments and controls2-49
—
—
10/12/09—tbrooks


Main power window switch (driver’s
side)
1. Driver side window
2. Front passenger side window
3. Rear left passenger side window (Sedanonly)
4. Rear right passenger side window (Sedan only)
5. Window lock button
To open or close the window, push downAor
pull up
Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windows
When the lock buttonCis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Passenger side power window switch
The passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
Sedan
SIC3279
Coupe
SIC3286ASIC3241
2-50Instruments and controls
—
—
10/12/09—tbrooks


Automatic operation (for front door
windows or all door windows)
To fully open or close the window, completely
push down or pull up the switch and release it;
it need not be held. The window will automati-
cally open or close all the way. To stop the
window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto reverse function
WARNING
There are some small distances immediately
before the closed position which cannot be de-
tected. Make sure that all passengers have
their hands, etc., inside the vehicle before clos-
ing the window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving condi-
tions, the auto reverse function may be activated
if an impact or load similar to something being
caught in the window occurs.
Sedan — Type A
SIC3289
Sedan — Type B
SIC3285
Coupe
SIC3288
Instruments and controls2-51
—
—
10/12/09—tbrooks
