fuel fill door release INFINITI G-COUPE 2010 Owners Manual

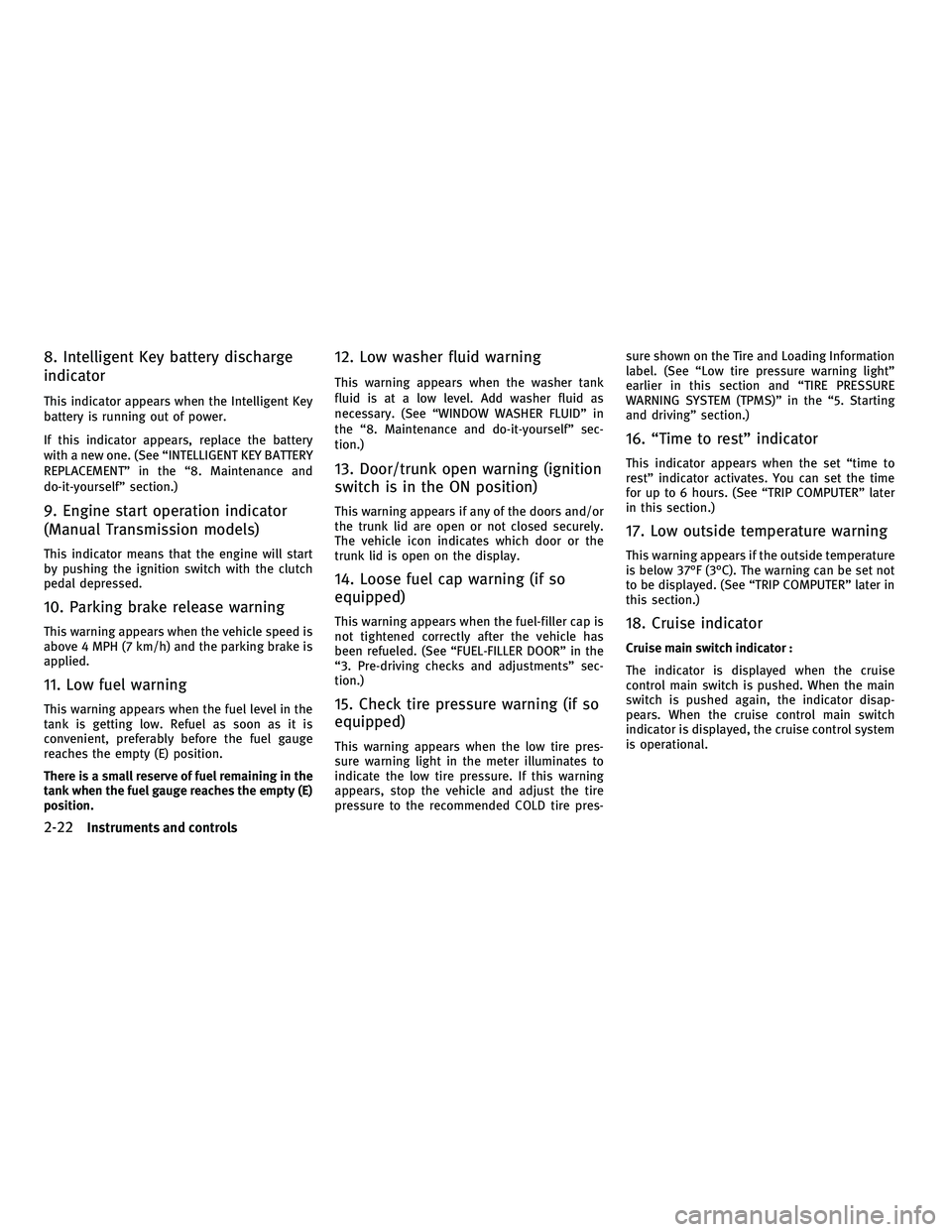

8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning (if so
equipped)
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning (if so
equipped)
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
WARNING SYSTEM (TPMS)” in the “5. Starting
and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
2-22Instruments and controls
—
—
05/10/10—tbrooks


3 Pre-driving checks and adjustments
Keys............................................. 3-2
Intelligent Key ................................. 3-2
Valet hand-off .................................. 3-3
Doors ............................................ 3-4
Locking with mechanical key .................... 3-4
Opening and closing windows with the
mechanical key ................................ 3-5
Locking with inside lock knob ................... 3-5
Locking with power door lock switch ............. 3-5
Automatic door locks ........................... 3-6
Child safety rear door lock (Sedan) .............. 3-6
Intelligent Key system ............................. 3-7
Intelligent Key operating range .................. 3-8
Door locks/unlocks precaution .................. 3-9
Intelligent Key operation ....................... 3-10
Battery saver system .......................... 3-12
Warning signals ............................... 3-12
Troubleshooting guide ......................... 3-13
Remote keyless entry system ......................3-14
How to use remote keyless entry system ........3-14
Hood ............................................. 3-17
Trunk lid ........................................ 3-18Trunk lid release switch
........................ 3-18
Trunk open request switch .....................3-19
Trunk release power cancel switch ..............3-19
Interior trunk lid release ....................... 3-20
Fuel-filler door ................................... 3-21
Opening the fuel-filler door ....................3-21
Fuel-filler cap ................................. 3-21
Tilt/telescopic steering ........................... 3-23
Manual operation (if so equipped) ..............3-24
Electric operation (if so equipped) ..............3-24
Sun visors ....................................... 3-24
Mirrors .......................................... 3-25
Inside mirror .................................. 3-25
Outside mirrors ............................... 3-26
Vanity mirror .................................. 3-28
Automatic drive positioner (if so equipped) .........3-28
Entry/exit function (Automatic Transmission
Sedan models) ................................
3-28
Seat

synchronization function ..................3-29
Memory storage ............................... 3-30
System operation ............................. 3-31
—
—
10/12/09—tbrooks


Locking doors and fuel-filler door
1. Push the ignition switch to the OFF posi-tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
3. Push the LOCK
button1on the
Intelligent Key.
4. All the doors and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key while any door is open. Operate the door
handles to confirm that the doors have been
securely locked.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2.
The hazard indicator flashes once. The driv-
er’s door and fuel-filler door will unlock.
3. Push the UNLOCKbutton on the
Intelligent Key again within 1 minute.
4. The hazard indicator flashes once again. All the doors will unlock.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the UNLOCK but-
ton on the Intelligent Key while the doors are
locked. If during this 1-minute time period, the
UNLOCK button on the Intelligent Key is
pushed, all doors will be locked automatically
after another 1 minute.
●Opening any door
● Pushing the ignition switch
Opening windows
The UNLOCKbutton operation also al-
lows you to open the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section).
To open the window, push the door UNLOCK
button2on the Intelligent Key for
about 3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped in
mid-operation while pushing the UNLOCK
button, release and push the UNLOCK
button again until the window opens
completely. Window cannot be closed using the Intelligent
Key.
The door window can also be operated by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Opening trunk lid
1. Push the TRUNKbutton3on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANICbutton4on the
key for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
● It has run for 25 seconds, or
● Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Pre-driving checks and adjustments3-15
—
—
10/12/09—tbrooks


Engine start operation indicator (Manual
Transmission models)...........2-22
If your vehicle overheats .........6-10
Starting the engine ............. 5-11
Engine coolant temperature gauge ......2-6
Entry/exit function .............. .3-28
Event Data Recorders (EDR) ..........9-25
Exhaust gas (carbon monoxide) ........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-13
Filter Air cleaner housing filter .........8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-37
Flat tire ..................... .6-2
Flat towing .................. .9-21
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ...........8-12
Capacities and recommended fuel/
lubricants ..................9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............8-11
Window washer fluid ...........8-13
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-54
Fog light switch ............... .2-37
Front passenger air bag and status light . .1-47
Front power seat adjustment ..........1-3
Front seat, Front seat adjustment .......1-3Front-seat active head restraints
.......1-11
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ............... 5-42
Fuel economy information (display) ....4-9
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Fuel-filler cap ................ 3-21
Fuel-filler door ............... 3-21
Gauge ....................2-7
Fuses ..................... .8-20
Fusible links ................. .8-21
G
Garage

door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-21
Gauge ...................... .2-4
Gauge Engine coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-45
Golf bag stowing ............... .2-48 H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-85
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch . . ......2-37
Head restraints ................. .1-9
Headlights Bulb replacement .............8-25
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Heated seats ................. .2-38
Heater Automatic climate control .........4-28
Engine block heater ............5-56
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-17
Hook, Coat hooks .............. .2-48
Horn ...................... .2-38
Ignition switch Automatic transmission models ......5-12
Manual transmission models . . . . . . . 5-16
I
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-38
Indicator

lights ................ .2-16
Indicator, Dot matrix display .........2-19
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
10-3
—
—
04/30/10—diane
