winter tires INFINITI G-COUPE 2010 Owners Manual

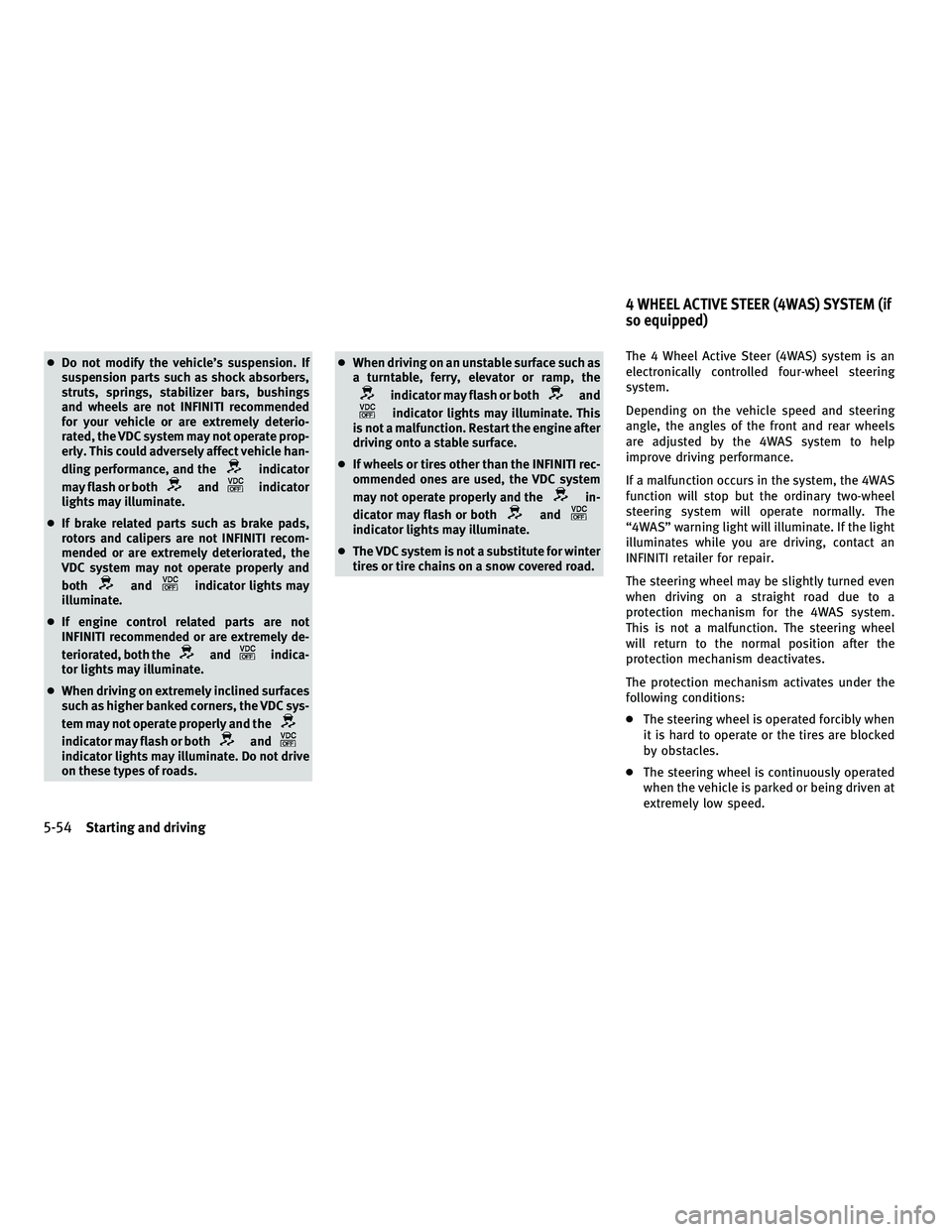

●Do not modify the vehicle’s suspension. If
suspension parts such as shock absorbers,
struts, springs, stabilizer bars, bushings
and wheels are not INFINITI recommended
for your vehicle or are extremely deterio-
rated, the VDC system may not operate prop-
erly. This could adversely affect vehicle han-
dling performance, and the
indicator
may flash or both
andindicator
lights may illuminate.
● If brake related parts such as brake pads,
rotors and calipers are not INFINITI recom-
mended or are extremely deteriorated, the
VDC system may not operate properly and
both
andindicator lights may
illuminate.
● If engine control related parts are not
INFINITI recommended or are extremely de-
teriorated, both the
andindica-
tor lights may illuminate.
● When driving on extremely inclined surfaces
such as higher banked corners, the VDC sys-
tem may not operate properly and the
indicator may flash or bothandindicator lights may illuminate. Do not drive
on these types of roads. ●
When driving on an unstable surface such as
a turntable, ferry, elevator or ramp, the
indicator may flash or bothand
indicator lights may illuminate. This
is not a malfunction. Restart the engine after
driving onto a stable surface.
● If wheels or tires other than the INFINITI rec-
ommended ones are used, the VDC system
may not operate properly and the
in-
dicator may flash or both
andindicator lights may illuminate.
● The VDC system is not a substitute for winter
tires or tire chains on a snow covered road. The 4 Wheel Active Steer (4WAS) system is an
electronically controlled four-wheel steering
system.
Depending on the vehicle speed and steering
angle, the angles of the front and rear wheels
are adjusted by the 4WAS system to help
improve driving performance.
If a malfunction occurs in the system, the 4WAS
function will stop but the ordinary two-wheel
steering system will operate normally. The
“4WAS” warning light will illuminate. If the light
illuminates while you are driving, contact an
INFINITI retailer for repair.
The steering wheel may be slightly turned even
when driving on a straight road due to a
protection mechanism for the 4WAS system.
This is not a malfunction. The steering wheel
will return to the normal position after the
protection mechanism deactivates.
The protection mechanism activates under the
following conditions:
●
The steering wheel is operated forcibly when
it is hard to operate or the tires are blocked
by obstacles.
● The steering wheel is continuously operated
when the vehicle is parked or being driven at
extremely low speed.
4 WHEEL ACTIVE STEER (4WAS) SYSTEM (if
so equipped)
5-54Starting and driving
—
—
04/29/10—pattie


●The steering wheel is forcibly turned beyond
its operation limits.
● The battery voltage is reduced.
Repeated steering maneuvers that may activate
the protection mechanism will damage the
4WAS system.
WARNING
The 4WAS system, although a sophisticated
device, cannot prevent accidents resulting
from careless or dangerous driving techniques.
Ultimately the responsibility for safety of self
and others rests in the hands of the driver.
Therefore only through attentive and careful
driving methods can the 4WAS system be fully
appreciated and safety optimized.
FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTIFREEZE
In the winter when it is anticipated that the
outside temperature will drop below 32°F (0°C),
check antifreeze to assure proper winter protec-
tion. For additional information, see “ENGINE
COOLING SYSTEM” in the “8. Maintenance and
do-it-yourself” section.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see “BATTERY” in the “8. Mainte-
nance and do-it-yourself” section.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see “ENGINE COOLING SYS-
TEM” in the “8. Maintenance and do-it-yourself”
section.
TIRE EQUIPMENT
SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or
icy roads, INFINITI recommends the use of MUD
& SNOW or ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire type,
size, speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Tire chains may be used. For details, see “TIRE
CHAINS” in the “8. Maintenance and do-it-
yourself” section of this manual.
For all-wheel drive
If you install snow tires, they must also be the
same size, brand, construction and tread pat-
tern on all four wheels.
COLD WEATHER DRIVING
Starting and driving5-55
—
—
04/29/10—pattie

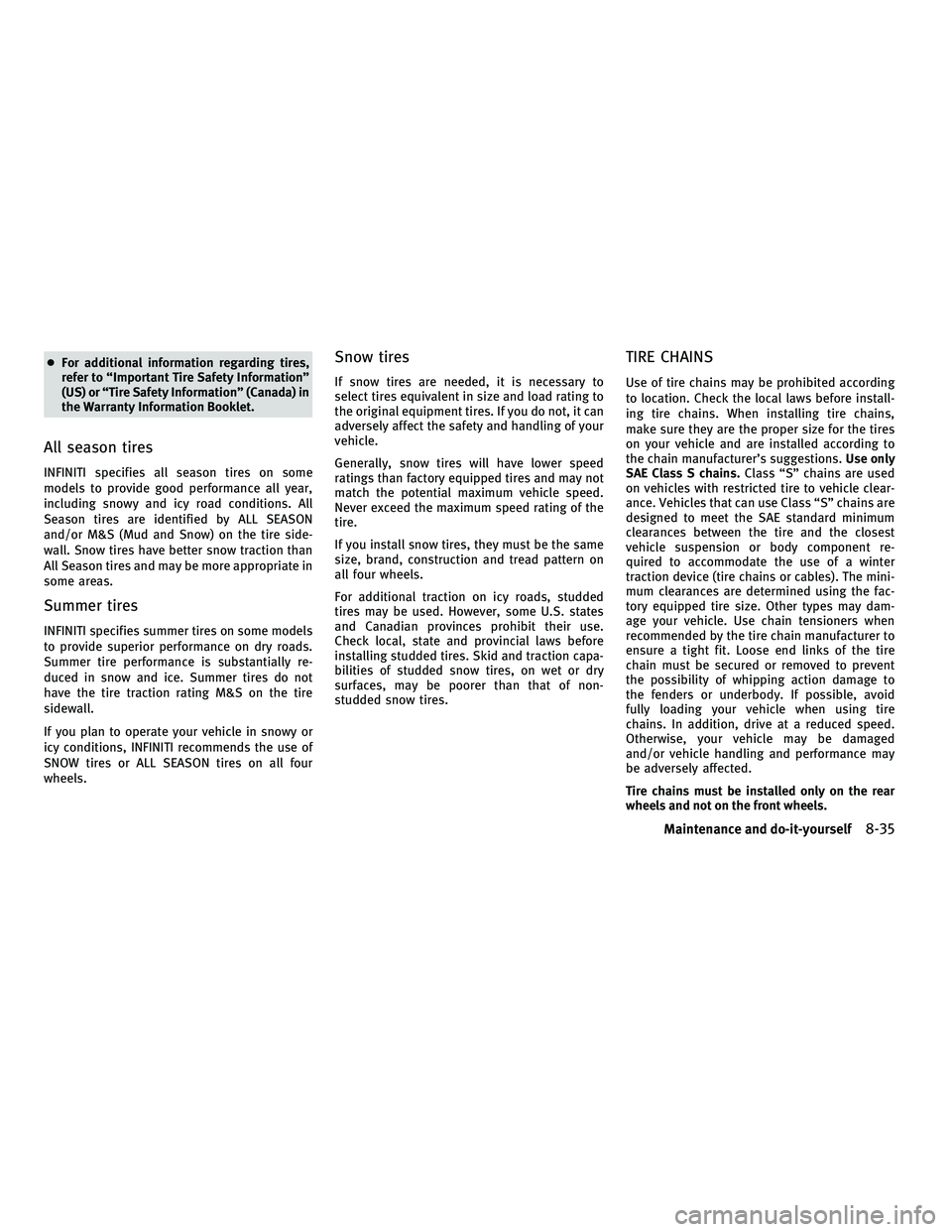

●For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the Warranty Information Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire side-
wall. Snow tires have better snow traction than
All Season tires and may be more appropriate in
some areas.
Summer tires
INFINITI specifies summer tires on some models
to provide superior performance on dry roads.
Summer tire performance is substantially re-
duced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load rating to
the original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you install snow tires, they must be the same
size, brand, construction and tread pattern on
all four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction capa-
bilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.
TIRE CHAINS
Use of tire chains may be prohibited according
to location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are the proper size for the tires
on your vehicle and are installed according to
the chain manufacturer’s suggestions. Use only
SAE Class S chains. Class “S” chains are used
on vehicles with restricted tire to vehicle clear-
ance. Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component re-
quired to accommodate the use of a winter
traction device (tire chains or cables). The mini-
mum clearances are determined using the fac-
tory equipped tire size. Other types may dam-
age your vehicle. Use chain tensioners when
recommended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to
the fenders or underbody. If possible, avoid
fully loading your vehicle when using tire
chains. In addition, drive at a reduced speed.
Otherwise, your vehicle may be damaged
and/or vehicle handling and performance may
be adversely affected.
Tire chains must be installed only on the rear
wheels and not on the front wheels.
Maintenance and do-it-yourself8-35
—
—
04/21/10—debbie
