●If the light illuminates while driving, avoid
sudden steering maneuvers or abrupt brak-
ing, reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as soon
as possible. Driving with under-inflated tires
may permanently damage the tires and in-
crease the likelihood of tire failure. Serious
vehicle damage could occur and may lead to
an accident and could result in serious per-
sonal injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the rec-
ommended COLD tire pressure shown on the
Tire and Loading Information label to turn
the low tire pressure warning light OFF. If the
light still illuminates while driving after ad-
justing the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a spare
tire as soon as possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after the 1 minute. Contact your
INFINITI retailer as soon as possible for tire
replacement and/or system resetting.
● Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.CAUTION
● The TPMS is not a substitute for the regular
tire pressure check. Be sure to check the tire
pressure regularly.
● If the vehicle is being driven at speeds of less
than 16 MPH (25 km/h), the TPMS may not
operate correctly.
● Be sure to install the specified size of tires to
the four wheels correctly.
Master warning light
When the ignition switch is in the ON position,
the master warning light illuminates if any of
the following are displayed on the dot matrix
liquid crystal display:
● No key warning
● Low fuel warning
● Low washer fluid warning
● Parking brake release warning
● Door/trunk open warning
● Loose fuel cap warning
● Check tire pressure warning
See “DOT MATRIX LIQUID CRYSTAL DISPLAY”
later in this section.
Preview Function warning
light (orange; if so equipped)
The light comes on if there is a malfunction in
the Brake Assist (with Preview Function) sys-
tem.
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the sys-
tem is malfunctioning. Although the vehicle is
still driveable under normal conditions, have the
vehicle checked at an INFINITI retailer.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the igni-
tion switch is pushed to the ON position, and
will remain illuminated until the driver’s seat
belt is fastened. At the same time, the chime
will sound for about 6 seconds unless the
driver’s seat belt is securely fastened.
The seat belt warning light for the front passen-
ger will illuminate if the seat belt is not fastened
when the front passenger’s seat is occupied.
For approximately 5 seconds after the ignition
2-14Instruments and controls

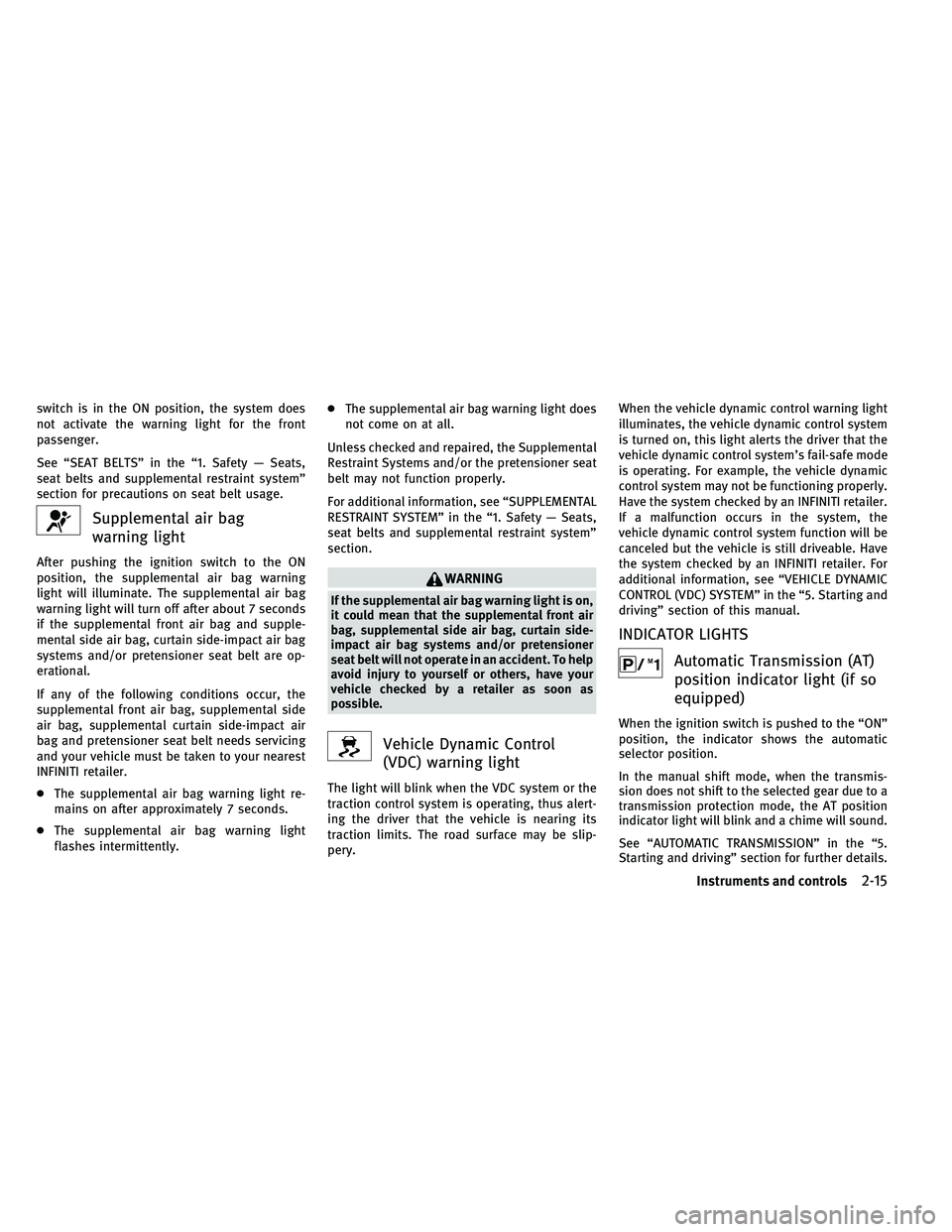

switch is in the ON position, the system does
not activate the warning light for the front
passenger.
See “SEAT BELTS” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section for precautions on seat belt usage.
Supplemental air bag
warning light
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light will illuminate. The supplemental air bag
warning light will turn off after about 7 seconds
if the supplemental front air bag and supple-
mental side air bag, curtain side-impact air bag
systems and/or pretensioner seat belt are op-
erational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side
air bag, supplemental curtain side-impact air
bag and pretensioner seat belt needs servicing
and your vehicle must be taken to your nearest
INFINITI retailer.
●The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently. ●
The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint Systems and/or the pretensioner seat
belt may not function properly.
For additional information, see “SUPPLEMENTAL
RESTRAINT SYSTEM” in the “1. Safety — Seats,
seat belts and supplemental restraint system”
section.
WARNING
If the supplemental air bag warning light is on,
it could mean that the supplemental front air
bag, supplemental side air bag, curtain side-
impact air bag systems and/or pretensioner
seat belt will not operate in an accident. To help
avoid injury to yourself or others, have your
vehicle checked by a retailer as soon as
possible.
Vehicle Dynamic Control
(VDC) warning light
The light will blink when the VDC system or the
traction control system is operating, thus alert-
ing the driver that the vehicle is nearing its
traction limits. The road surface may be slip-
pery. When the vehicle dynamic control warning light
illuminates, the vehicle dynamic control system
is turned on, this light alerts the driver that the
vehicle dynamic control system’s fail-safe mode
is operating. For example, the vehicle dynamic
control system may not be functioning properly.
Have the system checked by an INFINITI retailer.
If a malfunction occurs in the system, the
vehicle dynamic control system function will be
canceled but the vehicle is still driveable. Have
the system checked by an INFINITI retailer. For
additional information, see “VEHICLE DYNAMIC
CONTROL (VDC) SYSTEM” in the “5. Starting and
driving” section of this manual.
INDICATOR LIGHTS
Automatic Transmission (AT)
position indicator light (if so
equipped)
When the ignition switch is pushed to the “ON”
position, the indicator shows the automatic
selector position.
In the manual shift mode, when the transmis-
sion does not shift to the selected gear due to a
transmission protection mode, the AT position
indicator light will blink and a chime will sound.
See “AUTOMATIC TRANSMISSION” in the “5.
Starting and driving” section for further details.
Instruments and controls2-15

Front fog light indicator light
The front fog light indicator light illuminates
when the front fog lights are on. (See “FOG
LIGHT SWITCH” later in this section.)
Front passenger air bag
status light
The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger seat
is being used.
For front passenger air bag status light opera-
tion, see “INFINITI ADVANCED AIR BAG SYSTEM
(front seats)” in the “1. Safety — Seats, seat
belts and supplemental restraint system” sec-
tion of this manual.
High beam indicator light
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function. The malfunction indicator light may also come
on steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least
3 US gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is
not ready for an emission control system
inspection/maintenance test. (See “READINESS
FOR INSPECTION/MAINTENANCE (I/M) TEST (US
only)” in the “9. Technical and consumer infor-
mation” section.)
Operation :
The malfunction indicator light will come on in
one of two ways:
● Malfunction indicator light on steady — An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after
a few driving trips. If thelight does
not turn off after a few driving trips, have the vehicle inspected by an INFINITI retailer. You
do not need to have your vehicle towed to
the retailer.
● Malfunction indicator light blinking — An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
a) Do not drive at speeds above 45 MPH (72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected by an INFINITI
retailer. You do not need to have your vehicle
towed to the retailer.
CAUTION
Continued vehicle operation without having
the emission control system checked and re-
paired as necessary could lead to poor drive-
ability, reduced fuel economy, and possible
damage to the emission control system.
2-16Instruments and controls

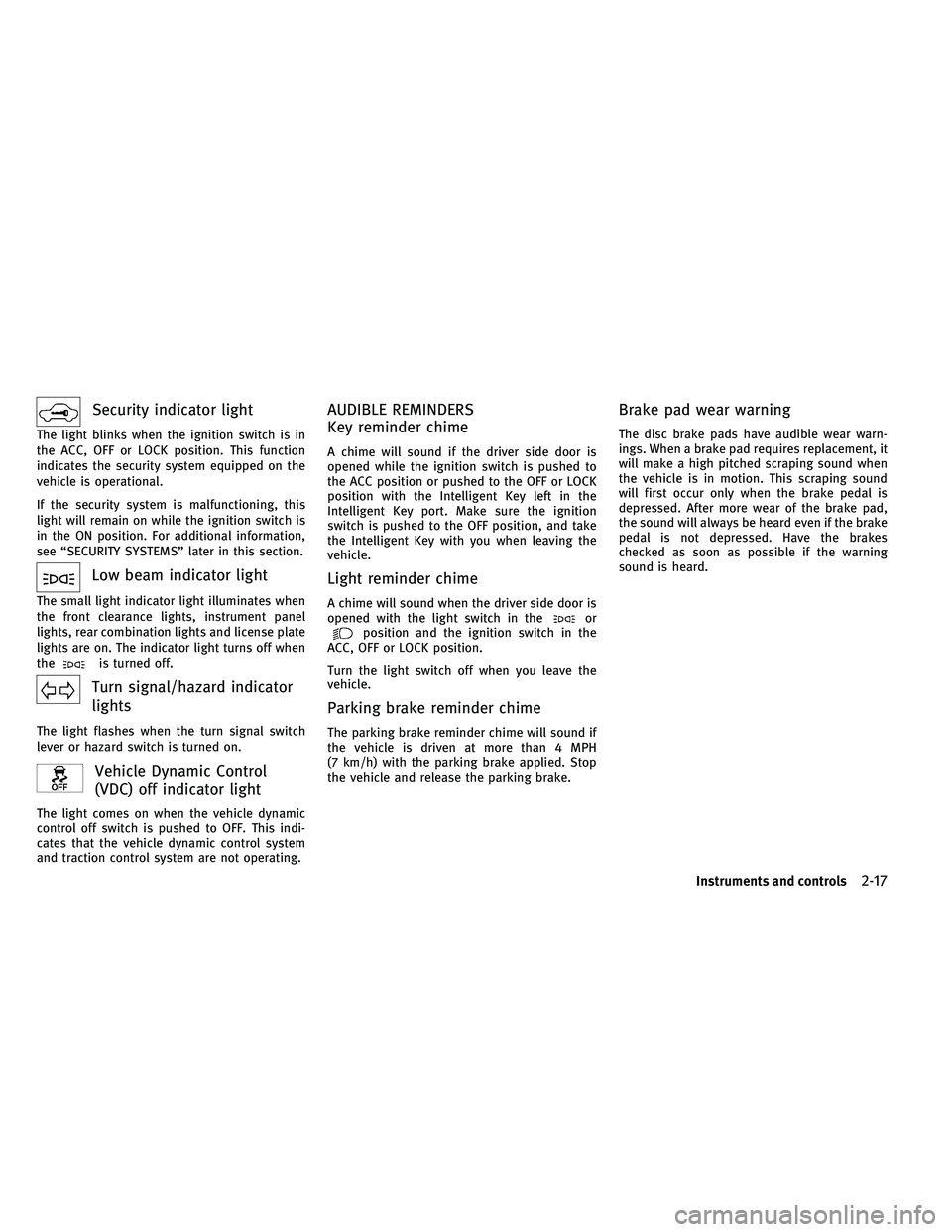

Security indicator light
The light blinks when the ignition switch is in
the ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this
light will remain on while the ignition switch is
in the ON position. For additional information,
see “SECURITY SYSTEMS” later in this section.
Low beam indicator light
The small light indicator light illuminates when
the front clearance lights, instrument panel
lights, rear combination lights and license plate
lights are on. The indicator light turns off when
the
is turned off.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) off indicator light
The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This indi-
cates that the vehicle dynamic control system
and traction control system are not operating.
AUDIBLE REMINDERS
Key reminder chime
A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or LOCK
position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chime
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the
ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
The parking brake reminder chime will sound if
the vehicle is driven at more than 4 MPH
(7 km/h) with the parking brake applied. Stop
the vehicle and release the parking brake.
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
Instruments and controls2-17

The dot matrix liquid crystal display1is
located between the tachometer and the speed-
ometer, and it displays the automatic transmis-
sion position indicator (if so equipped), the
Intelligent Cruise Control (ICC) system (if so
equipped) information, the Intelligent Key op-
eration information and other warnings and
information. For details about the automatic transmission
position indicator, see “INDICATOR LIGHTS” ear-
lier in this section. For details about the ICC
system, see “INTELLIGENT CRUISE CONTROL
(ICC) SYSTEM” in the “5. Starting and driving”
section. For the details about the Intelligent Key
system, see “INTELLIGENT KEY SYSTEM” in the
“3. Pre-driving checks and adjustments” sec-
tion.
SIC4293
DOT MATRIX LIQUID CRYSTAL DISPLAY
2-18Instruments and controls

SIC4547
Instruments and controls2-19

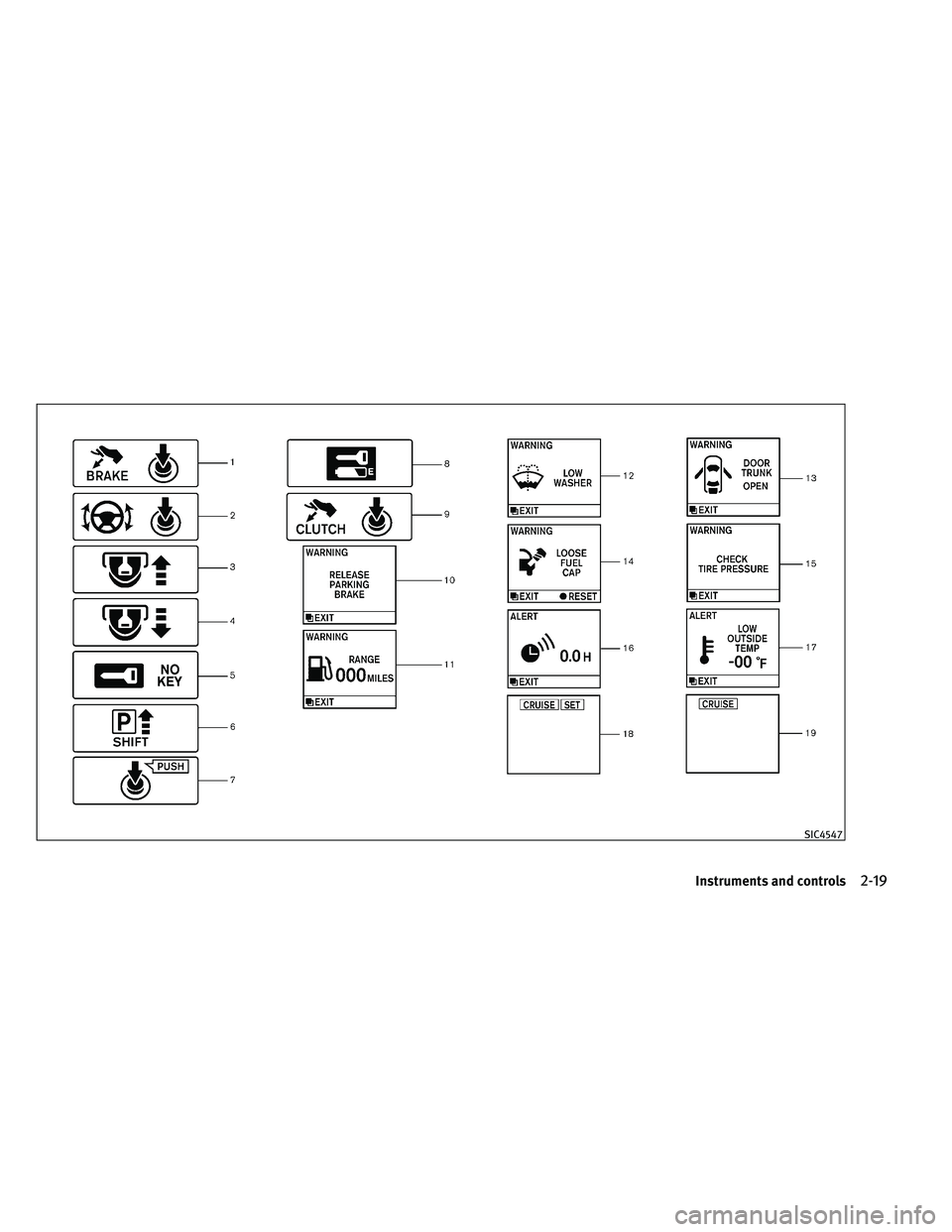

INDICATORS FOR OPERATION
1. Engine start operation indicator
(Automatic Transmission models)
This indicator appears when the selector lever
is in the P (Park) position.
This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed.
2. Steering lock release malfunction
indicator (if so equipped)
This indicator appears when the steering wheel
cannot be released from the LOCK position.
If this indicator appears, push the push-button
ignition switch while lightly turning the steering
wheel right and left.
3. Intelligent Key insertion indicator
This indicator appears when the Intelligent Key
needs to be inserted into the Intelligent Key
port. (For example, the Intelligent Key battery is
discharged.)
If this indicator appears, insert the Intelligent
Key into the Intelligent Key port in the correct
direction. (See “PUSH-BUTTON IGNITION
SWITCH” in the “5. Starting and driving” sec-
tion.)
4. Intelligent Key removal indicator
This indicator appears when the driver’s door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the Intelligent Key port. A key reminder chime
also sounds.
If this indicator appears, remove the Intelligent
Key from the Intelligent Key port and take it with
you when leaving the vehicle.
5. NO KEY warning
This warning appears in either of the following
conditions.
No key inside the vehicle :
The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key :
The warning appears when the ignition switch
is pushed from the LOCK position and the
Intelligent Key cannot be recognized by the
system. You cannot start the engine with an
unregistered key. Use the registered Intelligent
Key.See “INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section for
more details.
6. SHIFT “P” warning (Automatic
Transmission models)
This warning appears when the ignition switch
is pushed to stop the engine with the selector
lever in any position except the P (Park) posi-
tion.
If this warning appears, move the selector lever
to the P (Park) position or push the ignition
switch to the ON position.
An inside warning chime will also sound. (See
“INTELLIGENT KEY SYSTEM” in the “3. Pre-
driving checks and adjustments” section.)
7. “PUSH” warning (Automatic
Transmission models)
This warning appears when the selector lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT “P”
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
2-20Instruments and controls

SHIFT “P” warning→(Move the selector lever
to “P”) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
ON) →PUSH warning →(Push the ignition
switch →ignition switch position is turned to
OFF)
8. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “INTELLIGENT KEY BATTERY
REPLACEMENT” in the “8. Maintenance and
do-it-yourself” section.)
9. Engine start operation indicator
(Manual Transmission models)
This indicator means that the engine will start
by pushing the ignition switch with the clutch
pedal depressed.
10. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
11. Low fuel warning
This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining in the
tank when the fuel gauge reaches the empty (E)
position.
12. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “WINDOW WASHER FLUID” in
the “8. Maintenance and do-it-yourself” sec-
tion.)
13. Door/trunk open warning (ignition
switch is in the ON position)
This warning appears if any of the doors and/or
the trunk lid are open or not closed securely.
The vehicle icon indicates which door or the
trunk lid is open on the display.
14. Loose fuel cap warning
This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See “FUEL-FILLER DOOR” in the
“3. Pre-driving checks and adjustments” sec-
tion.)
15. Check tire pressure warning
This warning appears when the low tire pres-
sure warning light in the meter illuminates to
indicate the low tire pressure. If this warning
appears, stop the vehicle and adjust the tire
pressure to the recommended COLD tire pres-
sure shown on the Tire and Loading Information
label. (See “Low tire pressure warning light”
earlier in this section and “TIRE PRESSURE
MONITORING SYSTEM (TPMS)” in the “5. Start-
ing and driving” section.)
16. “Time to rest” indicator
This indicator appears when the set “time to
rest” indicator activates. You can set the time
for up to 6 hours. (See “TRIP COMPUTER” later
in this section.)
17. Low outside temperature warning
This warning appears if the outside temperature
is below 37°F (3°C). The warning can be set not
to be displayed. (See “TRIP COMPUTER” later in
this section.)
18. Cruise indicator
Cruise main switch indicator :
The indicator is displayed when the cruise
control main switch is pushed. When the main
switch is pushed again, the indicator disap-
Instruments and controls2-21

pears. When the cruise control main switch
indicator is displayed, the cruise control system
is operational.
Cruise set switch indicator :
The indicator is displayed while the vehicle
speed is controlled by the cruise control sys-
tem. If the indicator blinks while the engine is
running, it may indicate that the cruise control
system is not functioning properly. Have the
system checked by an INFINITI retailer.
See “CRUISE CONTROL” in the “5. Starting and
driving” section for details.
19. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
The indicator is displayed when the Intelligent
Cruise Control (ICC) system main switch is
pushed. When the main switch is pushed again,
the indicator disappears. While the main switch
indicator is displayed, the ICC system is opera-
tional.
INDICATORS FOR MAINTENANCE
1. Engine oil replacement indicator
This indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
“TRIP COMPUTER” later in this section.)
2. Oil filter replacement indicator
This indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See
“TRIP COMPUTER” later in this section.)
3. Tire replacement indicator
This indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See “TRIP COM-
PUTER” later in this section.)
4. “OTHER” indicator
This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See “TRIP COMPUTER”
later in this section.)
SIC3281
2-22Instruments and controls

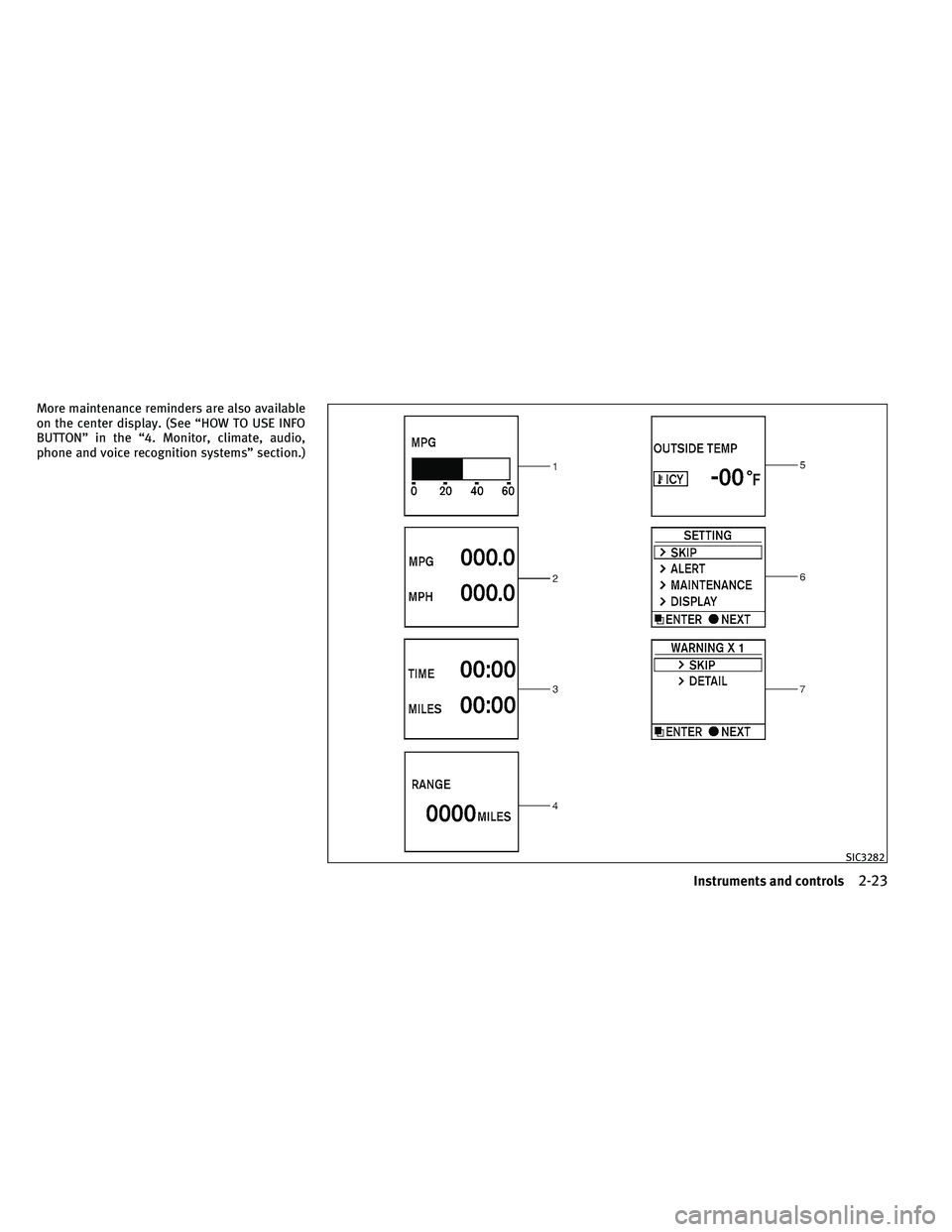

More maintenance reminders are also available
on the center display. (See “HOW TO USE INFO
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section.)
SIC3282
Instruments and controls2-23
