Page 21 of 468
WarninglightName Page
All-Wheel Drive (AWD)
warning light
(AWD models)* 2-11
Anti-lock Braking System
(ABS) warning light
2-11
Automatic Transmission
check warning light2-11
Brake warning light 2-11
Charge warning light 2-12
Engine oil pressure warn-
ing light2-12
Warning
lightName Page
Intelligent Cruise Control
(ICC) system warning light
(orange)* 2-12
Intelligent Key system
warning light
2-13
Low tire pressure warning
light2-13
Master warning light 2-14
Preview Function warning
light (orange)*2-14
Seat belt warning light 2-14
Supplemental air bag
warning light2-15
Vehicle Dynamic Control
(VDC) warning light2-15
Indicator
lightName
Page
Automatic Transmission
position indicator light* 2-15
Front fog light indicator
light2-16
Front passenger air bag
status light2-16
High beam indicator light 2-16
Malfunction Indicator
Light (MIL)2-16
Security indicator light 2-17
Low beam indicator light 2-17
Turn signal/hazard indica-
tor lights2-17
Vehicle Dynamic Control
(VDC) off indicator light2-17
*: if so equipped
WARNING AND INDICATOR LIGHTS
0-14Illustrated table of contents
Page 22 of 468

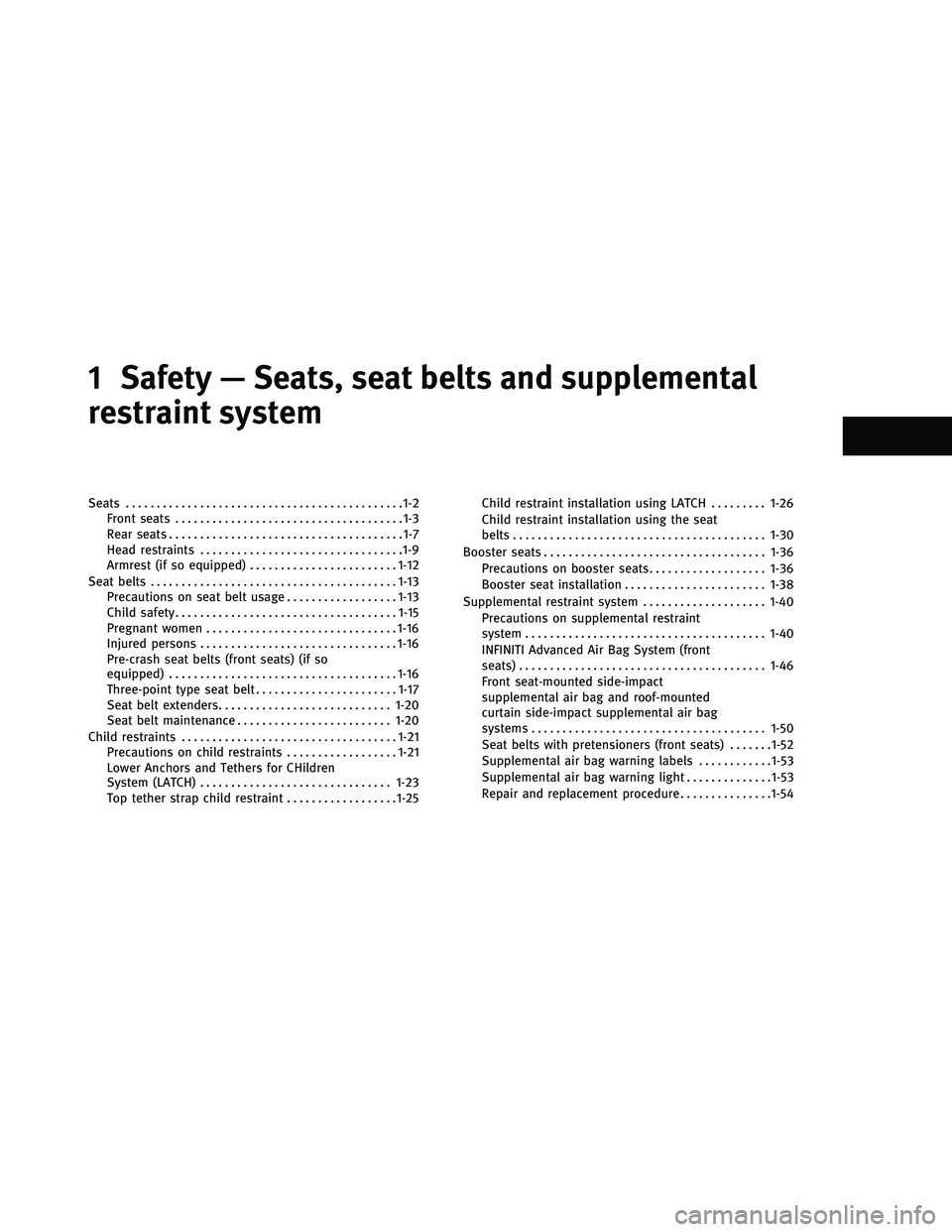

1 Safety — Seats, seat belts and supplemental
restraint system
Seats.............................................1-2
Front seats .....................................1-3
Rear seats ......................................1-7
Head restraints .................................1-9
Armrest (if so equipped) ........................ 1-12
Seat belts ........................................ 1-13
Precautions on seat belt usage ..................1-13
Child safety .................................... 1-15
Pregnant women ............................... 1-16
Injured persons ................................ 1-16
Pre-crash seat belts (front seats) (if so
equipped) ..................................... 1-16
Three-point type seat belt .......................1-17
Seat belt extenders ............................ 1-20
Seat belt maintenance ......................... 1-20
Child restraints ................................... 1-21
Precautions on child restraints ..................1-21
Lower Anchors and Tethers for CHildren
System (LATCH) ............................... 1-23
Top tether strap child restraint ..................1-25Child restraint installation using LATCH
.........1-26
Child restraint installation using the seat
belts ......................................... 1-30
Booster seats .................................... 1-36
Precautions on booster seats ...................1-36
Booster seat installation ....................... 1-38
Supplemental restraint system ....................1-40
Precautions on supplemental restraint
system ....................................... 1-40
INFINITI Advanced Air Bag System (front
seats) ........................................ 1-46
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact supplemental air bag
systems ...................................... 1-50
Seat belts with pretensioners (front seats) .......1-52
Supplemental air bag warning labels ............1-53
Supplemental air bag warning light ..............1-53
Repair and replacement procedure ...............1-54
Page 23 of 468

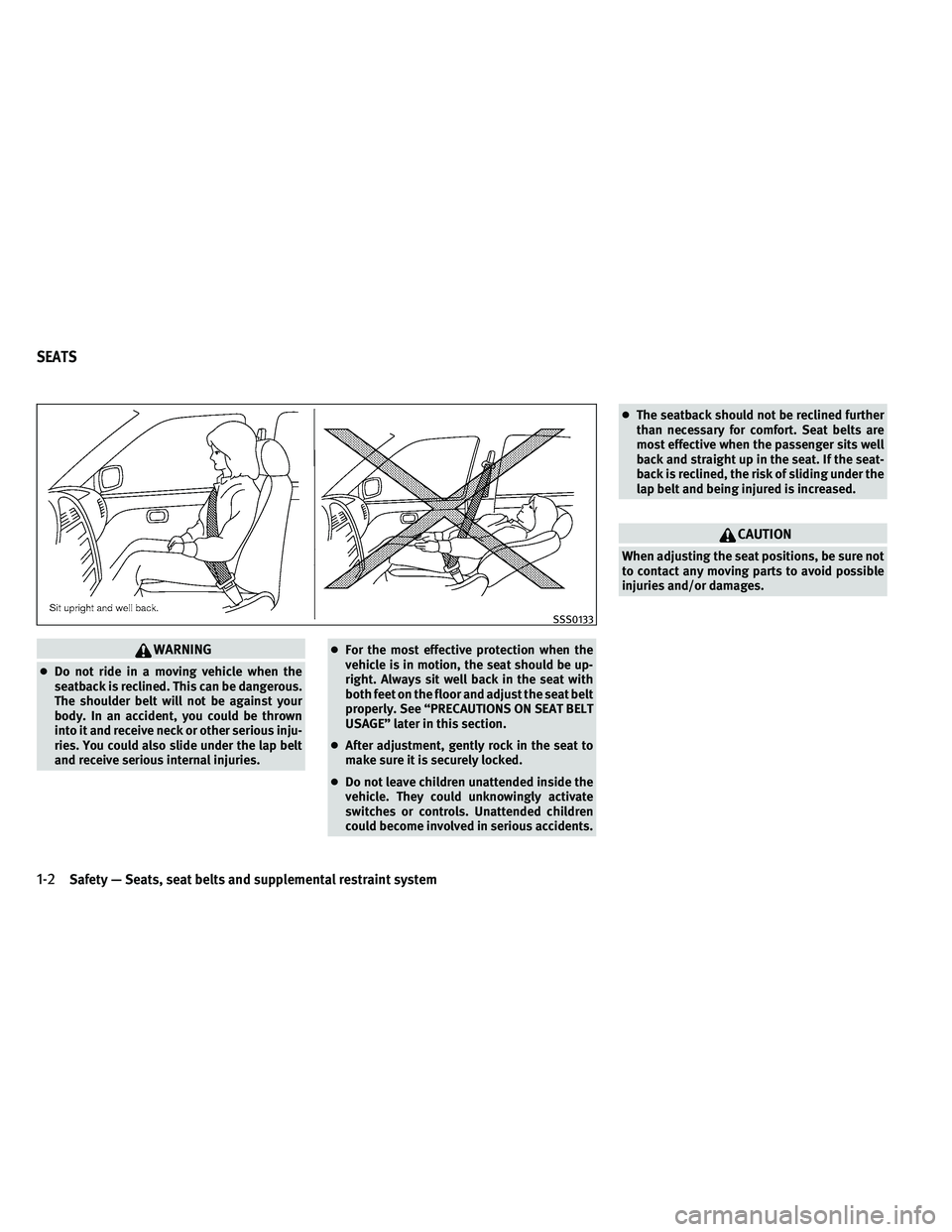

WARNING
●Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries. ●
For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.
● After adjustment, gently rock in the seat to
make sure it is securely locked.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents. ●
The seatback should not be reclined further
than necessary for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat-
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
SSS0133
SEATS
1-2Safety — Seats, seat belts and supplemental restraint system
Page 24 of 468
FRONT SEATS
Front power seat adjustment
Operating tips :
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
Forward and backward :
Moving the switch
1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining :
Move the recline switch
2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback can be reclined to allow occupants to rest when
the vehicle is parked.
SSS1051
Safety — Seats, seat belts and supplemental restraint system1-3
Page 25 of 468

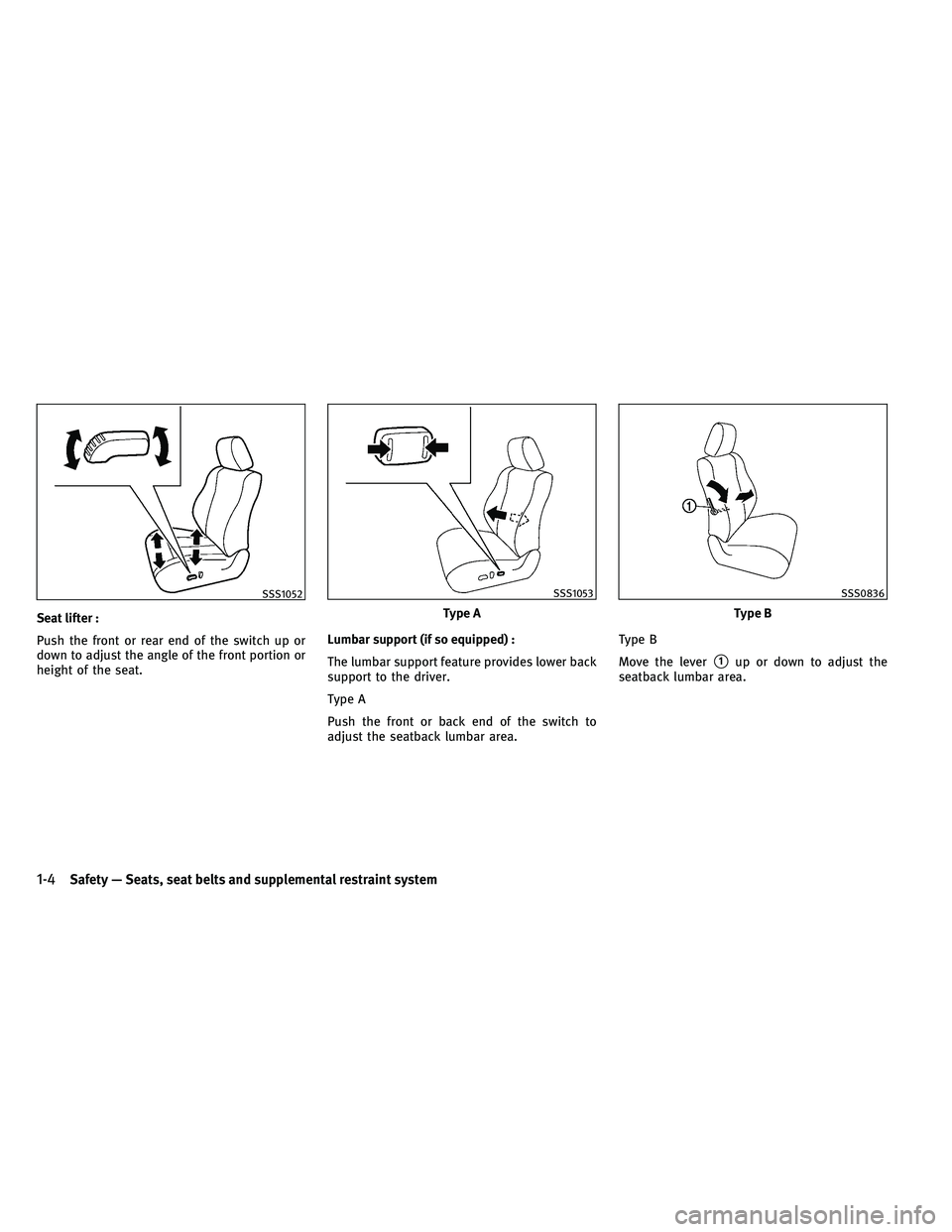

Seat lifter :
Push the front or rear end of the switch up or
down to adjust the angle of the front portion or
height of the seat.Lumbar support (if so equipped) :
The lumbar support feature provides lower back
support to the driver.
Type A
Push the front or back end of the switch to
adjust the seatback lumbar area.Type B
Move the lever
1up or down to adjust the
seatback lumbar area.
SSS1052
Type A
SSS1053
Type B
SSS0836
1-4Safety — Seats, seat belts and supplemental restraint system
Page 26 of 468

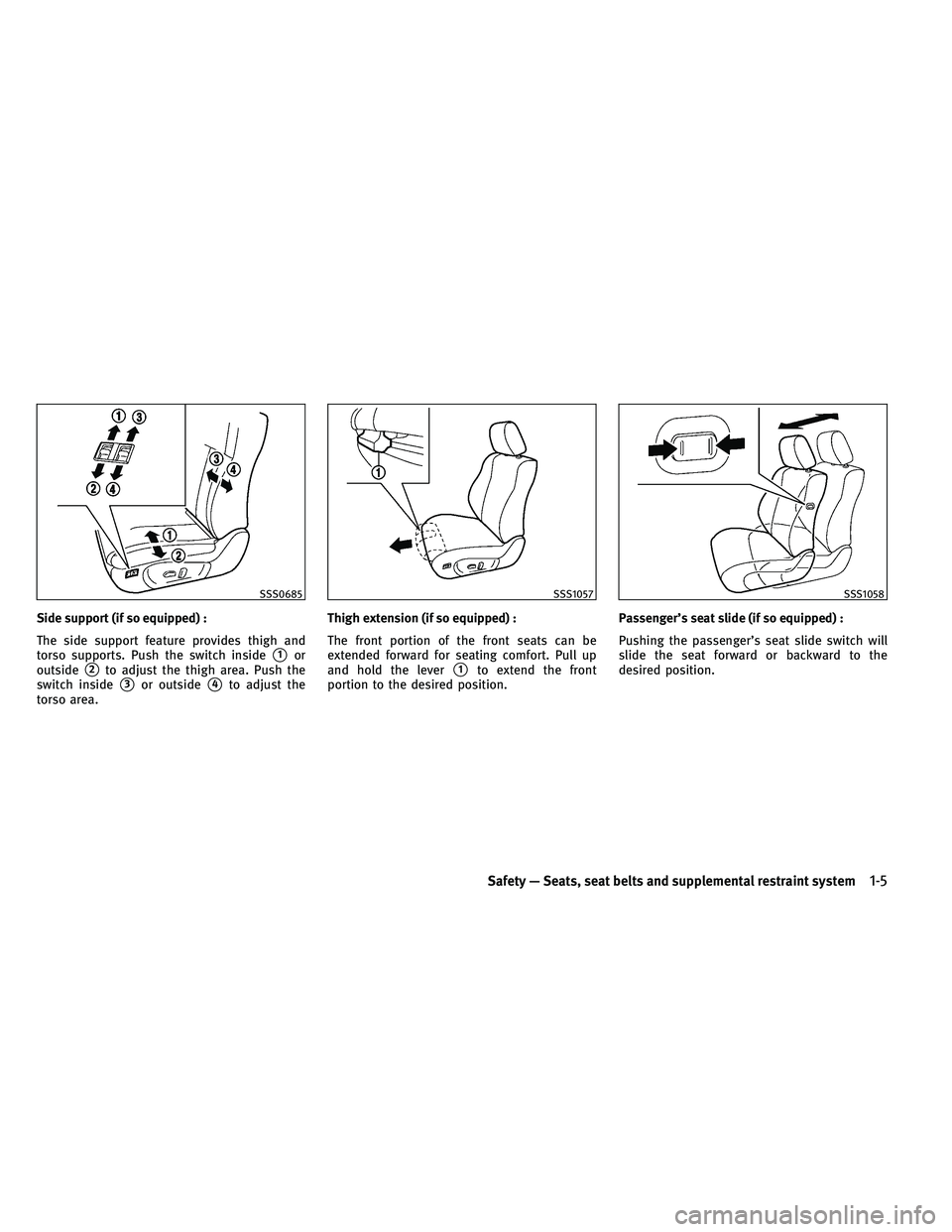

Side support (if so equipped) :
The side support feature provides thigh and
torso supports. Push the switch inside
1or
outside
2to adjust the thigh area. Push the
switch inside
3or outside4to adjust the
torso area. Thigh extension (if so equipped) :
The front portion of the front seats can be
extended forward for seating comfort. Pull up
and hold the lever1to extend the front
portion to the desired position. Passenger’s seat slide (if so equipped) :
Pushing the passenger’s seat slide switch will
slide the seat forward or backward to the
desired position.
SSS0685SSS1057SSS1058
Safety — Seats, seat belts and supplemental restraint system1-5
Page 27 of 468

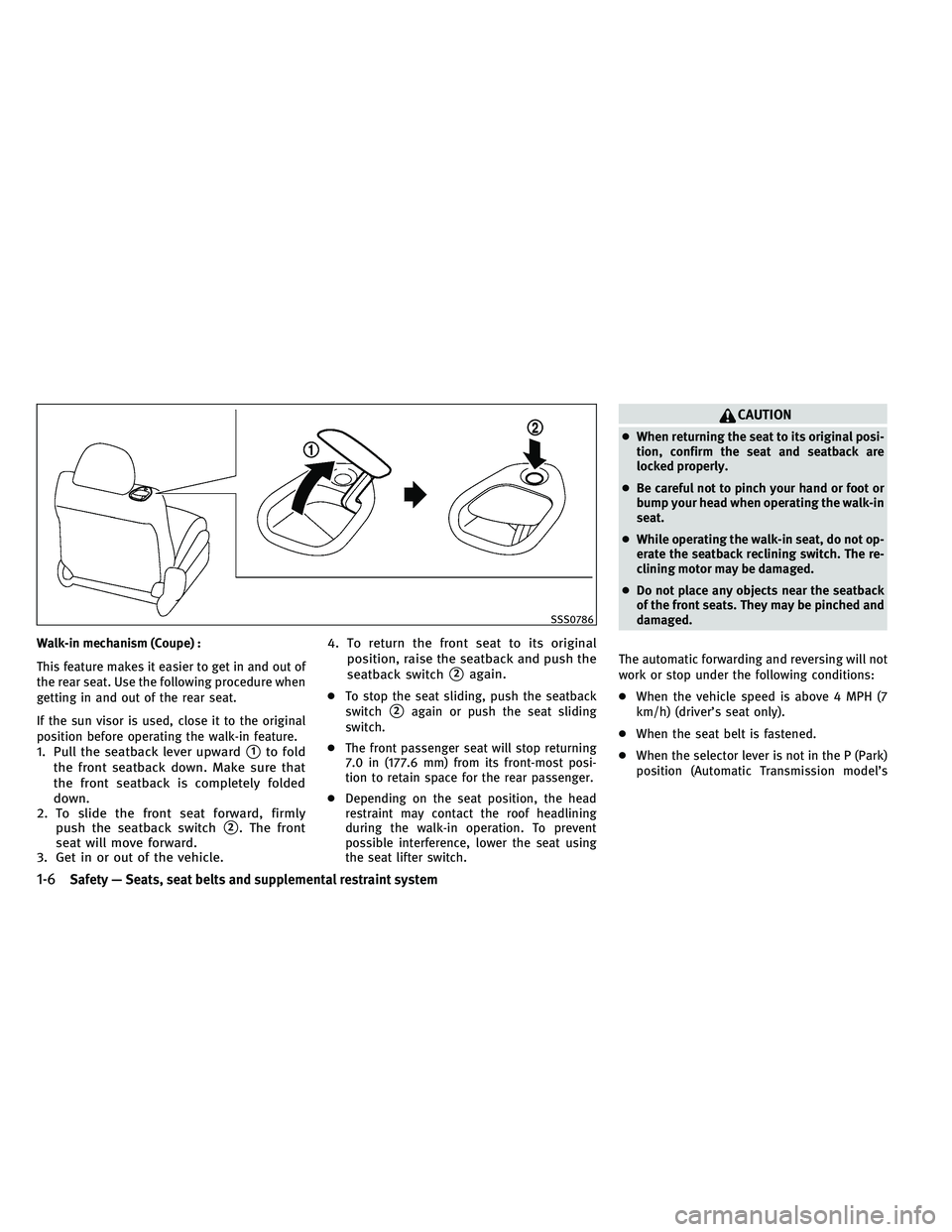

Walk-in mechanism (Coupe) :
This feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat.
If the sun visor is used, close it to the original
position before operating the walk-in feature.
1. Pull the seatback lever upward1to fold
the front seatback down. Make sure that
the front seatback is completely folded
down.
2. To slide the front seat forward, firmly push the seatback switch
2. The front
seat will move forward.
3. Get in or out of the vehicle. 4. To return the front seat to its original
position, raise the seatback and push the
seatback switch
2again.
●To stop the seat sliding, push the seatback
switch
2again or push the seat sliding
switch.
● The front passenger seat will stop returning
7.0 in (177.6 mm) from its front-most posi-
tion to retain space for the rear passenger.
● Depending on the seat position, the head
restraint may contact the roof headlining
during the walk-in operation. To prevent
possible interference, lower the seat using
the seat lifter switch.
CAUTION
● When returning the seat to its original posi-
tion, confirm the seat and seatback are
locked properly.
● Be careful not to pinch your hand or foot or
bump your head when operating the walk-in
seat.
● While operating the walk-in seat, do not op-
erate the seatback reclining switch. The re-
clining motor may be damaged.
● Do not place any objects near the seatback
of the front seats. They may be pinched and
damaged.
The automatic forwarding and reversing will not
work or stop under the following conditions:
● When the vehicle speed is above 4 MPH (7
km/h) (driver’s seat only).
● When the seat belt is fastened.
● When the selector lever is not in the P (Park)
position (Automatic Transmission model’s
SSS0786
1-6Safety — Seats, seat belts and supplemental restraint system
Page 28 of 468

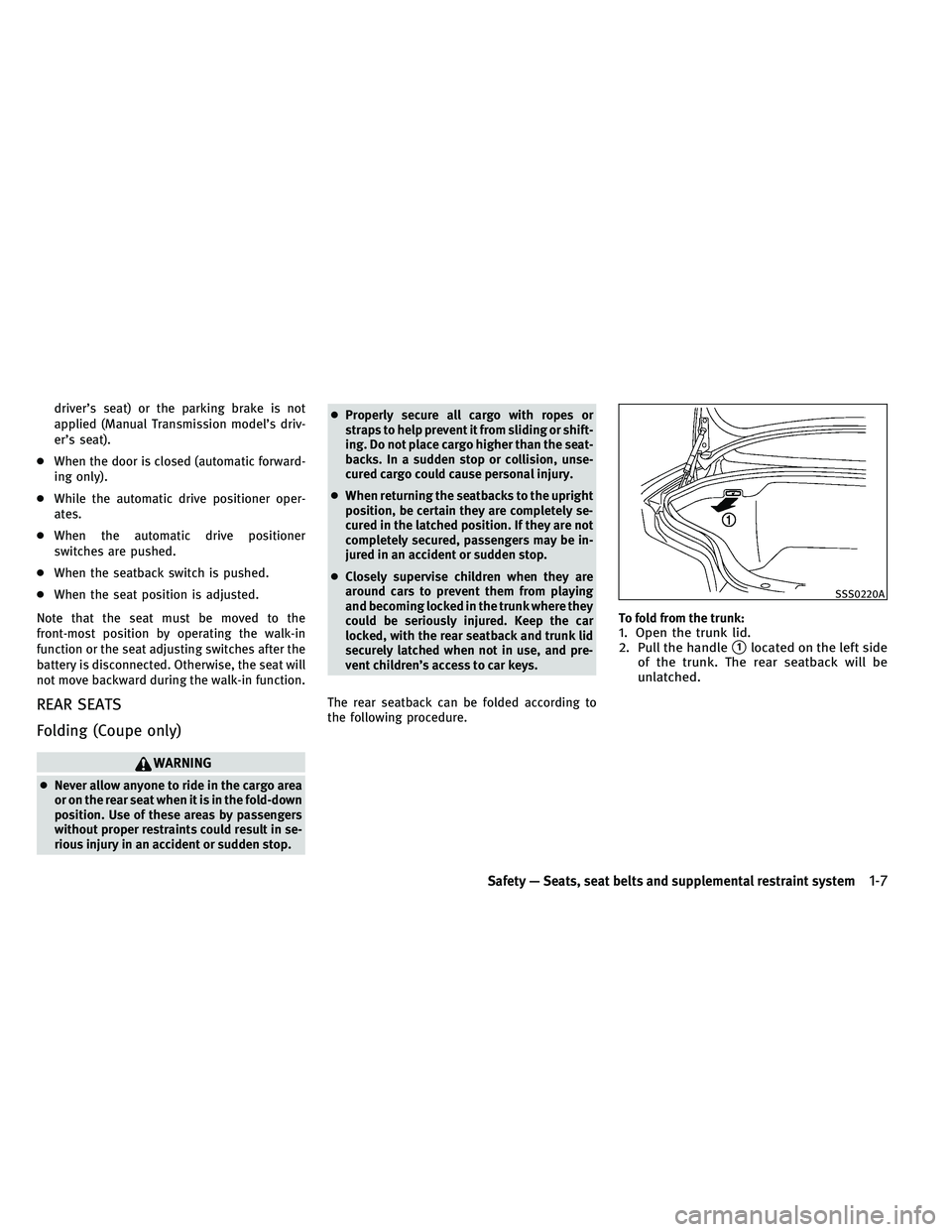

driver’s seat) or the parking brake is not
applied (Manual Transmission model’s driv-
er’s seat).
● When the door is closed (automatic forward-
ing only).
● While the automatic drive positioner oper-
ates.
● When the automatic drive positioner
switches are pushed.
● When the seatback switch is pushed.
● When the seat position is adjusted.
Note that the seat must be moved to the
front-most position by operating the walk-in
function or the seat adjusting switches after the
battery is disconnected. Otherwise, the seat will
not move backward during the walk-in function.
REAR SEATS
Folding (Coupe only)
WARNING
● Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-down
position. Use of these areas by passengers
without proper restraints could result in se-
rious injury in an accident or sudden stop. ●
Properly secure all cargo with ropes or
straps to help prevent it from sliding or shift-
ing. Do not place cargo higher than the seat-
backs. In a sudden stop or collision, unse-
cured cargo could cause personal injury.
● When returning the seatbacks to the upright
position, be certain they are completely se-
cured in the latched position. If they are not
completely secured, passengers may be in-
jured in an accident or sudden stop.
● Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where they
could be seriously injured. Keep the car
locked, with the rear seatback and trunk lid
securely latched when not in use, and pre-
vent children’s access to car keys.
The rear seatback can be folded according to
the following procedure. To fold from the trunk:
1. Open the trunk lid.
2. Pull the handle
1located on the left side
of the trunk. The rear seatback will be
unlatched.
SSS0220A
Safety — Seats, seat belts and supplemental restraint system1-7
Page 29 of 468

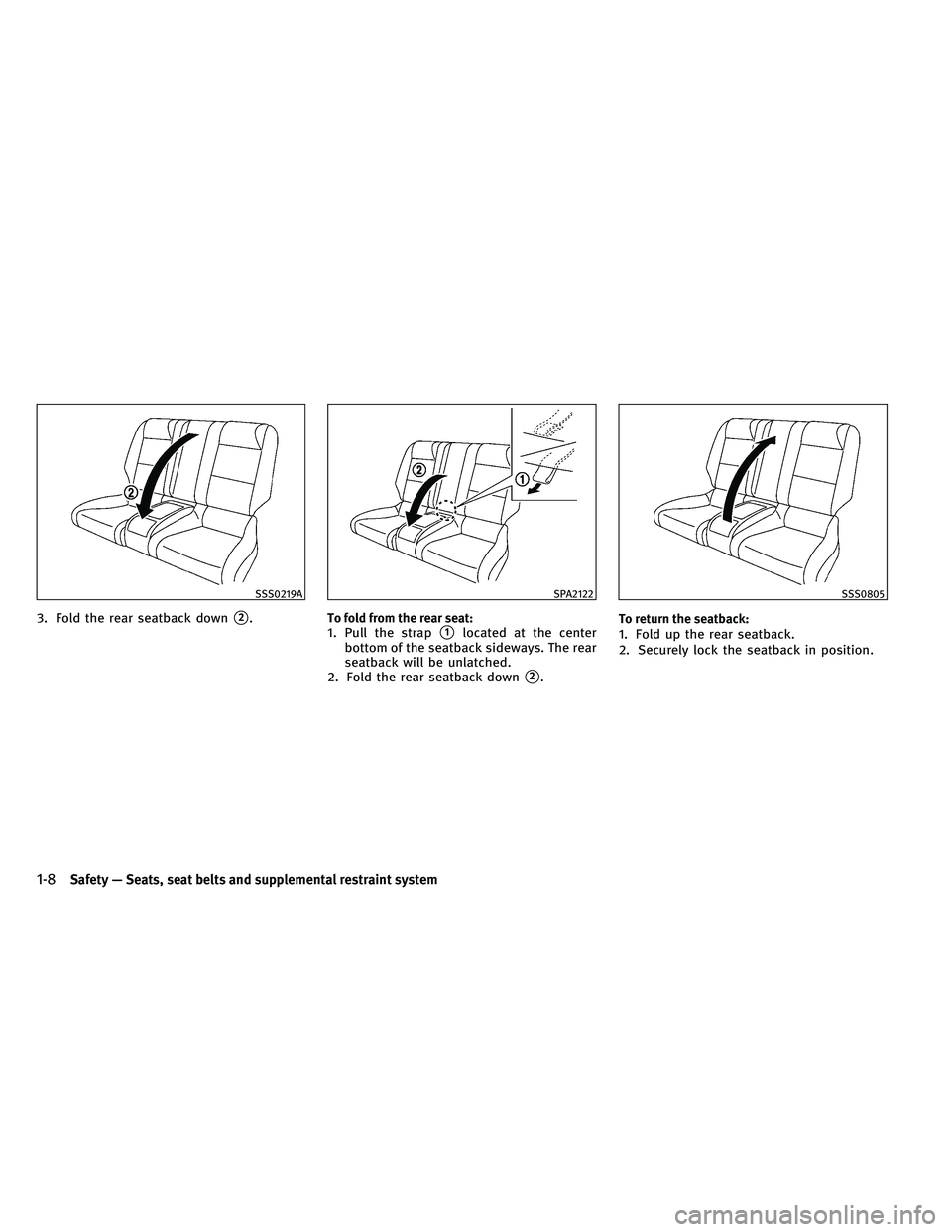

3. Fold the rear seatback down2.To fold from the rear seat:1. Pull the strap1located at the center
bottom of the seatback sideways. The rear
seatback will be unlatched.
2. Fold the rear seatback down
2.
To return the seatback:1. Fold up the rear seatback.
2. Securely lock the seatback in position.
SSS0219ASPA2122SSS0805
1-8Safety — Seats, seat belts and supplemental restraint system
Page 30 of 468

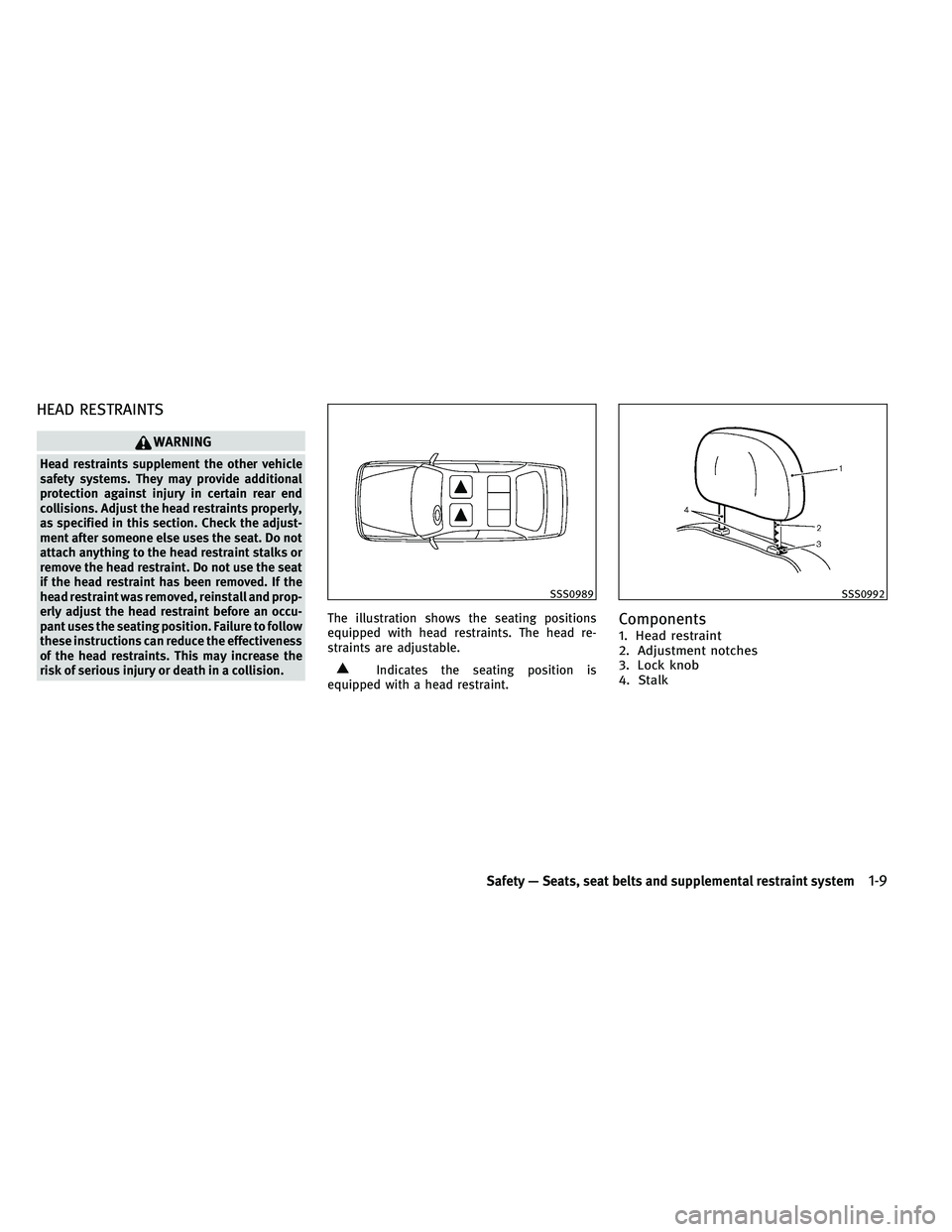

HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the head restraints properly,
as specified in this section. Check the adjust-
ment after someone else uses the seat. Do not
attach anything to the head restraint stalks or
remove the head restraint. Do not use the seat
if the head restraint has been removed. If the
head restraint was removed, reinstall and prop-
erly adjust the head restraint before an occu-
pant uses the seating position. Failure to follow
these instructions can reduce the effectiveness
of the head restraints. This may increase the
risk of serious injury or death in a collision.The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is
equipped with a head restraint.
Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalk
SSS0989SSS0992
Safety — Seats, seat belts and supplemental restraint system1-9
