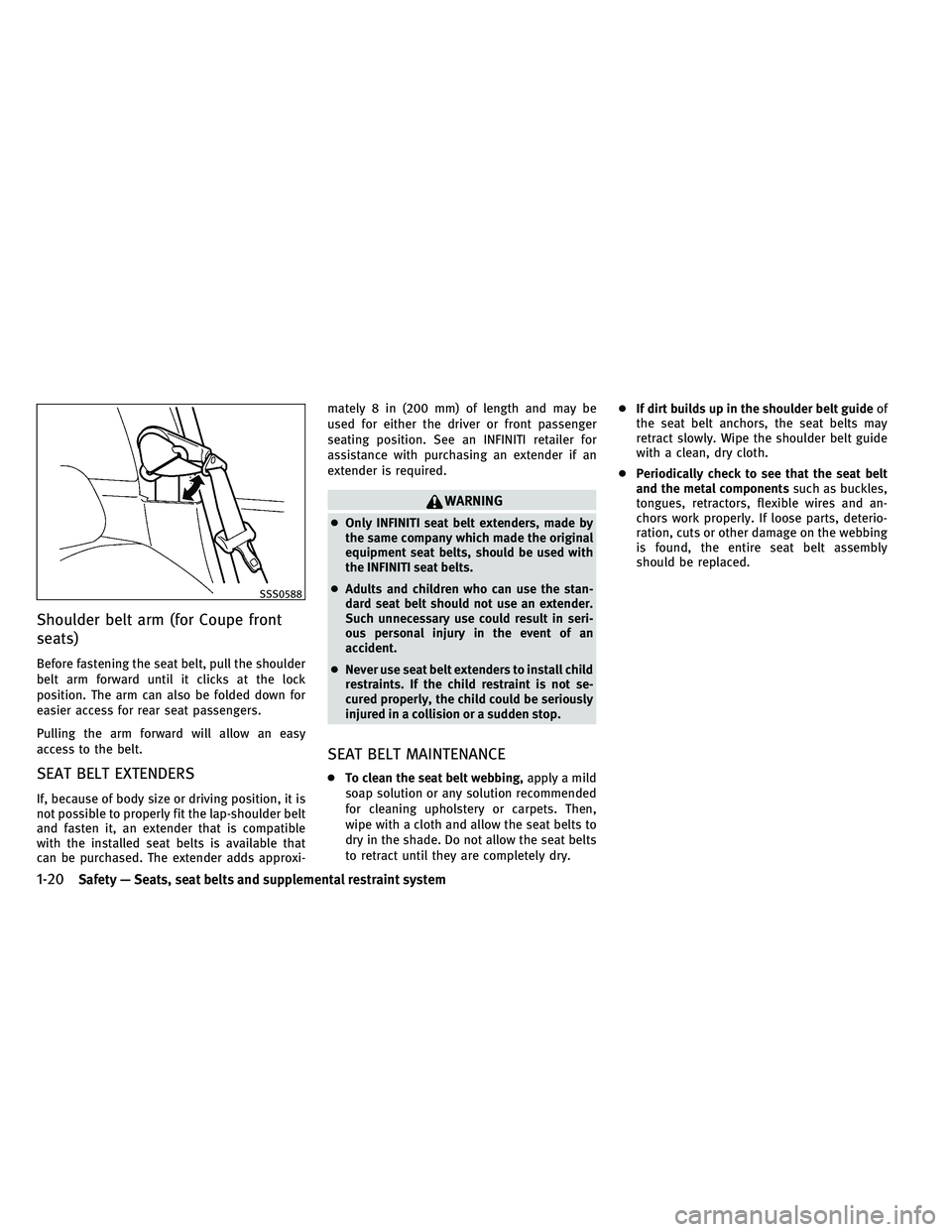

Shoulder belt arm (for Coupe front
seats)
Before fastening the seat belt, pull the shoulder
belt arm forward until it clicks at the lock
position. The arm can also be folded down for
easier access for rear seat passengers.
Pulling the arm forward will allow an easy
access to the belt.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender that is compatible
with the installed seat belts is available that
can be purchased. The extender adds approxi-mately 8 in (200 mm) of length and may be
used for either the driver or front passenger
seating position. See an INFINITI retailer for
assistance with purchasing an extender if an
extender is required.
WARNING
●
Only INFINITI seat belt extenders, made by
the same company which made the original
equipment seat belts, should be used with
the INFINITI seat belts.
● Adults and children who can use the stan-
dard seat belt should not use an extender.
Such unnecessary use could result in seri-
ous personal injury in the event of an
accident.
● Never use seat belt extenders to install child
restraints. If the child restraint is not se-
cured properly, the child could be seriously
injured in a collision or a sudden stop.
SEAT BELT MAINTENANCE
● To clean the seat belt webbing, apply a mild
soap solution or any solution recommended
for cleaning upholstery or carpets. Then,
wipe with a cloth and allow the seat belts to
dry in the shade. Do not allow the seat belts
to retract until they are completely dry. ●
If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.
● Periodically check to see that the seat belt
and the metal components such as buckles,
tongues, retractors, flexible wires and an-
chors work properly. If loose parts, deterio-
ration, cuts or other damage on the webbing
is found, the entire seat belt assembly
should be replaced.
SSS0588
1-20Safety — Seats, seat belts and supplemental restraint system
Page 42 of 468
PRECAUTIONS ON CHILD RESTRAINTS
WARNING
●Infants and small children should always be
placed in an appropriate child restraint
while riding in the vehicle. Failure to use a
child restraint can result in serious injury or
death.
● Infants and small children should never be
carried on your lap. It is not possible for even
the strongest adult to resist the forces of a
severe accident. The child could be crushed
between the adult and parts of the vehicle.
Also, do not put the same seat belt around
both your child and yourself.
● Even with the INFINITI Advanced Air Bag Sys-
tem, never install a rear-facing child re-
straint in the front seat. An inflating supple-
mental front air bag could seriously injure or
kill your child. A rear-facing child restraint
must only be used in the rear seat. ●
INFINITI recommends that the child restraint
be installed in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in
the front seat. If you must install a front-
facing child restraint in the front seat, see
“CHILD RESTRAINT INSTALLATION USING
THE SEAT BELTS” later in this section.
● Improper use or improper installation of a
child restraint can increase the risk or sever-
ity of injury for both the child and other oc-
cupants of the vehicle and can lead to seri-
ous injury or death in an accident.
● Follow all of the child restraint manufactur-
er’s instructions for installation and use.
When purchasing a child restraint, be sure to
select one which will fit your child and ve-
hicle. It may not be possible to properly in-
stall some types of child restraints in your
vehicle.
● If the child restraint is not anchored prop-
erly, the risk of a child being injured in a
collision or a sudden stop greatly increases.
● Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
SSS0099
SSS0100
CHILD RESTRAINTS
Safety — Seats, seat belts and supplemental restraint system1-21
Page 43 of 468

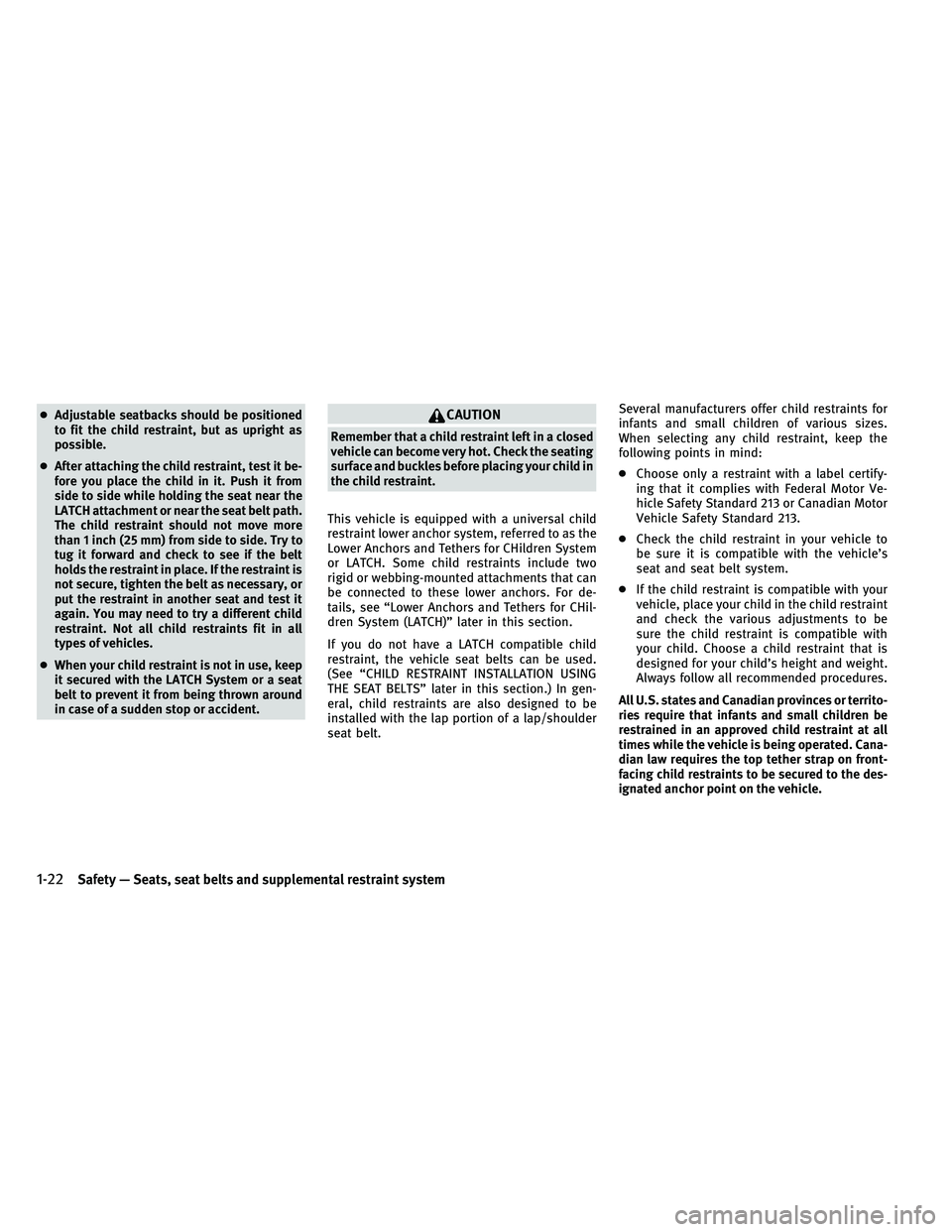

●Adjustable seatbacks should be positioned
to fit the child restraint, but as upright as
possible.
● After attaching the child restraint, test it be-
fore you place the child in it. Push it from
side to side while holding the seat near the
LATCH attachment or near the seat belt path.
The child restraint should not move more
than 1 inch (25 mm) from side to side. Try to
tug it forward and check to see if the belt
holds the restraint in place. If the restraint is
not secure, tighten the belt as necessary, or
put the restraint in another seat and test it
again. You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
● When your child restraint is not in use, keep
it secured with the LATCH System or a seat
belt to prevent it from being thrown around
in case of a sudden stop or accident.CAUTION
Remember that a child restraint left in a closed
vehicle can become very hot. Check the seating
surface and buckles before placing your child in
the child restraint.
This vehicle is equipped with a universal child
restraint lower anchor system, referred to as the
Lower Anchors and Tethers for CHildren System
or LATCH. Some child restraints include two
rigid or webbing-mounted attachments that can
be connected to these lower anchors. For de-
tails, see “Lower Anchors and Tethers for CHil-
dren System (LATCH)” later in this section.
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.
(See “CHILD RESTRAINT INSTALLATION USING
THE SEAT BELTS” later in this section.) In gen-
eral, child restraints are also designed to be
installed with the lap portion of a lap/shoulder
seat belt. Several manufacturers offer child restraints for
infants and small children of various sizes.
When selecting any child restraint, keep the
following points in mind:
●
Choose only a restraint with a label certify-
ing that it complies with Federal Motor Ve-
hicle Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
● If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated. Cana-
dian law requires the top tether strap on front-
facing child restraints to be secured to the des-
ignated anchor point on the vehicle.
1-22Safety — Seats, seat belts and supplemental restraint system
Page 44 of 468
LOWER ANCHORS AND TETHERS FOR
CHILDREN SYSTEM (LATCH)
Your vehicle is equipped with special anchor
points that are used with Lower Anchors and
Tethers for CHildren System (LATCH) compatible
child restraints. This system may also be re-
ferred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to
use a vehicle seat belt to secure the child
restraint.The LATCH anchor points are provided to install
child restraints in the rear outboard seating
positions only. Do not attempt to install a child
restraint in the center position using the LATCH
anchors.

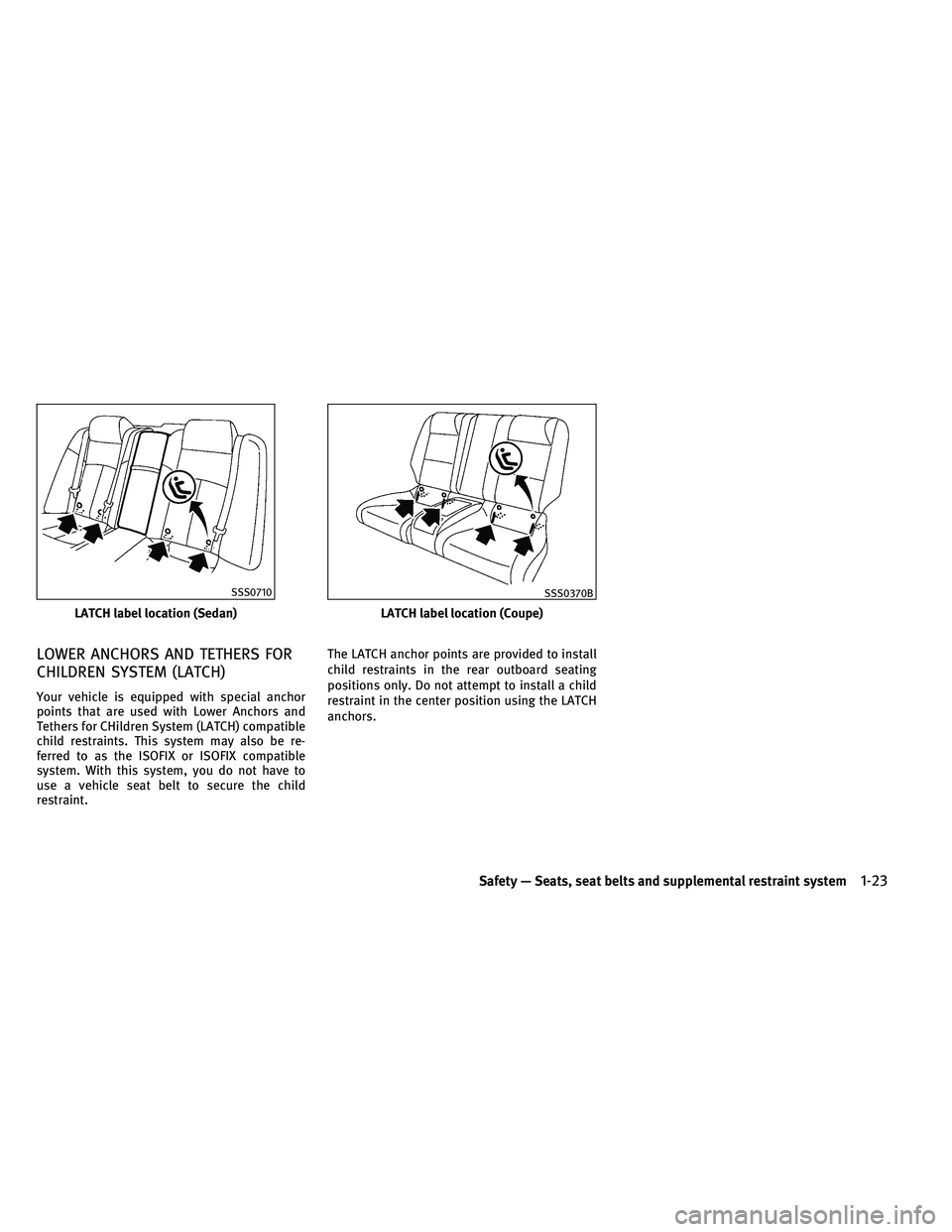

LATCH label location (Sedan)
SSS0710
LATCH label location (Coupe)
SSS0370B
Safety — Seats, seat belts and supplemental restraint system1-23
Page 45 of 468
LATCH lower anchor point locations
The LATCH lower anchors are located at the rear
of the seat cushion near the seatback. A label is
attached to the seatback to help you locate the
LATCH anchors.
WARNING
●Attach LATCH system compatible child re-
straints only at the locations shown in the
illustration. If a child restraint is not secured
properly, your child could be seriously in-
jured or killed in an accident.
● Do not secure a child restraint in the center
rear seating position using the LATCH an-
chors. The child restraint will not be secured
properly.
● Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adult
seat belts or harnesses.
Installing child restraint LATCH
anchor attachments
LATCH compatible child restraints include two
rigid or webbing-mounted attachments that can
be connected to two lower anchors located at
certain seating positions in your vehicle. With
this system, you do not have to use a vehicle
seat belt to secure the child restraint. Check
your child restraint for a label stating that it is
compatible with LATCH. This information may
also be in the instructions provided by the child
restraint manufacturer.

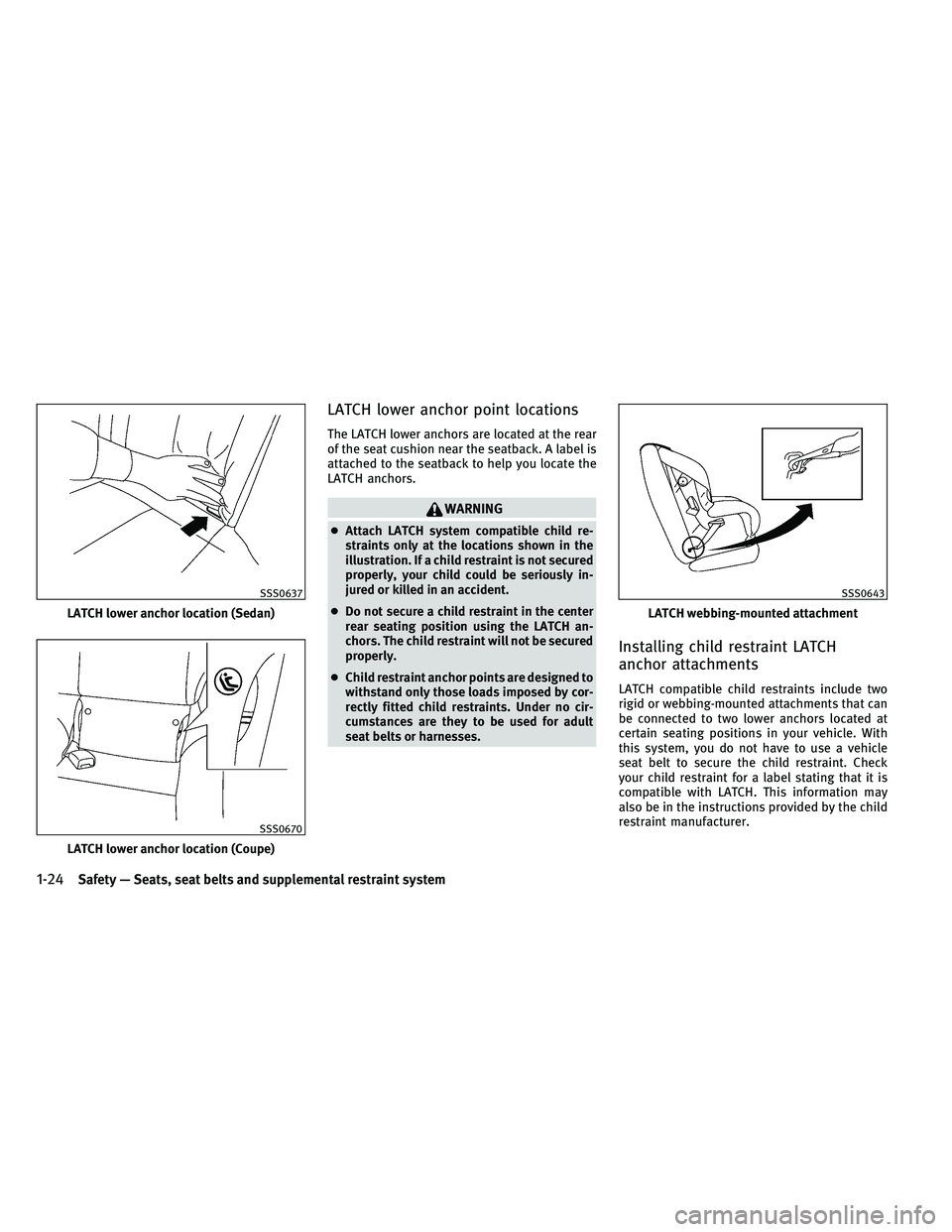

LATCH lower anchor location (Sedan)
SSS0637
LATCH lower anchor location (Coupe)
SSS0670
LATCH webbing-mounted attachment
SSS0643
1-24Safety — Seats, seat belts and supplemental restraint system
Page 46 of 468
LATCH child restraints generally require the use
of a top tether strap. (See “TOP TETHER STRAP
CHILD RESTRAINT” later in this section for in-
stallation instructions.)
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint. (See
“CHILD RESTRAINT INSTALLATION USING LATCH”
later in this section.)TOP TETHER STRAP CHILD RESTRAINT
If the manufacturer of your child restraint re-
quires the use of a top tether strap, it must be
secured to an anchor point.
WARNING
Child restraint anchor points are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no circum-
stances are they to be used for adult seat belts
or harnesses.
Top tether anchor point locations
Anchor points are located on the rear parcel
shelf.
Installing top tether strap
First, secure the child restraint with the lower
anchors (rear bench outboard seating positions
only) or the seat belt.
1. Flip up the tether anchor cover from theanchor point which is located directly
behind the child seat.

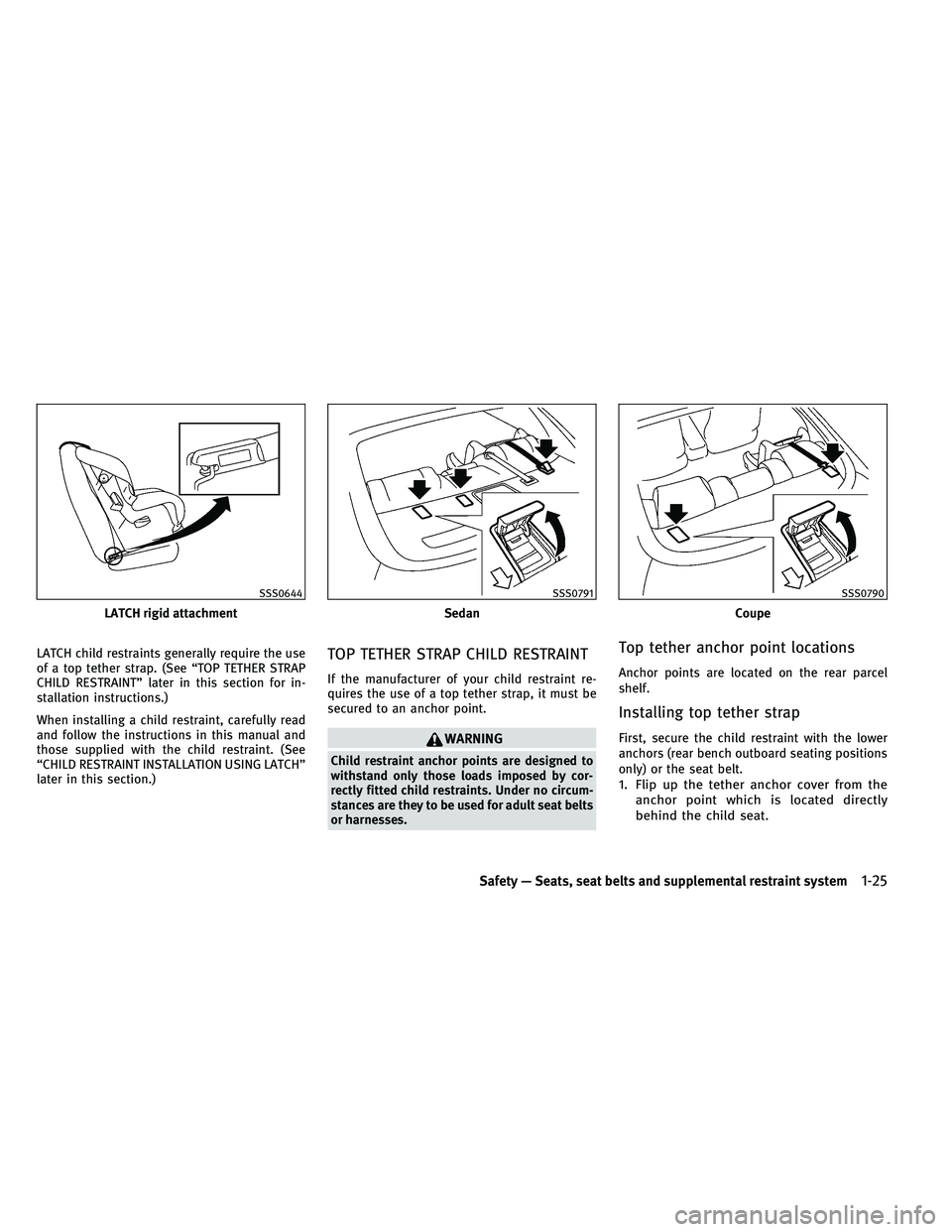

LATCH rigid attachment
SSS0644
Sedan
SSS0791
Coupe
SSS0790
Safety — Seats, seat belts and supplemental restraint system1-25
Page 47 of 468
2. If necessary, raise or remove the headrestto position the top tether strap over the
top of the seatback. If the headrest is
removed, store it in a secure place. Be
sure to reinstall the headrest when the
child restraint is removed. SeeAdjust-
able headrest in this section for headrest
adjustment, removal and installation in-
formation.
3. Secure the tether strap to the tether an- chor point on the rear parcel shelf.
4. Refer to the appropriate child restraint installation procedure steps in this sec-
tion before tightening the tether strap.
If you have any questions when installing a top
tether strap, consult your INFINITI retailer for
details.

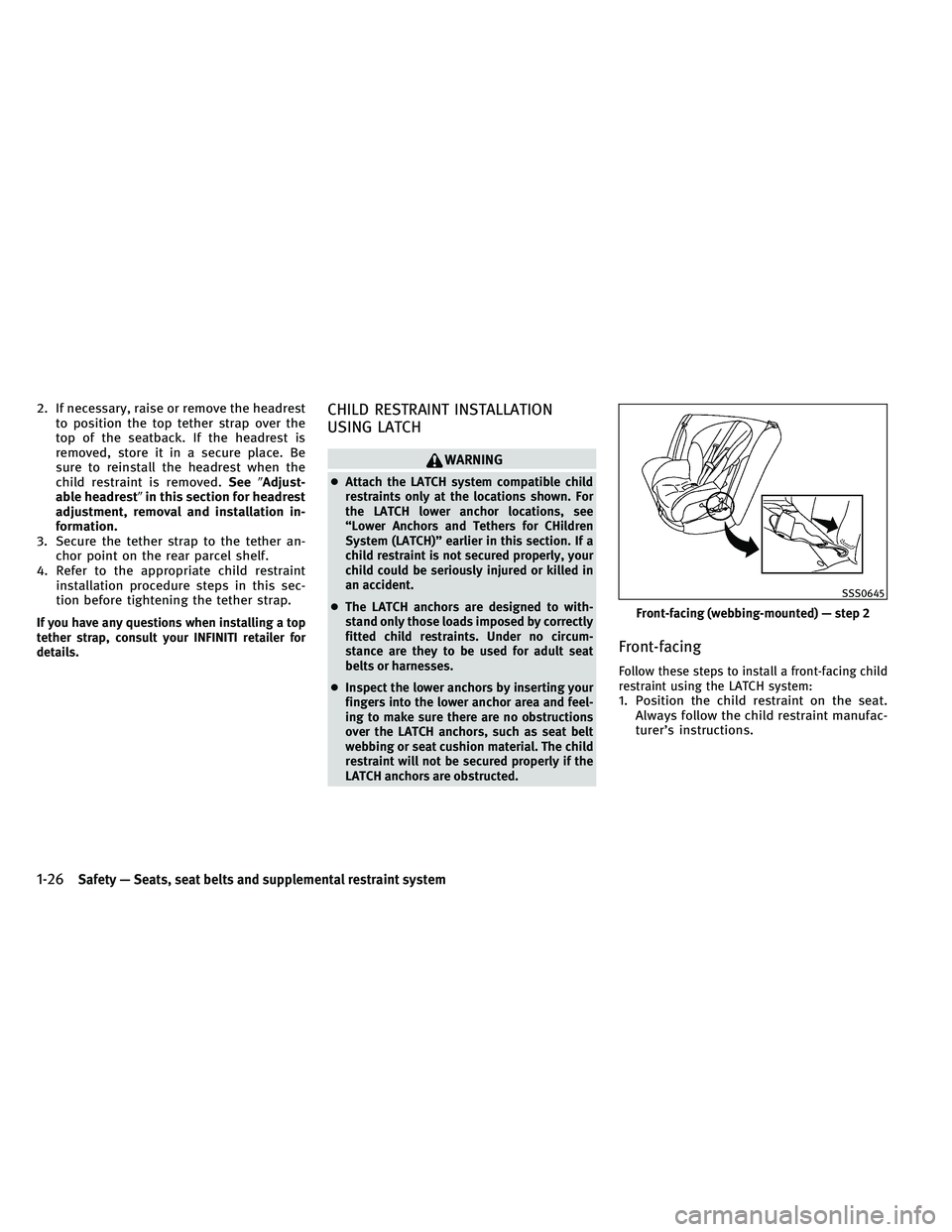

CHILD RESTRAINT INSTALLATION
USING LATCH
WARNING
●Attach the LATCH system compatible child
restraints only at the locations shown. For
the LATCH lower anchor locations, see
“Lower Anchors and Tethers for CHildren
System (LATCH)” earlier in this section. If a
child restraint is not secured properly, your
child could be seriously injured or killed in
an accident.
● The LATCH anchors are designed to with-
stand only those loads imposed by correctly
fitted child restraints. Under no circum-
stance are they to be used for adult seat
belts or harnesses.
● Inspect the lower anchors by inserting your
fingers into the lower anchor area and feel-
ing to make sure there are no obstructions
over the LATCH anchors, such as seat belt
webbing or seat cushion material. The child
restraint will not be secured properly if the
LATCH anchors are obstructed.
Front-facing
Follow these steps to install a front-facing child
restraint using the LATCH system:
1. Position the child restraint on the seat. Always follow the child restraint manufac-
turer’s instructions.
Front-facing (webbing-mounted) — step 2
SSS0645
1-26Safety — Seats, seat belts and supplemental restraint system
Page 48 of 468

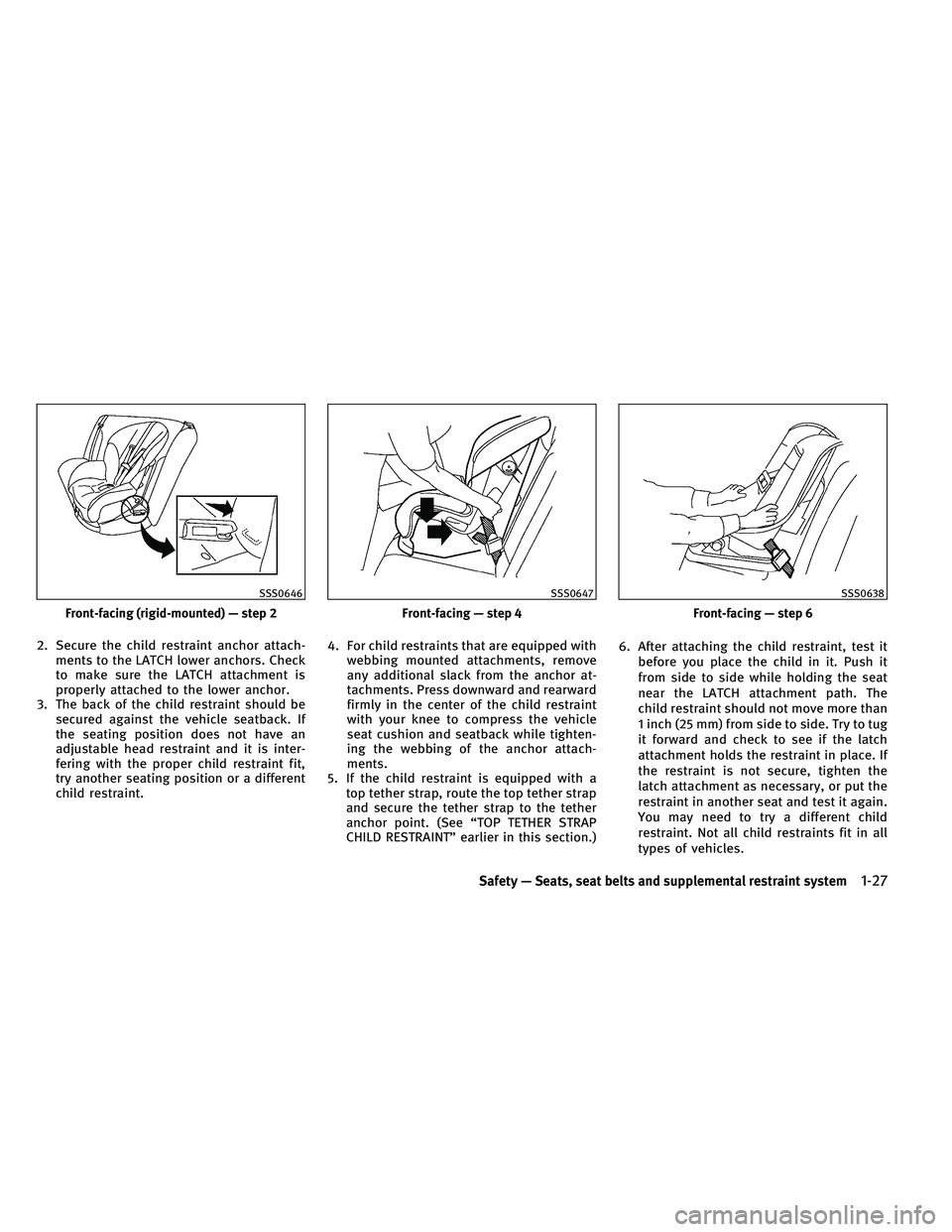

2. Secure the child restraint anchor attach-ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchor.
3. The back of the child restraint should be secured against the vehicle seatback. If
the seating position does not have an
adjustable head restraint and it is inter-
fering with the proper child restraint fit,
try another seating position or a different
child restraint. 4. For child restraints that are equipped with
webbing mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your knee to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments.
5. If the child restraint is equipped with a top tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point. (See “TOP TETHER STRAP
CHILD RESTRAINT” earlier in this section.) 6. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment path. The
child restraint should not move more than
1 inch (25 mm) from side to side. Try to tug
it forward and check to see if the latch
attachment holds the restraint in place. If
the restraint is not secure, tighten the
latch attachment as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.
Front-facing (rigid-mounted) — step 2
SSS0646
Front-facing — step 4
SSS0647
Front-facing — step 6
SSS0638
Safety — Seats, seat belts and supplemental restraint system1-27
Page 49 of 468
7. Check to make sure the child restraint isproperly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 6.

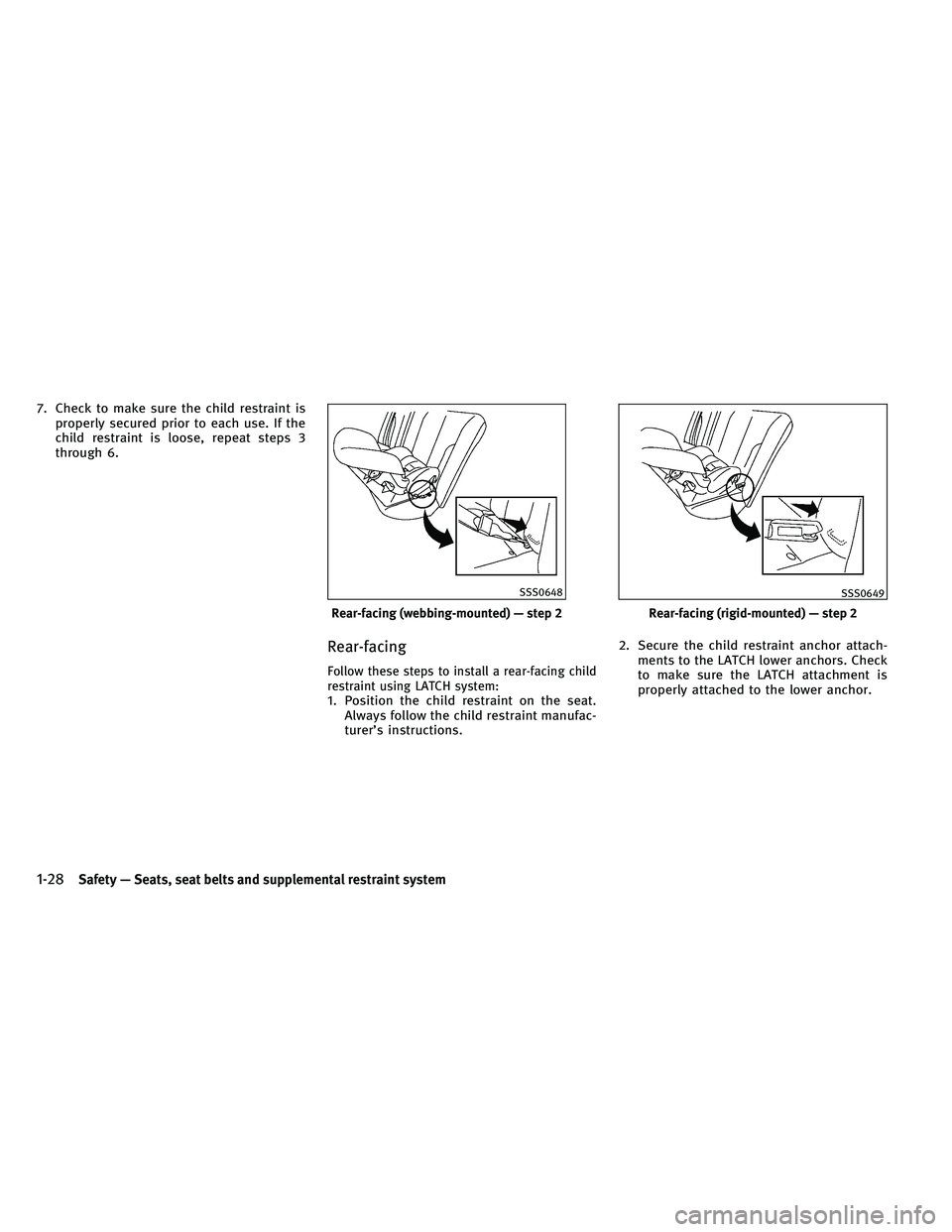

Rear-facing
Follow these steps to install a rear-facing child
restraint using LATCH system:
1. Position the child restraint on the seat.Always follow the child restraint manufac-
turer’s instructions. 2. Secure the child restraint anchor attach-
ments to the LATCH lower anchors. Check
to make sure the LATCH attachment is
properly attached to the lower anchor.
Rear-facing (webbing-mounted) — step 2
SSS0648
Rear-facing (rigid-mounted) — step 2
SSS0649
1-28Safety — Seats, seat belts and supplemental restraint system
Page 50 of 468

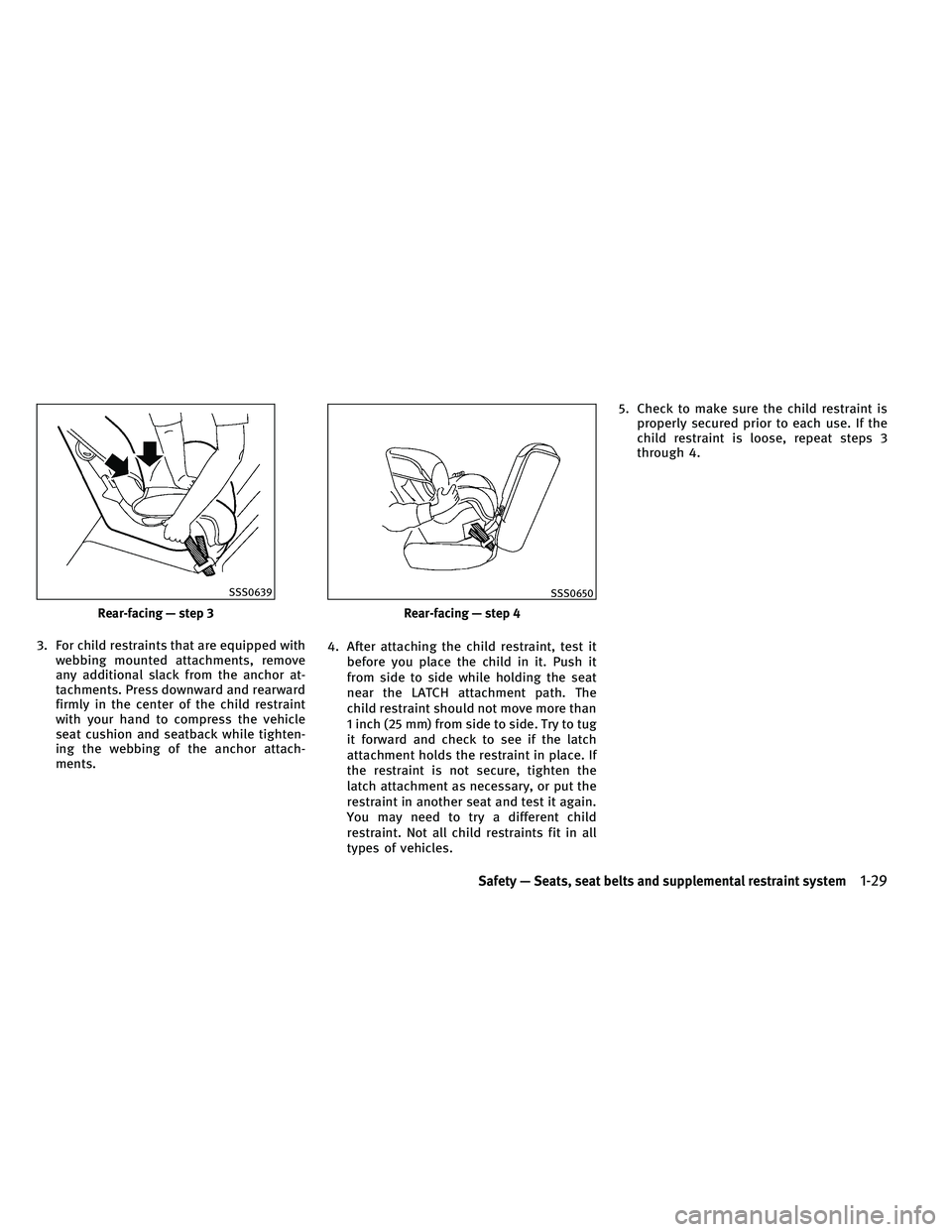

3. For child restraints that are equipped withwebbing mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rearward
firmly in the center of the child restraint
with your hand to compress the vehicle
seat cushion and seatback while tighten-
ing the webbing of the anchor attach-
ments. 4. After attaching the child restraint, test it
before you place the child in it. Push it
from side to side while holding the seat
near the LATCH attachment path. The
child restraint should not move more than
1 inch (25 mm) from side to side. Try to tug
it forward and check to see if the latch
attachment holds the restraint in place. If
the restraint is not secure, tighten the
latch attachment as necessary, or put the
restraint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles. 5. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 4.
Rear-facing — step 3
SSS0639
Rear-facing — step 4
SSS0650
Safety — Seats, seat belts and supplemental restraint system1-29
