bluetooth INFINITI G-COUPE 2011 Owner's Manual

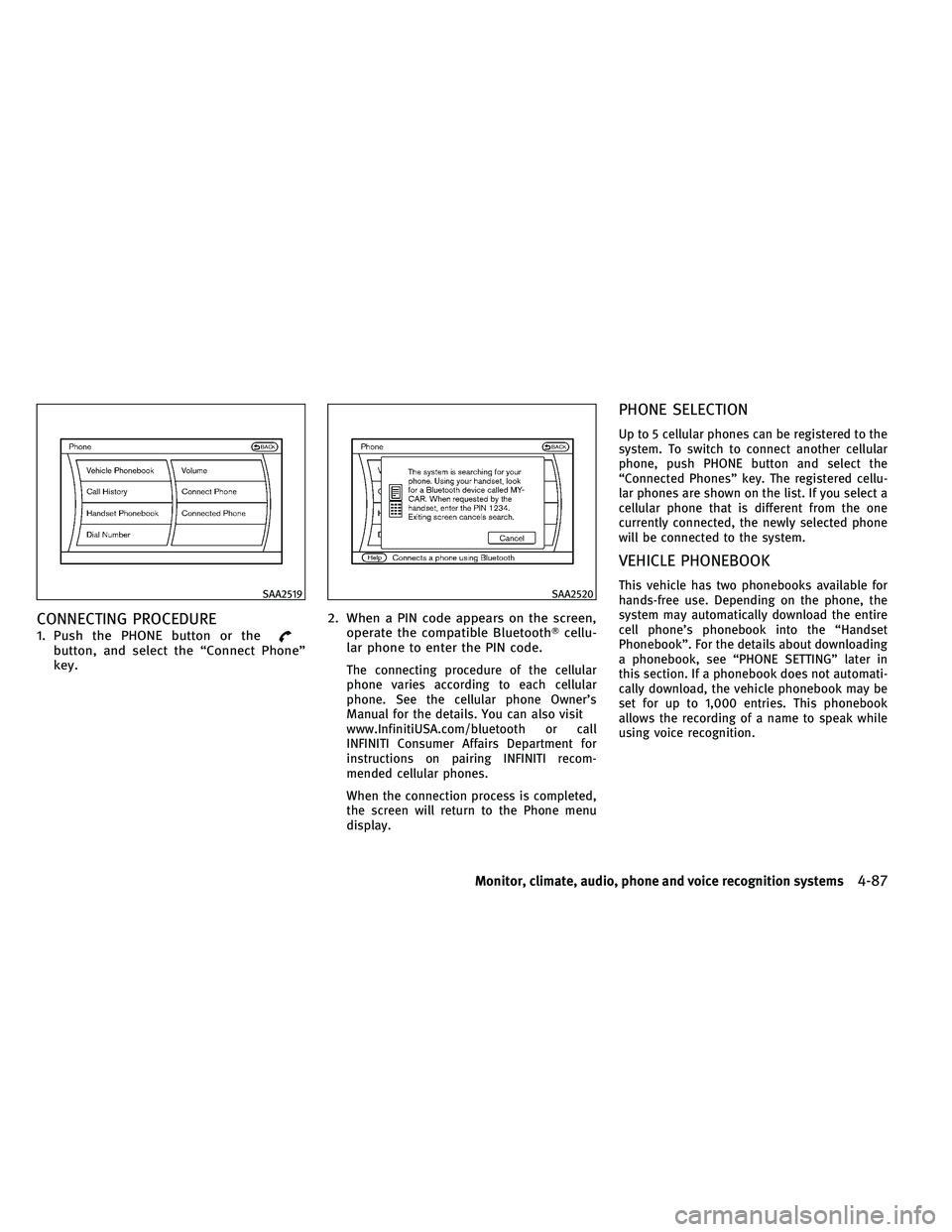

CONNECTING PROCEDURE
1. Push the PHONE button or thebutton, and select the “Connect Phone”
key.2. When a PIN code appears on the screen,
operate the compatible Bluetooth cellu-
lar phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.InfinitiUSA.com/bluetooth or call
INFINITI Consumer Affairs Department for
instructions on pairing INFINITI recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTION
Up to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push PHONE button and select the
“Connected Phones” key. The registered cellu-
lar phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
VEHICLE PHONEBOOK
This vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”. For the details about downloading
a phonebook, see “PHONE SETTING” later in
this section. If a phonebook does not automati-
cally download, the vehicle phonebook may be
set for up to 1,000 entries. This phonebook
allows the recording of a name to speak while
using voice recognition.SAA2519SAA2520
Monitor, climate, audio, phone and voice recognition systems4-87

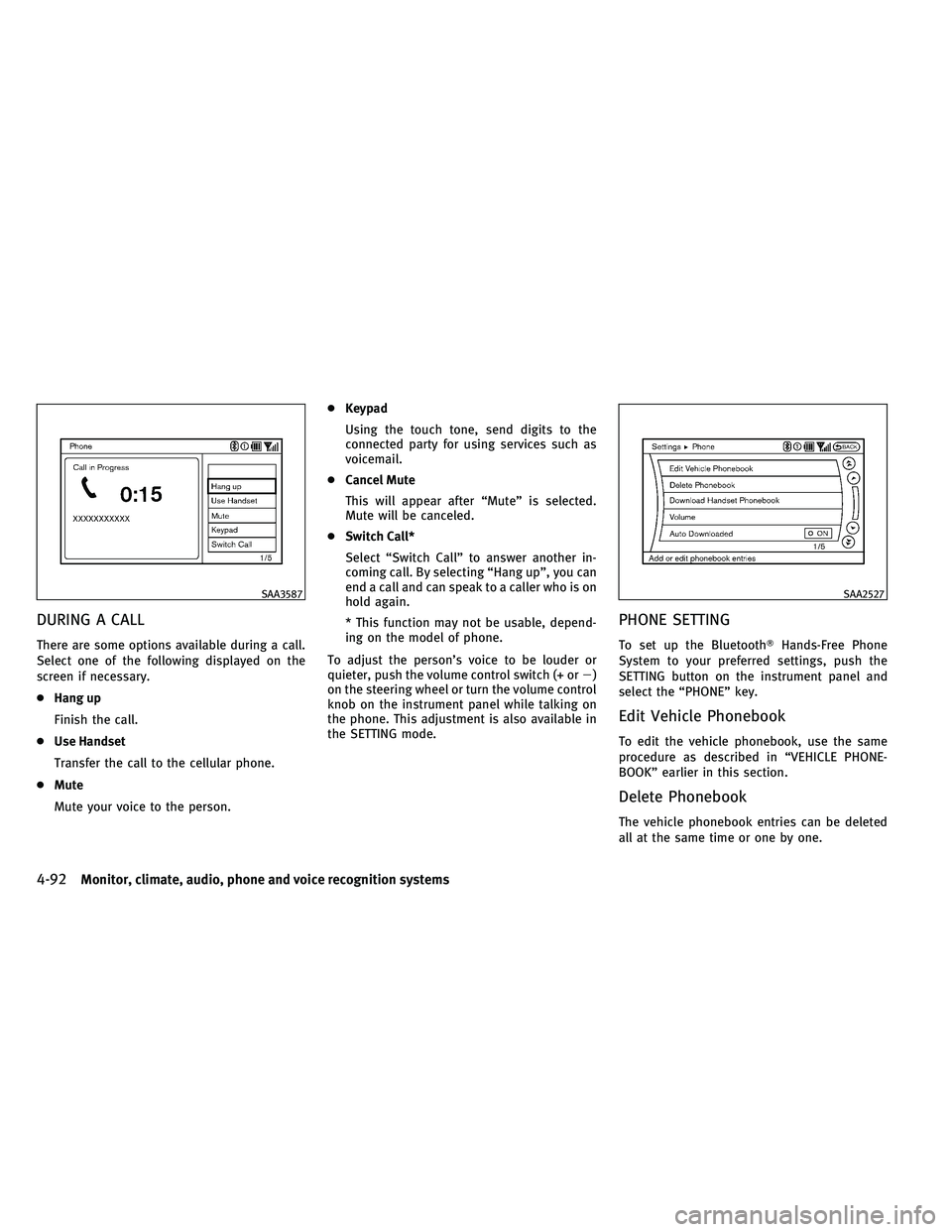

DURING A CALL
There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
●Hang up
Finish the call.
● Use Handset
Transfer the call to the cellular phone.
● Mute
Mute your voice to the person. ●
Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
● Cancel Mute
This will appear after “Mute” is selected.
Mute will be canceled.
● Switch Call*
Select “Switch Call” to answer another in-
coming call. By selecting “Hang up”, you can
end a call and can speak to a caller who is on
hold again.
* This function may not be usable, depend-
ing on the model of phone.
To adjust the person’s voice to be louder or
quieter, push the volume control switch (+ or )
on the steering wheel or turn the volume control
knob on the instrument panel while talking on
the phone. This adjustment is also available in
the SETTING mode.
PHONE SETTING
To set up the Bluetooth Hands-Free Phone
System to your preferred settings, push the
SETTING button on the instrument panel and
select the “PHONE” key.
Edit Vehicle Phonebook
To edit the vehicle phonebook, use the same
procedure as described in “VEHICLE PHONE-
BOOK” earlier in this section.
Delete Phonebook
The vehicle phonebook entries can be deleted
all at the same time or one by one.
SAA3587SAA2527
4-92Monitor, climate, audio, phone and voice recognition systems

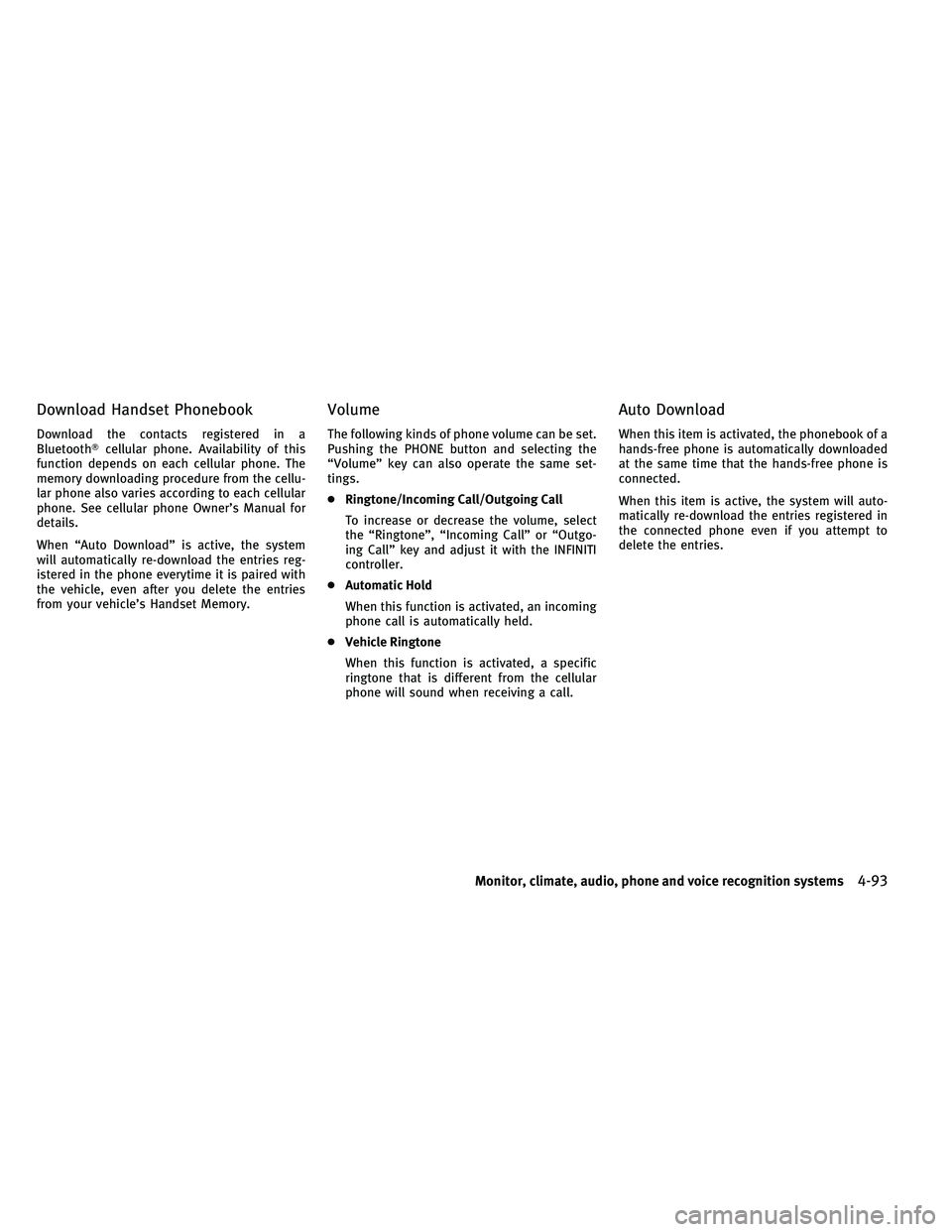

Download Handset Phonebook
Download the contacts registered in a
Bluetoothcellular phone. Availability of this
function depends on each cellular phone. The
memory downloading procedure from the cellu-
lar phone also varies according to each cellular
phone. See cellular phone Owner’s Manual for
details.
When “Auto Download” is active, the system
will automatically re-download the entries reg-
istered in the phone everytime it is paired with
the vehicle, even after you delete the entries
from your vehicle’s Handset Memory.
Volume
The following kinds of phone volume can be set.
Pushing the PHONE button and selecting the
“Volume” key can also operate the same set-
tings.
● Ringtone/Incoming Call/Outgoing Call
To increase or decrease the volume, select
the “Ringtone”, “Incoming Call” or “Outgo-
ing Call” key and adjust it with the INFINITI
controller.
● Automatic Hold
When this function is activated, an incoming
phone call is automatically held.
● Vehicle Ringtone
When this function is activated, a specific
ringtone that is different from the cellular
phone will sound when receiving a call.
Auto Download
When this item is activated, the phonebook of a
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
When this item is active, the system will auto-
matically re-download the entries registered in
the connected phone even if you attempt to
delete the entries.
Monitor, climate, audio, phone and voice recognition systems4-93

WARNING
●Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth
Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth Hands-
Free Phone System.
● Some Bluetooth enabled cellular phones
may not be recognized by the in-vehicle
phone module. ●
You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone service area.
– Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.
BLUETOOTH HANDS-FREE PHONE SYSTEM
(models without navigation system) (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-95

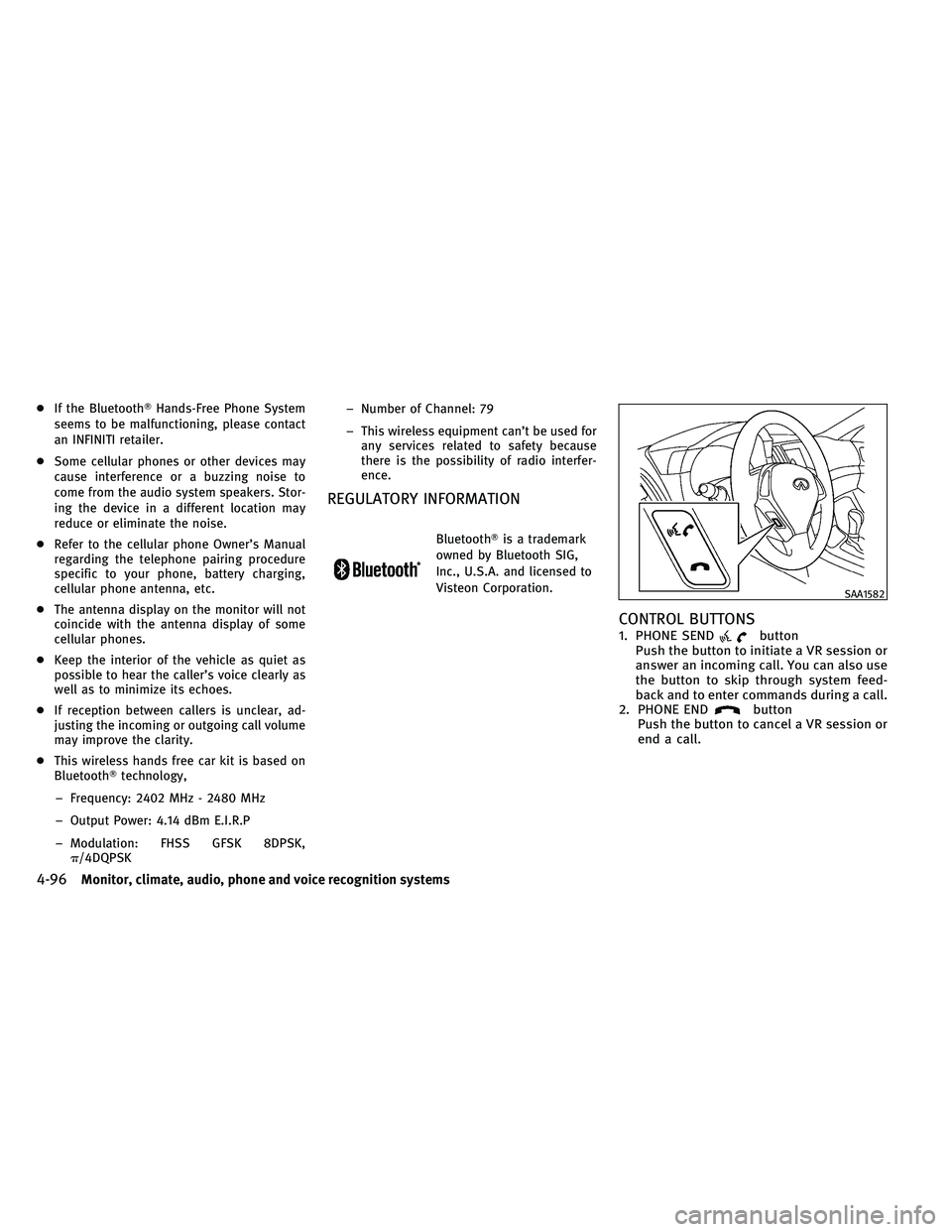

●If the Bluetooth Hands-Free Phone System
seems to be malfunctioning, please contact
an INFINITI retailer.
● Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers. Stor-
ing the device in a different location may
reduce or eliminate the noise.
● Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
● The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
● Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
● If reception between callers is unclear, ad-
justing the incoming or outgoing call volume
may improve the clarity.
● This wireless hands free car kit is based on
Bluetooth technology,
– Frequency: 2402 MHz - 2480 MHz
– Output Power: 4.14 dBm E.I.R.P
– Modulation: FHSS GFSK 8DPSK, /4DQPSK – Number of Channel: 79
– This wireless equipment can’t be used for
any services related to safety because
there is the possibility of radio interfer-
ence.
REGULATORY INFORMATION
Bluetooth is a trademark
owned by Bluetooth SIG,
Inc., U.S.A. and licensed to
Visteon Corporation.
CONTROL BUTTONS
1. PHONE SENDbutton
Push the button to initiate a VR session or
answer an incoming call. You can also use
the button to skip through system feed-
back and to enter commands during a call.
2. PHONE END
button
Push the button to cancel a VR session or
end a call.
SAA1582
4-96Monitor, climate, audio, phone and voice recognition systems

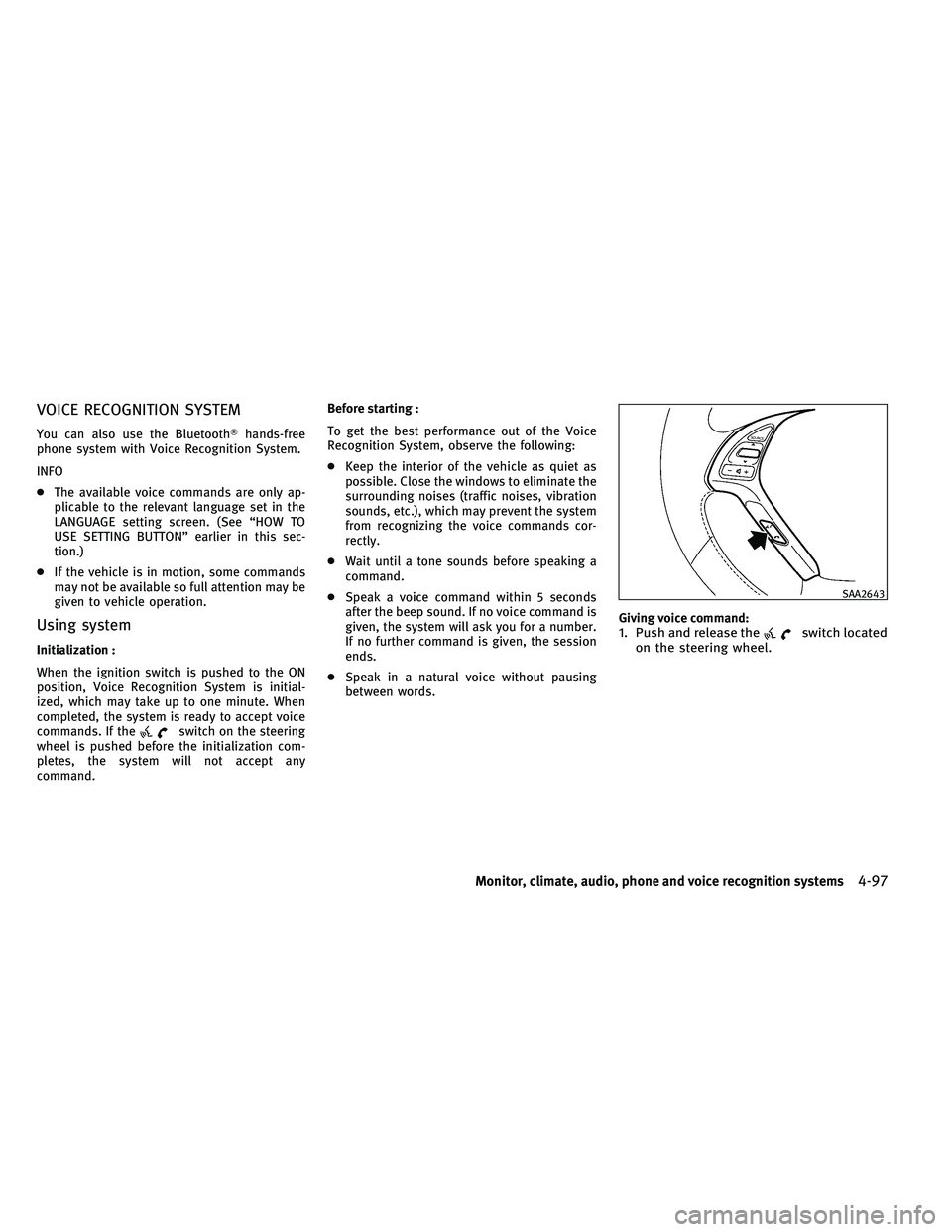

VOICE RECOGNITION SYSTEM
You can also use the Bluetoothhands-free
phone system with Voice Recognition System.
INFO
● The available voice commands are only ap-
plicable to the relevant language set in the
LANGUAGE setting screen. (See “HOW TO
USE SETTING BUTTON” earlier in this sec-
tion.)
● If the vehicle is in motion, some commands
may not be available so full attention may be
given to vehicle operation.
Using system
Initialization :
When the ignition switch is pushed to the ON
position, Voice Recognition System is initial-
ized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the
switch on the steering
wheel is pushed before the initialization com-
pletes, the system will not accept any
command. Before starting :
To get the best performance out of the Voice
Recognition System, observe the following:
●
Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● Wait until a tone sounds before speaking a
command.
● Speak a voice command within 5 seconds
after the beep sound. If no voice command is
given, the system will ask you for a number.
If no further command is given, the session
ends.
● Speak in a natural voice without pausing
between words. Giving voice command:
1. Push and release theswitch located
on the steering wheel.
SAA2643
Monitor, climate, audio, phone and voice recognition systems4-97

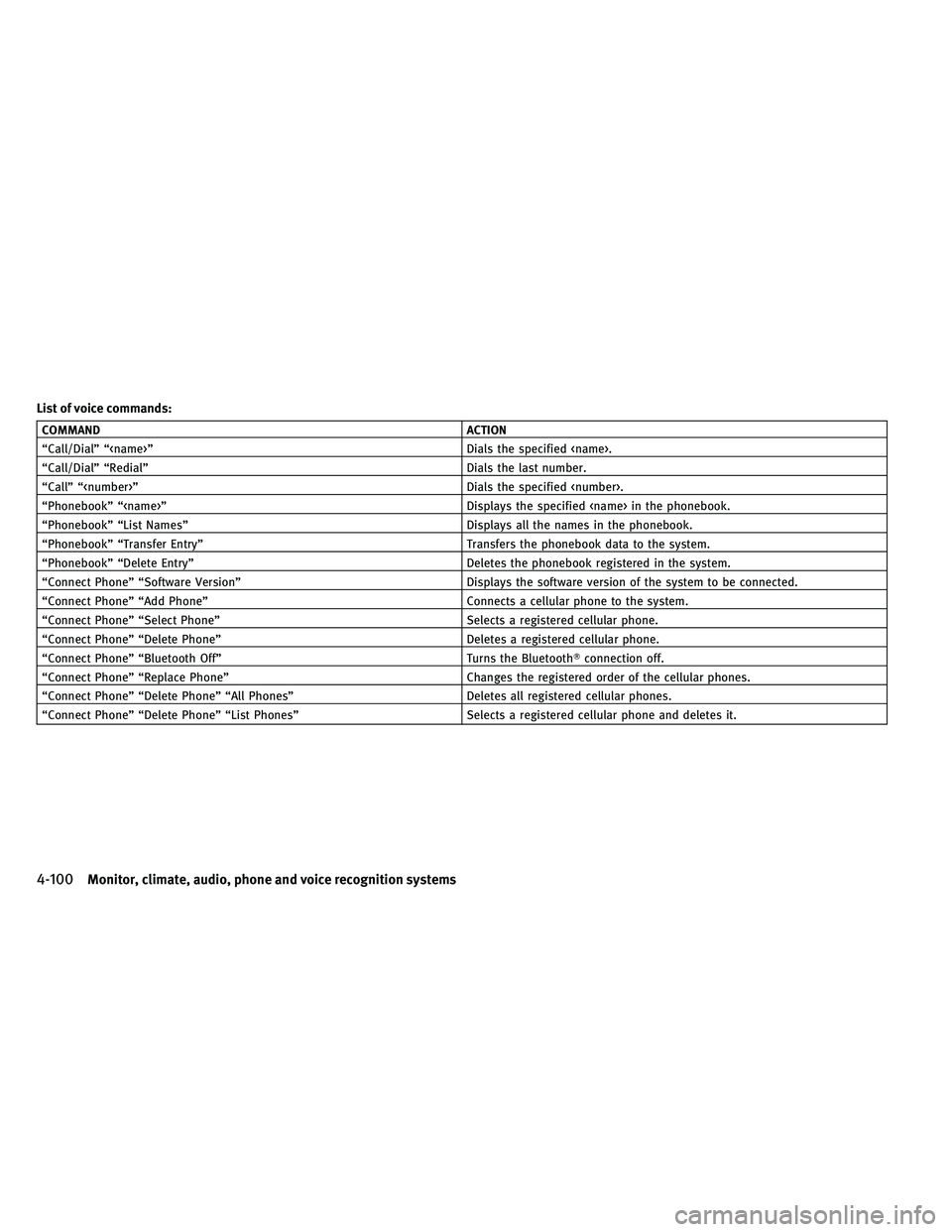

List of voice commands:
COMMANDACTION
“Call/Dial” “” Dials the specified .
“Call/Dial” “Redial” Dials the last number.
“Call” “” Dials the specified .
“Phonebook” “” Displays the specified in the phonebook.
“Phonebook” “List Names” Displays all the names in the phonebook.
“Phonebook” “Transfer Entry” Transfers the phonebook data to the system.
“Phonebook” “Delete Entry” Deletes the phonebook registered in the system.
“Connect Phone” “Software Version” Displays the software version of the system to be connected.
“Connect Phone” “Add Phone” Connects a cellular phone to the system.
“Connect Phone” “Select Phone” Selects a registered cellular phone.
“Connect Phone” “Delete Phone” Deletes a registered cellular phone.
“Connect Phone” “Bluetooth Off” Turns the Bluetoothconnection off.
“Connect Phone” “Replace Phone” Changes the registered order of the cellular phones.
“Connect Phone” “Delete Phone” “All Phones” Deletes all registered cellular phones.
“Connect Phone” “Delete Phone” “List Phones” Selects a registered cellular phone and deletes it.
4-100Monitor, climate, audio, phone and voice recognition systems

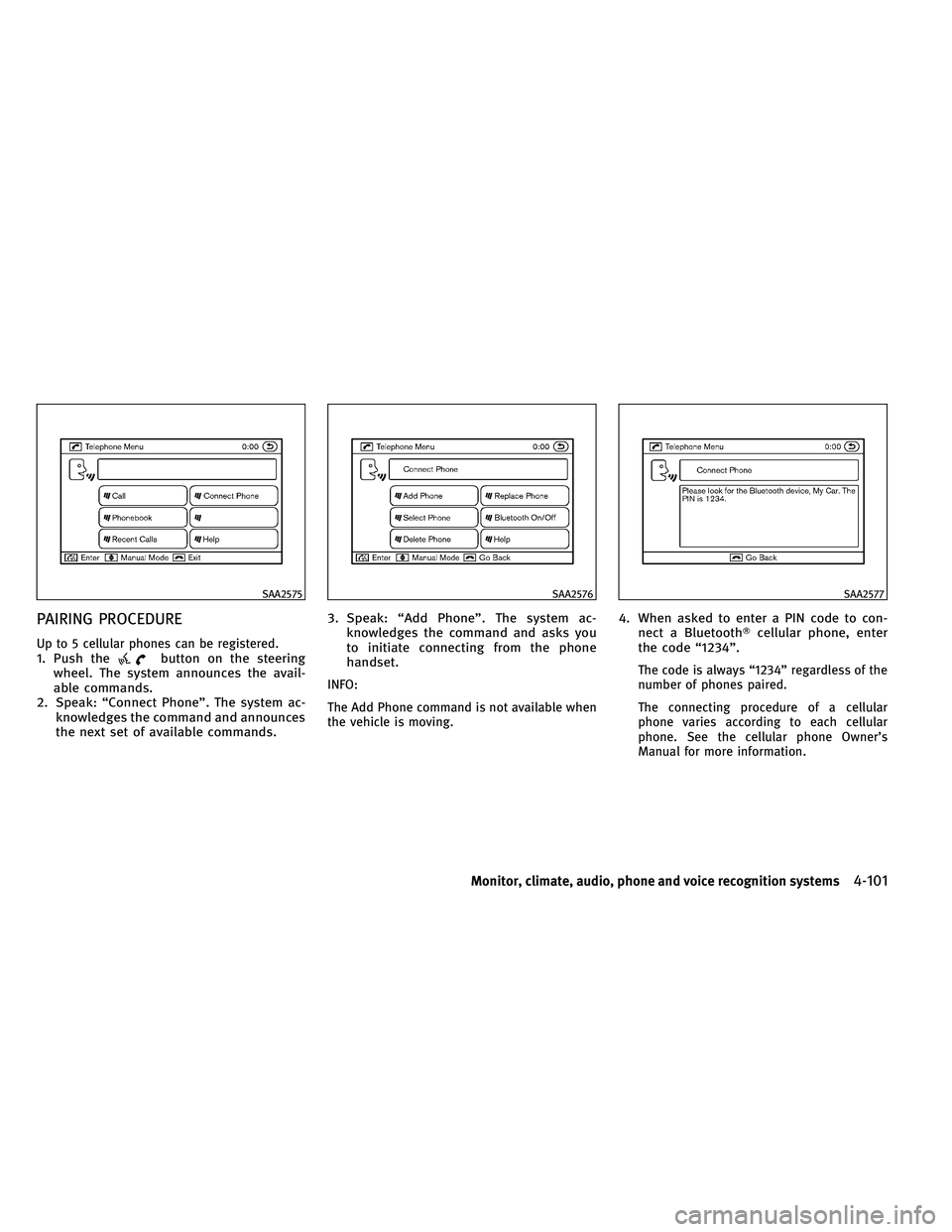

PAIRING PROCEDURE
Up to 5 cellular phones can be registered.1. Push thebutton on the steering
wheel. The system announces the avail-
able commands.
2. Speak: “Connect Phone”. The system ac- knowledges the command and announces
the next set of available commands. 3. Speak: “Add Phone”. The system ac-
knowledges the command and asks you
to initiate connecting from the phone
handset.
INFO:
The Add Phone command is not available when
the vehicle is moving.
4. When asked to enter a PIN code to con- nect a Bluetooth cellular phone, enter
the code “1234”.
The code is always “1234” regardless of the
number of phones paired.
The connecting procedure of a cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for more information.
SAA2575SAA2576SAA2577
Monitor, climate, audio, phone and voice recognition systems4-101

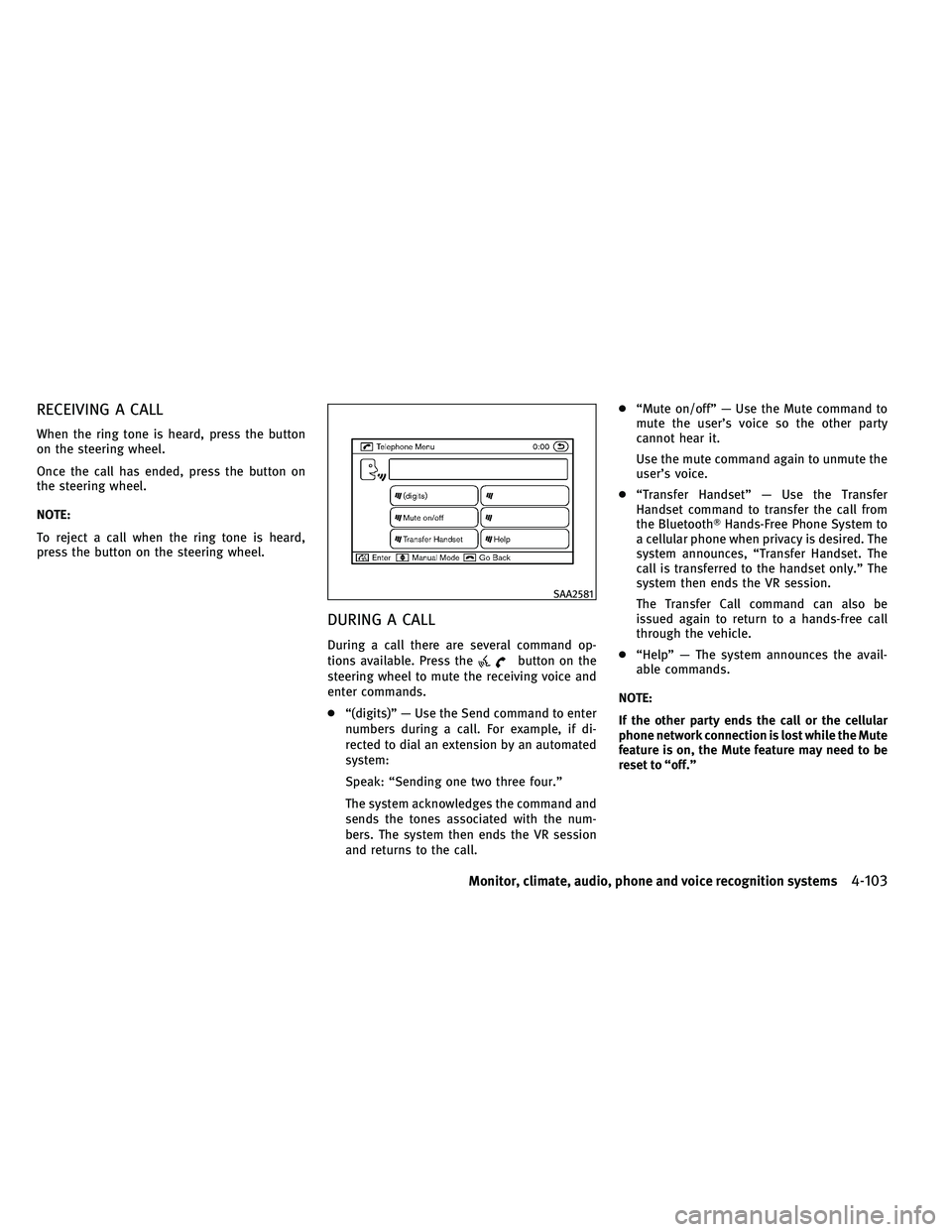

RECEIVING A CALL
When the ring tone is heard, press the button
on the steering wheel.
Once the call has ended, press the button on
the steering wheel.
NOTE:
To reject a call when the ring tone is heard,
press the button on the steering wheel.
DURING A CALL
During a call there are several command op-
tions available. Press thebutton on the
steering wheel to mute the receiving voice and
enter commands.
● “(digits)” — Use the Send command to enter
numbers during a call. For example, if di-
rected to dial an extension by an automated
system:
Speak: “Sending one two three four.”
The system acknowledges the command and
sends the tones associated with the num-
bers. The system then ends the VR session
and returns to the call. ●
“Mute on/off” — Use the Mute command to
mute the user’s voice so the other party
cannot hear it.
Use the mute command again to unmute the
user’s voice.
● “Transfer Handset” — Use the Transfer
Handset command to transfer the call from
the Bluetooth Hands-Free Phone System to
a cellular phone when privacy is desired. The
system announces, “Transfer Handset. The
call is transferred to the handset only.” The
system then ends the VR session.
The Transfer Call command can also be
issued again to return to a hands-free call
through the vehicle.
● “Help” — The system announces the avail-
able commands.
NOTE:
If the other party ends the call or the cellular
phone network connection is lost while the Mute
feature is on, the Mute feature may need to be
reset to “off.”
SAA2581
Monitor, climate, audio, phone and voice recognition systems4-103

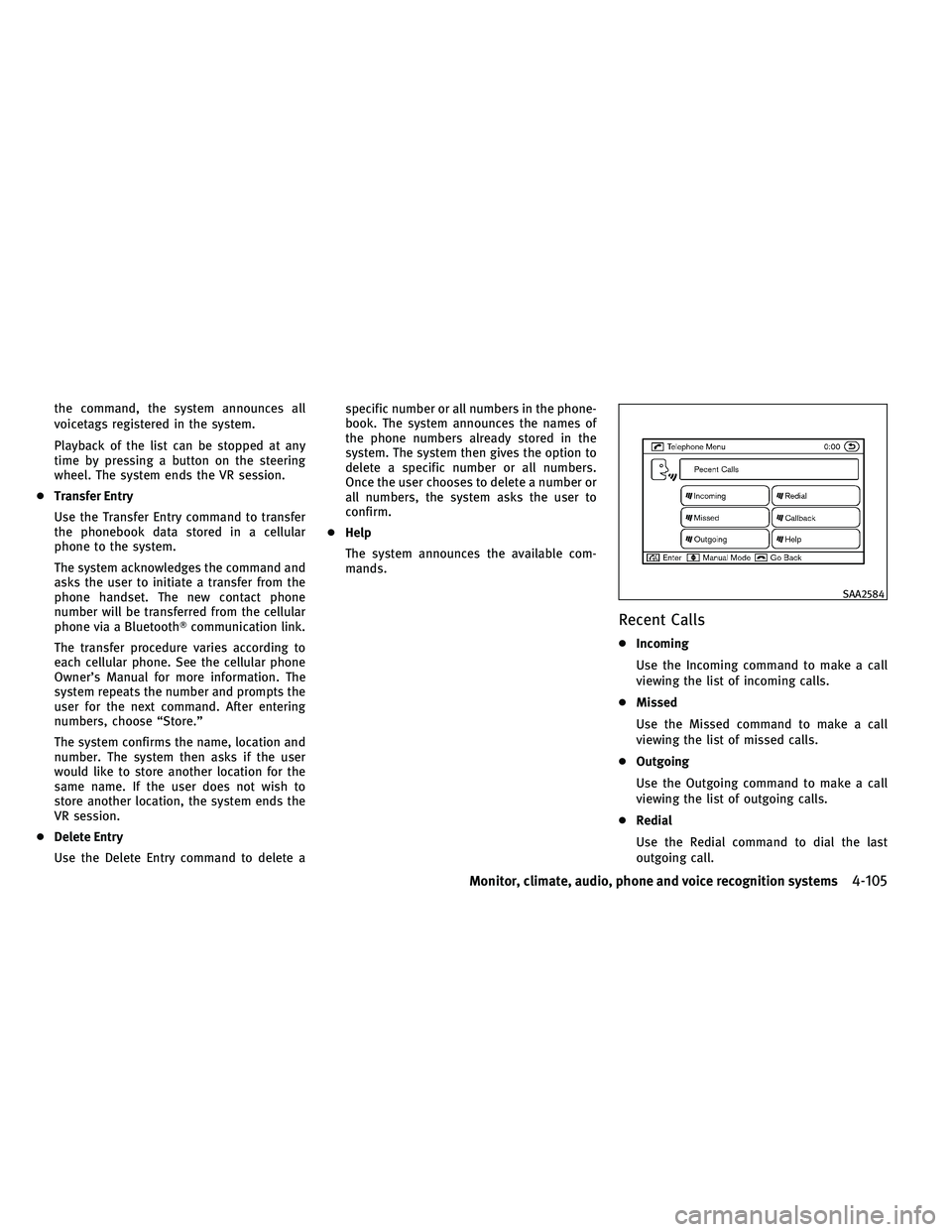

the command, the system announces all
voicetags registered in the system.
Playback of the list can be stopped at any
time by pressing a button on the steering
wheel. The system ends the VR session.
● Transfer Entry
Use the Transfer Entry command to transfer
the phonebook data stored in a cellular
phone to the system.
The system acknowledges the command and
asks the user to initiate a transfer from the
phone handset. The new contact phone
number will be transferred from the cellular
phone via a Bluetooth communication link.
The transfer procedure varies according to
each cellular phone. See the cellular phone
Owner’s Manual for more information. The
system repeats the number and prompts the
user for the next command. After entering
numbers, choose “Store.”
The system confirms the name, location and
number. The system then asks if the user
would like to store another location for the
same name. If the user does not wish to
store another location, the system ends the
VR session.
● Delete Entry
Use the Delete Entry command to delete a specific number or all numbers in the phone-
book. The system announces the names of
the phone numbers already stored in the
system. The system then gives the option to
delete a specific number or all numbers.
Once the user chooses to delete a number or
all numbers, the system asks the user to
confirm.
● Help
The system announces the available com-
mands.
Recent Calls
● Incoming
Use the Incoming command to make a call
viewing the list of incoming calls.
● Missed
Use the Missed command to make a call
viewing the list of missed calls.
● Outgoing
Use the Outgoing command to make a call
viewing the list of outgoing calls.
● Redial
Use the Redial command to dial the last
outgoing call.
SAA2584
Monitor, climate, audio, phone and voice recognition systems4-105
