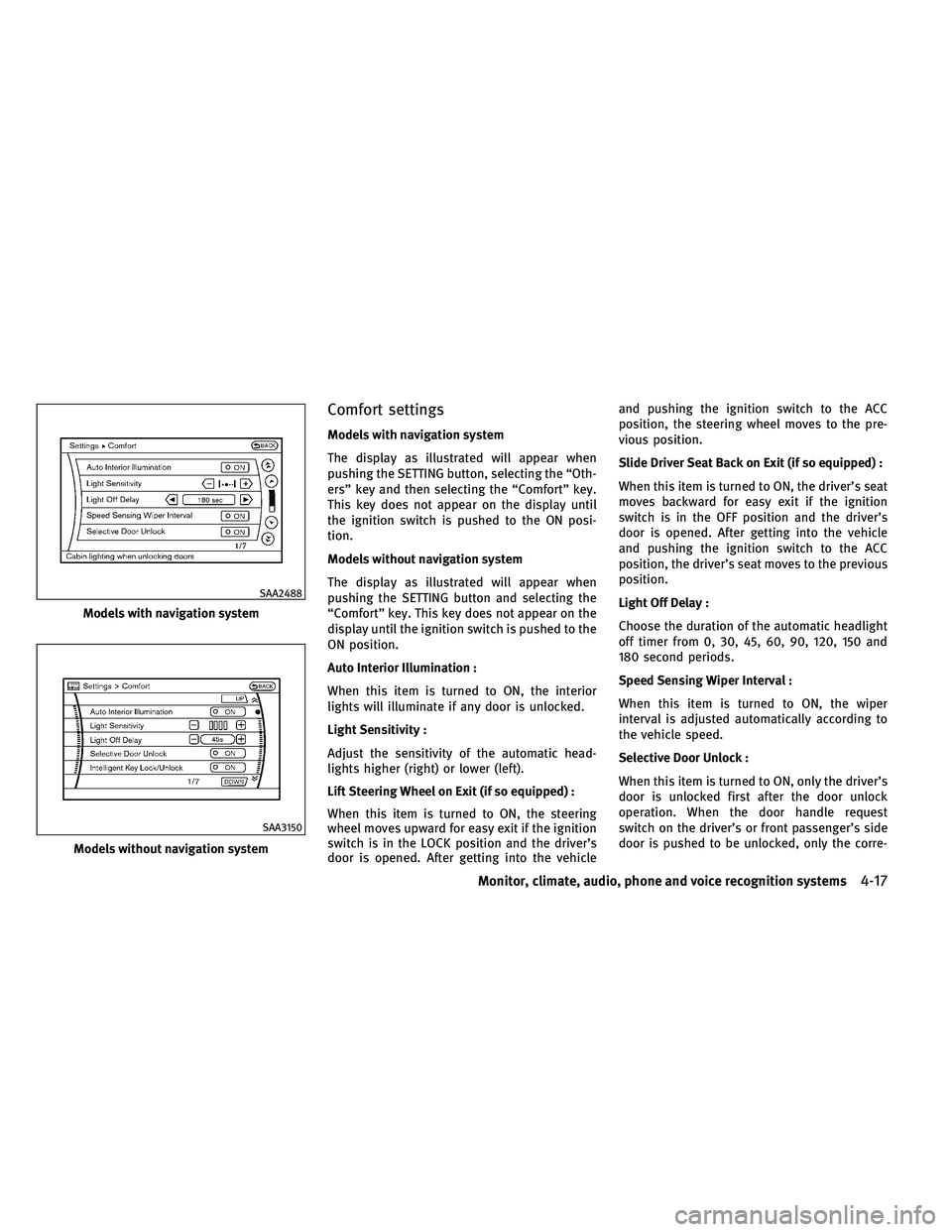

Comfort settings
Models with navigation system
The display as illustrated will appear when
pushing the SETTING button, selecting the “Oth-
ers” key and then selecting the “Comfort” key.
This key does not appear on the display until
the ignition switch is pushed to the ON posi-
tion.
Models without navigation system
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Comfort” key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination :
When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity :
Adjust the sensitivity of the automatic head-
lights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so equipped) :
When this item is turned to ON, the steering
wheel moves upward for easy exit if the ignition
switch is in the LOCK position and the driver’s
door is opened. After getting into the vehicleand pushing the ignition switch to the ACC
position, the steering wheel moves to the pre-
vious position.
Slide Driver Seat Back on Exit (if so equipped) :
When this item is turned to ON, the driver’s seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver’s
door is opened. After getting into the vehicle
and pushing the ignition switch to the ACC
position, the driver’s seat moves to the previous
position.
Light Off Delay :
Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval :
When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock :
When this item is turned to ON, only the driver’s
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corre-
Models with navigation system
SAA2488
Models without navigation system
SAA3150
Monitor, climate, audio, phone and voice recognition systems4-17

sponding door is unlocked first. All the doors
can be unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock :
When this item is turned to ON, door
lock/unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default :
Select this item and then select “YES” to return
all settings to the default.
Language & Units settings
The Language & Units settings display will
appear when pushing the SETTING button, se-
lecting the “Language & Units” key with the
INFINITI controller and pushing the ENTER but-
ton.
For models with the navigation system, select
the “Others” key to show the “Language &
Units” key.
Select Language :
Select the “Select Language” key. Choose “Eng-
lish”, “Français” or “Español” for your favorite
display appearance.If you select the “Français” key, the French
language will be displayed, so please use the
French Owner’s Manual. To obtain a French
Owner’s Manual, see “OWNER’S
MANUAL/SERVICE MANUAL ORDER INFORMA-
TION” in the “9. Technical and consumer infor-
mation” section.
Select Units :
Select the “Select Units” key. Choose “US”
(Mile, °F, MPG) or “Metric” (km, °C, L/100 km)
for your favorite display appearance.
Voice Recognition settings (models
with navigation system)
For details about the “Voice Recognition” set-
tings, see “INFINITI VOICE RECOGNITION SYS-
TEM (models with navigation system)” later in
this section.
SAA2490
4-18Monitor, climate, audio, phone and voice recognition systems

Camera settings (if so equipped)
The “CAMERA” screen will appear when select-
ing the “Camera” key with the INFINITI control-
ler and pushing theENTERbutton.
For the details about the camera system opera-
tion, see “REARVIEW MONITOR” later in this
section.
Predictive Course Lines :
When this item is turned to ON, the predicted
course lines will be displayed on the monitor
when the selector/shift lever is in the “R”
(Reverse) position.
Models with navigation system
SAA2404
Models without navigation system
SAA2606
Models with navigation system
SAA2971
Models without navigation system
SAA2920
Monitor, climate, audio, phone and voice recognition systems4-19

Sonar settings (if so equipped)
The “Sonar” screen will appear when selecting
the “Sonar” key with the INFINITI controller and
pushing theENTERbutton.
For the details of the sonar system operation,
see “SONAR SYSTEM” in the “5. Starting and
driving” section.
Sonar Display :
When this item is turned ON, the corner/center
sonar indicator will appear when the parking
sensors detect front or rear obstacles near the
bumper.
Corner Sonar Sensitivity :
Adjust the sensitivity level of the corner sonar
higher (right) or lower (left).
Centre Sonar Sensitivity :
Adjust the sensitivity level of the center sonar
higher (right) or lower (left).
Image Viewer (models with
navigation system)
The image files in the USB memory will be
displayed. To display the Image Viewer, push
the SETTING button, select the “Other” key and
then select the “Image Viewer” key. The image
of the selected file is displayed on the right side
of the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking
brake. Full Screen Display :
The full screen display will appear when select-
ing the “Full Screen Display” key.
To operate the Image Viewer or to change the
settings, select the desired key using the
INFINITI controller.
●
(Start)
Select the “
” key to start playing the
slideshow.
●
(Stop)
Select the “
” key to stop the slide-
show.
SAA2491SAA2492
4-20Monitor, climate, audio, phone and voice recognition systems

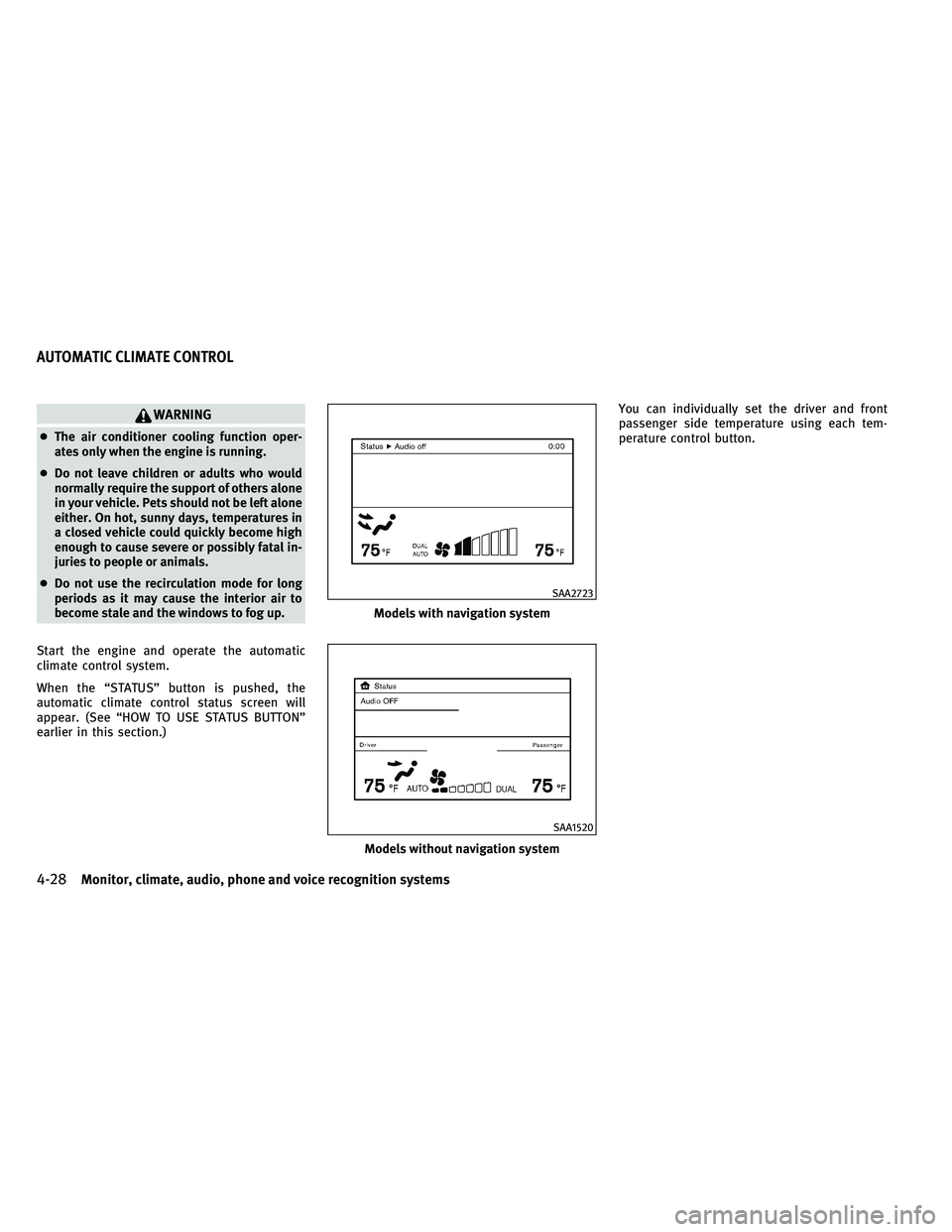

WARNING
●The air conditioner cooling function oper-
ates only when the engine is running.
● Do not leave children or adults who would
normally require the support of others alone
in your vehicle. Pets should not be left alone
either. On hot, sunny days, temperatures in
a closed vehicle could quickly become high
enough to cause severe or possibly fatal in-
juries to people or animals.
● Do not use the recirculation mode for long
periods as it may cause the interior air to
become stale and the windows to fog up.
Start the engine and operate the automatic
climate control system.
When the “STATUS” button is pushed, the
automatic climate control status screen will
appear. (See “HOW TO USE STATUS BUTTON”
earlier in this section.) You can individually set the driver and front
passenger side temperature using each tem-
perature control button.
Models with navigation system
SAA2723
Models without navigation system
SAA1520
AUTOMATIC CLIMATE CONTROL
4-28Monitor, climate, audio, phone and voice recognition systems

To return to the automatic control mode, push
the intake air control button until the indicator
light on the “
” side illuminates. The
advanced climate control system turns on and
the intake air will be controlled automatically.
To turn system off
Push the OFF button.
Advanced climate control system
The advanced climate control system keeps the
air inside of the vehicle clean, using the ion
control and the automatic air intake control with
outside odor and exhaust gas detecting sensor. Ion control :
This unit generates highly concentrated Plas-
macluster ions into the air blown from the
ventilators and reduces odor absorbed into the
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster ions automati-
cally.
The amount of Plasmacluster ions increases
according to the amount of air flow. When the
air flow is high, “
” is displayed on the
screen and when the air flow is low, the indica-
tion in the screen changes to “
”.
Outside odor and exhaust gas detection sensor :
This vehicle is equipped with an outside odor
and exhaust gas detection sensor. When the
automatic intake air control is ON, the sensor
detects odors and exhaust gas, and then the
system automatically changes from the outside
air circulation mode to the recirculation mode.
When the intake air control button is pushed
under the following conditions, the indicator
light on the “
” side will illuminate and the
outside odor and exhaust gas detection sensor
will turn on.
Models with navigation system
SAA2734
Models without navigation system
SAA2735
4-36Monitor, climate, audio, phone and voice recognition systems

DVD (Digital Versatile Disc) player
(models with navigation system)
●Do not force a compact disc into the CD/DVD
insert slot. This could damage the CD/DVD
player. ●
During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the CD/DVD and dehumidify
or ventilate the player completely.
● The player may skip while driving on rough
roads.
● The CD/DVD player sometimes cannot func-
tion when the passenger compartment tem-
perature is extremely high. Decrease the
temperature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” or “DVD Video” logo on the disc or
packaging.
● Do not expose the CD/DVD to direct sunlight.
● CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or that
have pinholes may not work properly.
● The following CD/DVDs are not guaranteed
to play:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
– Recordable DVDs (DVD±R, DVD±R DL)
– Rewritable DVDs (DVD±RW, DVD±RW DL) ●
Do not use the following CD/DVDs as they
may cause the CD/DVD player to malfunc-
tion.
– 3.1 in (8 cm) discs
– CD/DVDs that are not round
– CD/DVDs with a paper label
– CD/DVDs that are warped, scratched or have abnormal edges
– This audio system can only play prere- corded CD/DVDs. It has no capabilities to
record or burn CD/DVDs.
● If the CD/DVD cannot be played, one of the
following messages will be displayed.
Disc Read Error:
– Confirm that the CD/DVD is inserted cor- rectly (the label side is facing up, etc.).
– Confirm that the CD/DVD is not bent or warped and it is free of scratches.
Please Eject Disc: – This may be an error due to the tempera- ture inside the player being too high.
Remove the CD/DVD by pushing the EJECT
button, and after a short time reinsert the
CD/DVD. The CD/DVD can be played when
the temperature of the player returns to
LHA0484
Monitor, climate, audio, phone and voice recognition systems4-41

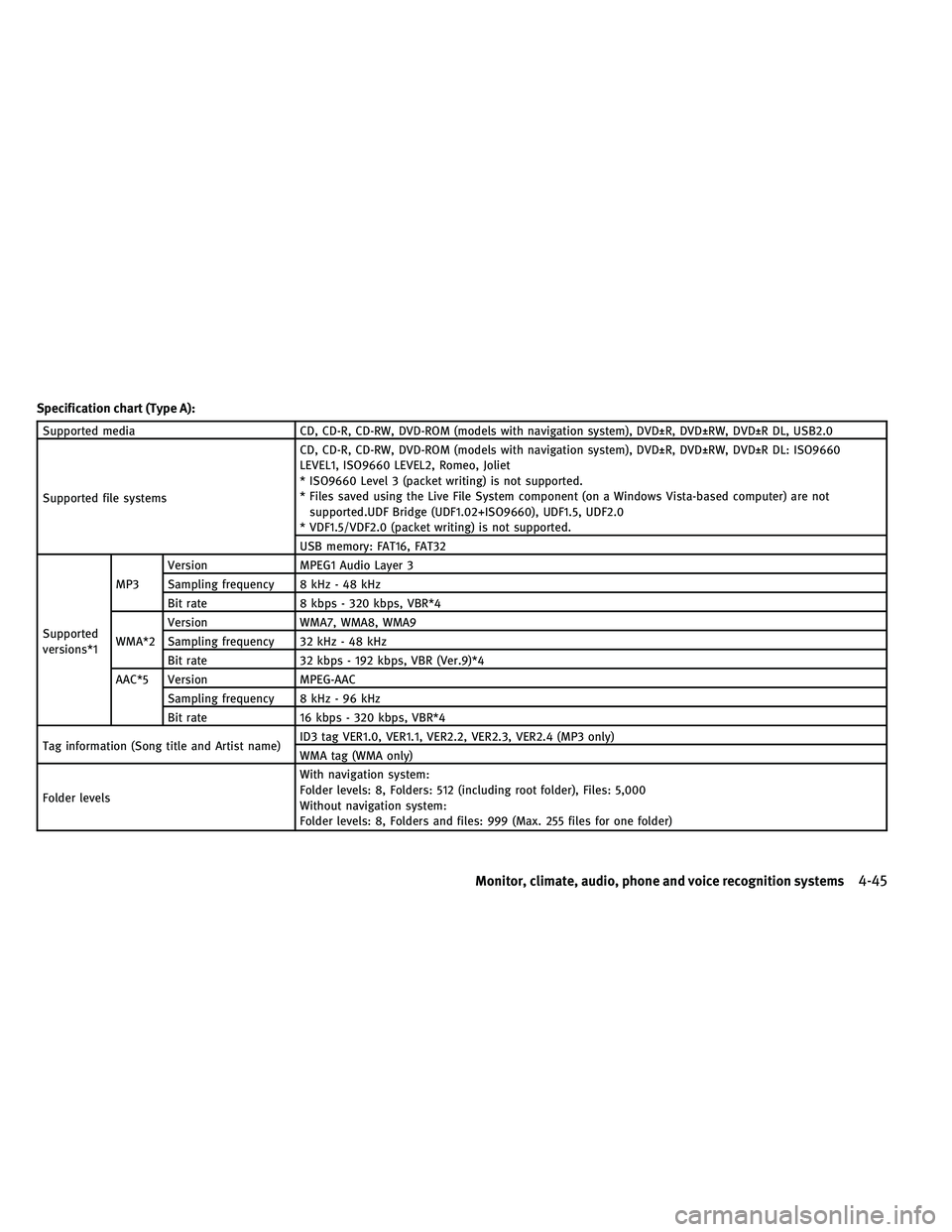

Specification chart (Type A):
Supported mediaCD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL, USB2.0
Supported file systems CD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL: ISO9660
LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are not
supported.UDF Bridge (UDF1.02+ISO9660), UDF1.5, UDF2.0
* VDF1.5/VDF2.0 (packet writing) is not supported.
USB memory: FAT16, FAT32
Supported
versions*1 MP3
Version
MPEG1 Audio Layer 3
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version
WMA7, WMA8, WMA9
Sampling frequency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR (Ver.9)*4
AAC*5 Version MPEG-AAC
Sampling frequency 8 kHz - 96 kHz
Bit rate 16 kbps - 320 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
Folder levels With navigation system:
Folder levels: 8, Folders: 512 (including root folder), Files: 5,000
Without navigation system:
Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
Monitor, climate, audio, phone and voice recognition systems4-45

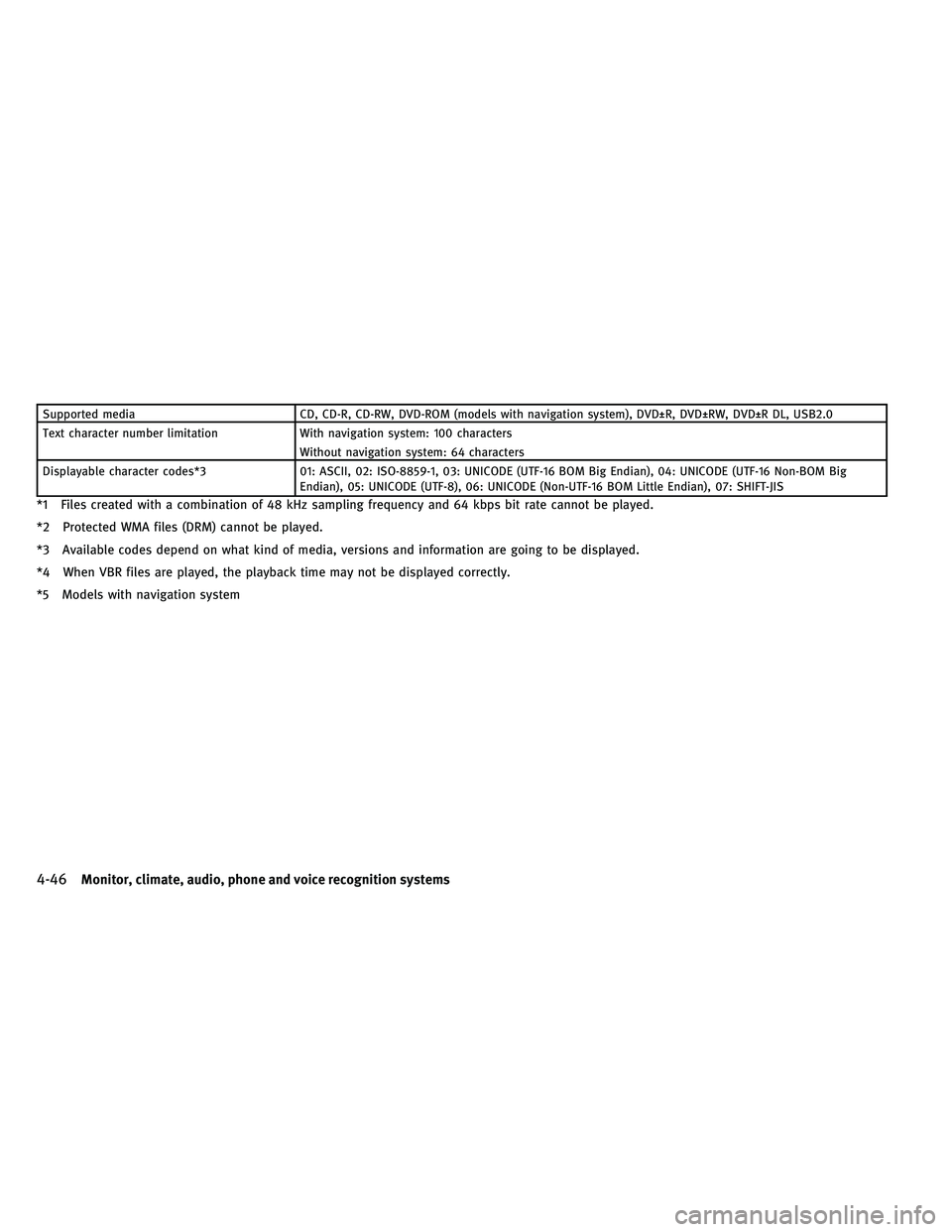

Supported mediaCD, CD-R, CD-RW, DVD-ROM (models with navigation system), DVD±R, DVD±RW, DVD±R DL, USB2.0
Text character number limitation With navigation system: 100 characters
Without navigation system: 64 characters
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM Big
Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian), 07: SHIFT-JIS
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
*5 Models with navigation system
4-46Monitor, climate, audio, phone and voice recognition systems

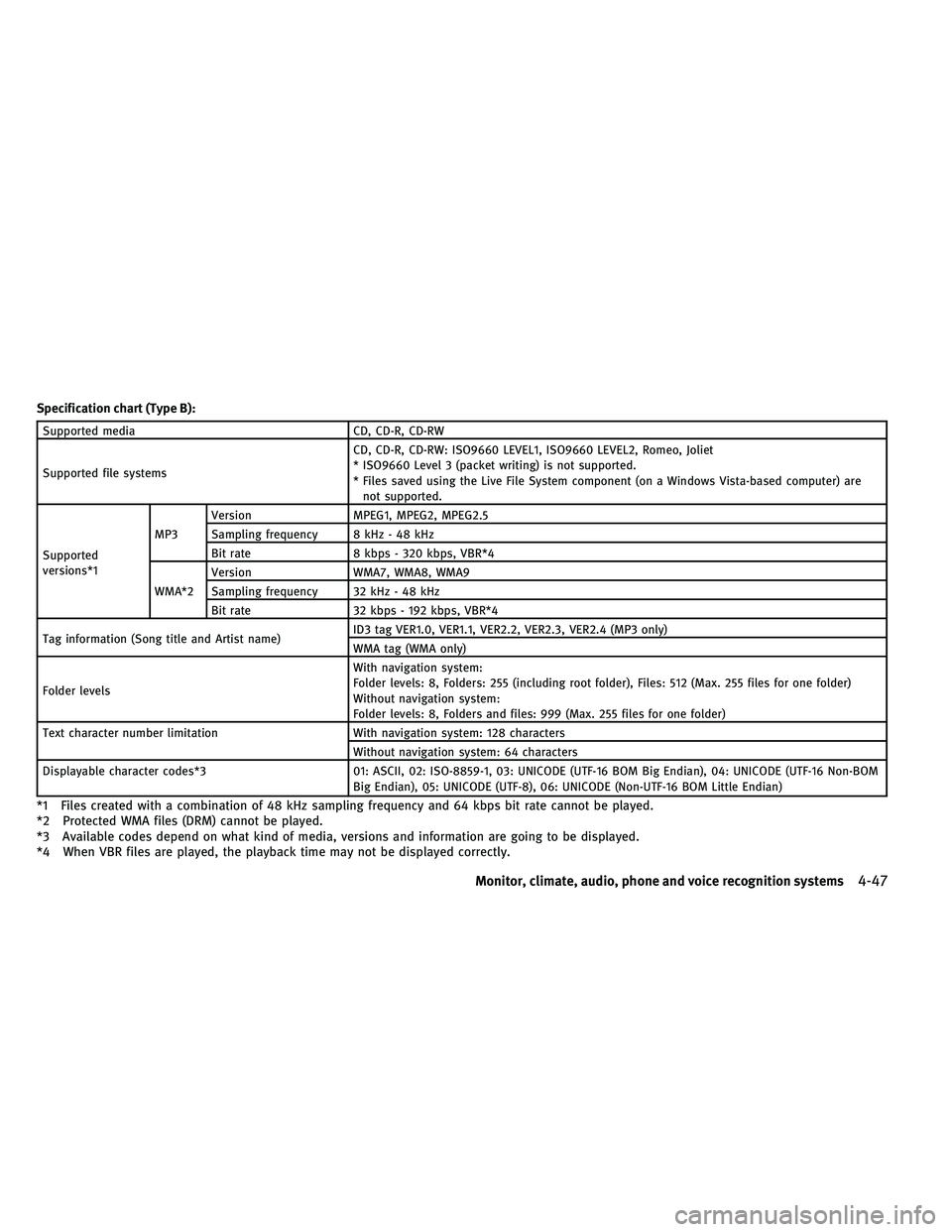

Specification chart (Type B):
Supported mediaCD, CD-R, CD-RW
Supported file systems CD, CD-R, CD-RW: ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet
* ISO9660 Level 3 (packet writing) is not supported.
* Files saved using the Live File System component (on a Windows Vista-based computer) are
not supported.
Supported
versions*1 MP3
Version
MPEG1, MPEG2, MPEG2.5
Sampling frequency 8 kHz - 48 kHz
Bit rate 8 kbps - 320 kbps, VBR*4
WMA*2 Version
WMA7, WMA8, WMA9
Sampling frequency 32 kHz - 48 kHz
Bit rate 32 kbps - 192 kbps, VBR*4
Tag information (Song title and Artist name) ID3 tag VER1.0, VER1.1, VER2.2, VER2.3, VER2.4 (MP3 only)
WMA tag (WMA only)
Folder levels With navigation system:
Folder levels: 8, Folders: 255 (including root folder), Files: 512 (Max. 255 files for one folder)
Without navigation system:
Folder levels: 8, Folders and files: 999 (Max. 255 files for one folder)
Text character number limitation With navigation system: 128 characters
Without navigation system: 64 characters
Displayable character codes*3 01: ASCII, 02: ISO-8859-1, 03: UNICODE (UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Non-BOM
Big Endian), 05: UNICODE (UTF-8), 06: UNICODE (Non-UTF-16 BOM Little Endian)
*1 Files created with a combination of 48 kHz sampling frequency and 64 kbps bit rate cannot be played.
*2 Protected WMA files (DRM) cannot be played.
*3 Available codes depend on what kind of media, versions and information are going to be displayed.
*4 When VBR files are played, the playback time may not be displayed correctly.
Monitor, climate, audio, phone and voice recognition systems4-47
