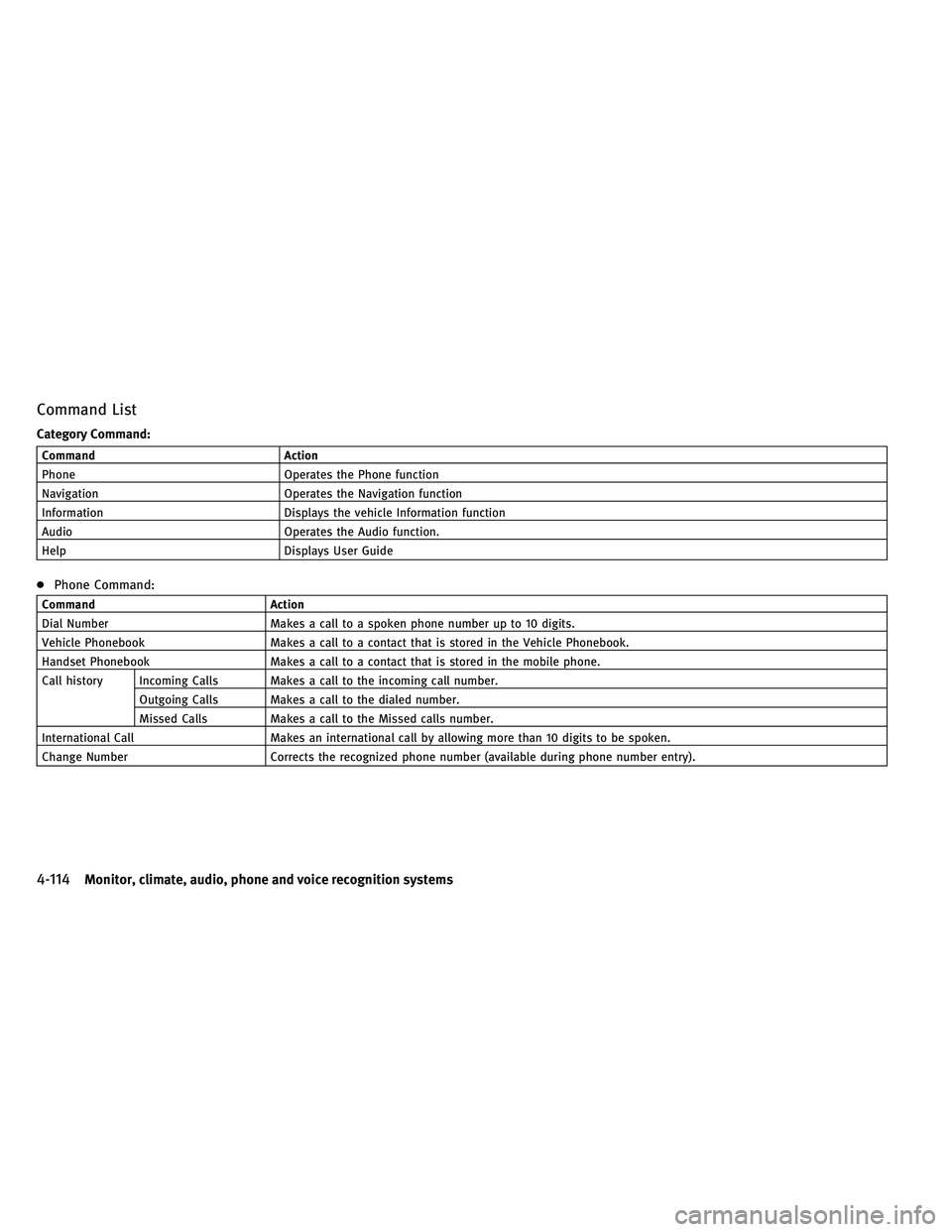

Command List
Category Command:
CommandAction
Phone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide
●Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number. Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry).
4-114Monitor, climate, audio, phone and voice recognition systems

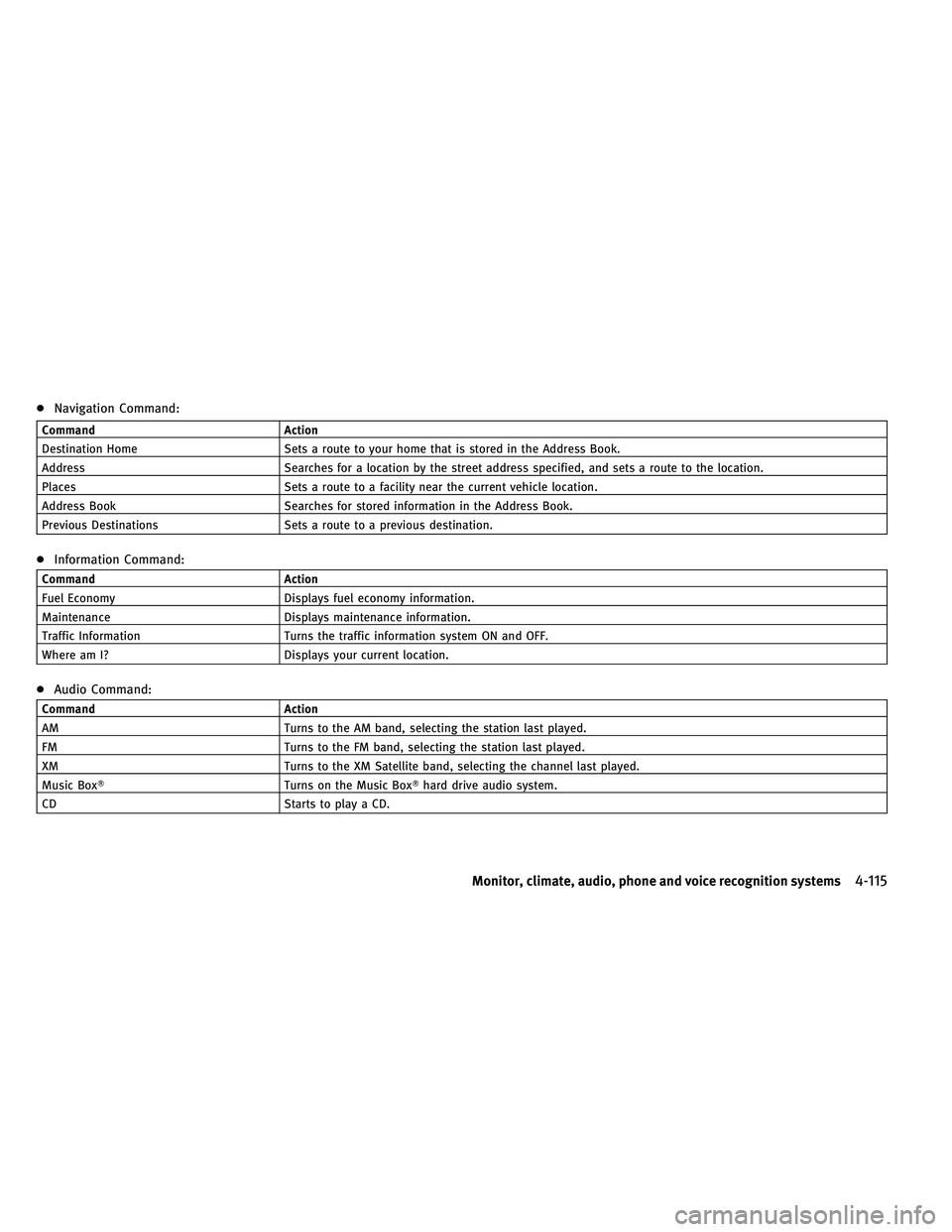

●Navigation Command:
Command Action
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
●Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location.
●Audio Command:
Command Action
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box Turns on the Music Boxhard drive audio system.
CD Starts to play a CD.
Monitor, climate, audio, phone and voice recognition systems4-115

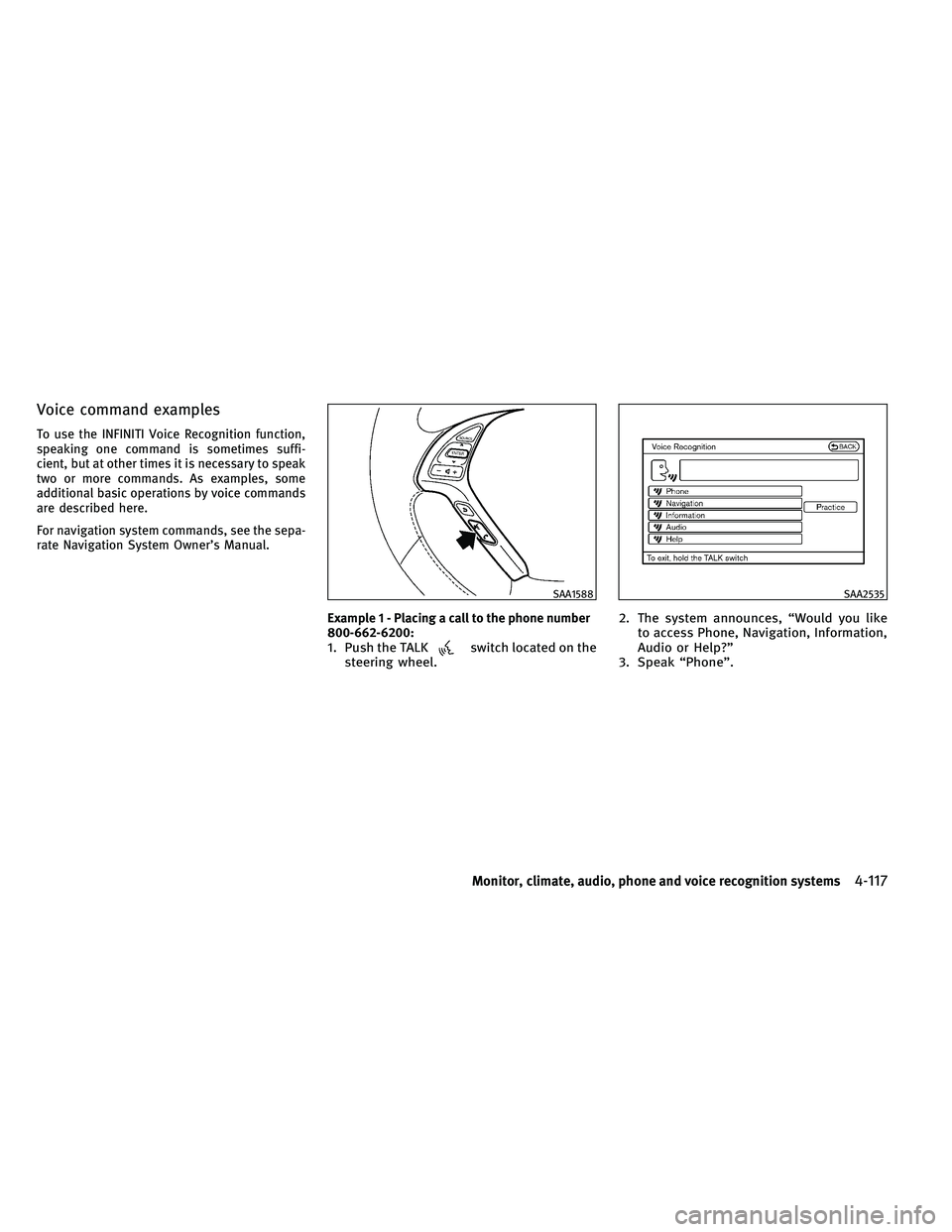

Voice command examples
To use the INFINITI Voice Recognition function,
speaking one command is sometimes suffi-
cient, but at other times it is necessary to speak
two or more commands. As examples, some
additional basic operations by voice commands
are described here.
For navigation system commands, see the sepa-
rate Navigation System Owner’s Manual.Example 1 - Placing a call to the phone number
800-662-6200:
1. Push the TALKswitch located on the
steering wheel. 2. The system announces, “Would you like
to access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”.
SAA1588SAA2535
Monitor, climate, audio, phone and voice recognition systems4-117

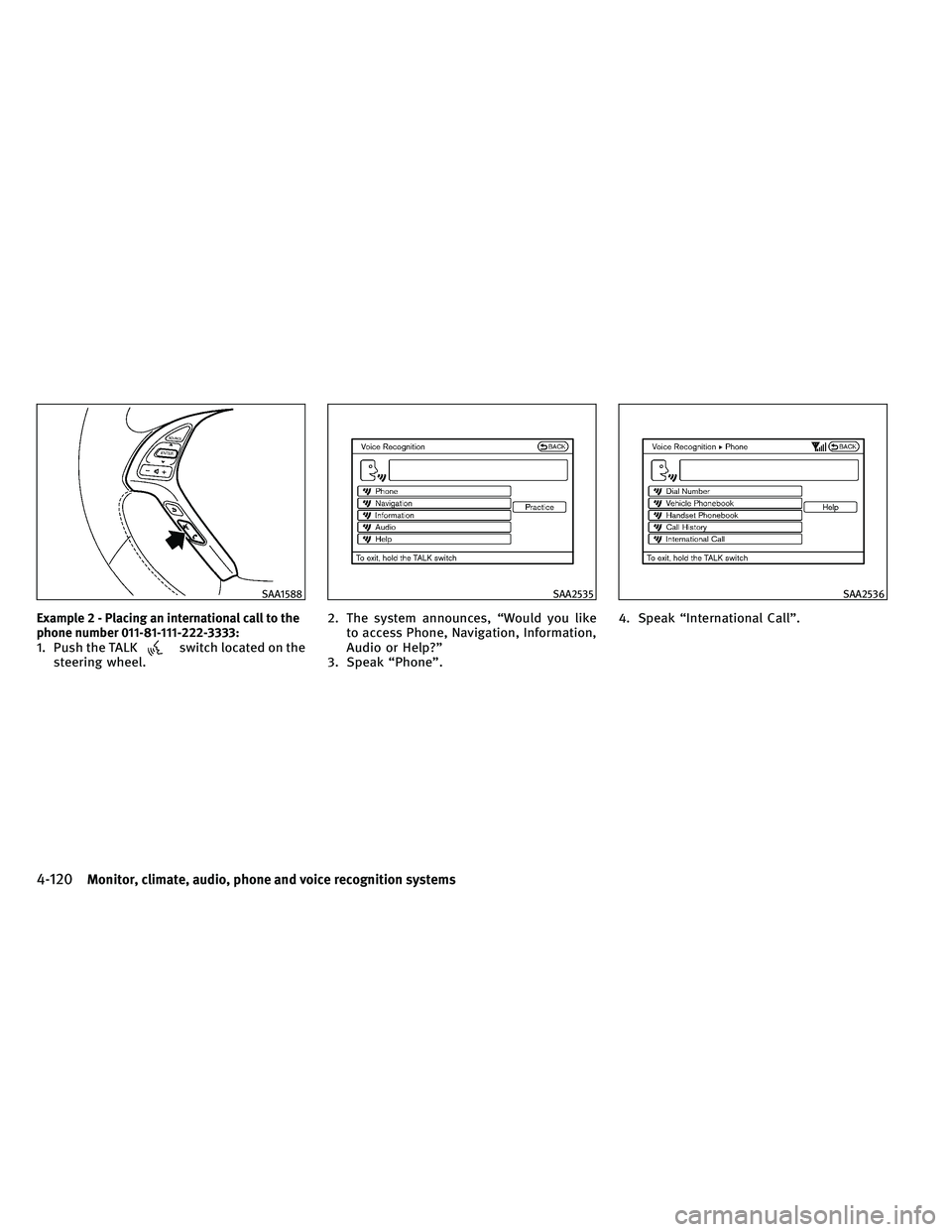

Example 2 - Placing an international call to the
phone number 011-81-111-222-3333:
1. Push the TALKswitch located on the
steering wheel. 2. The system announces, “Would you like
to access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”. 4. Speak “International Call”.
SAA1588SAA2535SAA2536
4-120Monitor, climate, audio, phone and voice recognition systems

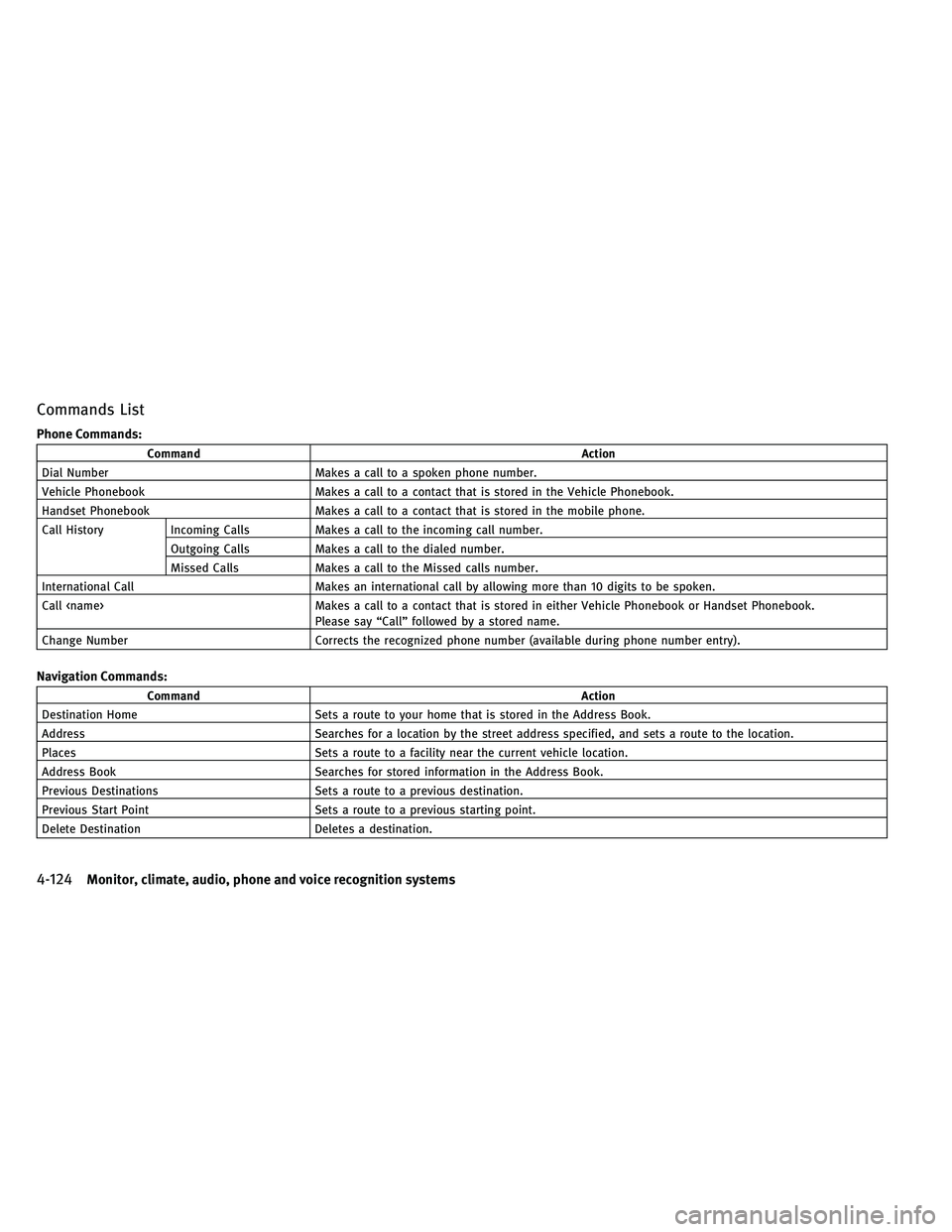

Commands List
Phone Commands:
CommandAction
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call Makes a call to a contact that is stored in either Vehicle Phonebook or Handset Phonebook.
Please say “Call” followed by a stored name.
Change Number Corrects the recognized phone number (available during phone number entry).
Navigation Commands:
Command Action
Destination Home Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination.
Previous Start Point Sets a route to a previous starting point.
Delete Destination Deletes a destination.
4-124Monitor, climate, audio, phone and voice recognition systems

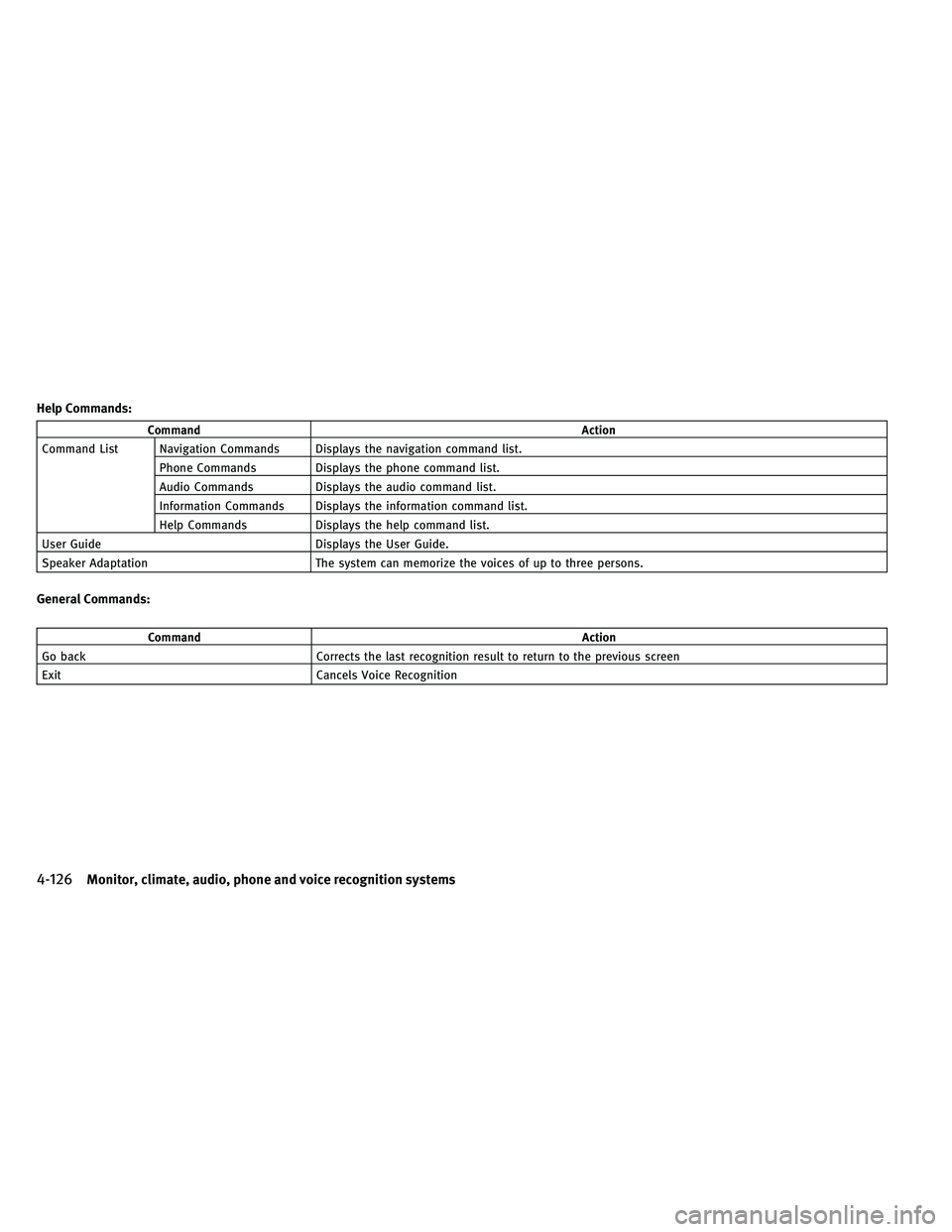

Help Commands:
CommandAction
Command List Navigation Commands Displays the navigation command list. Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide.
Speaker Adaptation The system can memorize the voices of up to three persons.
General Commands:
Command Action
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
4-126Monitor, climate, audio, phone and voice recognition systems

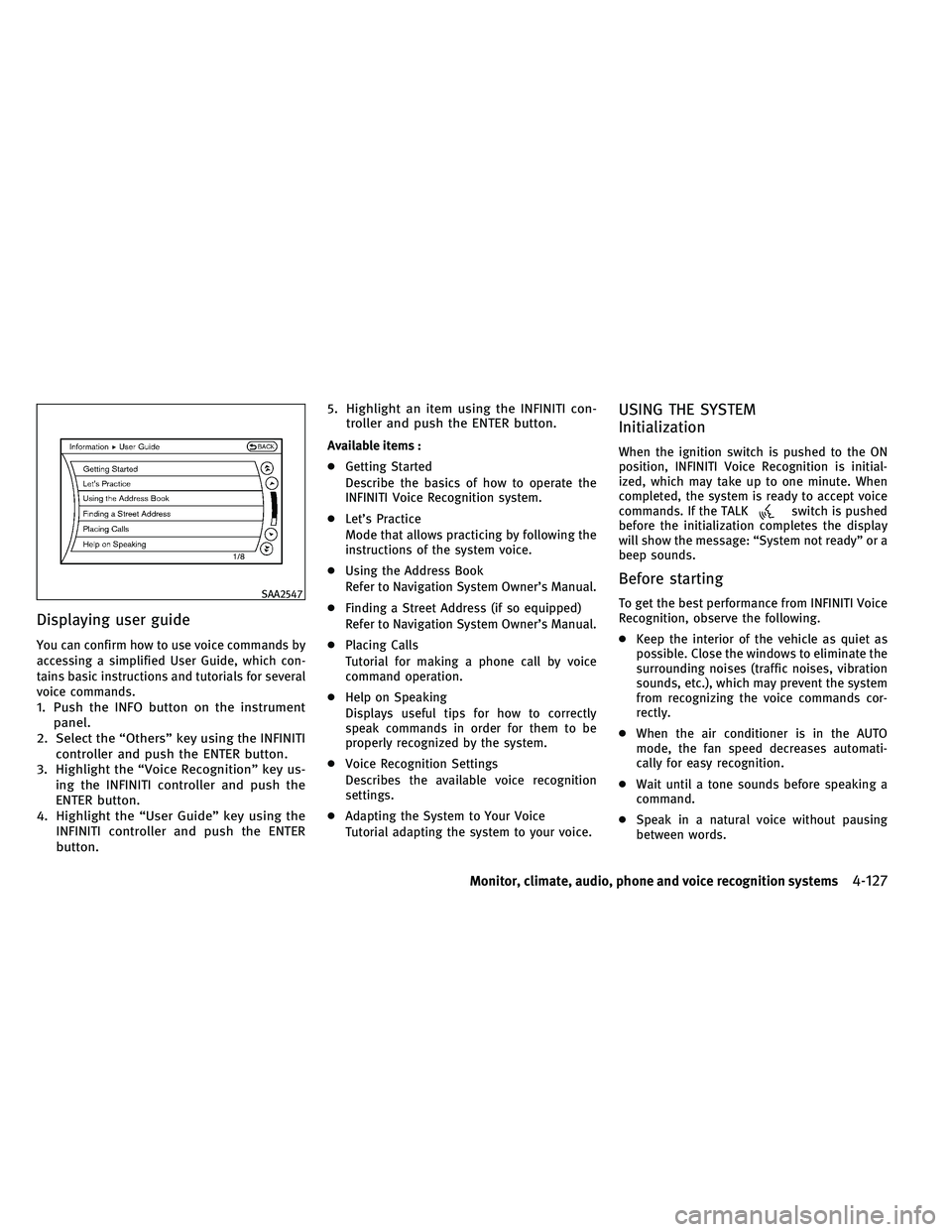

Displaying user guide
You can confirm how to use voice commands by
accessing a simplified User Guide, which con-
tains basic instructions and tutorials for several
voice commands.
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key using the INFINITI controller and push the ENTER button.
3. Highlight the “Voice Recognition” key us- ing the INFINITI controller and push the
ENTER button.
4. Highlight the “User Guide” key using the INFINITI controller and push the ENTER
button. 5. Highlight an item using the INFINITI con-
troller and push the ENTER button.
Available items :
● Getting Started
Describe the basics of how to operate the
INFINITI Voice Recognition system.
● Let’s Practice
Mode that allows practicing by following the
instructions of the system voice.
● Using the Address Book
Refer to Navigation System Owner’s Manual.
● Finding a Street Address (if so equipped)
Refer to Navigation System Owner’s Manual.
● Placing Calls
Tutorial for making a phone call by voice
command operation.
● Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system.
● Voice Recognition Settings
Describes the available voice recognition
settings.
● Adapting the System to Your Voice
Tutorial adapting the system to your voice.
USING THE SYSTEM
Initialization
When the ignition switch is pushed to the ON
position, INFINITI Voice Recognition is initial-
ized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes the display
will show the message: “System not ready” or a
beep sounds.
Before starting
To get the best performance from INFINITI Voice
Recognition, observe the following.
● Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.), which may prevent the system
from recognizing the voice commands cor-
rectly.
● When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
● Wait until a tone sounds before speaking a
command.
● Speak in a natural voice without pausing
between words.SAA2547
Monitor, climate, audio, phone and voice recognition systems4-127

4. Select the user whose voice is memorizedby the system.
5. Select the “Start Speaker Adaptation Learning” key. 6. Select a category to be learned by the
system from the following list.
●Phone Commands
● Navigation Commands
● Information Commands
● Audio Commands
● Help Commands
The voice commands in the category are
displayed.
7. Select a voice command and then push the ENTER button.
The voice recognition system starts.
8. The system requests that you repeat a command after a tone.
9. After the tone sounds and the icon on the screen changes from
to,
speak the command that the system re-
quested.
10. When the system has recognized the voice command, the voice of the user is
learned.
Push theswitch or BACK button to return
to the previous screen.
If the system has learned the command cor-
rectly, the voice command status on the right
side of the command turns from “None” to
“Stored”.
SAA2550SAA2551SAA2552
4-130Monitor, climate, audio, phone and voice recognition systems

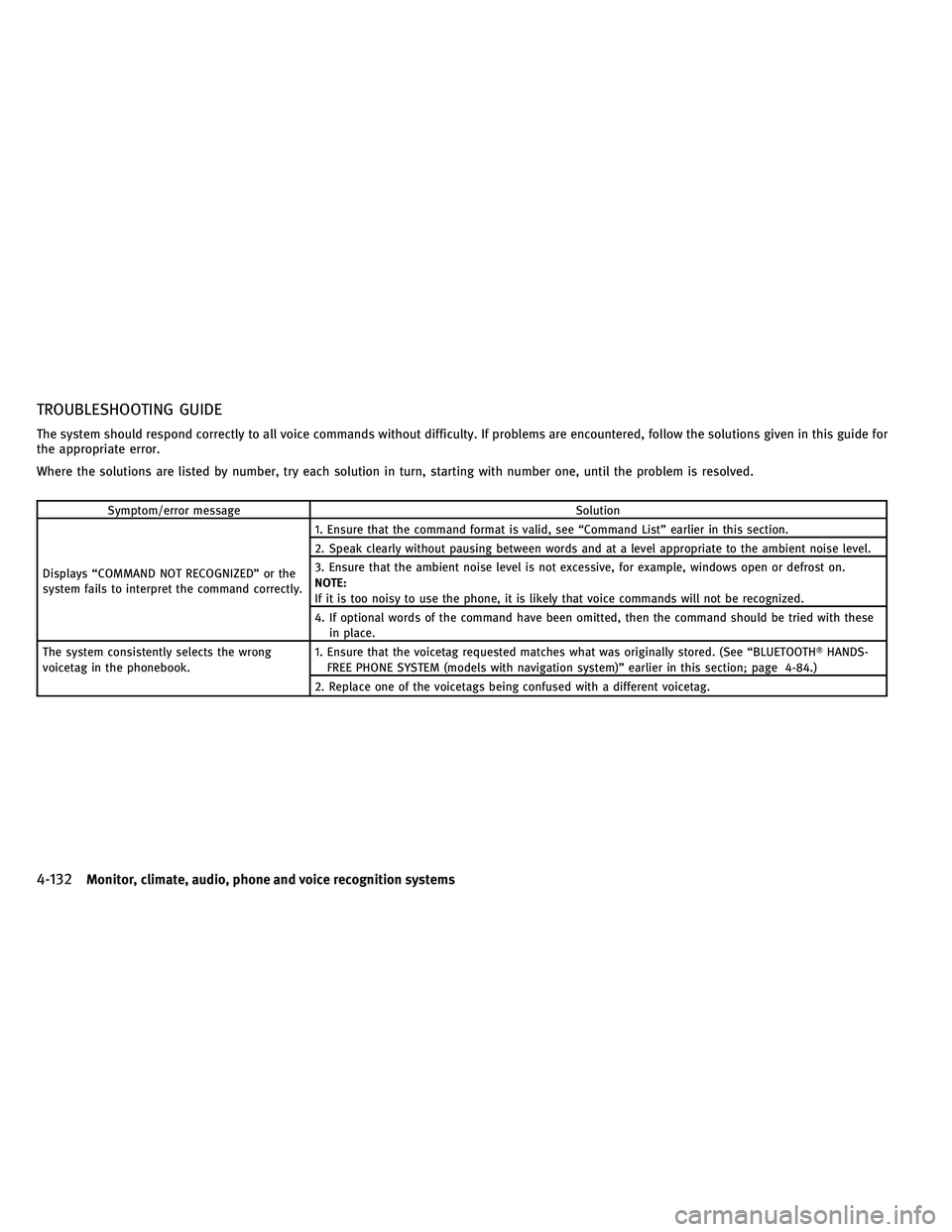

TROUBLESHOOTING GUIDE
The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in this guide for
the appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.
Symptom/error messageSolution
Displays “COMMAND NOT RECOGNIZED” or the
system fails to interpret the command correctly. 1. Ensure that the command format is valid, see “Command List” earlier in this section.
2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these
in place.
The system consistently selects the wrong
voicetag in the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See “BLUETOOTH
HANDS-
FREE PHONE SYSTEM (models with navigation system)” earlier in this section; page 4-84.)
2. Replace one of the voicetags being confused with a different voicetag.
4-132Monitor, climate, audio, phone and voice recognition systems
