6-2In case of emergency
In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada)
for details.To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
.
Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
If the vehicle is being driven with low tire
pressure, the TPMS will activate and warn
you of it by the low tire pressure warning
light. This system will activate only when
the vehicle is driven at speeds above 16
MPH (25 km/h). For more details, see
“Warning/indicator lights and audible re-
minders” (P.2-12) and “Tire Pressure Mon-
itoring System (TPMS)” (P.5-4).
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
ROADSIDE ASSISTANCE PROGRAM EMERGENCY ENGINE SHUT OFF FLAT TIRE

the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instruc-
tions below.
Stopping the vehicle
1. Safely move the vehicle off the road
and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the selector lever
to the P (Park) position (Automatic
transmission models). Move the shift
lever to the R (Reverse) gear (Manual
transmission models).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assis-
tance personnel that you need assis-
tance.
6. Have all passengers get out of the vehicle and stand in a safe place, away
from traffic and clear of the vehicle.
WARNING
. Make sure the parking brake is securely
applied and the manual transmission is
shifted into R (Reverse), or the automatic
transmission into P (Park).
. Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
. Never change tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
In case of emergency6-3

8-4Maintenance and do-it-yourself
During the normal day-to-day operation of
the vehicle, general maintenance should
be performed regularly as prescribed in
this section. If you detect any unusual
sounds, vibrations or smell, be sure to
check for the cause or have an INFINITI
retailer do it promptly. In addition, you
should notify an INFINITI retailer if you
think that repairs are required.
When performing any checks or mainte-
nance work, see“Maintenance precau-
tions” (P.8-6).
EXPLANATION OF MAINTENANCE
ITEMS
Additional information on the following
items with “*” is found later in this
section.
Outside the vehicle
The maintenance items listed here should
be performed from time to time, unless
otherwise specified.
Doors and engine hood: Check that all
doors and the engine hood, operate
properly. Also ensure that all latches lock
securely. Lubricate hinges, latches, latch
pins, rollers and links if necessary. Make
sure that the secondary latch keeps the
hood from opening when the primary latch is released.
When driving in areas using road salt or
other corrosive materials, check lubrication
frequently.
Lights*:
Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and
other lights are all operating properly and
installed securely. Also check headlight
aim.
Road wheel nuts (lug nuts)*: When check-
ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.
Tire rotation*: Tires should be rotated
every 7,500 miles (12,000 km). If your
vehicle is equipped with different sized
tires in the front and rear, tires cannot be
rotated.
Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in
all tires, including the spare, to the
pressure specified. Check carefully for
damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap when the tires are replaced due to
wear or age.
Tire, wheel alignment and balance:
If the
vehicle should pull to either side while
driving on a straight and level road, or if
you detect uneven or abnormal tire wear,
there may be a need for wheel alignment.
If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada)
in the INFINITI Warranty Information Book-
let.
Windshield: Clean the windshield on a
regular basis. Check the windshield at
least every six months for cracks or other
damage. Have a damaged windshield
repaired by a qualified repair facility.
Windshield wiper blades*: Check for
cracks or wear if they do not wipe properly.
Inside the vehicle
The maintenance items listed here should
be checked on a regular basis, such as
when performing periodic maintenance,
cleaning the vehicle, etc.
GENERAL MAINTENANCE

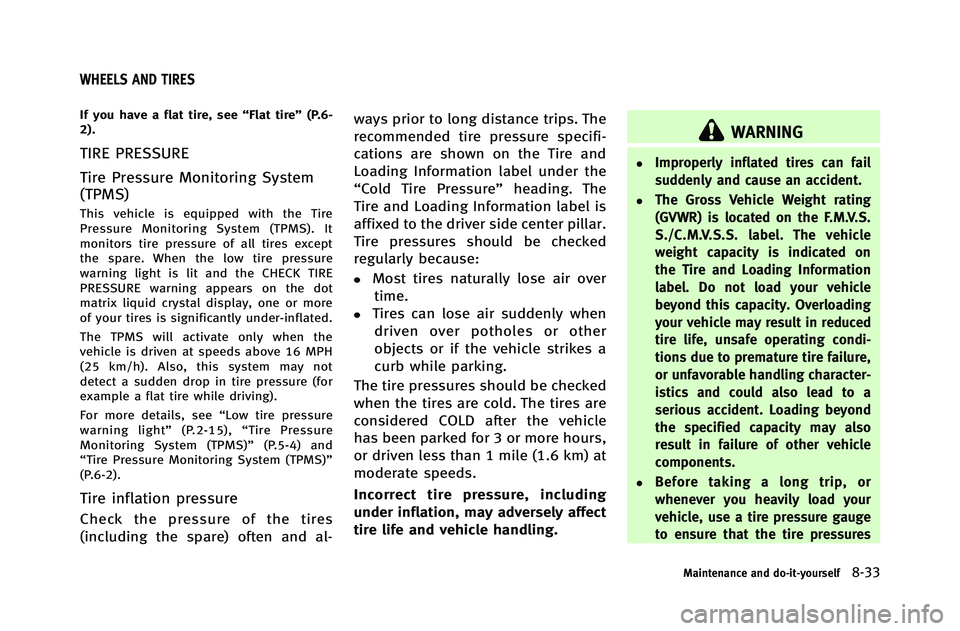

If you have a flat tire, see“Flat tire”(P.6-
2).
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-15),“Tire Pressure
Monitoring System (TPMS)” (P.5-4) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-2).
Tire inflation pressure
Check the pressure of the tires
(including the spare) often and al- ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure”
heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly whendriven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.
S./C.M.V.S.S. label. The vehicle
weight capacity is indicated on
the Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Overloading
your vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire failure,
or unfavorable handling character-
istics and could also lead to a
serious accident. Loading beyond
the specified capacity may also
result in failure of other vehicle
components.
.Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
Maintenance and do-it-yourself8-33
WHEELS AND TIRES

specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.
All season tires
INFINITI specifies all season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and
may be more appropriate in some areas.
Summer tires
INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating M&S on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on all four wheels.
Snow tires
If snow tires are needed, it is necessary to
select tires equivalent in size and load
rating to the original equipment tires. If
you do not, it can adversely affect the
safety and handling of your vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and
may not match the potential maximum
vehicle speed. Never exceed the maximum
speed rating of the tire.
If you install snow tires, they must be the
same size, brand, construction and tread
pattern on all four wheels.
For additional traction on icy roads,
studded tires may be used. However, some
U.S. states and Canadian provinces prohi-
bit their use. Check local, state and
provincial laws before installing studded
tires. Skid and traction capabilities of
studded snow tires, on wet or dry surfaces,
may be poorer than that of non-studded
snow tires.
TIRE CHAINS
Use of tire chains may be prohibited
according to location. Check the local laws
before installing tire chains. When instal-
ling tire chains, make sure they are the
proper size for the tires on your vehicle and
are installed according to the chain man-
ufacturer’
s suggestions. Use only SAE
Class S chains. Class“S”chains are used
on vehicles with restricted tire to vehicle
clearance. Vehicles that can use Class “S”
chains are designed to meet the SAE
standard minimum clearances between
the tire and the closest vehicle suspension
or body component required to accommo-
date the use of a winter traction device (tire
chains or cables). The minimum clearances
are determined using the factory equipped
tire size. Other types may damage your
vehicle. Use chain tensioners when recom-
mended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the
tire chain must be secured or removed to
prevent the possibility of whipping action
damage to the fenders or underbody. If
possible, avoid fully loading your vehicle
when using tire chains. In addition, drive at
a reduced speed. Otherwise, your vehicle
may be damaged and/or vehicle handling
Maintenance and do-it-yourself8-39

8-42Maintenance and do-it-yourself
.The original tires have built-in
tread wear indicators. When wear
indicators are visible, the tire(s)
should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare tire
may result in serious personal
injury. If it is necessary to repair
the spare tire, contact an INFINITI
retailer.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in
the Warranty Information Booklet.Replacing wheels and tires
When replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. (See
“Specifications” (P.9-8) for recommended
types and sizes of tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of tires
of different brands, construction (bias,
bias-belted or radial), or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-tire
clearance, tire chain clearance, speed-
ometer calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could result in
serious personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimension.
Wheels of a different off-set could cause
premature tire wear, degrade vehicle
handling characteristics and/or interfer-
ence with the brake discs/drums. Such
interference can lead to decreased brak- ing efficiency and/or early brake pad/
shoe wear. See
“Wheels and tires” (P.9-
9) of this manual for wheel off-set
dimensions.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without
warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.

10-4
INFO button ........................................................ 4-9
Inside mirror ..................................................... 3-28
Inspection/maintenance (I/M) test .................... 9-27
Instrument brightness control ........................... 2-38
Instrument panel ................................................ 2-4
Intelligent cruise control (ICC) system ............... 5-23Preview function .......................................... 5-44
Intelligent Cruise Control (ICC) system
warning light .................................................... 2-15
Intelligent Key ..................................................... 3-2
Intelligent Key battery discharge indicator ........ 2-22
Intelligent Key insertion indicator ...................... 2-22
Intelligent Key removal indicator ....................... 2-22
Intelligent Key system ......................................... 3-7 Battery replacement ..................................... 8-26
Key operating range ....................................... 3-8
Key operation .............................................. 3-10
Warning light ............................................... 2-15
Warning signals ........................................... 3-12
Intelligent Key warning light ............................. 2-15
Interior light control switch ............................... 2-57
Interior light replacement .................................. 8-30
Interior lights .................................................... 2-56
Interior trunk lid release ................................... 3-21
iPod
®player operation ..................................... 4-75
ISOFIX child restraint ........................................ 1-25
J
Jump starting ...................................................... 6-8
K
Keyless entry (See remote keyless
entry system) .................................................... 3-14
Keys ................................................................... 3-2 For Intelligent Key system .............................. 3-7
L
LabelsAir bag warning labels ................................. 1-55
Air conditioner specification label ................ 9-14
Emission control information label ............... 9-13
Engine serial number ................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ........ 9-13
Tire and Loading information label ...... 8-34, 9-14
Vehicle identification number (VIN) .............. 9-12
LATCH system ................................................... 1-25
License plate, Installing front license plate ....... 9-15
Light Air bag warning light ................................... 1-55
Bulb replacement ......................................... 8-28
Fog light switch ........................................... 2-39
Headlight switch .......................................... 2-35
Headlights bulb replacement ....................... 8-30
Indicator lights ............................................ 2-18
Interior light control switch .......................... 2-57
Interior lights ............................................... 2-56
Map lights ................................................... 2-56
Replacement ................................................ 8-28
Trunk light ................................................... 2-59
Vanity mirror lights ...................................... 2-58 Warning/indicator lights and
audible reminders ........................................ 2-12
Xenon headlights ......................................... 2-34
Lights, Exterior and interior light replacement ... 8-30
Loading information (See vehicle
loading information) ......................................... 9-20
Lock
Automatic door locks ..................................... 3-6
Door locks ..................................................... 3-4
Power door lock ............................................. 3-4
Trunk lid ...................................................... 3-18
Locking with mechanical key ............................... 3-4
Low fuel warning .............................................. 2-23
Low tire pressure warning light ......................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ..... 5-4
Low washer fluid warning ................................. 2-23
M
Maintenance Battery ......................................................... 8-17
General maintenance ............................. 8-3, 8-4
Indicators for maintenance ........................... 2-24
Inside the vehicle .......................................... 8-4
Maintenance precautions ............................... 8-6
Maintenance requirements ............................. 8-3
Outside the vehicle ........................................ 8-4
Seat belt maintenance ................................. 1-21
Malfunction indicator light (MIL) ....................... 2-18
Map lights ........................................................ 2-56
Master warning light ......................................... 2-16

Vehicle dynamic control (VDC) off switch ...... 2-42
T
Tachometer ......................................................... 2-8
Temperature gauge, Engine coolant
temperature gauge .............................................. 2-8
Theft (INFINITI Vehicle Immobilizer System),
Engine start ...................................................... 2-30
Thigh extension .................................................. 1-5
Three-way catalyst .............................................. 5-4
Tilt/telescopic steering ...................................... 3-26
TirePressure, Low tire pressure warning light .... 2-15
Tire replacement indicator ............................ 2-24
Tire rotation ................................................. 8-40
Tires Flat tire .......................................................... 6-2
Low tire pressure warning system .................. 5-4
Spare tire .................................................... 8-43
Tire and Loading information label ...... 8-34, 9-14
Tire chains ................................................... 8-39
Tire dressing .................................................. 7-4
Tire pressure................................................ 8-33
Tire pressure monitoring
system (TPMS) ....................................... 5-4, 6-2
Types of tires ............................................... 8-38
Uniform tire quality grading ......................... 9-24
Wheel/tire size .............................................. 9-9
Wheels and tires .......................................... 8-33
Touch screen system ........................................... 4-5 Towing
Flat towing ................................................... 9-23
Tow truck towing .......................................... 6-11
Towing a trailer ............................................ 9-23
TPMS, Tire pressure monitoring system .............. 5-4
TPMS, Tire pressure warning system ................... 6-2
Trailer towing .................................................... 9-23
Transceiver, HomeLink
®Universal Transceiver ... 2-59
Transmission Automatic transmission fluid (ATF) ............... 8-14
Driving with automatic transmission ............ 5-14
Driving with manual transmission ................ 5-18
Transmission selector lever lock release ...... 5-17
Transmitter (See remote keyless entry system) ... 3-14
Traveling or registering your vehicle in
another country ................................................ 9-11
Trip computer ................................................... 2-26
Trip odometer ................................................... 2-26
Trunk Interior trunk lid release .............................. 3-21
Light ............................................................ 2-59
Pass-through ............................................... 1-13
Trunk lid ...................................................... 3-18
Trunk lid release switch ............................... 3-19
Trunk net for extra window washer fluid ...... 2-51
Trunk open request switch ........................... 3-19
Trunk release power cancel switch ............... 3-20
Turn signal switch ............................................. 2-38
U
Underbody cleaning ............................................ 7-3
Uniform tire quality grading .............................. 9-24
USB memory operation ..................................... 4-66
V
Vanity mirror ..................................................... 3-31
Vanity mirror lights ........................................... 2-58
Variable voltage control system ........................ 8-19
Vehicle
Dimensions .................................................. 9-11
Identification number (VIN) .......................... 9-12
Loading information ..................................... 9-20
Recovery (freeing a stuck vehicle) ................ 6-13
Security system ........................................... 2-28
Vehicle dynamic control (VDC) off switch ...... 2-42
Vehicle dynamic control (VDC) system .......... 5-55
Vehicle information and settings (display) ...... 4-9
Ventilators ........................................................ 4-30
Voice command (Bluetooth
®Hands-Free
Phone System) ................................................ 4-106
Voice command (INFINITI voice
recognition system) ........................................ 4-121
Voice recognition system ................................ 4-114
Voice recognition, Alternate command mode ... 4-127
Voice recognition, Standard mode ................... 4-114
10-7

10-8

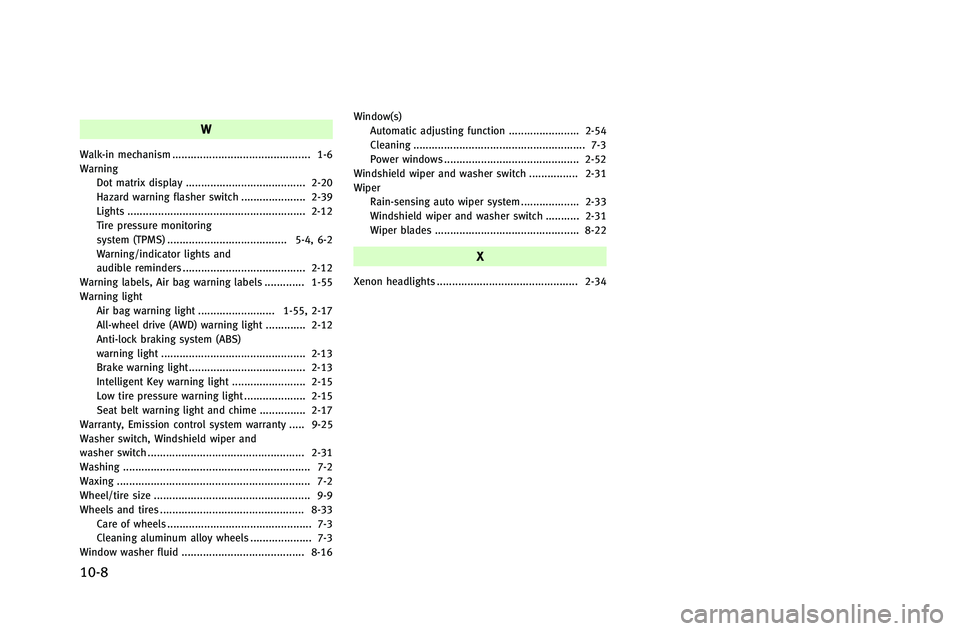

W
Walk-in mechanism ............................................. 1-6
WarningDot matrix display ....................................... 2-20
Hazard warning flasher switch ..................... 2-39
Lights .......................................................... 2-12
Tire pressure monitoring
system (TPMS) ....................................... 5-4, 6-2
Warning/indicator lights and
audible reminders ........................................ 2-12
Warning labels, Air bag warning labels ............. 1-55
Warning light Air bag warning light ......................... 1-55, 2-17
All-wheel drive (AWD) warning light ............. 2-12
Anti-lock braking system (ABS)
warning light ............................................... 2-13
Brake warning light ...................................... 2-13
Intelligent Key warning light ........................ 2-15
Low tire pressure warning light .................... 2-15
Seat belt warning light and chime ............... 2-17
Warranty, Emission control system warranty ..... 9-25
Washer switch, Windshield wiper and
washer switch ................................................... 2-31
Washing ............................................................. 7-2
Waxing ............................................................... 7-2
Wheel/tire size ................................................... 9-9
Wheels and tires ............................................... 8-33 Care of wheels ............................................... 7-3
Cleaning aluminum alloy wheels .................... 7-3
Window washer fluid ........................................ 8-16 Window(s)
Automatic adjusting function ....................... 2-54
Cleaning ........................................................ 7-3
Power windows ............................................ 2-52
Windshield wiper and washer switch ................ 2-31
Wiper Rain-sensing auto wiper system ................... 2-33
Windshield wiper and washer switch ........... 2-31
Wiper blades ............................................... 8-22
X
Xenon headlights .............................................. 2-34
