INFINITI G COUPE 2013 Owner's Manual

9-20Technical and consumer information
of the load (passengers and car-
go) for the vehicle. This is the
maximum combined weight of
occupants and cargo that can be
loaded into the vehicle. If the
vehicle is used to tow a trailer,
the trailer tongue weight must be
included as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.
.Cargo capacity - permissibleweight of cargo, the weight of
total occupants weight subtracted
from the load limit.STI0365
VEHICLE LOAD CAPACITYGUID-16EB8F06-6588-4DB3-AD19-F995D969E737

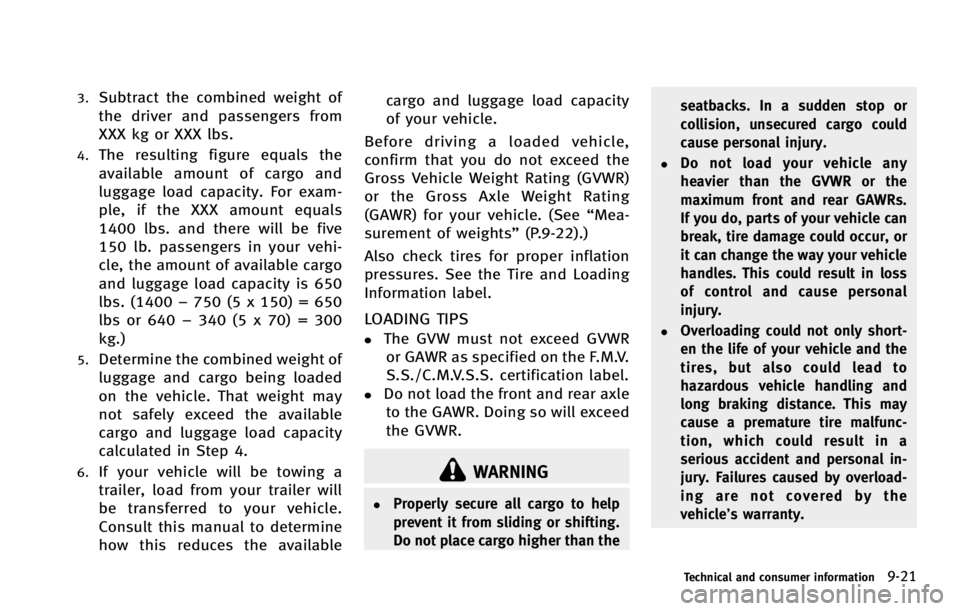

WARNING
.Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than theseatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
.Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts of your vehicle can
break, tire damage could occur, or
it can change the way your vehicle
handles. This could result in loss
of control and cause personal
injury.
.Overloading could not only short-
en the life of your vehicle and the
tires, but also could lead to
hazardous vehicle handling and
long braking distance. This may
cause a premature tire malfunc-
tion, which could result in a
serious accident and personal in-
jury. Failures caused by overload-
ing are not covered by the
vehicle’s warranty.
Technical and consumer information9-21

9-22Technical and consumer information
CAUTION
Vehicle damage resulting from towing a
trailer is not covered by INFINITI warranties.
FLAT TOWINGGUID-A4A9B27A-245D-4579-9712-944464AA5082
CAUTION
.Failure to follow these guidelines can
result in severe transmission damage.
. Whenever flat towing your vehicle, al-
ways tow forward, never backward.
. DO NOT tow any automatic transmission
vehicle with all four wheels on the
ground (flat towing). Doing so WILL
DAMAGE internal transmission parts
due to lack of transmission lubrication.
. DO NOT tow an All-Wheel Drive (AWD)
vehicle with any of the wheels on the
ground. Doing so may cause serious and
expensive damage to the powertrain.
. For emergency towing procedures refer
to“Towing recommended by INFINITI”
(P.6-12) of this manual.
Automatic transmissionGUID-5322E855-87A5-4D73-B422-7DD7455EF723

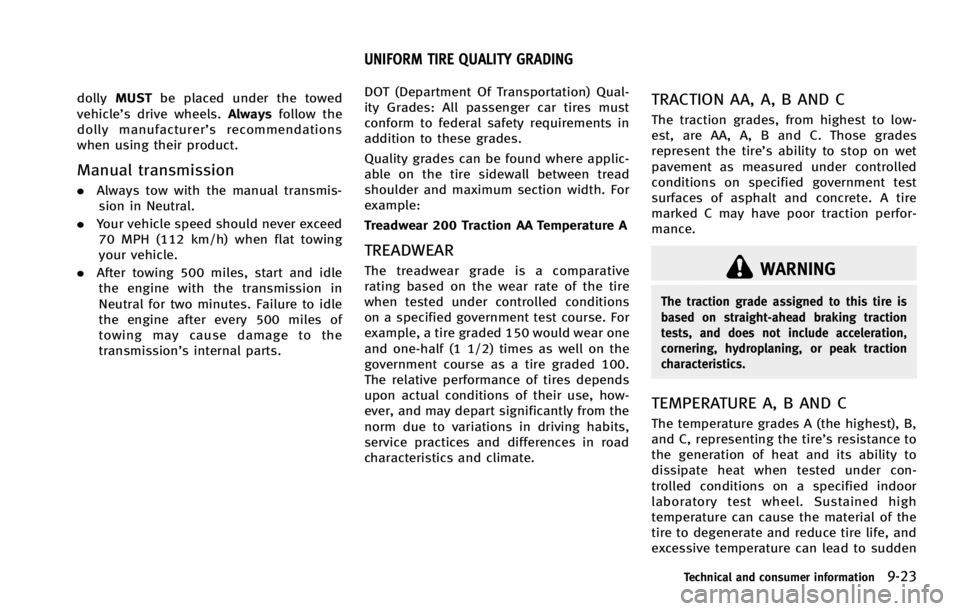

WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
TEMPERATURE A, B AND CGUID-D08B43D7-C76A-4659-BF4F-9C199B188B10

9-24Technical and consumer information

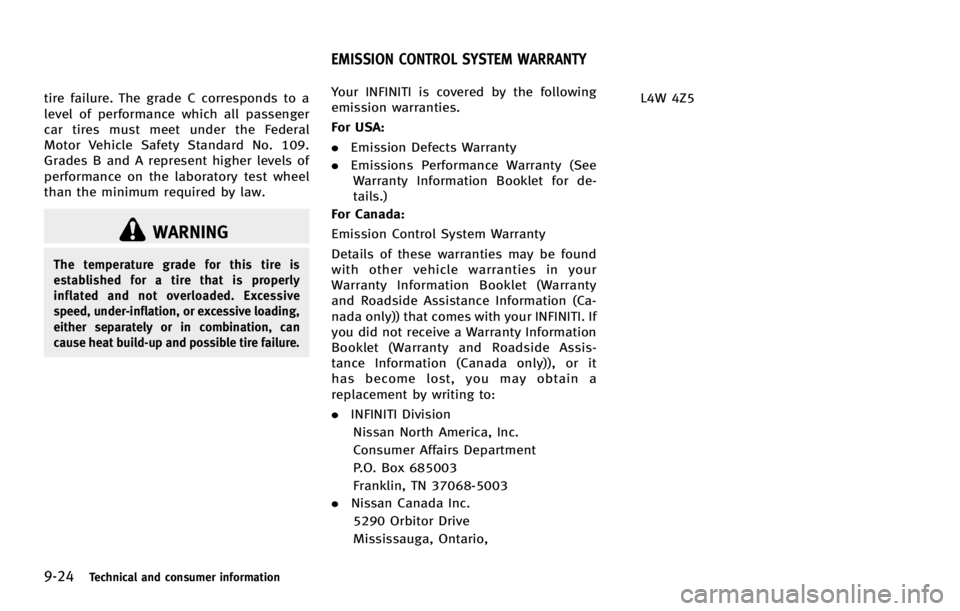

WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive loading,
either separately or in combination, can
cause heat build-up and possible tire failure.
GUID-97AB620F-A9A4-458C-92D2-7790B9B5520E

GUID-C44BBB8F-C320-46EA-856F-C0E1DC524D6C

9-26Technical and consumer information
GUID-126FA212-7CA0-4A46-8098-F063BF60E060

(e.g. name, gender, age and crash loca-
tion) are recorded. However, other parties,
such as law enforcement, could combine
the EDR data with the type of personally
identifying data routinely acquired during
a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition to
the vehicle manufacturer and INFINITI
retailer, other parties, such as law en-
forcement, that have the special equip-
ment, can read the information if they
have access to the vehicle or the EDR. EDR
data will only be accessed with the
consent of the vehicle owner or lessee or
as otherwise required or permitted by law.
GUID-0F25E858-31F1-4AA0-AE12-9C575DD22AAE

9-28Technical and consumer information
MEMO
