INFINITI G SEDAN 2013 Owner's Manual

Black plate (130,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-52Instruments and controls
SIC3279
Sedan
SIC3286A
Coupe
Main power window switch (driver’s
side)
GUID-30535306-1466-4E47-9742-71642DD2CE801. Driver side window
2. Front passenger side window
3.Rear left passenger side window
(Sedan only)
4. Rear right passenger side window
(Sedan only)
5. Window lock button
To open or close the window, push down
*Aor pull up*Bthe switch and hold it.
The main switch (driver side switches) will
open or close all the windows.
Locking passengers’ windowsGUID-AF236370-F01C-4CB7-B27B-2400A5A7941FWhen the lock button*Cis pushed in, only
the driver side window can be opened or
closed. Push it in again to cancel.
SIC3241
Passenger side power window
switch
GUID-074E0937-F90F-4461-9B0E-2784EFE2207BThe passenger side switch will open or
close only the corresponding window. To
open or close the window, push down or
pull up the switch and hold it.
Condition:

Black plate (131,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SIC3289
Sedan—Type A
SIC3285
Sedan —Type B
SIC3288
Coupe
Automatic operation (for front door
windows or all door windows)
GUID-9BF62CC8-4855-4483-8A55-EA5AB10E4305To fully open or close the window, com-
pletely push down or pull up the switch
and release it; it need not be held. The
window will automatically open or close all
the way. To stop the window, just push or
lift the switch in the opposite direction.
A light push or pull on the switch will cause
the window to open or close until the
switch is released.
Auto reverse functionGUID-A9F7D9E8-291F-4771-BC07-683BFB01C2A0
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the window.
If the control unit detects something
caught in the window as it is closing, the
window will be immediately lowered.
The auto reverse function can be activated
when the window is closed by automatic
operation when the ignition switch is in the
ON position or for 45 seconds after the
ignition switch is pushed to the OFF
position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Instruments and controls2-53
Condition:

Black plate (132,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-54Instruments and controls

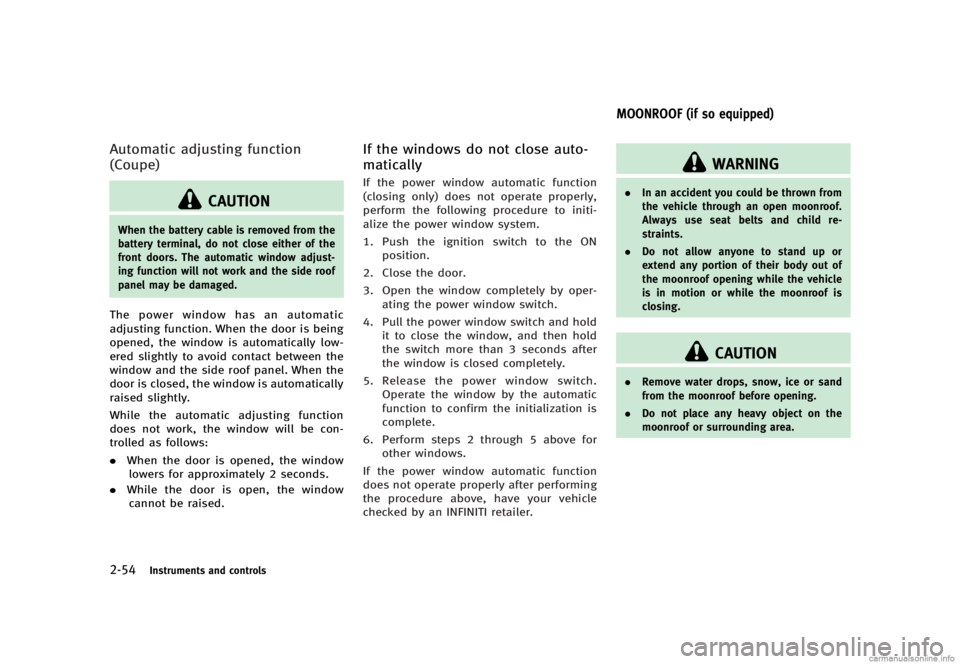

Automatic adjusting function
(Coupe)
GUID-D2D30762-25BF-4EE0-B27E-BB7D8BB3ADD2
CAUTION
When the battery cable is removed from the
battery terminal, do not close either of the
front doors. The automatic window adjust-
ing function will not work and the side roof
panel may be damaged.
The power window has an automatic
adjusting function. When the door is being
opened, the window is automatically low-
ered slightly to avoid contact between the
window and the side roof panel. When the
door is closed, the window is automatically
raised slightly.
While the automatic adjusting function
does not work, the window will be con-
trolled as follows:
.When the door is opened, the window
lowers for approximately 2 seconds.
. While the door is open, the window
cannot be raised.
If the windows do not close auto-
matically
GUID-AF6C72A6-6B0C-4A7D-ACDE-4A4B5C42D7AEIf the power window automatic function
(closing only) does not operate properly,
perform the following procedure to initi-
alize the power window system.
1. Push the ignition switch to the ON position.
2. Close the door.
3. Open the window completely by oper- ating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold
the switch more than 3 seconds after
the window is closed completely.
5. Release the power window switch.
Operate the window by the automatic
function to confirm the initialization is
complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function
does not operate properly after performing
the procedure above, have your vehicle
checked by an INFINITI retailer.
GUID-EFB5DCAF-F1EF-42A7-BCC9-44CE2BC515B8
WARNING
. In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child re-
straints.
. Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
.Remove water drops, snow, ice or sand
from the moonroof before opening.
. Do not place any heavy object on the
moonroof or surrounding area.
MOONROOF (if so equipped)
Condition:

Black plate (133,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
AUTOMATIC MOONROOFGUID-E40F3D30-93F7-48AD-9873-F04B6977F71BThe moonroof only operates when the
ignition switch is in the ON position.
The automatic moonroof is operational for
about 45 seconds, even if the ignition
switch is pushed to the OFF position. If the
driver’s door or the passenger’s door is
opened during this period of about 45
seconds, power to the moonroof is can-
celed.
SIC3243
SunshadeGUID-CCF4E2B3-EA7A-402A-90AA-2F546B19823DThe sunshade will open automatically
when the moonroof is opened. However,
it must be closed manually.
Tilting the moonroofGUID-F59B3BC6-1B6D-4957-99F3-E147F486CF5DTo tilt up, first close the moonroof, then
push the UP
*1side of the moonroof
switch and release it; it need not be held.
To tilt down the moonroof, push the DOWN
*2side.
Sliding the moonroofGUID-A3EE336A-96B8-48A3-A291-DA88029A9E74To fully open or close the moonroof, push
the CLOSE
*1or OPEN*2side of the moonroof switch and release it; it need
not be held. The roof will automatically
open or close all the way. To stop the roof,
push the switch once more while it is
opening or closing.
Auto reverse functionGUID-1665A219-159C-4E8B-97CC-F44A3889C13D
WARNING
There are some small distances immediately
before the closed position which cannot be
detected. Make sure that all passengers
have their hands, etc., inside the vehicle
before closing the moonroof.
If the control unit detects something
caught in the moonroof when it is closing,
the moonroof will be immediately opened.
The auto reverse function can be activated
when the moonroof is closed by automatic
operation when the ignition switch is in the
ON position or for about 45 seconds after
the ignition switch is pushed to the OFF
position.
If the moonroof cannot be closed auto-
matically when the auto reverse function
activates due to a malfunction, push and
hold the CLOSE
*1side of the
Instruments and controls2-55
Condition:

Black plate (134,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-56Instruments and controls
moonroof switch.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
If the moonroof does not operateGUID-235A4682-A88E-47F9-9907-4A08FACA91CEIf the moonroof does not operate properly,
perform the following procedure to initi-
alize the moonroof operation system.
1. If the moonroof is open, close it fully byrepeatedly pushing the CLOSE
*1
side of the moonroof switch to tilt the
moonroof up.
2. Push and hold the CLOSE
*1side
of the moonroof switch.
3. Release the moonroof switch after the moonroof moves slightly up and down.
4. Push and hold the OPEN
*2side of
the moonroof switch to fully tilt the
moonroof down.
5. Check if the moonroof switch operates normally.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked by an INFINITI retailer.
GUID-086B1CC9-F92B-4357-8461-A4FAC03B72E8
SIC3249
MAP LIGHTSGUID-1AFD655C-C54F-4694-ACBA-625EF6501A09Push the button as illustrated to turn the
light on or off.
SIC3250
PERSONAL LIGHTS (Sedan)GUID-8A80AFCB-87B7-47AE-B03E-E39C7E1A6A4A
RearGUID-CB368416-2E25-494C-922F-2408158FB064Push the button as illustrated to turn the
light on or off.
INTERIOR LIGHTS
Condition:

Black plate (135,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SIC3251
INTERIOR LIGHT CONTROL SWITCHGUID-C2DB58AC-6BD5-4108-8834-2A62D1E0B377The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-798EF023-2D8A-44E2-8CE2-F22177A6EBE9When the switch is in the ON position*1
the map lights and rear personal lights will
illuminate.
DOOR positionGUID-CA87C080-730F-4193-BE23-19559113F670When the switch is in the DOOR position
*2, the map lights and rear personal lights
will illuminate under the following condi-
tions: .
ignition switch is switched to the LOCK
position
— remain on for about 15 seconds.
. doors are unlocked by pushing the
UNLOCK button on the Intelligent Key
or door handle request switch with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed
with the ignition switch in the LOCK
position
— remain on for about 15 seconds.
. any door is opened with the ignition
switch in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights
go off.
The lights will also turn off after a period
of time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
When the auto interior illumination is set
to the OFF position (see “Vehicle informa-
tion and settings” (P.4-9)), the lights will
illuminate under the following condition:
. any door is opened with the ignition
switch in any position —
remain on while the door is opened.
When the door is closed, the lights
go off.
OFF positionGUID-544F2395-1EF1-447D-9281-F30C0F022BEEWhen the switch is in the OFF position*3,
the lights will not illuminate, regardless of
the condition.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a
discharged battery.
Instruments and controls2-57
Condition:

Black plate (136,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-58Instruments and controls
GUID-4767303A-3063-498C-B5AA-4C1CC218222A
SIC2064
Type A
SIC3869
Type BThe light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after a period
of time when the lights remain illuminated
to prevent the battery from becoming
discharged.
GUID-3B0103FD-8C82-48ED-ABBE-0FF7FE9A8F16The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the
light will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
VANITY MIRROR LIGHTS
TRUNK LIGHT
Condition:

Black plate (137,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-0BF67760-C562-4D9A-8217-C1A104712017The HomeLink®Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-
held transmitters into one built-in device.
HomeLink
®Universal Transceiver:
. Will operate most Radio Frequency (RF)
devices such as garage doors, gates,
home and office lighting, entry door
locks and security systems.
. Is powered by your vehicle’s battery. No
separate batteries are required. If the
vehicle’s battery is discharged or is
disconnected, HomeLink
®will retain all
programming.
When the HomeLink
®Universal Transcei-
ver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases).
Upon sale of the vehicle, the programmed
HomeLink
®Universal Transceiver buttons
should be erased for security purposes.
For additional information, refer to “Pro-
gramming HomeLink
®” (P.2-59).
WARNING
. Do not use the HomeLink®Universal
Transceiver with any garage door opener
that lacks safety stop and reverse features as required by federal safety
standards. (These standards became
effective for opener models manufac-
tured after April 1, 1982). A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.
. During the programming procedure your
garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.
that you are programming.
. Your vehicle’s engine should be turned
off while programming the HomeLink
®
Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.
PROGRAMMING HomeLink®GUID-C1A6C78C-5674-4502-BB48-800218FBC19EIf you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink®web site
at: www.homelink.com or call 1-800-355-
3515.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink
®for quicker programming and
accurate transmission of the radio-fre-
quency.
1. Position the end of your hand-held
transmitter 1 - 3 in (26 - 76 mm) away
from the HomeLink
®surface, keeping
the HomeLink®indicator light*1in
view.
Instruments and controls2-59
HomeLink®UNIVERSAL TRANSCEIVER (if so
equipped)
Condition:

Black plate (138,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-60Instruments and controls
JVI0428X
2.Using both hands, simultaneously
press and hold the desired HomeLink®
button and handheld transmitter but-
ton. DO NOT release until the
HomeLink
®indicator light*1flashes
slowly and then rapidly. When the
indicator light flashes rapidly, both
buttons may be released. (The rapid
flashing indicates successful program-
ming.)
NOTE:
Some devices to be programmed may
require you to replace Step 2 with the
cycling procedure noted in the “Pro-
gramming HomeLink
®for Canadian customers and gate openers”
(P.2-61).
JVI0429X
3.Press and hold the programmed
HomeLink®button and observe the
indicator light.
.If the indicator light*1is solid/
continuous, programming is com-
plete and your device should acti-
vate when the HomeLink
®button is
pressed and released.
.If the indicator light*1blinks
rapidly for two seconds and then
turns to a solid/continuous light,
continue with Steps 4-6 for a rolling
code device. A second person may
make the following steps easier. Use
a ladder or other device. Do not
Condition:

Black plate (139,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
stand on your vehicle to perform the
next steps.
4. At the receiver located on the garage door opener motor in the garage, locate
the “learn” or“smart” button (the
name and color of the button may vary
by manufacturer but it is usually
located near where the hanging anten-
na wire is attached to the unit). If there
is difficulty locating the button, refer-
ence the garage door opener’s manual.
5. Press and release the “learn”or
“smart” button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink
®
button for two seconds and release.
Repeat the “press/hold/release” se-
quence up to 3 times to complete the
programming process. HomeLink
®
should now activate your rolling code
equipped device.
7. If you have any questions or are having difficulty programming your
HomeLink
®buttons, refer to the HomeLink
®web site at: www.
homelink.com or call 1-800-355-3515.
PROGRAMMING HomeLink®FOR
CANADIAN CUSTOMERS AND GATE
OPENERS
GUID-FA6ED7D7-5805-4878-A033-2D4A6CF0EB88Canadian radio-frequency laws require
transmitter signals to “time-out”(or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink
®to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.
If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the “Pro-
gramming HomeLink
®” procedures, re-
place “Programming HomeLink®”Step 2
with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cy-
cling” process to prevent possible damage
to the garage door opener components.
Step 2: Using both hands, simultaneously
press and hold the desired HomeLink
®
button and the hand-held transmitter button. During programming, your hand-
held transmitter may automatically stop
transmitting. Continue to press and hold
the desired HomeLink
®button while you
press and re-press (“cycle”) your hand-
held transmitter every two seconds until
the frequency signal has been learned. The
HomeLink
®indicator light will flash slowly
and then rapidly after several seconds
upon successful programming. DO NOT
release until the HomeLink
®indicator light
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. The rapid flashing
indicates successful programming.
Proceed with “Programming HomeLink
®”
step 3 to complete.
Remember to plug the device back in when
programming is completed.
OPERATING THE HomeLink®UNI-
VERSAL TRANSCEIVER
GUID-6973D290-7F33-4E52-A191-FAE191D2E93AThe HomeLink®Universal Transceiver, after
it is programmed, can be used to activate
the programmed device. To operate, simply
press and release the appropriate pro-
grammed HomeLink
®Universal Transceiver
button. The amber indicator light will
illuminate while the signal is being trans-
Instruments and controls2-61
Condition:
