INFINITI G SEDAN 2013 Owner's Manual
Manufacturer: INFINITI, Model Year: 2013, Model line: G SEDAN, Model: INFINITI G SEDAN 2013Pages: 490, PDF Size: 4.36 MB
Page 171 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (170,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-28Pre-driving checks and adjustments
SPA2422A
Type A
SPA2450
Type B
Automatic anti-glare typeGUID-42BCED9D-122C-447D-8C17-A6AFE2097EE0The inside](/img/42/34947/w960_34947-170.png "INFINITI G SEDAN 2013 Owners Manual Black plate (170,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-28Pre-driving checks and adjustments
SPA2422A
Type A
SPA2450
Type B
Automatic anti-glare typeGUID-42BCED9D-122C-447D-8C17-A6AFE2097EE0The inside")
Black plate (170,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-28Pre-driving checks and adjustments
SPA2422A
Type A
SPA2450
Type B
Automatic anti-glare typeGUID-42BCED9D-122C-447D-8C17-A6AFE2097EE0The inside mirror is designed so that it
automatically changes reflection according
to the intensity of the headlights of the
following vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is
pushed to the ON position.
When the anti-glare system is turned on,
the indicator light
*Awill illuminate and
excessive glare from the headlights of the
vehicle behind you will be reduced.
Type A: Push the
switch*Bto make the
inside rearview mirror operate normally
and the indicator light will turn off. Push
the
switch again to turn the system on.
Type B: Push the “*”switch
*Cto make
the inside rearview mirror operate nor-
mally. The indicator light will turn off. Push
the “I”switch
*Dto turn the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper
operation.
For the compass (if so equipped) opera- tion, see
“Compass” (P.2-9).
For the HomeLink
®Universal Transceiver
operation, see “HomeLink®Universal
Transceiver” (P.2-59).
Condition:
Page 172 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (171,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SPA2319
OUTSIDE MIRRORSGUID-44D37997-DE2C-47B8-BB91-5AA2BF04971B
WARNING
Objects viewed in the outside mirror on the
passenger side are closer tha](/img/42/34947/w960_34947-171.png "INFINITI G SEDAN 2013 Owners Manual Black plate (171,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SPA2319
OUTSIDE MIRRORSGUID-44D37997-DE2C-47B8-BB91-5AA2BF04971B
WARNING
Objects viewed in the outside mirror on the
passenger side are closer tha")
Black plate (171,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SPA2319
OUTSIDE MIRRORSGUID-44D37997-DE2C-47B8-BB91-5AA2BF04971B
WARNING
Objects viewed in the outside mirror on the
passenger side are closer than they appear.
Be careful when moving to the right. Using
only this mirror could cause an accident.
Use the inside mirror or glance over your
shoulder to properly judge distances to
other objects.
Adjusting outside mirrorsGUID-62D6641D-12C3-418F-87ED-A733909B16C3The outside mirror control switch is located
on the armrest.
The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.
Turn the switch right or left to select the
right or left side mirror
*1, then adjust
using the control switch
*2.
Defrosting outside mirrors (if so
equipped)
GUID-77293E7E-8BFF-45ED-B0F9-F0C64B2CA14CThe outside mirrors will be heated when
the rear window defroster switch is oper-
ated.SPA1829
Foldable outside mirrorsGUID-B809786B-AB52-4018-AF0B-10DCF52FE49EFold the outside mirror by pushing it
toward the rear of the vehicle.
Pre-driving checks and adjustments3-29
Condition:
Page 173 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (172,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-30Pre-driving checks and adjustments
SIC2064
Type A
SIC3869
Type B
VANITY MIRRORGUID-418E781F-468D-4640-B3BF-4DA5D9BE4DFATo use the front vanity](/img/42/34947/w960_34947-172.png "INFINITI G SEDAN 2013 Owners Manual Black plate (172,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-30Pre-driving checks and adjustments
SIC2064
Type A
SIC3869
Type B
VANITY MIRRORGUID-418E781F-468D-4640-B3BF-4DA5D9BE4DFATo use the front vanity")
Black plate (172,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-30Pre-driving checks and adjustments
SIC2064
Type A
SIC3869
Type B
VANITY MIRRORGUID-418E781F-468D-4640-B3BF-4DA5D9BE4DFATo use the front vanity mirror, pull down
the sun visor and pull up the cover.
GUID-3EDC2AC8-B979-442D-AEB4-1AF89546AADAThe automatic drive positioner system has
three features:
.Entry/exit function (Automatic Trans-
mission Sedan models)
. Seat synchronization function
. Memory storage
ENTRY/EXIT FUNCTION (Automatic
Transmission Sedan models)
GUID-30995ABA-8234-45F4-9B5C-ECA6C07F73E6This system is designed so that the driver’s
seat and steering column will automati-
cally move when the automatic transmis-
sion selector lever is in the P (Park)
position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and
the steering wheel will move up when the
driver’s door is opened with the ignition
switch in the LOCK position.
The driver’s seat and steering wheel will
return to the previous positions when one
of the following is operated:
.When the ignition switch is pushed to
the ACC position after the driver’s door
is closed.
. When the ignition switch is pushed to
the ON position.
. When the Intelligent Key is inserted into
AUTOMATIC DRIVE POSITIONER (if so
equipped)
Condition:
Page 174 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (173,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
the port after the driver’s door is
closed.
The driver’s seat will not return to the
previous positions if the seat or steering
adjusting swit](/img/42/34947/w960_34947-173.png "INFINITI G SEDAN 2013 Owners Manual Black plate (173,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
the port after the driver’s door is
closed.
The driver’s seat will not return to the
previous positions if the seat or steering
adjusting swit")
Black plate (173,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
the port after the driver’s door is
closed.
The driver’s seat will not return to the
previous positions if the seat or steering
adjusting switch is operated when the seat
is at the exit position.
Cancel or activate entry/exit func-
tion
GUID-8D71F741-560B-4B4E-AA55-F9F223C96E4FThe selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory
switches (1 and 2) will blink once when
the function is canceled, and the indicator
lights will blink twice when the function is
activated. Note that the indicator lights
may illuminate after 5 seconds while
holding the SET switch. This indicates
readiness for linking the Intelligent Key to
a stored memory position. Keep the SET
switch pressed for more than 10 seconds
to turn on or off the entry/exit function.
The entry/exit function can also be acti-
vated or canceled if the “Lift Steering
Wheel on Exit” key or“Slide Driver Seat Back on Exit”
key is turned to ON or OFF in
the “Comfort” settings. (See “Vehicle
information and settings” (P.4-9).)
Initialize entry/exit functionGUID-0EEBBCEC-2899-4DC8-AE43-1CC42FE3C5C1If the battery cable is disconnected, or if
the fuse opens, the entry/exit function will
not work though this function was set on
before. In such a case, after connecting the
battery or replacing with a new fuse, open
and close the driver’s door more than two
times after the ignition switch is turned
from the ON position to the LOCK position.
The entry/exit function will be activated.
SPA2322
SEAT SYNCHRONIZATION FUNCTIONGUID-44A9BCE7-C5A3-4DE5-84C7-DAFAF434BFA8The seat synchronization function automa-
tically adjusts the positions of the steering
wheel and outside mirrors when the seat is
adjusted using the power seat switches.
However, the steering wheel and outside
mirrors will not move if the seat is adjusted
over the maximum thresholds. The system
considers that the steering wheel and
outside mirror adjustments are not neces-
sary because the seat may not be adjusted
for the driving position. Note that the
function is set to disabled as the factory
default setting.
Pre-driving checks and adjustments3-31
Condition:
Page 175 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (174,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-32Pre-driving checks and adjustments
The seat synchronization function operates
under the following conditions:
.The ignition switch is in the O](/img/42/34947/w960_34947-174.png "INFINITI G SEDAN 2013 Owners Manual Black plate (174,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-32Pre-driving checks and adjustments
The seat synchronization function operates
under the following conditions:
.The ignition switch is in the O")
Black plate (174,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-32Pre-driving checks and adjustments
The seat synchronization function operates
under the following conditions:
.The ignition switch is in the ON posi-
tion.
. The selector lever is in the P (Park)
position (Automatic Transmission mod-
els) or the parking brake is applied
(Manual Transmission models).
. The seatback is raised (Coupe).
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the
function is automatically disabled. Restart
the function by selecting a previously
stored seat memory position using the
memory switches (1 or 2). An Intelligent
Key that was previously linked to the
stored seat memory can also be used to
restart the function.
If a seat position was not previously stored
in the seat memory, restart the function by
adjusting the steering wheel and outside
mirrors manually for your best driving
position and then drive the vehicle above
4 MPH (7 km/h).Cancel or activate seat synchroni-
zation function
GUID-9FA1381E-62FE-4338-8BE9-EF06F61AFC12For Automatic Transmission models:
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
For Manual Transmission models:
The parking brake must be applied with
the ignition switch in the ACC position.
The seat synchronization function can be
activated or canceled by pushing and
holding the SET switch for more than 10
seconds while the ignition switch is in the
ACC position.
The indicator lights on the memory
switches (1 and 2) will blink once when
the function is canceled, and the indicator
lights will blink twice when the function is
activated. Note that the indicator lights
may illuminate after 5 seconds while
holding the SET switch. This indicates
readiness for linking the Intelligent Key to
a stored memory position. Keep the SET
switch pushed for more than 10 seconds to
turn on or off the seat synchronization
function.
MEMORY STORAGEGUID-A3BE9A91-CE23-4574-92F2-3FB031E53D7ETwo positions for the driver’s seat, steering
column and outside mirrors can be stored
in the automatic drive positioner memory.
Follow these procedures to use the mem-
ory system.
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe).
3. Push the ignition switch to the ON position.
4. Adjust the driver’s seat, steering col- umn and outside mirrors to the desired
positions by manually operating each
adjusting switch. For additional infor-
mation, see “Seats”(P.1-2) and “Tilt/
telescopic steering” (P.3-25) and“Out-
side mirrors” (P.3-29).
5. Push the SET switch and, within 5
seconds, push the memory switch (1
or 2) fully for at least 1 second.
The indicator light for the pushed
memory switch will stay on for approxi-
mately 5 seconds after pushing the
Condition:
Page 176 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (175,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
switch.
If memory is stored in the same
memory switch, the previous memory
will be deleted.
Linking Intelligent Key to a stored
memory position
GU](/img/42/34947/w960_34947-175.png "INFINITI G SEDAN 2013 Owners Manual Black plate (175,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
switch.
If memory is stored in the same
memory switch, the previous memory
will be deleted.
Linking Intelligent Key to a stored
memory position
GU")
Black plate (175,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
switch.
If memory is stored in the same
memory switch, the previous memory
will be deleted.
Linking Intelligent Key to a stored
memory position
GUID-260E8272-8777-4E19-9288-E40B723FABBAThe Intelligent Key can be linked to a
stored memory position with the following
procedure.
1. Follow the steps for storing a memoryposition.
2. While the indicator light for the memory switch being set is illuminated for 5
seconds, push the
button on the
Intelligent Key. If the indicator light
blinks, the Intelligent Key is linked to
that memory setting.
Push the ignition switch to the OFF posi-
tion, and then push the
button on the
Intelligent Key. The driver’s seat, steering
wheel and outside mirrors will move to the
memorized position.
Confirming memory storageGUID-E5D175B3-57DC-4C96-A449-0B72F25D2264. Push the ignition switch to the ON
position and push the SET switch. If
the main memory has not been stored,
the indicator light will come on for approximately 0.5 second. When the
memory has stored in position, the
indicator light will stay on for approxi-
mately 5 seconds.
. If the battery cable is disconnected, or if
the fuse opens, the memory will be
canceled. In this case, reset the desired
position using the previous procedure.
. If optional Intelligent Keys are added to
your vehicle, the memory storage pro-
cedure to switch 1 or 2 and linking
Intelligent Key procedure to a stored
memory position should be performed
again for each Intelligent Key. For
additional Intelligent Key information,
see “Keys” (P.3-2).
Selecting the memorized positionGUID-739A81F0-8862-49C2-BBA8-117F41F648F91.Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe).
3. Use one of the following methods to move the driver’s seat, the outside
mirrors and the steering wheel.
.Push the ignition switch to the ONposition and push the memory
switch (1 or 2) fully for at least 1
second.
.Within 45 seconds of opening the
driver’s door, push the memory
switch (1 or 2) fully for at least 1
second.
The driver’s seat, steering column
and outside mirrors will move to the
memorized position with the indica-
tor light flashing, and then the light
will stay on for approximately 5
seconds.
For manual transmission models, the
memory positions can be selected even
when the engine is running. In this case,
move the shift lever to the N (Neutral)
position and apply the parking brake.
Then, perform step 2.
SYSTEM OPERATIONGUID-0383C8BF-12F8-48D0-9B28-5A2A0DCC8D55The automatic drive positioner system will
not work or will stop operating under the
following conditions:
. When the vehicle speed is above 4 MPH
(7 km/h).
. When the adjusting switch for the
driver’s seat and steering column is
turned on while the automatic drive
Pre-driving checks and adjustments3-33
Condition:
Page 177 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (176,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-34Pre-driving checks and adjustments
positioner is operating.
. When the memory switch 1 or 2 is not
pushed for at least 1 second.
. When the se](/img/42/34947/w960_34947-176.png "INFINITI G SEDAN 2013 Owners Manual Black plate (176,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-34Pre-driving checks and adjustments
positioner is operating.
. When the memory switch 1 or 2 is not
pushed for at least 1 second.
. When the se")
Black plate (176,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
3-34Pre-driving checks and adjustments
positioner is operating.
. When the memory switch 1 or 2 is not
pushed for at least 1 second.
. When the seat, steering column and
outside mirrors have already been
moved to the memorized position.
. When no position is stored in the
memory switch.
. When the parking brake is released (MT
models).
. When the speed is above 4 MPH (7
km/h) while the parking brake is
applied (MT models).
To restart the drive positioner system,
move the parking brake to off and on.
. When the engine is started while
moving the automatic drive positioner.
. When the AT selector lever is moved
from the P (Park) position to any other
position. (However, it will not be
canceled if the switch is pushed while
the seat and steering column are
returning to the previous positions
(entry/exit function).)
. When the driver’s door remains open
for more than 45 seconds and the
ignition switch is not in the ON posi-
tion. .
When the seatback is folded (Coupe).
. While the walk-in function operates
(Coupe).
. The seat synchronization function is
automatically disabled if the outside
mirrors or steering wheel reaches its
maximum adjustment.
. The seat synchronization function will
not operate if the seat is adjusted over
one of the following maximum thresh-
olds:
— Seat sliding: 3.0 in (76 mm)
— Seatback reclining: 9.1 degrees
— Seat lifter (rear side): 0.8 in (20 mm)
Condition:
Page 178 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (177,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4 Monitor, climate, audio, phone and voice recogni-tion systems
Safety note ...
.......................................................... 4-3
Cen](/img/42/34947/w960_34947-177.png "INFINITI G SEDAN 2013 Owners Manual Black plate (177,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4 Monitor, climate, audio, phone and voice recogni-tion systems
Safety note ...
.......................................................... 4-3
Cen")

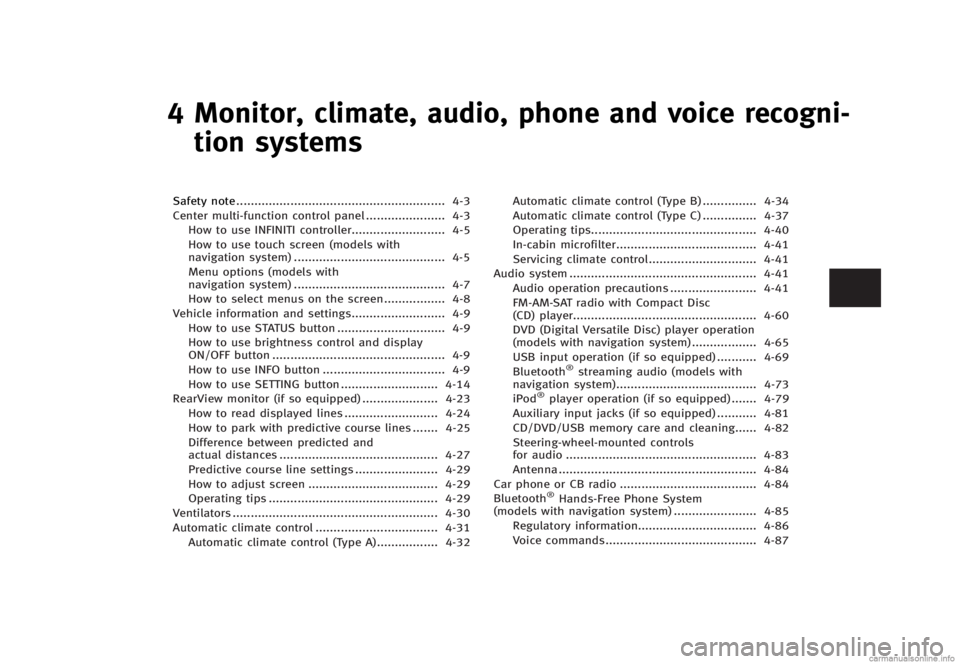

Black plate (177,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4 Monitor, climate, audio, phone and voice recogni-tion systems
Safety note ...
.......................................................... 4-3
Center multi-function control panel ...
...................... 4-3
How to use INFINITI controller ...
.......................... 4-5
How to use touch screen (models with
navigation system) ...
.......................................... 4-5
Menu options (models with
navigation system) ...
.......................................... 4-7
How to select menus on the screen ...
................. 4-8
Vehicle information and settings ...
.......................... 4-9
How to use STATUS button ...
.............................. 4-9
How to use brightness control and display
ON/OFF button ...
................................................ 4-9
How to use INFO button ...
.................................. 4-9
How to use SETTING button ...
........................... 4-14
RearView monitor (if so equipped) ...
..................... 4-23
How to read displayed lines ...
.......................... 4-24
How to park with predictive course lines ...
....... 4-25
Difference between predicted and
actual distances ...
............................................ 4-27
Predictive course line settings ...
....................... 4-29
How to adjust screen ...
.................................... 4-29
Operating tips ...
............................................... 4-29
Ventilators ...
......................................................... 4-30
Automatic climate control ...
.................................. 4-31
Automatic climate control (Type A) ...
................. 4-32 Automatic climate control (Type B)
...
............... 4-34
Automatic climate control (Type C) ...
............... 4-37
Operating tips ...
.............................................. 4-40
In-cabin microfilter ...
....................................... 4-41
Servicing climate control ...
.............................. 4-41
Audio system ...
.................................................... 4-41
Audio operation precautions ...
........................ 4-41
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................... 4-60
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
.................. 4-65
USB input operation (if so equipped) ...
........... 4-69
Bluetooth
®streaming audio (models with
navigation system) ...
....................................... 4-73
iPod
®player operation (if so equipped) ...
....... 4-79
Auxiliary input jacks (if so equipped) ...
........... 4-81
CD/DVD/USB memory care and cleaning ...
...... 4-82
Steering-wheel-mounted controls
for audio ...
..................................................... 4-83
Antenna ...
....................................................... 4-84
Car phone or CB radio ...
...................................... 4-84
Bluetooth
®Hands-Free Phone System
(models with navigation system) ...
....................... 4-85
Regulatory information ...
................................. 4-86
Voice commands ...
.......................................... 4-87
Condition:
Page 179 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (178,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Control buttons...
............................................. 4-87
Connecting procedure ...
.................................... 4-87
Phone sel](/img/42/34947/w960_34947-178.png "INFINITI G SEDAN 2013 Owners Manual Black plate (178,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Control buttons...
............................................. 4-87
Connecting procedure ...
.................................... 4-87
Phone sel")

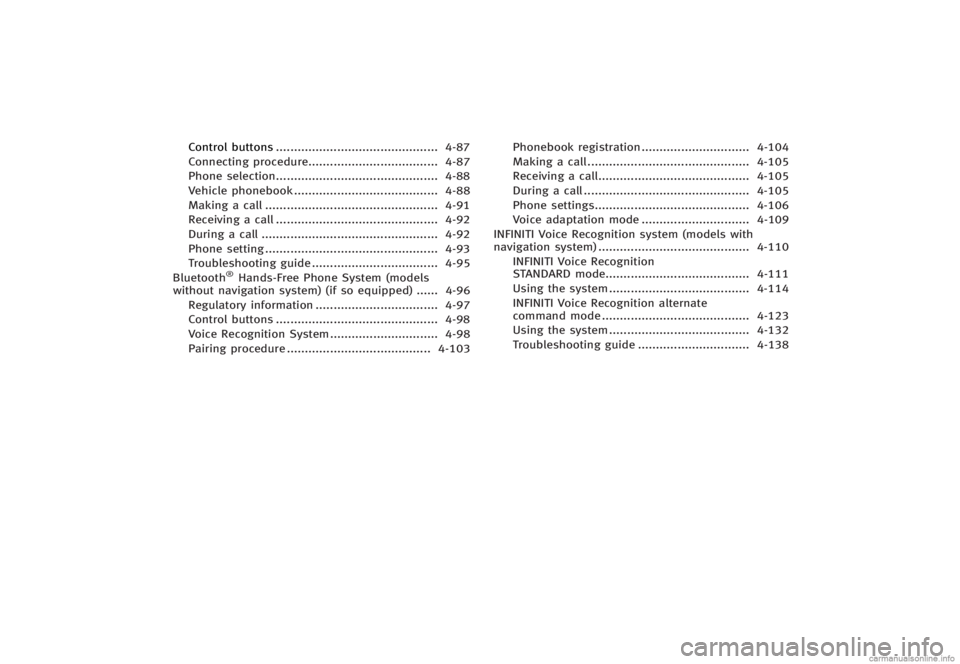

Black plate (178,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Control buttons...
............................................. 4-87
Connecting procedure ...
.................................... 4-87
Phone selection ...
............................................. 4-88
Vehicle phonebook ...
........................................ 4-88
Making a call ...
................................................ 4-91
Receiving a call ...
............................................. 4-92
During a call ...
................................................. 4-92
Phone setting ...
................................................ 4-93
Troubleshooting guide ...
................................... 4-95
Bluetooth
®Hands-Free Phone System (models
without navigation system) (if so equipped) ...
...... 4-96
Regulatory information ...
.................................. 4-97
Control buttons ...
............................................. 4-98
Voice Recognition System ...
.............................. 4-98
Pairing procedure ...
........................................ 4-103 Phonebook registration
...
.............................. 4-104
Making a call ...
............................................. 4-105
Receiving a call ...
.......................................... 4-105
During a call ...
.............................................. 4-105
Phone settings ...
........................................... 4-106
Voice adaptation mode ...
.............................. 4-109
INFINITI Voice Recognition system (models with
navigation system) ...
.......................................... 4-110
INFINITI Voice Recognition
STANDARD mode ...
........................................ 4-111
Using the system ...
....................................... 4-114
INFINITI Voice Recognition alternate
command mode ...
......................................... 4-123
Using the system ...
....................................... 4-132
Troubleshooting guide ...
............................... 4-138
Condition:
Page 180 of 490
![INFINITI G SEDAN 2013 Owners Manual Black plate (179,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or elect](/img/42/34947/w960_34947-179.png "INFINITI G SEDAN 2013 Owners Manual Black plate (179,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or elect")
Black plate (179,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-B399574C-759D-4EDD-9D8B-240757C36DDF
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
. In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from it,
stop using the system immediately and
contact your nearest INFINITI retailer.
Ignoring such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location and
apply the parking brake to view the
images on the front center display
screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-7F90DABA-37C8-4571-9C5A-2974CEC5AA7A
SAA1523
Models with navigation system
1. “STATUS” status display button
(P.4-9)
2, 6, 7, 10, 11. For navigation system control buttons
(Refer to the separate Navigation
System Owner’s Manual.)
3. INFINITI controller (P.4-5)
4. “PHONE” Bluetooth
®Hands-Free
Phone System button (P.4-85)
5. “
OFF” brightness control and
display ON/OFF button (P.4-9)
8. “AM·FM·SAT” band selector button
(P.4-41) 9.
“DISC·AUX” selector button (P.4-41)
12. “INFO” vehicle and navigation infor-
mation button (P.4-9)
13. “SETTING” button (P.4-14)
Monitor, climate, audio, phone and voice recognition systems4-3
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL
Condition:
