INFINITI G SEDAN 2013 Owner's Manual

Black plate (190,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4-14Monitor, climate, audio, phone and voice recognition systems
HOW TO USE SETTING BUTTONGUID-0B7E72F0-D8E7-47AA-B3D3-9D835CB63205The display as illustrated will appear when
the SETTING button is pushed.
For navigation settings, refer to the sepa-
rate Navigation System Owner’s Manual.
SAA2485
Models with navigation system
JVH0251X
Models without navigation system
Audio settingsGUID-D7CDADA6-067E-460F-A13A-AC369FEA0D42The display as illustrated will appear when
pushing the SETTING button and selecting
the“Audio” key.
Bass/Treble/Balance/Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the speaker tone quality and
sound balance, select the “Bass”,“Treble”,
“Balance ”or “Fade” key and adjust it with
the INFINITI controller.
These items can also be adjusted by
pushing and turning the AUDIO knob.
Precision Phased Audio (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, super high
pitch sound and super low pitch sound are
emphasized and midrange sound is played
naturally.
Speed Sensitive Vol.:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system’s volume is increased
with the vehicle speed. Select the “Speed
Sensitive Vol.” and adjust the effect level
with the INFINITI controller. The Speed
Sensitive Volume function is turned off
when the level is set to OFF. Increasing the
value will cause the volume to increase
faster with vehicle speed.
Condition:

Black plate (191,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Driver’s Audio Stage (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this feature is turned to ON, better
sound will be provided to the driver’s
position. The driver can enjoy a more crisp
and clear sound that is specialized for the
driver’s position. The effect of this feature
depends on the type of music that is
played. For some music, it may be difficult
to realize the effect of this feature.
DivX
®Registration Code (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The registration code for a device that is
used to download DivX®files will be
displayed on the screen. If a disc is loaded
or a USB memory is connected to the audio
system, this function will not be activated.
Display Album Cover Art (models with
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the album
cover image is displayed when playing
iPod
®or MP3 music files through a CD,
DVD or USB memory. When the image is
not properly embedded in the file or
device, the image will not be displayed.
Phone settings (models with navi-
gation system)
GUID-A9EB693D-4F7B-4278-B820-B3F3D33948ECFor details of the “Phone”settings, see
“Bluetooth®Hands-Free Phone System
(models with navigation system)” (P.4-85).
Bluetooth®settings (models with
navigation system)
GUID-FFACA73C-B4C1-4E1C-A598-A293A0413F83For details of the “Bluetooth®”settings,
see “Bluetooth®Hands-Free Phone System
(models with navigation system)” (P.4-85).
SAA2554
Volume and Beeps settings (models
with navigation system)
GUID-44D75C4E-8923-4415-A792-D085A7A10E2EThe display as illustrated will appear when
pushing the SETTING button, selecting the
“Volume & Beeps”key.
Audio Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To increase or decrease the audio volume,
select the “Audio Volume” and adjust it
with the INFINITI controller. You can also
adjust the audio volume by turning the
VOLUME control knob.
Monitor, climate, audio, phone and voice recognition systems4-15
Condition:

Black plate (192,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4-16Monitor, climate, audio, phone and voice recognition systems
Guidance Volume:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance voice volume select
the“Guidance Volume” and adjust it with
the INFINITI controller.
You can also adjust the guidance voice
volume by turning the VOLUME control
knob while voice guidance is being an-
nounced.
Ringtone/Incoming Call/Outgoing Call:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of these items, see “Blue-
tooth®Hands-Free Phone System (models
with navigation system)” (P.4-85).
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will
hear a beep sound when you use a button.
Guidance Voice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will
hear voice guidance in the navigation
operation or in other operations.
NOTE:
When the voice guidance is being an-
nounced during audio playback, turning
the volume knob does not adjust the
music level; it adjusts the guidance
volume level. If voice guidance is not
being heard, please check the Guidance
Volume level.
JVH0176M
Switch Beeps settings (models
without navigation system)
GUID-30A93832-9708-46BA-BCA4-DE520CD32369The “Switch Beeps” screen will appear
when pushing the SETTINGbutton, select-
ing the “Switch Beeps” key with the
INFINITI controller and pushing the ENTER
button.
Switch Beeps:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, you will
hear a beep sound when you use a button.
SAA2486
Display settings (models with na-
vigation system)
GUID-7F2FE76E-2EC3-4BEE-A8D4-537CDE0931E2The display as illustrated will appear when
pushing the SETTING button and selecting
the “Display” key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the
“Display Adjustment” key. The following
settings are available.
. Display
To turn off the screen, push the ENTER
button and turn the “Display”indicator off.
The other method is to push and hold the
“
OFF” button for more than 2 seconds.
Condition:

Black plate (193,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished.
To turn on the screen, set this item to the
ON position, or push and hold the“
OFF”button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of
the screen, select the “Brightness”or
“Contrast” key.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
For information on the “Background Color”
key, refer to the separate Navigation
System Owner’s Manual.
Color Theme:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the theme color of the menu screen
from “Black”, “Brown” or“Silver”.
SAA2115
Display settings (models without
navigation system)
GUID-C75B97D4-D5F7-4B17-A5C5-8C3FBEEC66A2The “Display” screen will appear when
pushing the SETTINGbutton, selecting
“Display” key with the INFINITI controller
and pushing the ENTERbutton.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the screen, push the ENTER
button and turn the “ON”indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off auto-
matically 5 seconds after the operation is
finished. To turn on the screen, set this item to the
“ON”
position or push the “
OFF”
button.
Brightness/Contrast/Background Color:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the brightness, contrast and
background color of the screen, select the
appropriate “Brightness”, “Contrast”or
“Background Color” key and push the
ENTER button.
Then, you can adjust the brightness and
the contrast using the INFINITI controller.
Switch the background color to the day-
time mode or the nighttime mode by
pushing the ENTERbutton.
Monitor, climate, audio, phone and voice recognition systems4-17
Condition:

Black plate (194,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4-18Monitor, climate, audio, phone and voice recognition systems
SAA2487
Clock settings (models with navi-
gation system)
GUID-B9CF9FB9-D5FE-4867-98B3-5D7755C52672The display as illustrated will appear when
pushing the SETTING button and selecting
the“Clock” key.
The clock settings display cannot be
operated while driving. Stop the vehicle
in a safe place and apply the parking brake
before setting the clock.
On-screen Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, a clock is
always displayed in the upper right corner
of the screen. This clock will indicate the time almost
exactly because it is always adjusted by
the GPS system.
Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the 24-
hour clock is displayed. When this item is
not turned to ON, the 12-hour clock is
displayed.
Offset (hour)/(min):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the time by increasing or decreasing
per hour or per minute.
Daylight Saving Time:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn this item to ON for daylight saving
time application.
Time Zone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the time zone from the following
.
Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
SAA3019
Others settings (models with navi-
gation system)
GUID-5502AFAA-980F-4CBD-AAF3-40F5218DA4F3The Others settings display will appear
when pushing the SETTING button and
selecting the “Others”key.
The following items are available:
. Comfort
. Language & Units
. Voice Recognition
. Camera
. Sonar
. Image Viewer
Condition:

Black plate (195,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SAA2488
Models with navigation system
JVH0182M
Models without navigation system
Comfort settingsGUID-E6BF814A-EA39-4468-827A-98326ACDC872Models with navigation system:
The display as illustrated will appear when
pushing the SETTING button, selecting the
“Others”key and then selecting the
“Comfort” key. This key does not appear
on the display until the ignition switch is
pushed to the ON position.
Models without navigation system:
The display as illustrated will appear when
pushing the SETTING button and selecting
the “Comfort” key. This key does not
appear on the display until the ignition
switch is pushed to the ON position.
Auto Interior Illumination:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the interior
lights will illuminate if any door is un-
locked.
Light Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity of the automatic
headlights higher (right) or lower (left).
Lift Steering Wheel on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the
steering wheel moves upward for easy exit
if the ignition switch is in the LOCK
position and the driver’s door is opened. After getting into the vehicle and pushing
the ignition switch to the ACC position, the
steering wheel moves to the previous
position.
Light Off Delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the duration of the automatic
headlight off timer from 0, 30, 45, 60, 90,
120, 150 and 180 second periods.
Speed Sensing Wiper Interval (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the wiper
interval is adjusted automatically accord-
ing to the vehicle speed.
Slide Driver Seat Back on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the driver’s
seat moves backward for easy exit if the
ignition switch is in the OFF position and
the driver’s door is opened. After getting
into the vehicle and pushing the ignition
switch to the ACC position, the driver’s seat
moves to the previous position.
Selective Door Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, only the
driver’s door is unlocked first after the door
unlock operation. When the door handle
request switch on the driver’s or front
Monitor, climate, audio, phone and voice recognition systems4-19
Condition:

Black plate (196,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4-20Monitor, climate, audio, phone and voice recognition systems
passenger’s side door is pushed to be
unlocked, only the corresponding door is
unlocked first. All the doors can be
unlocked if the door unlock operation is
performed again within 60 seconds.
When this item is turned to OFF, all the
doors will be unlocked after the door
unlock operation is performed once.
Intelligent Key Lock/Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, door lock/
unlock function by pushing the door
handle request switch will be activated.
Return All Settings to Default:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select this item and then select“YES”to
return all settings to the default.
SAA2490
Models with navigation system
SAA1092
Models without navigation system
Language & Units settingsGUID-2D1FB194-339E-4AB6-A28E-3E1121BEF0F9The Language & Units settings display will
appear when pushing the SETTING button,
selecting the “Language & Units” key with
the INFINITI controller and pushing the
ENTER button.
For models with the navigation system,
select the “Others”key to show the
“Language & Units” key.
Select Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Language” key. Choose
“English”, “Français” or“Español” for your
favorite display appearance.
If you select the “Français”key, the French
language will be displayed, so please use
the French Owner’s Manual. To obtain a
French Owner’s Manual, see “Owner’s
Manual/Service Manual order information”
(P.9-27).
Select Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the “Select Units” key. Choose“US”
(Mile, 8F, MPG) or “Metric”(km,8C, L/100
km) for your favorite display appearance.
Voice Recognition settings (models
with navigation system)
GUID-CA02A577-3092-4FA9-B79C-9BA33C2AE64FFor details about the “Voice Recognition”
settings, see “INFINITI Voice Recognition
Condition:

Black plate (197,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
system (models with navigation system)”
(P.4-110).
Camera settings (if so equipped)GUID-80B11575-71A9-4388-9AFE-30F59A573C6DThe“CAMERA” screen will appear when
selecting the “Camera”key with the
INFINITI controller and pushing the ENTER
button.
For the details about the camera system
operation, see “RearView monitor” (P.4-
23).
JVH0141M
Models with navigation system
JVH0142M
Models without navigation system
Sonar settings (if so equipped)GUID-99894C51-99A7-40BC-AF20-0BFD30B2C365The “Sonar” screen will appear when
selecting the “Sonar”key with the INFINITI
controller and pushing the ENTERbutton.
For models with the navigation system,
select the “Others”key to show the
“Sonar” key.
For the details of the sonar system opera-
tion, see “Sonar system” (P.5-51).
Sonar Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned ON, the corner/
center sonar indicator will appear when the
sonar detects rear obstacles near the
bumper.
Corner Sonar Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity level of the corner
sonar higher (right) or lower (left).
Center Sonar Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity level of the center
sonar higher (right) or lower (left).
Monitor, climate, audio, phone and voice recognition systems4-21
Condition:

Black plate (198,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4-22Monitor, climate, audio, phone and voice recognition systems
SAA2491
Image Viewer (models with naviga-
tion system)
GUID-3A8CCE29-BAF6-4276-8E18-96A1950EFDF7The image files in the USB memory will be
displayed. To display the Image Viewer,
push the SETTING button, select the
“Other”key and then select the “Image
Viewer” key. The image of the selected file
is displayed on the right side of the screen.
When a number of folders are included in
the USB memory, select a folder from the
list to display the file list.
Images will not be shown on the display
while the vehicle is in any drive position to
reduce driver distraction. To view images, stop the vehicle in a safe location and
apply the parking brake.
SAA2492
Full Screen Display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The full screen display will appear when
selecting the
“Full Screen Display” key.
To operate the Image Viewer or to change
the settings, select the desired key using
the INFINITI controller.
.
(Start)
Select the “
”key to start playing
the slideshow.
.
(Stop)
Select the “
”key to stop the
slideshow.
.
(Next)
Select the “
”key to display the next
Condition:

Black plate (199,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
file.
.
(Previous)
Select the “
”key to display the
previous file.

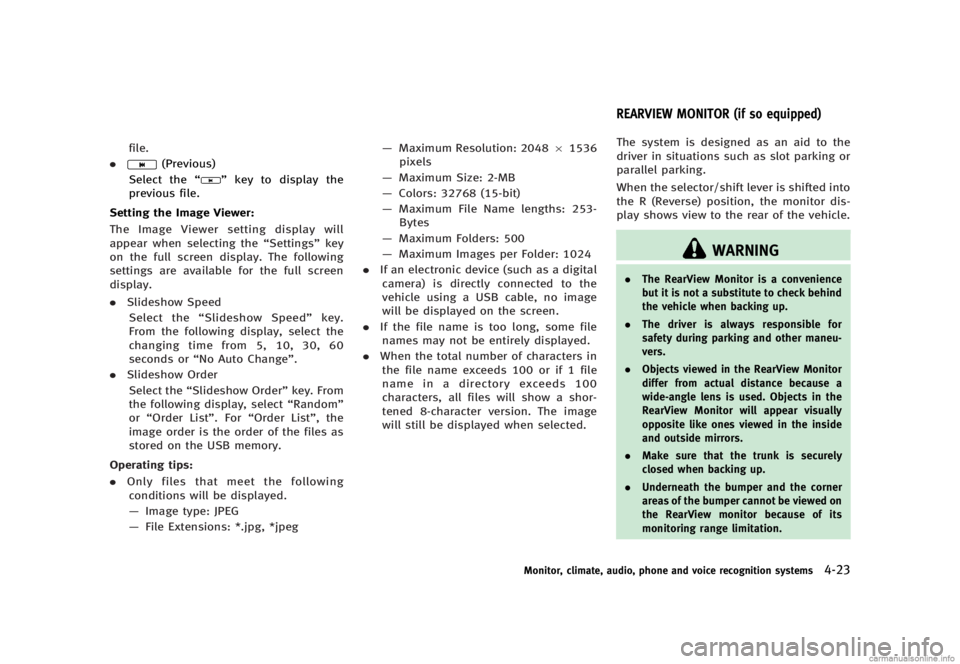

Setting the Image Viewer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The Image Viewer setting display will
appear when selecting the “Settings”key
on the full screen display. The following
settings are available for the full screen
display.
. Slideshow Speed
Select the “Slideshow Speed” key.
From the following display, select the
changing time from 5, 10, 30, 60
seconds or “No Auto Change”.
. Slideshow Order
Select the “Slideshow Order” key. From
the following display, select “Random”
or “Order List”. For “Order List”, the
image order is the order of the files as
stored on the USB memory.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Only files that meet the following
conditions will be displayed.
— Image type: JPEG
— File Extensions: *.jpg, *jpeg —
Maximum Resolution: 2048 61536
pixels
— Maximum Size: 2-MB
— Colors: 32768 (15-bit)
— Maximum File Name lengths: 253-
Bytes
— Maximum Folders: 500
— Maximum Images per Folder: 1024
. If an electronic device (such as a digital
camera) is directly connected to the
vehicle using a USB cable, no image
will be displayed on the screen.
. If the file name is too long, some file
names may not be entirely displayed.
. When the total number of characters in
the file name exceeds 100 or if 1 file
name in a directory exceeds 100
characters, all files will show a shor-
tened 8-character version. The image
will still be displayed when selected.
GUID-63214A06-C148-4301-9B23-AF1E0EA151B6The system is designed as an aid to the
driver in situations such as slot parking or
parallel parking.
When the selector/shift lever is shifted into
the R (Reverse) position, the monitor dis-
play shows view to the rear of the vehicle.
WARNING
. The RearView Monitor is a convenience
but it is not a substitute to check behind
the vehicle when backing up.
. The driver is always responsible for
safety during parking and other maneu-
vers.
. Objects viewed in the RearView Monitor
differ from actual distance because a
wide-angle lens is used. Objects in the
RearView Monitor will appear visually
opposite like ones viewed in the inside
and outside mirrors.
. Make sure that the trunk is securely
closed when backing up.
. Underneath the bumper and the corner
areas of the bumper cannot be viewed on
the RearView monitor because of its
monitoring range limitation.
Monitor, climate, audio, phone and voice recognition systems4-23
REARVIEW MONITOR (if so equipped)
Condition:
