4-134Monitor, climate, audio, phone and voice recognition systems
Repeat the command in a clear voice.
. Push the BACK button once to return to
the previous screen.
. If you want to cancel the command,
push and hold the TALK
switch for
1 second. The message “Voice can-
celed” will be announced.
. To skip the voice guidance function and
give the command immediately, press
the TALK
switch to interrupt the
system. Remember to speak after the
tone.
. If you want to adjust the volume of the
system feedback, push the volume
control switch (+ or −) on the steering
wheel or use the audio system volume
knob while the system is making an
announcement.
How to speak numbers:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407INFINITI Voice Recognition requires a cer-
tain way to speak numbers when giving
voice commands. Refer to the following
examples.
General rule
Only single digits 0 (zero) to 9 can be used.
(For example, if you would like to say 500,
“five zero zero” can be used, but “five
hundred” cannot. Phone numbers
Speak phone numbers according to the
following examples:
.
1-800-662-6200
— “Dial one eight zero zero six six two six two zero zero.”
Note 1: For the best voice recognition
phone dialing results, say phone numbers
as single digits.
Note 2: You cannot say 555-6000 as “five
five five six thousands” .
Note 3: When speaking a house number,
speak the number “0”as“zero”. If the
letter “o (oh)” is included in the house
number, it will not be recognized as the
number “0 (zero)” even if you speak “oh”
instead of “zero”. Please speak “zero”for
the number “0 (zero)”,“oh”for the letter
“o (oh)”.
Send digits using dial tone:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Press the TALKswitch during a
phone call.
. The menu will be launched and you will
be provided with the following gui-
dance: "Please say the digits to dial".
. After guidance, say the digits of the
number you want to send. After this, the digits that have been recognized
will be read out.
. If you press the ENTER button on the
steering wheel or on the INFINITI con-
troller, the selected digits will be sent.
Condition:

Black plate (311,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SAA2549
Speaker adaptation function (for
Alternate Command Mode)
GUID-DBDF0349-2C2D-40F9-A5F6-3217F79D5D3EThe voice recognition system has a func-
tion to learn the user’s voice for better
voice recognition performance. The system
can memorize the voices of up to three
persons.
Having the system learn the user’s voice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the SETTING button on the instru-ment panel and select the “Others”
key.
2. Select the “Voice Recognition” key.
3. Select the “Speaker Adaptation” key.
SAA2550
4. Select the user whose voice is memor-
ized by the system.
5. Select the “Start Speaker Adaptation
Learning” key.
SAA2551
6. Select a category to be learned by the
system from the following list.
.Phone Commands.Navigation Commands.Information Commands.Audio Commands.Help Commands
The voice commands in the category
are displayed.
7. Select a voice command and then push the ENTER button.
The voice recognition system starts.
Monitor, climate, audio, phone and voice recognition systems4-135
Condition:

Black plate (312,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4-136Monitor, climate, audio, phone and voice recognition systems
SAA2552
8. The system requests that you repeat acommand after a tone.
9. After the tone sounds and the icon on the screen changes from
to,
speak the command that the system
requested.
10. When the system has recognized the voice command, the voice of the user is
learned.
Push the
switch or BACK button to
return to the previous screen.
If the system has learned the command
correctly, the voice command status on the
right side of the command turns from “None”
to“Stored”.
SAA2553
Speaker Adaptation function settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Edit User Name
Edit the user name using the keypad
displayed on the screen.
Delete Voice Data
Resets the user’s voice that the voice
recognition system has learned.
Continuous Learning
When this item is turned to ON, you can
have the system learn the voice commands
in succession, without selecting com-
mands one by one.
Condition:

Black plate (313,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Minimize voice feedback (for Alter-
nate Command Mode)
GUID-BF45D980-A3C7-4305-A8B2-EC5768226FD1To minimize the voice feedback from the
system, perform the following steps.
1. Push the SETTING button on the instru-ment panel.
2. Select the “Others”key.
3. Select the “Voice Recognition” key.
4. Select the “Minimize Voice Feedback”
key.
5. The setting is turned to ON and the voice guidance will now be reduced
when using the Voice Recognition
system.
Monitor, climate, audio, phone and voice recognition systems4-137
Condition:

Black plate (314,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
4-138Monitor, climate, audio, phone and voice recognition systems
TROUBLESHOOTING GUIDEGUID-35425524-373A-4C9E-9E81-95955D5BB57BThe system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in
this guide for the appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.
Symptom/error messageSolution
The system fails to interpret the command correctly. 1. Ensure that the command format is valid, see“Command List”(P.4-117).
2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these in place.
The system consistently selects the wrong voicetag in
the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See
“Bluetooth
®Hands-Free Phone
System (models with navigation system)” (P.4-85).)
2. Replace one of the voicetags being confused with a different voicetag.
Condition:

Black plate (315,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
5 Starting and driving
Precautions when starting and driving...
................. 5-3
Exhaust gas (carbon monoxide) ...
....................... 5-3
Three-way catalyst ...
........................................... 5-4
Tire Pressure Monitoring System (TPMS) ...
.......... 5-4
Avoiding collision and rollover ...
......................... 5-6
Off-road recovery ...
............................................. 5-7
Rapid air pressure loss ...
................................... 5-7
Drinking alcohol/drugs and driving ...
................. 5-8
All-Wheel Drive (AWD) driving safety precautions
(AWD models) ...
.................................................. 5-8
Push-button ignition switch ...
................................. 5-9
Intelligent Key system ...
..................................... 5-9
Operating range for engine start function ...
...... 5-10
Push-button ignition switch operation ...
........... 5-10
Push-button ignition switch positions ...
............ 5-11
Emergency engine shut off ...
............................ 5-11
Intelligent Key battery discharge ...
................... 5-12
Before starting the engine ...
................................. 5-12
Starting the engine ...
............................................ 5-13
Driving the vehicle ...
............................................. 5-14
Automatic transmission ...
................................. 5-14
Manual Transmission ...
..................................... 5-19
Parking brake ...
.................................................... 5-21
Automatic transmission models ...
..................... 5-21
Manual Transmission models ...
........................ 5-22 Cruise control
...
.................................................... 5-22
Precautions on cruise control ...
....................... 5-22
Cruise control operations ...
............................. 5-23
Intelligent Cruise Control (ICC) system (if
so equipped) ...
..................................................... 5-24
Selecting the vehicle-to-vehicle distance
control mode ...
............................................... 5-25
Vehicle-to-vehicle distance control mode ...
...... 5-25
Precautions on vehicle-to-vehicle distance
control mode ...
............................................... 5-26
Vehicle-to-vehicle distance control
mode operation ...
........................................... 5-28
Conventional (fixed speed) cruise
control mode ...
............................................... 5-42
Preview function (for Intelligent Cruise Control
system equipped models) ...
............................ 5-45
Break-in schedule ...
............................................. 5-46
Fuel Efficient Driving Tips ...
.................................. 5-46
Increasing fuel economy ...
.................................... 5-47
All-Wheel Drive (AWD) (if so equipped) ...
.............. 5-48
Parking/parking on hills ...
.................................... 5-49
Sonar system (if so equipped) ...
.......................... 5-51
Sonar indicator ...
............................................ 5-52
Sonar system OFF switch ...
............................. 5-53
Power steering ...
.................................................. 5-53
Condition:

Black plate (316,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Brake system...
..................................................... 5-53
Braking precautions ...
...................................... 5-53
Parking brake break-in ...
.................................. 5-54
Brake assist ...
...................................................... 5-54
Brake assist ...
.................................................. 5-54
Preview function (Intelligent Cruise Control
system equipped models) ...
............................. 5-54
Anti-lock Braking System (ABS) ...
..................... 5-57
Vehicle Dynamic Control (VDC) system ...
............... 5-58
4 Wheel Active Steer (4WAS) system (if
so equipped) ...
..................................................... 5-60 Cold weather driving
...
......................................... 5-60
Freeing a frozen door lock ...
........................... 5-60
Antifreeze ...
.................................................... 5-60
Battery ...
......................................................... 5-60
Draining of coolant water ...
............................. 5-60
Tire equipment ...
............................................ 5-61
Special winter equipment ...
............................ 5-61
Driving on snow or ice ...
................................. 5-61
Engine block heater (for Canada only) ...
.......... 5-62
Condition:

Black plate (317,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-39788F85-F09A-4F03-A86A-9971096F7435

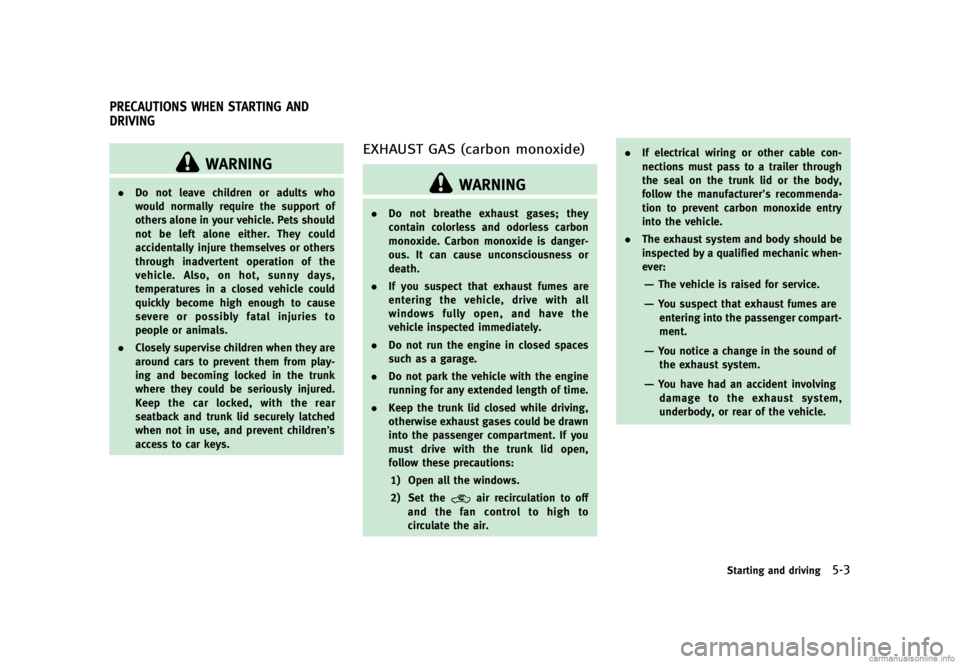

WARNING
.Do not leave children or adults who
would normally require the support of
others alone in your vehicle. Pets should
not be left alone either. They could
accidentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
. Closely supervise children when they are
around cars to prevent them from play-
ing and becoming locked in the trunk
where they could be seriously injured.
Keep the car locked, with the rear
seatback and trunk lid securely latched
when not in use, and prevent children’s
access to car keys.
EXHAUST GAS (carbon monoxide)GUID-FE83F1BB-566B-418F-8146-74C3A55C538A
WARNING
.Do not breathe exhaust gases; they
contain colorless and odorless carbon
monoxide. Carbon monoxide is danger-
ous. It can cause unconsciousness or
death.
. If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.
. Do not run the engine in closed spaces
such as a garage.
. Do not park the vehicle with the engine
running for any extended length of time.
. Keep the trunk lid closed while driving,
otherwise exhaust gases could be drawn
into the passenger compartment. If you
must drive with the trunk lid open,
follow these precautions:
1) Open all the windows.
2) Set the
air recirculation to off
and the fan control to high to
circulate the air. .
If electrical wiring or other cable con-
nections must pass to a trailer through
the seal on the trunk lid or the body,
follow the manufacturer’s recommenda-
tion to prevent carbon monoxide entry
into the vehicle.
. The exhaust system and body should be
inspected by a qualified mechanic when-
ever:
—The vehicle is raised for service.
—You suspect that exhaust fumes are
entering into the passenger compart-
ment.
—You notice a change in the sound of
the exhaust system.
—You have had an accident involvingdamage to the exhaust system,
underbody, or rear of the vehicle.
Starting and driving5-3
PRECAUTIONS WHEN STARTING AND
DRIVING
Condition:

Black plate (318,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
5-4Starting and driving

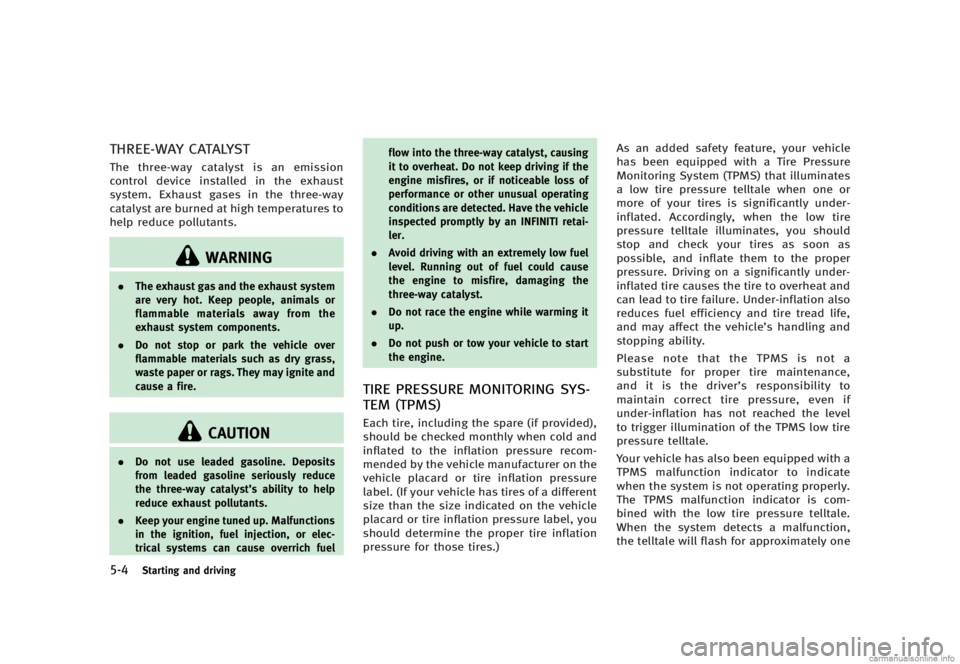

THREE-WAY CATALYSTGUID-86566321-839C-449F-B115-5E0F54C18ECEThe three-way catalyst is an emission
control device installed in the exhaust
system. Exhaust gases in the three-way
catalyst are burned at high temperatures to
help reduce pollutants.
WARNING
.The exhaust gas and the exhaust system
are very hot. Keep people, animals or
flammable materials away from the
exhaust system components.
. Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.
CAUTION
.Do not use leaded gasoline. Deposits
from leaded gasoline seriously reduce
the three-way catalyst’s ability to help
reduce exhaust pollutants.
. Keep your engine tuned up. Malfunctions
in the ignition, fuel injection, or elec-
trical systems can cause overrich fuel flow into the three-way catalyst, causing
it to overheat. Do not keep driving if the
engine misfires, or if noticeable loss of
performance or other unusual operating
conditions are detected. Have the vehicle
inspected promptly by an INFINITI retai-
ler.
. Avoid driving with an extremely low fuel
level. Running out of fuel could cause
the engine to misfire, damaging the
three-way catalyst.
. Do not race the engine while warming it
up.
. Do not push or tow your vehicle to start
the engine.
TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-01A54468-A798-4FEE-AB71-4E7737FDCB1CEach tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires.) As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that illuminates
a low tire pressure telltale when one or
more of your tires is significantly under-
inflated. Accordingly, when the low tire
pressure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the proper
pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction,
the telltale will flash for approximately one
Condition:

Black plate (319,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

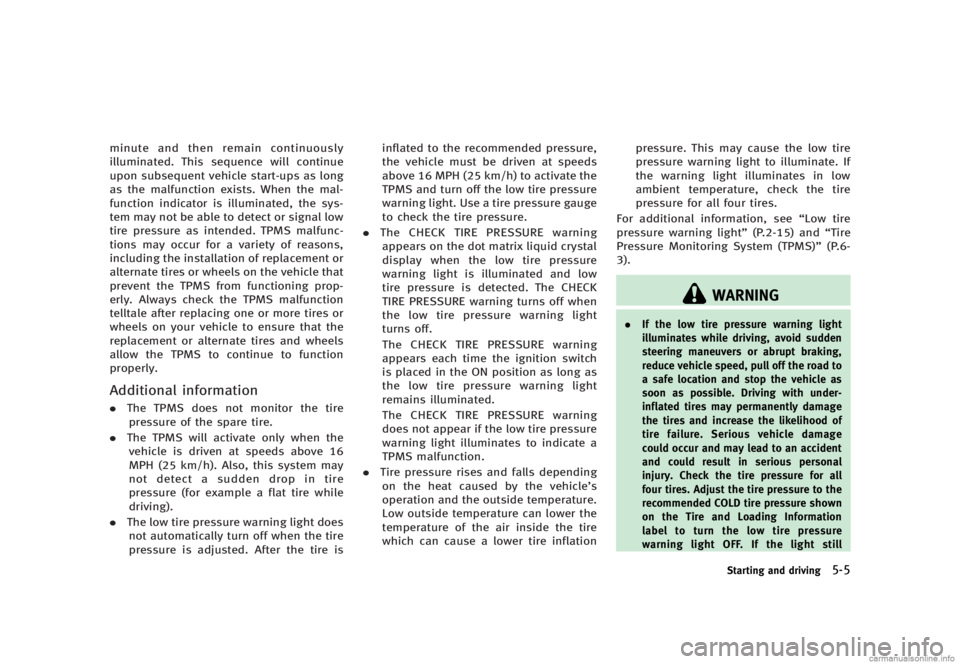

minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the mal-
function indicator is illuminated, the sys-
tem may not be able to detect or signal low
tire pressure as intended. TPMS malfunc-
tions may occur for a variety of reasons,
including the installation of replacement or
alternate tires or wheels on the vehicle that
prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
Additional informationGUID-80EA0255-F871-460E-BDF5-E3C4E75931D0.The TPMS does not monitor the tire
pressure of the spare tire.
. The TPMS will activate only when the
vehicle is driven at speeds above 16
MPH (25 km/h). Also, this system may
not detect a sudden drop in tire
pressure (for example a flat tire while
driving).
. The low tire pressure warning light does
not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to the recommended pressure,
the vehicle must be driven at speeds
above 16 MPH (25 km/h) to activate the
TPMS and turn off the low tire pressure
warning light. Use a tire pressure gauge
to check the tire pressure.
. The CHECK TIRE PRESSURE warning
appears on the dot matrix liquid crystal
display when the low tire pressure
warning light is illuminated and low
tire pressure is detected. The CHECK
TIRE PRESSURE warning turns off when
the low tire pressure warning light
turns off.
The CHECK TIRE PRESSURE warning
appears each time the ignition switch
is placed in the ON position as long as
the low tire pressure warning light
remains illuminated.
The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.
. Tire pressure rises and falls depending
on the heat caused by the vehicle’s
operation and the outside temperature.
Low outside temperature can lower the
temperature of the air inside the tire
which can cause a lower tire inflation pressure. This may cause the low tire
pressure warning light to illuminate. If
the warning light illuminates in low
ambient temperature, check the tire
pressure for all four tires.
For additional information, see “Low tire
pressure warning light” (P.2-15) and“Tire
Pressure Monitoring System (TPMS)” (P.6-
3).
WARNING
. If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
Starting and driving5-5
Condition:
