9 Technical and consumer information
Capacities and recommended fuel/lubricants...
....... 9-2
Fuel information ...
.............................................. 9-4
Engine oil and oil filter recommendation ...
......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ...
............................. 9-7
Specifications ...
...................................................... 9-8
Engine ...
............................................................. 9-8
Wheels and tires ...
............................................. 9-9
Dimensions ...
................................................... 9-10
When traveling or registering your vehicle in
another country ...
................................................. 9-11
Vehicle identification ...
......................................... 9-11
Vehicle Identification Number (VIN) plate ...
....... 9-11
Vehicle identification number
(chassis number) ...
........................................... 9-12
Engine serial number ...
.................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
.......... 9-13
Emission control information label ...
................ 9-13
Tire and Loading Information label ...
................ 9-13
Air conditioner specification label ...
.................. 9-14
Installing front license plate ...
.............................. 9-14
Sedan ...
........................................................... 9-15 Coupe (except for INFINITI Performance
Line model)
...
................................................. 9-16
Coupe (INFINITI Performance Line model) ...
..... 9-18
Vehicle loading information ...
............................... 9-19
Terms ...
.......................................................... 9-19
Vehicle load capacity ...
................................... 9-20
Loading tips ...
................................................. 9-21
Measurement of weights ...
.............................. 9-22
Towing a trailer ...
................................................. 9-22
Flat towing ...
................................................... 9-22
Uniform tire quality grading ...
.............................. 9-23
Treadwear ...
.................................................... 9-23
Traction AA, A, B and C ...
................................ 9-23
Temperature A, B and C ...
............................... 9-23
Emission control system warranty ...
..................... 9-24
Reporting safety defects ...
.................................... 9-25
Readiness for Inspection/Maintenance (I/M) test
(US only) ...
........................................................... 9-26
Event Data Recorders (EDR) ...
............................... 9-26
Owner’s Manual/Service Manual
order information ...
.............................................. 9-27
Condition:

Black plate (452,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
9-2Technical and consumer information
GUID-83DC73A1-0226-4579-85B6-0002CD56C740The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the“8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended specifications
US measure Imp measure Liter
Fuel 20 gal 16-5/8 gal 76 See “Fuel information”(P.9-4).
Engine oil*1 .Engine oil with API Certification Mark*2*3
. Viscosity SAE 5W-30
Drain and refill
With oil filter change 5-1/8 qt 4-3/8 qt 4.9
Without oil filter change 4-7/8 qt 4 qt 4.6
Cooling system
Automatic transmission
model With reservoir 9 qt 7-1/2 qt 8.5
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Reservoir 7/8 qt 3/4 qt 0.8
Manual transmission model With reservoir 9-1/2 qt 7-7/8 qt 9.0
Reservoir
7/8 qt3/4 qt 0.8
Automatic transmission fluid ———Genuine NISSAN Matic S ATF*4
Manual transmission gear oil ———Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or API GL-4,
Viscosity SAE 75W-85
Differential gear oil ———For 7A/T 2WD models:
API GL-5 Synthetic Gear Oil Viscosity SAE 75W-90*5
All other models:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5, Viscosity SAE
80W-90*6
Transfer fluid ———Genuine NISSAN Matic J ATF*7
Power steering fluid (PSF) Refill to the proper oil level according to the instructions in the “8.
Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent*8
Brake and clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*9 or equivalent DOT 3
Multi-purpose grease Without limited slip differential ———
NLGI No. 2 (Lithium soap base)
With limited slip differential ———
Air conditioning system refrigerant ———HFC-134a (R-134a)*10
Air conditioning system lubricants ———NISSAN A/C System Oil Type S or exact equivalent
Window washer fluid ———Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1:
For additional information, see “Engine oil”(P.8-11) for changing engine oil.*2:INFINITI recommends Genuine NISSAN Ester Engine Oil available at an INFINITI retailer.
CAPACITIES AND RECOMMENDED FUEL/
LUBRICANTS
Condition:

Black plate (453,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
*3:For additional information, see“Engine oil and oil filter recommendation” (P.9-6).*4:Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic
transmission, which is not covered by the INFINITI new vehicle limited warranty.
*5:See an INFINITI retailer for service for synthetic oil.*6:For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 328F (08C).*7:Using transfer fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and transfer durability, and may damage the transfer, which is not covered by the INFINITI new
vehicle limited warranty.
*8:DEXRONTMVI type ATF may also be used.*9:Available in mainland USA through an INFINITI retailer.*10:For additional information, see“Vehicle identification”(P.9-11) for air conditioner specification label.
Technical and consumer information9-3
Condition:

Black plate (454,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
9-4Technical and consumer information

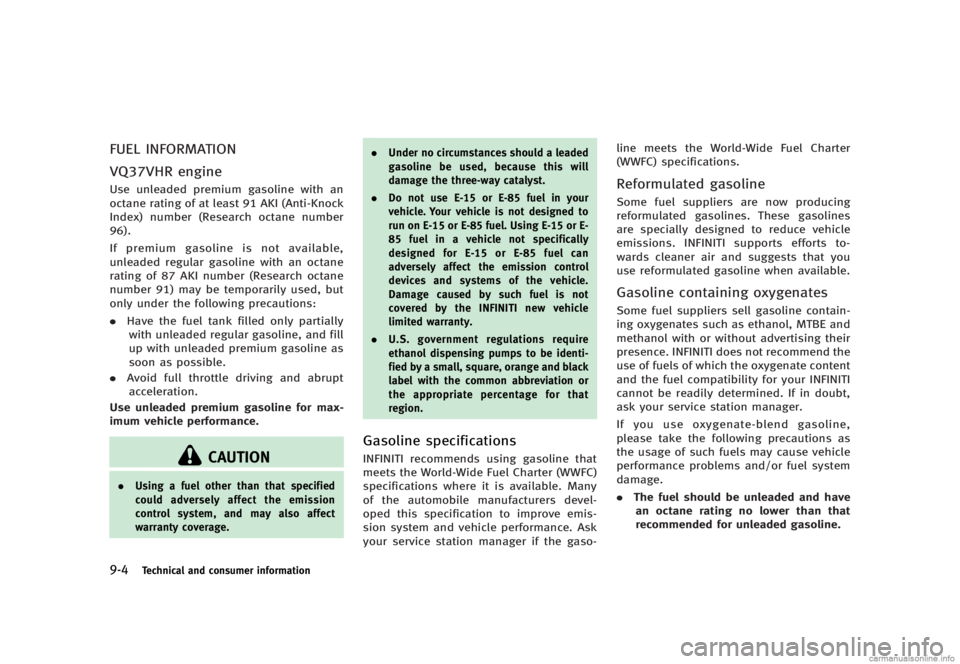

FUEL INFORMATIONGUID-FD3A9510-2D82-4C2F-81D2-3EECA4BDE202
VQ37VHR engineGUID-62D6EF4E-F486-46EA-A1E0-D4BB9121EA3AUse unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number
96).
If premium gasoline is not available,
unleaded regular gasoline with an octane
rating of 87 AKI number (Research octane
number 91) may be temporarily used, but
only under the following precautions:
.Have the fuel tank filled only partially
with unleaded regular gasoline, and fill
up with unleaded premium gasoline as
soon as possible.
. Avoid full throttle driving and abrupt
acceleration.
Use unleaded premium gasoline for max-
imum vehicle performance.
CAUTION
. Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect
warranty coverage. .
Under no circumstances should a leaded
gasoline be used, because this will
damage the three-way catalyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or E-
85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can
adversely affect the emission control
devices and systems of the vehicle.
Damage caused by such fuel is not
covered by the INFINITI new vehicle
limited warranty.
. U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and black
label with the common abbreviation or
the appropriate percentage for that
region.
Gasoline specificationsGUID-E8A76FAE-F1E8-41BA-ACCF-E439B6733579INFINITI recommends using gasoline that
meets the World-Wide Fuel Charter (WWFC)
specifications where it is available. Many
of the automobile manufacturers devel-
oped this specification to improve emis-
sion system and vehicle performance. Ask
your service station manager if the gaso- line meets the World-Wide Fuel Charter
(WWFC) specifications.
Reformulated gasolineGUID-21D3DE2D-574C-45D2-AE5B-28DCCCBF286CSome fuel suppliers are now producing
reformulated gasolines. These gasolines
are specially designed to reduce vehicle
emissions. INFINITI supports efforts to-
wards cleaner air and suggests that you
use reformulated gasoline when available.
Gasoline containing oxygenatesGUID-ABC4FC82-F0F7-44E4-BDD3-2D84252E0A47Some fuel suppliers sell gasoline contain-
ing oxygenates such as ethanol, MTBE and
methanol with or without advertising their
presence. INFINITI does not recommend the
use of fuels of which the oxygenate content
and the fuel compatibility for your INFINITI
cannot be readily determined. If in doubt,
ask your service station manager.
If you use oxygenate-blend gasoline,
please take the following precautions as
the usage of such fuels may cause vehicle
performance problems and/or fuel system
damage.
.
The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
Condition:

Black plate (455,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
.If an oxygenate-blend, excepting a
methanol blend, is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
. E-15 fuel contains more than 10%
oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the INFINITI new
vehicle limited warranty.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol). It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in INFINITI
vehicles.
If any undesirable driveability problems
such as engine stalling or hard hot starting
are experienced after using oxygenate- blend fuels, immediately change to a
non-oxygenate fuel or a fuel with a low
blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.

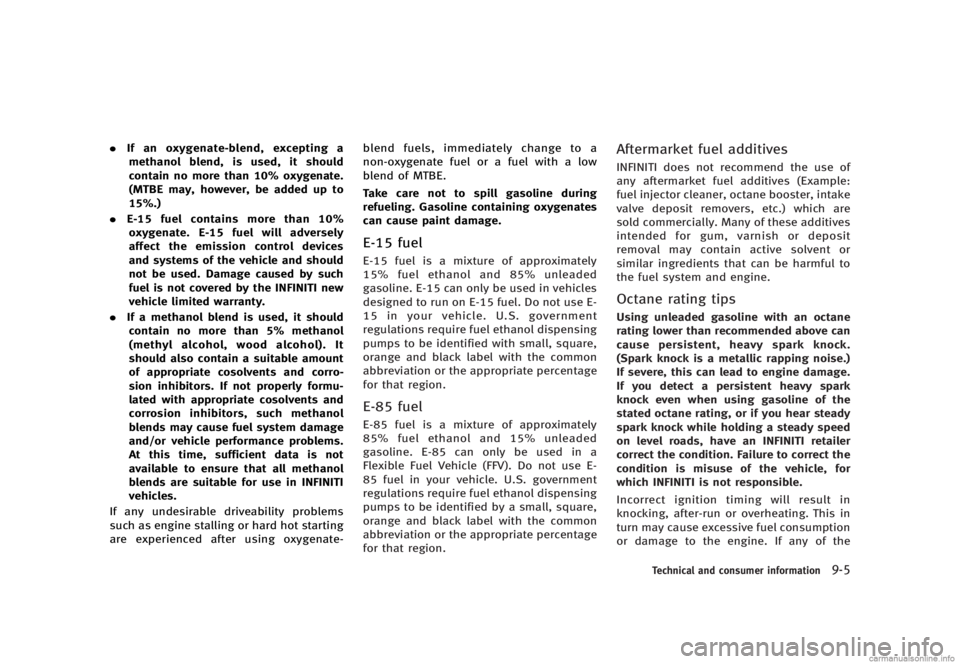

E-15 fuelGUID-926048B6-9F6A-457D-B048-67135BCCC7F6E-15 fuel is a mixture of approximately
15% fuel ethanol and 85% unleaded
gasoline. E-15 can only be used in vehicles
designed to run on E-15 fuel. Do not use E-
15 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified with small, square,
orange and black label with the common
abbreviation or the appropriate percentage
for that region.
E-85 fuelGUID-BE764F0C-6A10-497C-B4F9-CD1D0E122DA3E-85 fuel is a mixture of approximately
85% fuel ethanol and 15% unleaded
gasoline. E-85 can only be used in a
Flexible Fuel Vehicle (FFV). Do not use E-
85 fuel in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage
for that region.
Aftermarket fuel additivesGUID-663D952D-0F24-4D6E-ABBF-21302053695CINFINITI does not recommend the use of
any aftermarket fuel additives (Example:
fuel injector cleaner, octane booster, intake
valve deposit removers, etc.) which are
sold commercially. Many of these additives
intended for gum, varnish or deposit
removal may contain active solvent or
similar ingredients that can be harmful to
the fuel system and engine.
Octane rating tipsGUID-527A0AB1-299D-45DA-9B92-4DDA2444B93CUsing unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, have an INFINITI retailer
correct the condition. Failure to correct the
condition is misuse of the vehicle, for
which INFINITI is not responsible.
Incorrect ignition timing will result in
knocking, after-run or overheating. This in
turn may cause excessive fuel consumption
or damage to the engine. If any of the
Technical and consumer information9-5
Condition:

Black plate (456,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
9-6Technical and consumer information
above symptoms are encountered, have
your vehicle checked at an INFINITI retailer
or other competent service facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
JVT0159X
1. API certification mark
2. API service symbol
ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-5DAF484B-5225-4882-BA4B-DB4830EFE0AF
Selecting the correct oilGUID-7E56B07C-FA31-476B-909A-6FD2C08A7626It is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance,
see“Capacities and recommended fuel/
lubricants” (P.9-2). INFINITI recommends
the use of an energy conserving oil in
order to improve fuel economy.
Select only engine oils that meet the American Petroleum Institute (API) certifi-
cation or International Lubricant Standar-
dization and Approval Committee (ILSAC)
certification and SAE viscosity standard.
These oils have the API certification mark
on the front of the container. Oils which do
not have the specified quality label should
not be used as they could cause engine
damage.
Oil additivesGUID-11AD1E70-8EAE-4D70-880A-3AA3882862D5INFINITI does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used
and maintenance intervals are followed.
Condition:

Black plate (457,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

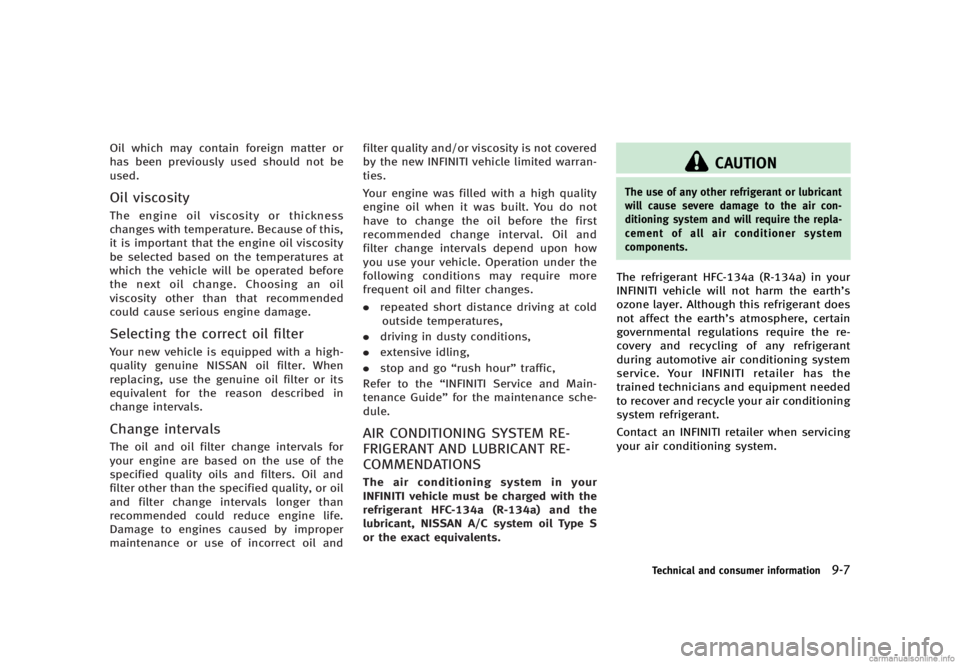

Oil which may contain foreign matter or
has been previously used should not be
used.
Oil viscosityGUID-6FE50DBA-A088-4DF7-B955-855B7BC409B7The engine oil viscosity or thickness
changes with temperature. Because of this,
it is important that the engine oil viscosity
be selected based on the temperatures at
which the vehicle will be operated before
the next oil change. Choosing an oil
viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filterGUID-FFA0543F-C4EE-4AB0-A3D3-B35085A1CBFEYour new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.
Change intervalsGUID-9DC392AF-E881-459C-941F-E42A7567649CThe oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Oil and
filter other than the specified quality, or oil
and filter change intervals longer than
recommended could reduce engine life.
Damage to engines caused by improper
maintenance or use of incorrect oil andfilter quality and/or viscosity is not covered
by the new INFINITI vehicle limited warran-
ties.
Your engine was filled with a high quality
engine oil when it was built. You do not
have to change the oil before the first
recommended change interval. Oil and
filter change intervals depend upon how
you use your vehicle. Operation under the
following conditions may require more
frequent oil and filter changes.
.
repeated short distance driving at cold
outside temperatures,
. driving in dusty conditions,
. extensive idling,
. stop and go “rush hour”traffic,
Refer to the “INFINITI Service and Main-
tenance Guide” for the maintenance sche-
dule.AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS
GUID-A6645D62-AEB6-4D99-B362-51EC90BEBB5EThe air conditioning system in your
INFINITI vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the
lubricant, NISSAN A/C system oil Type S
or the exact equivalents.
CAUTION
The use of any other refrigerant or lubricant
will cause severe damage to the air con-
ditioning system and will require the repla-
cement of all air conditioner system
components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth’s
ozone layer. Although this refrigerant does
not affect the earth’s atmosphere, certain
governmental regulations require the re-
covery and recycling of any refrigerant
during automotive air conditioning system
service. Your INFINITI retailer has the
trained technicians and equipment needed
to recover and recycle your air conditioning
system refrigerant.
Contact an INFINITI retailer when servicing
your air conditioning system.
Technical and consumer information9-7
Condition:

Black plate (458,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
9-8Technical and consumer information
GUID-FFBD2EF3-5719-47E5-B112-89129991741B
ENGINEGUID-0847A1B6-AE80-4107-9ADC-D17B43B8EBB3
ModelVQ37VHR
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm) 3.76063.385 (95.5 686.0)
Displacement cu in (cm
3) 225.54 (3,696)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
STI0425
SPECIFICATIONS
Condition:

Black plate (459,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

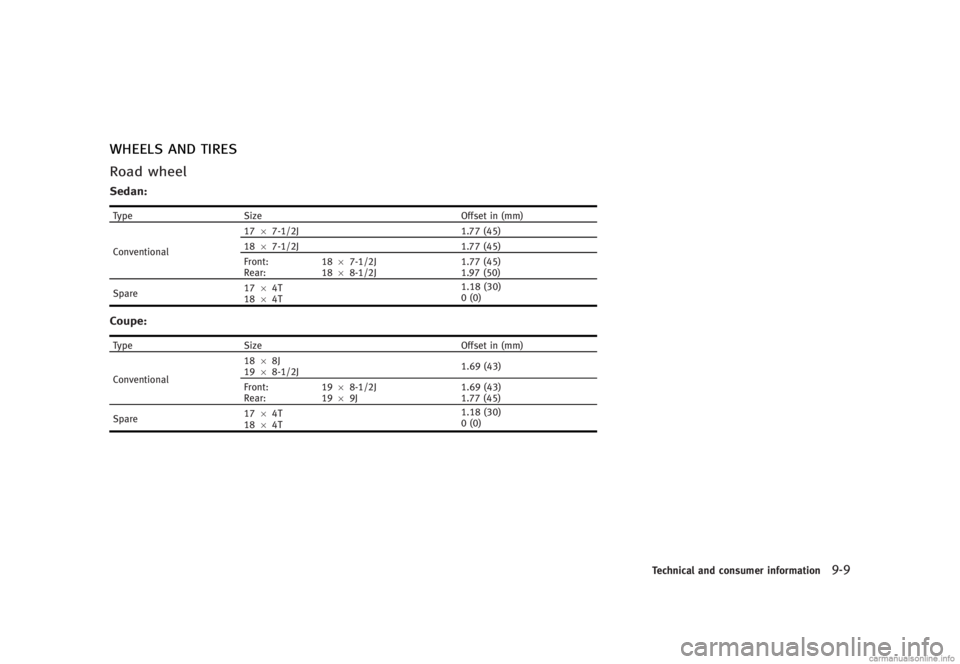

WHEELS AND TIRESGUID-3E66521D-4D31-4794-BCBE-4477CC2BE529
Road wheelGUID-276AC0FC-4962-4E9B-81A8-E48824CCC7A1
Sedan:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
TypeSize Offset in (mm)
Conventional 17
67-1/2J 1.77 (45)
18 67-1/2J 1.77 (45)
Front:
Rear: 18
67-1/2J
18 68-1/2J 1.77 (45)
1.97 (50)
Spare 17
64T
18 64T 1.18 (30)
0 (0)
Coupe:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Type
Size Offset in (mm)
Conventional 18
68J
19 68-1/2J 1.69 (43)
Front:
Rear: 19
68-1/2J
19 69J 1.69 (43)
1.77 (45)
Spare 17
64T
18 64T 1.18 (30)
0 (0)
Technical and consumer information9-9
Condition:
