8-26Maintenance and do-it-yourself
case, remove the extended storage fuse
switch and replace it with a new fuse of
the same rating.
How to remove the extended storage fuse
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage fuseswitch, be sure the ignition switch is in
the OFF or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on
each side of the extended storage fuse
switch.
5. Pull the extended storage fuse switch straight out from the fuse box
*2.
GUID-D6C7487D-F01A-4963-A132-57E4904379BF
CAUTION
Be careful not to allow children to swallow
the battery and removed parts.
SDI1834
Replace the battery as follows:
1. Release the lock knob at the back of theIntelligent Key and remove the mechan-
ical key.
2. Insert a flat-blade screwdriver
*A
wrapped with a cloth into the slit*B
of the corner and twist it to separate
the upper part from the lower part.
INTELLIGENT KEY BATTERY REPLACEMENT
Condition:

Black plate (431,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SDI2042
3. Replace the battery with a new one.Recommended battery: CR2032 or
equivalent.
.Do not touch the internal circuit andelectric terminals as it could cause a
malfunction.
.Hold the battery by the edges.
Holding the battery across the con-
tact points will seriously deplete the
storage capacity.
.Make sure that the + side faces thebottom of the case.
4. Align the tips of the upper and lower parts, and then push them together
until it is securely closed. 5. Push the buttons two or three times to
check its operation.
See an INFINITI retailer if you need any
assistance for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Maintenance and do-it-yourself8-27
Condition:

Black plate (432,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
8-28Maintenance and do-it-yourself
GUID-CC43F1E0-CD84-4C89-AE76-E3BF74F58A31
JVM0099X
SEDANGUID-DC499FCB-C993-49FE-B186-4299E70AF7631. Front turn signal light and parkinglight
2. Headlight (high- and low-beam)
3. Front side marker light
4. Map light
5. Rear personal light
6. Fog light
7. Step light
8. Trunk light
9. High-mounted stop light
10. License plate light
11. Back-up light
12. Rear combination light (rear turn
signal/tail/stop/side marker light)
LIGHTS
Condition:

Black plate (433,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SDI2702
COUPEGUID-0388FA1F-19E7-4691-88ED-9037CE2CE37C1. Parking light
2. Headlight (high- and low-beam)
3. Front turn signal light
4. Map light
5. Fog light
6. Front side marker light
7. Step light
8. High-mounted stop light (on the rearparcel shelf or in the rear spoiler)*
9. Trunk light
10. License plate light
11. Back-up light
12. Rear combination light (rear turn
signal/tail/stop/side marker light)
*: Note that when the factory spoiler is installed, the rear parcel shelf high-
mounted stop light is still present, but
it is disabled and replaced by the rear
spoiler high-mounted stop light.
Maintenance and do-it-yourself8-29
Condition:

Black plate (434,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
8-30Maintenance and do-it-yourself

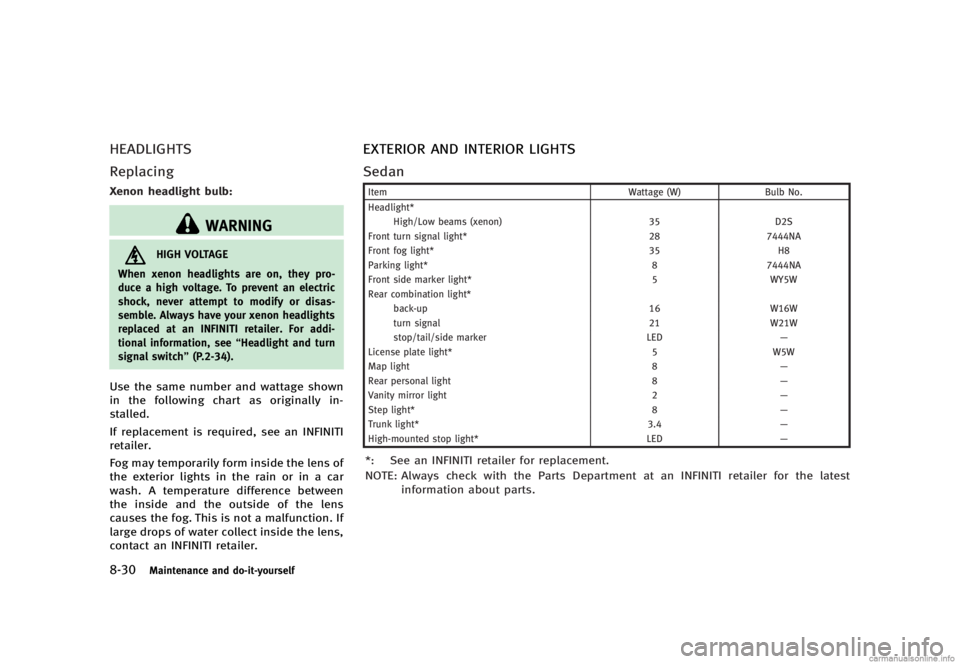

HEADLIGHTSGUID-2C37EBF3-FE69-4D64-AE03-00ECA5091687
ReplacingGUID-782124E3-CA8B-42A2-90B0-1AC5B2F9C37A
Xenon headlight bulb:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING
HIGH VOLTAGE
When xenon headlights are on, they pro-
duce a high voltage. To prevent an electric
shock, never attempt to modify or disas-
semble. Always have your xenon headlights
replaced at an INFINITI retailer. For addi-
tional information, see “Headlight and turn
signal switch” (P.2-34).
Use the same number and wattage shown
in the following chart as originally in-
stalled.
If replacement is required, see an INFINITI
retailer.
Fog may temporarily form inside the lens of
the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
contact an INFINITI retailer.
EXTERIOR AND INTERIOR LIGHTSGUID-BDE3C310-75C1-4F4D-9E48-5E09104465DA
SedanGUID-4998FE6F-5C4E-43C2-BA3C-10A3EF2B9ECB
Item Wattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 287444NA
Front fog light* 35 H8
Parking light* 8 7444NA
Front side marker light* 5 WY5W
Rear combination light* back-up 16 W16W
turn signal 21 W21W
stop/tail/side marker LED —
License plate light* 5 W5W
Map light 8 —
Rear personal light 8 —
Vanity mirror light 2 —
Step light* 8 —
Trunk light* 3.4 —
High-mounted stop light* LED —
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest
information about parts.
Condition:

Black plate (435,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
CoupeGUID-6BE0C122-8A5E-4B16-9AFC-881BF27CAAA6
ItemWattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 21WY21W
Front fog light* 55H11
Parking light* 5W5W
Front side marker light* 5W5W
Rear combination light*
back-up 16W16W
turn signal 21W21W
stop/tail/side marker LED—
License plate light* 5W5W
Map light 8—
Vanity mirror light 2 —
Step light* 8 —
Trunk light* 3.4 —
High-mounted stop light* LED —
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest
information about parts.
Replacement proceduresGUID-D8D045ED-1B5F-4082-8769-1BABE97FBC3AAll other lights are either type A, B, C, D, E
or F. When replacing a bulb, first remove
the lens and/or cover.
Maintenance and do-it-yourself8-31
Condition:

Black plate (436,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
8-32Maintenance and do-it-yourself
SDI1679
SDI2508
Map light
SDI2031
Rear personal light (Sedan only)
SDI2032
Vanity mirror light (Type A)
SDI1839
Vanity mirror light (Type B)
Condition:

Black plate (437,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

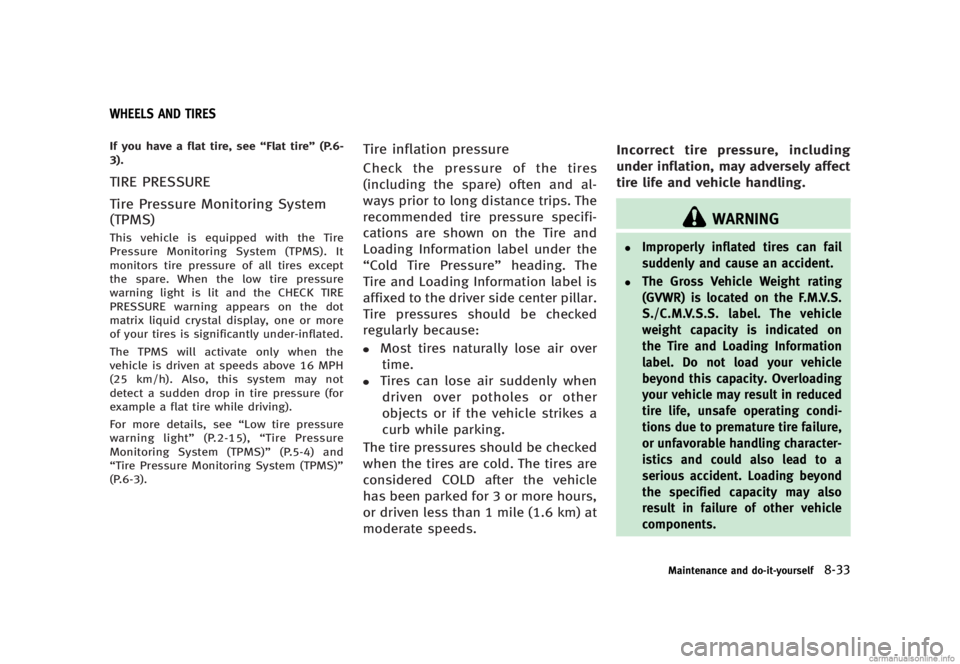

GUID-9503AF79-9CA5-400E-9F06-81B6757D713CIf you have a flat tire, see“Flat tire”(P.6-
3).
TIRE PRESSUREGUID-059CBC2D-BB1C-4DE2-B26E-A89198E003F1
Tire Pressure Monitoring System
(TPMS)
GUID-54149EBD-6C2B-4EEC-AE1A-FDADBBA021B3This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-15),“Tire Pressure
Monitoring System (TPMS)” (P.5-4) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-3).
Tire inflation pressureGUID-FDC2587E-609D-4595-9387-574BE1BDEAC6
Check the pressure of the tires
(including the spare) often and al-
ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly whendriven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds. Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.
S./C.M.V.S.S. label. The vehicle
weight capacity is indicated on
the Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Overloading
your vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire failure,
or unfavorable handling character-
istics and could also lead to a
serious accident. Loading beyond
the specified capacity may also
result in failure of other vehicle
components.
Maintenance and do-it-yourself8-33
WHEELS AND TIRES
Condition:

Black plate (438,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
8-34Maintenance and do-it-yourself

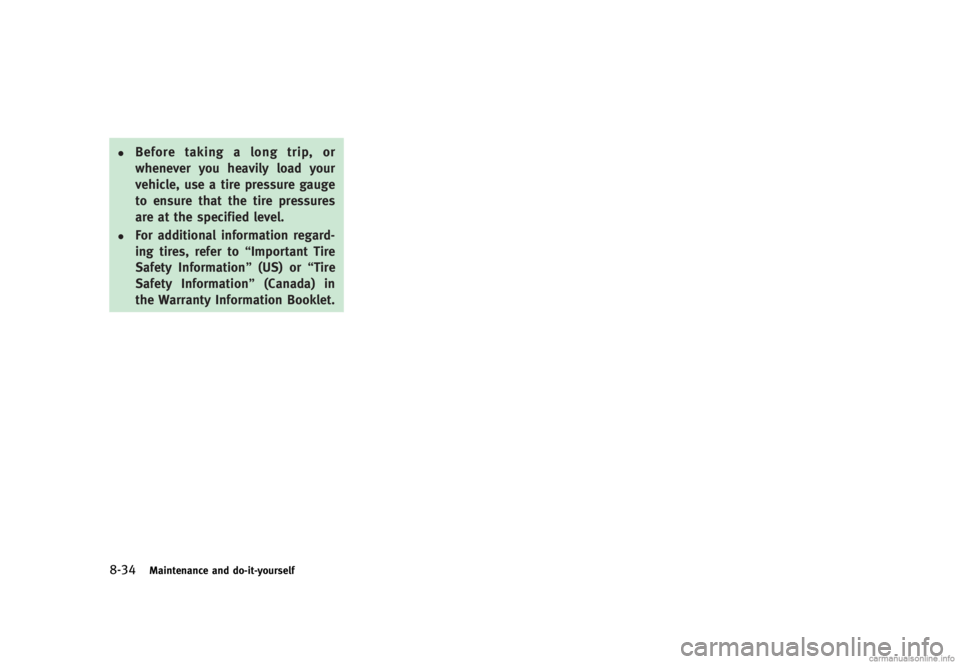

.Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
are at the specified level.
.For additional information regard-
ing tires, refer to“Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in
the Warranty Information Booklet.
Condition:

Black plate (439,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SDI2703
Tire and Loading Information labelGUID-5F11D76D-958D-427C-91EF-04C50D9803D6*1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
*2Vehicle load limit: See“Vehicle
loading information” (P.9-19).
*3Original size: The size of the tires
originally installed on the vehicle
at the factory.
*4Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid- ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6
km) at moderate speeds. The
recommended cold tire inflation
is set by the manufacturer to
provide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size
—see “Tire labeling”
(P.8-37).
*6Spare tire size or compact spare
tire size (if so equipped)
Maintenance and do-it-yourself8-35
