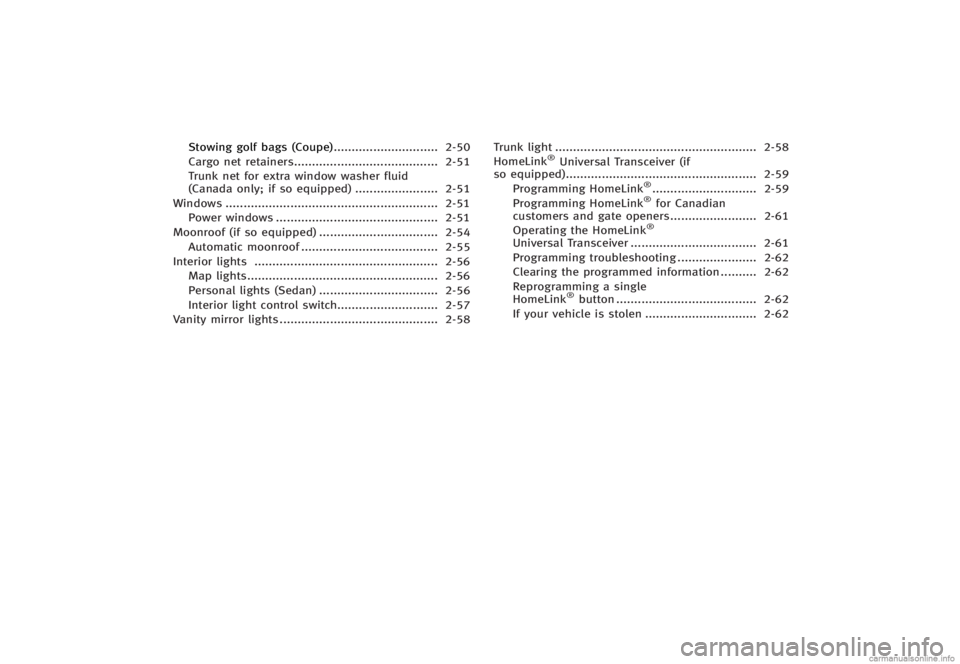

Black plate (80,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Stowing golf bags (Coupe)...
............................. 2-50
Cargo net retainers ...
........................................ 2-51
Trunk net for extra window washer fluid
(Canada only; if so equipped) ...
....................... 2-51
Windows ...
........................................................... 2-51
Power windows ...
............................................. 2-51
Moonroof (if so equipped) ...
................................. 2-54
Automatic moonroof ...
...................................... 2-55
Interior lights ...
................................................... 2-56
Map lights ...
..................................................... 2-56
Personal lights (Sedan) ...
................................. 2-56
Interior light control switch ...
............................ 2-57
Vanity mirror lights ...
............................................ 2-58 Trunk light
...
........................................................ 2-58
HomeLink®Universal Transceiver (if
so equipped) ...
..................................................... 2-59
Programming HomeLink
®...
............................. 2-59
Programming HomeLink®for Canadian
customers and gate openers ...
........................ 2-61
Operating the HomeLink
®
Universal Transceiver ...
................................... 2-61
Programming troubleshooting ...
...................... 2-62
Clearing the programmed information ...
.......... 2-62
Reprogramming a single
HomeLink
®button ...
....................................... 2-62
If your vehicle is stolen ...
............................... 2-62
Condition:

Black plate (81,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-A9682D04-AAAB-465F-98B6-B6532C9F1362
SIC4683
1. Vehicle Dynamic Control (VDC) OFFswitch (P.5-58)
2. Trunk lid release switch (P.3-18)
3. Sonar system off switch (if so
equipped) (P.5-53) 4. Instrument brightness control switch
(P.2-38)
5. TRIP/RESET switch for twin trip od- ometer (P.2-7)
6. Headlight, fog light and turn signal switch (P.2-34) 7. Paddle shifter (if so equipped) (P.5-16)
8. Steering-wheel-mounted controls (left
side)
—ENTER or tuning switch (P.4-83)
— BACK switch (P.4-83)
— TALK switch (if so equipped)
(P.4-110)/Phone switch (if so
equipped) (P.4-85, P.4-96)
— Volume control switches (P.4-83)
— Source select switch (P.4-83)
9. Trip computer switch (P.2-26)
10. Windshield wiper and washer switch (P.2-31)
11. Steering-wheel-mounted controls
(right side)
—Cruise control switches (P.5-22)
— Intelligent Cruise Control (ICC)
switches (if so equipped) (P.5-24)
12. Hood release handle (P.3-17)
13. Intelligent Key port (P.5-12)
14. Electric tilting/telescopic steering
wheel lever (if so equipped) (P.3-25)
15. Manual tilting/telescopic steering
wheel lever (if so equipped) (P.3-25)
16. Steering wheel —Horn (P.2-39)
— Driver supplemental air bag
(P.1-41)
Instruments and controls2-3
COCKPIT
Condition:

Black plate (82,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-4Instruments and controls
GUID-F966D69B-15F8-48D0-A86B-A60F682B16E9
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-41)
5. Clock (P.2-42)6. Center multi-function control panel
(P.4-3)
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9) —
Bluetooth
®Hands-Free Phone Sys-
tem (if so equipped) (P.4-85, P.4-96)
— Audio system (P.4-41)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.6-2)
9. Front passenger supplemental air bag (P.1-41)
10. Fuse box cover (P.8-24)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-21)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-31)
14. Cigarette lighter and ashtray (if so equipped) (P.2-43) or storage box (if
so equipped) (P.2-49)
—Power outlet (if so equipped)
(P.2-42)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-21)
16. Heated seat switch (if so equipped) (P.2-40)
17. SNOW mode switch (if so equipped) (P.2-41)
INSTRUMENT PANEL
Condition:

Black plate (83,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
18. Rear window and outside mirror (if soequipped) defroster switch (P.2-34)
19. Glove box lid release handle (P.2-47)
20. Trunk release power cancel switch (P.3-19)
*: Refer to the separate Navigation
System Owner’s Manual.
Instruments and controls2-5
Condition:

Black plate (84,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-6Instruments and controls
GUID-50C93020-C345-4E0C-9F52-C7AB04736560
SIC4288
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Dot matrix liquid crystal display/ Odometer/twin trip odometer
(P.2-20)
6. Fuel gauge (P.2-9)
*: The needle indicators in the speed-
ometer, tachometer, engine coolant
temperature gauge and fuel gauge may move slightly after the ignition
switch is pushed to the LOCK posi-
tion. This is not a malfunction.
METERS AND GAUGES
Condition:

Black plate (85,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SIC4289
Speedometer
SPEEDOMETER AND ODOMETERGUID-88FF886D-55BB-496B-8011-CC5C82ACF75E
SpeedometerGUID-87976F68-0541-4C72-B0C4-146B04F072C8The speedometer indicates vehicle speed
in miles per hour (MPH) and kilometers per
hour (km/h).
SIC3259
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-5C08B138-E7A9-4EA6-BB29-75239C1D6187The odometer*1and twin trip odometer
*2are displayed on the dot matrix crystal
display when the ignition switch is in the
ON position.
The odometer records the total distance
the vehicle has been driven.
The twin trip odometer records the dis-
tance of individual trips. Changing the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET switch*3at
the bottom left of the combination meter
panel changes the display as follows:
TRIP A ?TRIP B ?TRIP A
Resetting the trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the TRIP A/B RESET switch*3for
more than 1 second resets the trip
odometer to zero.
Average fuel economy and distance to
empty information is also available. (See
“Dot matrix liquid crystal display” (P.2-20)
and “How to use STATUS button” (P.4-9).)
Instruments and controls2-7
Condition:

Black plate (86,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-8Instruments and controls
SIC4290
TACHOMETERGUID-273B358F-40B0-4C4E-9967-70C4BF4F89C7The tachometer indicates engine speed in
revolutions per minute (RPM).Do not rev
the engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce engine
speed. Operating the engine in the red zone
may cause serious engine damage.
SIC4291
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-0EBFAC15-E62D-4FAB-ADAB-7BCC3D24A957The gauge indicates the engine coolant
temperature.
The engine coolant temperature is within
the normal range when the gauge needle
points within the zone
*1shown in the
illustration.
The engine coolant temperature varies with
the outside air temperature and driving
conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the
normal range, reduce vehicle speed to
decrease temperature. If gauge is over the
normal range, stop the vehicle as soon as
safely possible. If the engine is overheated,
continued operation of the vehicle may
seriously damage the engine. See “If your
vehicle overheats” (P.6-11) for immediate
action required.
Condition:

Black plate (87,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
SIC4292
FUEL GAUGEGUID-A6CE9D87-1196-4EDB-BE07-B0479D286BC3The gauge indicates theapproximatefuel
level in the tank.
The gauge may move slightly during
braking, turning, acceleration, or going up
or down hills.
The gauge needle returns to E (Empty) after
the ignition switch is pushed to the OFF
position.
Refill the fuel tank before the gauge
registers “E”(Empty).
The low fuel warning
appears on the
dot matrix liquid crystal display when the
fuel tank is getting low. Refuel as soon as it is convenient, preferably before the gauge
reaches
“E”. There will be a small reserve
of fuel in the tank when the fuel gauge
needle reaches “E”.
The
indicates that the fuel-filler door is
located on the passenger’s side of the
vehicle.
CAUTION
. If the vehicle runs out of fuel, the
malfunction indicator light (MIL) may
come on. Refuel as soon as possible.
After a few driving trips, the
light
should turn off. If the light remains on
after a few driving trips, have the vehicle
inspected by an INFINITI retailer.
. For additional information, see “Mal-
function Indicator Light (MIL)” (P.2-18).
GUID-263D42A7-AD19-460F-8531-86F714066C53
SIC3181
When the ignition switch is pushed to the
ON position, the compass display
*Bwill
indicate the direction of the vehicle’s
heading.
NOS1741
If the display reads “C”, calibrate the
compass by driving the vehicle in 3
complete circles at less than 5 MPH (8
Instruments and controls2-9
COMPASS (if so equipped)
Condition:

Black plate (88,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-10Instruments and controls
km/h). You can also calibrate the compass
by driving your vehicle on your everyday
route. The compass will be calibrated once
it has tracked 3 complete circles.
To turn on and off the compass manually,
push the
switch*Awhile the ignition
switch is in the ON position.
SIC0611B
Zone map
Condition:

Black plate (89,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
ZONE VARIATION CHANGE PROCE-
DURE
GUID-E09E8E8D-3C27-49AC-9DF4-41F27EDC4D72The difference between magnetic north and
geographical north is known as variance.
In some areas, this difference can some-
times be great enough to cause false
compass readings. Follow these instruc-
tions to set the variance for your particular
location if this happens:
1. Push the
switch for more than 3
seconds. The current zone number will
appear in the display.
2. Find your current location and variance number on the zone map.
3. Push the
switch repeatedly until
the new zone number appears in the
display, then release the switch. After
you release the switch, the display will
show a compass direction within a few
seconds.
.If the compass deviates from the correct indication soon after re-
peated adjustment, have the com-
pass checked at an INFINITI retailer.
.The compass may not indicate thecorrect compass point in tunnels or
while driving up or down a steep hill.
(The compass returns to the correct compass point when the vehicle
moves to an area where the geo-
magnetism is stabilized.)
CAUTION
.
Do not install a ski rack, antenna, etc.,
which are attached to the vehicle by
means of a magnet. They affect the
operation of the compass.
. When cleaning the mirror, use a paper
towel or similar material dampened with
glass cleaner. Do not spray glass cleaner
directly on the mirror as it may cause the
liquid cleaner to enter the mirror hous-
ing.
Instruments and controls2-11
