TPMS INFINITI G35 2006 User Guide

TIRE PRESSURE
Tire pressure monitoring system
(TPMS) This vehicle is equipped with the tire
pressure monitoring system (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit, one or more of your
tires is significantly under-inflated.
The TPMS will activate only when the ve-
hicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, refer to ªLow tire pres-
sure warning lightº in the ª2. Instruments
and controlsº section, ªTire pressure
monitoring system (TPMS)º in the ª5.
Starting and drivingº section, and ªFlat
tireº in the ª6. In case of emergencyº sec-
tion. Tire inflation pressure Check the tire pressure of the tires (in-
cluding the spare) often and always
prior to long distance trips. The recom-
mended tire pressure specifications are
shown on the F.M.V.S.S./C.M.V.S.S.
label or the Tire and Loading Informa-
tion label under the ªCOLD TIRE PRES-
SUREº heading. The Tire and Loading
Information label is affixed to the driver
side center pillar. Tire pressures should
be checked regularly because:
O Most tires naturally lose air over
time.
O Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be check
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.SDI1779A
Vanity mirror light
SDI1401B
License plate light WHEELS AND TIRES
Maintenance and do-it-yourself
8-37
w 06.1.5/V35-D/V5.0
X

q 5

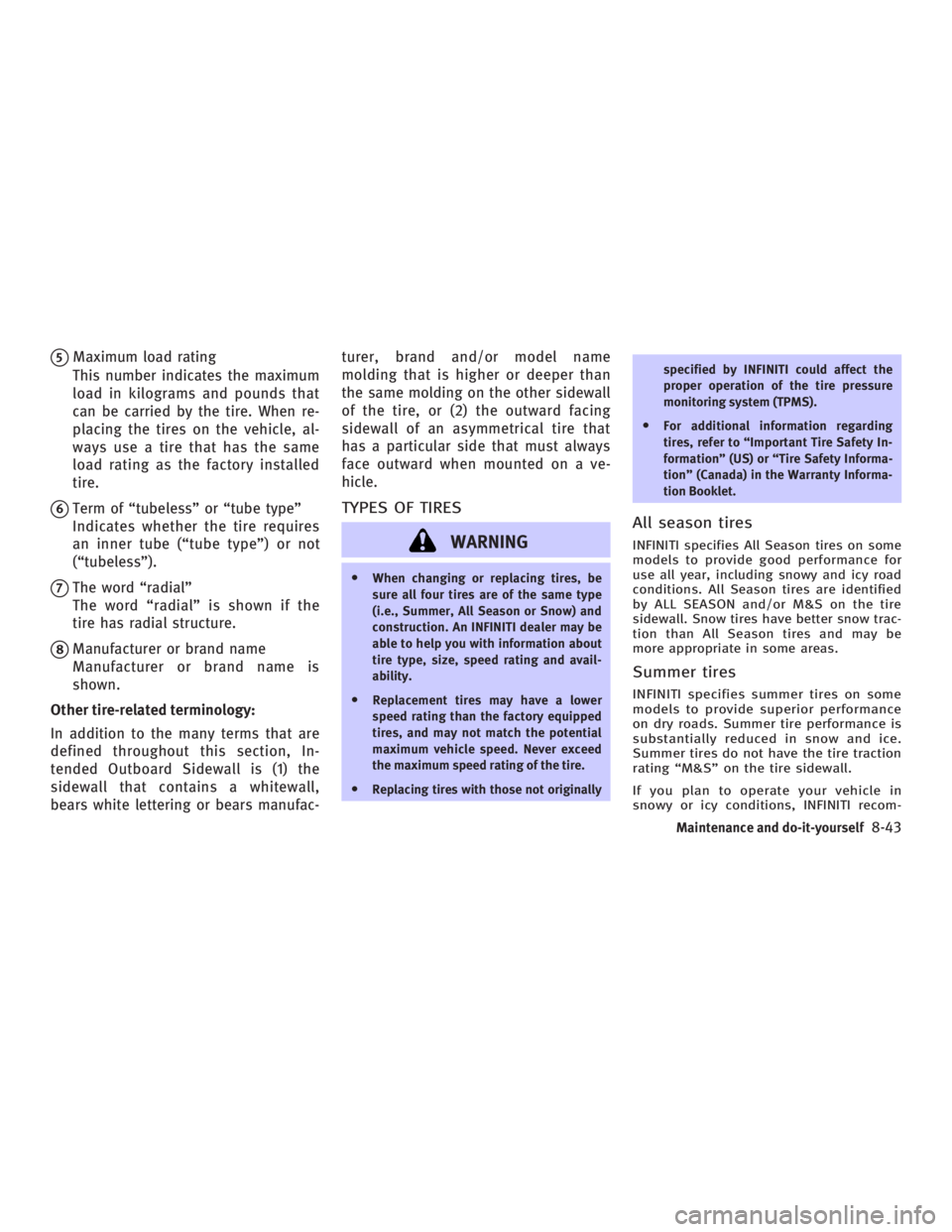

Maximum load rating
This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When re-
placing the tires on the vehicle, al-
ways use a tire that has the same
load rating as the factory installed
tire.
q 6
Term of ªtubelessº or ªtube typeº
Indicates whether the tire requires
an inner tube (ªtube typeº) or not
(ªtubelessº).
q 7
The word ªradialº
The word ªradialº is shown if the
tire has radial structure.
q 8
Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manufac- turer, brand and/or model name
molding that is higher or deeper than
the same molding on the other sidewall
of the tire, or (2) the outward facing
sidewall of an asymmetrical tire that
has a particular side that must always
face outward when mounted on a ve-
hicle.
TYPES OF TIRES
WARNING O When changing or replacing tires, be
sure all four tires are of the same type
(i.e., Summer, All Season or Snow) and
construction. An INFINITI dealer may be
able to help you with information about
tire type, size, speed rating and avail-
ability.
O Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.
O Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the tire pressure
monitoring system (TPMS).
O For additional information regarding
tires, refer to ªImportant Tire Safety In-
formationº (US) or ªTire Safety Informa-
tionº (Canada) in the Warranty Informa-
tion Booklet.
All season tires INFINITI specifies All Season tires on some
models to provide good performance for
use all year, including snowy and icy road
conditions. All Season tires are identified
by ALL SEASON and/or M&S on the tire
sidewall. Snow tires have better snow trac-
tion than All Season tires and may be
more appropriate in some areas.
Summer tires INFINITI specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating ªM&Sº on the tire sidewall.
If you plan to operate your vehicle in
snowy or icy conditions, INFINITI recom-
Maintenance and do-it-yourself
8-43
w 06.1.5/V35-D/V5.0
X

tionsº in the ª9. Technical and consumer
informationº section for recommended
types and sizes of tires and wheels.
WARNINGO The use of tires other than those recom-
mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can ad-
versely affect the ride, braking, handling,
ground clearance, body-to-tire clearance,
tire chain clearance, speedometer calibra-
tion, headlight aim and bumper height.
Some of these effects may lead to accidents
and could result in serious personal injury.
O If the wheels are changed for any reason,
always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics and/or interference with the
brake discs. Such interference can lead
to decreased braking efficiency and/or
early brake pad wear.
O When a spare tire is mounted or a wheel
is replaced, tire pressure will not be indi-
cated, the TPMS will not function and the low tire pressure warning light will flash.
Contact your INFINITI dealer as soon as
possible for tire replacement and/or sys-
tem resetting.
O Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
O Do not install a deformed wheel or tire
even if it has been repaired. Such wheels
or tires could have structural damage
and could malfunction without warning.
O The use of retread tires is not recom-
mended.
O For additional information regarding tires,
refer to ªImportant Tire Safety Informationº
(US) or ªTire Safety Informationº (Canada)
in the Warranty Information Booklet.
CAUTION Always use tires of the same type, size,
brand, construction (bias, bias-belted or ra-
dial), and tread pattern on all four wheels.
Failure to do so may result in a circumference difference between tires on the front and
rear axles which will cause excessive tire
wear and may damage the transmission,
transfer case and differential gears (AWD
models).
Wheel balance Unbalanced wheels may affect vehicle han-
dling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to transmission damage.
For additional information regarding tires,
refer to ªImportant Tire Safety Informa-
tionº (US) or ªTire Safety Informationº
(Canada) in the INFINITI Warranty Informa-
tion Booklet.
Care of wheels O Wash the wheels when washing the
vehicle to maintain their appearance.
O Clean the inner side of the wheels
when the wheel is changed or the un-
derside of the vehicle is washed.
Maintenance and do-it-yourself
8-47
w 06.1.5/V35-D/V5.0
X

Installation on rear seat outboard or
center positions ........................................ 1-20
Precautions on child restraints .................. 1-18
Top tether strap anchor point locations ..... 1-27
Child safety ...................................................... 1-12
Child safety rear door lock................................. 3-5
Chimes
Audible reminders ..................................... 2-16
Seat belt warning light and chime ............. 2-13
Cigarette lighter and ashtray ........................... 2-30
Circuit breaker, Fusible link ............................. 8-26
Cleaning exterior and interior ..................... 7-2, 7-4
Clock ............................................................... 2-29
Clutch fluid ...................................................... 8-14
Coat hook ........................................................ 2-38
Cold weather driving........................................ 5-30
Command (See Bluetooth
Hands-Free Phone
System) ........................................................... 4-36
Compact Disc (CD) changer operation .............. 4-25
Compass display ............................................... 2-6
Console box .................................................... 2-36
Control panel buttons (models with navigation
system) ............................................................. 4-2
Controls
Control panel buttons (display with
navigation system)...................................... 4-2
Heater and air conditioner controls
(automatic) ................................................ 4-10
Steering wheel audio controls .................. 4-28
Coolant
Capacities and recommended fuel/
lubricants ................................................... 9-2
Changing engine coolant ............................ 8-9
Checking engine coolant level .................... 8-8 Corrosion protection .......................................... 7-5
Cruise control .................................................. 5-20
Cup holder....................................................... 2-32
Curtain side-impact air bag system (See
supplemental side air bag and curtain
side-impact air bag systems) ........................... 1-48
D
Daytime running light system .......................... 2-24
Defroster switch, Rear window and outside
mirror defroster switch .................................... 2-20
Dimensions and weights ................................... 9-9
Display controls (See control panel buttons),
With navigation system ..................................... 4-2
Door open warning light ................................... 2-11
Door Pockets .................................................... 2-31
Drive belts ....................................................... 8-19
Drive positioner, Automatic.............................. 3-34
Driving
All-wheel drive (AWD) safety precautions .... 5-6
Cold weather driving ................................. 5-30
Driving with automatic transmission ... 5-6, 5-12
Driving with manual transmission ....... 5-7, 5-16
Precautions when starting and driving ........ 5-2
E
Economy, Fuel.................................................. 5-22
Emission control information label ................... 9-12
Emission control system warranty ................... 9-24
Engine
Before starting the engine ......................... 5-10
Break-in schedule ..................................... 5-22 Capacities and recommended fuel/
lubricants ................................................... 9-2
Changing engine coolant ............................ 8-9
Changing engine oil and filter.................... 8-11
Checking engine coolant level .................... 8-8
Checking engine oil level .......................... 8-10
Coolant temperature gauge......................... 2-4
Engine block heater .................................. 5-32
Engine compartment check locations .......... 8-7
Engine cooling system ................................ 8-8
Engine oil .................................................. 8-10
Engine oil and oil filter recommendation..... 9-5
Engine oil viscosity ..................................... 9-5
Engine serial number ................................. 9-11
Engine specifications .................................. 9-8
If your vehicle overheats ............................ 6-11
Starting the engine .................................... 5-11
Entry/exit function, Automatic drive
positioner ........................................................ 3-34
Event data recorders........................................ 9-26
Exhaust gas (Carbon monoxide) ......................... 5-2
F
F.M.V.S.S./C.M.V.S.S. certification label ........... 9-11
Filter
Air cleaner housing filter .......................... 8-20
Changing engine oil and filter.................... 8-11
Flashers (See hazard warning flasher
switch) ............................................................. 2-25
Flat tire.............................................................. 6-2
Flat tire, Tire pressure monitoring system
(TPMS) ............................................................... 5-3
Flat towing....................................................... 9-22
10-2
w 06.1.5/V35-D/V5.0
X

Shifting
Automatic transmission ...................... 5-6, 5-12
Manual transmission .......................... 5-7, 5-16
Shoulder belt guide .......................................... 1-17
Shoulder belt height adjustment ...................... 1-16
Side air bag system (See supplemental side
air bag and curtain side-impact air bag
systems) .......................................................... 1-48
SNOW mode switch ......................................... 2-27
Spark plugs ..................................................... 8-19
Speedometer ..................................................... 2-3
Starting
Before starting the engine ......................... 5-10
Jump starting .............................................. 6-8
Precautions when starting and driving ........ 5-2
Push starting............................................. 6-10
Starting the engine .................................... 5-11
Status light, Front passenger air bag ............... 1-44
Steering
Power steering fluid .................................. 8-13
Power steering system .............................. 5-25
Rear active steer (RAS) system .................. 5-29
Steering wheel switch for audio
controls .................................................... 4-28
Tilting steering wheel................................ 3-30
Storage ............................................................ 2-31
Stowing golf bags............................................ 2-39
Sun shade ....................................................... 2-42
Sun visors ....................................................... 3-32
Sunglasses holder ........................................... 2-32
Sunroof ........................................................... 2-42
Automatic sunroof..................................... 2-42
Supplemental air bag warning labels ................ 1-51
Supplemental air bag warning light.......... 1-51, 2-14 Supplemental restraint system ......................... 1-36
Precautions on supplemental restraint
system ...................................................... 1-36
Supplemental side and curtain side-impact
air bag systems ............................................... 1-48
Switch
Autolight switch ........................................ 2-22
Fog light switch......................................... 2-25
Hazard warning flasher switch .................. 2-25
Headlight switch........................................ 2-21
Ignition switch (except Intelligent Key
system) ....................................................... 5-6
Ignition switch automatic transmission
models ............................................... 5-6, 5-12
Ignition switch manual transmission
models ............................................... 5-7, 5-16
Power door lock switch ............................... 3-4
Rear window and outside mirror defroster
switch ....................................................... 2-20
Steering wheel switch for audio control .... 4-28
Turn signal switch..................................... 2-24
Vehicle Dynamic Control (VDC) off
switch ....................................................... 2-28
T
Tachometer........................................................ 2-4
Temperature gauge, Engine coolant
temperature gauge ............................................ 2-4
Theft (INFINITI Vehicle Immobilizer System),
Engine start ..................................................... 2-18
Three way catalyst ............................................. 5-3
Tilting steering wheel ...................................... 3-30 Tire
Flat tire ....................................................... 6-2
Pressure, Low tire pressure warning
light .......................................................... 2-12
Tire pressure monitoring system (TPMS) ..... 5-3
Uniform tire quality grading ...................... 9-23
Tires
Spare tire ................................................. 8-48
Tire and Loading Information label ............ 9-12
Tire chains ................................................ 8-44
Tire dressing ............................................... 7-3
Tire pressure............................................. 8-37
Tire pressure monitoring system
(TPMS) ................................................. 5-3, 6-2
Tire rotation .............................................. 8-45
Types of tires ............................................ 8-43
Wheel/tire size ........................................... 9-9
Wheels and tires ....................................... 8-37
Top tether strap child restraints ....................... 1-26
Towing
Flat towing ................................................ 9-22
Tow truck towing ....................................... 6-12
Towing a trailer ......................................... 9-18
Towing load/specification chart................. 9-18
Towing safety ............................................ 9-19
TPMS, Tire pressure monitoring system ............. 5-3
Trailer towing ................................................... 9-18
Transceiver, HomeLink Universal
Transceiver ...................................................... 2-46
Transmission
Automatic transmission fluid (ATF)............. 8-13
Driving with automatic transmission ... 5-6, 5-12
Driving with manual transmission ....... 5-7, 5-16
Transmission selector lever lock release .... 5-15
10-6
w 06.1.4/V35-D/V5.0
X

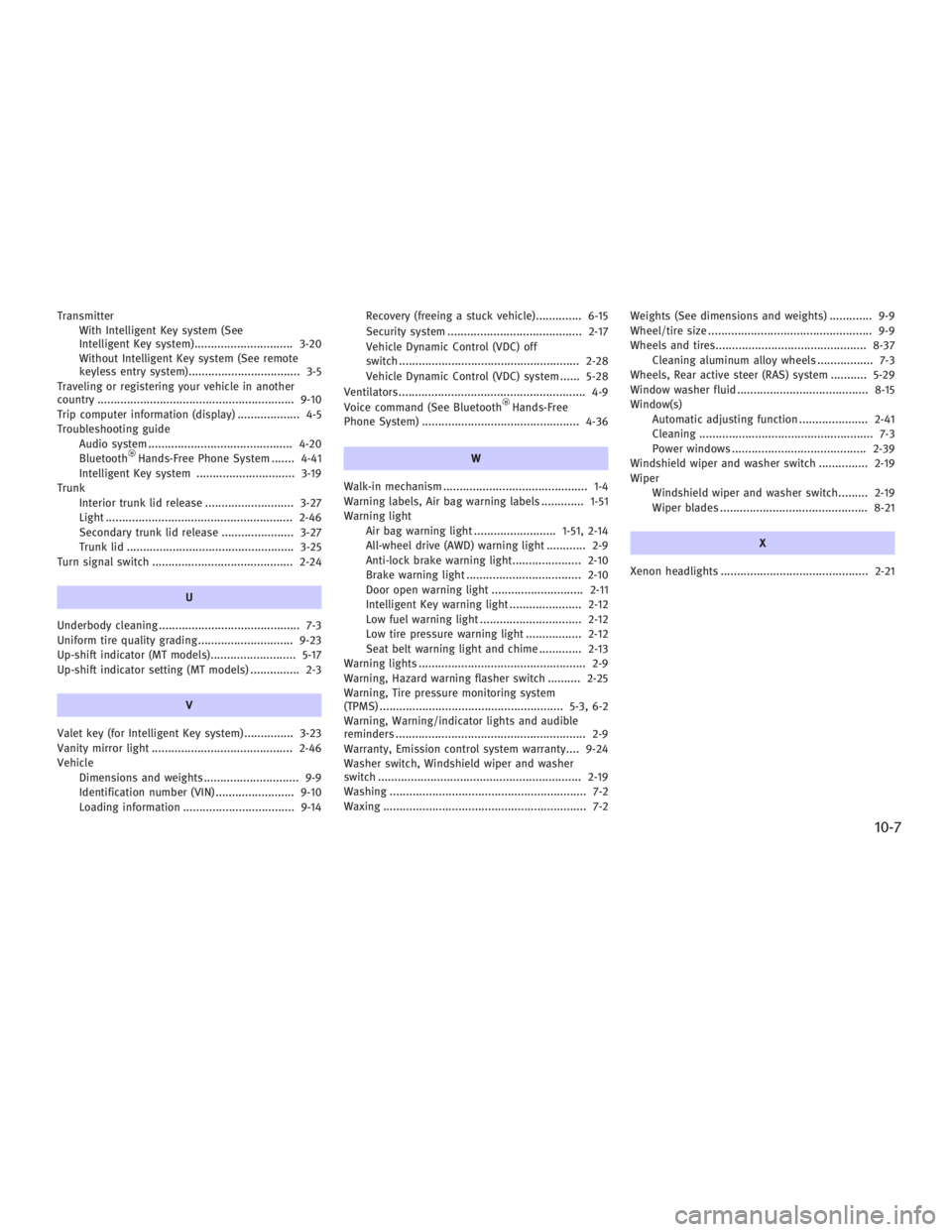

Transmitter
With Intelligent Key system (See
Intelligent Key system).............................. 3-20
Without Intelligent Key system (See remote
keyless entry system).................................. 3-5
Traveling or registering your vehicle in another
country ............................................................ 9-10
Trip computer information (display) ................... 4-5
Troubleshooting guide
Audio system ............................................ 4-20
Bluetooth Hands-Free Phone System ....... 4-41
Intelligent Key system .............................. 3-19
Trunk
Interior trunk lid release ........................... 3-27
Light ......................................................... 2-46
Secondary trunk lid release ...................... 3-27
Trunk lid ................................................... 3-25
Turn signal switch ........................................... 2-24
U
Underbody cleaning ........................................... 7-3
Uniform tire quality grading ............................. 9-23
Up-shift indicator (MT models).......................... 5-17
Up-shift indicator setting (MT models) ............... 2-3
V
Valet key (for Intelligent Key system) ............... 3-23
Vanity mirror light ........................................... 2-46
Vehicle
Dimensions and weights ............................. 9-9
Identification number (VIN)........................ 9-10
Loading information .................................. 9-14 Recovery (freeing a stuck vehicle).............. 6-15
Security system ......................................... 2-17
Vehicle Dynamic Control (VDC) off
switch ....................................................... 2-28
Vehicle Dynamic Control (VDC) system ...... 5-28
Ventilators ......................................................... 4-9
Voice command (See Bluetooth Hands-Free
Phone System) ................................................ 4-36
W
Walk-in mechanism ............................................ 1-4
Warning labels, Air bag warning labels ............. 1-51
Warning light
Air bag warning light ......................... 1-51, 2-14
All-wheel drive (AWD) warning light ............ 2-9
Anti-lock brake warning light..................... 2-10
Brake warning light ................................... 2-10
Door open warning light ............................ 2-11
Intelligent Key warning light ...................... 2-12
Low fuel warning light ............................... 2-12
Low tire pressure warning light ................. 2-12
Seat belt warning light and chime ............. 2-13
Warning lights ................................................... 2-9
Warning, Hazard warning flasher switch .......... 2-25
Warning, Tire pressure monitoring system
(TPMS) ........................................................ 5-3, 6-2
Warning, Warning/indicator lights and audible
reminders .......................................................... 2-9
Warranty, Emission control system warranty.... 9-24
Washer switch, Windshield wiper and washer
switch .............................................................. 2-19
Washing ............................................................ 7-2
Waxing .............................................................. 7-2 Weights (See dimensions and weights) ............. 9-9
Wheel/tire size .................................................. 9-9
Wheels and tires.............................................. 8-37
Cleaning aluminum alloy wheels ................. 7-3
Wheels, Rear active steer (RAS) system ........... 5-29
Window washer fluid ........................................ 8-15
Window(s)
Automatic adjusting function ..................... 2-41
Cleaning ..................................................... 7-3
Power windows ......................................... 2-39
Windshield wiper and washer switch ............... 2-19
Wiper
Windshield wiper and washer switch......... 2-19
Wiper blades ............................................. 8-21
X
Xenon headlights ............................................. 2-21
10-7
w 06.1.13/V35-D/V5.0
X
