REGULATORY INFORMATION
FCC Regulatory information – CAUTION: To maintain compliance with FCC’s
RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations.
– Operation is subject to the following two
conditions:
1) this device may not cause interference
and
2) this device must accept any interference,
including interference that may cause un-
desired operation of the device
IC Regulatory information – Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the device.
– This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
BLUETOOTH  is a trade-
mark owned by Bluetooth
SIG, Inc., U.S.A. and li-
censed to Clarion Co., Ltd.
VOICE COMMANDS You can use voice commands to operate various
Bluetooth  Hands-Free Phone System features
using the INFINITI Voice Recognition system.
For more details, see “INFINITI VOICE RECOGNI-
TION SYSTEM (models with navigation system)”
later in this section; page 4-109.
CONTROL BUTTONS 1) PHONE button
2) TALK/PHONE SEND button SAA1772
Monitor, climate, audio, phone and voice recognition systems
4-87
 —
—
04/21/10—debbie


CONNECTING PROCEDURE 1. Push the PHONE button or the
button, and select the “Connect Phone”
key. 2. When a PIN code appears on the screen,
operate the compatible Bluetooth  cellu-
lar phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit
www.InfinitiUSA.com/bluetooth or call
INFINITI Consumer Affairs Department for
instructions on pairing INFINITI recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display. PHONE SELECTION Up to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push PHONE button and select the
“Connected Phones” key. The registered cellu-
lar phones are shown on the list. If you select a
cellular phone that is different from the one
currently connected, the newly selected phone
will be connected to the system.
VEHICLE PHONEBOOK This vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”. For the details about downloading
a phonebook, see “PHONE SETTING” later in
this section. If a phonebook does not automati-
cally download, the vehicle phonebook may be
set for up to 40 entries. This phonebook allows
the recording of a name to speak while using
voice recognition.SAA2519 SAA2520
4-88 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


1. Push the PHONE button and select the
“Vehicle Phonebook” key.
2. Select the “Add New” key at the top of the
screen. 3. Choose the method for entering the
phonebook entry. For this example, select
“Enter Number by Keypad”.
4. Enter the digits and select the “OK” key.
(See “HOW TO USE TOUCH SCREEN (mod-
els with navigation system)” earlier in this
section.) 5. Select the “Voicetag” key to record a
name to speak when using the INFINITI
Voice Recognition system.
6. Select the “Store” key and prepare to
speak the name after the tone.
7. When the voicetag is successfully saved,
select the “OK” key to save the phone-
book entry.
8. After the phonebook entry is saved, it will
show a screen that is ready to call the
number. Press the BACK button to return
to the Vehicle Phonebook.
There are different methods to input a phone
number. Select one of the following options
instead of “Enter Number by Keypad” in step 3.SAA2521 SAA2522 SAA2523
Monitor, climate, audio, phone and voice recognition systems
4-89
 —
—
04/21/10—debbie


– Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone’s compatibility).
Select one of these entries to save in the
vehicle phonebook.
– Copy from the Handset
The system will show the connected cellular
phone’s phonebook that was downloaded
(depending on the phone’s compatibility).
Select one of these entries to save in the
vehicle phonebook.
Editing the Vehicle Phonebook 1. Push the PHONE button and select the
“Vehicle Phonebook” key.
2. Select the desired entry from the dis-
played list.
3. Select the “Edit” key.
4. Select the desired item to change. The following editing items are available:
● Entry #
Changes the displayed number of the se-
lected entry.
● Name
Edit the name of the entry using the keypad
displayed on the screen.
● Number
Edit the phone number using the keypad
displayed on the screen.
● Type
Select an icon from the icon list. SAA2620 SAA2523
4-90 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


● Voicetag
Confirm and store the voicetag. Voicetags
allow easy dialing using the INFINITI Voice
Recognition system. (See “INFINITI VOICE
RECOGNITION SYSTEM (models with naviga-
tion system)” later in this section.)
To delete an entry, select the “Delete” key at
step 3.
MAKING A CALL To make a call, follow this procedure.
1. Push the PHONE button on the instrument
panel or the button on the steering
wheel. The “PHONE” screen will appear on
the display.
2. Select the “Handset Phonebook” key on
the “PHONE” menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for
the correct number from the list. 5. Select the “Call” key to start dialing the
number.
There are different methods to make a call.
Select one of the following options instead of
“Handset Phonebook” in step 2 above.
● Vehicle Phonebook
Select an entry stored in the Vehicle’s
Phonebook.
● Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone’s compatibility). SAA2524 SAA2621
Monitor, climate, audio, phone and voice recognition systems
4-91
 —
—
04/21/10—debbie


● Dial Number
Input the phone number manually using the
keypad displayed on the screen. (See “HOW
TO USE TOUCH SCREEN (models with naviga-
tion system)” earlier in this section.)
RECEIVING A CALL When you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
a) Select the “Answer” key.
b) Push the PHONE button on the instrument
panel.
c) Push the button on the steering
wheel.
There are some options available when receiv-
ing a call. Select one of the following displayed
on the screen. ● Answer
Accept an incoming call to talk.
● Hold Call
Put an incoming call on hold.
● Reject Call
Reject an incoming call.
To finish the call, perform one of the follow-
ing procedures listed below.
a) Select the “Hang up” key.
b) Push the PHONE button on the instrument
panel.
c) Push the button on the steering
wheel. SAA2525
4-92 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


DURING A CALL There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
● Hang up
Finish the call.
● Use Handset
Transfer the call to the cellular phone.
● Mute
Mute your voice to the person. ● Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
● Cancel Mute
This will appear after “Mute” is selected.
Mute will be canceled.
To adjust the person’s voice to be louder or
quieter, push the volume control switch (+ or  )
on the steering wheel or turn the volume control
knob on the instrument panel while talking on
the phone. This adjustment is also available in
the SETTING mode.
PHONE SETTING To set up the Bluetooth  Hands-Free Phone
System to your preferred settings, push the
SETTING button on the instrument panel and
select the “PHONE” key.
Edit Vehicle Phonebook To edit the vehicle phonebook, use the same
procedure as described in “VEHICLE PHONE-
BOOK” earlier in this section.
Delete Phonebook The vehicle phonebook entries can be deleted
all at the same time or one by one.SAA2526 SAA2527
Monitor, climate, audio, phone and voice recognition systems
4-93
 —
—
04/21/10—debbie

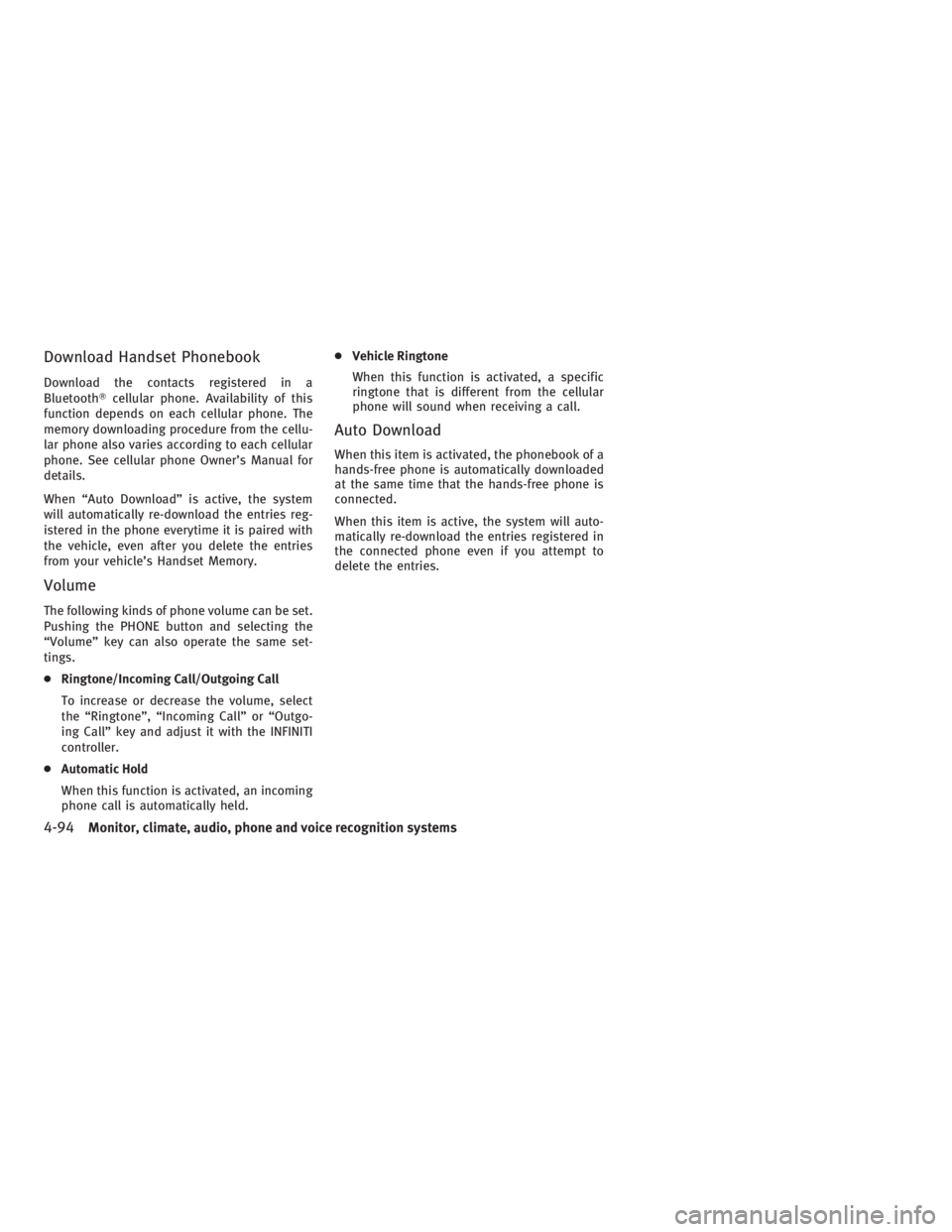

Download Handset Phonebook Download the contacts registered in a
Bluetooth  cellular phone. Availability of this
function depends on each cellular phone. The
memory downloading procedure from the cellu-
lar phone also varies according to each cellular
phone. See cellular phone Owner’s Manual for
details.
When “Auto Download” is active, the system
will automatically re-download the entries reg-
istered in the phone everytime it is paired with
the vehicle, even after you delete the entries
from your vehicle’s Handset Memory.
Volume The following kinds of phone volume can be set.
Pushing the PHONE button and selecting the
“Volume” key can also operate the same set-
tings.
● Ringtone/Incoming Call/Outgoing Call
To increase or decrease the volume, select
the “Ringtone”, “Incoming Call” or “Outgo-
ing Call” key and adjust it with the INFINITI
controller.
● Automatic Hold
When this function is activated, an incoming
phone call is automatically held. ● Vehicle Ringtone
When this function is activated, a specific
ringtone that is different from the cellular
phone will sound when receiving a call.
Auto Download When this item is activated, the phonebook of a
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
When this item is active, the system will auto-
matically re-download the entries registered in
the connected phone even if you attempt to
delete the entries.
4-94 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie


TROUBLESHOOTING GUIDE The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved. Symptom Solution
System fails to interpret the com-
mand correctly. 1. Ensure that the command is valid. (See “INFINITI VOICE RECOGNITION SYSTEM (models with navigation system)”
later in this section; page 4-109.)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the
vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on). NOTE: If it is
too noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the
wrong voicetag. 1. Ensure that the voicetag requested matches what was originally stored. (See “VEHICLE PHONEBOOK” earlier in
this section.)
2. Replace one of the names being confused with a new name.
Monitor, climate, audio, phone and voice recognition systems
4-95
 —
—
04/21/10—debbie

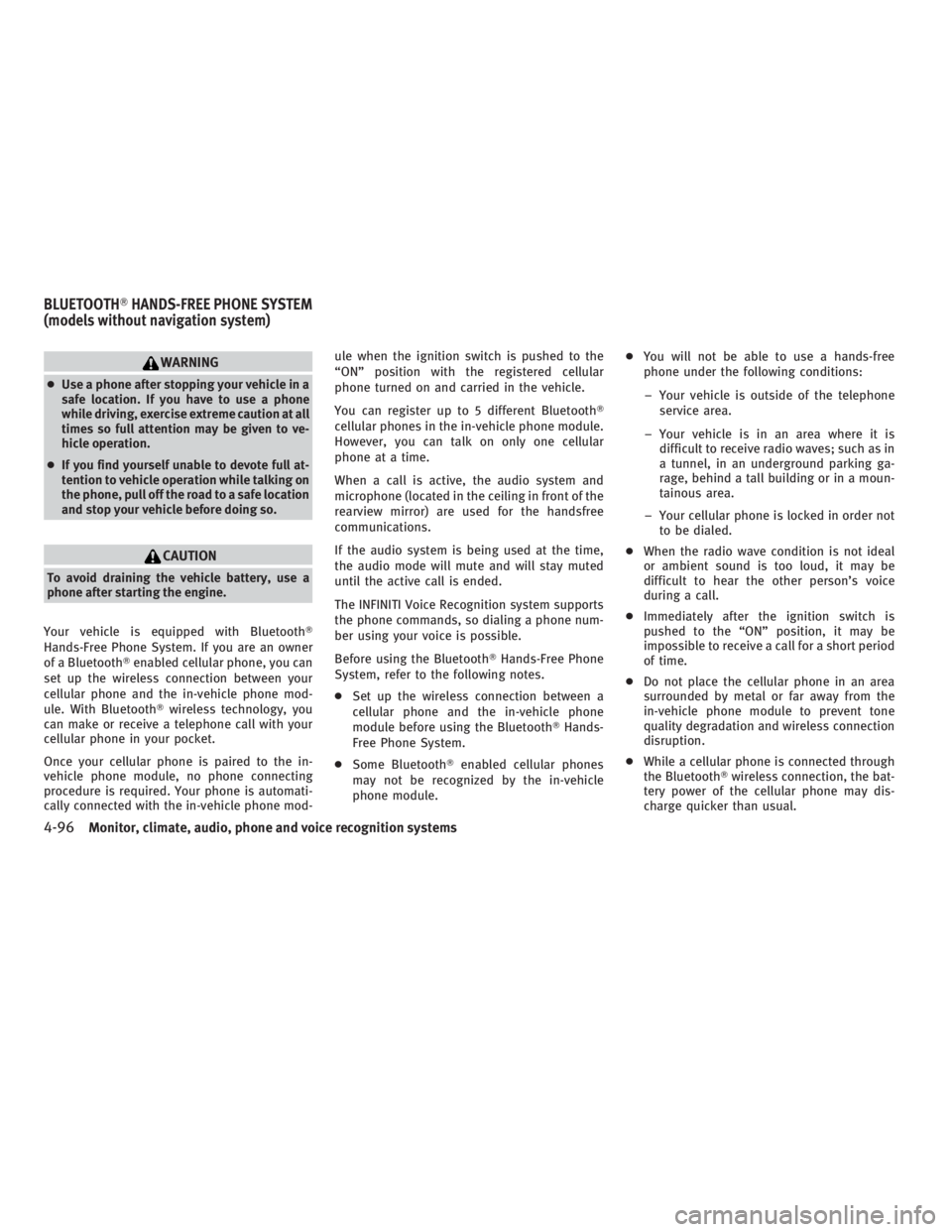

WARNING● Use a phone after stopping your vehicle in a
safe location. If you have to use a phone
while driving, exercise extreme caution at all
times so full attention may be given to ve-
hicle operation.
● If you find yourself unable to devote full at-
tention to vehicle operation while talking on
the phone, pull off the road to a safe location
and stop your vehicle before doing so.
CAUTIONTo avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth
Hands-Free Phone System. If you are an owner
of a Bluetooth  enabled cellular phone, you can
set up the wireless connection between your
cellular phone and the in-vehicle phone mod-
ule. With Bluetooth  wireless technology, you
can make or receive a telephone call with your
cellular phone in your pocket.
Once your cellular phone is paired to the in-
vehicle phone module, no phone connecting
procedure is required. Your phone is automati-
cally connected with the in-vehicle phone mod- ule when the ignition switch is pushed to the
“ON” position with the registered cellular
phone turned on and carried in the vehicle.
You can register up to 5 different Bluetooth
cellular phones in the in-vehicle phone module.
However, you can talk on only one cellular
phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front of the
rearview mirror) are used for the handsfree
communications.
If the audio system is being used at the time,
the audio mode will mute and will stay muted
until the active call is ended.
The INFINITI Voice Recognition system supports
the phone commands, so dialing a phone num-
ber using your voice is possible.
Before using the Bluetooth  Hands-Free Phone
System, refer to the following notes.
● Set up the wireless connection between a
cellular phone and the in-vehicle phone
module before using the Bluetooth  Hands-
Free Phone System.
● Some Bluetooth  enabled cellular phones
may not be recognized by the in-vehicle
phone module. ● You will not be able to use a hands-free
phone under the following conditions:
– Your vehicle is outside of the telephone
service area.
– Your vehicle is in an area where it is
difficult to receive radio waves; such as in
a tunnel, in an underground parking ga-
rage, behind a tall building or in a moun-
tainous area.
– Your cellular phone is locked in order not
to be dialed.
● When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person’s voice
during a call.
● Immediately after the ignition switch is
pushed to the “ON” position, it may be
impossible to receive a call for a short period
of time.
● Do not place the cellular phone in an area
surrounded by metal or far away from the
in-vehicle phone module to prevent tone
quality degradation and wireless connection
disruption.
● While a cellular phone is connected through
the Bluetooth  wireless connection, the bat-
tery power of the cellular phone may dis-
charge quicker than usual.BLUETOOTH  HANDS-FREE PHONE SYSTEM
(models without navigation system)
4-96 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie
