radio controls INFINITI G37 2010 Owners Manual

HomeLink  Universal Transceiver provides a
convenient way to consolidate the functions of
up to three individual hand-held transmitters
into one built-in device.
HomeLink  Universal Transceiver:
● Will operate most Radio Frequency (RF) de-
vices such as garage doors, gates, home and
office lighting, entry door locks and security
systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink  will retain all program-
ming.
Once HomeLink  Universal Transceiver is pro-
grammed, retain the original transmitter for fu-
ture programming procedures (Example: new ve-
hicle purchases). Upon sale of the vehicle, the
programmed HomeLink  Universal Transceiver
buttons should be erased for security purposes.
For additional information, see “PROGRAMMING
HomeLink  ” later in this section. WARNING● Do not use HomeLink  Universal Transceiver
with any garage door opener that lacks
safety stop and reverse features as required
by federal safety standards. (These stan-
dards became effective for opener models
manufactured after April 1, 1982.) A garage
door opener which cannot detect an object in
the path of a closing garage door and then
automatically stop and reverse, does not
meet current federal safety standards. Using
a garage door opener without these features
increases the risk of serious injury or death.
● During programming procedure, your garage
door or security gate may open or close.
Make sure that people and objects are clear
of the garage door, gate, etc. that you are
programming.
● Your vehicle’s engine should be turned off
while programming HomeLink  Universal
Transceiver. PROGRAMMING HOMELINK To program your HomeLink  Transceiver to op-
erate a garage door, gate, or entry door opener,
home or office lighting, you need to be at the
same location as the device. Note: Garage door
openers (manufactured after 1996) have “rolling
code protection”. To program a garage door
opener equipped with “rolling code protection”;
you will need to use a ladder to get up to the
garage door opener motor to be able to access
the “smart or learn” program button.HOMELINK  UNIVERSAL TRANSCEIVER (if
so equipped)
Instruments and controls
2-57
 —
—
10/12/09—tbrooks


4 Monitor, climate, audio, phone and voice
recognition systems Safety note ....................................... 4-2
Center multi-function control panel ................. 4-2
How to use INFINITI controller ................... 4-4
How to use touch screen
(models with navigation system) ................. 4-4
Menu options (models with navigation
system) ....................................... 4-6
How to select menus on the screen .............. 4-7
Vehicle information and settings .................... 4-7
How to use STATUS button ...................... 4-7
How to use brightness control and display
ON/OFF button ................................. 4-7
How to use INFO button ........................ 4-8
How to use SETTING button .................... 4-12
Rearview monitor (if so equipped) ................. 4-22
How to read displayed lines .................... 4-22
How to park with predicted course lines ......... 4-23
Difference between predicted and actual
distances ..................................... 4-24
How to adjust screen .......................... 4-26
Operating tips ................................ 4-26
Ventilators ....................................... 4-27
Automatic climate control ......................... 4-28
Automatic climate control (Type A) .............. 4-30 Automatic climate control (Type B) .............. 4-32
Automatic climate control (Type C) .............. 4-34
Operating tips ................................ 4-37
In-cabin microfilter ............................ 4-38
Servicing climate control ....................... 4-38
Audio system .................................... 4-39
Audio operation precautions ................... 4-39
FM-AM-SAT radio with Compact Disc (CD)
player ........................................ 4-54
DVD (DIGITAL VERSATILE DISC) player
operation (models with navigation system) ...... 4-59
Usb input operation (if so equipped) ............ 4-62
Bluetooth  streaming audio
(models with navigation system) ................ 4-66
iPod  player operation (if so equipped) ......... 4-71
Music box hard-disk drive (if so equipped) ...... 4-73
Auxiliary input jacks (if so equipped) ............ 4-81
Cd/dvd/usb memory care and cleaning ......... 4-82
Steering-wheel-mounted controls for audio ...... 4-83
Antenna ...................................... 4-84
Car phone or CB radio ............................ 4-85
Bluetooth  Hands-Free Phone System
(models with navigation system) ................... 4-85
Regulatory information ......................... 4-87
 —
—
04/21/10—debbie


Playing recorded songs Select the “Music Box” audio system by using
one of the following methods.
● Push the audio source switch on the steering
wheel repeatedly until the center display
changes to the Music Box mode. (See
“STEERING-WHEEL-MOUNTED CONTROLS
FOR AUDIO” later in this section.)
● Push the DISC·AUX or DISC button repeat-
edly until the center display changes to the
Music Box mode.
● Give voice commands. (See “INFINITI VOICE
RECOGNITION SYSTEM (models with naviga-
tion system)” later in this section.)
Stopping playback :
The system stops playing when:
a. another mode (radio, CD, DVD, USB
memory or iPod) is selected.
b. the audio system is turned off.
c. the ignition switch is pushed to the LOCK
position. Next/Previous Track and
Fast Forward/Rewind :
When the (fast forward) or (re-
wind) button is pushed for more than 1.5 sec-
onds while a track is being played, the track will
play while fast forwarding or rewinding. When
the button is released, the track will return to
the normal play speed.
When the or button is pushed for
less than 1.5 seconds while a track is being
played, the next track or the beginning of the
current track will be played.
The INFINITI controller can also be used to
select tracks when a track is being played.
Play mode selection :
The TUNE/FOLDER knob will skip from album to
album unless it is playing “All Songs” from the
Music Library menu. When playing “All Songs”,
the knob will change the track instead of the
album. The upper right corner of the main
screen will indicate if the TUNE knob is chang-
ing by track or album. REPEAT (RPT), RANDOM (RDM) :
When the RPT·RDM button is pushed while a
track is being played, the play pattern can be
changed as follows:
(Normal) → 1 Album Repeat → 1 Track Repeat →
1 Album Random → All Random → (Normal)
Tag Track (models with navigation system) :
Select “Tag Track” key on the screen when a
track is being played. A menu will show the 5
available playlists. Select one of the playlists to
add the current song to that playlist. If a playlist
is not selectable (text is grayed out), it means
the song already exists in that playlist.
4-76 Monitor, climate, audio, phone and voice recognition systems
 —
—
04/21/10—debbie

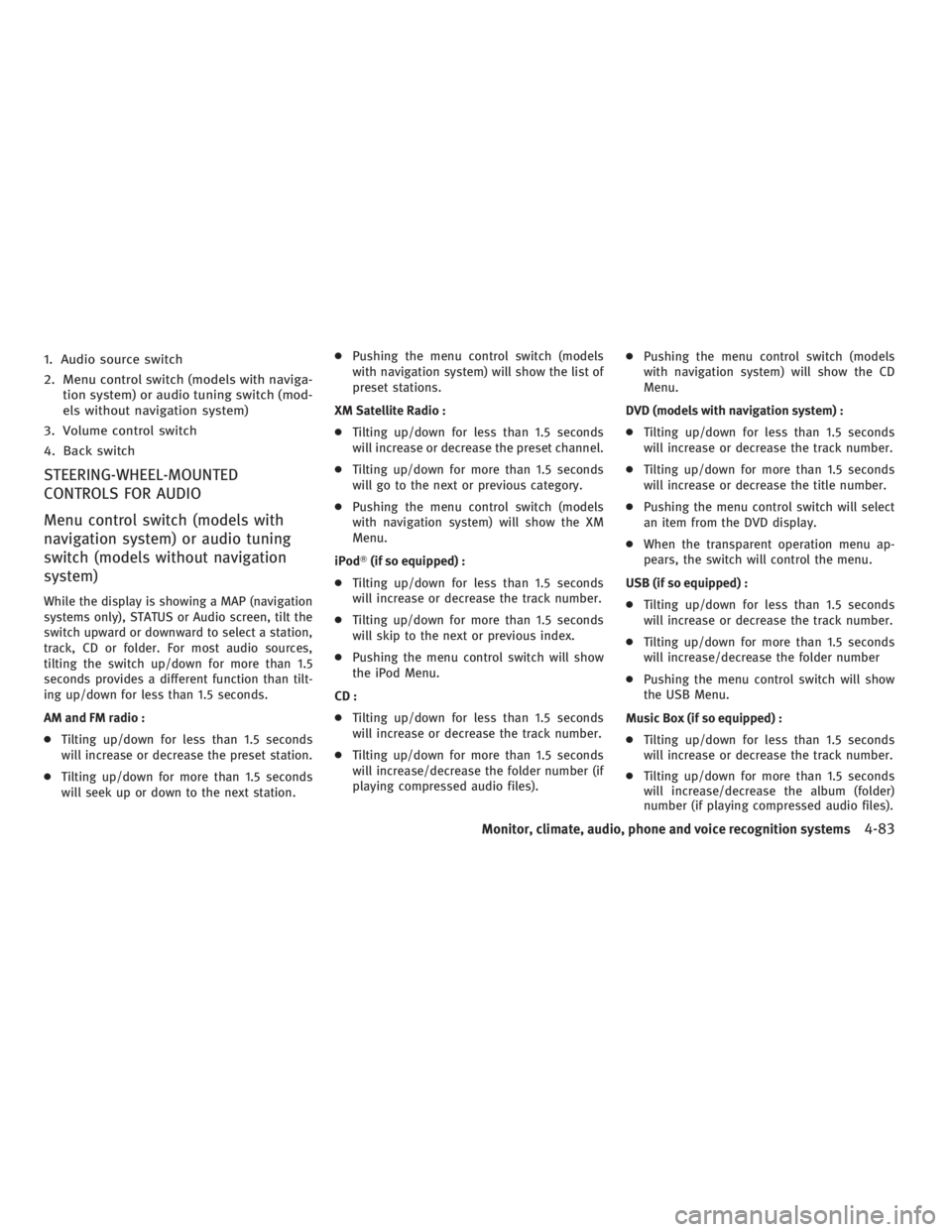

1. Audio source switch
2. Menu control switch (models with naviga-
tion system) or audio tuning switch (mod-
els without navigation system)
3. Volume control switch
4. Back switch
STEERING-WHEEL-MOUNTED
CONTROLS FOR AUDIO
Menu control switch (models with
navigation system) or audio tuning
switch (models without navigation
system) While the display is showing a MAP (navigation
systems only), STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilt-
ing up/down for less than 1.5 seconds.
AM and FM radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset station.
● Tilting up/down for more than 1.5 seconds
will seek up or down to the next station. ● Pushing the menu control switch (models
with navigation system) will show the list of
preset stations.
XM Satellite Radio :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the preset channel.
● Tilting up/down for more than 1.5 seconds
will go to the next or previous category.
● Pushing the menu control switch (models
with navigation system) will show the XM
Menu.
iPod  (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will skip to the next or previous index.
● Pushing the menu control switch will show
the iPod Menu.
CD :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number (if
playing compressed audio files). ● Pushing the menu control switch (models
with navigation system) will show the CD
Menu.
DVD (models with navigation system) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase or decrease the title number.
● Pushing the menu control switch will select
an item from the DVD display.
● When the transparent operation menu ap-
pears, the switch will control the menu.
USB (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number
● Pushing the menu control switch will show
the USB Menu.
Music Box (if so equipped) :
● Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
● Tilting up/down for more than 1.5 seconds
will increase/decrease the album (folder)
number (if playing compressed audio files).
Monitor, climate, audio, phone and voice recognition systems
4-83
 —
—
04/21/10—debbie

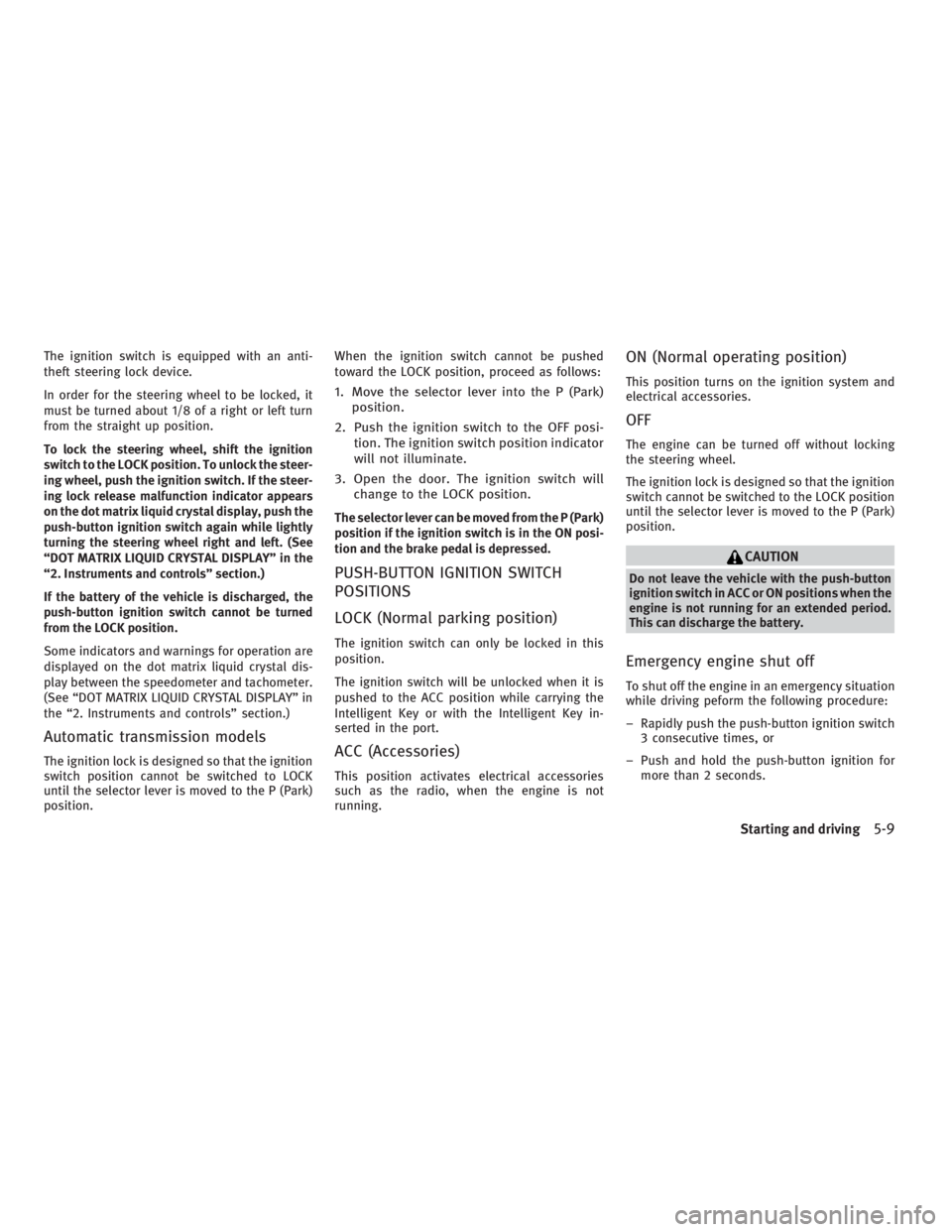

The ignition switch is equipped with an anti-
theft steering lock device.
In order for the steering wheel to be locked, it
must be turned about 1/8 of a right or left turn
from the straight up position.
To lock the steering wheel, shift the ignition
switch to the LOCK position. To unlock the steer-
ing wheel, push the ignition switch. If the steer-
ing lock release malfunction indicator appears
on the dot matrix liquid crystal display, push the
push-button ignition switch again while lightly
turning the steering wheel right and left. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” in the
“2. Instruments and controls” section.)
If the battery of the vehicle is discharged, the
push-button ignition switch cannot be turned
from the LOCK position.
Some indicators and warnings for operation are
displayed on the dot matrix liquid crystal dis-
play between the speedometer and tachometer.
(See “DOT MATRIX LIQUID CRYSTAL DISPLAY” in
the “2. Instruments and controls” section.)
Automatic transmission models The ignition lock is designed so that the ignition
switch position cannot be switched to LOCK
until the selector lever is moved to the P (Park)
position. When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:
1. Move the selector lever into the P (Park)
position.
2. Push the ignition switch to the OFF posi-
tion. The ignition switch position indicator
will not illuminate.
3. Open the door. The ignition switch will
change to the LOCK position.
The selector lever can be moved from the P (Park)
position if the ignition switch is in the ON posi-
tion and the brake pedal is depressed.
PUSH-BUTTON IGNITION SWITCH
POSITIONS
LOCK (Normal parking position) The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key in-
serted in the port.
ACC (Accessories) This position activates electrical accessories
such as the radio, when the engine is not
running. ON (Normal operating position) This position turns on the ignition system and
electrical accessories.
OFF The engine can be turned off without locking
the steering wheel.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the selector lever is moved to the P (Park)
position.
CAUTIONDo not leave the vehicle with the push-button
ignition switch in ACC or ON positions when the
engine is not running for an extended period.
This can discharge the battery.
Emergency engine shut off To shut off the engine in an emergency situation
while driving peform the following procedure:
− Rapidly push the push-button ignition switch
3 consecutive times, or
− Push and hold the push-button ignition for
more than 2 seconds.
Starting and driving
5-9
 —
—
04/21/10—debbie


Car phone or CB radio ............ .4-85
Card holder .................. .2-47
Cargo net retainers ............. .2-49
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ..... .4-2
Child restraints ................ .1-20
Child restraints
Booster seats ............... .1-35
Installation using LATCH ......... 1-25
Installation using the seat belts ..... 1-29
LATCH system ............... 1-22
Precautions on child restraints ...... 1-21
Top tether strap .............. 1-24
Child safety .................. .1-15
Child safety rear door lock .......... .3-6
Chimes
Audible reminders ............ .2-18
Seat belt warning light and chime .... 2-16
Cigarette lighter and ashtrays ....... .2-42
Circuit breaker, Fusible link ......... .8-21
Cleaning exterior and interior ..... .7-2 , 7-4
Climate control, Automatic
climate control ................ .4-28
Clock ..................... .2-40
Clutch fluid .................. .8-12
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-55
Command (See Bluetooth  Hands-Free
Phone System) ............ .4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-57
Compact spare tire .............. .8-39
Compass .................... .2-8
Console box ................. .2-45 Controller, Center multi-function control
panel ...................... .4-4
Controls
Control panel button (display) ...... .4-2
Heater
and
air conditioner controls
(See automatic climate control) ..... 4-28
Coolant
Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant .........8-8
Checking engine coolant level .......8-7
Corrosion protection ............. .7-6
Cruise control ................. .5-19
Cruise control
Fixed speed cruise control (on ICC
system) .................. .5-38
Intelligent cruise control (ICC) system . . 5-21
Cruise indicator ............... .2-22
Cup holders .................. .2-43
Current fuel consumption .......... .2-25
D
Daytime running light system ........ .2-35
Defroster switch, Rear window and outside
mirror defroster switch ........... .2-32
Dimensions .................. .9-11
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance to empty .............. .2-25
Door/trunk open warning .......... .2-22
Dot matrix liquid crystal display ...... .2-19
Drive belts .................. .8-16
Drive positioner ............... .3-28 Driving
All-wheel drive (AWD) .......... .5-43
Cold weather driving ........... 5-55
Driving with automatic transmission . . . 5-12
Driving with manual transmission .... 5-16
Precautions when starting and driving . . 5-2
DS (Drive Sport) mode ............ .5-14
E
Economy, Fuel ................ .5-42
Elapsed time ................. .2-25
Elapsed time and trip odometer ...... .2-25
Emission control information label . . . . . .9-13
Emission control system warranty ..... .9-23
Engine
Before starting the engine ........ .5-10
Break-in schedule ............. 5-42
Capacities and recommended fuel/
lubricants ..................
9 -2
Changing engine coolant . . . . . . . . . 8-8
Changing engine oil and filter .......8-9
Checking engine coolant level .......8-7
Checking engine oil level . . . . . . . . . 8-8
Engine block heater ............ 5-56
Engine compartment check locations . . . 8-6
Engine cooling system ...........8-7
Engine oil ..................8-8
Engine oil and oil filter recommendation . 9-6
Engine oil replacement indicator .... 2-23
Engine oil viscosity .............9-6
Engine serial number ........... 9-12
Engine specifications ............9-8
Engine start operation indicator
(Automatic Transmission models) .... 2-21
10-2
 —
—
04/30/10—diane


Safety
Child seat belts .............. .1-15
Reporting safety defects (US only) . . . 9-23
S
Satellite radio operation ........... .4-55
Seat adjustment
Front power seat adjustment ....... .1-3
Front seats ..................1-3
Seat belt(s)
Child safety ................ .1-15
Infants .................... 1-15
Injured persons ............... 1-16
Larger children ............... 1-15
Pre-crash seat belts ............ 1-16
Precautions on seat belt usage ...... 1-12
Pregnant women .............. 1-16
Seat belt cleaning ..............7-5
Seat belt extenders ............ 1-20
Seat belt maintenance .......... 1-20
Seat belt warning light and chime .... 2-16
Seat belts .................. 1-12
Seat belts with pretensioners ...... 1-52
Shoulder belt height adjustment ..... 1-19
Small children ............... 1-15
Three-point type .............. 1-16
Seat synchronization function ....... .3-29
Seat(s)
Driver-side memory ........... .3-28
Heated seats ................ 2-38
Seats .....................1-2
Security system (INFINITI Vehicle
Immobilizer System), Engine start ..... .2-29
Security system, Vehicle security system . .2-27 Selector lever
Shift lock release ............. .5-15
Servicing air conditioner (See automatic
climate control) ............... .4-28
Servicing climate control .......... .4-38
SETTING button ................ .4-12
Shift lock release
Transmission ............... .5-15
Shifting
Automatic transmission ......... .5-12
Manual transmission ........... 5-16
Shoulder
belt
height adjustment ...... .1-19
Sliding front passenger’s seat ........ .1-5
Snow mode switch .............. .2-40
Sonar system ................. .5-46
Sonar system off switch ........... .5-48
Spare tire .................... .9-9
Spark plugs .................. .8-16
Speedometer .................. .2-5
Starting
Before starting the engine ........ .5-10
Precautions when starting and driving . . 5-2
Starting the engine ............. 5-11
STATUS button ................. .4-7
Status light, Front passenger air bag . . . .1-47
Steering
Power steering fluid ........... .8-11
Power steering system .......... 5-48
Steering lock release malfunction
indicator .................. 2-21
Steering-wheel-mounted controls for
audio .................... 4-83
Tilt/telescopic steering .......... 3-23
Storage .................... .2-43
Storage box .................. .2-47
Stowing golf bags .............. .2-48 Sun visors .................. .3-24
Sunglasses holder .............. .2-45
Supplemental air bag warning labels . . . .1-53
Supplemental air bag warning light . .1-53 , 2-16
Supplemental restraint system ....... .1-40
Supplemental restraint system,
Precautions on supplemental restraint
system ..................... .1-40
Switch
Autolight switch ............. .2-33
Fog light switch .............. 2-37
Hazard warning flasher switch ...... 2-37
Headlight switch .............. 2-33
Ignition switch automatic transmission
models ................... 5-12
Ignition switch manual transmission
models ................... 5-16
Power door lock switch ...........3-5
Rear window and outside mirror defroster
switch .................... 2-32
Snow mode switch ............ 2-40
Turn
signal switch ............. 2-37
Vehicle dynamic control (VDC)
off switch ................. 2-40
T
Tachometer ................... .2-6
Temperature gauge, Engine coolant
temperature gauge .............. .2-6
Theft (INFINITI Vehicle Immobilizer System),
Engine start .................. .2-29
Thigh extension ................ .1-5
Three-way catalyst ............... .5-2
Tilt/telescopic steering ........... .3-23
10-6
 —
—
04/30/10—diane
