engine INFINITI G37 2012 Owners Manual

Black plate (411,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the selector
lever in the P (Park) position without
applying any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly
goes down further than normal, the pedal
feels spongy or the vehicle seems to take
longer to stop, see an INFINITI retailer
immediately. Keep the floor mat away from
the pedal.
Brakes: Check that the brakes do not pull
the vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, see an INFINITI
retailer.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, an-
chors, adjuster and retractors) operate
properly and smoothly, and are installed securely. Check the belt webbing for cuts,
fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to
ensure they operate smoothly and that all
latches lock securely in every position.
Check that the head restraints move up
and down smoothly and that the locks (if
so equipped) hold securely in all latched
positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free
play, hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly
and in sufficient quantity when operating
the heater or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly
and that the wipers do not streak.
Under the hood and vehicle GUID-29B64B94-E77F-40DC-A4B2-6B5D542860ED
The maintenance items listed here should
be checked periodically (for example, each
time you check the engine oil or refuel). Battery*: Check the fluid level in each cell.
It should be between the MAX and MIN
lines. Vehicles operated in high tempera-
tures or under severe condition require
frequent checks of the battery fluid level.
Brake fluid level*: Make sure that the
brake fluid level is between the MAX and
MIN lines on the reservoir.
Engine coolant level*: Check the coolant
level when the engine is cold.
Engine drive belts*: Make sure that no belt
is frayed, worn, cracked or oily.
Engine oil level*: Check the level after
parking the vehicle on a level spot and
turning off the engine. Wait more than 15
minutes for the oil to drain back into the oil
pan.
Exhaust system: Make sure there are no
loose supports, cracks or holes. If the
sound of the exhaust seems unusual or
there is a smell of exhaust fumes, im-
mediately have the exhaust system in-
spected by an INFINITI retailer. (See
“ Precautions when starting and driving ”
(P.5-3) for exhaust gas (Carbon monoxide).)
Fluid leaks: Check under the vehicle for
fuel, oil, water or other fluid leaks after the
vehicle has been parked for a while. Water
Maintenance and do-it-yourself
8-5

Black plate (412,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-6 Maintenance and do-it-yourselfdripping from the air conditioner after use
is normal. If you should notice any leaks or
if gasoline fumes are evident, check for the
cause and have it corrected immediately.
Power steering fluid level* and lines:
Check the level when the fluid is cold,
with the engine off. Check the lines for
proper attachment, leaks, cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects,
leaves, etc., that may have accumulated.
Make sure the hoses have no cracks,
deformation, rot or loose connections.
Underbody: The underbody is frequently
exposed to corrosive substances such as
those used on icy roads or to control dust.
It is very important to remove these
substances, otherwise rust will form on
the floor pan, frame, fuel lines and around
the exhaust system. At the end of winter,
the underbody should be thoroughly
flushed with plain water, being careful to
clean those areas where mud and dirt may
accumulate. For additional information,
see “ Cleaning exterior ” (P.7-2).
Windshield washer fluid*: Check that there
is adequate fluid in the reservoir. GUID-DA5BC1C7-4A3F-402D-B20E-D7AF3C2C5866
When performing any inspection or main-
tenance work on your vehicle, always take
care to prevent serious accidental injury to
yourself or damage to the vehicle. The
following are general precautions which
should be closely observed.
WARNING . Park the vehicle on a level surface, apply
the parking brake securely and block the
wheels to prevent the vehicle from
moving. For manual transmission mod-
els, move the shift lever to N (Neutral).
For automatic transmission models,
move the selector lever to P (Park).
. Be sure the ignition switch is in the OFF
or LOCK position when performing any
parts replacement or repairs.
. Never connect or disconnect the battery
or any transistorized component while
the ignition switch is in the ON position.
. Never leave the engine or automatic
transmission related component har-
nesses disconnected while the ignition
switch is in the ON position.
. If you must work with the engine
running, keep your hands, clothing, hair and tools away from moving fans, belts
and any other moving parts.
. It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.
. Always wear eye protection whenever
you work on your vehicle.
. If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
. Never get under the vehicle while it is
supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Keep smoking materials, flame and
sparks away from fuel tank and the
battery.
. Your vehicle is equipped with an auto-
matic engine cooling fan. It may come on
at any time without warning, even if the
ignition key is in the OFF position and
the engine is not running. To avoid
injury, always disconnect the negative
battery cable before working near the
fan.MAINTENANCE PRECAUTIONS

Black plate (413,1)

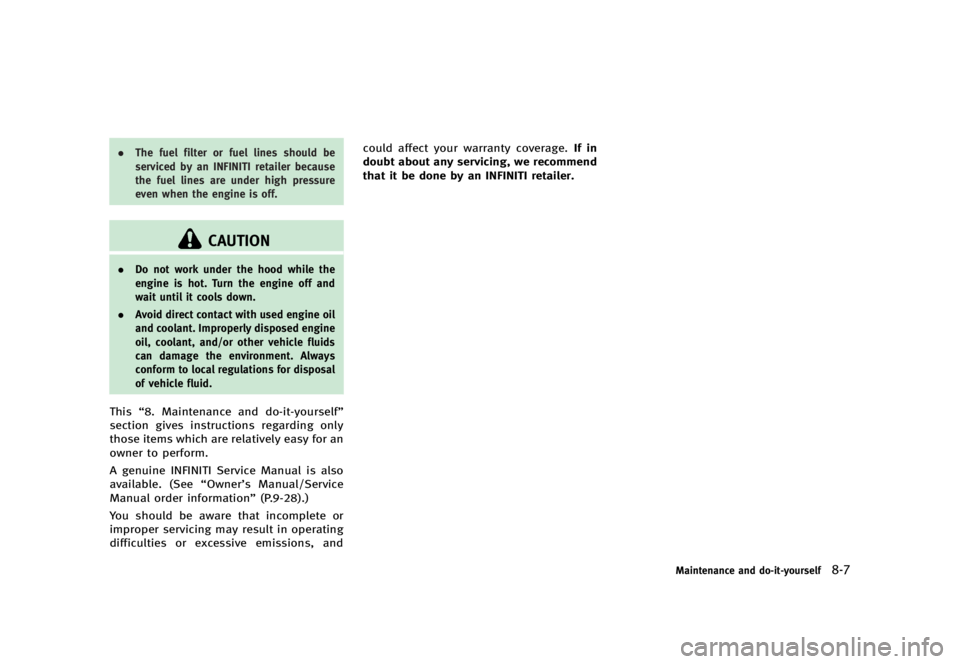

[ Edit: 2012/ 1/ 17 Model: V36-D ]. The fuel filter or fuel lines should be
serviced by an INFINITI retailer because
the fuel lines are under high pressure
even when the engine is off.
CAUTION. Do not work under the hood while the
engine is hot. Turn the engine off and
wait until it cools down.
. Avoid direct contact with used engine oil
and coolant. Improperly disposed engine
oil, coolant, and/or other vehicle fluids
can damage the environment. Always
conform to local regulations for disposal
of vehicle fluid.
This “ 8. Maintenance and do-it-yourself ”
section gives instructions regarding only
those items which are relatively easy for an
owner to perform.
A genuine INFINITI Service Manual is also
available. (See “ Owner ’ s Manual/Service
Manual order information ” (P.9-28).)
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and could affect your warranty coverage. If in
doubt about any servicing, we recommend
that it be done by an INFINITI retailer.
Maintenance and do-it-yourself
8-7

Black plate (414,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-8 Maintenance and do-it-yourself GUID-AFE9B83F-FA8B-4F31-955F-26554D8ED4E6
SDI2709
VQ25HR/VQ37VHR ENGINE GUID-7476C613-7968-488E-A6AE-1408D693BF3B
1. Fuse/fusible link holder
2. Battery
3. Engine oil filler cap
4. Brake fluid reservoir
5. Clutch fluid reservoir (Manual Trans- mission models)
6. Window washer fluid reservoir
7. Power steering fluid reservoir
8. Air cleaner
9. Radiator filler cap 10. Drive belts
11. Engine coolant reservoir
12. Engine oil dipstick (for VQ37VHR
engine model)
13. Engine oil dipstick (for VQ25HR en-
gine model)ENGINE COMPARTMENT CHECK LOCATIONS

Black plate (415,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-5C044D87-071E-4DD5-85C9-155F3106646B

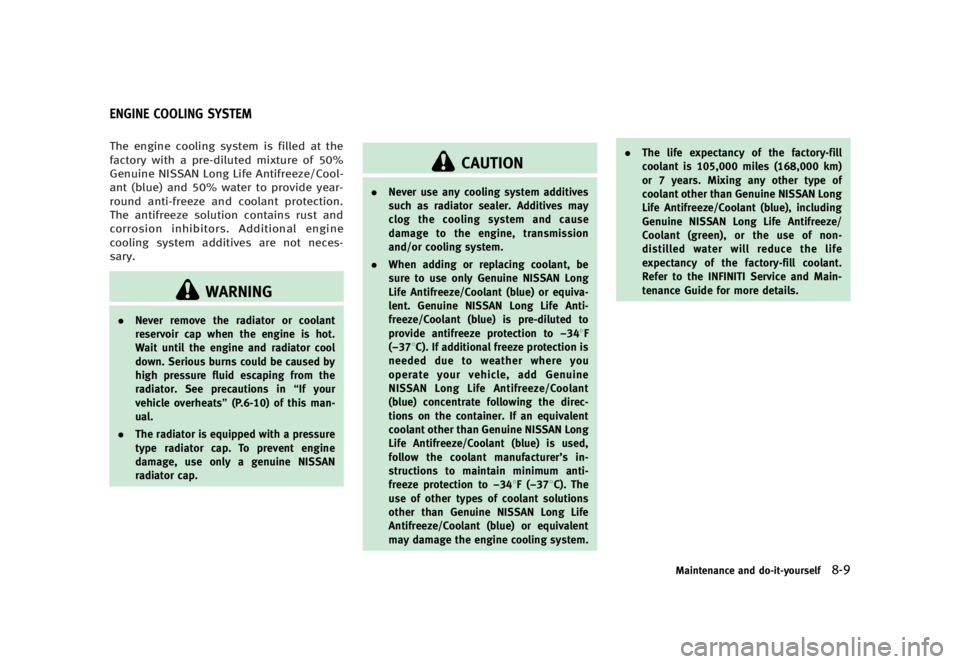

The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life Antifreeze/Cool-
ant (blue) and 50% water to provide year-
round anti-freeze and coolant protection.
The antifreeze solution contains rust and
corrosion inhibitors. Additional engine
cooling system additives are not neces-
sary.
WARNING. Never remove the radiator or coolant
reservoir cap when the engine is hot.
Wait until the engine and radiator cool
down. Serious burns could be caused by
high pressure fluid escaping from the
radiator. See precautions in “ If your
vehicle overheats ” (P.6-10) of this man-
ual.
. The radiator is equipped with a pressure
type radiator cap. To prevent engine
damage, use only a genuine NISSAN
radiator cap. CAUTION . Never use any cooling system additives
such as radiator sealer. Additives may
clog the cooling system and cause
damage to the engine, transmission
and/or cooling system.
. When adding or replacing coolant, be
sure to use only Genuine NISSAN Long
Life Antifreeze/Coolant (blue) or equiva-
lent. Genuine NISSAN Long Life Anti-
freeze/Coolant (blue) is pre-diluted to
provide antifreeze protection to − 34 8 F
( − 37 8 C). If additional freeze protection is
needed due to weather where you
operate your vehicle, add Genuine
NISSAN Long Life Antifreeze/Coolant
(blue) concentrate following the direc-
tions on the container. If an equivalent
coolant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue) is used,
follow the coolant manufacturer ’ s in-
structions to maintain minimum anti-
freeze protection to − 34 8 F ( − 37 8 C). The
use of other types of coolant solutions
other than Genuine NISSAN Long Life
Antifreeze/Coolant (blue) or equivalent
may damage the engine cooling system. . The life expectancy of the factory-fill
coolant is 105,000 miles (168,000 km)
or 7 years. Mixing any other type of
coolant other than Genuine NISSAN Long
Life Antifreeze/Coolant (blue), including
Genuine NISSAN Long Life Antifreeze/
Coolant (green), or the use of non-
distilled water will reduce the life
expectancy of the factory-fill coolant.
Refer to the INFINITI Service and Main-
tenance Guide for more details.
Maintenance and do-it-yourself
8-9ENGINE COOLING SYSTEM

Black plate (416,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-10 Maintenance and do-it-yourself SDI2043
CHECKING ENGINE COOLANT LEVEL GUID-0A58561D-6ED8-4332-9DEB-68F0F2BD40A6
Check the coolant level in the reservoir
when the engine is cold. If the coolant
level is below MIN
* 2
, open the reservoir
tank cap and add coolant up to the MAX
* 1
level. If the reservoir tank is empty, check
the coolant level in the radiator when the
engine is cold. If there is insufficient
coolant in the radiator, fill the radiator
with coolant up to the filler opening and
also add it to the reservoir tank up to the
MAX level
* 1
.
Tighten the cap securely after adding
engine coolant. If the cooling system requires coolant
frequently, have it checked by an INFINITI
retailer.
CHANGING ENGINE COOLANT GUID-5414AC03-7904-49CD-BD61-168CF59A9756
Major cooling system repairs should be
performed by an INFINITI retailer. The
service procedures can be found in the
appropriate INFINITI Service Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.
WARNING . To avoid the danger of being scalded,
never change the coolant when the
engine is hot.
. Never remove the radiator cap when the
engine is hot. Serious burns could be
caused by high pressure fluid escaping
from the radiator.
. Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.
. Keep coolant out of reach of children and
pets. Engine coolant must be disposed of
properly. Check your local regulations.

Black plate (417,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-FB0623EB-5FAD-40C4-9AB0-442E7E1A0410
SDI2505
VQ25HR engine
SDI2045
VQ37VHR engine CHECKING ENGINE OIL LEVEL GUID-EB400D20-7A84-4713-89BD-9708FBC8D001
1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operat-
ing temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check
the oil level. It should be within the
range
* 1
. If the oil level is below
* 2
,
remove the oil filler cap and pour
recommended oil through the opening.
Do not overfill
* 3
.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating conditions.
CAUTION Oil level should be checked regularly.
Operating the engine with an insufficient
amount of oil can damage the engine, and such damage is not covered by warranty.
CHANGING ENGINE OIL AND FILTER GUID-8EFE39B7-109C-4EBB-91A7-80DFF961CBD7
Vehicle set-up GUID-4BC77A05-BF08-445F-911E-85628C534413
1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operat-
ing temperature.
3. Turn the engine off and wait more than
15 minutes.
4. Raise and support the vehicle using a
suitable floor jack and safety jack
stands. .
Place the safety jack stands under
the vehicle jack-up points. .
A suitable adapter should be at-
tached to the jack stand saddle.
5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the
center point of the undercover.
b. Then remove the other bolts that
hold the undercover in place.
Maintenance and do-it-yourself
8-11ENGINE OIL

Black plate (418,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-12 Maintenance and do-it-yourselfCAUTIONMake sure the correct lifting and support
points are used to avoid vehicle damage.
SDI2335
Two-wheel drive (2WD) models (VQ25HR/
VQ37VHR engine)
Engine oil and filter GUID-189A8074-AB5D-4F02-B5E6-2CEF3A0EAAE3
1. Place a large drain pan under the drain
plug.
2. Remove the oil filler cap.
3. Remove the drain plug
* 1
with a
wrench and completely drain the oil.
CAUTION Be careful not to burn yourself, as the
engine oil is hot. SDI2047
All-wheel drive (AWD) models (VQ25HR/
VQ37VHR engine) .
Waste oil must be disposed of
properly. .
Check your local regulations.
4. (Perform steps 4 to 7 only when the
engine oil filter change is needed.)
Loosen the oil filter
* 2
with an oil filter
wrench. Remove the oil filter by turning
it by hand.
5. Wipe the engine oil filter mounting
surface with a clean rag.

Black plate (419,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]CAUTIONBe sure to remove any old rubber gasket
remaining on the mounting surface of the
engine. Failure to do so could lead to engine
damage.
6. Coat the gasket on the new filter with
clean engine oil.
7. Screw in the oil filter clockwise until a
slight resistance is felt, then tighten
additionally more than 2/3 turn.
Oil filter tightening torque:
11 to 15 ft-lb
(14.7 to 20.5 N·m)
8. Clean and re-install the drain plug with
a new washer. Securely tighten the
drain plug with a wrench.
Drain plug tightening torque:
22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
9. Refill engine with recommended oil and
install the oil filler cap securely.
See “ Capacities and recommended
fuel/lubricants ” (P.9-2) for drain and refill capacity. The drain and refill
capacity depends on the oil tempera-
ture and drain time. Use these specifi-
cations for reference only. Always use
the dipstick to determine the proper
amount of oil in the engine.
10. Start the engine and check for leakage
around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than
15 minutes. Check the oil level with the
dipstick. Add engine oil if necessary.
After the operation GUID-28B45484-D2E9-4712-897E-4EBAD29B4BC7
1. Install the engine undercover into
position as the following steps.
a. Pull the center of the small plastic
clip out.
b. Hold the engine undercover into
position.
c. Insert the clip through the under-
cover into the hole in the frame, then
push the center of the clip in to lock
the clip in place.
d. Install the other bolts that hold the
undercover in place. Be careful not
to strip the bolts or over-tighten
them. 2. Lower the vehicle carefully to the
ground.
3. Dispose of waste oil and filter properly.
WARNING . Prolonged and repeated contact with
used engine oil may cause skin cancer.
. Try to avoid direct skin contact with used
oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
. Keep used engine oil out of reach of
children.
Maintenance and do-it-yourself
8-13

Black plate (422,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-16 Maintenance and do-it-yourself GUID-9300F307-19B1-4EC9-B93C-3421C155DC4A
SDI2027
WARNINGAntifreeze is poisonous and should be
stored carefully in marked containers out
of the reach of children.
Fill the window washer fluid reservoir
periodically. Add window washer fluid
when the low window washer fluid warning
light comes on.
To fill the window washer fluid reservoir,
lift the cap off the reservoir tank and pour
the window washer fluid into the tank
opening. Add a washer solvent to the washer for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the
manufacturer ’ s instructions for the mixture
ratio.
Refill the reservoir more frequently when
driving conditions require an increased
amount of window washer fluid.
Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.
CAUTION . Do not substitute engine anti-freeze
coolant for window washer solution. This
may result in damage to the paint.
. Do not fill the window washer reservoir
tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
. Pre-mix washer fluid concentrates with
water to the manufacturer ’ s recom-
mended levels before pouring the fluid
into the window washer reservoir tank. Do not use the window washer reservoir
tank to mix the washer fluid concentrate
and water.
WINDOW WASHER FLUID
