[ Edit: 2012/ 1/ 17 Model: V36-D ]6-2 In case of emergency GUID-B26201B1-5E14-45EB-9707-DC8F1E4219FD
In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada)
for details. GUID-FB799410-A0CC-4EDA-A522-6DA1F88B3F1E
To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
. Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds. GUID-17D7421B-973E-4FF8-B56B-831261C859DB
TIRE PRESSURE MONITORING SYS-
TEM (TPMS) GUID-EFDE8E6D-AFA0-4243-A90D-0D01CCEE6814
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
If the vehicle is being driven with low tire
pressure, the TPMS will activate and warn
you of it by the low tire pressure warning
light. This system will activate only when
the vehicle is driven at speeds above 16
MPH (25 km/h). For more details, see
“ Warning/indicator lights and audible re-
minders ” (P.2-12) and “ Tire Pressure Mon-
itoring System (TPMS) ” (P.5-4).
WARNING . If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damageROADSIDE ASSISTANCE PROGRAM EMERGENCY ENGINE SHUT OFF FLAT TIRE

Black plate (383,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE GUID-17392640-59D1-4ABE-91EE-2C0B6371262B
If you have a flat tire, follow the instruc-
tions below.
Stopping the vehicle GUID-D581A789-AFAC-489C-91F1-2711C20E7205
1. Safely move the vehicle off the road
and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the
parking brake. Move the selector lever
to the P (Park) position (Automatic
transmission models). Move the shift
lever to the R (Reverse) gear (Manual
transmission models).
4. Turn off the engine.
5. Raise the hood to warn other traffic,
and to signal professional road assis-
tance personnel that you need assis-
tance.
6. Have all passengers get out of the
vehicle and stand in a safe place, away
from traffic and clear of the vehicle. WARNING . Make sure the parking brake is securely
applied and the manual transmission is
shifted into R (Reverse), or the automatic
transmission into P (Park).
. Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
. Never change tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
In case of emergency
6-3

Black plate (385,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Jacking up the vehicle and remov-
ing the damaged tire GUID-BE8A1300-D9E3-444A-93C3-9EA14A49879E
WARNING. Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Use only the jack provided with your
vehicle to lift the vehicle. Do not use the
jack provided with your vehicle on other
vehicles. The jack is designed for lifting
only your vehicle during a tire change.
. Use the correct jack-up points. Never use
any other part of the vehicle for jack
support.
. Never jack up the vehicle more than
necessary.
. Never use blocks on or under the jack.
. Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip differ-
entials.
. Do not allow passengers to stay in the
vehicle while it is on the jack. Carefully read the caution label attached to
the jack body and the following instruc-
tions.
CE1089-A
Jack-up point
1. Place the jack directly under the jack-up
point as illustrated so the top of the
jack contacts the vehicle at the jack-up
point. Align the jack head between the
two notches in the front or the rear as
shown. Also fit the groove of the jack
head between the notches as shown.
The jack should be used on level firm
ground.
In case of emergency
6-5

Black plate (388,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]6-8 In case of emergency5. Securely store the flat tire and jacking
equipment in the vehicle.
6. Place the spare tire cover and the trunk
floor carpeting over the damaged tire.
7. Close the trunk.
WARNING. Always make sure that the spare tire and
jacking equipment are properly secured
after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
. The T-type spare tire and small size
spare tire are designed for emergency
use. See specific instructions under the
heading “ Wheels and tires ” (P.8-33).
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada). GUID-AB535234-DC9B-4E72-BAB2-7645DFBFC702
To start your engine with a booster battery,
the instructions and precautions below
must be followed.
WARNING . If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also
damage your vehicle.
. Explosive hydrogen gas is always pre-
sent in the vicinity of the battery. Keep
all sparks and flames away from the
battery.
. Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulphuric acid solution which
can cause severe burns. If the fluid
should come into contact with anything,
immediately flush the contacted area
with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle. . Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.
. Do not attempt to jump start a frozen
battery. It could explode and cause
serious injury.
. Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away from
it.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty Information Booklet (Canada).JUMP STARTING

Black plate (389,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SCE0653
WARNINGAlways follow the instructions below. Failure
to do so could result in damage to the
charging system and cause personal injury.
1. If the booster battery is in another
vehicle
* A
, position the two vehicles
(
* A
and
* B
) to bring their batteries
into close proximity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the selector
lever to the P (Park) position (Automatic transmission models). Move the shift
lever to the N (Neutral) position (Man-
ual transmission models). Switch off all
unnecessary electrical systems (light,
heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with a
firmly wrung out moist cloth
* C
to
reduce explosion hazard.
4. Connect jumper cables in the sequence
as illustrated (
* 1
?
* 2
?
* 3
?
* 4
).CAUTION . Always connect positive (+) to positive
(+) and negative ( − ) to body ground (as
illustrated) — not to the battery.
. Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that clamps do not contact
any other metal.
5. Start the engine of the booster vehicle
* A
and let it run for a few minutes.
6. Keep the engine speed of the booster
vehicle
* A
at about 2,000 rpm, and
start the engine of the vehicle being
jump started
* B
.
CAUTION Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, push the ignition
switch to the OFF position and wait 10
seconds before trying again.
7. After starting your engine, carefully
disconnect the negative cable and then
In case of emergency
6-9

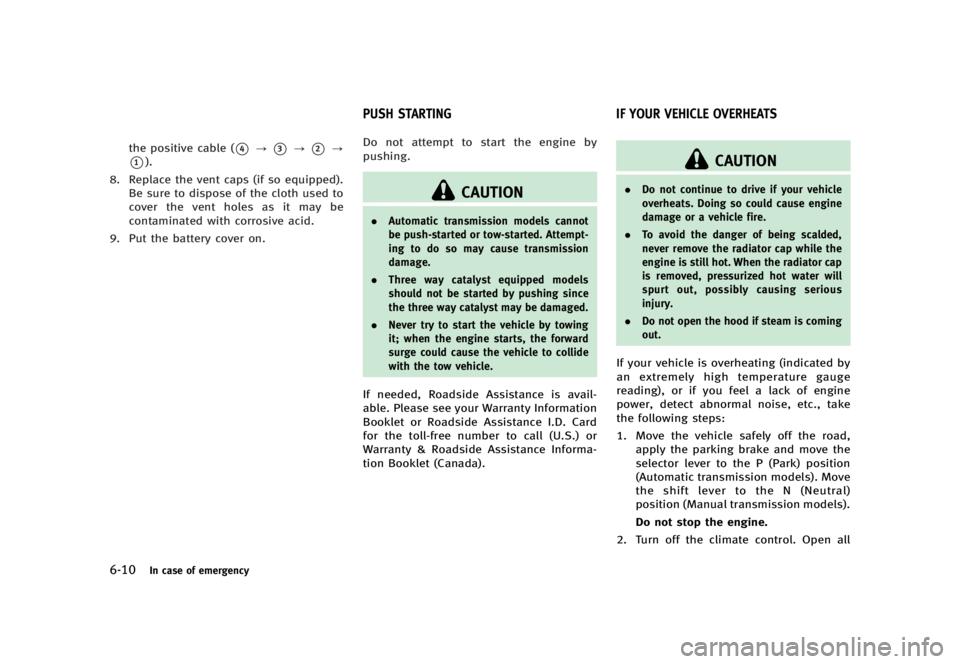

Black plate (390,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]6-10 In case of emergencythe positive cable (
* 4
?
* 3
?
* 2
?
* 1
).
8. Replace the vent caps (if so equipped).
Be sure to dispose of the cloth used to
cover the vent holes as it may be
contaminated with corrosive acid.
9. Put the battery cover on. GUID-14A00CCC-06C0-406E-A0D2-AA920BF7ACC8
Do not attempt to start the engine by
pushing.
CAUTION . Automatic transmission models cannot
be push-started or tow-started. Attempt-
ing to do so may cause transmission
damage.
. Three way catalyst equipped models
should not be started by pushing since
the three way catalyst may be damaged.
. Never try to start the vehicle by towing
it; when the engine starts, the forward
surge could cause the vehicle to collide
with the tow vehicle.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada). GUID-4F097083-26E2-4D86-B572-AFD615B83F6E
CAUTION . Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
. To avoid the danger of being scalded,
never remove the radiator cap while the
engine is still hot. When the radiator cap
is removed, pressurized hot water will
spurt out, possibly causing serious
injury.
. Do not open the hood if steam is coming
out.
If your vehicle is overheating (indicated by
an extremely high temperature gauge
reading), or if you feel a lack of engine
power, detect abnormal noise, etc., take
the following steps:
1. Move the vehicle safely off the road,
apply the parking brake and move the
selector lever to the P (Park) position
(Automatic transmission models). Move
the shift lever to the N (Neutral)
position (Manual transmission models).
Do not stop the engine.
2. Turn off the climate control. Open allPUSH STARTING IF YOUR VEHICLE OVERHEATS

Black plate (391,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]the windows, move the heater or air
conditioner temperature control to
maximum hot and fan control to high
speed.
3. If engine overheating is caused by
climbing a long hill on a hot day, run
the engine at a fast idle (approximately
1,500 rpm) until the temperature gauge
indication returns to normal.
4. Get out of the vehicle. Look and listen
for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the engine.) Do not open the hood
further until no steam or coolant can be
seen.
5. Open the engine hood.
WARNINGIf steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan
is running. The radiator hoses and
radiator should not leak water. If cool-
ant is leaking or the cooling fan does not run, stop the engine.
WARNING Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
7. After the engine cools down, check the
coolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired at the nearest INFINITI
retailer.
If needed, Roadside Assistance is avail-
able. Please see your Warranty Information
Booklet or Roadside Assistance I.D. Card
for the toll-free number to call (U.S.) or
Warranty & Roadside Assistance Informa-
tion Booklet (Canada). GUID-EFD3ED0D-F0D8-4E16-A86F-75D73E7484FA
When towing your vehicle, all State (Pro-
vincial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from an
INFINITI retailer. Local service operators are
familiar with the applicable laws and
procedures for towing. To assure proper
towing and to prevent accidental damage
to your vehicle, INFINITI recommends that
you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions.
WARNING . Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION . When towing, make sure that the trans-
mission, axles, steering system and
powertrain are in working condition. If
any unit is damaged, dollies must be
In case of emergency
6-11TOWING YOUR VEHICLE

Black plate (407,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8 Maintenance and do-it-yourself Maintenance requirement ....................................... 8-3
Scheduled maintenance ..................................... 8-3
General maintenance .......................................... 8-3
Where to go for service ...................................... 8-3
General maintenance .............................................. 8-4
Explanation of maintenance items ...................... 8-4
Maintenance precautions ........................................ 8-6
Engine compartment check locations ...................... 8-8
VQ25HR/VQ37VHR engine .................................. 8-8
Engine cooling system ............................................ 8-9
Checking engine coolant level .......................... 8-10
Changing engine coolant .................................. 8-10
Engine oil ............................................................. 8-11
Checking engine oil level .................................. 8-11
Changing engine oil and filter .......................... 8-11
Automatic transmission fluid ................................ 8-14
Power steering fluid .............................................. 8-14
Brake and clutch fluid .......................................... 8-15
Brake fluid ....................................................... 8-15
Clutch fluid (if so equipped) ............................. 8-15
Window washer fluid ............................................ 8-16 Battery ................................................................. 8-17
Coupe ............................................................. 8-17
Sedan and coupe ............................................ 8-17
Jump starting .................................................. 8-18
Variable voltage control system ............................ 8-19
Drive belts ........................................................... 8-19
Spark plugs ......................................................... 8-20
Replacing spark plugs .................................... 8-20
Air cleaner ........................................................... 8-21
Windshield wiper blades ...................................... 8-22
Cleaning ......................................................... 8-22
Replacing ........................................................ 8-22
Brakes ................................................................. 8-23
Self-adjusting brakes ...................................... 8-23
Brake pad wear warning ................................. 8-23
Fuses ................................................................... 8-24
Engine compartment ....................................... 8-24
Passenger compartment .................................. 8-25
Intelligent Key battery replacement ...................... 8-26

Black plate (409,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-7909F151-D270-426B-9317-ECCCF136345A

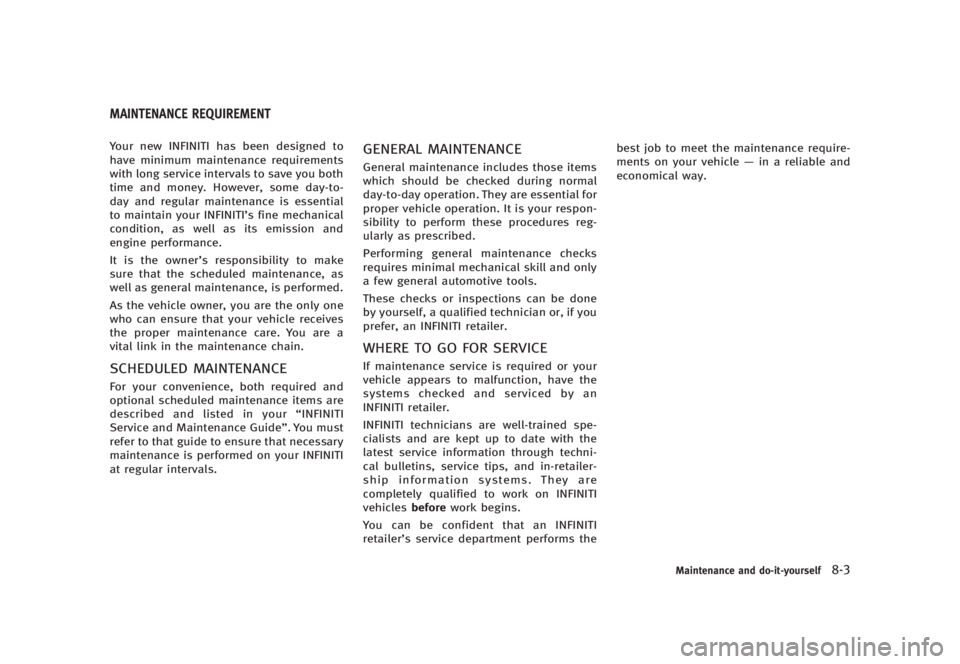

Your new INFINITI has been designed to
have minimum maintenance requirements
with long service intervals to save you both
time and money. However, some day-to-
day and regular maintenance is essential
to maintain your INFINITI ’ s fine mechanical
condition, as well as its emission and
engine performance.
It is the owner ’ s responsibility to make
sure that the scheduled maintenance, as
well as general maintenance, is performed.
As the vehicle owner, you are the only one
who can ensure that your vehicle receives
the proper maintenance care. You are a
vital link in the maintenance chain.
SCHEDULED MAINTENANCE GUID-F67C0E74-FE81-4021-BFE9-6DCAA8B62868
For your convenience, both required and
optional scheduled maintenance items are
described and listed in your “ INFINITI
Service and Maintenance Guide ” . You must
refer to that guide to ensure that necessary
maintenance is performed on your INFINITI
at regular intervals. GENERAL MAINTENANCE GUID-F5FB4C7E-7009-4482-8936-6B69512CBAEF
General maintenance includes those items
which should be checked during normal
day-to-day operation. They are essential for
proper vehicle operation. It is your respon-
sibility to perform these procedures reg-
ularly as prescribed.
Performing general maintenance checks
requires minimal mechanical skill and only
a few general automotive tools.
These checks or inspections can be done
by yourself, a qualified technician or, if you
prefer, an INFINITI retailer.
WHERE TO GO FOR SERVICE GUID-36AD273A-936D-4E75-BA34-F3522084B4D1
If maintenance service is required or your
vehicle appears to malfunction, have the
systems checked and serviced by an
INFINITI retailer.
INFINITI technicians are well-trained spe-
cialists and are kept up to date with the
latest service information through techni-
cal bulletins, service tips, and in-retailer-
ship information systems. They are
completely qualified to work on INFINITI
vehicles before work begins.
You can be confident that an INFINITI
retailer ’ s service department performs the best job to meet the maintenance require-
ments on your vehicle — in a reliable and
economical way.
Maintenance and do-it-yourself
8-3MAINTENANCE REQUIREMENT

Black plate (410,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]8-4 Maintenance and do-it-yourself GUID-D9BF222E-C089-4501-8A50-955A33E8DF3B
During the normal day-to-day operation of
the vehicle, general maintenance should
be performed regularly as prescribed in
this section. If you detect any unusual
sounds, vibrations or smell, be sure to
check for the cause or have an INFINITI
retailer do it promptly. In addition, you
should notify an INFINITI retailer if you
think that repairs are required.
When performing any checks or mainte-
nance work, see “ Maintenance precau-
tions ” (P.8-6).
EXPLANATION OF MAINTENANCE
ITEMS GUID-464D8334-4B6E-4650-8810-2AA00D8EFD2D
Additional information on the following
items with “ * ” is found later in this
section.
Outside the vehicle GUID-D21012E2-ED85-45D5-B3C1-02A03AE3EF12
The maintenance items listed here should
be performed from time to time, unless
otherwise specified.
Doors and engine hood: Check that all
doors and the engine hood, operate
properly. Also ensure that all latches lock
securely. Lubricate hinges, latches, latch
pins, rollers and links if necessary. Make
sure that the secondary latch keeps the
hood from opening when the primary latch is released.
When driving in areas using road salt or
other corrosive materials, check lubrication
frequently.
Lights*: Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and
other lights are all operating properly and
installed securely. Also check headlight
aim.
Road wheel nuts (lug nuts)*: When check-
ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.
Tire rotation*: Tires should be rotated
every 7,500 miles (12,000 km). If your
vehicle is equipped with different sized
tires in the front and rear, tires cannot be
rotated.
Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in
all tires, including the spare, to the
pressure specified. Check carefully for
damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap when the tires are replaced due to
wear or age.
Tire, wheel alignment and balance: If the
vehicle should pull to either side while
driving on a straight and level road, or if
you detect uneven or abnormal tire wear,
there may be a need for wheel alignment.
If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “ Important Tire Safety Information ”
(US) or “ Tire Safety Information ” (Canada)
in the INFINITI Warranty Information Book-
let.
Windshield: Clean the windshield on a
regular basis. Check the windshield at
least every six months for cracks or other
damage. Have a damaged windshield
repaired by a qualified repair facility.
Windshield wiper blades*: Check for
cracks or wear if they do not wipe properly.
Inside the vehicle GUID-9BC72144-3F74-486E-818A-C3F8D037D67D
The maintenance items listed here should
be checked on a regular basis, such as
when performing periodic maintenance,
cleaning the vehicle, etc.GENERAL MAINTENANCE
