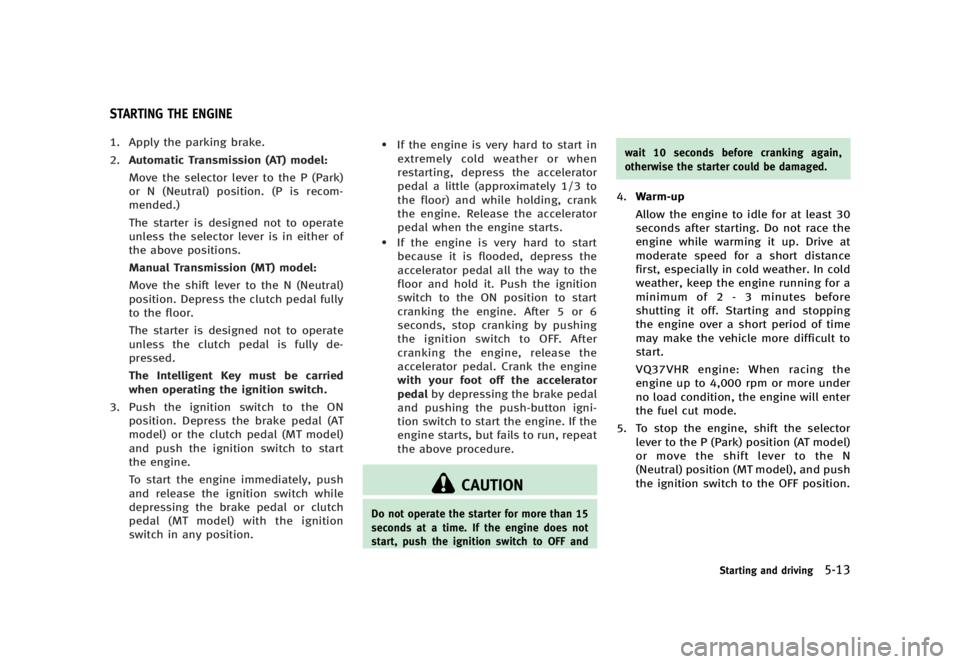

1. Apply the parking brake.
2. Automatic Transmission (AT) model:
Move the selector lever to the P (Park)
or N (Neutral) position. (P is recom-
mended.)
The starter is designed not to operate
unless the selector lever is in either of
the above positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully
to the floor.
The starter is designed not to operate
unless the clutch pedal is fully de-
pressed.
The Intelligent Key must be carried
when operating the ignition switch.
3. Push the ignition switch to the ON
position. Depress the brake pedal (AT
model) or the clutch pedal (MT model)
and push the ignition switch to start
the engine.
To start the engine immediately, push
and release the ignition switch while
depressing the brake pedal or clutch
pedal (MT model) with the ignition
switch in any position. .
If the engine is very hard to start in
extremely cold weather or when
restarting, depress the accelerator
pedal a little (approximately 1/3 to
the floor) and while holding, crank
the engine. Release the accelerator
pedal when the engine starts. .
If the engine is very hard to start
because it is flooded, depress the
accelerator pedal all the way to the
floor and hold it. Push the ignition
switch to the ON position to start
cranking the engine. After 5 or 6
seconds, stop cranking by pushing
the ignition switch to OFF. After
cranking the engine, release the
accelerator pedal. Crank the engine
with your foot off the accelerator
pedal by depressing the brake pedal
and pushing the push-button igni-
tion switch to start the engine. If the
engine starts, but fails to run, repeat
the above procedure.
CAUTION Do not operate the starter for more than 15
seconds at a time. If the engine does not
start, push the ignition switch to OFF and wait 10 seconds before cranking again,
otherwise the starter could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance
first, especially in cold weather. In cold
weather, keep the engine running for a
minimum of 2 - 3 minutes before
shutting it off. Starting and stopping
the engine over a short period of time
may make the vehicle more difficult to
start.
VQ37VHR engine: When racing the
engine up to 4,000 rpm or more under
no load condition, the engine will enter
the fuel cut mode.
5. To stop the engine, shift the selector
lever to the P (Park) position (AT model)
or move the shift lever to the N
(Neutral) position (MT model), and push
the ignition switch to the OFF position.
Starting and driving
5-13STARTING THE ENGINE

Black plate (334,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-14 Starting and driving GUID-F33187A6-7DF9-4952-9A66-4174F87E2862

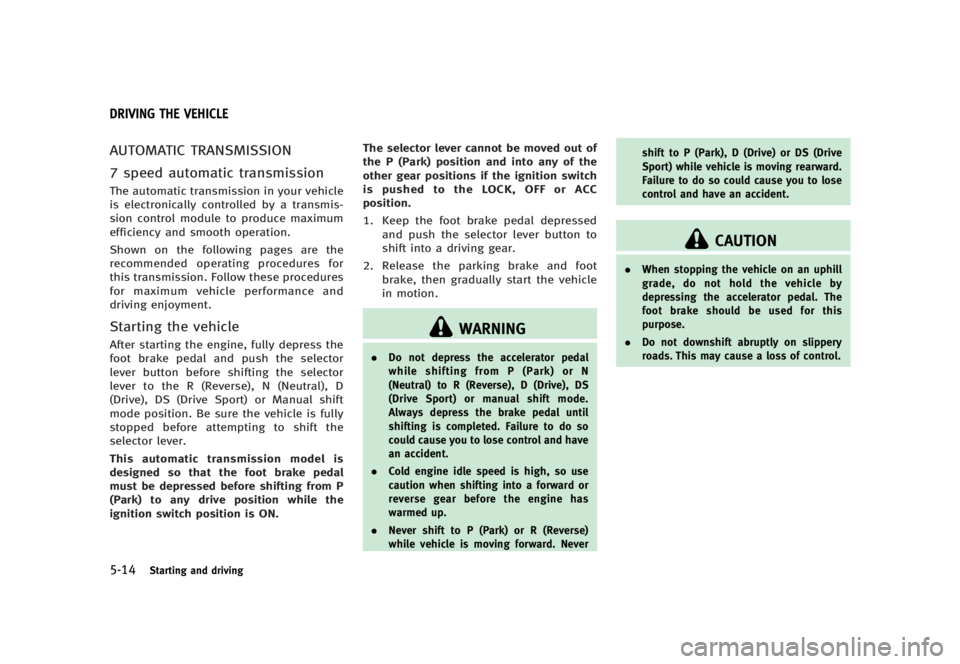

AUTOMATIC TRANSMISSION GUID-B2D59EFF-C65C-45CD-B36F-9DF6A89CC318
7 speed automatic transmission GUID-88A73E3B-CCAA-493D-9A21-A3D7FF0B4E48
The automatic transmission in your vehicle
is electronically controlled by a transmis-
sion control module to produce maximum
efficiency and smooth operation.
Shown on the following pages are the
recommended operating procedures for
this transmission. Follow these procedures
for maximum vehicle performance and
driving enjoyment.
Starting the vehicle GUID-5BBB1717-8E69-4297-9E3D-73AEA8820D93
After starting the engine, fully depress the
foot brake pedal and push the selector
lever button before shifting the selector
lever to the R (Reverse), N (Neutral), D
(Drive), DS (Drive Sport) or Manual shift
mode position. Be sure the vehicle is fully
stopped before attempting to shift the
selector lever.
This automatic transmission model is
designed so that the foot brake pedal
must be depressed before shifting from P
(Park) to any drive position while the
ignition switch position is ON. The selector lever cannot be moved out of
the P (Park) position and into any of the
other gear positions if the ignition switch
is pushed to the LOCK, OFF or ACC
position.
1. Keep the foot brake pedal depressed
and push the selector lever button to
shift into a driving gear.
2. Release the parking brake and foot
brake, then gradually start the vehicle
in motion.
WARNING . Do not depress the accelerator pedal
while shifting from P (Park) or N
(Neutral) to R (Reverse), D (Drive), DS
(Drive Sport) or manual shift mode.
Always depress the brake pedal until
shifting is completed. Failure to do so
could cause you to lose control and have
an accident.
. Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.
. Never shift to P (Park) or R (Reverse)
while vehicle is moving forward. Never shift to P (Park), D (Drive) or DS (Drive
Sport) while vehicle is moving rearward.
Failure to do so could cause you to lose
control and have an accident.
CAUTION . When stopping the vehicle on an uphill
grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.
. Do not downshift abruptly on slippery
roads. This may cause a loss of control.DRIVING THE VEHICLE

Black plate (335,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]SSD0596
Selector lever
Shifting GUID-6236FACE-E269-48B9-A10E-B37AA29B2EE7
To move the selector lever, : Push the button while depressing the
brake pedal,
: Push the button,
: Just move the selector lever.
After starting the engine, fully depress the
brake pedal and shift the selector lever
from P (Park) to R (Reverse), N (Neutral), D
(Drive), DS (Drive Sport) or Manual shift
mode position.
Push the button to shift into P (Park) or R
(Reverse). All other positions can be selected without pushing the button.
WARNING Apply the parking brake if the selector lever
is in any position while the engine is not
running. Failure to do so could cause the
vehicle to move unexpectedly or roll away
and result in serious personal injury or
property damage.
CAUTION Make sure the vehicle is completely stopped
and the transmission is in the P (Park)
position.
P (Park) position: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Use this selector position when the vehicle
is parked or when starting the engine.
Make sure the vehicle is completely
stopped. The brake pedal must be de-
pressed and the selector lever button
pushed in to move the selector lever from
the N (Neutral) position or any drive
position to the P (Park) position. Apply
the parking brake. When parking on a hill, apply the parking brake first, then move
the selector lever to the P (Park) position.
CAUTION Use this position only when the vehicle is
completely stopped.
R (Reverse): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Use this position to back up. Always be
sure the vehicle is completely stopped
before selecting the R (Reverse) position.
The brake pedal must be depressed and
the selector lever button pushed in to
move the selector lever from the P (Park)
position, the N (Neutral) position or any
drive position to the R (Reverse) position.
N (Neutral): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Neither forward nor reverse gear is en-
gaged. The engine can be started in this
position. You may shift to the N (Neutral)
position and restart a stalled engine while
the vehicle is moving.
D (Drive): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Use this position for all normal forward
driving.
Starting and driving
5-15

Black plate (337,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]M
4 (4th), M
3 (3rd) and M
2 (2nd): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Use these positions for hill climbing or
engine braking on downhill grades. M
1 (1st): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Use this position when climbing steep hills
slowly or driving slowly through deep
snow, or for maximum engine braking on
steep downhill grades.
. Remember not to drive at high speeds
for extended periods of time in lower
than 7th gear. This reduces fuel econ-
omy.
. Moving the selector lever rapidly to the
same side twice will shift the ranges in
succession.
. In the manual shift mode, the transmis-
sion may not shift to the selected gear.
This helps maintain driving perfor-
mance and reduces the chance of
vehicle damage or loss of control.
When this situation occurs, the Auto-
matic Transmission (AT) position indi-
cator light (on the dot matrix liquid
crystal display) will blink and the
chime will sound.
. In the manual shift mode, the transmis-
sion automatically shifts down to 1st
gear before the vehicle comes to a stop. When accelerating again, it is
necessary to shift up to the desired
range.
Accelerator downshift — In D (Drive)
position — GUID-E91E596E-66F0-4B37-B592-BD241B7B4C14
For passing or hill climbing, fully depress
the accelerator pedal to the floor. This
shifts the transmission down into the lower
gear, depending on the vehicle speed.
Fail-safe GUID-852B8196-DDA1-4E5B-AA0C-3EDBD2A757EE
When the fail-safe operation occurs, note
that the transmission will be locked in any
of the forward gears according to the
condition.
If the vehicle is driven under extreme
conditions, such as excessive wheel spin-
ning and subsequent hard braking, the
fail-safe system may be activated. This will
occur even if all electrical circuits are
functioning properly. In this case, push
the ignition switch to the OFF position and
wait for 3 seconds. Then push the ignition
switch back to the ON position. The vehicle
should return to its normal operating
condition. If it does not return to its
normal operating condition, have an
INFINITI retailer check the transmission
and repair if necessary. SSD0598
Shift lock release GUID-510517F2-CF6A-4A19-852F-4269CA8EA9EA
If the battery charge is low or discharged,
the selector lever may not be moved from
the P (Park) position even with the brake
pedal depressed and the selector lever
button pushed.
To move the selector lever, perform the
following procedure:
1. Push the ignition switch to the OFF or
LOCK position.
2. Apply the parking brake.
3. Remove the shift lock cover
* A
using a
suitable tool.
Starting and driving
5-17

Black plate (338,1)

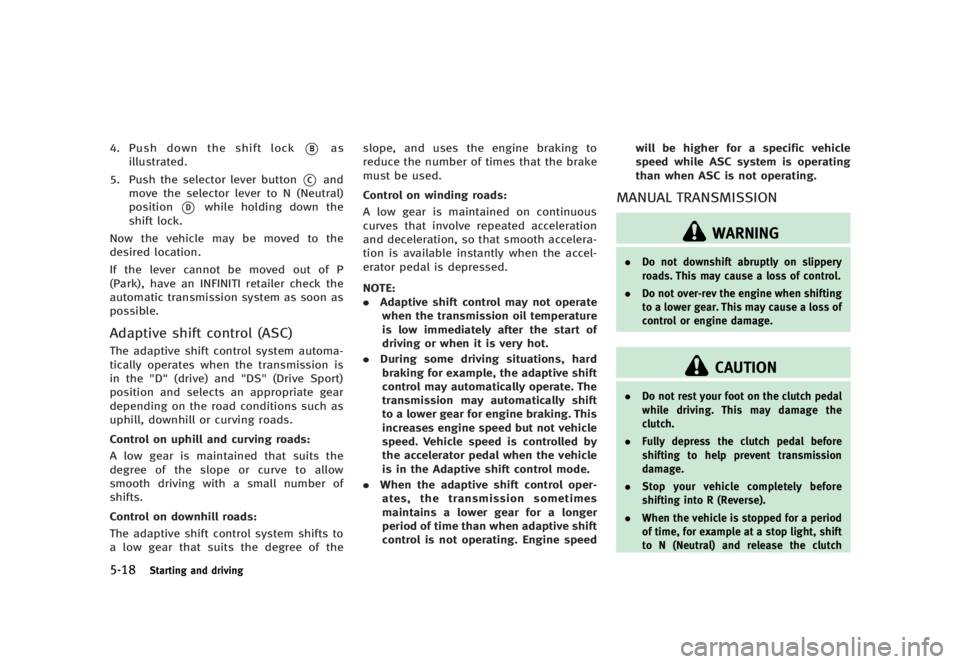

[ Edit: 2012/ 1/ 17 Model: V36-D ]5-18 Starting and driving4. Push down the shift lock
* B
as
illustrated.
5. Push the selector lever button
* C
and
move the selector lever to N (Neutral)
position
* D
while holding down the
shift lock.
Now the vehicle may be moved to the
desired location.
If the lever cannot be moved out of P
(Park), have an INFINITI retailer check the
automatic transmission system as soon as
possible.
Adaptive shift control (ASC) GUID-F11A26ED-2920-48C5-B33E-4D8F7EBFD667
The adaptive shift control system automa-
tically operates when the transmission is
in the "D" (drive) and "DS" (Drive Sport)
position and selects an appropriate gear
depending on the road conditions such as
uphill, downhill or curving roads.
Control on uphill and curving roads: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
A low gear is maintained that suits the
degree of the slope or curve to allow
smooth driving with a small number of
shifts.
Control on downhill roads: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The adaptive shift control system shifts to
a low gear that suits the degree of the slope, and uses the engine braking to
reduce the number of times that the brake
must be used.
Control on winding roads: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
A low gear is maintained on continuous
curves that involve repeated acceleration
and deceleration, so that smooth accelera-
tion is available instantly when the accel-
erator pedal is depressed.
NOTE:
. Adaptive shift control may not operate
when the transmission oil temperature
is low immediately after the start of
driving or when it is very hot.
. During some driving situations, hard
braking for example, the adaptive shift
control may automatically operate. The
transmission may automatically shift
to a lower gear for engine braking. This
increases engine speed but not vehicle
speed. Vehicle speed is controlled by
the accelerator pedal when the vehicle
is in the Adaptive shift control mode.
. When the adaptive shift control oper-
ates, the transmission sometimes
maintains a lower gear for a longer
period of time than when adaptive shift
control is not operating. Engine speed will be higher for a specific vehicle
speed while ASC system is operating
than when ASC is not operating.
MANUAL TRANSMISSION GUID-55540C91-1BB1-4931-BE6A-9E10E00B9B1A
WARNING . Do not downshift abruptly on slippery
roads. This may cause a loss of control.
. Do not over-rev the engine when shifting
to a lower gear. This may cause a loss of
control or engine damage.
CAUTION . Do not rest your foot on the clutch pedal
while driving. This may damage the
clutch.
. Fully depress the clutch pedal before
shifting to help prevent transmission
damage.
. Stop your vehicle completely before
shifting into R (Reverse).
. When the vehicle is stopped for a period
of time, for example at a stop light, shift
to N (Neutral) and release the clutch

Black plate (370,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-50 Starting and drivingto the object with its color and rate of
blinking.
When an object is detected, the indicator
(green) appears and blinks (the tone
sounds intermittently). When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of
blinking increases (the rate of the tone
increases). When the corner of the vehicle
is very close to the object, less than 11.8 in
(30 cm) away, the indicator stops blinking
and turns red (the tone sounds continu-
ously).
When the rear view monitor is displayed,
the colors of the sonar indicator and the
distance guide lines in the rear view
indicate different distances to the object.
The sonar indicator can be turned off in the
SONAR setting display. (See “ How to use
SETTING button ” (P.4-14) for the “ Sonar ”
settings.) When the sonar indicator is off,
only a tone sounds when the sonar detects
obstacles. SSD0929
SONAR SYSTEM OFF SWITCH GUID-446340A3-E5C0-4566-9701-88DF98FE3774
The sonar system OFF switch on the
instrument panel allows the driver to turn
the sonar system on and off. To turn the
sonar system on and off, the ignition
switch must be in the “ ON ” position. The
indicator light
* 1
on the switch will
illuminate when the system is turned off.
If the indicator light flashes when the
sonar system is not turned off, it may
indicate a malfunction in the sonar system. GUID-7A26DC9E-F480-487F-A4C2-174FF498CC5C
WARNING If the engine is not running or is turned off
while driving, the power assist for the
steering will not work. Steering will be
harder to operate.
The power assisted steering uses a hy-
draulic pump, driven by the engine, to
assist steering.
If the engine stops or the drive belt breaks,
you will still have control of the vehicle.
However, much greater steering effort is
needed, especially in sharp turns and at
low speeds.POWER STEERING

Black plate (479,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]10 Index Number4 Wheel Active Steer (4WAS) system .................... 5-57
4 Wheel Active Steer (4WAS) warning light .......... 2-14
AABS (Anti-lock Braking System) ............................ 5-54
Advanced air bag system ..................................... 1-46
Air bag system
Advanced air bag system ................................ 1-46
Front passenger air bag and status light ......... 1-49
Front-seat mounted side-impact supplemental
air bag system ................................................ 1-52
Roof-mounted curtain side-impact
supplemental air bag system .......................... 1-52
Air bag warning labels ......................................... 1-55
Air bag warning light .................................. 1-55, 2-17
Air cleaner housing filter ...................................... 8-21
Air conditioner
Air conditioner service .................................... 4-41
Air conditioner specification label ................... 9-14
Air conditioning system refrigerant and
lubricant recommendations ..................... 4-41, 9-7
Automatic climate control ............................... 4-31
In-cabin microfilter .......................................... 4-40
Alarm, How to stop alarm (see vehicle
security system) ................................................... 2-29
Alcohol, drugs and driving ..................................... 5-8
All-wheel drive (AWD) ........................................... 5-45 All-wheel drive (AWD) driving
safety precautions ................................................. 5-8
All-wheel drive (AWD) warning light ..................... 2-12
Antenna ............................................................... 4-89
Anti-lock Braking System (ABS) ............................ 5-54
Anti-lock braking system (ABS) warning light ....... 2-13
Appearance care
Exterior appearance care ................................... 7-2
Interior appearance care ................................... 7-4
Armrest ................................................................ 1-13
Ashtrays (See cigarette lighter and ashtrays) ....... 2-44
Audible reminders ............................................... 2-19
Audio operation precautions ................................ 4-41
Audio system ....................................................... 4-41
Steering wheel audio controls ......................... 4-87
Autolight system .................................................. 2-35
Automatic
Automatic adjusting function
(front windows) ............................................... 2-54
Automatic climate control ..................... 4-32, 4-34
Automatic transmission fluid (ATF) .................. 8-14
Climate control ............................................... 4-31
Door locks ........................................................ 3-6
Drive positioner .............................................. 3-31
Driving with automatic transmission ............... 5-14
Moonroof ........................................................ 2-55
Seat positioner ............................................... 3-31
Average fuel consumption and speed ................... 2-26
Avoiding collision and rollover ............................... 5-6 B Battery ................................................................. 8-17
Battery saver system ...................................... 2-37
Intelligent Key ................................................. 8-26
Variable voltage control system ...................... 8-19
Before starting the engine ................................... 5-12
Belts (See drive belts) .......................................... 8-19
Bluetooth ®
hands-free phone system
(models with navigation system) .......................... 4-90
Bluetooth ®
hands-free phone system
(models without navigation system) ................... 4-100
Bluetooth ®
streaming audio ................................ 4-70
Brake
Anti-lock Braking System (ABS) ....................... 5-54
Brake and clutch fluid ..................................... 8-15
Brake fluid ...................................................... 8-15
Brake system .................................................. 5-51
Parking brake operation .................................. 5-20
Warning light .................................................. 2-13
Break-in schedule ................................................ 5-45
Brightness control
Display ON/OFF button ..................................... 4-9
Instrument panel ............................................ 2-38
Bulb check/instrument panel ............................... 2-12
Bulb replacement ................................................. 8-28
