Black plate (105,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]amount of fuel in the fuel tank and the
actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning
is displayed on the screen.
When the fuel level drops even lower, the
dte display will change to “——” .
. If the amount of fuel added is small, the
display just before the ignition switch
is pushed to the OFF position may
continue to be displayed.
. When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
5. Outside air temperature (ICY — 8 F
or 8 C) GUID-35621BA5-D61E-4ECD-9628-F300D193449A
The outside air temperature is displayed in
8 F or 8 C in the range of − 22 to 131 8 F ( − 30
to 55 8 C).
The outside air temperature mode includes
a low temperature warning feature. If the
outside air temperature is below 37 8 F
(3 8 C), the warning is displayed on the
screen.
The outside temperature sensor is located
in front of the radiator. The sensor may be affected by road or engine heat, wind
directions and other driving conditions.
The display may differ from the actual
outside temperature or the temperature
displayed on various signs or billboards.
6. Setting GUID-9F18B5C6-F437-4D24-B240-415AA28B0E09
Setting cannot be made while driving. A
message “ Setting can only be operated
when stopped ” is also displayed on the
dot matrix crystal display.
The
switch
* A
and switch
* B
are
used in the setting mode to select and
decide a menu.
SKIP: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Push the switch
* A
to move to the
warning check mode.
Push the
switch
* B
to select other
menus.
ALERT: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
There are 3 submenus under the alert
menu.
. BACK
Select this submenu to return to the top
page of the setting mode.
. TIME TO REST
Select this submenu to specify when the “ time to rest ” indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
MAINTENANCE: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
There are 5 submenus under the main-
tenance menu.
. BACK
Select this submenu to return to the top
page of the setting mode.
. ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset
the distance for replacing items other
than the engine oil, oil filter and tires.
DISPLAY: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
There are 3 submenus under the display
menu.
Instruments and controls
2-27

Black plate (338,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-18 Starting and driving4. Push down the shift lock
* B
as
illustrated.
5. Push the selector lever button
* C
and
move the selector lever to N (Neutral)
position
* D
while holding down the
shift lock.
Now the vehicle may be moved to the
desired location.
If the lever cannot be moved out of P
(Park), have an INFINITI retailer check the
automatic transmission system as soon as
possible.
Adaptive shift control (ASC) GUID-F11A26ED-2920-48C5-B33E-4D8F7EBFD667
The adaptive shift control system automa-
tically operates when the transmission is
in the "D" (drive) and "DS" (Drive Sport)
position and selects an appropriate gear
depending on the road conditions such as
uphill, downhill or curving roads.
Control on uphill and curving roads: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
A low gear is maintained that suits the
degree of the slope or curve to allow
smooth driving with a small number of
shifts.
Control on downhill roads: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The adaptive shift control system shifts to
a low gear that suits the degree of the slope, and uses the engine braking to
reduce the number of times that the brake
must be used.
Control on winding roads: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
A low gear is maintained on continuous
curves that involve repeated acceleration
and deceleration, so that smooth accelera-
tion is available instantly when the accel-
erator pedal is depressed.
NOTE:
. Adaptive shift control may not operate
when the transmission oil temperature
is low immediately after the start of
driving or when it is very hot.
. During some driving situations, hard
braking for example, the adaptive shift
control may automatically operate. The
transmission may automatically shift
to a lower gear for engine braking. This
increases engine speed but not vehicle
speed. Vehicle speed is controlled by
the accelerator pedal when the vehicle
is in the Adaptive shift control mode.
. When the adaptive shift control oper-
ates, the transmission sometimes
maintains a lower gear for a longer
period of time than when adaptive shift
control is not operating. Engine speed will be higher for a specific vehicle
speed while ASC system is operating
than when ASC is not operating.
MANUAL TRANSMISSION GUID-55540C91-1BB1-4931-BE6A-9E10E00B9B1A
WARNING . Do not downshift abruptly on slippery
roads. This may cause a loss of control.
. Do not over-rev the engine when shifting
to a lower gear. This may cause a loss of
control or engine damage.
CAUTION . Do not rest your foot on the clutch pedal
while driving. This may damage the
clutch.
. Fully depress the clutch pedal before
shifting to help prevent transmission
damage.
. Stop your vehicle completely before
shifting into R (Reverse).
. When the vehicle is stopped for a period
of time, for example at a stop light, shift
to N (Neutral) and release the clutch

Black plate (366,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]5-46 Starting and drivingIf any malfunction occurs in the AWD
system while the engine is running, the
warning light will come on.
The warning light may blink rapidly (about
twice per second) while trying to free a
stuck vehicle due to high power train oil
temperature. The driving mode may change
to two-wheel drive. If the warning light
blinks rapidly during operation, stop the
vehicle with the engine idling in a safe
place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters
of front and rear wheels will make the
warning light blink slowly (about once per
two seconds). Pull off the road in a safe
area, and idle the engine. Check that all
tire sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is blinking after the
above operation, have your vehicle
checked by an INFINITI retailer as soon as
possible.
WARNING. For AWD equipped vehicles, do not
attempt to raise two wheels off the ground and shift the transmission to
any drive or reverse position with the
engine running. Doing so may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.
. Do not attempt to test an AWD equipped
vehicle on a 2-wheel dynamometer (such
as the dynamometers used by some
states for emissions testing) or similar
equipment even if the other two wheels
are raised off the ground. Make sure that
you inform the test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer.
Using the wrong test equipment may
result in drivetrain damage or unex-
pected vehicle movement which could
result in serious vehicle damage or
personal injury.
CAUTION . Do not operate the engine on a free
roller when any of the wheels are raised.
. If the warning light comes on while
driving there may be a malfunction in the AWD system. Reduce the vehicle
speed and have your vehicle checked by
an INFINITI retailer as soon as possible.
. If the warning light remains on after the
above operation, have your vehicle
checked by an INFINITI retailer as soon
as possible.
. The power train may be damaged if you
continue driving with the warning light
blinking.

Black plate (401,1)

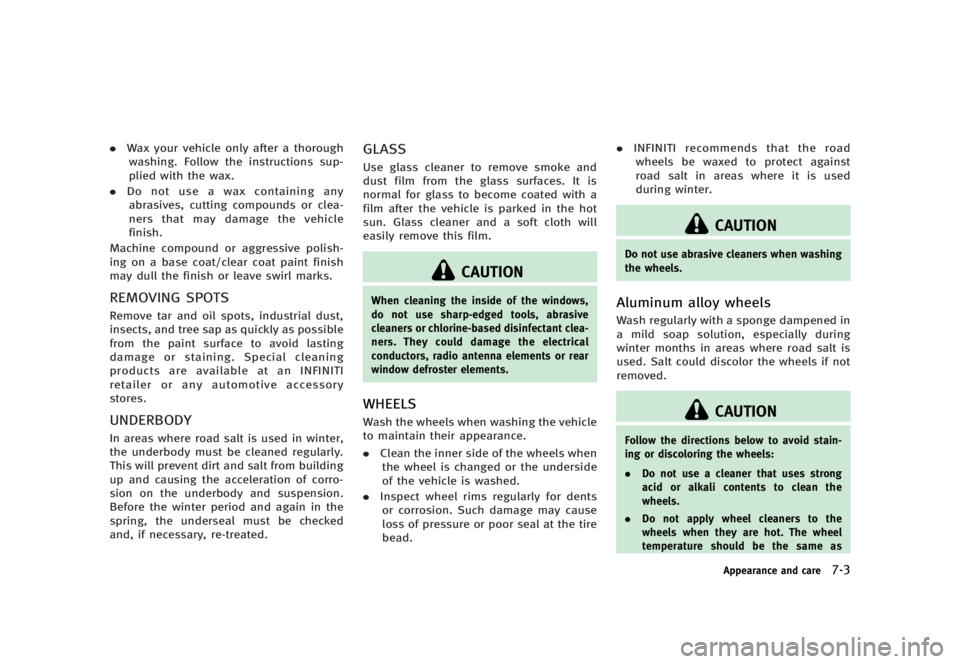

[ Edit: 2012/ 1/ 17 Model: V36-D ]. Wax your vehicle only after a thorough
washing. Follow the instructions sup-
plied with the wax.
. Do not use a wax containing any
abrasives, cutting compounds or clea-
ners that may damage the vehicle
finish.
Machine compound or aggressive polish-
ing on a base coat/clear coat paint finish
may dull the finish or leave swirl marks.
REMOVING SPOTS GUID-6A92BAAD-C79F-4B71-AC08-B8D8170F5C52
Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting
damage or staining. Special cleaning
products are available at an INFINITI
retailer or any automotive accessory
stores.
UNDERBODY GUID-235CB819-FCF9-47D3-B2C4-CF42120CA1E4
In areas where road salt is used in winter,
the underbody must be cleaned regularly.
This will prevent dirt and salt from building
up and causing the acceleration of corro-
sion on the underbody and suspension.
Before the winter period and again in the
spring, the underseal must be checked
and, if necessary, re-treated. GLASS GUID-5D4F0140-EB2A-48A1-9AE9-32E16AC93BA3
Use glass cleaner to remove smoke and
dust film from the glass surfaces. It is
normal for glass to become coated with a
film after the vehicle is parked in the hot
sun. Glass cleaner and a soft cloth will
easily remove this film.
CAUTION When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant clea-
ners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
WHEELS GUID-41803024-4AB1-47D5-838F-E8FDD80A7DF3
Wash the wheels when washing the vehicle
to maintain their appearance.
. Clean the inner side of the wheels when
the wheel is changed or the underside
of the vehicle is washed.
. Inspect wheel rims regularly for dents
or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead. . INFINITI recommends that the road
wheels be waxed to protect against
road salt in areas where it is used
during winter.
CAUTION Do not use abrasive cleaners when washing
the wheels.
Aluminum alloy wheels GUID-7407AEDF-85CD-42A8-BA1D-79993CC06EC3
Wash regularly with a sponge dampened in
a mild soap solution, especially during
winter months in areas where road salt is
used. Salt could discolor the wheels if not
removed.
CAUTION Follow the directions below to avoid stain-
ing or discoloring the wheels:
. Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as
Appearance and care
7-3

Black plate (402,1)

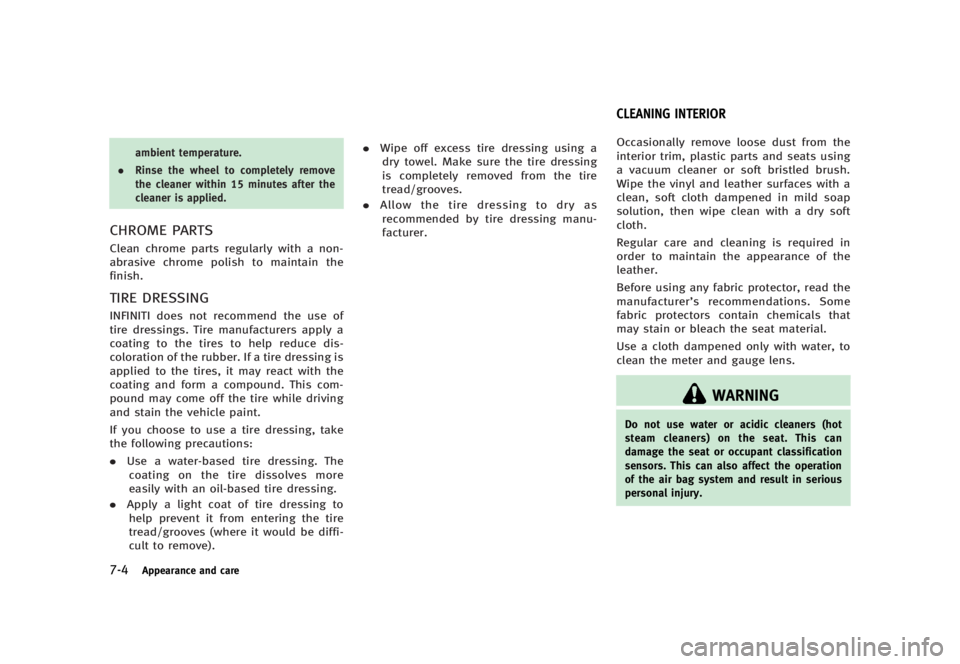

[ Edit: 2012/ 1/ 17 Model: V36-D ]7-4 Appearance and careambient temperature.
. Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.
CHROME PARTS GUID-C79FFE25-59C5-419E-9237-879139BCBF04
Clean chrome parts regularly with a non-
abrasive chrome polish to maintain the
finish.
TIRE DRESSING GUID-09CB5FA2-E9A2-41B9-AA7D-C91CDF0A574B
INFINITI does not recommend the use of
tire dressings. Tire manufacturers apply a
coating to the tires to help reduce dis-
coloration of the rubber. If a tire dressing is
applied to the tires, it may react with the
coating and form a compound. This com-
pound may come off the tire while driving
and stain the vehicle paint.
If you choose to use a tire dressing, take
the following precautions:
. Use a water-based tire dressing. The
coating on the tire dissolves more
easily with an oil-based tire dressing.
. Apply a light coat of tire dressing to
help prevent it from entering the tire
tread/grooves (where it would be diffi-
cult to remove). . Wipe off excess tire dressing using a
dry towel. Make sure the tire dressing
is completely removed from the tire
tread/grooves.
. Allow the tire dressing to dry as
recommended by tire dressing manu-
facturer. GUID-034A0946-EF38-47A8-A5CE-6863A1683EE3
Occasionally remove loose dust from the
interior trim, plastic parts and seats using
a vacuum cleaner or soft bristled brush.
Wipe the vinyl and leather surfaces with a
clean, soft cloth dampened in mild soap
solution, then wipe clean with a dry soft
cloth.
Regular care and cleaning is required in
order to maintain the appearance of the
leather.
Before using any fabric protector, read the
manufacturer ’ s recommendations. Some
fabric protectors contain chemicals that
may stain or bleach the seat material.
Use a cloth dampened only with water, to
clean the meter and gauge lens.
WARNING Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classification
sensors. This can also affect the operation
of the air bag system and result in serious
personal injury.CLEANING INTERIOR

Black plate (417,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-FB0623EB-5FAD-40C4-9AB0-442E7E1A0410
SDI2505
VQ25HR engine
SDI2045
VQ37VHR engine CHECKING ENGINE OIL LEVEL GUID-EB400D20-7A84-4713-89BD-9708FBC8D001
1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operat-
ing temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check
the oil level. It should be within the
range
* 1
. If the oil level is below
* 2
,
remove the oil filler cap and pour
recommended oil through the opening.
Do not overfill
* 3
.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating conditions.
CAUTION Oil level should be checked regularly.
Operating the engine with an insufficient
amount of oil can damage the engine, and such damage is not covered by warranty.
CHANGING ENGINE OIL AND FILTER GUID-8EFE39B7-109C-4EBB-91A7-80DFF961CBD7
Vehicle set-up GUID-4BC77A05-BF08-445F-911E-85628C534413
1. Park the vehicle on a level surface and
apply the parking brake.
2. Run the engine until it reaches operat-
ing temperature.
3. Turn the engine off and wait more than
15 minutes.
4. Raise and support the vehicle using a
suitable floor jack and safety jack
stands. .
Place the safety jack stands under
the vehicle jack-up points. .
A suitable adapter should be at-
tached to the jack stand saddle.
5. Remove the plastic engine undercover.
a. Remove the small plastic clip at the
center point of the undercover.
b. Then remove the other bolts that
hold the undercover in place.
Maintenance and do-it-yourself
8-11ENGINE OIL

Black plate (451,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]9 Technical and consumer information Capacities and recommended fuel/lubricants .......... 9-2
Fuel recommendation ......................................... 9-4
Engine oil and oil filter recommendation ............ 9-6
Air conditioning system refrigerant and
lubricant recommendations ................................ 9-7
Specifications ......................................................... 9-8
Engine ................................................................ 9-8
Wheels and tires ................................................ 9-9
Dimensions ...................................................... 9-11
When traveling or registering your vehicle in
another country .................................................... 9-11
Vehicle identification ............................................ 9-12
Vehicle Identification Number (VIN) plate .......... 9-12
Vehicle identification number
(chassis number) .............................................. 9-12
Engine serial number ....................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ............. 9-13
Emission control information label ................... 9-13
Tire and loading information label .................... 9-14
Air conditioner specification label ..................... 9-14
Installing front license plate ................................. 9-15
Sedan .............................................................. 9-15 Coupe (except for INFINITI Performance Line,
Aerodynamic Package models) ........................ 9-17
Coupe (INFINITI Performance Line,
Aerodynamic Package models) ........................ 9-19
Vehicle loading information .................................. 9-20
Terms ............................................................. 9-20
Vehicle load capacity ...................................... 9-21
Loading tips .................................................... 9-22
Measurement of weights ................................. 9-23
Towing a trailer .................................................... 9-23
Flat towing ...................................................... 9-23
Uniform tire quality grading ................................. 9-24
Treadwear ....................................................... 9-24
Traction AA, A, B and C ................................... 9-24
Temperature A, B and C .................................. 9-24
Emission control system warranty ........................ 9-25
Reporting safety defects ....................................... 9-26
Readiness for Inspection/Maintenance (I/M) test
(US only) .............................................................. 9-27
Event Data Recorders (EDR) .................................. 9-27
Owner ’ s Manual/Service Manual
order information ................................................. 9-28

Black plate (453,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Power steering fluid (PSF)
Refill to the proper oil level according to the instructions in the “ 8.
Maintenance and do-it-yourself ” section. Genuine NISSAN PSF or equivalent*8
Brake and clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*9 or equivalent DOT 3
Multi-purpose grease
Without limited slip differential — — —
NLGI No. 2 (Lithium soap base)
With limited slip differential — — —
Air conditioning system refrigerant — — — HFC-134a (R-134a)*10
Air conditioning system lubricants — — — NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1:
For additional information, see “ Engine oil ” (P.8-11) for changing engine oil.
*2: INFINITI recommends Genuine NISSAN Ester Engine Oil available at an INFINITI retailer.
*3: For additional information, see “ Engine oil and oil filter recommendation ” (P.9-6).
*4: Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic
transmission, which is not covered by the INFINITI new vehicle limited warranty.
*5: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 32 8 F (0 8 C).
*6: See an INFINITI retailer for service for synthetic oil.
*7: Using transfer fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and transfer durability, and may damage the transfer, which is not covered by the INFINITI new
vehicle limited warranty.
*8: DEXRON TM
VI type ATF may also be used.
*9: Available in mainland USA through an INFINITI retailer.
*10: For additional information, see “ Vehicle identification ” (P.9-12) for air conditioner specification label.
Technical and consumer information
9-3

Black plate (457,1)

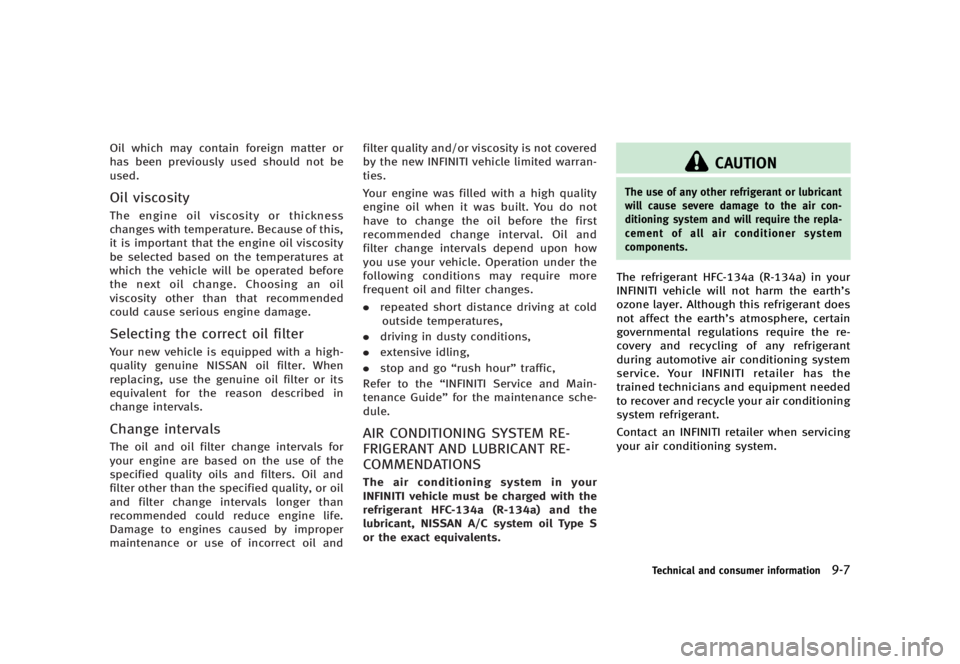

[ Edit: 2012/ 1/ 17 Model: V36-D ]Oil which may contain foreign matter or
has been previously used should not be
used.
Oil viscosity GUID-6FE50DBA-A088-4DF7-B955-855B7BC409B7
The engine oil viscosity or thickness
changes with temperature. Because of this,
it is important that the engine oil viscosity
be selected based on the temperatures at
which the vehicle will be operated before
the next oil change. Choosing an oil
viscosity other than that recommended
could cause serious engine damage.
Selecting the correct oil filter GUID-FFA0543F-C4EE-4AB0-A3D3-B35085A1CBFE
Your new vehicle is equipped with a high-
quality genuine NISSAN oil filter. When
replacing, use the genuine oil filter or its
equivalent for the reason described in
change intervals.
Change intervals GUID-9DC392AF-E881-459C-941F-E42A7567649C
The oil and oil filter change intervals for
your engine are based on the use of the
specified quality oils and filters. Oil and
filter other than the specified quality, or oil
and filter change intervals longer than
recommended could reduce engine life.
Damage to engines caused by improper
maintenance or use of incorrect oil and filter quality and/or viscosity is not covered
by the new INFINITI vehicle limited warran-
ties.
Your engine was filled with a high quality
engine oil when it was built. You do not
have to change the oil before the first
recommended change interval. Oil and
filter change intervals depend upon how
you use your vehicle. Operation under the
following conditions may require more
frequent oil and filter changes.
. repeated short distance driving at cold
outside temperatures,
. driving in dusty conditions,
. extensive idling,
. stop and go “ rush hour ” traffic,
Refer to the “ INFINITI Service and Main-
tenance Guide ” for the maintenance sche-
dule.
AIR CONDITIONING SYSTEM RE-
FRIGERANT AND LUBRICANT RE-
COMMENDATIONS GUID-A6645D62-AEB6-4D99-B362-51EC90BEBB5E
The air conditioning system in your
INFINITI vehicle must be charged with the
refrigerant HFC-134a (R-134a) and the
lubricant, NISSAN A/C system oil Type S
or the exact equivalents. CAUTION The use of any other refrigerant or lubricant
will cause severe damage to the air con-
ditioning system and will require the repla-
cement of all air conditioner system
components.
The refrigerant HFC-134a (R-134a) in your
INFINITI vehicle will not harm the earth ’ s
ozone layer. Although this refrigerant does
not affect the earth ’ s atmosphere, certain
governmental regulations require the re-
covery and recycling of any refrigerant
during automotive air conditioning system
service. Your INFINITI retailer has the
trained technicians and equipment needed
to recover and recycle your air conditioning
system refrigerant.
Contact an INFINITI retailer when servicing
your air conditioning system.
Technical and consumer information
9-7

Black plate (480,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]10-2 CCabin air filter ...................................................... 4-40
Capacities and recommended fuel/lubricants ......... 9-2
Car phone or CB radio ......................................... 4-89
Card holder .......................................................... 2-49
Cargo net retainers .............................................. 2-51
Catalytic converter, Three way catalyst ................... 5-4
CD/CF/USB memory care and cleaning ................ 4-86
Center multi-function control panel ........................ 4-3
Child restraints .................................................... 1-23
LATCH system ................................................. 1-25
Precautions on child restraints ........................ 1-23
Child safety ......................................................... 1-21
Child safety rear door lock ..................................... 3-6
Chimes
Audible reminders .......................................... 2-19
Seat belt warning light and chime .................. 2-17
Cigarette lighter and ashtrays .............................. 2-44
Circuit breaker, Fusible link .................................. 8-24
Cleaning exterior and interior .......................... 7-2, 7-4
Climate control, Automatic climate control ........... 4-31
Clock ................................................................... 2-42
Clutch fluid .......................................................... 8-15
Coat hooks .......................................................... 2-50
Cockpit .................................................................. 2-3
Cold weather driving ............................................ 5-58
Compact Disc (CD) player (See audio system) ...... 4-60
Compact spare tire .............................................. 8-43
Compass ................................................................ 2-9
Console box ......................................................... 2-48 Controller, Center multi-function control panel ....... 4-5
Controls
Control panel button ......................................... 4-3
INFINITI Controller ............................................. 4-5
Coolant
Capacities and
recommended fuel/lubricants ........................... 9-2
Changing engine coolant ................................ 8-10
Checking engine coolant level ......................... 8-10
Corrosion protection .............................................. 7-6
Cruise control ...................................................... 5-21
Fixed speed cruise control (on ICC system) ...... 5-41
Intelligent cruise control (ICC) system ............. 5-23
Cup holders ......................................................... 2-45
Current fuel consumption ..................................... 2-26
DDaytime running light system .............................. 2-37
Defroster switch, Rear window and outside mirror
defroster switch ................................................... 2-34
Dimensions .......................................................... 9-11
Distance to empty ................................................ 2-26
Door/trunk open warning ..................................... 2-23
Dot matrix liquid crystal display .......................... 2-20
Drive belts ........................................................... 8-19
Drive positioner ................................................... 3-31
Driving
All-wheel drive (AWD) ...................................... 5-45
Cold weather driving ....................................... 5-58
Driving with automatic transmission ............... 5-14
Driving with manual transmission ................... 5-18 Precautions when starting and driving .............. 5-3
DS (Drive Sport) mode ......................................... 5-16
DVD player operation ........................................... 4-62
E Economy, Fuel ...................................................... 5-45
Elapsed time ........................................................ 2-26
Elapsed time and trip odometer ........................... 2-26
Emission control information label ....................... 9-13
Emission control system warranty ........................ 9-25
Engine
Before starting the engine .............................. 5-12
Break-in schedule ........................................... 5-45
Capacities and
recommended fuel/lubricants ........................... 9-2
Changing engine coolant ................................ 8-10
Changing engine oil and filter ......................... 8-11
Checking engine coolant level ......................... 8-10
Checking engine oil level ................................ 8-11
Coolant temperature gauge ............................... 2-8
Emergency engine shut off .............................. 5-11
Engine compartment check locations ................ 8-8
Engine cooling system ...................................... 8-9
Engine oil ....................................................... 8-11
Engine oil and oil filter recommendation ........... 9-6
Engine oil replacement indicator ..................... 2-24
Engine oil viscosity ........................................... 9-7
Engine serial number ...................................... 9-12
Engine specifications ........................................ 9-8
Engine start operation indicator (Automatic
Transmission models) ..................................... 2-22
