rear view mirror INFINITI G37 2012 Owners Manual

Black plate (14,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]0-8 Illustrated table of contents GUID-A5806980-63F4-4D06-9561-5DE8B64E9925
SSI0668
SEDAN GUID-9EC9EAB0-0B24-4119-B8DE-794F6B9E7C32
1. Coat hooks (P.2-50)
2. Rear personal light (P.2-57)
3. Power windows (P.2-52)
4. Outside mirror remote control switch
(P.3-29) 5. Automatic drive positioner switch (if
so equipped) (P.3-31)
6. Sun visors (P.3-27)
7. Moonroof switch (if so equipped)
(P.2-55) 8. Map light (P.2-56)
9. Sunglasses holder (P.2-47)
10. Inside rearview mirror
— Operation (P.3-28)
— HomeLink ®
(if so equipped)
(P.2-59)
— Compass (if so equipped) (P.2-9)
11. Trunk pass-through/Rear armrest
(P.1-13)
12. Rear cup holders (P.2-45)
13. Console box
— Power outlet (P.2-43)
— Auxiliary input jacks (if so
equipped) (P.4-85)
— USB input operation (if so
equipped) (P.4-66)
— iPod ®
player operation (if so
equipped) (P.4-75)
14. Front cup holders (P.2-45)PASSENGER COMPARTMENT

Black plate (15,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] SSI0669
COUPE GUID-3662A08E-793C-483E-8FA6-41A69FDC65AC
1. Coat hooks (P.2-50)
2. Power windows (P.2-52)
3. Outside mirror remote control switch
(P.3-29)
4. Automatic drive positioner switch (if so equipped) (P.3-31)
5. Sun visors (P.3-27)
6. Moonroof switch (if so equipped)
(P.2-55)
7. Map light (P.2-56) 8. Sunglasses holder (P.2-47)
9. Inside rearview mirror
— Operation (P.3-28)
— HomeLink ®
(if so equipped)
(P.2-59)
— Compass (if so equipped) (P.2-9)
10. Rear cup holders (P.2-45)
11. Console box
— Power outlet (P.2-43)
— Auxiliary input jacks (if so
equipped) (P.4-85)
— USB input operation (if so
equipped) (P.4-66)
— iPod ®
player operation (if so
equipped) (P.4-75)
12. Front cup holders (P.2-45)
Illustrated table of contents
0-9

Black plate (170,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-28 Pre-driving checks and adjustments GUID-5FF59AF5-32FA-4647-8F55-5C77CF27361B
SPA2447
INSIDE MIRROR GUID-6C5033E3-8A89-4036-AAF2-C6503881141F
Adjust the height and the angle of the
inside mirror to the desired position. SPA2143
Manual anti-glare type GUID-831BED0E-56D0-4AEB-9B65-1A5520327BC5
The night position
* 1
will reduce glare
from the headlights of vehicles behind you
at night.
Use the day position
* 2
when driving in
daylight hours.
WARNING Use the night position only when necessary,
because it reduces rear view clarity. SPA2422A
Type A
SPA2450
Type BMIRRORS

Black plate (171,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Automatic anti-glare type GUID-42BCED9D-122C-447D-8C17-A6AFE2097EE0
The inside mirror is designed so that it
automatically changes reflection according
to the intensity of the headlights of the
following vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is
pushed to the ON position.
When the anti-glare system is turned on,
the indicator light
* A
will illuminate and
excessive glare from the headlights of the
vehicle behind you will be reduced.
Type A: Push the
switch
* B
to make the
inside rearview mirror operate normally
and the indicator light will turn off. Push
the
switch again to turn the system on.
Type B: Push the “ * ” switch
* C
to make
the inside rearview mirror operate nor-
mally. The indicator light will turn off. Push
the “ I ” switch
* D
to turn the system on.
Do not allow any object to cover the
sensors
* E
or apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper
operation.
For the compass (if so equipped) opera- tion, see “ Compass ” (P.2-9).
For the HomeLink ®
Universal Transceiver
operation, see “ HomeLink ®
Universal
Transceiver ” (P.2-59).
SPA2319
OUTSIDE MIRRORS GUID-44D37997-DE2C-47B8-BB91-5AA2BF04971B
WARNING Objects viewed in the outside mirror on the
passenger side are closer than they appear.
Be careful when moving to the right. Using
only this mirror could cause an accident.
Use the inside mirror or glance over your
shoulder to properly judge distances to
other objects.
Pre-driving checks and adjustments
3-29

Black plate (201,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]file.
. (Previous)
Select the “
” key to display the
previous file.
Setting the Image Viewer: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The Image Viewer setting display will
appear when selecting the “ Settings ” key
on the full screen display. The following
settings are available for the full screen
display.
. Slideshow Speed
Select the “ Slideshow Speed ” key.
From the following display, select the
changing time from 5, 10, 30, 60
seconds or “ No Auto Change ” .
. Slideshow Order
Select the “ Slideshow Order ” key. From
the following display, select “ Random ”
or “ Order List ” . For “ Order List ” , the
image order is the order of the files as
stored on the USB memory.
Operating tips: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Only files that meet the following
conditions will be displayed.
— Image type: JPEG
— File Extensions: *.jpg, *jpeg — Maximum Resolution: 2048 6 1536
pixels
— Maximum Size: 2-MB
— Colors: 32768 (15-bit)
— Maximum File Name lengths: 253-
Bytes
— Maximum Folders: 500
— Maximum Images per Folder: 1024
. If an electronic device (such as a digital
camera) is directly connected to the
vehicle using a USB cable, no image
will be displayed on the screen.
. If the file name is too long, some file
names may not be entirely displayed.
. When the total number of characters in
the file name exceeds 100 or if 1 file
name in a directory exceeds 100
characters, all files will show a shor-
tened 8-character version. The image
will still be displayed when selected. GUID-63214A06-C148-4301-9B23-AF1E0EA151B6
When the selector/shift lever is shifted into
the “ R ” (Reverse) position, the monitor
display shows view to the rear of the
vehicle.
The system is designed as an aid to the
driver in detecting large stationary objects
to help avoid damaging the vehicle. The
system will not detect small objects below
the bumper and may not detect objects
close to the bumper or on the ground.
WARNING . The rearview monitor is a convenience
but it is not a substitute for proper
vehicle operation because it has areas
where objects cannot be viewed. Always
look out the windows and check mirrors
to be sure that it is safe to move before
operating the vehicle. Always operate
the vehicle slowly.
. Objects viewed in the RearView Monitor
differ from actual distance because a
wide-angle lens is used. Objects in the
RearView Monitor will appear visually
opposite like ones viewed in the inside
and outside mirrors.
. Make sure that the trunk is securely
closed when backing up.
Monitor, climate, audio, phone and voice recognition systems
4-23REARVIEW MONITOR (if so equipped)

Black plate (203,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]. On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.
. If the battery is disconnected or be-
comes discharged, the predicted course
lines may not be displayed correctly. If
this occurs, drive the vehicle on a
straight road for more than 5 minutes.
. The displayed lines will appear slightly
off to the right because the rearview
camera is not installed in the rear center
of the vehicle.
. The distance guide line and the vehicle
width guide line should be used as a
reference only when the vehicle is on a
level paved surface. The distance viewed
on the monitor is for reference only and
may be different than the actual distance
between the vehicle and displayed ob-
jects.
. When backing up the vehicle up a hill,
objects viewed in the monitor are further
than they appear. When backing up the
vehicle down a hill, objects viewed in the
monitor are closer than they appear. Use
the inside mirror or glance over your
shoulder to properly judge distances to other objects.
The vehicle width and predicted course
lines are wider than the actual width and
course.
SAA1897
1. Visually check that the parking space is
safe before parking your vehicle.
2. The rearview of the vehicle is displayed
on the screen
* A
as illustrated when
the selector/shift lever is moved to the
“ R ” (Reverse) position.
Monitor, climate, audio, phone and voice recognition systems
4-25

Black plate (278,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-100 Monitor, climate, audio, phone and voice recognition systems GUID-7B37E21C-D986-47A8-9978-11E1AEF26433

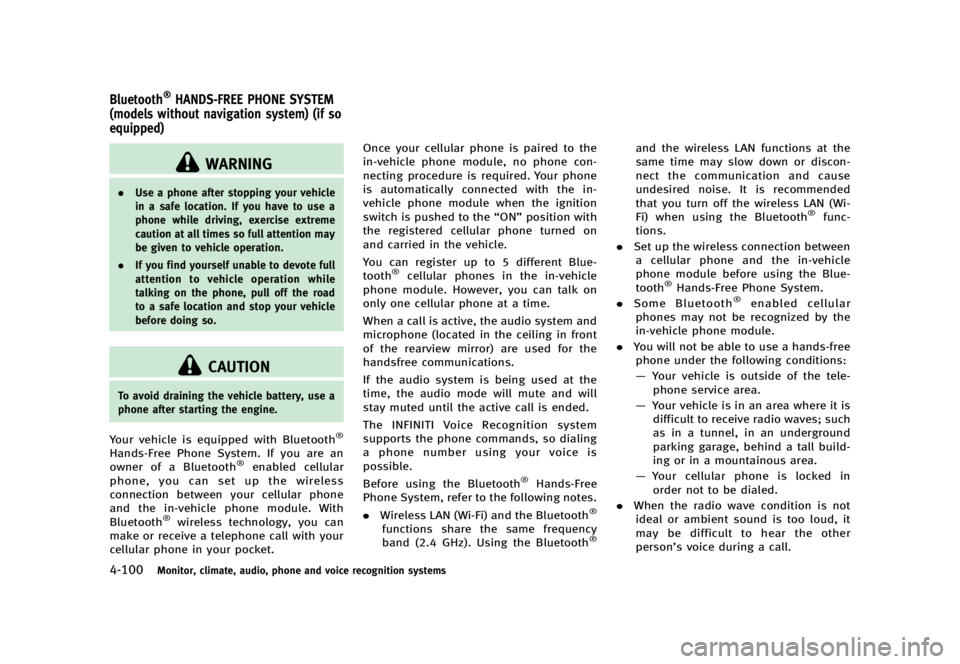

WARNING. Use a phone after stopping your vehicle
in a safe location. If you have to use a
phone while driving, exercise extreme
caution at all times so full attention may
be given to vehicle operation.
. If you find yourself unable to devote full
attention to vehicle operation while
talking on the phone, pull off the road
to a safe location and stop your vehicle
before doing so.
CAUTIONTo avoid draining the vehicle battery, use a
phone after starting the engine.
Your vehicle is equipped with Bluetooth ®
Hands-Free Phone System. If you are an
owner of a Bluetooth ®
enabled cellular
phone, you can set up the wireless
connection between your cellular phone
and the in-vehicle phone module. With
Bluetooth ®
wireless technology, you can
make or receive a telephone call with your
cellular phone in your pocket. Once your cellular phone is paired to the
in-vehicle phone module, no phone con-
necting procedure is required. Your phone
is automatically connected with the in-
vehicle phone module when the ignition
switch is pushed to the “ ON ” position with
the registered cellular phone turned on
and carried in the vehicle.
You can register up to 5 different Blue-
tooth ®
cellular phones in the in-vehicle
phone module. However, you can talk on
only one cellular phone at a time.
When a call is active, the audio system and
microphone (located in the ceiling in front
of the rearview mirror) are used for the
handsfree communications.
If the audio system is being used at the
time, the audio mode will mute and will
stay muted until the active call is ended.
The INFINITI Voice Recognition system
supports the phone commands, so dialing
a phone number using your voice is
possible.
Before using the Bluetooth ®
Hands-Free
Phone System, refer to the following notes.
. Wireless LAN (Wi-Fi) and the Bluetooth ®
functions share the same frequency
band (2.4 GHz). Using the Bluetooth ®and the wireless LAN functions at the
same time may slow down or discon-
nect the communication and cause
undesired noise. It is recommended
that you turn off the wireless LAN (Wi-
Fi) when using the Bluetooth ®
func-
tions.
. Set up the wireless connection between
a cellular phone and the in-vehicle
phone module before using the Blue-
tooth ®
Hands-Free Phone System.
. Some Bluetooth ®
enabled cellular
phones may not be recognized by the
in-vehicle phone module.
. You will not be able to use a hands-free
phone under the following conditions:
— Your vehicle is outside of the tele-
phone service area.
— Your vehicle is in an area where it is
difficult to receive radio waves; such
as in a tunnel, in an underground
parking garage, behind a tall build-
ing or in a mountainous area.
— Your cellular phone is locked in
order not to be dialed.
. When the radio wave condition is not
ideal or ambient sound is too loud, it
may be difficult to hear the other
person ’ s voice during a call.Bluetooth ®
HANDS-FREE PHONE SYSTEM
(models without navigation system) (if so
equipped)

Black plate (282,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-104 Monitor, climate, audio, phone and voice recognition systemscommand recognition mode .
4. The system acknowledges the com-
mand and announces the next set of
available commands.
5. After the tone sounds, speak the phone
number.
6. When you have finished speaking the
phone number, the system repeats it
back and announces the available
commands.
7. After system responds, speak “ Dial ”
and the system dials the spoken
numbers.
Operating tips: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Voice commands cannot be accepted
when the icon is
.
. If the command is not recognized, the
system announces, “ Please say again ” .
Repeat the command in a clear voice.
. Push the
switch or the BACK button
once to return to the previous screen.
. If you want to cancel the command,
push the
switch. The message
“ Voice input is canceled ” will be
announced. If you want to adjust the
volume of the system feedback, push
the volume control buttons [+] or [ − ] on
the steering wheel or use the audio system volume knob while the system
is making an announcement.
How to speak commands: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The Voice Recognition System requires a
certain way to speak voice commands.
Speak normally and clearly in the direction
of the microphone (located in front of the
rearview mirror). Every digit of the number
must be spoken individually and in a
normal manner. The hands-free mode will
work best when the telephone number is
spoken in blocks of three to five digits.
After each spoken block is terminated, the
system will repeat the three to five digits
and wait for you to speak the next digit or
block of digits required for the telephone
number.
See “ List of voice commands ” (P.4-106) for
the appropriate commands that can be
spoken for the hands-free mode system.
Example:
In order to initiate a call, speak “ Phone-
book ” .
INFO
. If you are controlling the telephone
system by voice command for the first
time or do not know the appropriate
voice command, speak “ Help ” . The system announces the available com-
mands.
. When you speak numbers, you can
speak both “ zero ” or “ oh ” for “ 0 ” .
Personal vocabulary (voicetags): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Voice Recognition System is equipped with
the function called “ voicetags ” , which can
be associated with the phone number and
name in the phonebook. Using the voice
tag will automatically generate a speed
dial to the registered number.
See “ Phonebook registration ” (P.4-108).
You can call the identified number using
the following command: “ Dial ” followed by
the voice tag.
Dialling a name with a voice tag: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
It is possible to call up a name via a voice
tag instead of a number, provided the
name and number of your correspondent
has been previously stored in the phone-
book.
Dial via a voice tag, according to the
following procedure.
1. Push the
switch.
2. The system replies “ please say a
command after the beep. Available
commands are: Call, Phonebook, Re-

Black plate (483,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Mechanical key (Intelligent Key system) ................. 3-3
Memory storage, Automatic drive positioner ........ 3-33
Meter, Trip computer ............................................ 2-26
Meters and gauges ................................................ 2-6
Instrument brightness control ......................... 2-38
Mirror
Inside mirror ................................................... 3-28
Outside mirrors ............................................... 3-29
Vanity mirror ................................................... 3-31
Monitor, Rearview monitor ................................... 4-23
Moonroof ............................................................. 2-55
NNew vehicle break-in ............................................ 5-45
No key warning .................................................... 2-22
OOdometer ............................................................... 2-7
Off-road recovery ................................................... 5-7
Oil
Capacities and
recommended fuel/lubricants ........................... 9-2
Changing engine oil and filter ......................... 8-11
Checking engine oil level ................................ 8-11
Engine oil ....................................................... 8-11
Engine oil viscosity ........................................... 9-7
Oil filter replacement indicator ........................ 2-24
Operation, Indicators for operation ...................... 2-22
Outside air temperature ....................................... 2-27
Outside mirrors .................................................... 3-29 Overheat, If your vehicle overheats ...................... 6-10
Owner ’ s Manual/Service Manual
order information ................................................. 9-28
PPanic alarm ......................................................... 3-15
Parking
Brake break-in ................................................ 5-51
Parking brake operation .................................. 5-20
Parking brake release warning ........................ 2-23
Parking on hills .............................................. 5-47
Personal lights ..................................................... 2-57
Phone
Bluetooth ®
hands-free phone system
(models with navigation system) ..................... 4-90
Bluetooth ®
hands-free phone system
(models without navigation system) .............. 4-100
Car phone or CB radio .................................... 4-89
Power
Front seat adjustment ....................................... 1-3
Power door lock ................................................ 3-4
Power outlet ................................................... 2-43
Power steering fluid ........................................ 8-14
Power steering system .................................... 5-50
Power windows ............................................... 2-52
Precautions
Audio operation .............................................. 4-41
Braking precautions ........................................ 5-51
Child restraints ............................................... 1-23
Cruise control ................................................. 5-21
Maintenance ..................................................... 8-6 Seat belt usage .............................................. 1-14
Supplemental restraint system ........................ 1-41
When starting and driving ................................. 5-3
Pre-crash seat belts ............................................. 1-16
Predictive course line settings ............................. 4-29
Preview function .................................................. 5-52
Preview function (for Intelligent cruise
control system) .................................................... 5-44
Preview Function warning light ............................. 2-16
Push starting ....................................................... 6-10
Push warning (Automatic
Transmission models) .......................................... 2-22
Push-button ignition switch .......................... 5-9, 5-10
R Radio ................................................................... 4-41
Car phone or CB radio .................................... 4-89
FM-AM-SAT radio with Compact Disc
(CD) player ...................................................... 4-57
Rain-sensing auto wiper system ........................... 2-33
Rapid air pressure loss .......................................... 5-7
Readiness for inspection/maintenance (I/M) test
(US only) ............................................................. 9-27
Rear door lock, Child safety rear door lock ............ 3-6
Rear seats ............................................................. 1-7
Rear window and outside mirror
defroster switch ................................................... 2-34
Rearview monitor ................................................. 4-23
Recorders, Event data .......................................... 9-27
Registering your vehicle in another country ......... 9-11
Remote keyless entry system ............................... 3-14
10-5
