INFINITI JX 2013 Owner's Manual

MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering col-
umn, and outside mirrors can be stored in the
automatic drive positioner memory. Follow these
procedures to use the memory system.1. Set the Continuously Variable Transmission (CVT) shift selector to the P (Park) position.
2. Place the ignition in the ON position.
3. Adjust the driver’s seat, steering column, and outside mirrors to the desired positions
by manually operating each adjusting
switch. For additional information, see
“Seats” in the “Safety—Seats, seat belts and supplemental restraint system” section, and
“Tilt/Telescopic Steering” and “Outside mir-
rors” in this section.
During this step, do not place the ignition
switch in any position other than ON.
4. Push the SET switch and, within 5 seconds, push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will come on and stay on for approxi-
mately 5 seconds after pushing the switch.
After the indicator light goes off, the se-
lected positions are stored in the selected
memory (1 or 2) .
If a new memory is stored in the same memory
switch, the previous memory will be deleted.
Linking a keyfob to a stored memory
position
Each keyfob can be linked to a stored memory
position (memory switch 1 or 2) with the follow-
ing procedure. 1. Follow the steps for storing a memory posi- tion.
2. While the indicator light for the memory switch being set is illuminated for 5 sec-
onds, press the
button on the keyfob. The indicator light will blink. After the indica-
tor light goes off, the keyfob is linked to that
memory setting.
With the ignition switch placed in the OFF posi-
tion, press the
button on the keyfob. The
driver’s seat, steering wheel and outside mirrors
will move to the memorized position.
NOTE:
If a new memory position is saved to the
memory switch, the keyfob automatically
re-links.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn the se-
lected outside mirror surface downward to pro-
vide better rear visibility close to the vehicle.
When the ignition switch is in the ON position,
turn the outside mirror control switch to the left or
right position. Only one mirror can be selected at
a time.
Move the shift selector to R (Reverse) . The se-
lected mirror will turn downward.
LPD2068
3-32Pre-driving checks and adjustments

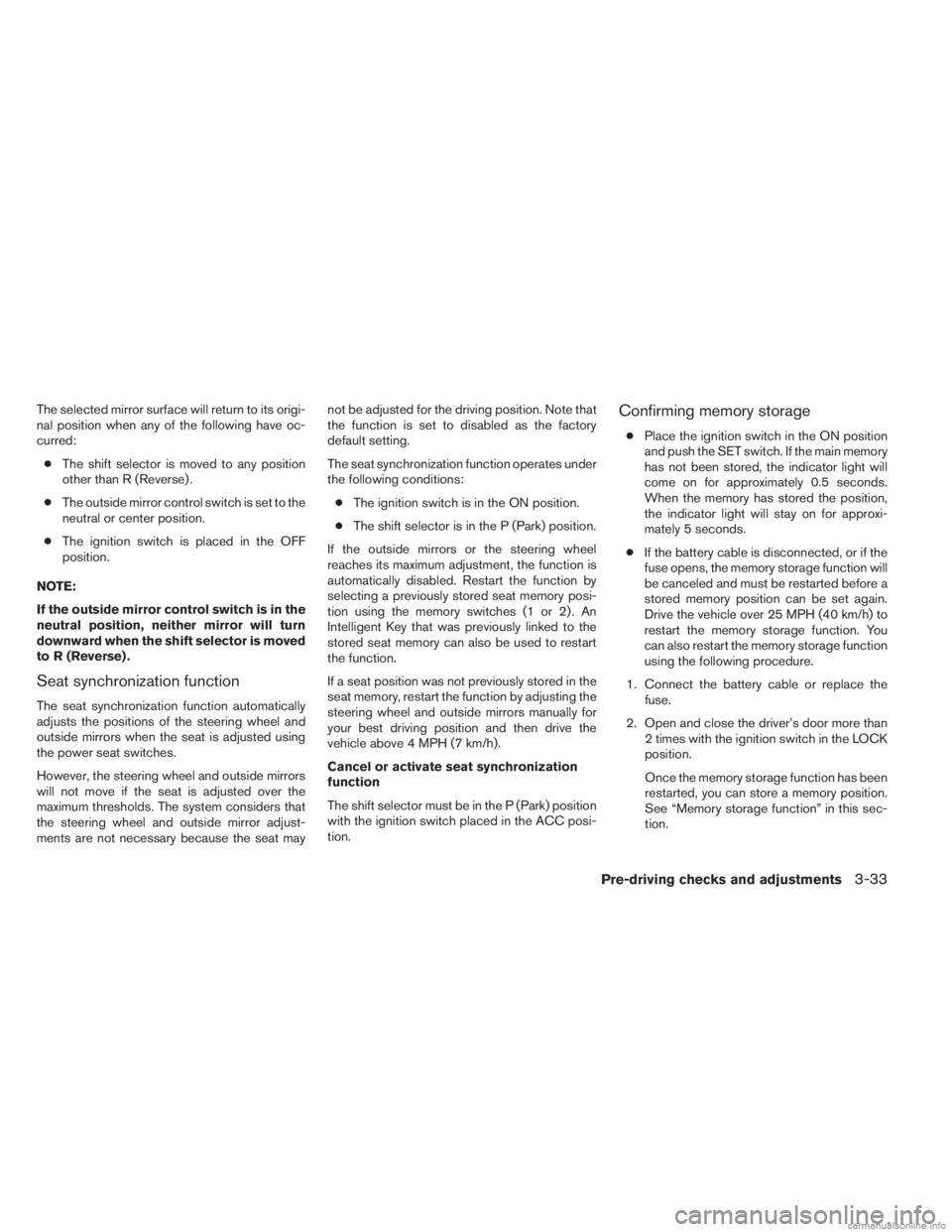

The selected mirror surface will return to its origi-
nal position when any of the following have oc-
curred:● The shift selector is moved to any position
other than R (Reverse) .
● The outside mirror control switch is set to the
neutral or center position.
● The ignition switch is placed in the OFF
position.
NOTE:
If the outside mirror control switch is in the
neutral position, neither mirror will turn
downward when the shift selector is moved
to R (Reverse) .
Seat synchronization function
The seat synchronization function automatically
adjusts the positions of the steering wheel and
outside mirrors when the seat is adjusted using
the power seat switches.
However, the steering wheel and outside mirrors
will not move if the seat is adjusted over the
maximum thresholds. The system considers that
the steering wheel and outside mirror adjust-
ments are not necessary because the seat may not be adjusted for the driving position. Note that
the function is set to disabled as the factory
default setting.
The seat synchronization function operates under
the following conditions:
● The ignition switch is in the ON position.
● The shift selector is in the P (Park) position.
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the function is
automatically disabled. Restart the function by
selecting a previously stored seat memory posi-
tion using the memory switches (1 or 2) . An
Intelligent Key that was previously linked to the
stored seat memory can also be used to restart
the function.
If a seat position was not previously stored in the
seat memory, restart the function by adjusting the
steering wheel and outside mirrors manually for
your best driving position and then drive the
vehicle above 4 MPH (7 km/h).
Cancel or activate seat synchronization
function
The shift selector must be in the P (Park) position
with the ignition switch placed in the ACC posi-
tion.
Confirming memory storage
● Place the ignition switch in the ON position
and push the SET switch. If the main memory
has not been stored, the indicator light will
come on for approximately 0.5 seconds.
When the memory has stored the position,
the indicator light will stay on for approxi-
mately 5 seconds.
● If the battery cable is disconnected, or if the
fuse opens, the memory storage function will
be canceled and must be restarted before a
stored memory position can be set again.
Drive the vehicle over 25 MPH (40 km/h) to
restart the memory storage function. You
can also restart the memory storage function
using the following procedure.
1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
Once the memory storage function has been
restarted, you can store a memory position.
See “Memory storage function” in this sec-
tion.
Pre-driving checks and adjustments3-33

Selecting the memorized position
Set the shift selector to the P (Park) position,
then:● Within 45 seconds of opening the driver’s
door, push the memory switch (1 or 2) or
● Place the ignition switch in the ON position
and push the memory switch (1 or 2) .
The driver’s seat, steering column, and outside
mirrors will move to the memorized position with
the indicator light blinking, and then the light will
stay on for approximately 5 seconds.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s seat
and automatic operation steering column will au-
tomatically move when the shift selector is in the
P (Park) position. This allows the driver to get into
and out of the driver’s seat more easily.
The driver’s seat will slide backward and the
steering column will move up: ● When the driver’s door is opened with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to LOCK with the driver’s door open. The driver’s seat and steering wheel will return to
the previous position:
● When the driver’s door is closed with the
ignition switch placed in the LOCK position.
● When the ignition switch is turned from
ACC to ON while the shift selector is in the P
(Park) position.
The entry/exit function can be adjusted or can-
celed through the Vehicle Settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF.
● Switch the Exit Steering UP from ON to
OFF.Restarting the entry/exit function
If the battery cable is disconnected or if the fuse
opens, the entry/exit function will be disabled.
Drive the vehicle over 25 MPH (40 km/h) to
restart the entry/exit function. You can also restart
the entry/exit function using the following proce-
dure.
1. Connect the battery cable or replace the fuse.
2. Open and close the driver’s door more than 2 times with the ignition switch in the LOCK
position.
The entry/exit function should now work properly.
SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memorized
settings can be available for each Intelligent Key.
● Climate control system
● Navigation system (if so equipped)
● Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s pre-
ferred settings. Lock the doors with the Intelligent
Key. Each Intelligent Key may be set with the
driver’s individual preferences. When a new In-
telligent Key is used, “Connection with the key
has been done” will be displayed on the screen
and the memorized settings are available.
To engage the memorized settings, perform the
following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
UNLOCK
button on the Intelligent
Key.
3. Place the ignition switch in the “ON” posi- tion. The settings linked to the Intelligent Key
will start.
3-34Pre-driving checks and adjustments

For further instructions on using the Climate con-
trol system see “Heater and air conditioner (au-
tomatic)” in “Monitor, climate, audio, phone and
voice recognition systems”.
For further instructions on using the Navigation
System see the separate Navigation System
Owner’s Manual.
For further instructions on using the Audio sys-
tem see “Audio system” in “Monitor, climate, au-
dio, phone and voice recognition systems”.
SYSTEM OPERATION
The automatic drive positioner system will not
work or will stop operating under the following
conditions:● When the vehicle speed is above 4 MPH
(7 km/h).
● When any of the memory switches are
pushed while the automatic drive positioner
is operating.
● When the adjusting switch for the driver’s
seat and steering column is turned on while
the automatic drive positioner is operating.
● When the seat has already been moved to
the memorized position.
● When no seat position is stored in the
memory switch. ●
When the shift selector is moved from P
(Park) to any other position.
● When the driver’s door remains open more
than 45 seconds and the ignition switch is
not in the ON position.
● The seat synchronization function is auto-
matically disabled if the outside mirrors or
steering wheel reaches its maximum adjust-
ment.
● The seat synchronization function will not
operate if the seat is adjusted over one of the
following maximum thresholds:
– Seat sliding: 3.0 in (76 mm)
– Seatback reclining: 9.1 degrees
– Seat lifter (rear side): 0.8 in (20 mm)
The entry/exit function can be adjusted or can-
celed through the Vehicle Settings in the vehicle
information display by performing the following: ● Switch the Exit Seat Slide from ON to OFF.
● Switch the Exit Steering UP from ON to
OFF.
Pre-driving checks and adjustments3-35

MEMO
3-36Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-4
How to use the INFINITI controller ................4-5
How to select menus on the screen ..............4-6
How to use the STATUS button ..................4-6
How to use the INFO button .....................4-6
How to use the SETTING button .................4-9
Language / Units .............................. 4-12
OFF button............................. 4-13
Control panel buttons — color screen with
Navigation System (if so equipped) .................4-14
How to use the INFINITI controller ...............4-15
How to use the touch screen ...................4-15
Menu options ................................. 4-17
How to select menus on the screen .............4-18
How to use the STATUS button .................4-18
How to use the INFO button ....................4-18
How to use the SETTING button ................4-22
OFF button............................. 4-28
Image viewer (if so equipped) ......................4-28
Using the image viewer ........................ 4-28
RearView Monitor (if so equipped) ..................4-30
How to read the displayed lines .................4-31How to park with predicted course lines
..........4-32
Difference between predictive and actual
distances ..................................... 4-33
How to adjust the screen .......................4-35
Operating tips ................................. 4-35
Around View® Monitor (if so equipped) .............4-36
Available views ................................ 4-37
Difference between predictive and actual
distances ..................................... 4-41
How to switch the display ......................4-44
Camera aiding sonar (parking sensor)
(rear center sonar if so equipped) ...............4-44
Moving Object Detection (MOD) ................4-46
How to adjust the screen view ..................4-49
Around View Monitor settings ...................4-50
View malfunction .............................. 4-52
Operating tips ................................. 4-52
Vents ........................................... 4-53
Heater and air conditioner (automatic) ..............4-54
Automatic operation ........................... 4-55
Manual operation .............................. 4-55
Operating tips ................................. 4-56
CLIMATE setting screen ........................ 4-57
Servicing air conditioner ........................... 4-60

Audio system.................................... 4-61
Radio ........................................ 4-61
FM radio reception . . .......................... 4-61
AM radio reception . . .......................... 4-61
Satellite radio reception (if so equipped) .........4-62
Audio operation precautions ....................4-62
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-78
Digital Versatile Disc (DVD) Player
Operation (models with Navigation System) ......4-86
USB interface ................................. 4-89
iPod®* player operation ........................ 4-93
Bluetooth® streaming audio (if so equipped) .....4-97
CD care and cleaning ......................... 4-100
Steering wheel switch for audio control .........4-101
Antenna ..................................... 4-102
Dual head restraint DVD system (if so equipped) ....4-102
System components .......................... 4-103
Before operating dual head restraint DVD
system ...................................... 4-108
Playing a digital versatile disc (DVD) ............4-109
Operating tips ................................ 4-113
Care and maintenance ........................ 4-114
Car phone or CB radio . . ......................... 4-115Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped)
................4-115
Regulatory Information ........................ 4-117
Using the system ............................. 4-117
Control buttons .............................. 4-119
Getting started ............................... 4-120
List of voice commands ....................... 4-122
Voice Adaptation (VA) mode ...................4-126
Manual control ............................... 4-127
Troubleshooting guide ........................ 4-128
Bluetooth® Hands-Free Phone System with
Navigation System ............................... 4-129
Regulatory Information ........................ 4-131
Voice commands ............................. 4-131
Connecting procedure........................ 4-131
V

ehicle phonebook ........................... 4-133
Handset phonebook .......................... 4-135
Making a call ................................. 4-136
Receiving a call .............................. 4-136
During a call ................................. 4-137
Ending a call ................................. 4-138
Phone settings ............................... 4-138
Bluetooth settings ............................ 4-139

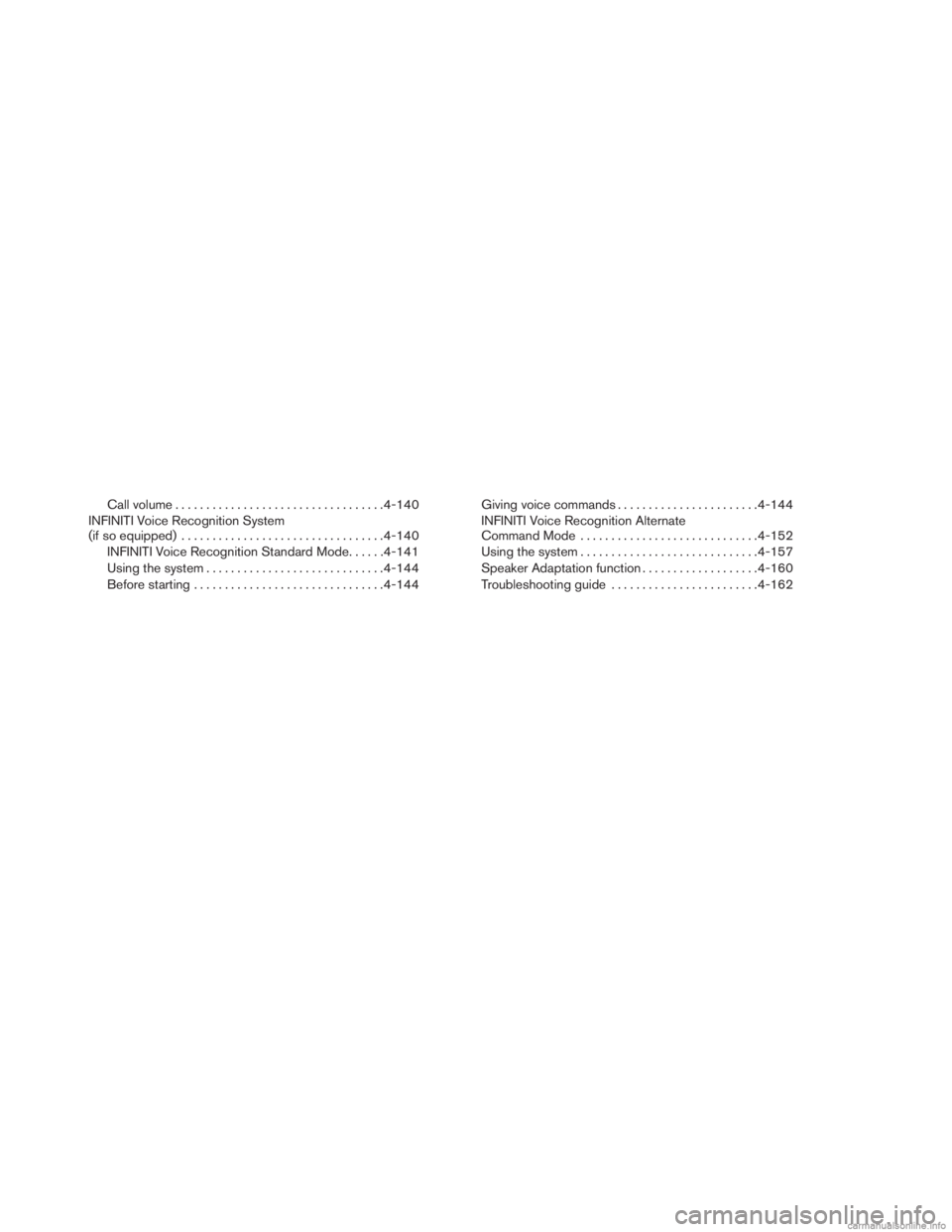

Call volume .................................. 4-140
INFINITI Voice Recognition System
(if so equipped) ................................. 4-140
INFINITI Voice Recognition Standard Mode ......4-141
Using the system ............................. 4-144
Before starting ............................... 4-144Giving voice commands
....................... 4-144
INFINITI Voice Recognition Alternate
Command Mode ............................. 4-152
Using the system ............................. 4-157
Speaker Adaptation function ...................4-160
Troubleshooting guide ........................ 4-162

WARNING
●Positioning of the heating or air condi-
tioning controls and display controls
should not be done while driving in or-
der that full attention may be given to
the driving operation.
● Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest INFINITI re-
tailer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
1. INFO button (P. 4-6)
2. STATUS button (P. 4-6)
3. INFINITI controller (P. 4-5)
4. DISP button 5. + (brightness control) button
6. – (brightness control) button
7.
OFF brightness control button
(P. 4-13)
LHA2110
CONTROL PANEL BUTTONS — COLOR
SCREEN WITHOUT NAVIGATION
SYSTEM (if so equipped)
4-4Monitor, climate, audio, phone and voice recognition systems

8.BACK (previous) button (P. 4-5)
9. ENTER button (P. 4-5)
10. SETTING button (P. 4-9)
11.
ECON (fuel economy) button (P. 4-7)
CAUTION
● The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start. Reference symbols:
ENTER button — This is a button on the control
panel.
“Example” — Words marked in quotes refer to a
key shown on the display. These keys can only be
selected using the INFINITI controller.
HOW TO USE THE INFINITI
CONTROLLER
Choose an item on the display by rotating or
pushing the center dial
2upward or downward.
Press the ENTER button
1to select an item.
If you press either of the
BACK buttons3
before the operation is completed, the operation
will be canceled and/or the display will return to
the previous screen.
After the operation is complete, press either of
the
BACK buttons3to return to the
previous screen.
SAA2956
Monitor, climate, audio, phone and voice recognition systems4-5
