The vehicle-to-vehicle distance control mode
uses a sensor
Alocated behind the front bum-
per of the vehicle to detect vehicles traveling
ahead. The sensor generally detects the signals
returned from the vehicle ahead. Therefore, if the
sensor cannot detect the reflection from the ve-
hicle ahead, the ICC system may not maintain the
selected distance.
The following are some conditions in which the
sensor cannot detect the signals:
● When the snow or road spray from traveling
vehicles reduces the sensor’s visibility
● When excessively heavy baggage is loaded
in the rear seat or the luggage room of your
vehicle
The ICC system is designed to automatically
check the sensor’s operation within the limitation
of the system. When the front bumper area of the
distance sensor is covered with dirt or is ob-
structed, the system will automatically cancel. If
the front bumper area of the distance sensor is
covered with ice, a transparent or translucent
vinyl bag, etc., the ICC system may not detect
them. In these instances, the vehicle to vehicle
distance control mode may not cancel and may
not be able to maintain the selected following
distance from the vehicle ahead. Be sure to
check and clean the front bumper area of the
distance sensor regularly. The vehicle-to-vehicle distance control mode is
designed to maintain a selected distance and
reduce the speed to match the slower vehicle
ahead. The system will decelerate the vehicle as
necessary and if the vehicle ahead comes to a
stop, the vehicle decelerates to a standstill. How-
ever, the ICC system can only apply up to 25% of
the vehicles total braking power. This system
should only be used when traffic conditions allow
vehicle speeds to remain fairly constant or when
vehicle speeds change gradually. If a vehicle
moves into the traveling lane ahead or if a vehicle
traveling ahead rapidly decelerates, the distance
between vehicles may become closer because
the ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system will
sound a warning chime and blink the system
display to notify the driver to take necessary
action.
The system will cancel and a warning chime will
sound if the speed is below approximately
15 MPH (24 km/h) and a vehicle is not detected
ahead. The system will also disengage when the
vehicle goes above the maximum set speed.
See “Approach warning” later in this section.
The following items are controlled in the vehicle-
to-vehicle distance control mode:
● When there are no vehicles traveling ahead,
the vehicle-to-vehicle distance control
mode maintains the speed set by the driver.
The set speed range is between approxi-
mately 20 and 90 MPH (32 and 144 km/h).
● When there is a vehicle traveling ahead, the
vehicle-to-vehicle distance control mode
adjusts the speed to maintain the distance,
selected by driver, from the vehicle ahead.
The adjusting speed range is up to the set
speed. If the vehicle ahead comes to a stop,
the vehicle decelerates to a standstill within
the limitations of the system. The system will
cancel once it judges a standstill with a
warning chime.
● When the vehicle traveling ahead has moved
out from its lane of travel, the vehicle-to-
vehicle distance control mode accelerates
and maintains vehicle speed up to the set
speed.
The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll gates
or traffic congestion.
Starting and driving5-53

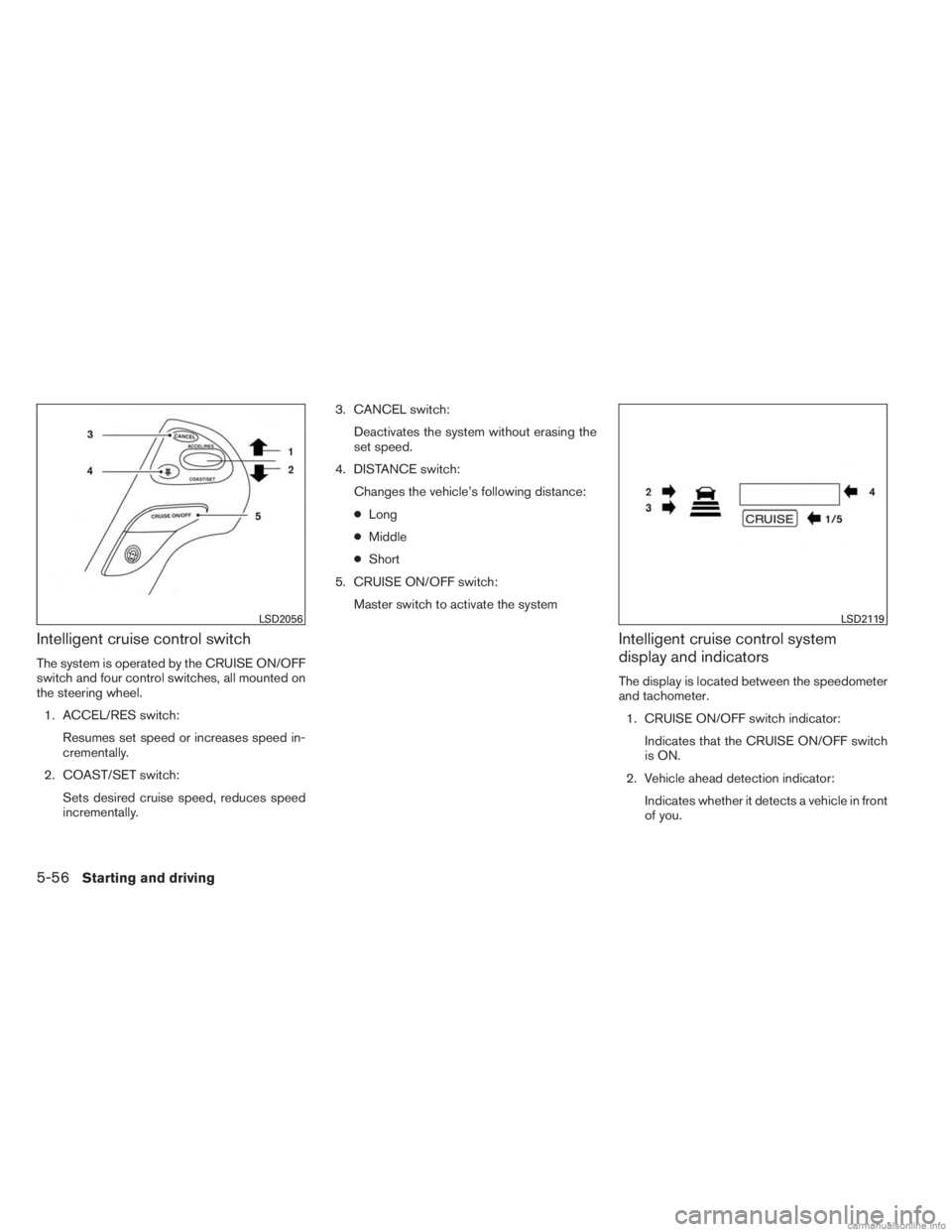

Intelligent cruise control switch
The system is operated by the CRUISE ON/OFF
switch and four control switches, all mounted on
the steering wheel.1. ACCEL/RES switch: Resumes set speed or increases speed in-
crementally.
2. COAST/SET switch: Sets desired cruise speed, reduces speed
incrementally. 3. CANCEL switch:
Deactivates the system without erasing the
set speed.
4. DISTANCE switch: Changes the vehicle’s following distance:
●Long
● Middle
● Short
5. CRUISE ON/OFF switch: Master switch to activate the system
Intelligent cruise control system
display and indicators
The display is located between the speedometer
and tachometer.1. CRUISE ON/OFF switch indicator: Indicates that the CRUISE ON/OFF switch
is ON.
2. Vehicle ahead detection indicator: Indicates whether it detects a vehicle in front
of you.
LSD2056LSD2119
5-56Starting and driving

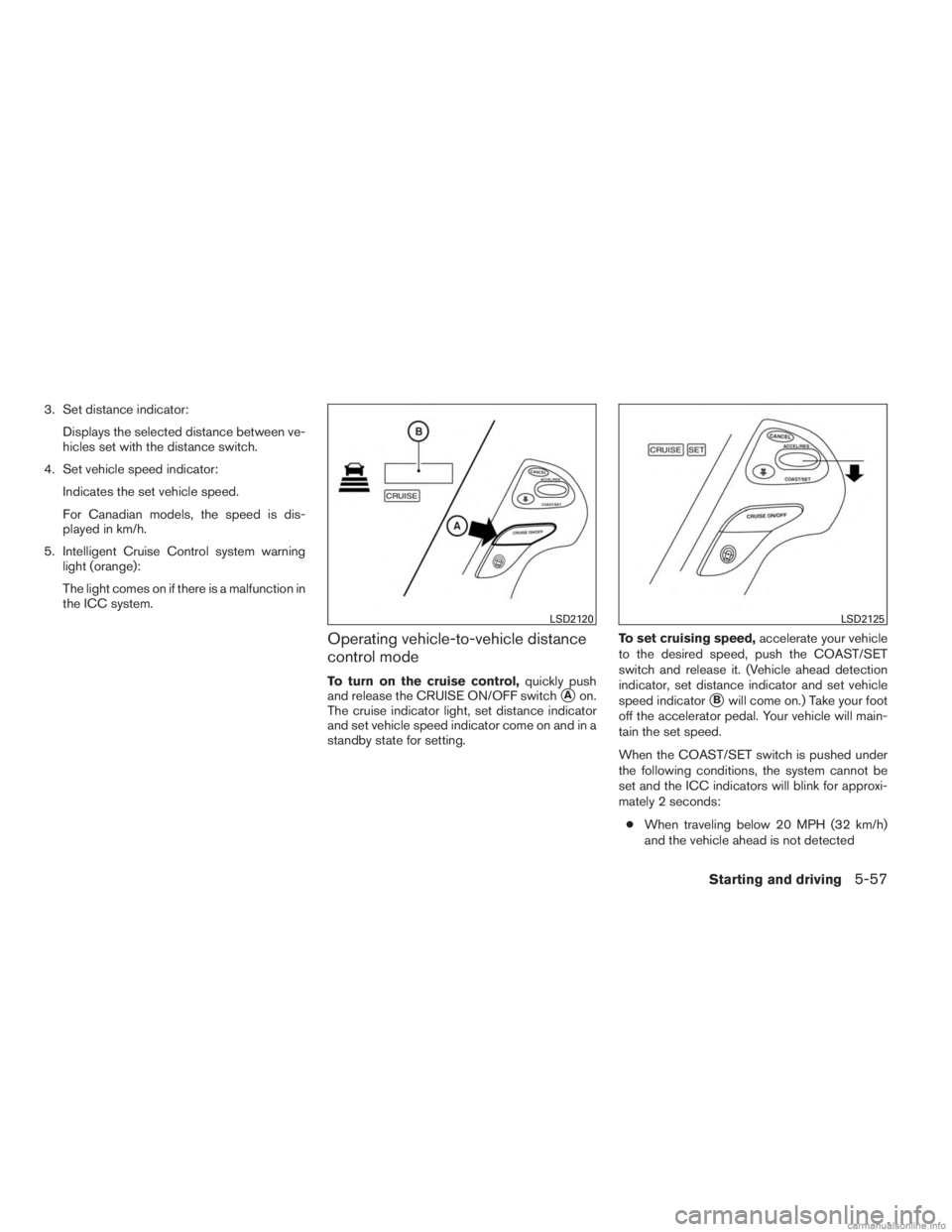

3. Set distance indicator:Displays the selected distance between ve-
hicles set with the distance switch.
4. Set vehicle speed indicator: Indicates the set vehicle speed.
For Canadian models, the speed is dis-
played in km/h.
5. Intelligent Cruise Control system warning light (orange):
The light comes on if there is a malfunction in
the ICC system.
Operating vehicle-to-vehicle distance
control mode
To turn on the cruise control, quickly push
and release the CRUISE ON/OFF switch
Aon.
The cruise indicator light, set distance indicator
and set vehicle speed indicator come on and in a
standby state for setting. To set cruising speed,
accelerate your vehicle
to the desired speed, push the COAST/SET
switch and release it. (Vehicle ahead detection
indicator, set distance indicator and set vehicle
speed indicatorBwill come on.) Take your foot
off the accelerator pedal. Your vehicle will main-
tain the set speed.
When the COAST/SET switch is pushed under
the following conditions, the system cannot be
set and the ICC indicators will blink for approxi-
mately 2 seconds:
● When traveling below 20 MPH (32 km/h)
and the vehicle ahead is not detected
LSD2120LSD2125
Starting and driving5-57

●When the shift selector not in the D (Drive)
or Manual mode
● When the parking brake is applied
● When the brakes are operated by the driver
When the COAST/SET switch is pushed under
the following conditions, the system cannot be
set.
A warning chime will sound and a message will
pop up. ● When the SNOW mode switch is ON (To
use the ICC system, turn off the SNOW
mode switch, push the CRUISE ON/OFF
switch to turn off the ICC and reset the ICC
switch by pressing the CRUISE ON/OFF
switch again.) For details about the SNOW
mode switch, see “Snow mode” in this sec-
tion.
● When the VDC system is off (To use the ICC
system, turn on the VDC system. Push the
CRUISE ON/OFF switch to turn off the ICC
system and reset the ICC switch by pushing
the CRUISE ON/OFF switch again.)
For details about the VDC system, see “Ve-
hicle Dynamic Control (VDC) system” in this
section.
● When ABS or VDC (including the traction
control system) is operating ●
When a wheel is slipping (To use the ICC
system, make sure the wheels are no longer
slipping. Push the CRUISE ON/OFF switch
to turn off the ICC, and reset the ICC system
by pushing the CRUISE ON/OFF switch
again.)

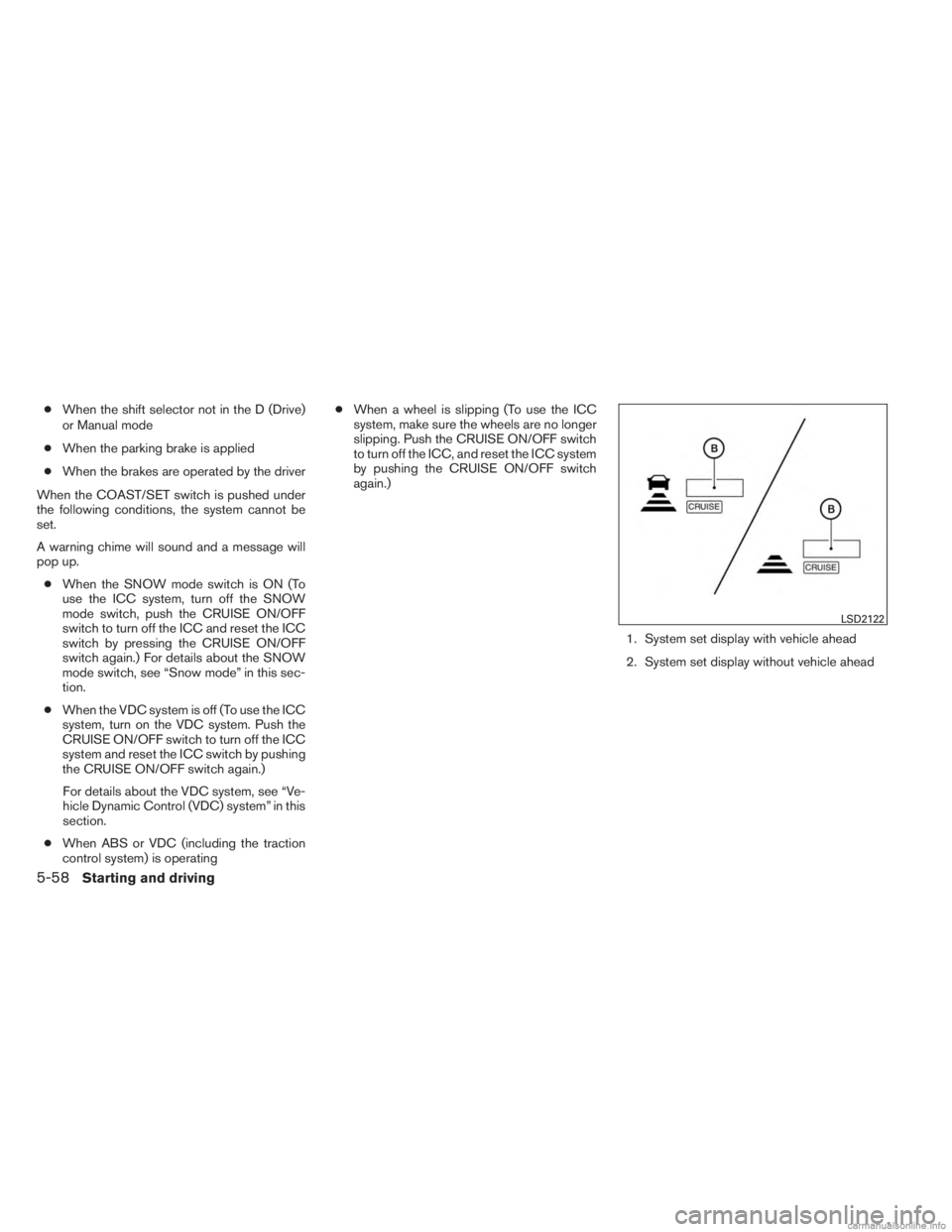

1. System set display with vehicle ahead
2. System set display without vehicle ahead
LSD2122
5-58Starting and driving

System operation
WARNING
Normally when controlling the distance to
a vehicle ahead, this system automatically
accelerates or decelerates your vehicle
according to the speed of the vehicle
ahead. Depress the accelerator to prop-
erly accelerate your vehicle when accel-
eration is required for a lane change. De-
press the brake pedal when deceleration
is required to maintain a safe distance to
the vehicle ahead due to its sudden brak-
ing or if a vehicle cuts in. Always stay alert
when using the ICC system.
The driver sets the desired vehicle speed based
on the road conditions. The ICC system main-
tains the set vehicle speed, similar to standard
cruise control, as long as no vehicle is detected in
the lane ahead.
The ICC system displays the set speed.
Vehicle detected ahead:
When a vehicle is detected in the lane ahead, the
ICC system decelerates the vehicle by control-
ling the throttle and applying the brakes to match
the speed of a slower vehicle ahead. The system then controls the vehicle speed based on the
speed of the vehicle ahead to maintain the driver
selected distance.
The stoplights of the vehicle come on when
breaking is performed by the ICC system.
When the brake operates, a noise may be
heard. This is not a malfunction.
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ICC
system will also display the set speed and se-
lected distance.
Vehicle ahead not detected:
When a vehicle is no longer detected ahead, the
ICC system gradually accelerates your vehicle to
resume the previously set vehicle speed. The ICC
system then maintains the set speed.
When a vehicle is no longer detected the vehicle
ahead detection indicator turns off.
If a vehicle ahead appears during acceleration to
the set vehicle speed or any time the ICC system
is in operation, the system controls the distance
to that vehicle.
When a vehicle is no longer detected under
approximately 15 MPH (24 km/h), the system will
be canceled.
When passing another vehicle,
the set speed
indicator
Bwill flash when the vehicle speed
exceeds the set speed. The vehicle detect indi-
cator will turn off when the area ahead of the
vehicle is open. When the pedal is released, the
vehicle will return to the previously set speed.
Even though your vehicle speed is set in the ICC
system, you can depress the accelerator pedal
when it is necessary to accelerate your vehicle
rapidly.
LSD2123
Starting and driving5-59

Distance Approximate distance at60 MPH (100 km/h) [ft (m)]
1. Long 180 (55)
2. Average 130 (40)
3. Short 80 (25)
● The distance to the vehicle ahead will
change according to the vehicle speed. The
higher the vehicle speed, the longer the dis-
tance.
● If the engine is stopped, the set distance
becomes “long”. (Each time the engine is
started, the initial setting becomes “long”.)
Approach warning
If your vehicle comes closer to the vehicle ahead
due to rapid deceleration of that vehicle or if
another vehicle cuts in, the system warns the
driver with the chime and ICC system display.
Decelerate by depressing the brake pedal to
maintain a safe vehicle distance if:
● The chime sounds.
● The vehicle ahead detection indicator blinks
in orange.
The warning chime may not sound in some cases
when there is a short distance between vehicles.
Some examples are: ● When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
● When the vehicle ahead is traveling faster
and the distance between vehicles is in-
creasing
● When a vehicle cuts in near your vehicle
The warning chime will not sound when: ● The vehicle approaches other vehicles that
are parked or moving slowly.
● The accelerator pedal is depressed, overrid-
ing the system. NOTE:
The approach warning chime may sound
and the system display may blink when the
ICC sensor detects objects on the side of
the vehicle
Aor on the side of the roadA.
This may cause the ICC system to deceler-
ate or accelerate the vehicle. The ICC sen-
sor may detect these objects when the ve-
hicle is driven on winding roads, narrow
roads, hilly roads, or when entering or exit-
ing a curve. In these cases you will have to
manually control the proper distance
ahead of your vehicle.
LSD2124SSD0284A
Starting and driving5-61

Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condition
(for example, if a vehicle is being driven with some
damage) .
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.● When the vehicle ahead is not detected and
your vehicle is traveling below the speed of
15 MPH (24 km/h)
● When the system judges the vehicle is at
standstill
● When the shift selector is not in the D or
Manual mode
● When the parking brake is applied
● When the SNOW mode switch is turned
ON
● When the VDC system is turned off
● When ABS or VDC (including the traction
control system) operates
● When the radar signal is temporarily inter-
rupted ●
When distance measurement becomes im-
paired due to adhesion of dirt or obstruction
to the sensor
● When a wheel slips
Warning light and display
Condition A:
Under the following conditions, the Intelligent
Cruise Control system is automatically canceled.
The chime will sound and the system will not be
able to be set.
● When the VDC system is turned off
● When the VDC or ABS (including the trac-
tion control system) operates
● When a tire slips
● When the SNOW mode switch is turned
ON
LSD2067
5-62Starting and driving

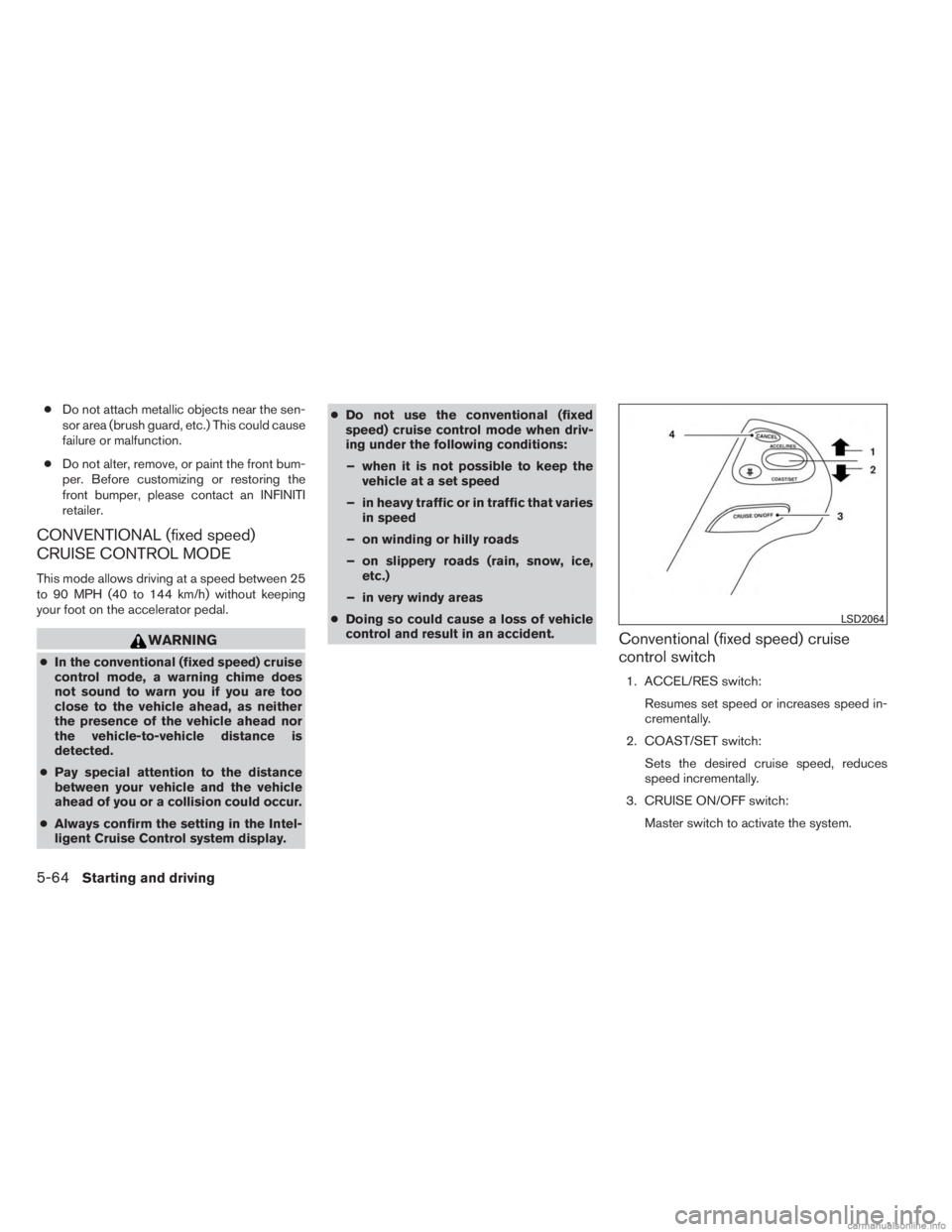

●Do not attach metallic objects near the sen-
sor area (brush guard, etc.) This could cause
failure or malfunction.
● Do not alter, remove, or paint the front bum-
per. Before customizing or restoring the
front bumper, please contact an INFINITI
retailer.
CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE
This mode allows driving at a speed between 25
to 90 MPH (40 to 144 km/h) without keeping
your foot on the accelerator pedal.
WARNING
●In the conventional (fixed speed) cruise
control mode, a warning chime does
not sound to warn you if you are too
close to the vehicle ahead, as neither
the presence of the vehicle ahead nor
the vehicle-to-vehicle distance is
detected.
● Pay special attention to the distance
between your vehicle and the vehicle
ahead of you or a collision could occur.
● Always confirm the setting in the Intel-
ligent Cruise Control system display. ●
Do not use the conventional (fixed
speed) cruise control mode when driv-
ing under the following conditions:
– when it is not possible to keep the vehicle at a set speed
– in heavy traffic or in traffic that varies in speed
– on winding or hilly roads
– on slippery roads (rain, snow, ice, etc.)
– in very windy areas
● Doing so could cause a loss of vehicle
control and result in an accident.
Conventional (fixed speed) cruise
control switch
1. ACCEL/RES switch:
Resumes set speed or increases speed in-
crementally.
2. COAST/SET switch: Sets the desired cruise speed, reduces
speed incrementally.
3. CRUISE ON/OFF switch: Master switch to activate the system.
LSD2064
5-64Starting and driving

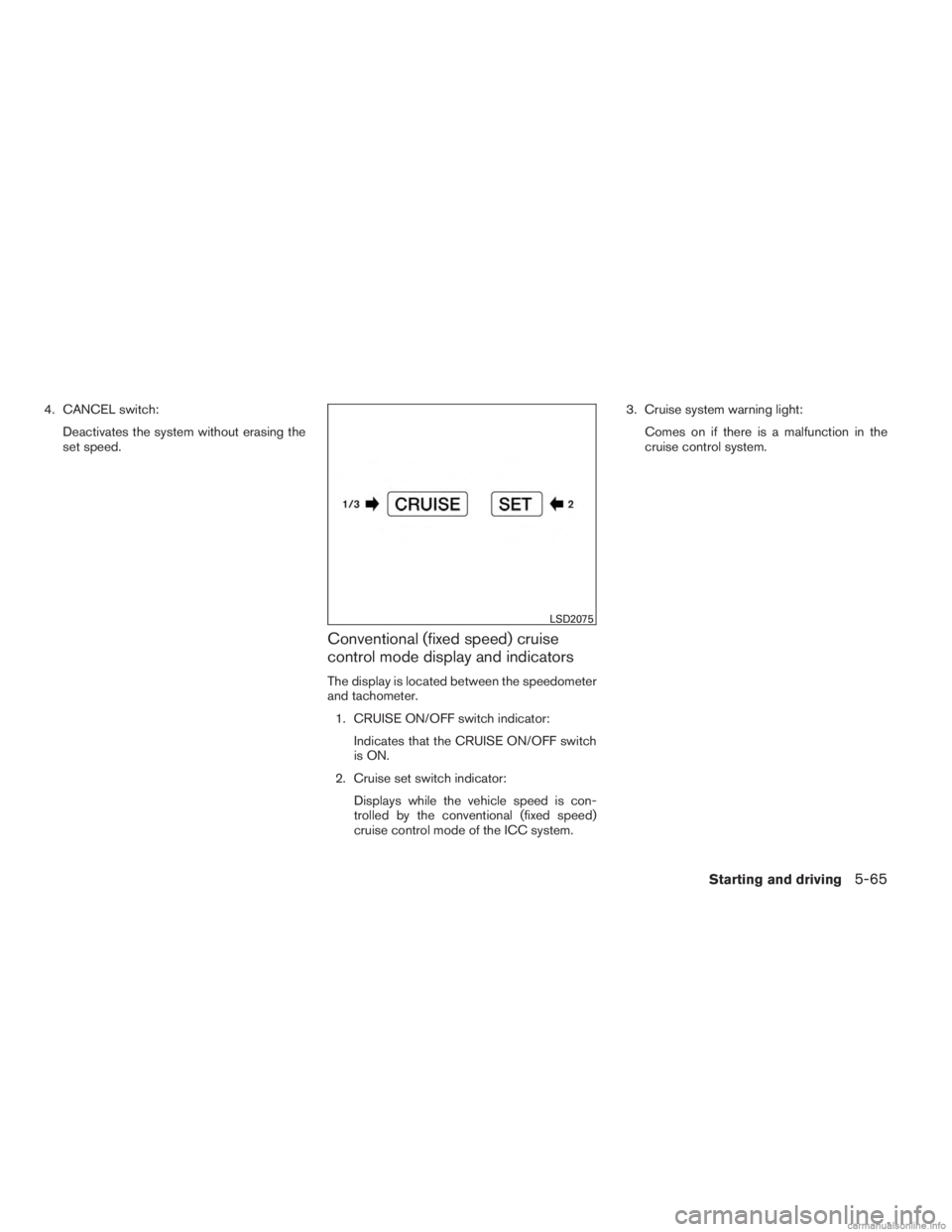

4. CANCEL switch:Deactivates the system without erasing the
set speed.
Conventional (fixed speed) cruise
control mode display and indicators
The display is located between the speedometer
and tachometer.1. CRUISE ON/OFF switch indicator: Indicates that the CRUISE ON/OFF switch
is ON.
2. Cruise set switch indicator: Displays while the vehicle speed is con-
trolled by the conventional (fixed speed)
cruise control mode of the ICC system. 3. Cruise system warning light:
Comes on if there is a malfunction in the
cruise control system.
LSD2075
Starting and driving5-65

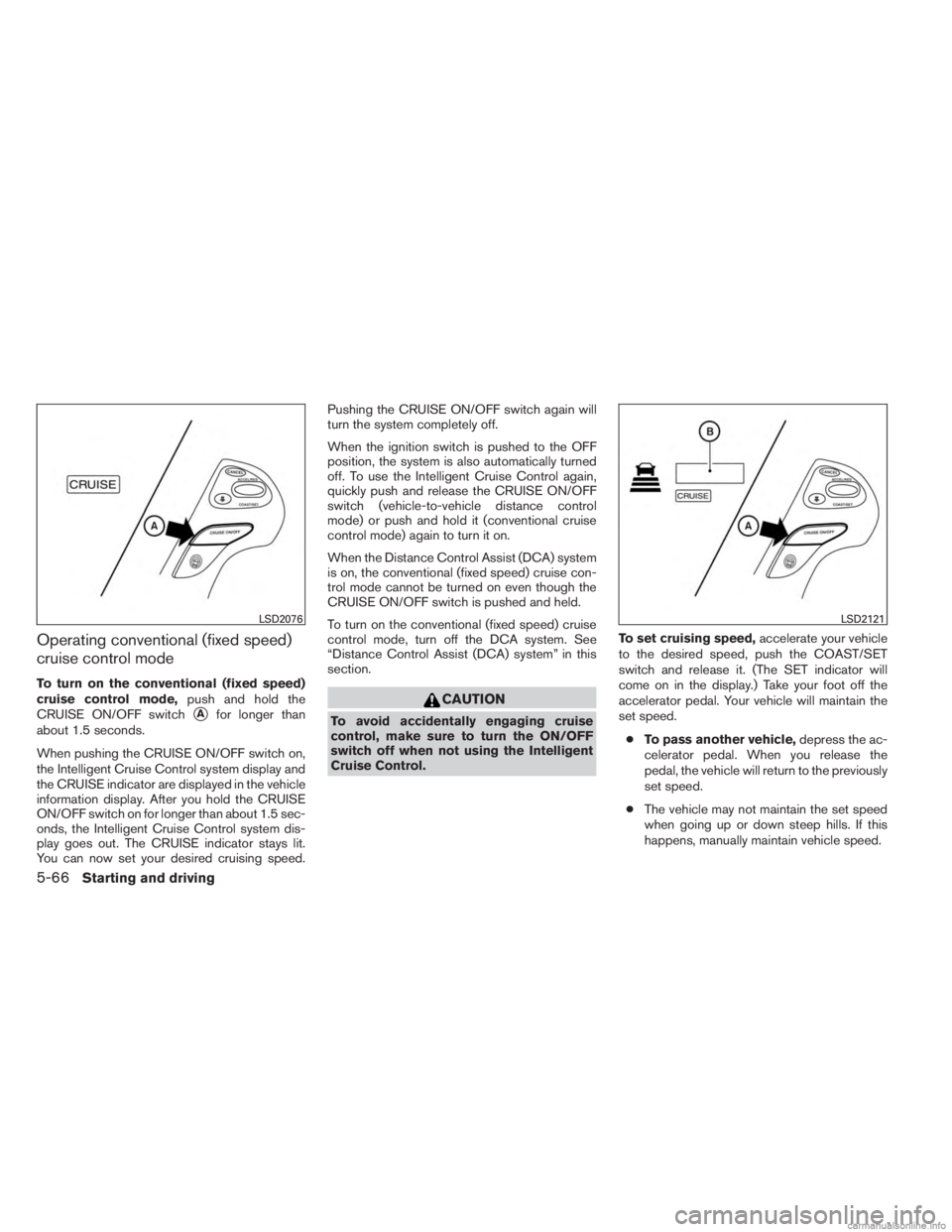

Operating conventional (fixed speed)
cruise control mode
To turn on the conventional (fixed speed)
cruise control mode,push and hold the
CRUISE ON/OFF switch
Afor longer than
about 1.5 seconds.
When pushing the CRUISE ON/OFF switch on,
the Intelligent Cruise Control system display and
the CRUISE indicator are displayed in the vehicle
information display. After you hold the CRUISE
ON/OFF switch on for longer than about 1.5 sec-
onds, the Intelligent Cruise Control system dis-
play goes out. The CRUISE indicator stays lit.
You can now set your desired cruising speed. Pushing the CRUISE ON/OFF switch again will
turn the system completely off.
When the ignition switch is pushed to the OFF
position, the system is also automatically turned
off. To use the Intelligent Cruise Control again,
quickly push and release the CRUISE ON/OFF
switch (vehicle-to-vehicle distance control
mode) or push and hold it (conventional cruise
control mode) again to turn it on.
When the Distance Control Assist (DCA) system
is on, the conventional (fixed speed) cruise con-
trol mode cannot be turned on even though the
CRUISE ON/OFF switch is pushed and held.
To turn on the conventional (fixed speed) cruise
control mode, turn off the DCA system. See
“Distance Control Assist (DCA) system” in this
section.CAUTION
To avoid accidentally engaging cruise
control, make sure to turn the ON/OFF
switch off when not using the Intelligent
Cruise Control.
To set cruising speed,
accelerate your vehicle
to the desired speed, push the COAST/SET
switch and release it. (The SET indicator will
come on in the display.) Take your foot off the
accelerator pedal. Your vehicle will maintain the
set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle will return to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, manually maintain vehicle speed.
LSD2076LSD2121
5-66Starting and driving
