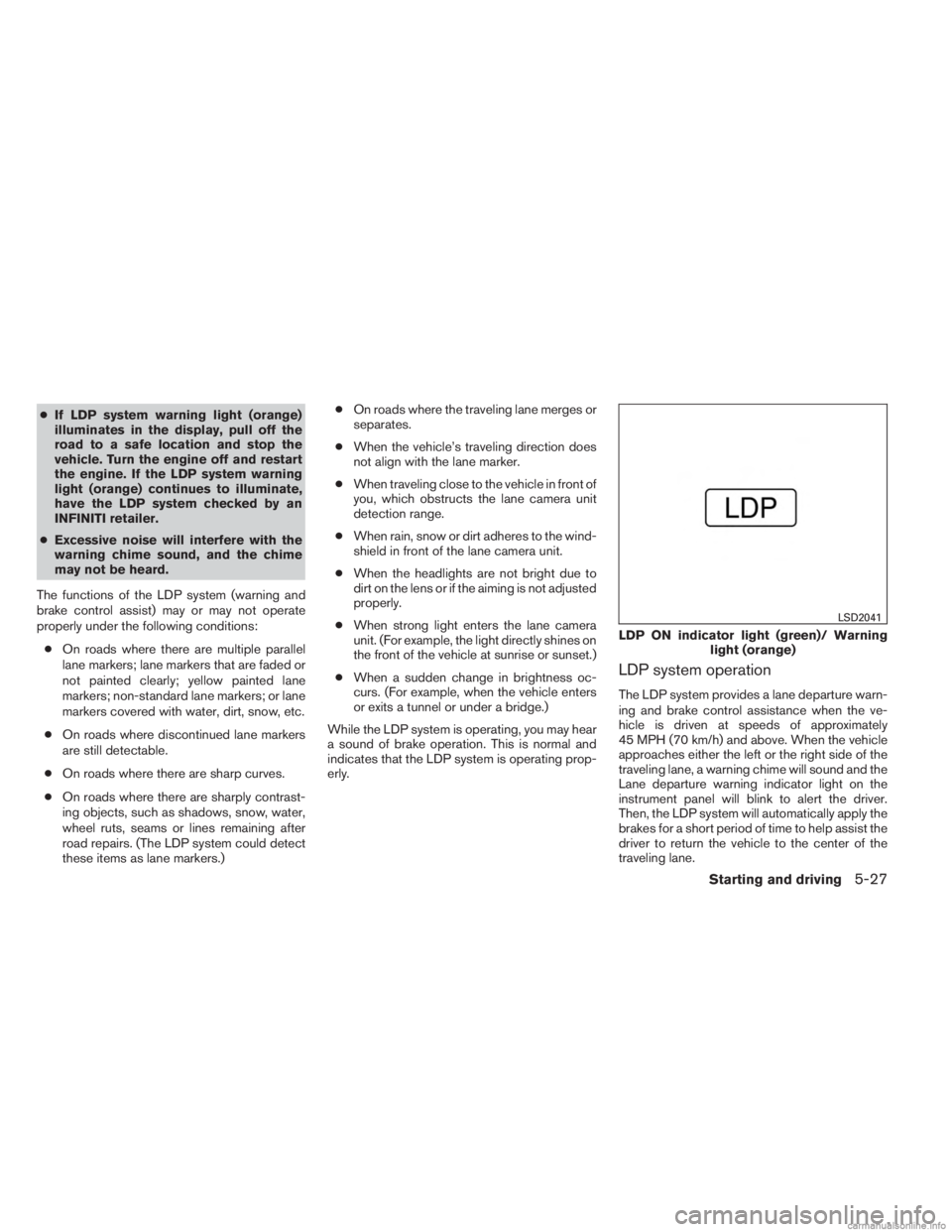

●If LDP system warning light (orange)
illuminates in the display, pull off the
road to a safe location and stop the
vehicle. Turn the engine off and restart
the engine. If the LDP system warning
light (orange) continues to illuminate,
have the LDP system checked by an
INFINITI retailer.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
The functions of the LDP system (warning and
brake control assist) may or may not operate
properly under the following conditions: ● On roads where there are multiple parallel
lane markers; lane markers that are faded or
not painted clearly; yellow painted lane
markers; non-standard lane markers; or lane
markers covered with water, dirt, snow, etc.
● On roads where discontinued lane markers
are still detectable.
● On roads where there are sharp curves.
● On roads where there are sharply contrast-
ing objects, such as shadows, snow, water,
wheel ruts, seams or lines remaining after
road repairs. (The LDP system could detect
these items as lane markers.) ●
On roads where the traveling lane merges or
separates.
● When the vehicle’s traveling direction does
not align with the lane marker.
● When traveling close to the vehicle in front of
you, which obstructs the lane camera unit
detection range.
● When rain, snow or dirt adheres to the wind-
shield in front of the lane camera unit.
● When the headlights are not bright due to
dirt on the lens or if the aiming is not adjusted
properly.
● When strong light enters the lane camera
unit. (For example, the light directly shines on
the front of the vehicle at sunrise or sunset.)
● When a sudden change in brightness oc-
curs. (For example, when the vehicle enters
or exits a tunnel or under a bridge.)
While the LDP system is operating, you may hear
a sound of brake operation. This is normal and
indicates that the LDP system is operating prop-
erly.
LDP system operation
The LDP system provides a lane departure warn-
ing and brake control assistance when the ve-
hicle is driven at speeds of approximately
45 MPH (70 km/h) and above. When the vehicle
approaches either the left or the right side of the
traveling lane, a warning chime will sound and the
Lane departure warning indicator light on the
instrument panel will blink to alert the driver.
Then, the LDP system will automatically apply the
brakes for a short period of time to help assist the
driver to return the vehicle to the center of the
traveling lane.
LDP ON indicator light (green)/ Warning light (orange)
LSD2041
Starting and driving5-27

The warning and assist functions will stop when
the vehicle returns to a position inside of the lane
marker.To turn on the LDP system, push the dynamic
driver assistance switch on the steering wheel
after starting the engine. The LDP ON indicator
light (green) on the instrument panel will illumi-
nate. Push the dynamic driver assistance switch
again to turn off the LDP system. The LDP ON
indicator light will turn off.
How to enable/disable the LDP system1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button. 2. Select “Driver Aids”, and press the ENTER
button.
3. To set the LDP system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Lane” and press the ENTER but-
ton.
– To turn on the warning, use the ENTER button to check box for Warning (LDW)”
– To turn on the system, use the ENTER button to check box for “Assistance
(LDP)”
Automatic deactivation
Condition A:
The warning and assist functions of the LDP
system are not designed to work under the fol-
lowing conditions:
● When you operate the lane change signal
and change the traveling lanes in the direc-
tion of the signal. (The LDP system will be
deactivated for approximately 2 seconds af-
ter the lane change signal is turned off.)
● When the vehicle speed lowers to less than
approximately 45 MPH (70 km/h).
Dynamic driver assistance switch
LSD2039
5-28Starting and driving

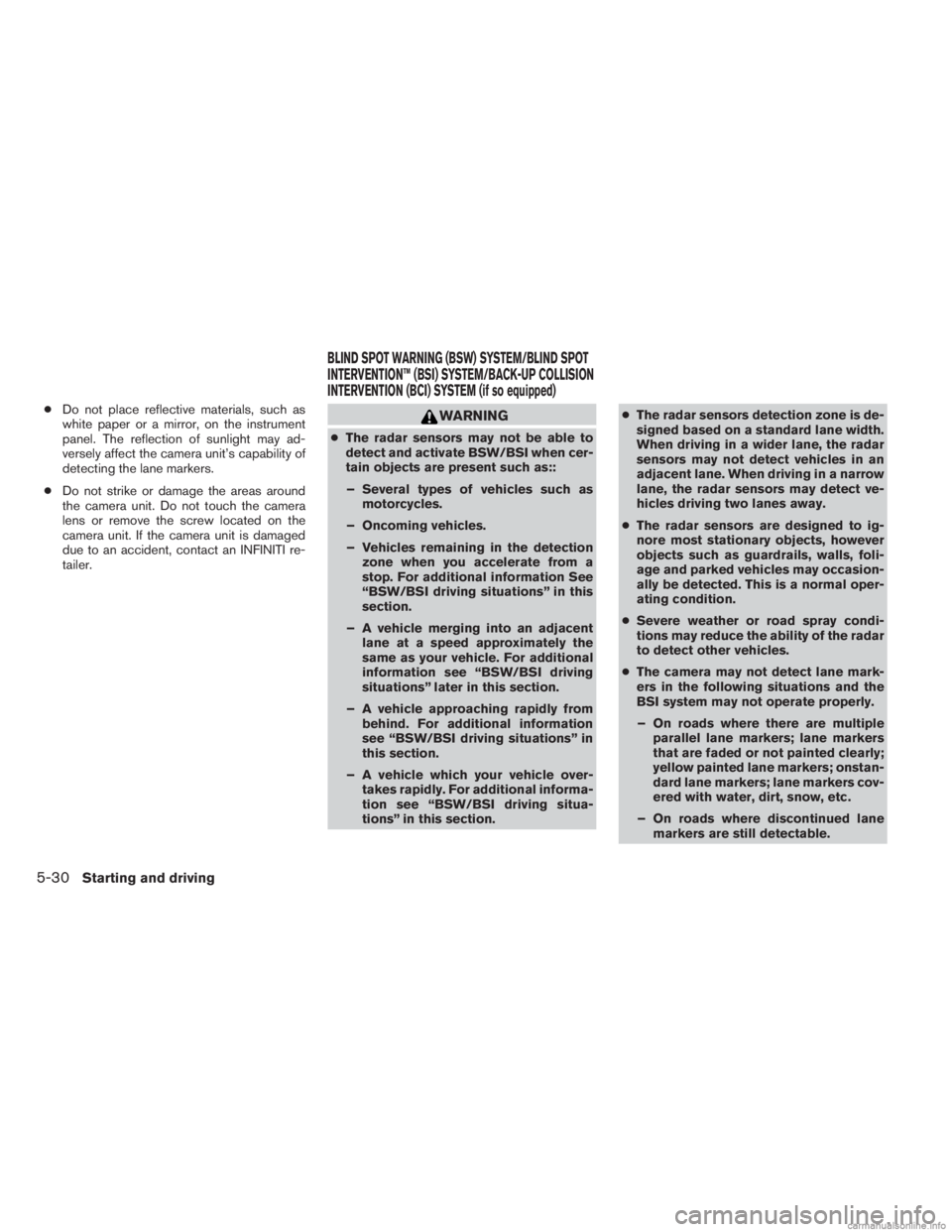

●Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability of
detecting the lane markers.
● Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. If the camera unit is damaged
due to an accident, contact an INFINITI re-
tailer.WARNING
●The radar sensors may not be able to
detect and activate BSW/BSI when cer-
tain objects are present such as::
– Several types of vehicles such as motorcycles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone when you accelerate from a
stop. For additional information See
“BSW/BSI driving situations” in this
section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information see “BSW/BSI driving
situations” later in this section.
– A vehicle approaching rapidly from behind. For additional information
see “BSW/BSI driving situations” in
this section.
– A vehicle which your vehicle over- takes rapidly. For additional informa-
tion see “BSW/BSI driving situa-
tions” in this section. ●
The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an
adjacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
● The radar sensors are designed to ig-
nore most stationary objects, however
objects such as guardrails, walls, foli-
age and parked vehicles may occasion-
ally be detected. This is a normal oper-
ating condition.
● Severe weather or road spray condi-
tions may reduce the ability of the radar
to detect other vehicles.
● The camera may not detect lane mark-
ers in the following situations and the
BSI system may not operate properly.
– On roads where there are multiple parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; onstan-
dard lane markers; lane markers cov-
ered with water, dirt, snow, etc.
– On roads where discontinued lane markers are still detectable.
BLIND SPOT WARNING (BSW) SYSTEM/BLIND SPOT
INTERVENTION™ (BSI) SYSTEM/BACK-UP COLLISION
INTERVENTION (BCI) SYSTEM (if so equipped)
5-30Starting and driving

The BSW system automatically turns on every
time the engine is started, as long as it is acti-
vated using the settings menu on the meter dis-
play.
When the warning systems switch is turned off,
the indicator
1on the switch is off. The indicator
will also be off if the BSW, the Lane Departure
Warning (LDW) and the Forward Collision Warn-
ing (FCW) systems are deactivated.
How to enable/disable the BSW
system
Perform the following steps to enable or disable
the BSW system. 1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER button.
3. To set the BSW system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “Warning (BSW)”
– To turn on the system, use the ENTER button to check box for “Assistance
(BSI)”
– Use the ENTER button to toggle through the brightness choices — “Bright / STD
/Dark”
BSW temporarily not available
When the “Unavailable Side Radar Obstruction”
message will appear in the meter display, a chime
will sound, the warning systems switch indicator
will blink and the BSW system will be not avail-
able. When the above condition no longer exist, the
BSW system will resume automatically. For addi-
tional information, see “Side radar maintenance”
in this section.
BSW malfunction
When the BSW system malfunctions, the system
will turn off automatically, a chime will sound and
the “Please see owner’s manual” will appear in
the meter display.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the message contin-
ues to appear, have the system checked by an
INFINITI retailer.
LSD2015
Starting and driving5-35

1. Press thebutton until “Settings” dis-
plays in the vehicle information display. Use
the
to select “Driver Assistance”.
Then press the ENTER button.
2. Select “Driver Aids”, and press the ENTER button.
3. To set the BSI system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button. – To turn on the warning, use the ENTER
button to check box for “Warning (BSW)”
– To turn on the system, use the ENTER button to check box for “Assistance
(BSI)”
– Use the ENTER button to toggle through the brightness choices — “Bright / STD
/Dark”
BSI temporarily not available
When any of the following messages appear on
the meter display, a chime will sound and the BSI
system will be turned off automatically.
● “Unavailable Road is slippery” :
When the VDC system (except traction con-
trol system function) or ABS operates.
● “Unavailable VDC OFF” :
When the VDC system is turned off.
● “Unavailable Snow mode active” :
When the drive mode select switch is turned
to the SNOW mode.
● “Unavailable High Cabin Temp. ” :
When the camera detects that the interior
temperature is high (over approximately
104°F (40°C)) .
● “Unavailable Side Radar Obstruction” :
When side radar blockage is detected. Turn off the BSI system and turn it on again when
the above conditions no longer exist.
BSI malfunction
When the BSI system malfunctions, it will be
turned off automatically, a chime will sound and
the BSI system warning light (orange) will illumi-
nate.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
(orange) continues to illuminate, have the system
checked by an INFINITI retailer.
SSD0938
Starting and driving5-37

2. Select “Back-up Collision Interv.”, and pressthe ENTER button.
3. To set the BCI system to on or off, use the
buttons to navigate in the menu
and use the ENTER button to select or
change an item.
BCI temporarily not available
When the following message is appeared on the
meter display, a chime will sound, the BCI system
will be turned off automatically.
● “Unavailable High Accelarator Temp. ” :
When the accelerator pedal actuator de-
tects that the internal motor temperature is
high (over approximately 212°F (100°C)) .
● “Unavailable Side Radar Obstruction” :
When side radar blockage is detected.
Turn off the BCI system and turn it on again when
the above conditions no longer exist.
BCI malfunction
When the BCI system malfunction, they will be
turned off automatically, a chime will sound and
the BCI system warning light (orange) will illumi-
nate.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
(orange) continues to illuminate, have the system
checked by an INFINITI retailer.
BSW/BSI DRIVING SITUATIONS
Another vehicle approaching from
behind
LSD2046SSD1026
Starting and driving5-41

NOTE:
If you accelerate from a stop with a vehicle
in the detection zone, the other vehicle may
not be detected.Overtaking other vehicles
The Blind spot warning indicator light illuminates
if you overtake a vehicle and that vehicle stays in
the detection zone for approximately 3 seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly.If the driver activates the turn signal while another
vehicle is in the detection zone, then the system
chimes a sound (twice) and the Blind spot warn-
ing indicator light flashes.
SSD1032SSD1033SSD1034
Starting and driving5-43

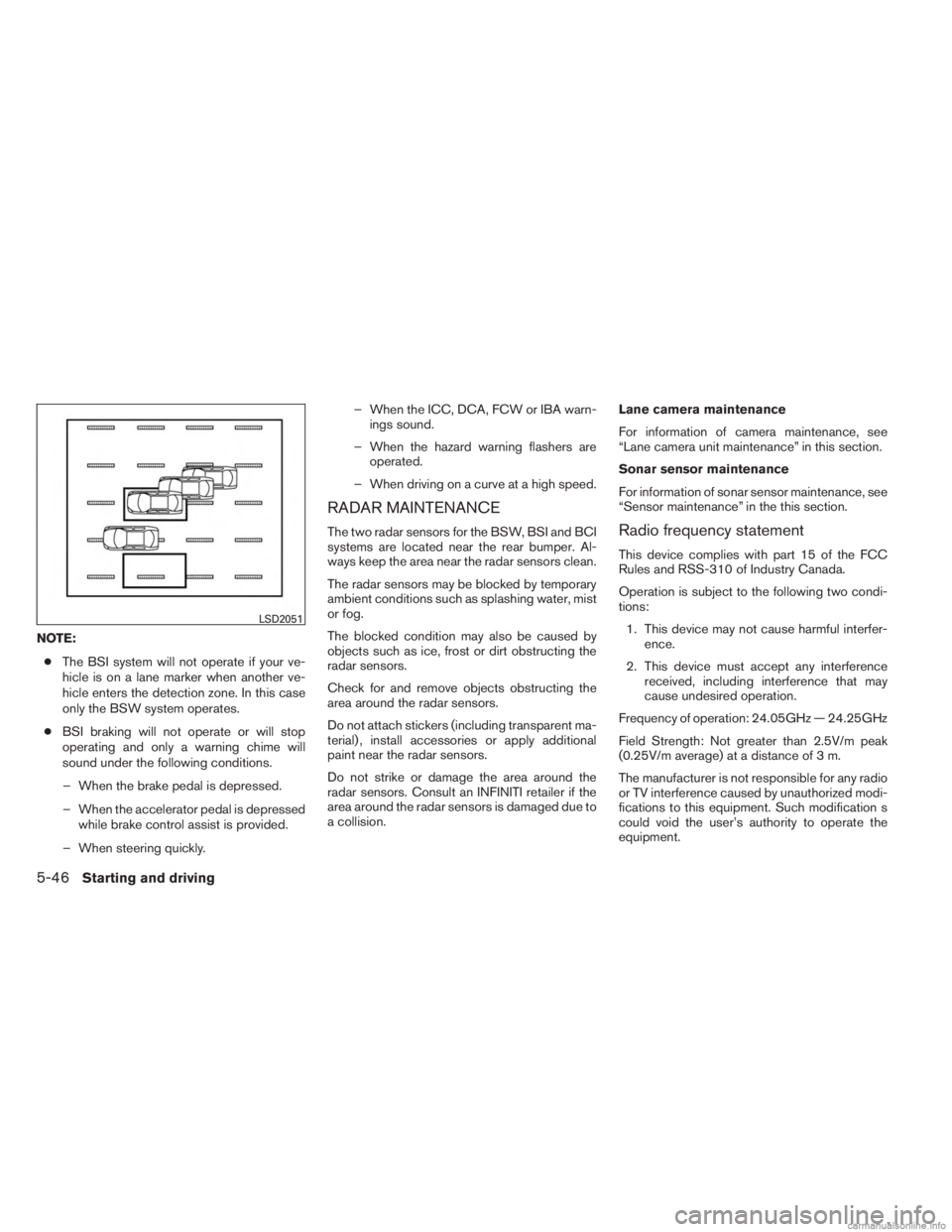

NOTE:● The BSI system will not operate if your ve-
hicle is on a lane marker when another ve-
hicle enters the detection zone. In this case
only the BSW system operates.
● BSI braking will not operate or will stop
operating and only a warning chime will
sound under the following conditions.
– When the brake pedal is depressed.
– When the accelerator pedal is depressed while brake control assist is provided.
– When steering quickly. – When the ICC, DCA, FCW or IBA warn-
ings sound.
– When the hazard warning flashers are operated.
– When driving on a curve at a high speed.
RADAR MAINTENANCE
The two radar sensors for the BSW, BSI and BCI
systems are located near the rear bumper. Al-
ways keep the area near the radar sensors clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. Consult an INFINITI retailer if the
area around the radar sensors is damaged due to
a collision. Lane camera maintenance
For information of camera maintenance, see
“Lane camera unit maintenance” in this section.
Sonar sensor maintenance
For information of sonar sensor maintenance, see
“Sensor maintenance” in the this section.Radio frequency statement
This device complies with part 15 of the FCC
Rules and RSS-310 of Industry Canada.
Operation is subject to the following two condi-
tions:
1. This device may not cause harmful interfer- ence.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Frequency of operation: 24.05GHz — 24.25GHz
Field Strength: Not greater than 2.5V/m peak
(0.25V/m average) at a distance of 3 m.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modi-
fications to this equipment. Such modification s
could void the user’s authority to operate the
equipment.
LSD2051
5-46Starting and driving

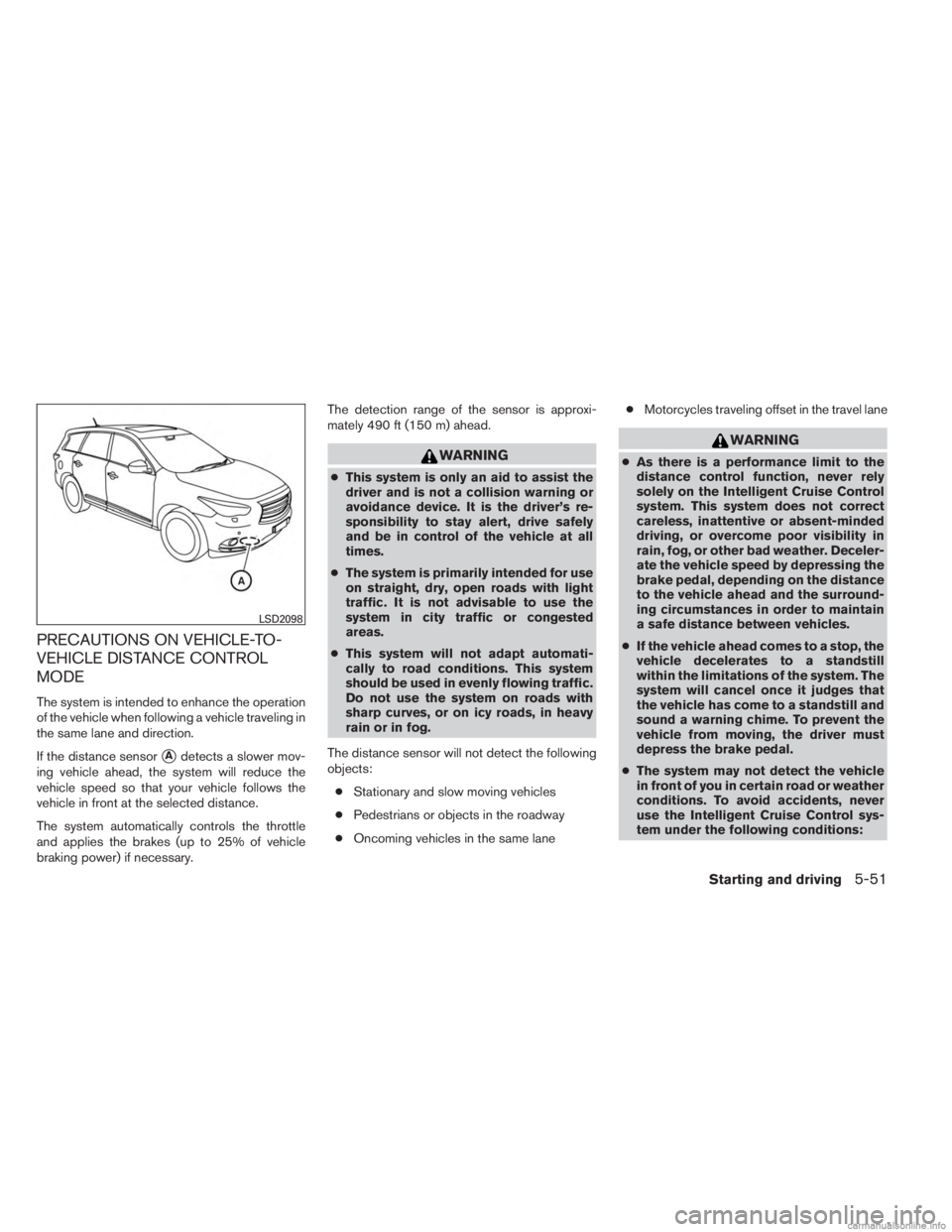

PRECAUTIONS ON VEHICLE-TO-
VEHICLE DISTANCE CONTROL
MODE
The system is intended to enhance the operation
of the vehicle when following a vehicle traveling in
the same lane and direction.
If the distance sensor
Adetects a slower mov-
ing vehicle ahead, the system will reduce the
vehicle speed so that your vehicle follows the
vehicle in front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to 25% of vehicle
braking power) if necessary. The detection range of the sensor is approxi-
mately 490 ft (150 m) ahead.
WARNING
●
This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
● The system is primarily intended for use
on straight, dry, open roads with light
traffic. It is not advisable to use the
system in city traffic or congested
areas.
● This system will not adapt automati-
cally to road conditions. This system
should be used in evenly flowing traffic.
Do not use the system on roads with
sharp curves, or on icy roads, in heavy
rain or in fog.
The distance sensor will not detect the following
objects: ● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane ●
Motorcycles traveling offset in the travel lane
WARNING
●As there is a performance limit to the
distance control function, never rely
solely on the Intelligent Cruise Control
system. This system does not correct
careless, inattentive or absent-minded
driving, or overcome poor visibility in
rain, fog, or other bad weather. Deceler-
ate the vehicle speed by depressing the
brake pedal, depending on the distance
to the vehicle ahead and the surround-
ing circumstances in order to maintain
a safe distance between vehicles.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill
within the limitations of the system. The
system will cancel once it judges that
the vehicle has come to a standstill and
sound a warning chime. To prevent the
vehicle from moving, the driver must
depress the brake pedal.
● The system may not detect the vehicle
in front of you in certain road or weather
conditions. To avoid accidents, never
use the Intelligent Cruise Control sys-
tem under the following conditions:
LSD2098
Starting and driving5-51

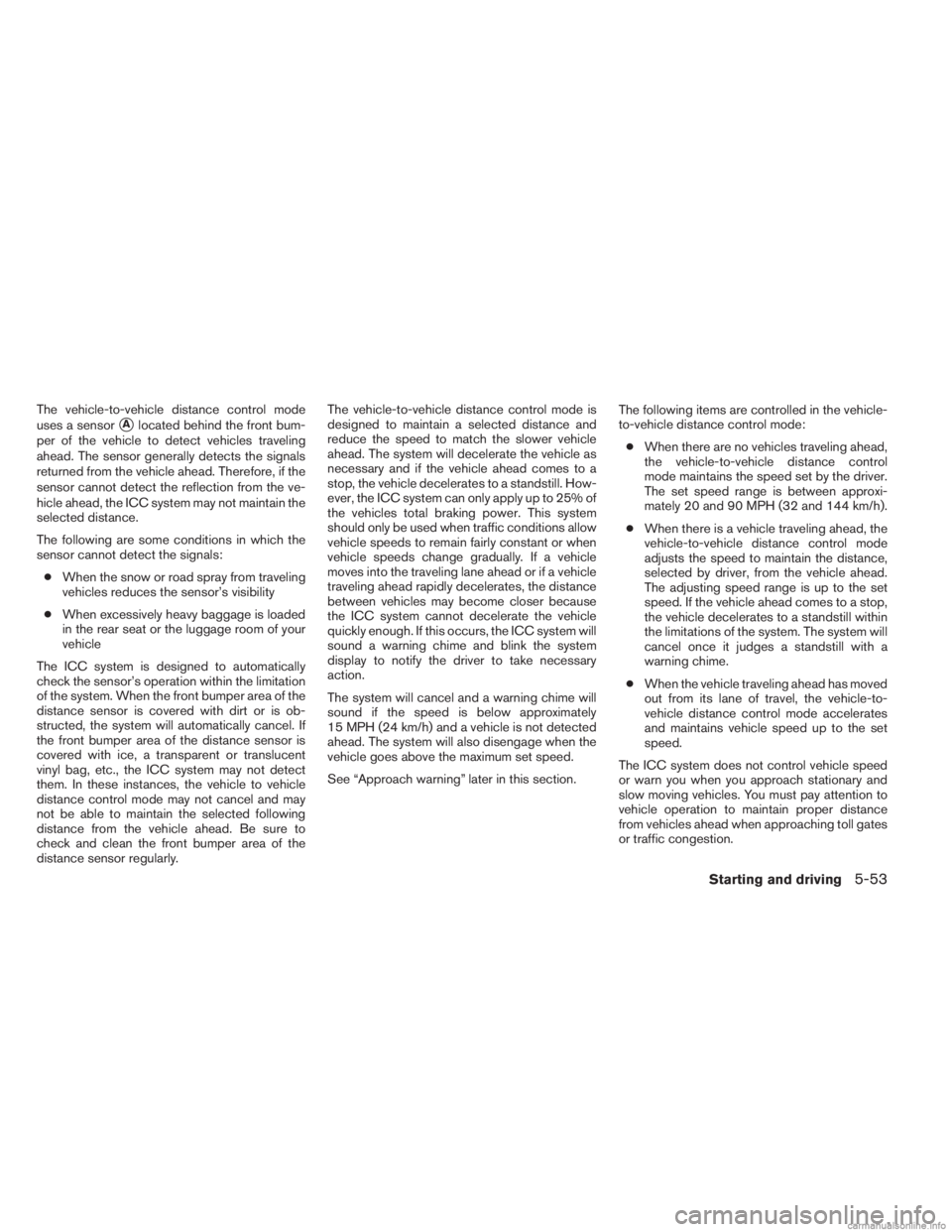

The vehicle-to-vehicle distance control mode
uses a sensor
Alocated behind the front bum-
per of the vehicle to detect vehicles traveling
ahead. The sensor generally detects the signals
returned from the vehicle ahead. Therefore, if the
sensor cannot detect the reflection from the ve-
hicle ahead, the ICC system may not maintain the
selected distance.
The following are some conditions in which the
sensor cannot detect the signals:
● When the snow or road spray from traveling
vehicles reduces the sensor’s visibility
● When excessively heavy baggage is loaded
in the rear seat or the luggage room of your
vehicle
The ICC system is designed to automatically
check the sensor’s operation within the limitation
of the system. When the front bumper area of the
distance sensor is covered with dirt or is ob-
structed, the system will automatically cancel. If
the front bumper area of the distance sensor is
covered with ice, a transparent or translucent
vinyl bag, etc., the ICC system may not detect
them. In these instances, the vehicle to vehicle
distance control mode may not cancel and may
not be able to maintain the selected following
distance from the vehicle ahead. Be sure to
check and clean the front bumper area of the
distance sensor regularly. The vehicle-to-vehicle distance control mode is
designed to maintain a selected distance and
reduce the speed to match the slower vehicle
ahead. The system will decelerate the vehicle as
necessary and if the vehicle ahead comes to a
stop, the vehicle decelerates to a standstill. How-
ever, the ICC system can only apply up to 25% of
the vehicles total braking power. This system
should only be used when traffic conditions allow
vehicle speeds to remain fairly constant or when
vehicle speeds change gradually. If a vehicle
moves into the traveling lane ahead or if a vehicle
traveling ahead rapidly decelerates, the distance
between vehicles may become closer because
the ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system will
sound a warning chime and blink the system
display to notify the driver to take necessary
action.
The system will cancel and a warning chime will
sound if the speed is below approximately
15 MPH (24 km/h) and a vehicle is not detected
ahead. The system will also disengage when the
vehicle goes above the maximum set speed.
See “Approach warning” later in this section.
The following items are controlled in the vehicle-
to-vehicle distance control mode:
● When there are no vehicles traveling ahead,
the vehicle-to-vehicle distance control
mode maintains the speed set by the driver.
The set speed range is between approxi-
mately 20 and 90 MPH (32 and 144 km/h).
● When there is a vehicle traveling ahead, the
vehicle-to-vehicle distance control mode
adjusts the speed to maintain the distance,
selected by driver, from the vehicle ahead.
The adjusting speed range is up to the set
speed. If the vehicle ahead comes to a stop,
the vehicle decelerates to a standstill within
the limitations of the system. The system will
cancel once it judges a standstill with a
warning chime.
● When the vehicle traveling ahead has moved
out from its lane of travel, the vehicle-to-
vehicle distance control mode accelerates
and maintains vehicle speed up to the set
speed.
The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll gates
or traffic congestion.
Starting and driving5-53
